Most modern electronics hide their inner workings behind microchips and software. You press a button, something happens, but you never see the electrical signals at work. This astable multivibrator kit is different. It lets you see, touch, and understand exactly how electrical signals behave in real time.

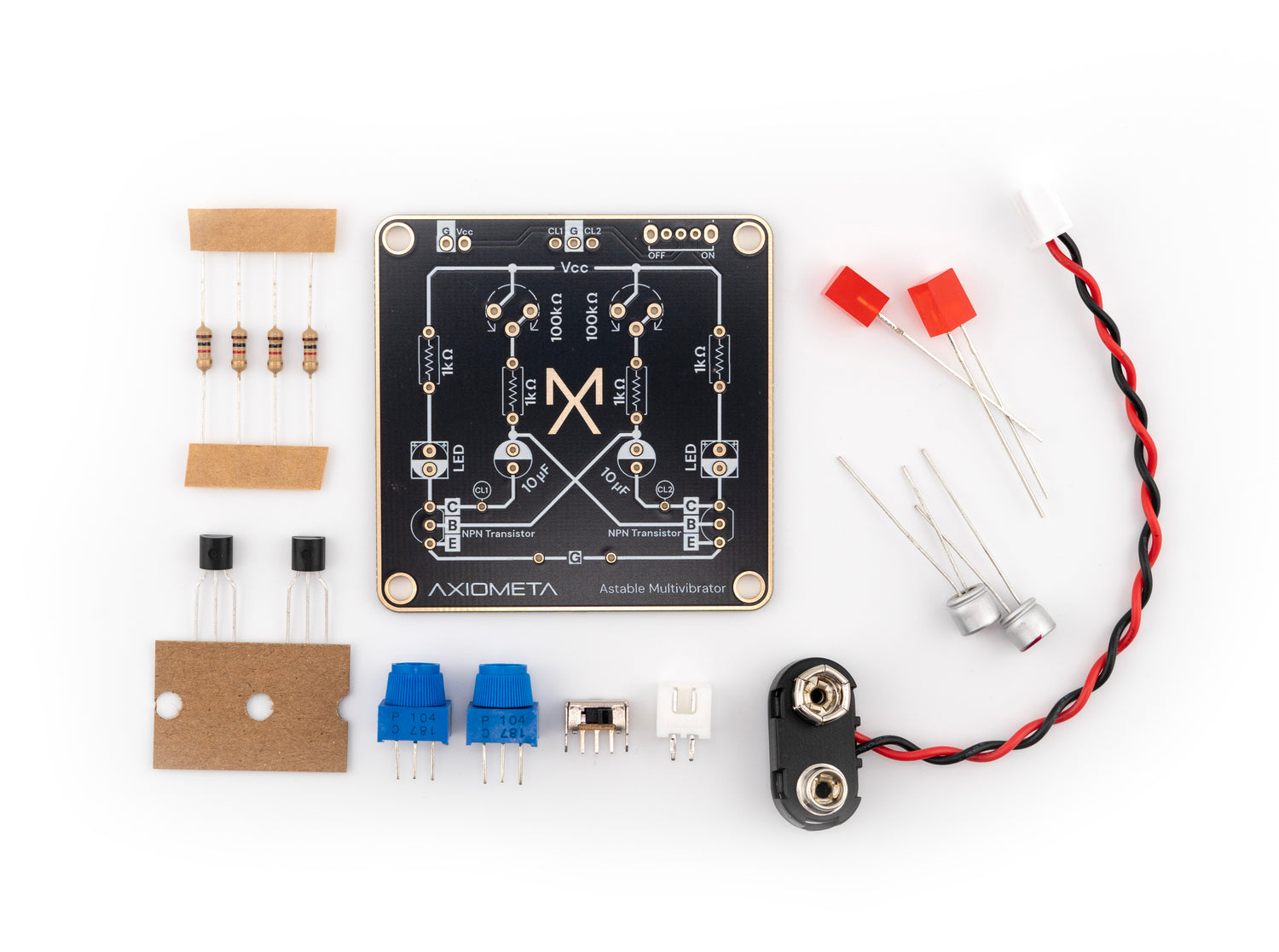

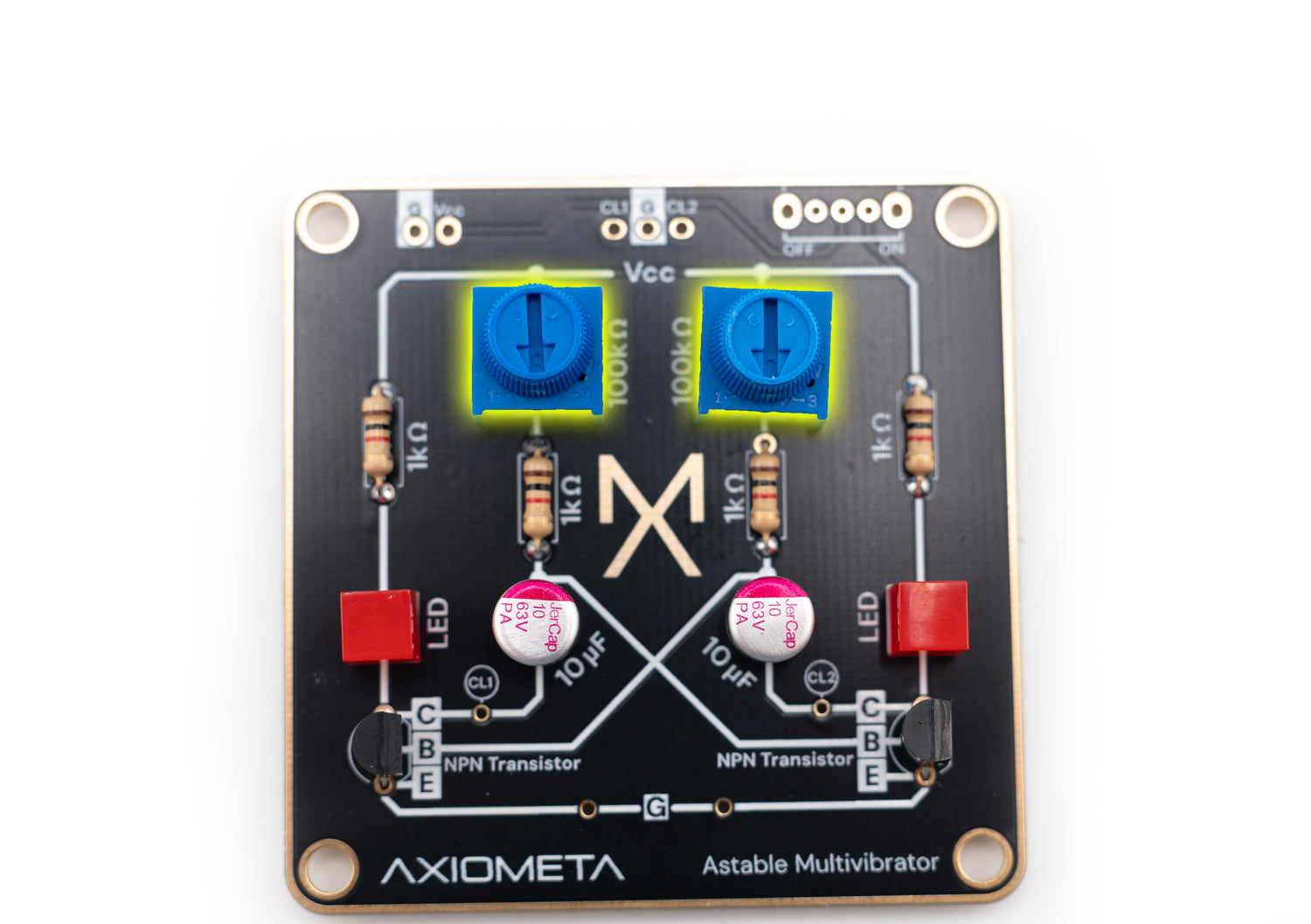

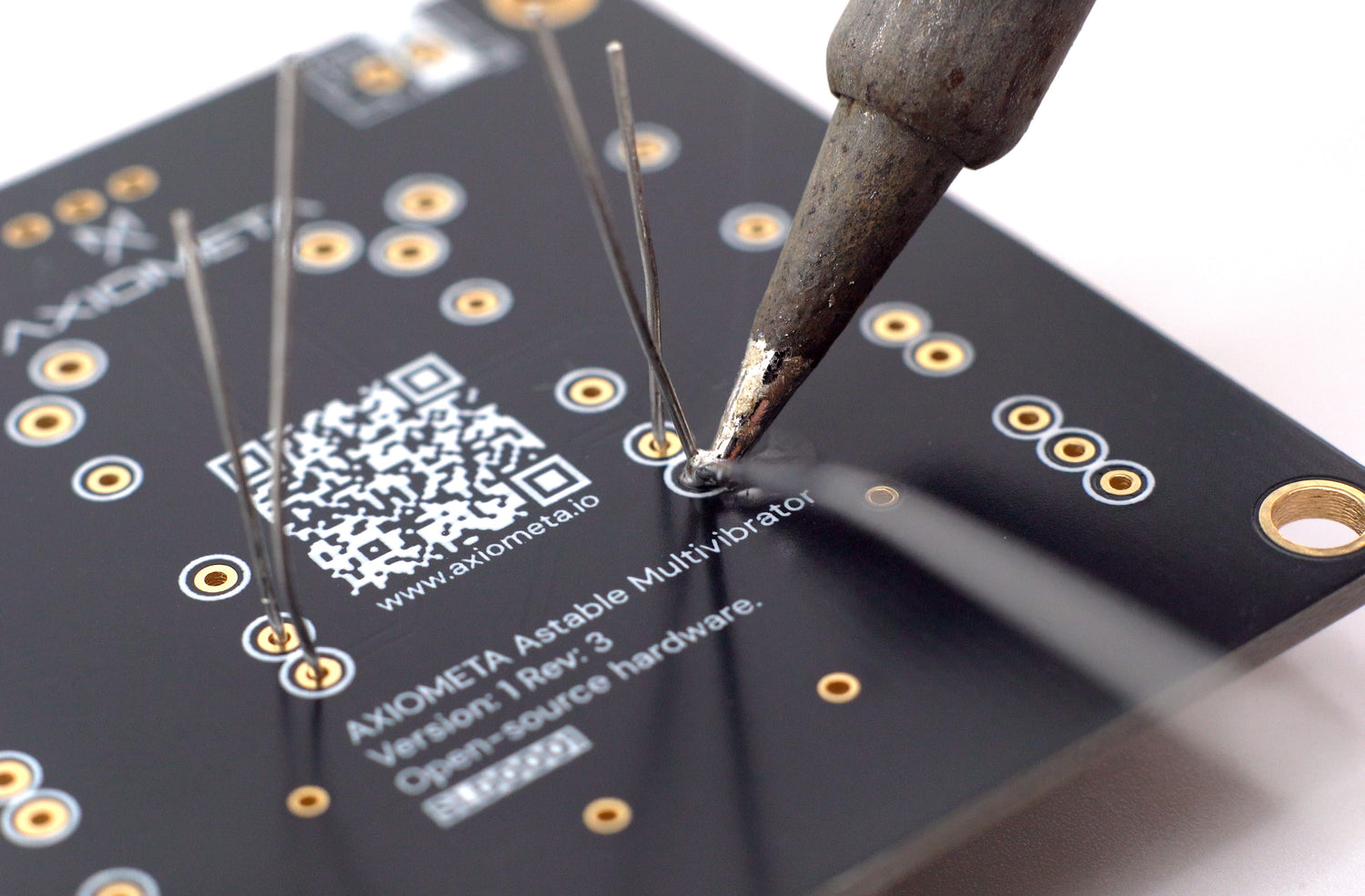

This beginner-friendly electronics kit teaches you how circuits work by turning basic components into a mesmerizing light show: two LEDs that blink back and forth, powered by nothing more than resistors, capacitors, and transistors. No programming. No microcontroller. Just pure analog electronics.

The name "astable multivibrator" comes from early analog electronics terminology and perfectly describes how this circuit operates:

Breaking Down the Name:

• "Astable" means "not stable." Unlike circuits that settle into one steady state, an astable multivibrator has no resting position. It continuously switches back and forth between two conditions, creating an endless oscillating cycle. Each transistor alternately turns the other off and on.
• "Multivibrator" refers to how the circuit output vibrates (oscillates) between two voltage levels. Back in the 1930s before "oscillator" became the standard term engineers called circuits that generated pulses or oscillations "vibrators." The prefix "multi" indicates the circuit produces multiple alternating states.

In simple terms: An astable multivibrator is a self-switching circuit that continuously flips between two unstable states, producing a square-wave output that makes LEDs blink.

Step-by-Step Operation

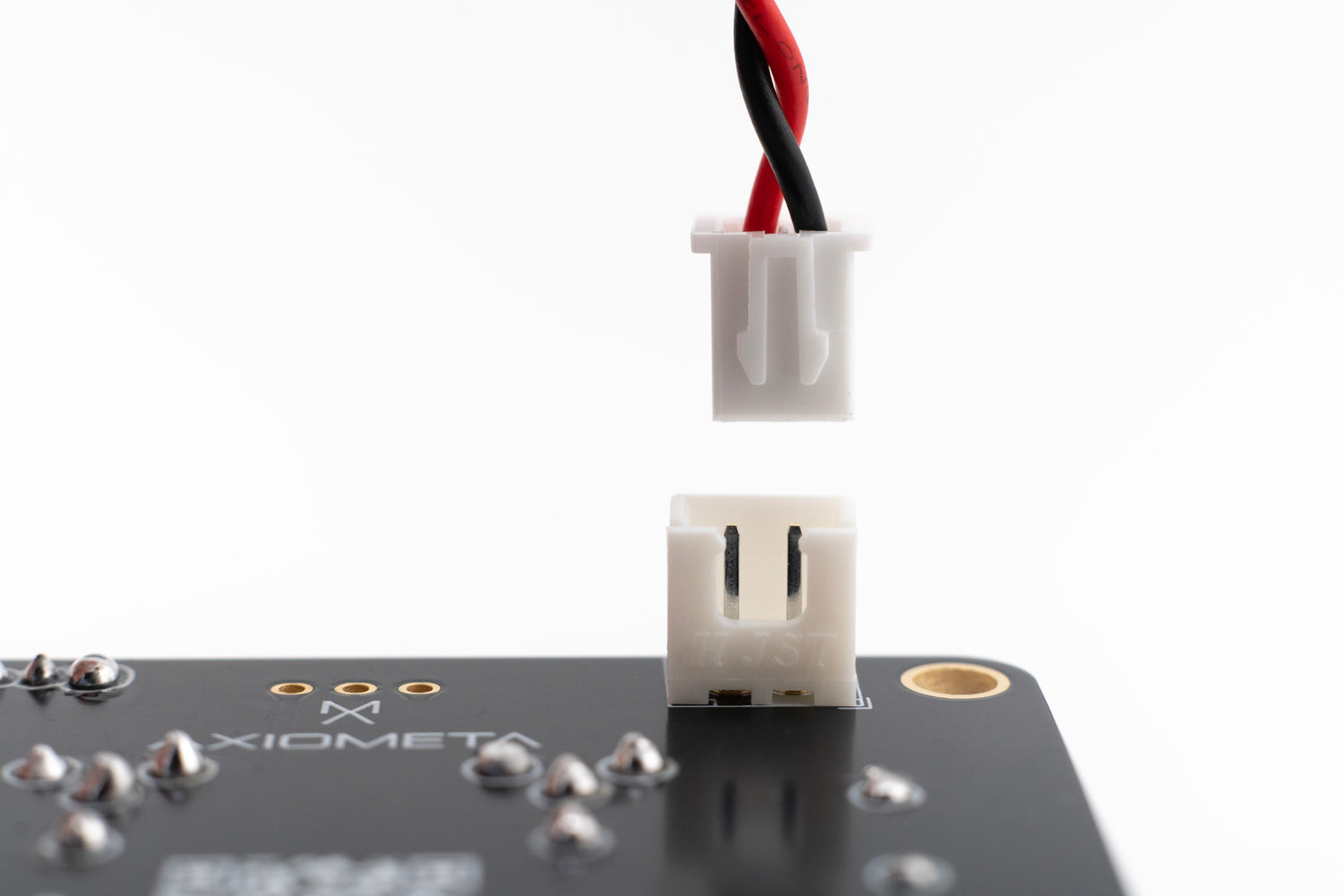

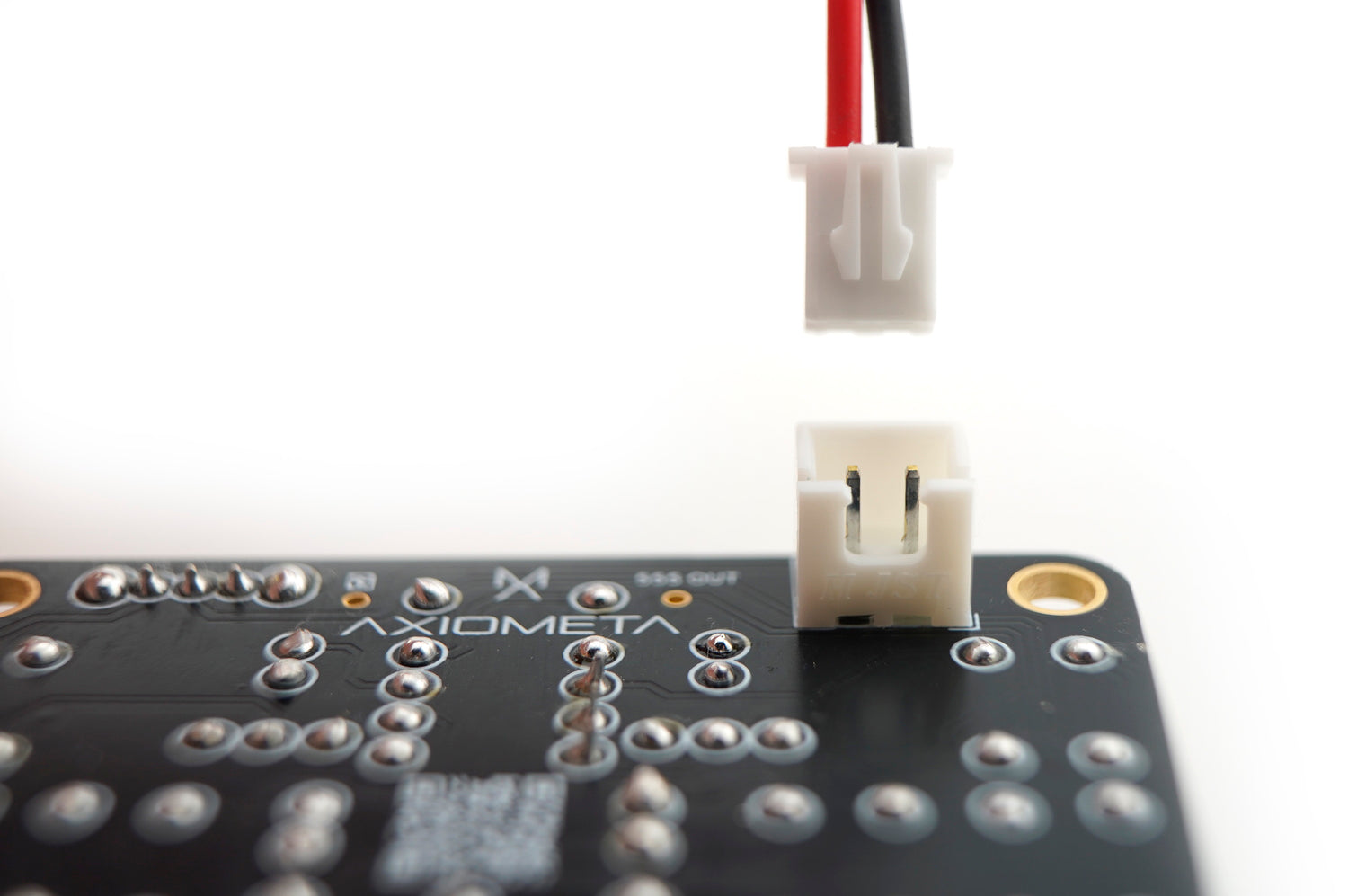

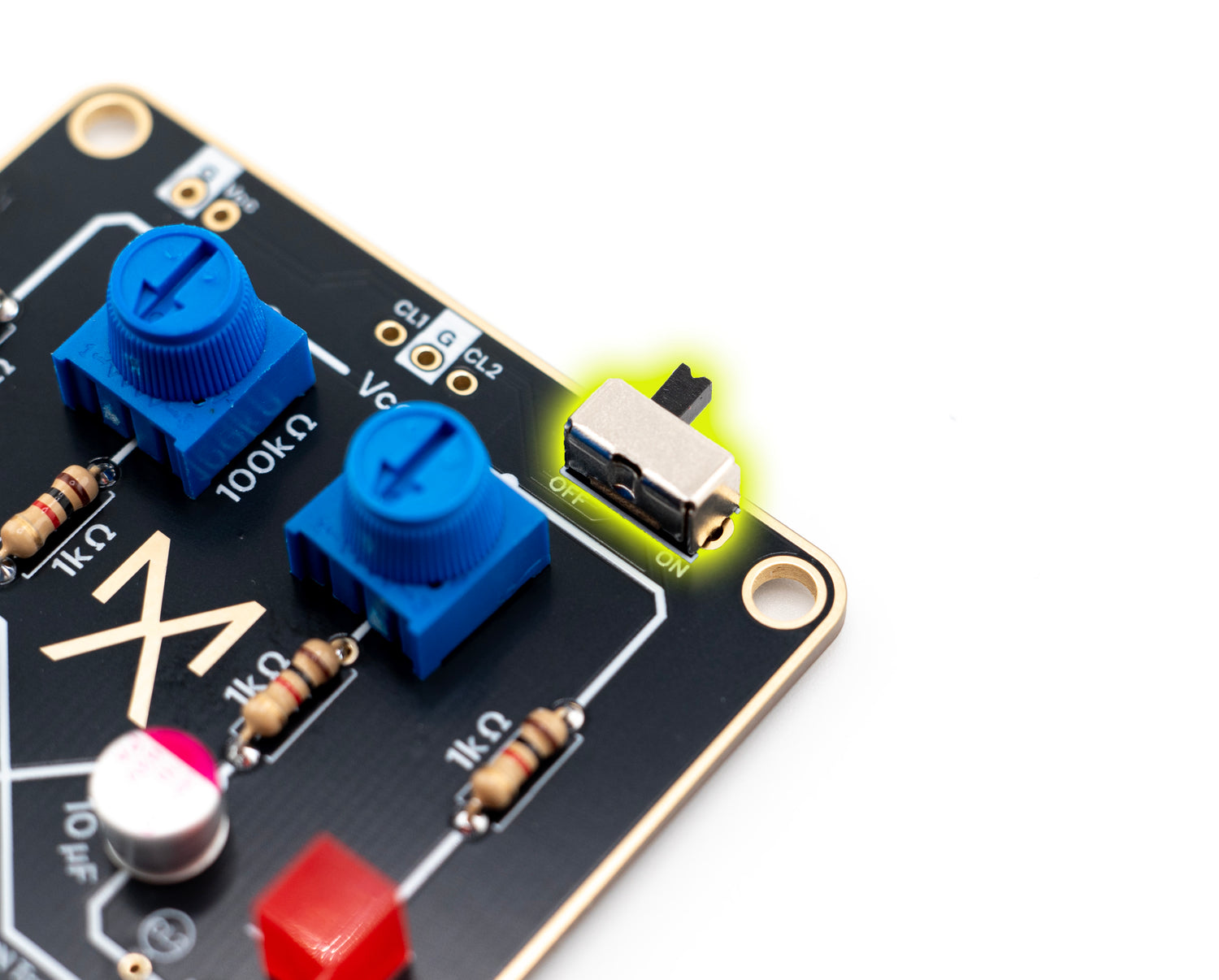

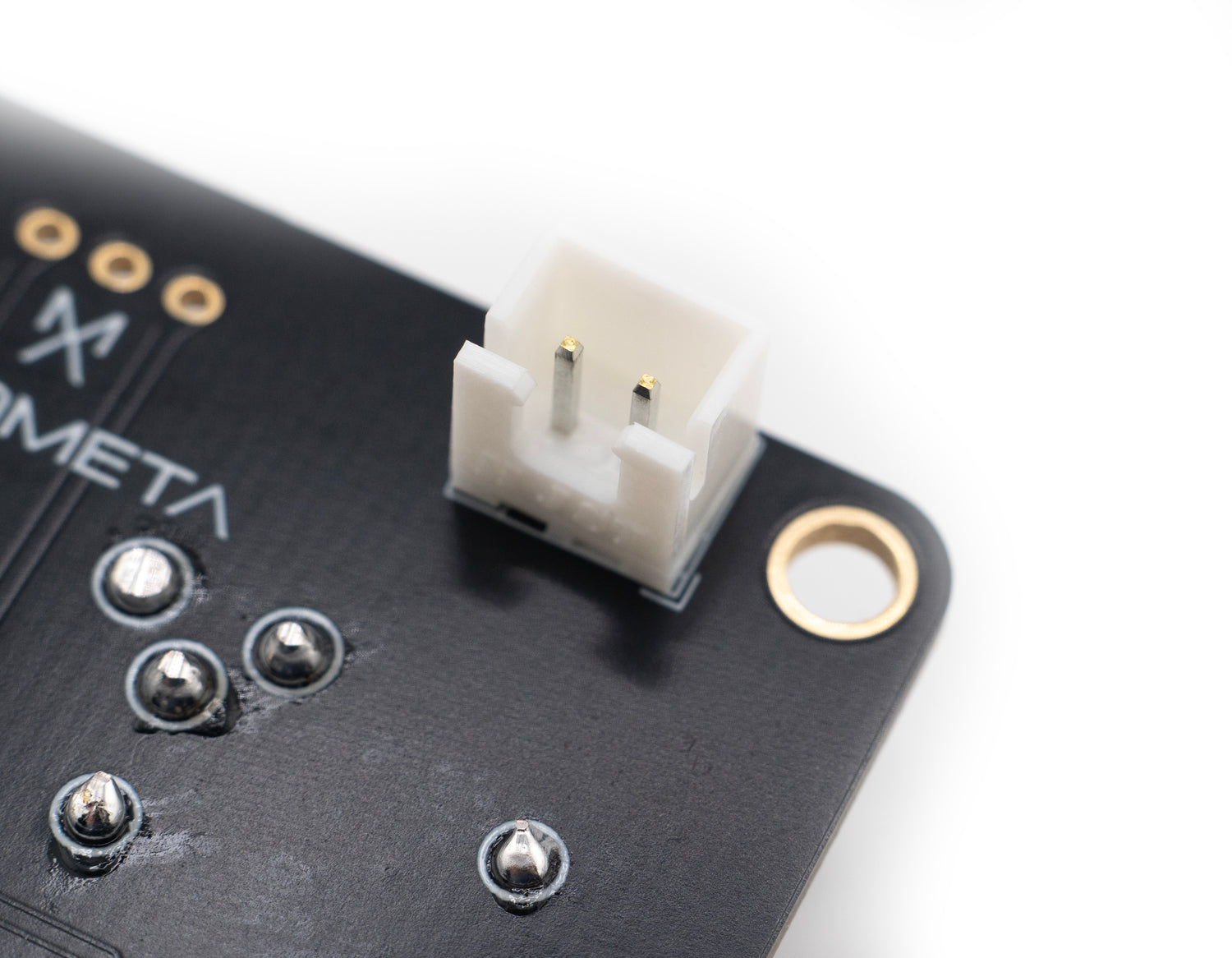

Power-Up: When you first connect the 9V battery, both transistors receive voltage through their base resistors, and both want to turn on simultaneously. However, real-world components aren't perfectly identical one transistor will always react slightly faster. Let's say the left transistor (Q1) turns on first.

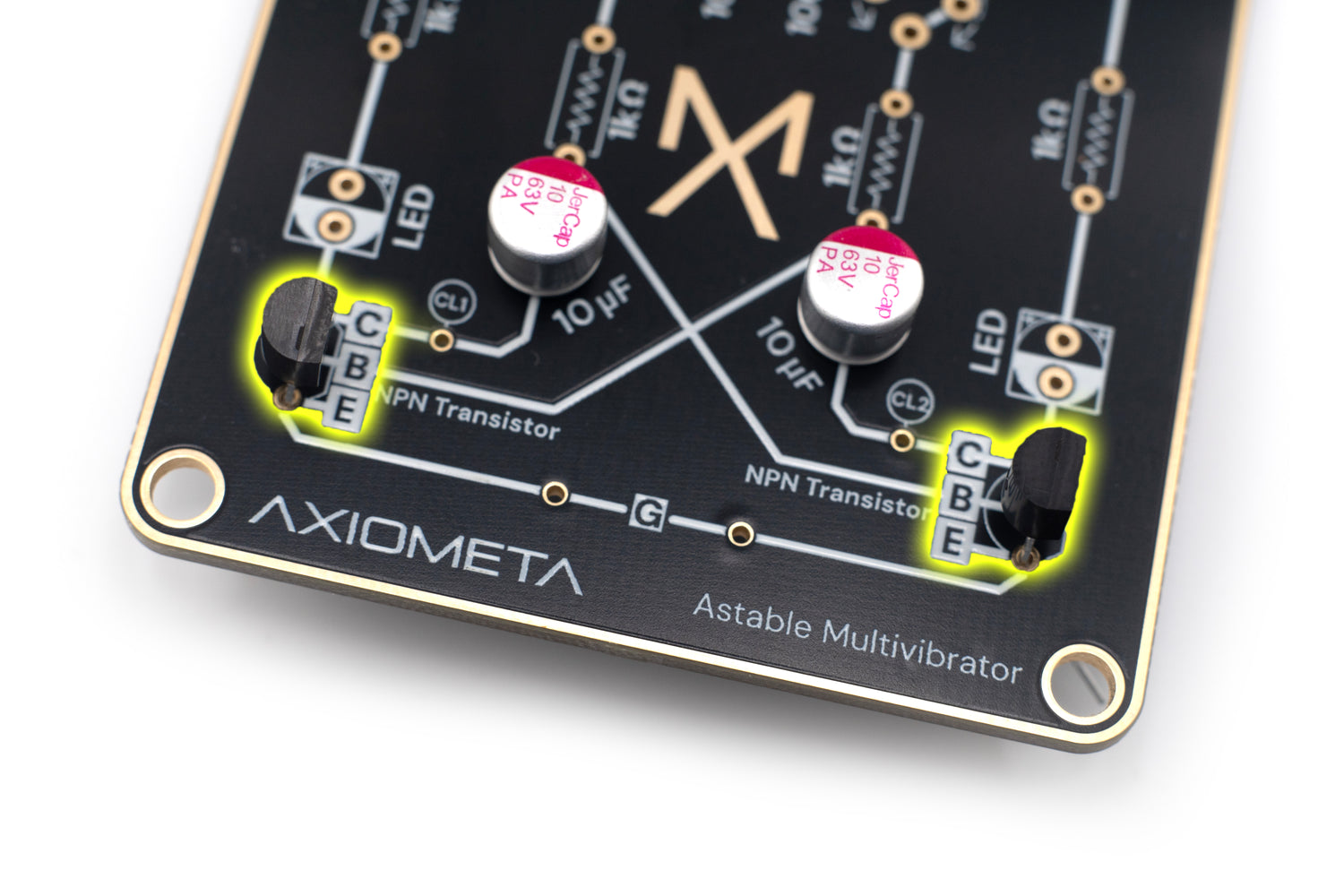

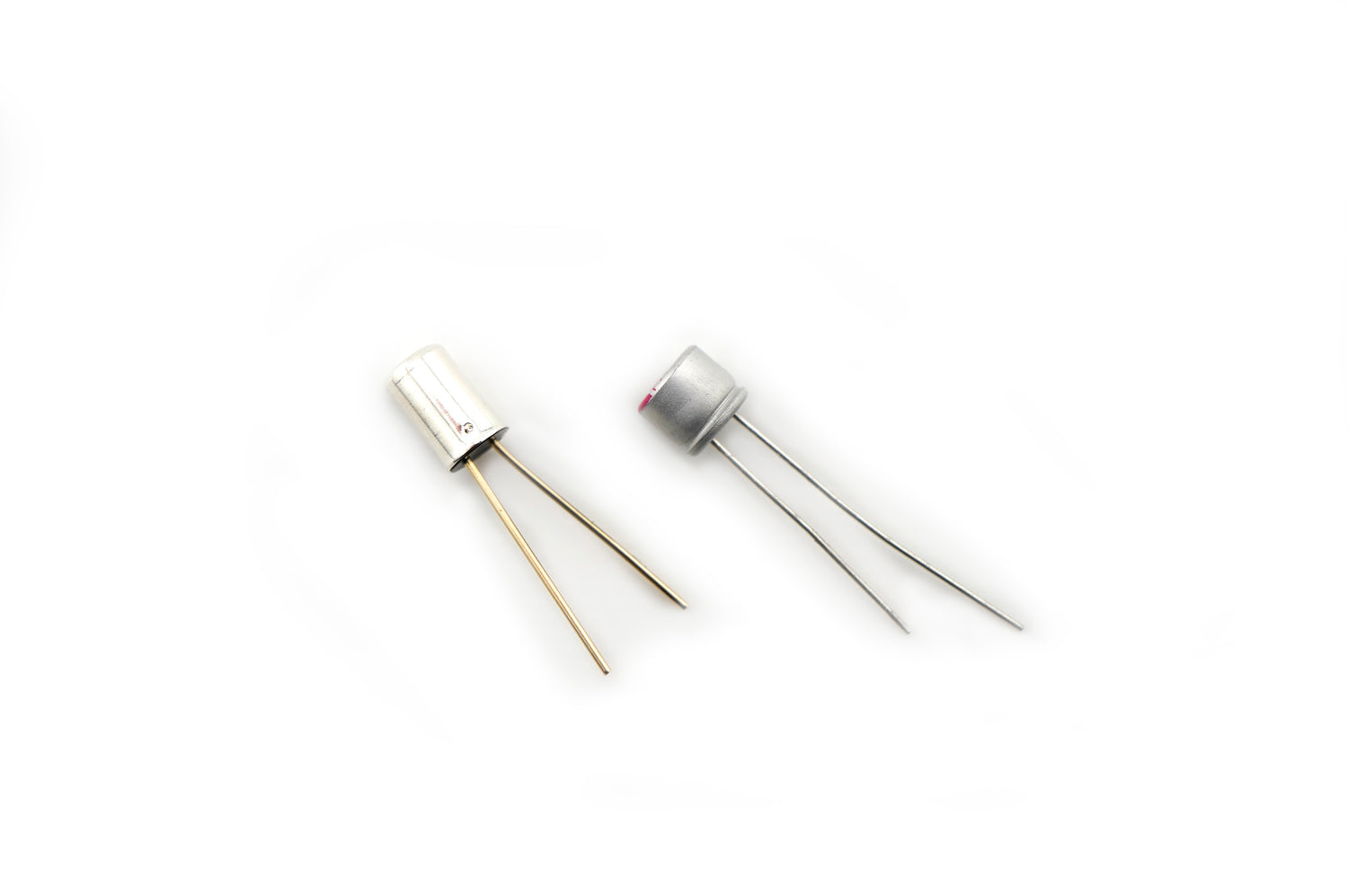

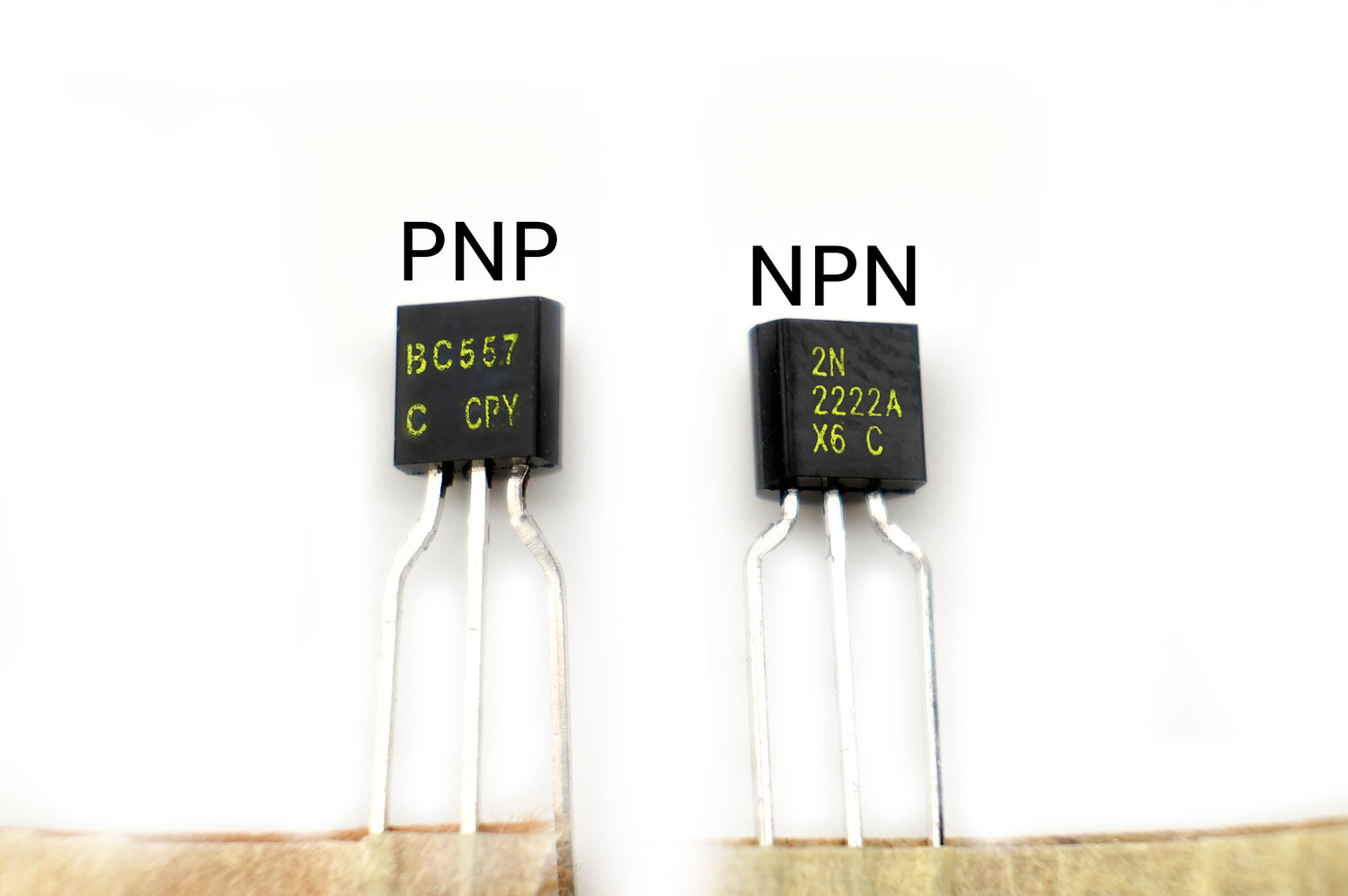

• Q1 Turns On: Current flows through Q1's LED and resistor, lighting up the LED. Inside the transistor, the collector voltage drops close to 0V as current conducts directly to ground. This low collector voltage connects through a capacitor to the base of the right transistor (Q2).

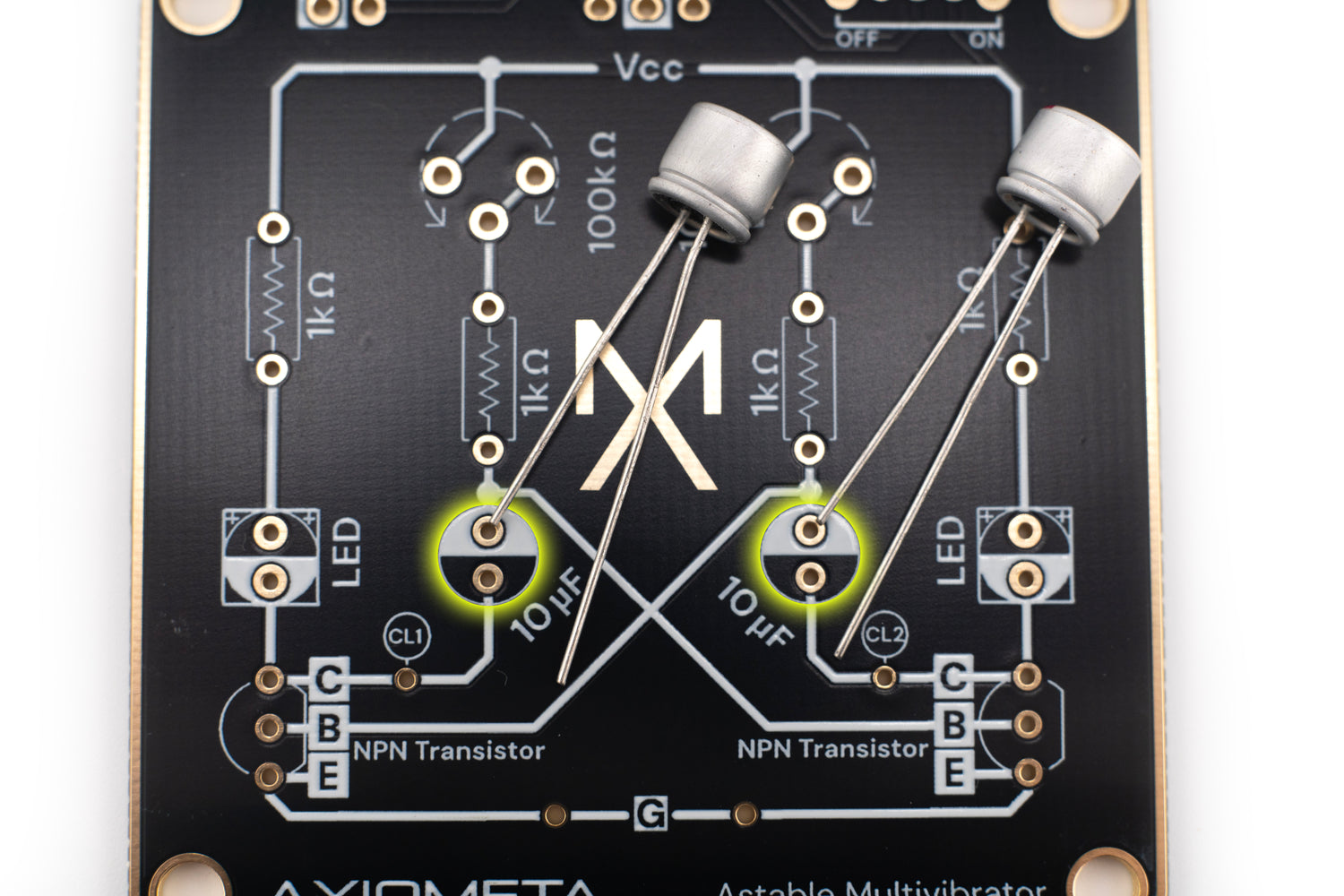

• Q2 Turns Off: Capacitors resist sudden voltage changes. When Q1's collector voltage suddenly drops, the capacitor pulls Q2's base voltage down with it sometimes even below ground level. This forces Q2 completely off, regardless of voltage from its base resistor.
• Capacitor Recharge: With Q2 off, the capacitor begins recharging through Q2's base resistor. As it charges, Q2's base voltage gradually rises. When it reaches approximately 0.7V, Q2 begins conducting.

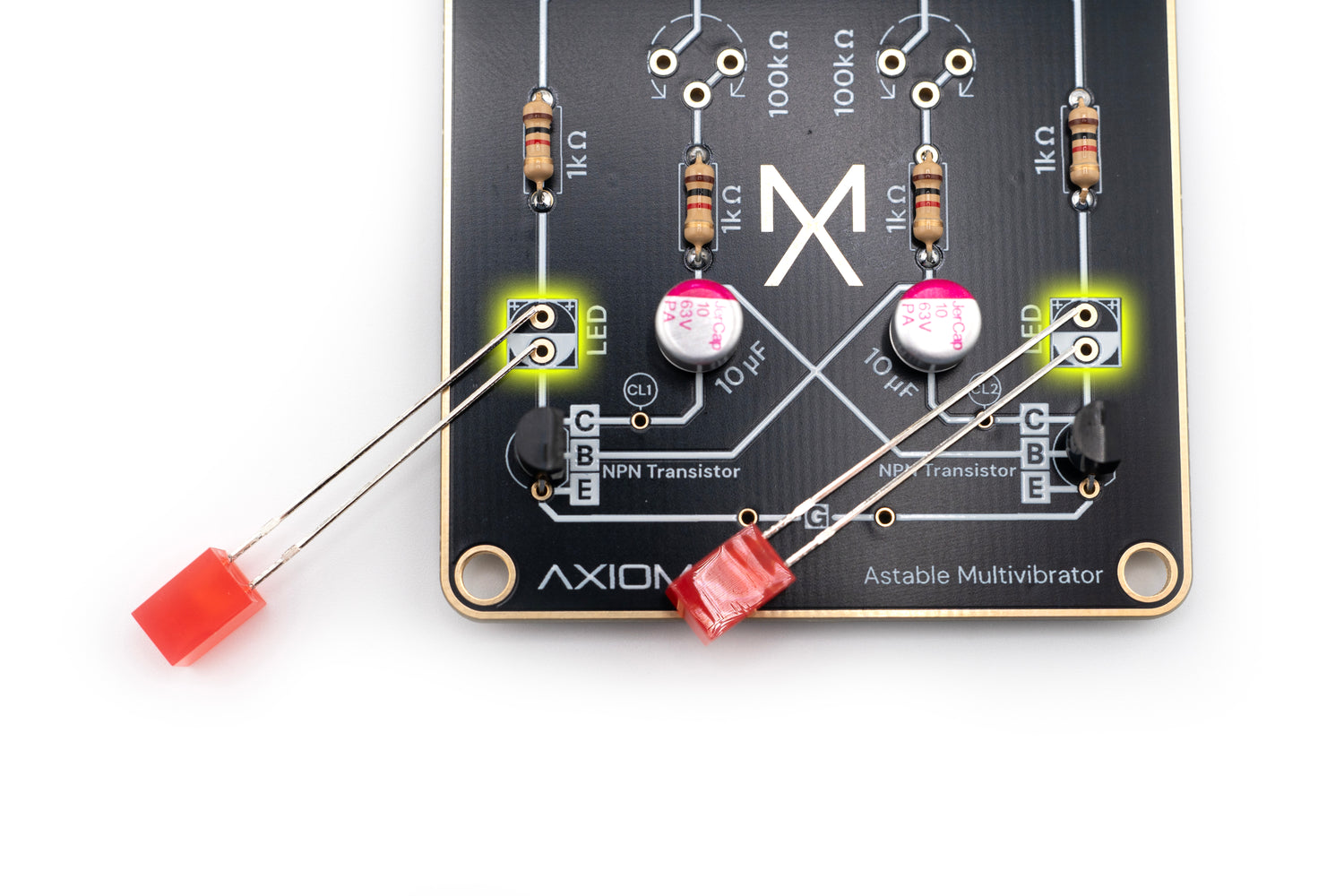

• The Flip: As Q2 turns on, its collector voltage falls, sending a negative pulse through the second capacitor to Q1's base turning Q1 off. Now the right LED lights up and the cycle repeats in reverse.

Controlling the Blink Rate

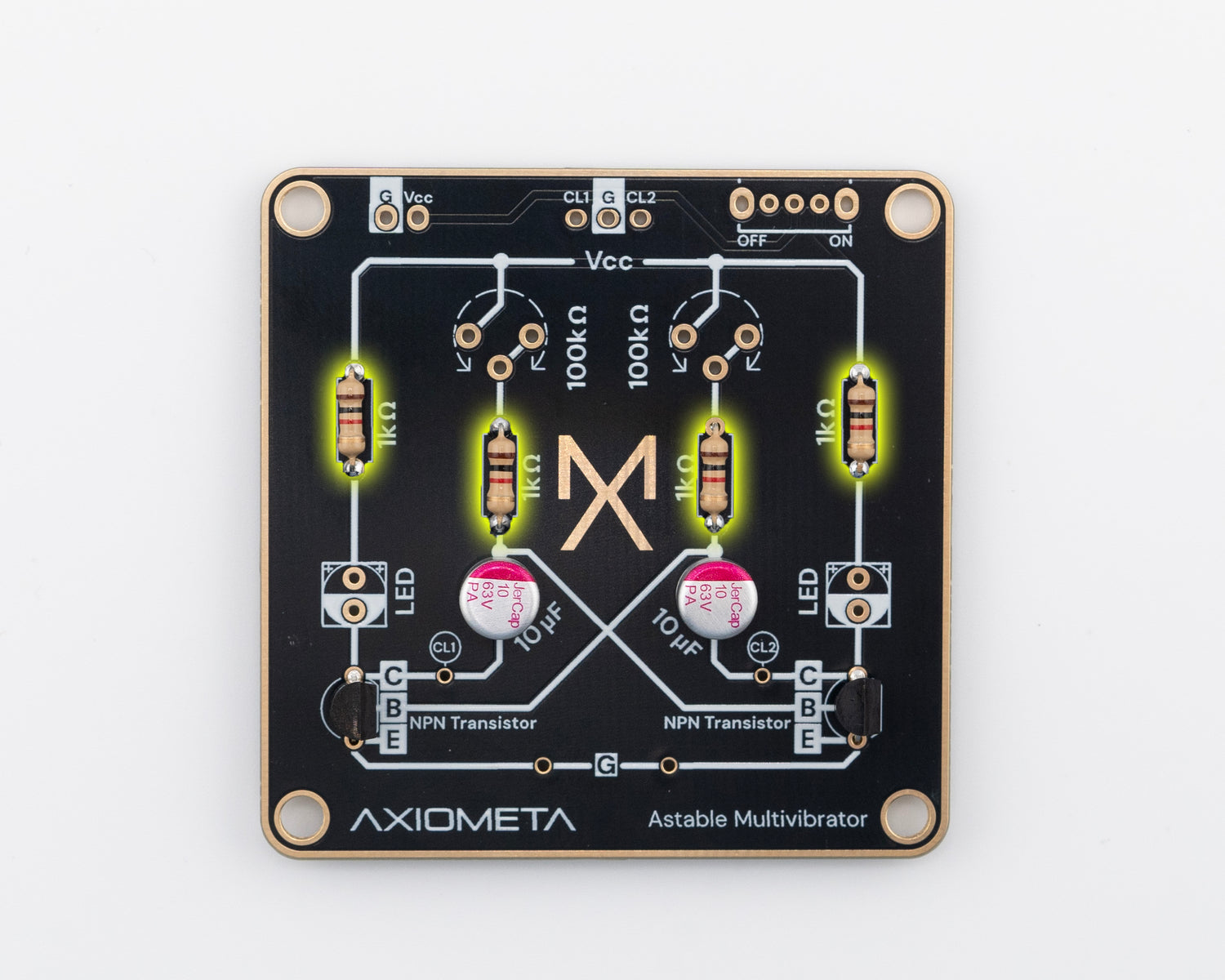

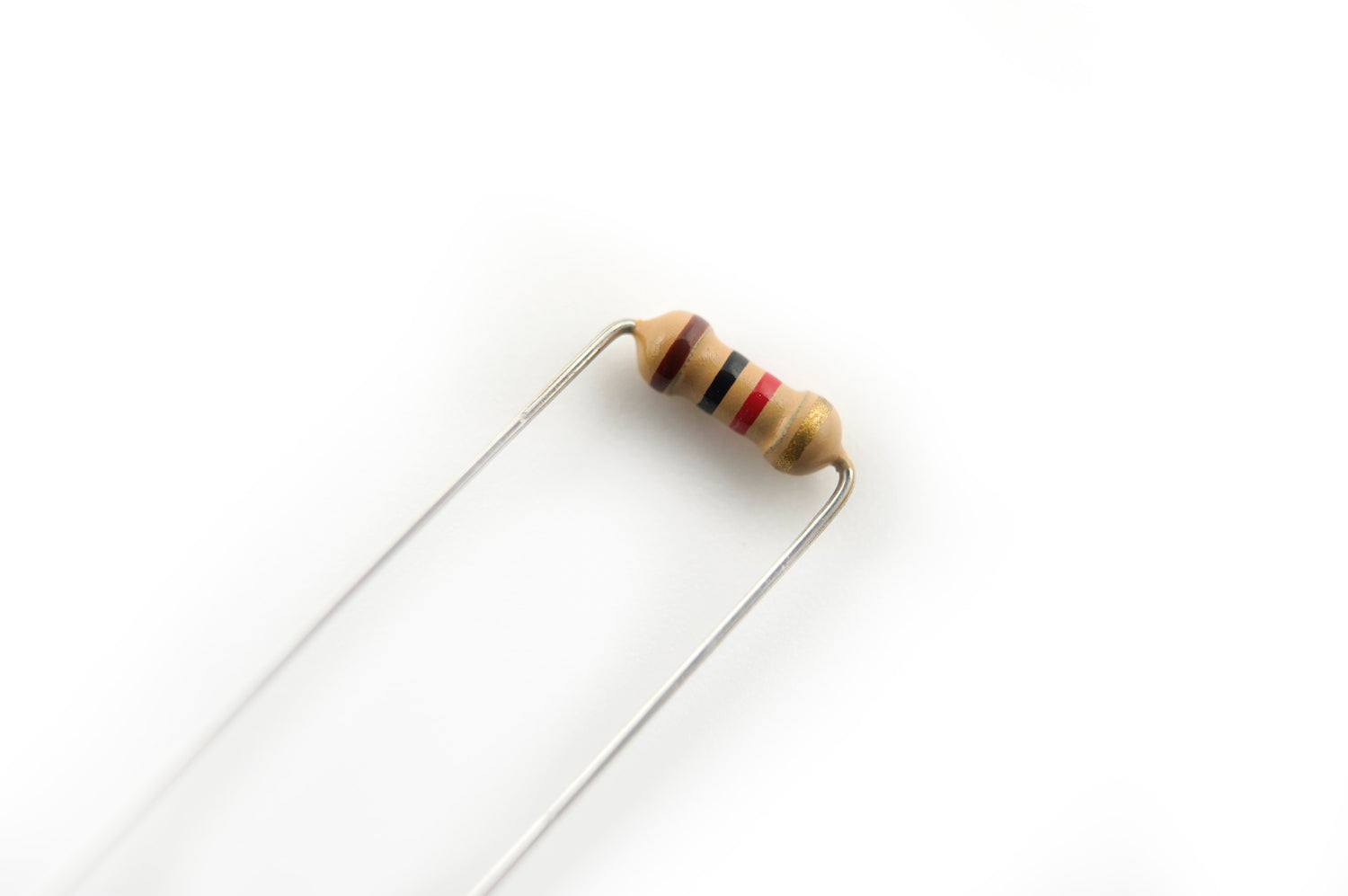

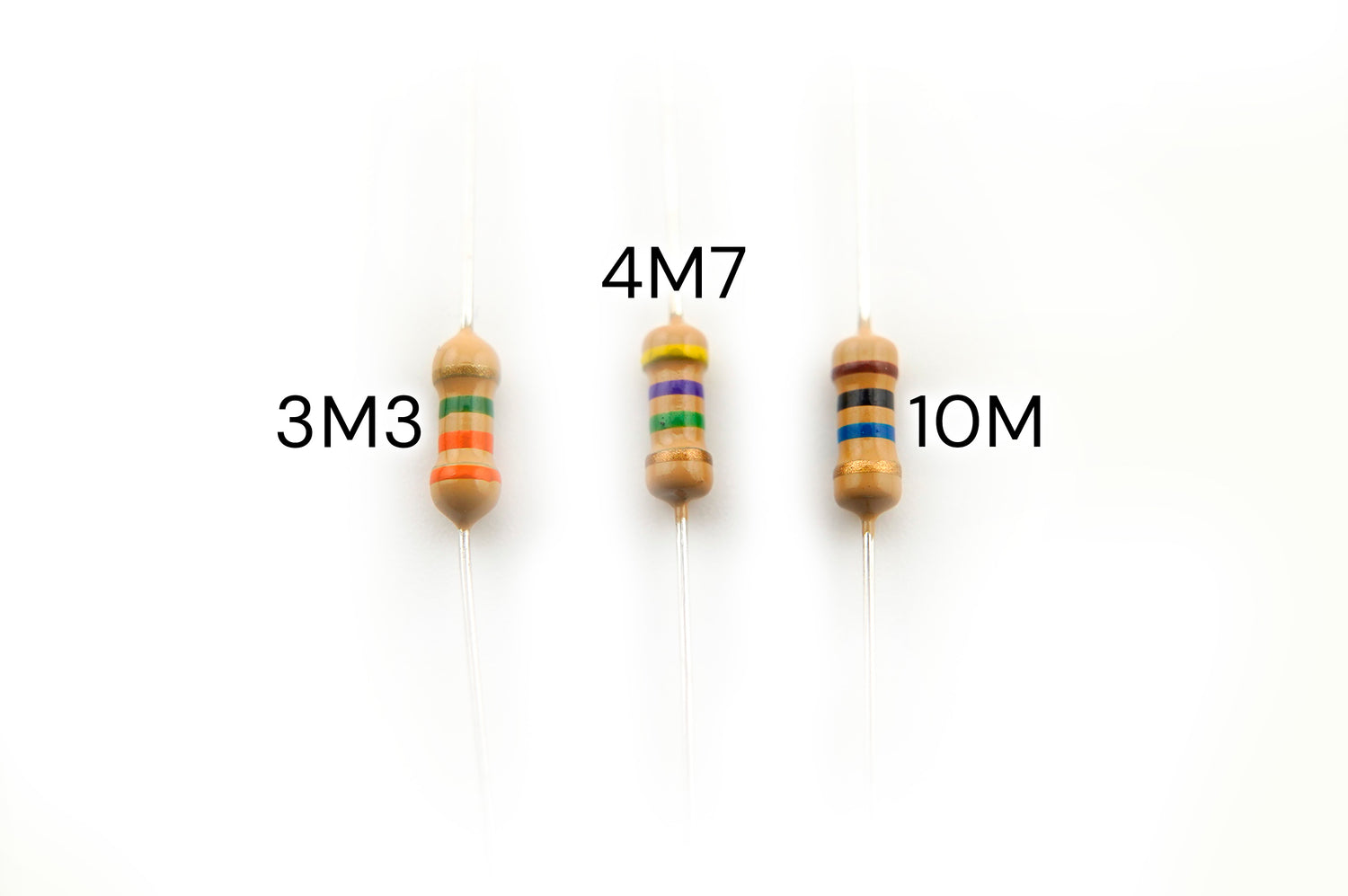

The two LEDs alternate on and off indefinitely. The blink speed depends entirely on how long each capacitor takes to charge through its resistor:

• Larger resistors or capacitors = slower blinking
• Smaller resistors or capacitors = faster blinking

This RC (resistor-capacitor) time constant gives you complete control over the oscillation frequency without any programming.
