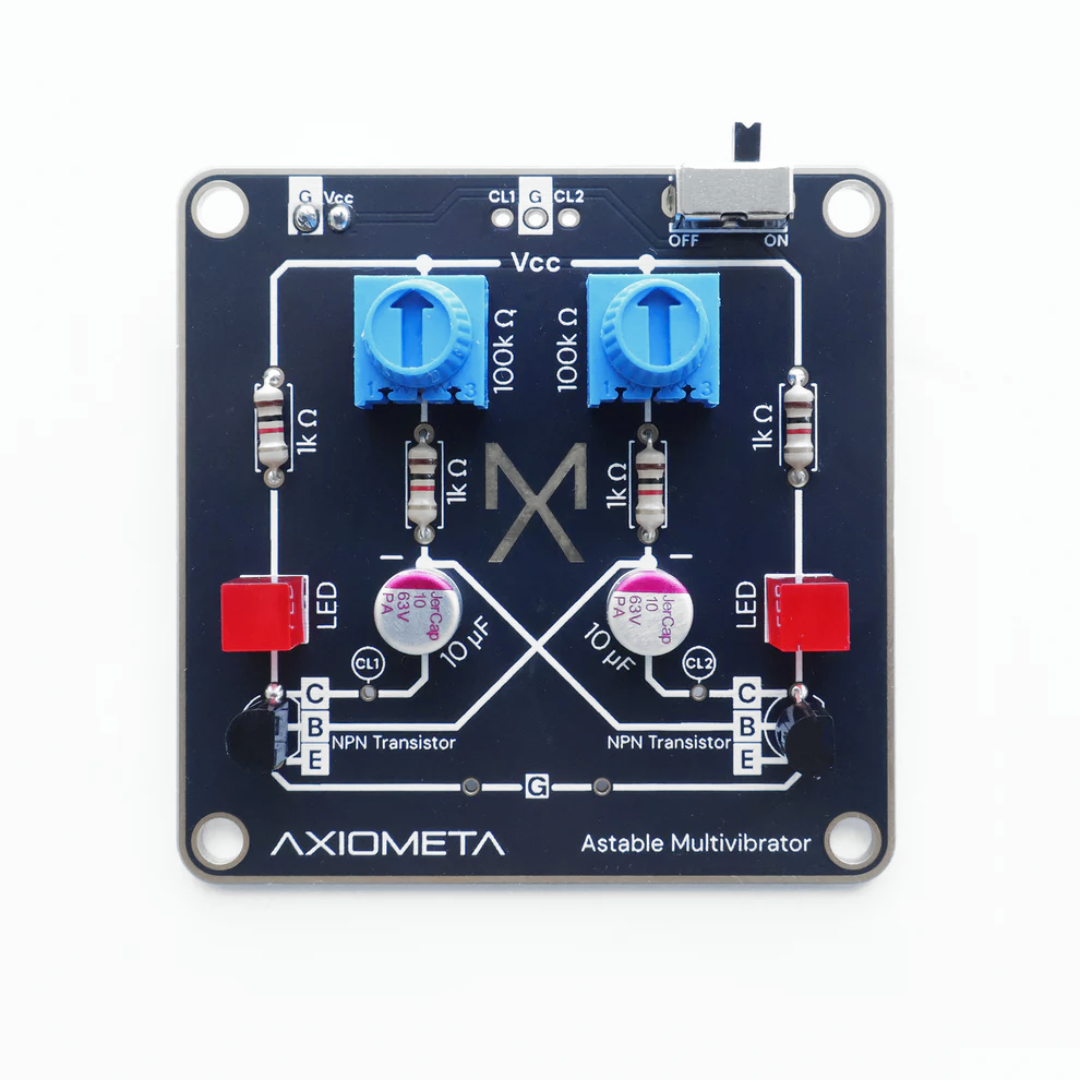

Axiometa Astable Multivibrator - Soldering Kit

Axiometa Astable Multivibrator - Soldering Kit

The Astable Vibrometer is a hands-on soldering project designed to demonstrate how alternating signals are generated using a flip-flop configuration. Two LEDs visualize the oscillation, switching back and forth in rhythm with the circuit’s timing.

$13.90
$13.90
Sale Sold out
Battery
View full details

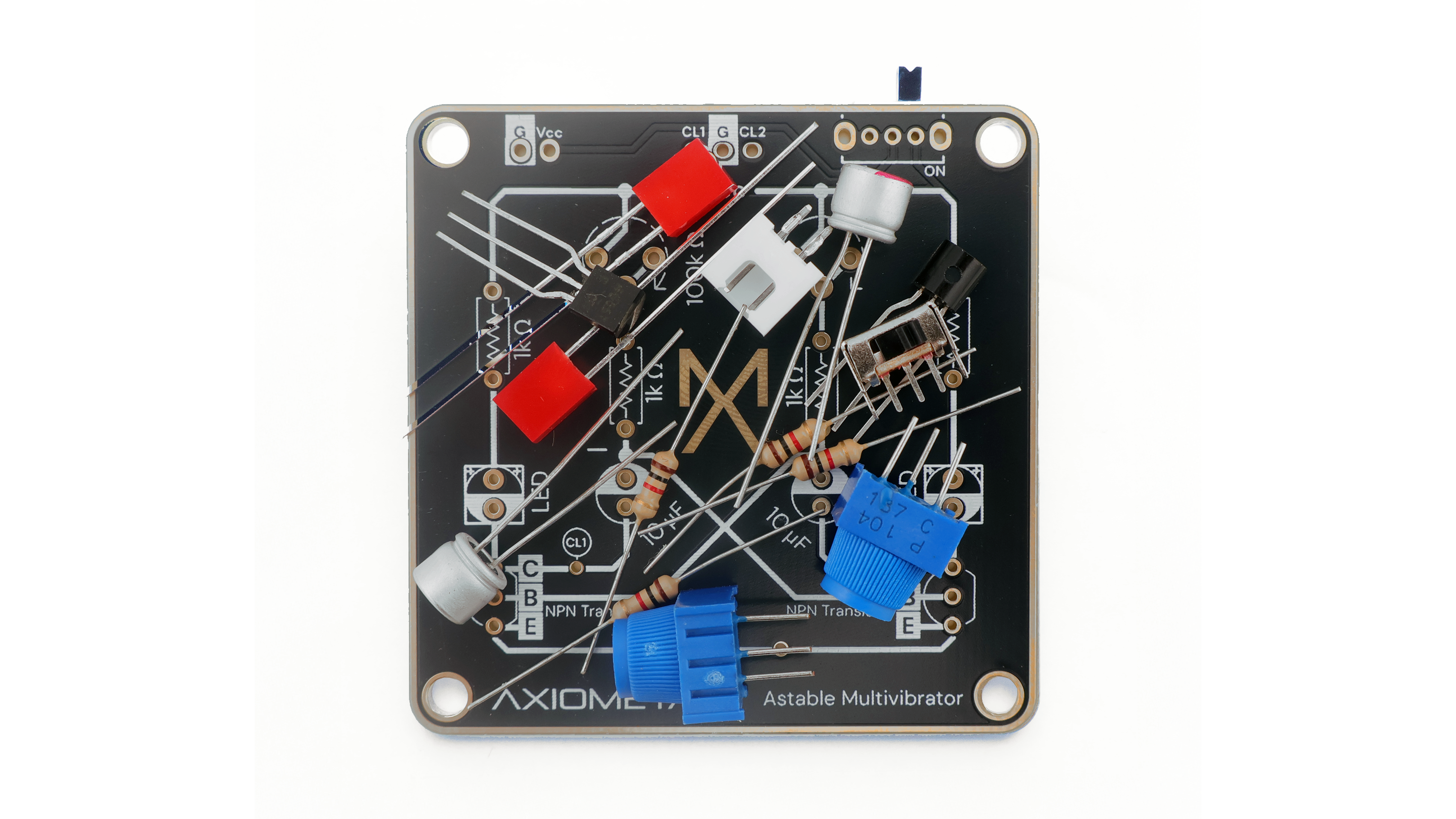

Make it yourself.

How it works ?

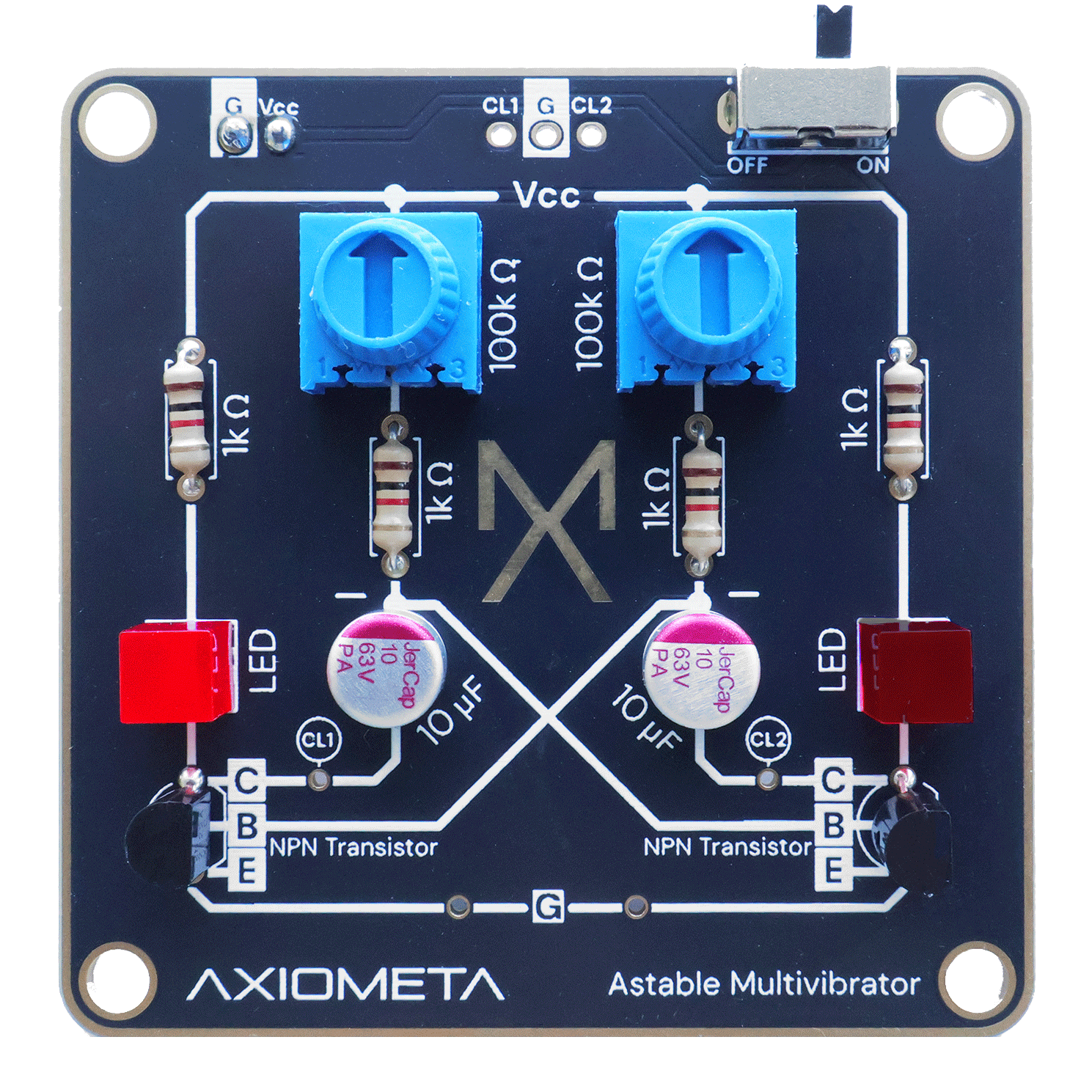

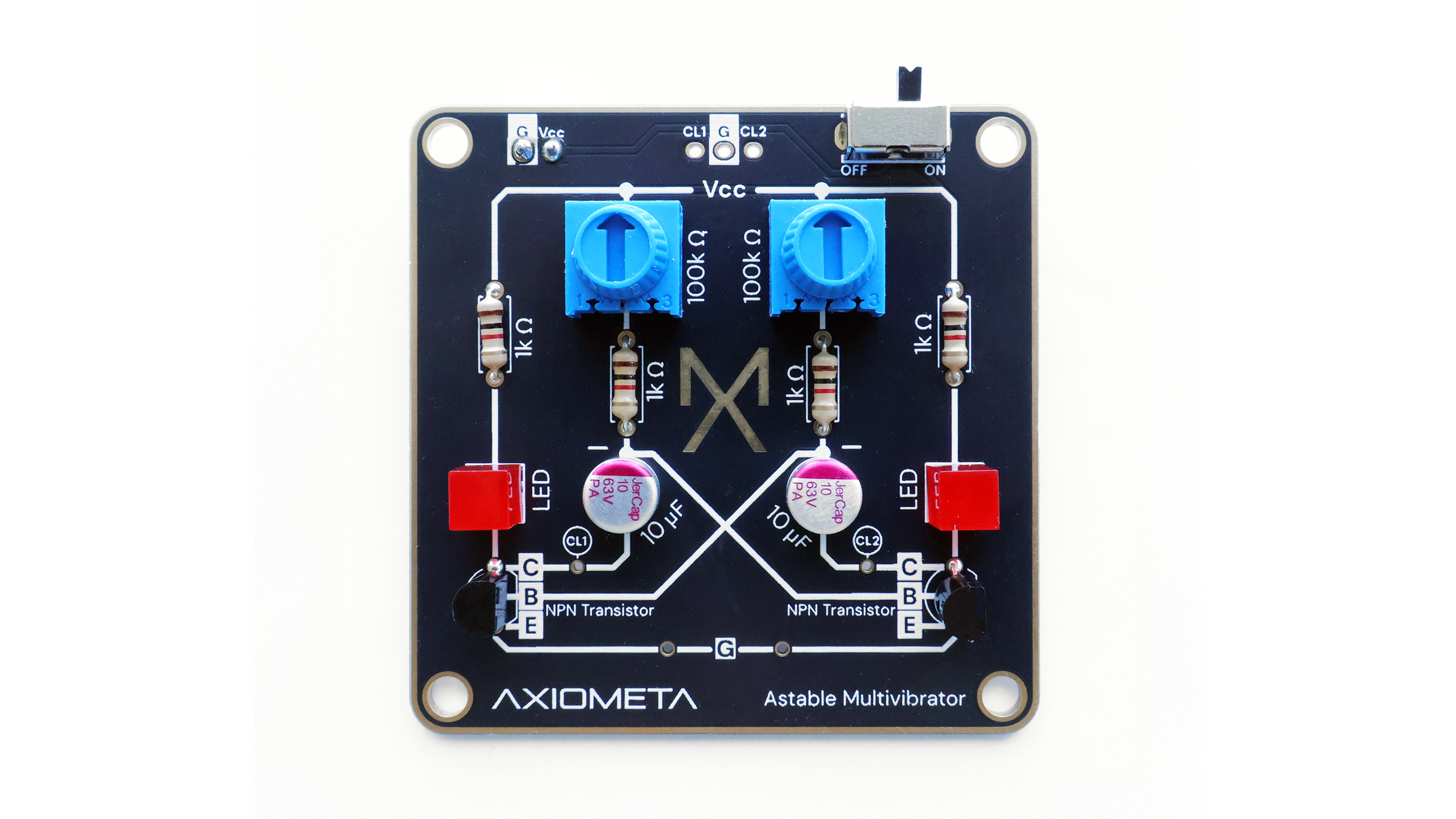

The circuit generates a repeating on/off signal a simple oscillator known as an astable multivibrator. As it runs, two LEDs blink back and forth, showing how a pair of transistors and capacitors work together to create timing and rhythm in electronics.

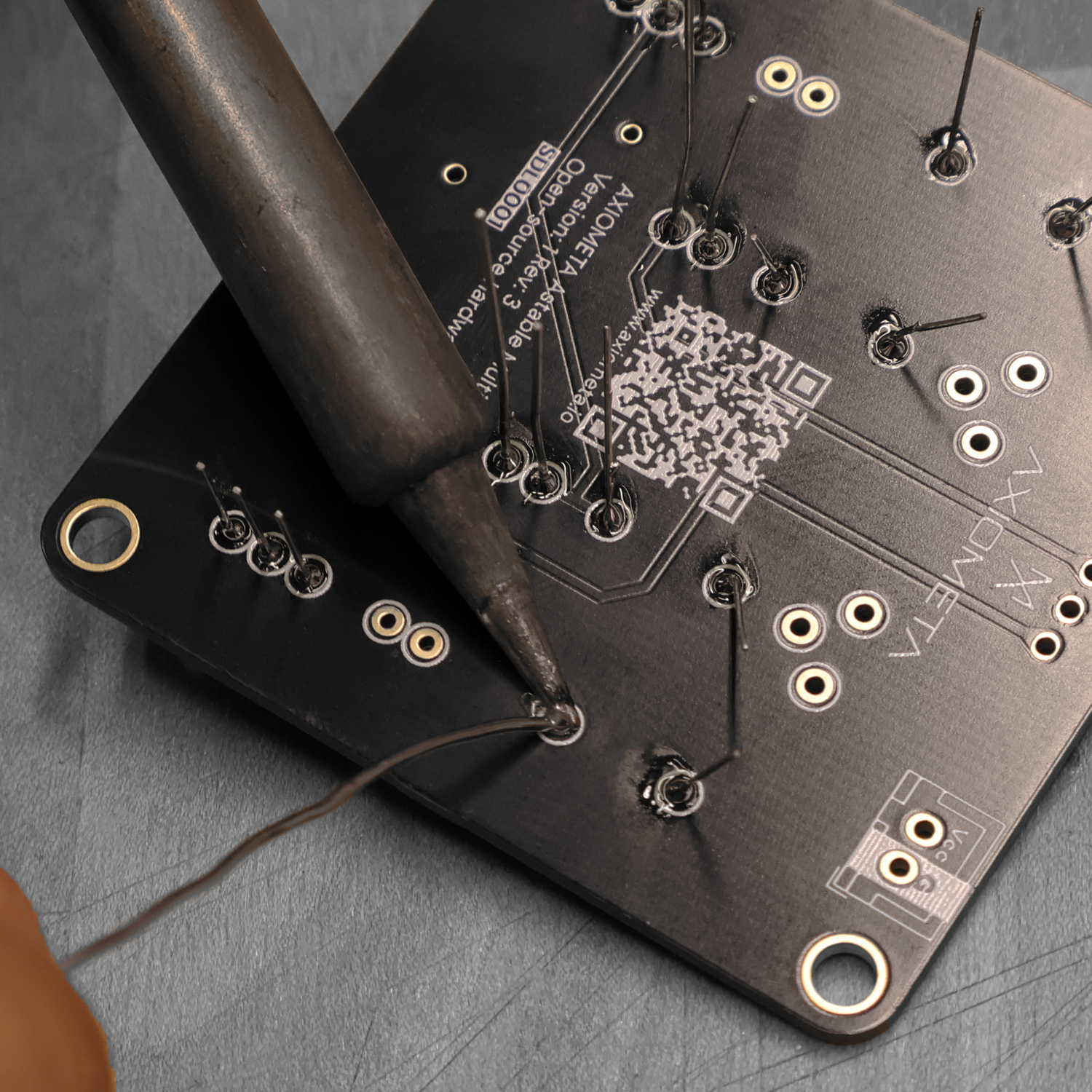

Perfect for learning soldering

Learn proper soldering on a PCB designed for it: ENIG surface finish, well-spaced through-hole pads, and clear component designators help you understand the relationship between board layout and assembly quality.

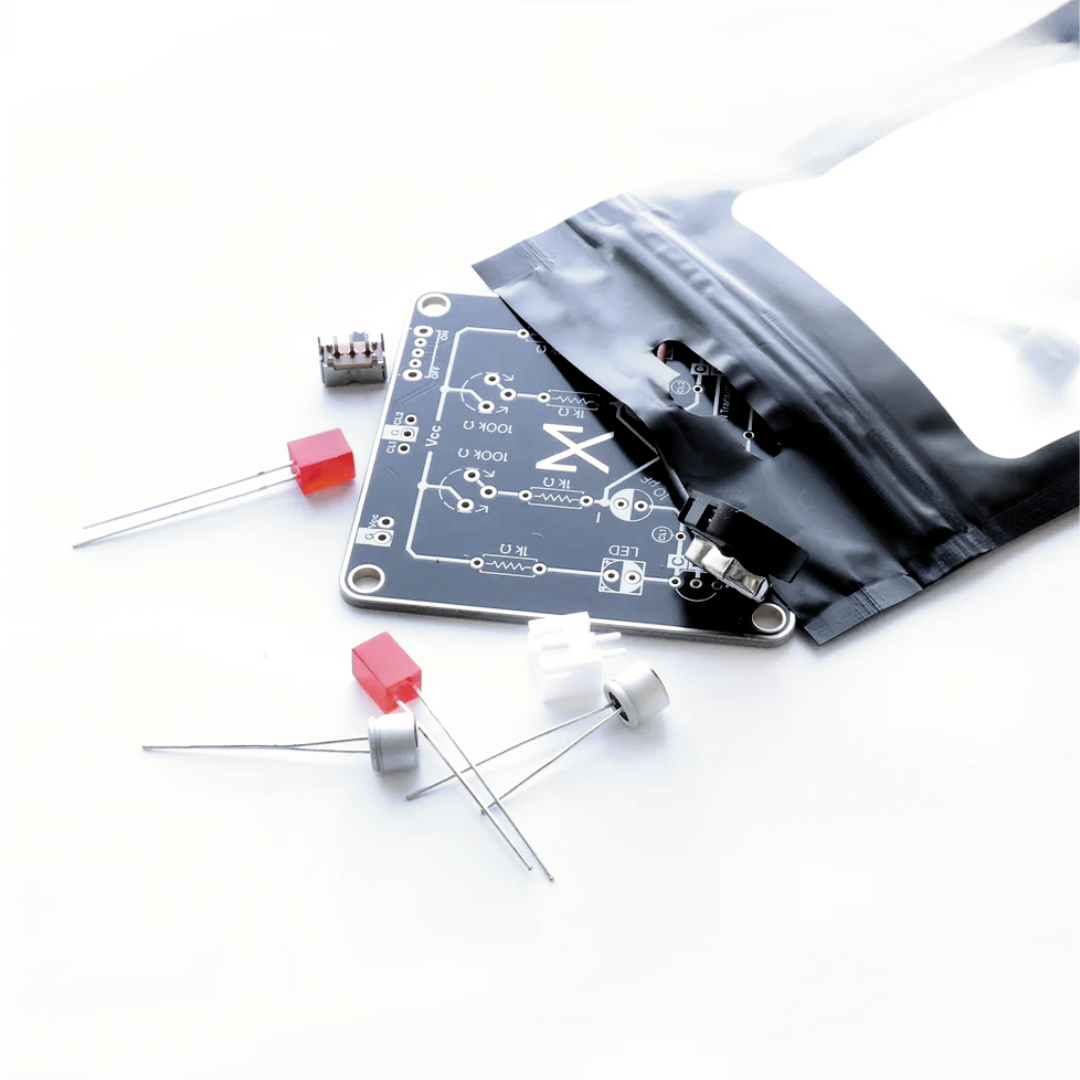

What's inside the kit ?

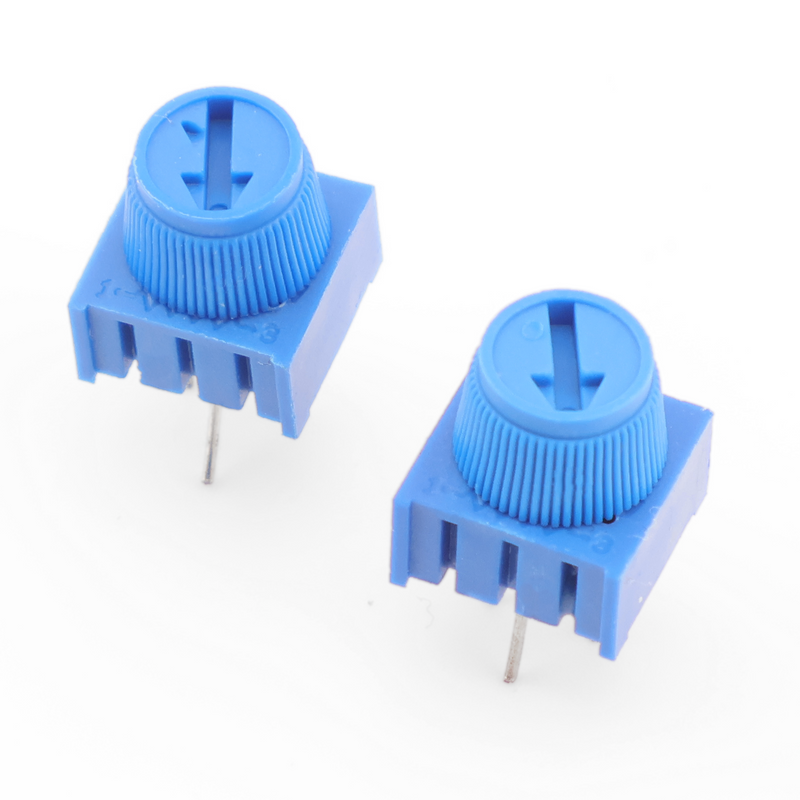

Potentiometers - 2X

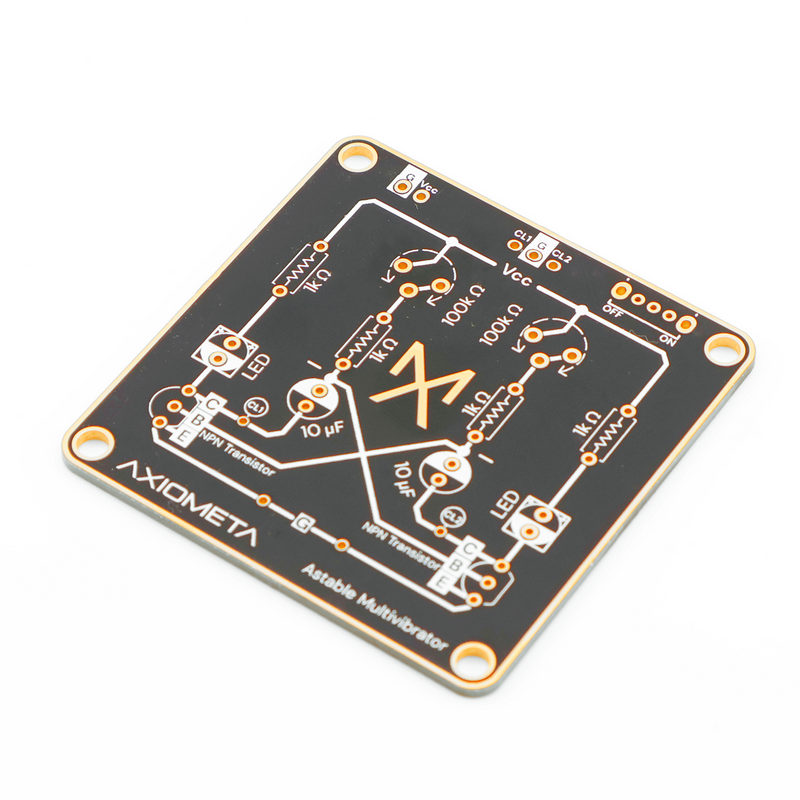

PCB - 1X

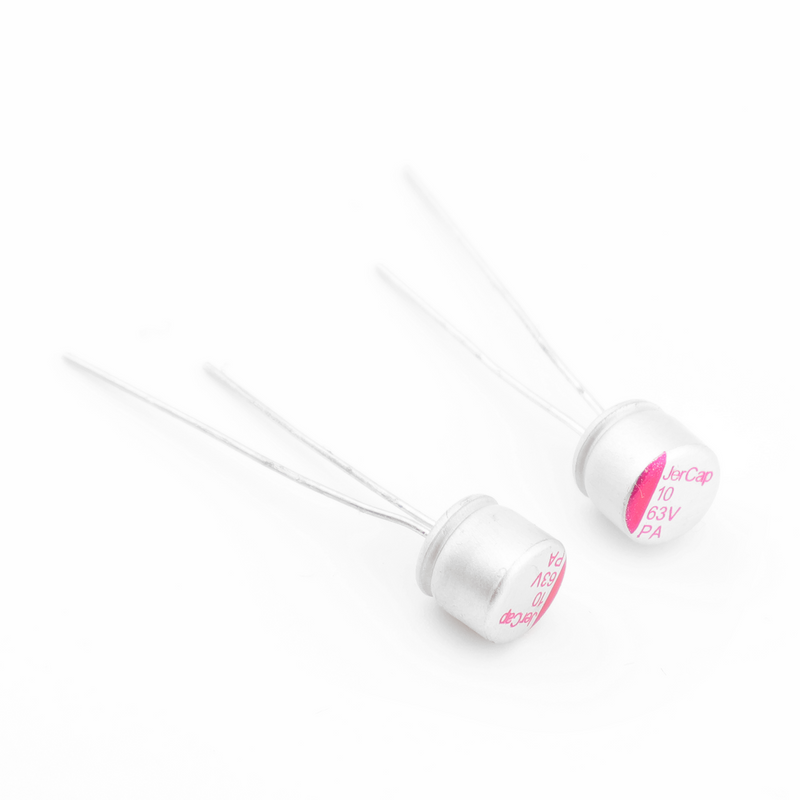

10 µF Capacitors - 2X

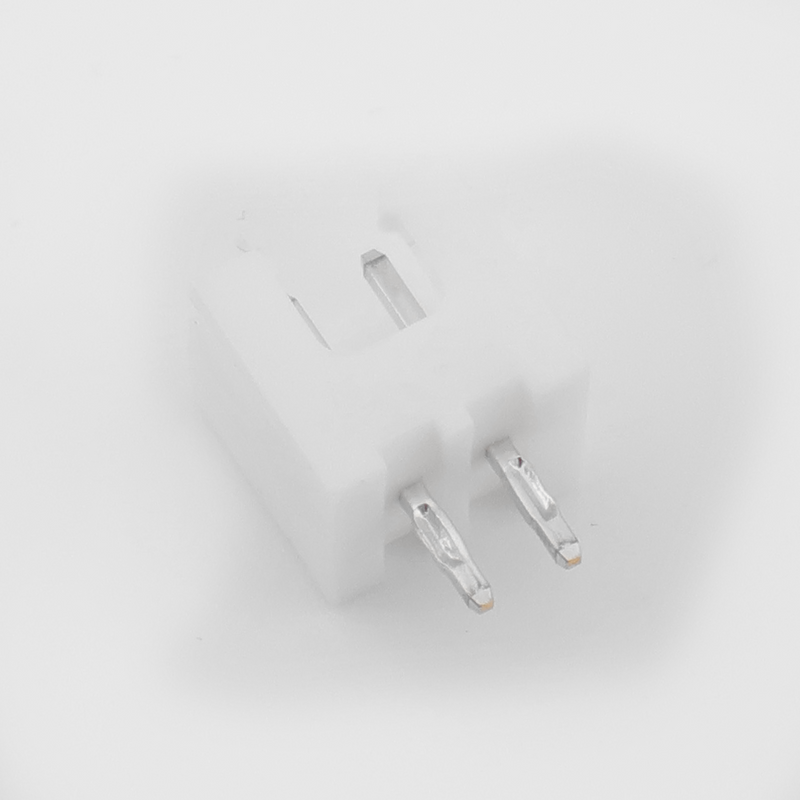

Battery Connector -1X

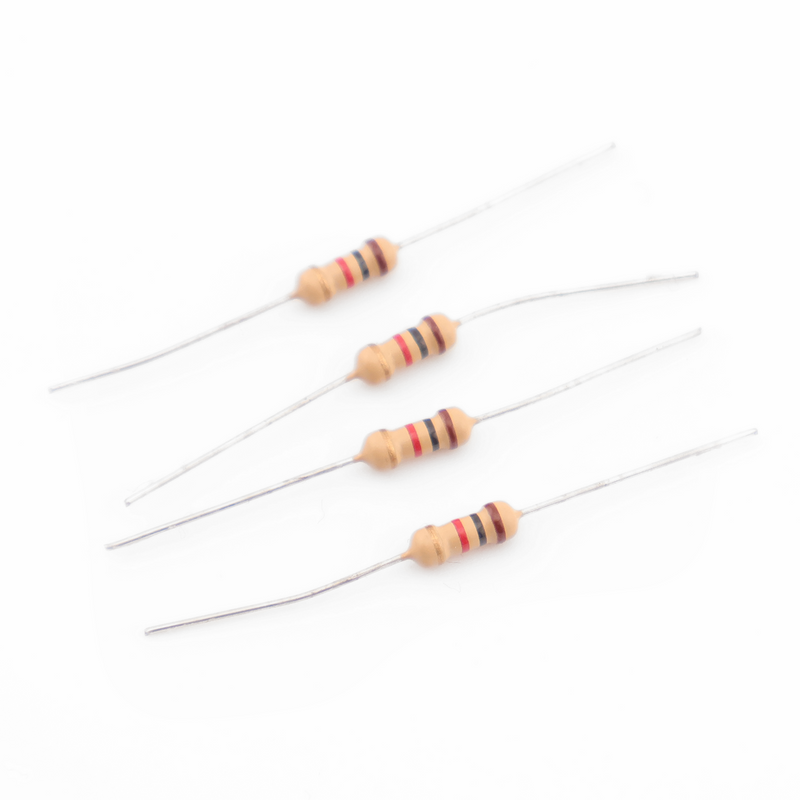

1 kΩ Resistors - 4X

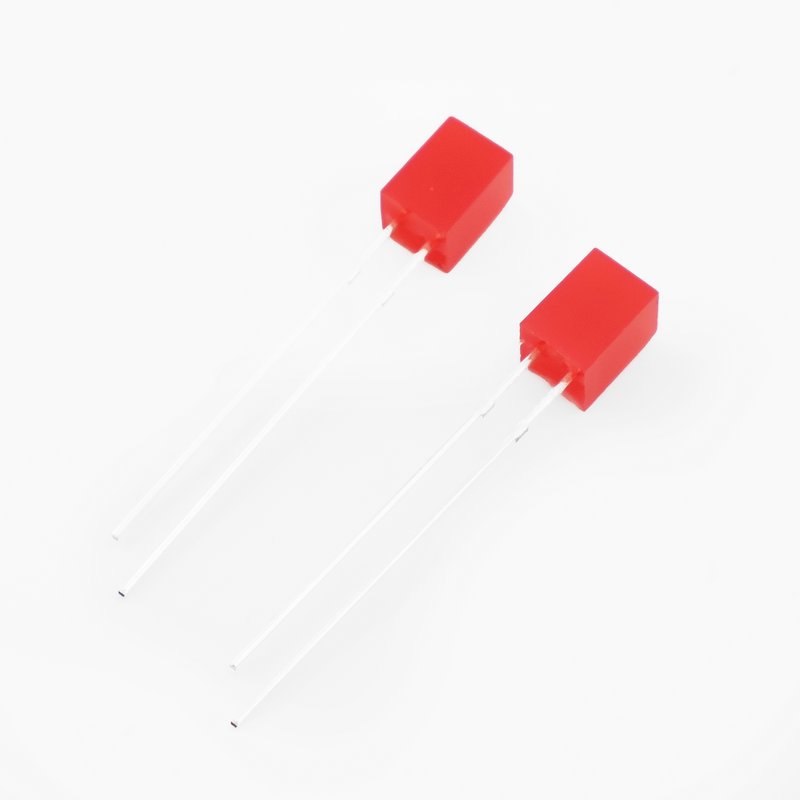

LEDs - 2X
Transistors - 2X
Battery Plug - 1X
Power Switch - 1X
Potentiometers - 2X PCB - 1X 10 µF Capacitors - 2X Battery Connector -1X 1 kΩ Resistors - 4X LEDs - 2X Transistors - 2X Battery Plug - 1X Power Switch - 1X

Technical Resources

Astable Multivibrator- (AXMT-SLD0001)
3D Printable Stand Assembly Instructions Circuit Schematic 3D Models

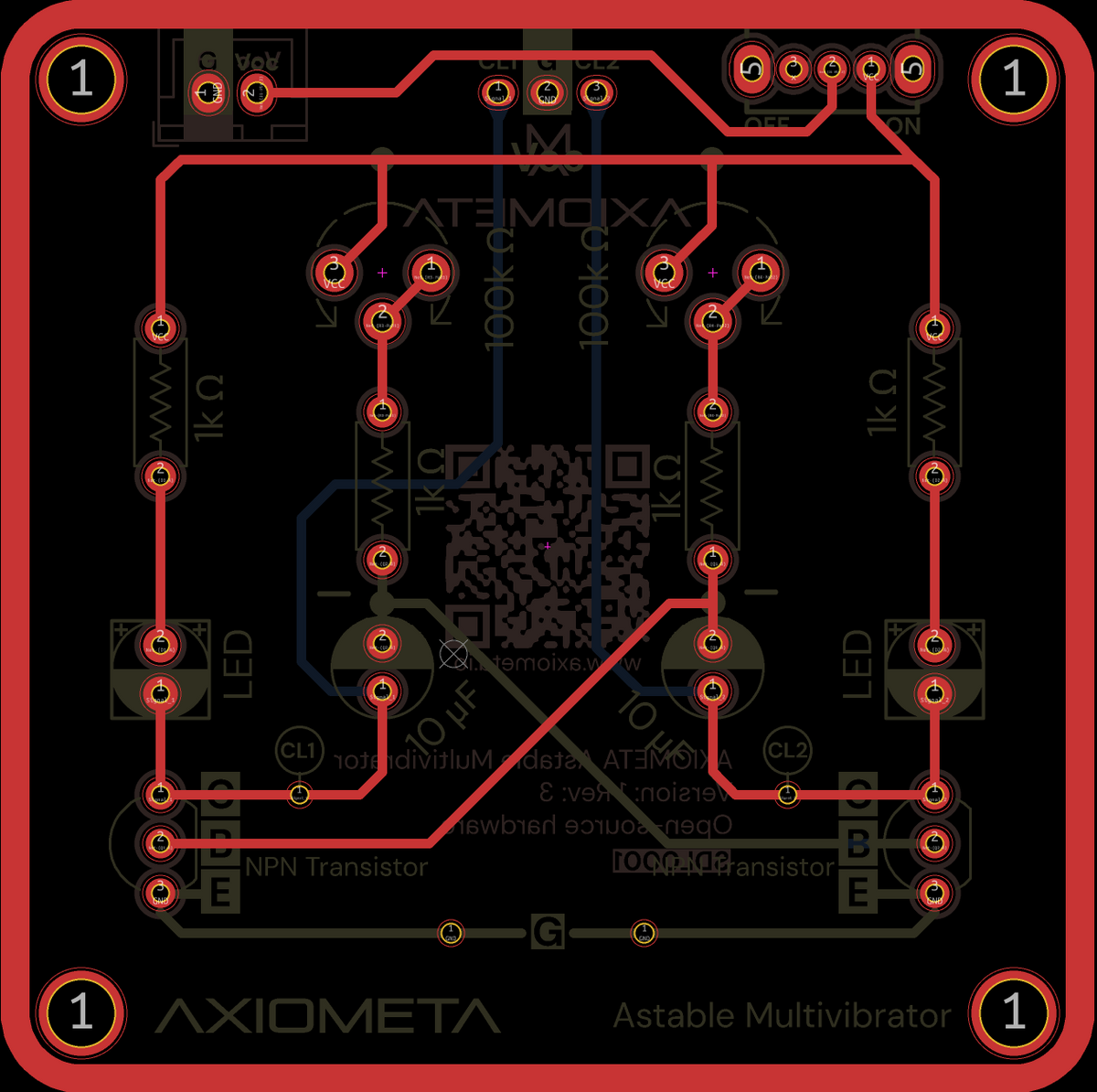

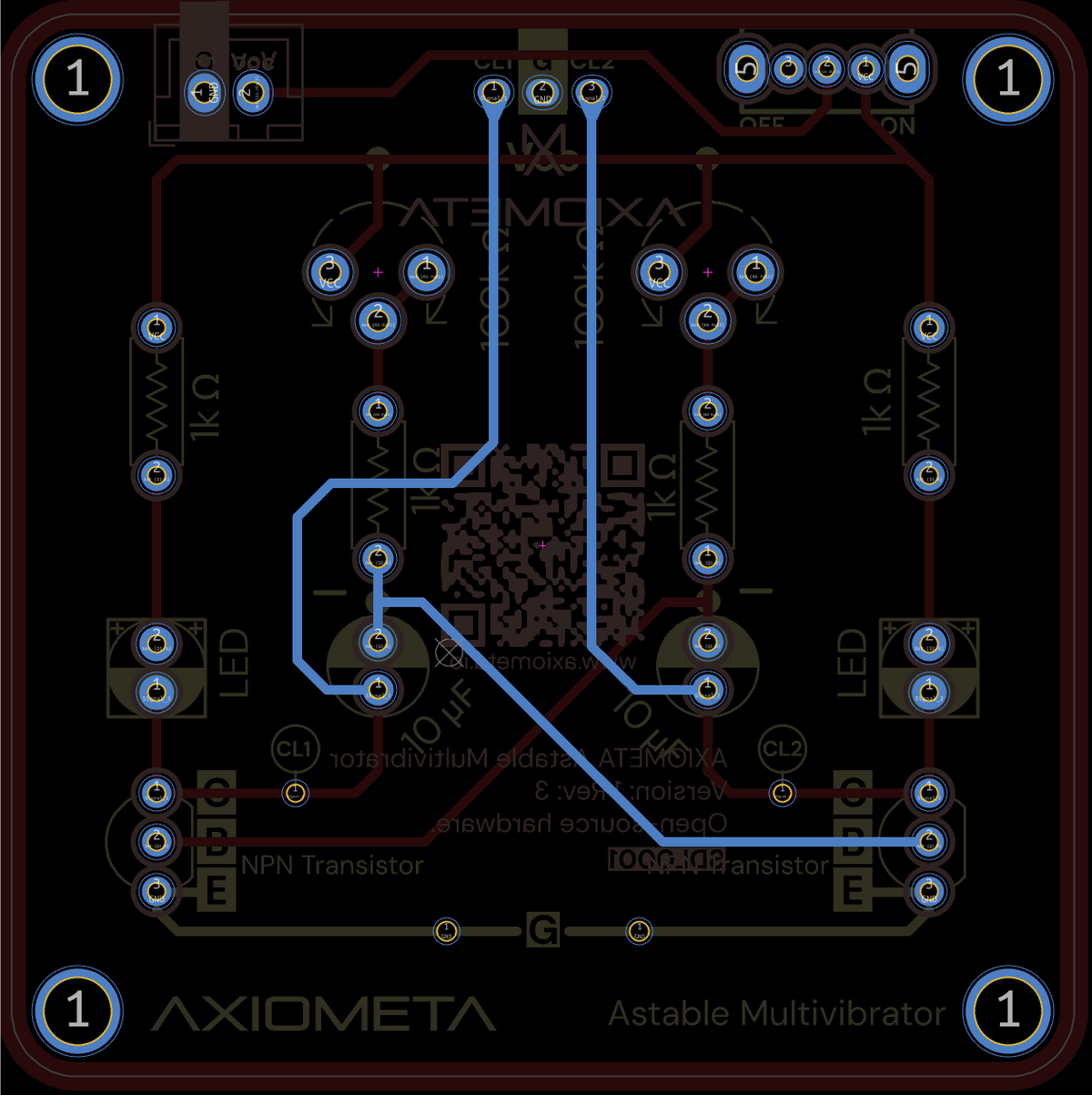

PCB FRONT

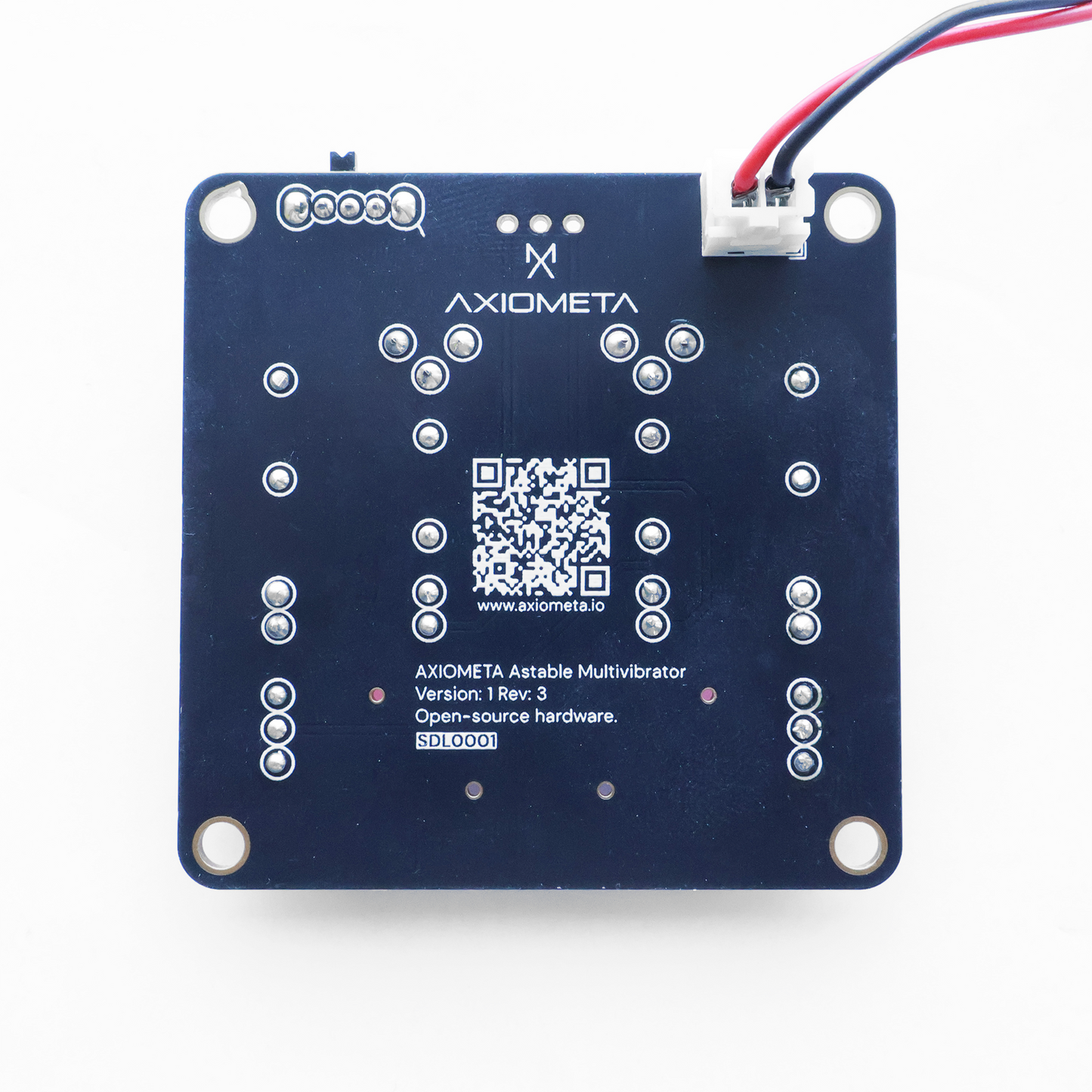

PCB BACK
