Accelerometer (MPU6050)

Accelerometer (MPU6050)

AX22-0030

$10.99
$10.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

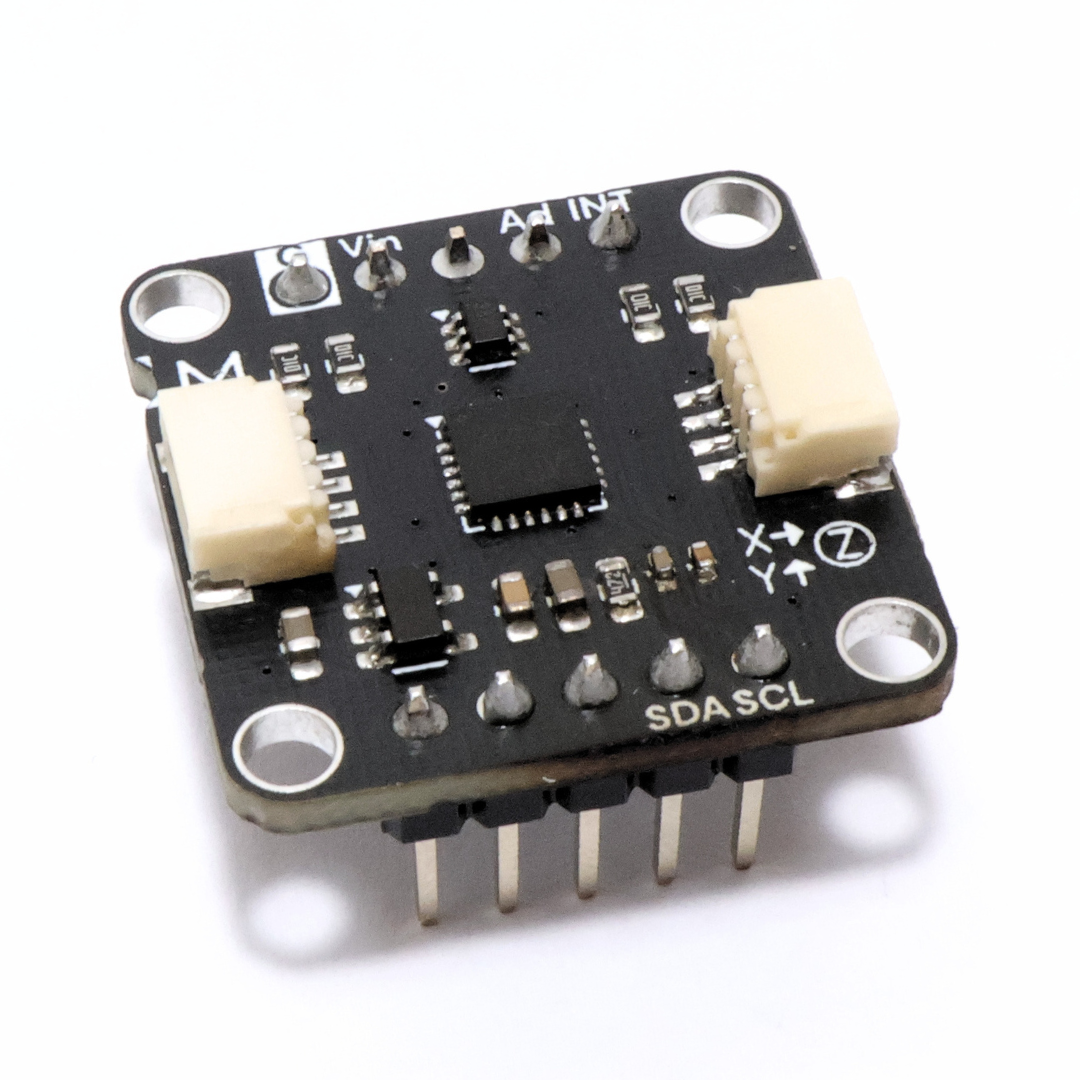

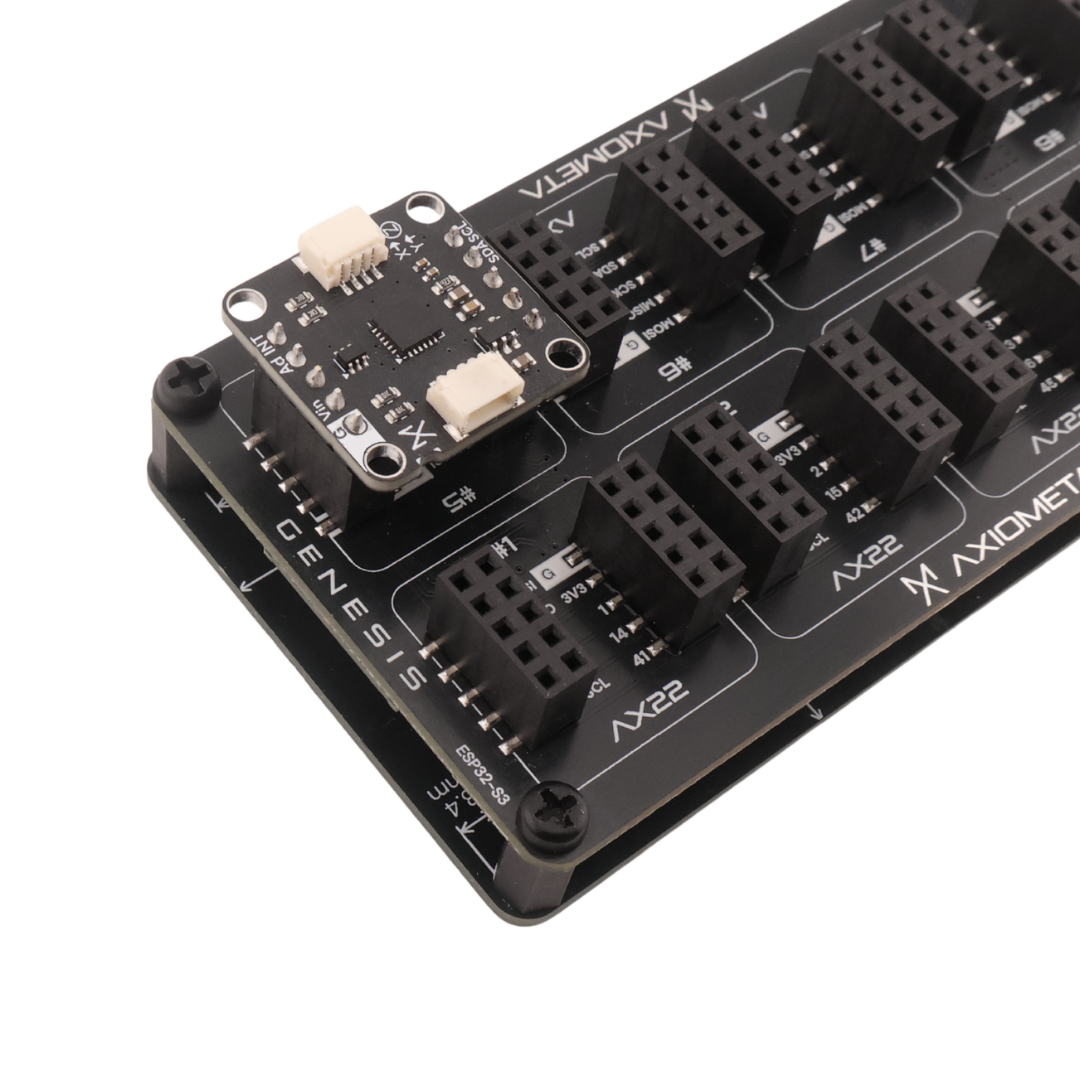

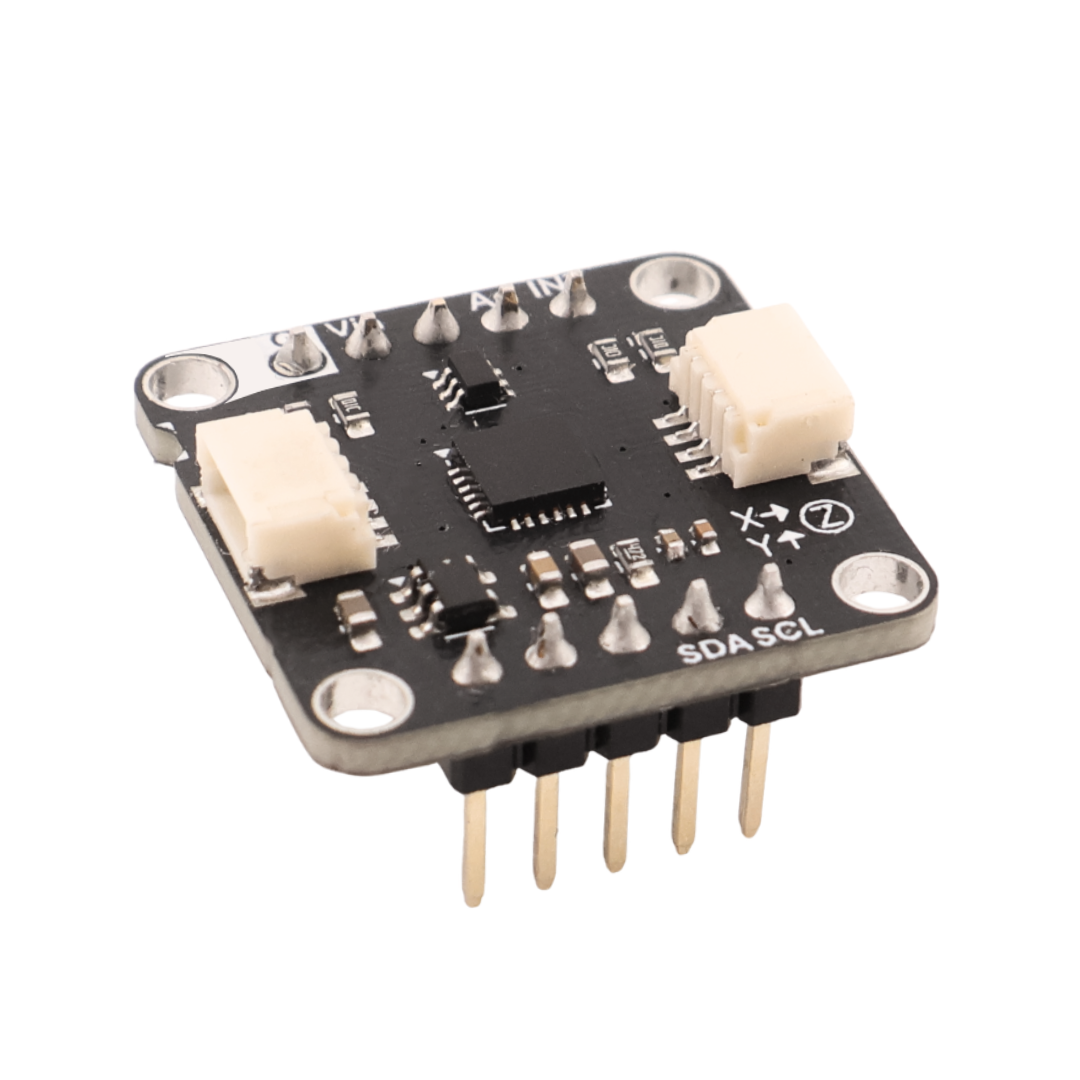

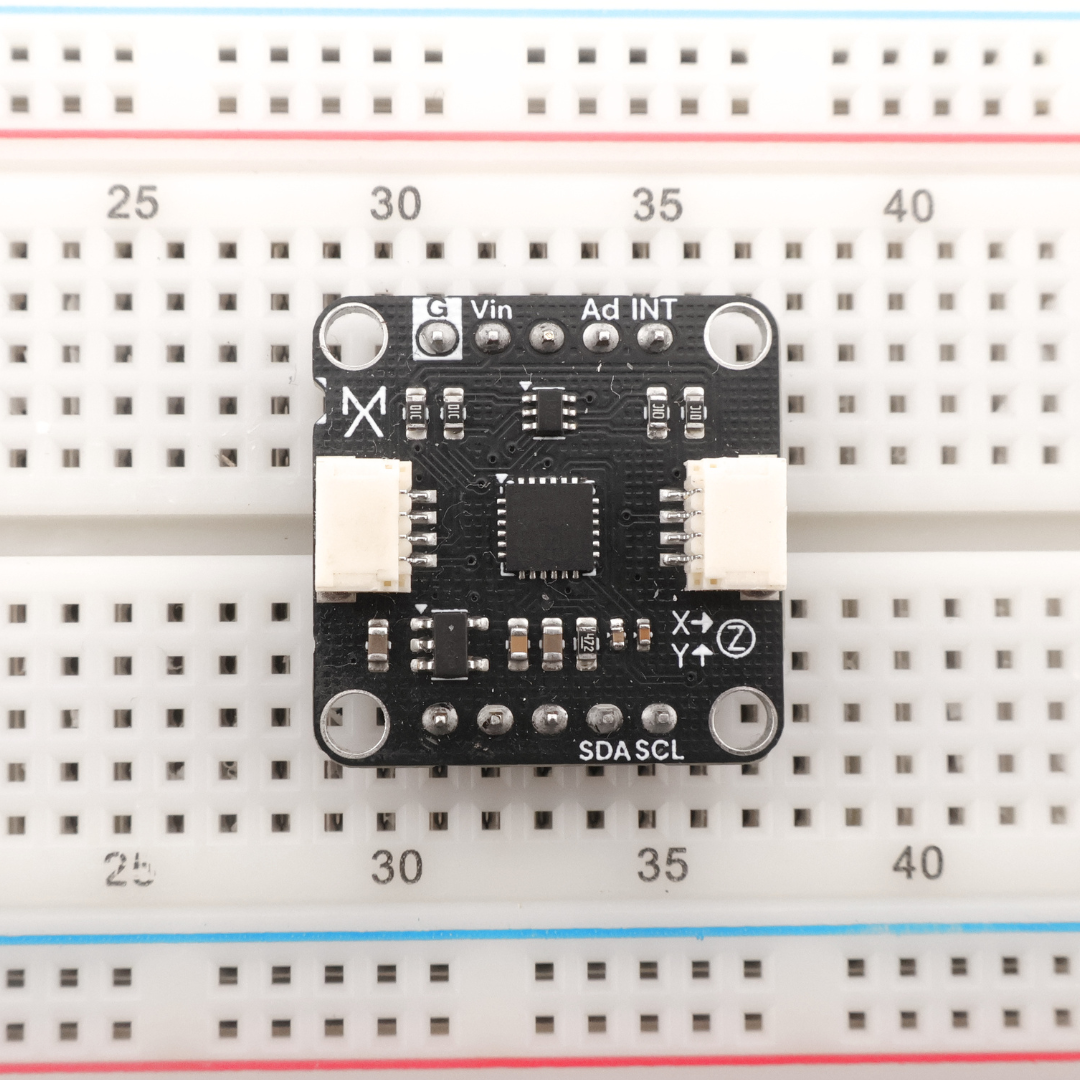

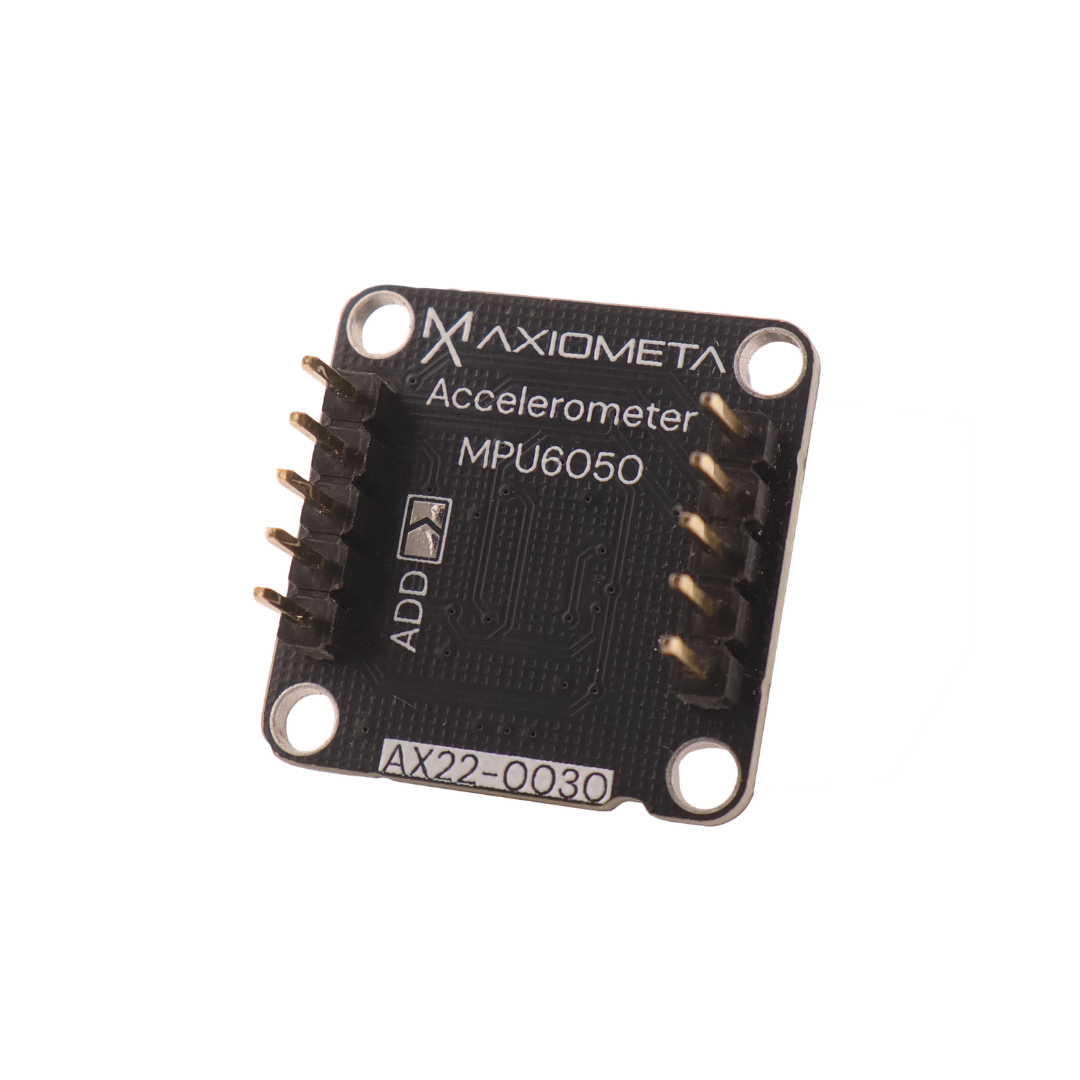

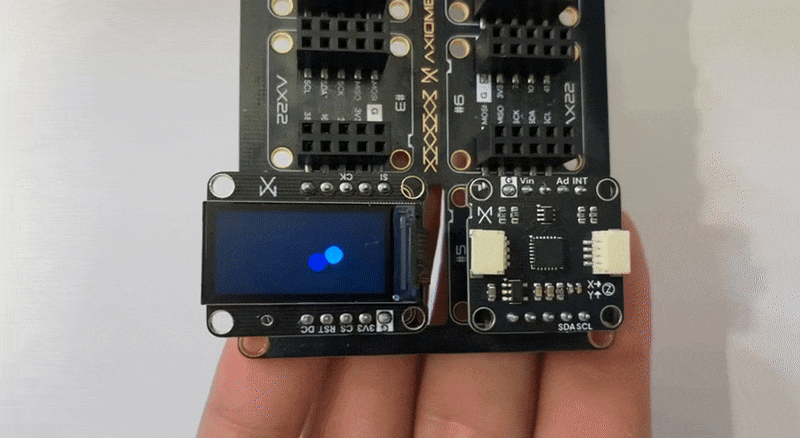

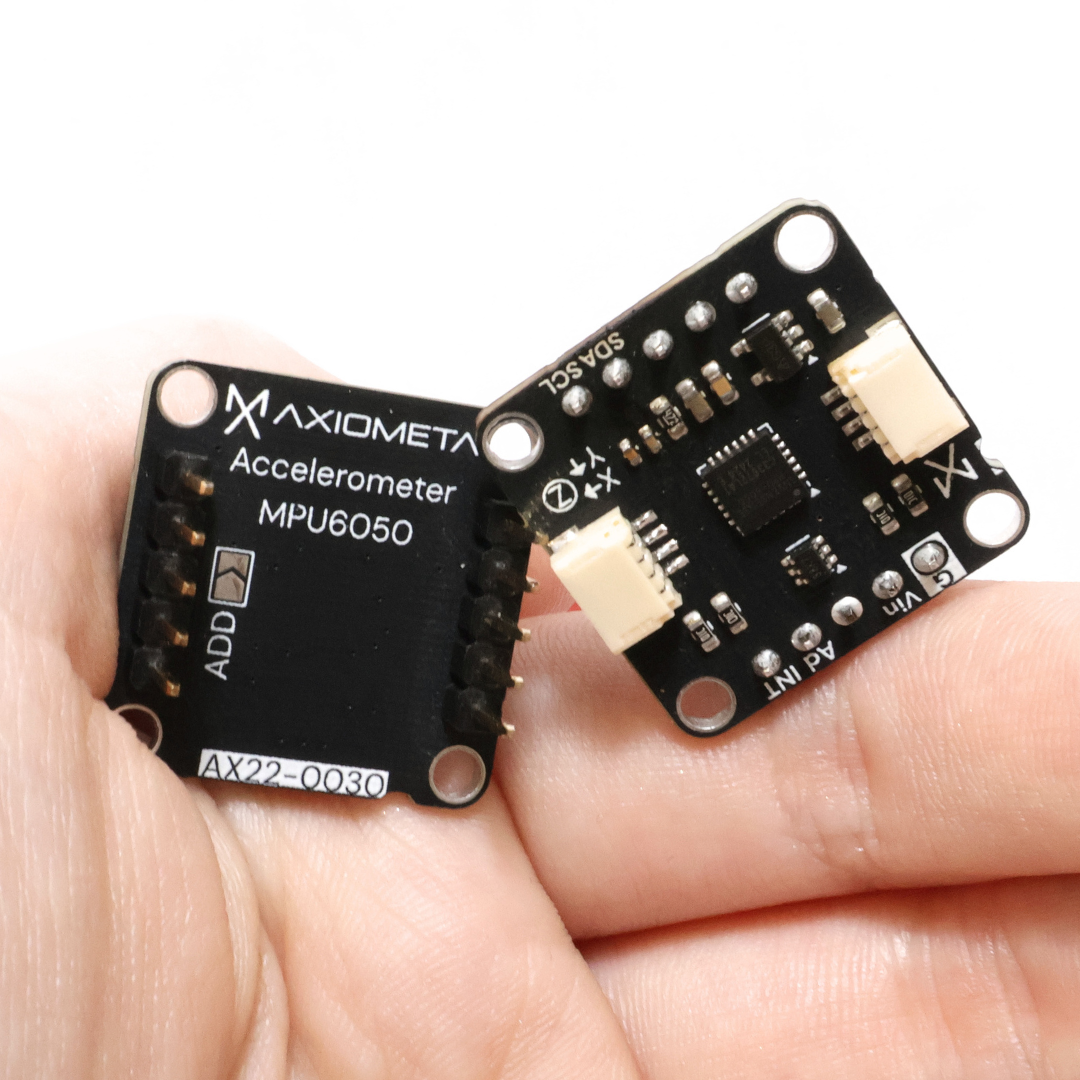

Add motion sensing, tilt detection, and vibration analysis to any project with this AX22-sized board. A proven InvenSense MPU-6050 (3-axis accelerometer + 3-axis gyroscope) sits on a 22 × 22 mm PCB, buffered by a 3 V LDO and bidirectional level shifters so any 1.8 V, 3.3 V, or 5 V microcontroller can talk I²C straight away. The chip’s built-in Digital Motion Processor (DMP) can fuse accel-gyro data internally, off-loading costly math from your MCU, while an optional interrupt line lets you wake on motion or FIFO thresholds. Drop it into any AX22 backplane and you’re logging angles, steps, or vibrations in minutes with Arduino IDE, MicroPython, or MicroBlocks.
View full details

  • Technical Details

    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - Gyroscope: ±250/500/1000/2000 dps, 16-bit
    - 1 kHz sample rate, on-chip FIFO & DMP
    - I²C address 0x68 (alt 0x69 via Ad pin)
    - Accelerometer: ±2/4/8/16 g, 16-bit
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

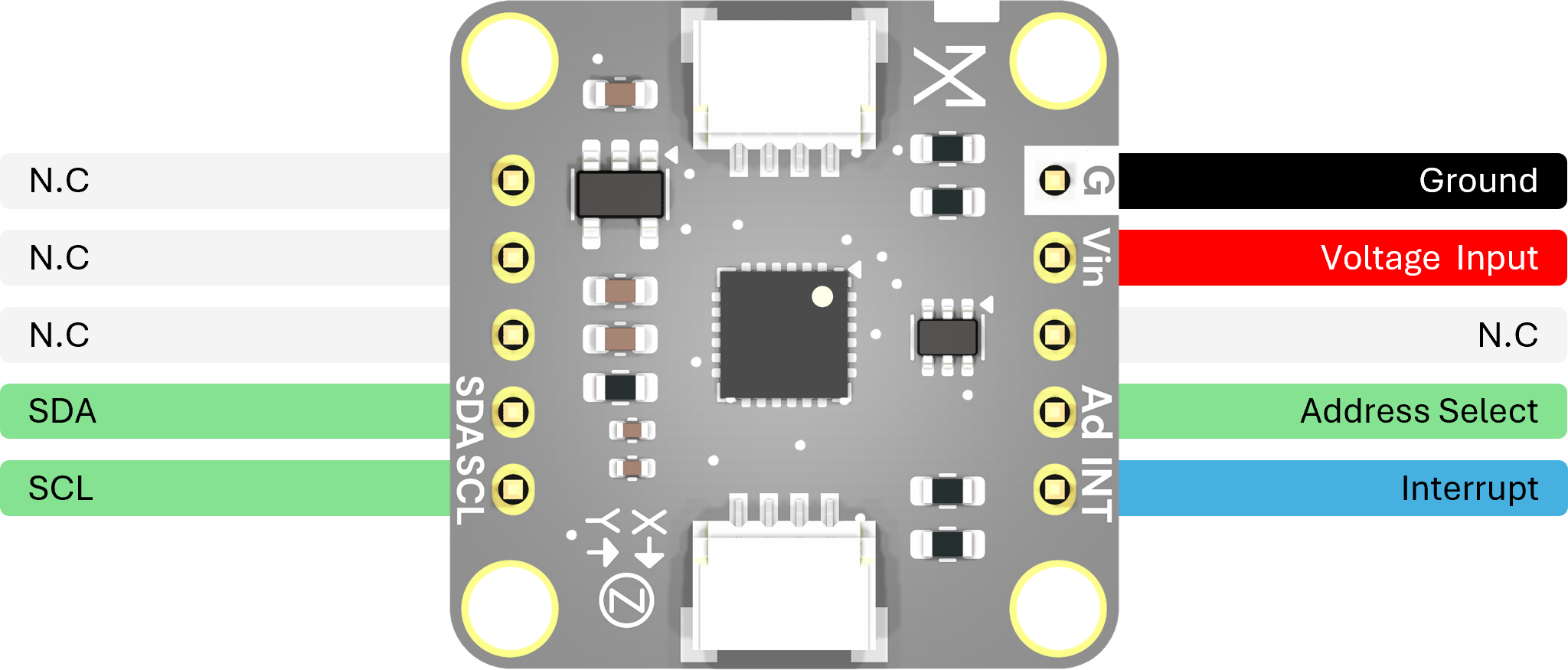

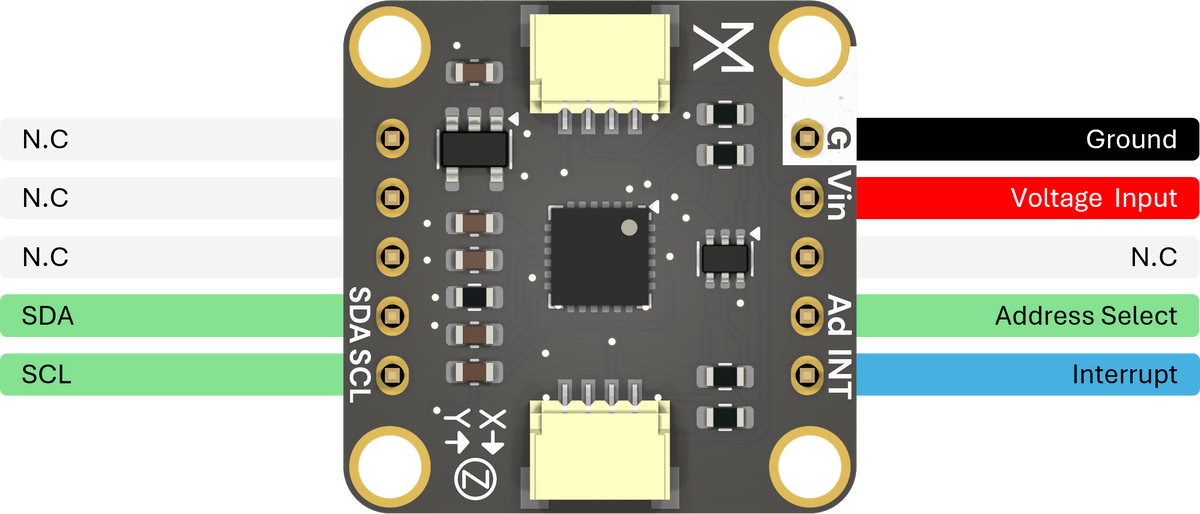

  • Pinout

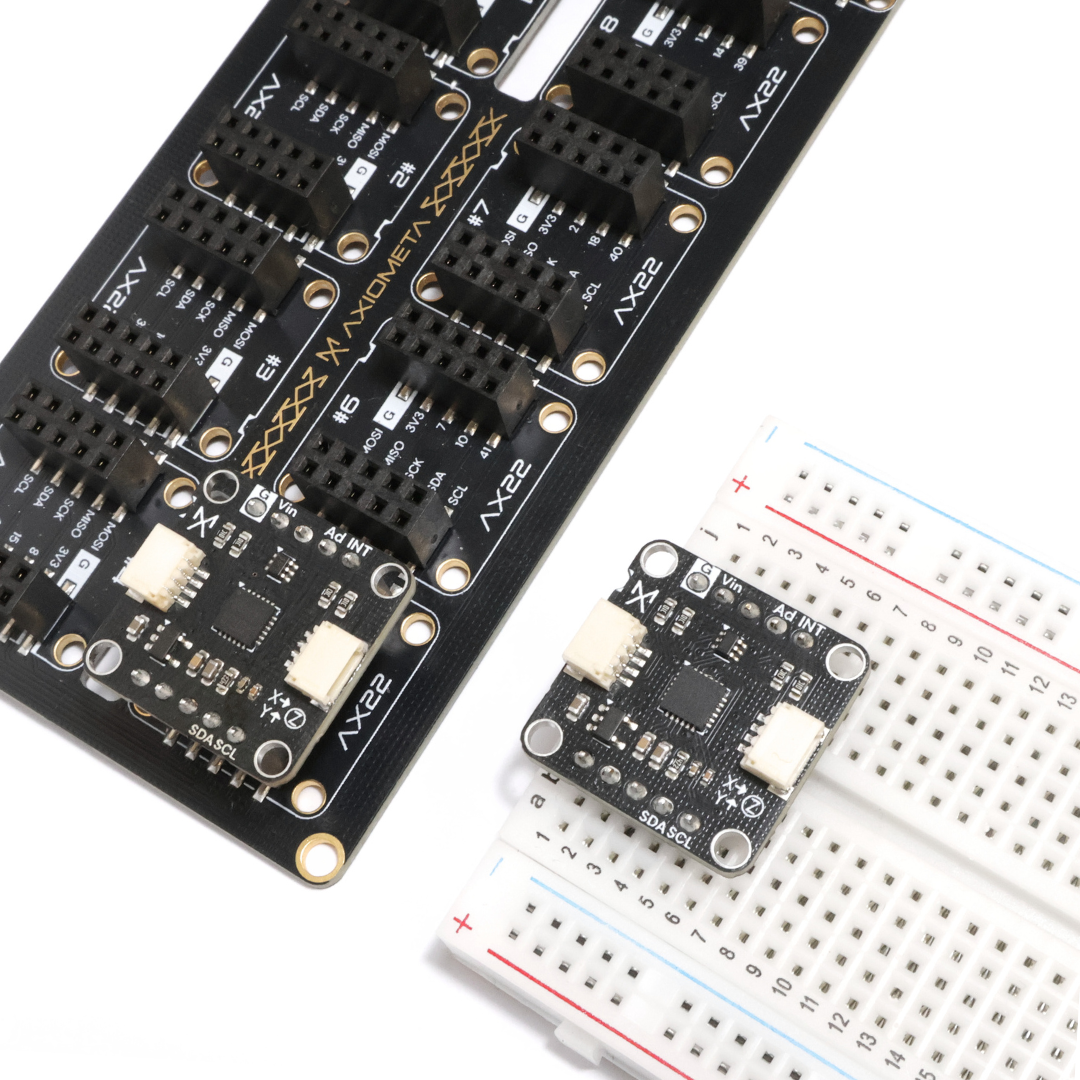

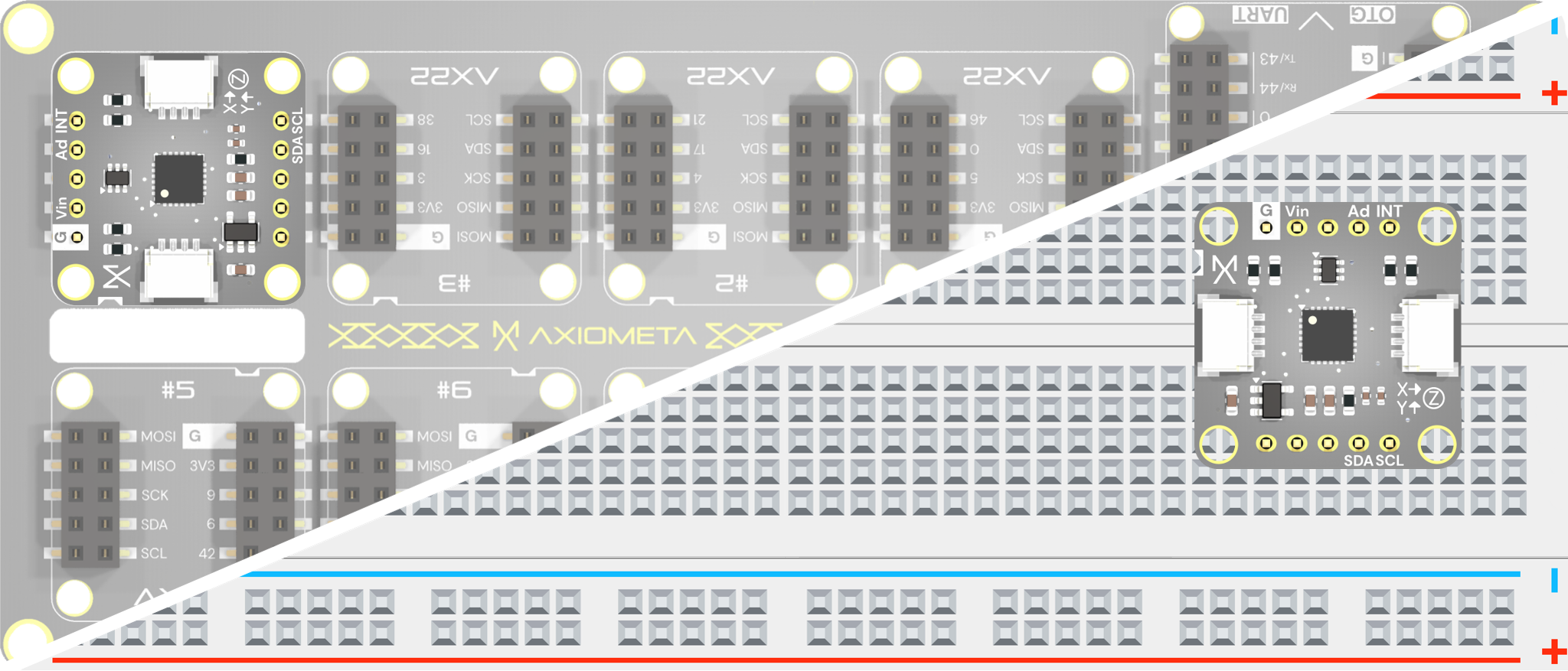

  • Interface

PCB Design

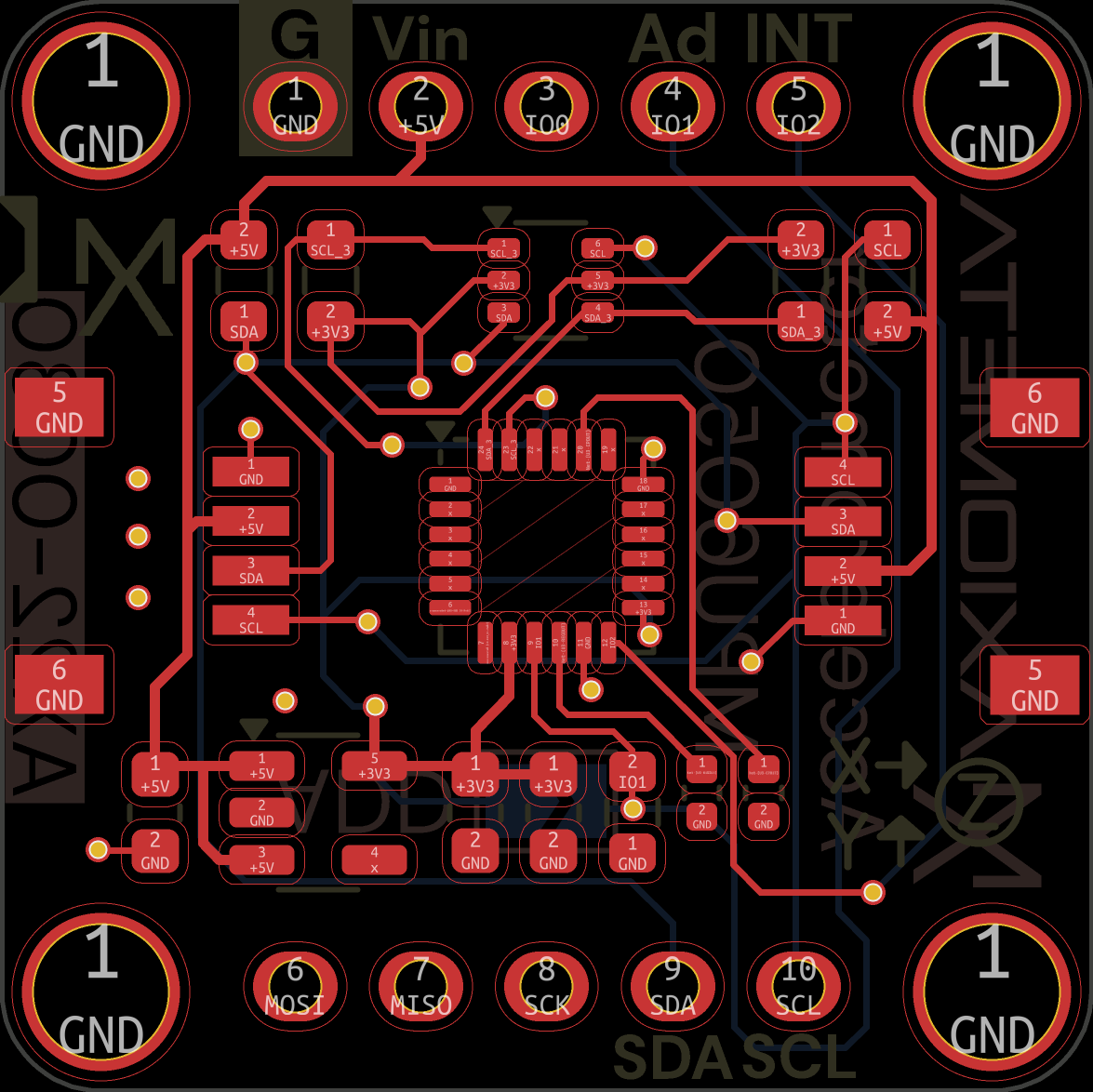

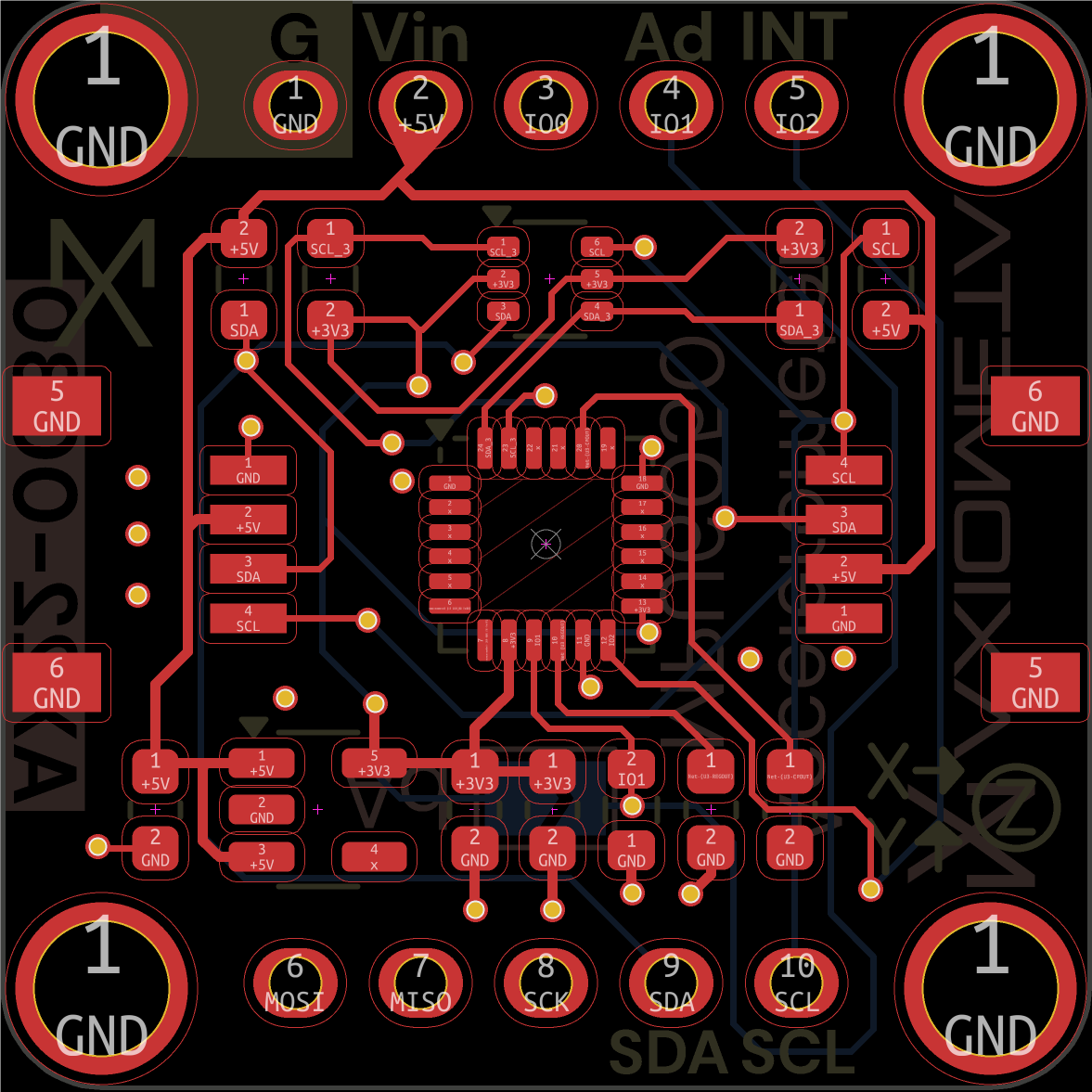

  • Top

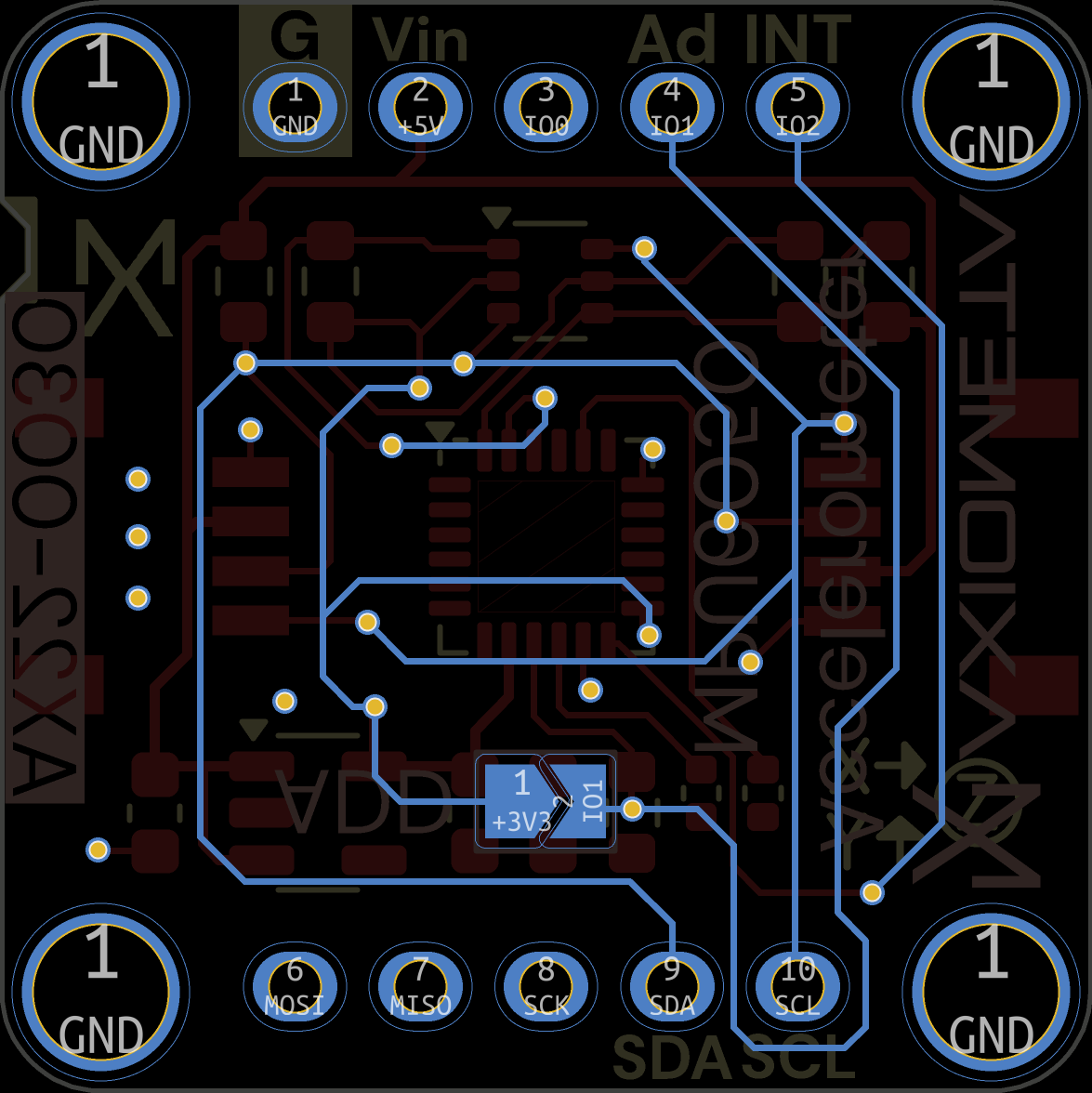

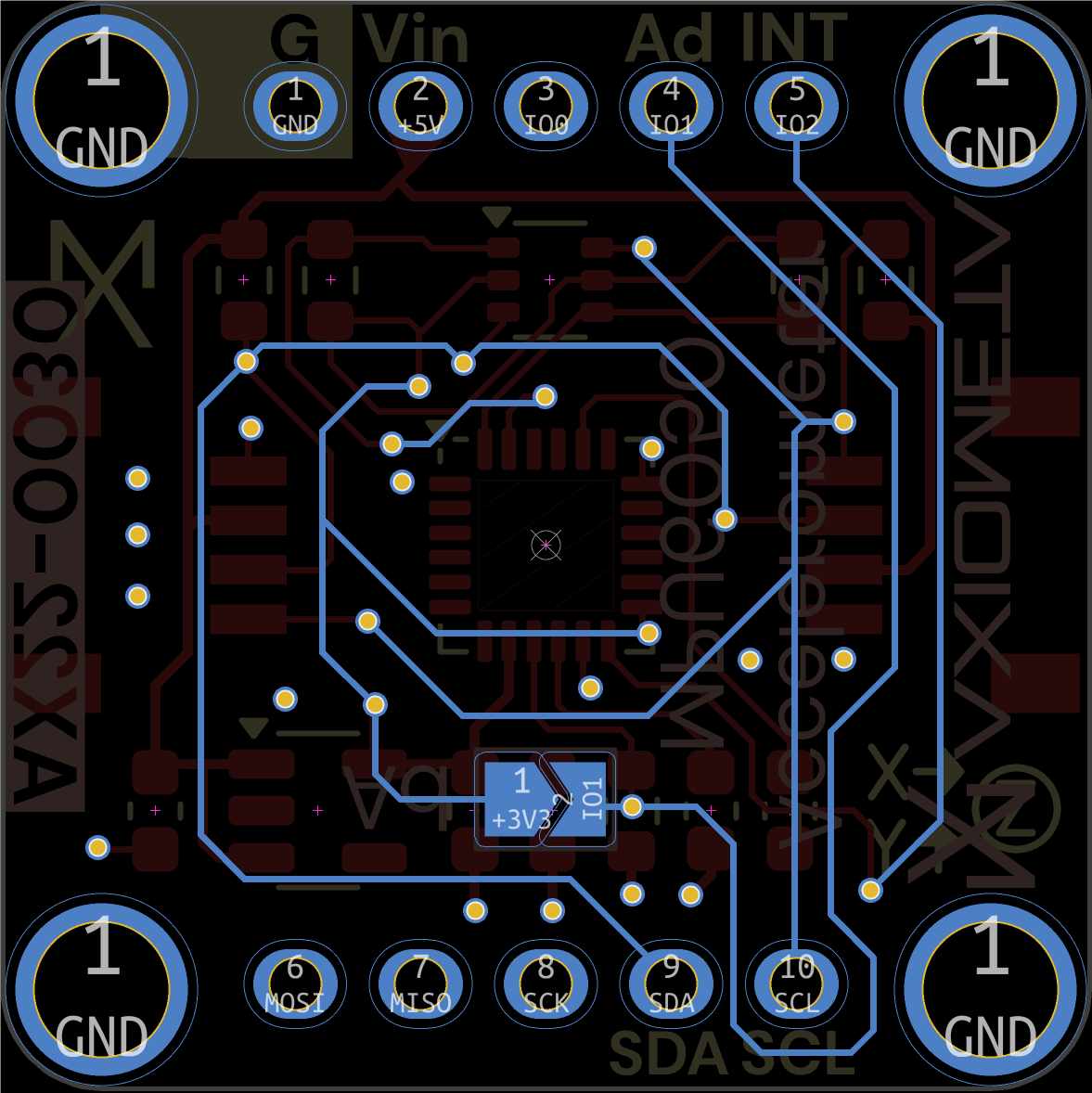

  • Bottom

Arduino Example Code

example.ino
// Basic demo for accelerometer readings from Adafruit MPU6050

#include <Adafruit_MPU6050.h>
#include <Adafruit_Sensor.h>
#include <Wire.h>

#define SDA_PIN 47
#define SCL_PIN 48

Adafruit_MPU6050 mpu;

void setup(void) {
  Serial.begin(115200);
  while (!Serial)
    delay(10);  // will pause Zero, Leonardo, etc until serial console opens

  Serial.println("Adafruit MPU6050 test!");
  Wire.begin(SDA_PIN, SCL_PIN);

  // Try to initialize!
  if (!mpu.begin()) {
    Serial.println("Failed to find MPU6050 chip");
    while (1) {
      delay(10);
    }
  }
  Serial.println("MPU6050 Found!");

  mpu.setAccelerometerRange(MPU6050_RANGE_8_G);
  Serial.print("Accelerometer range set to: ");
  switch (mpu.getAccelerometerRange()) {
    case MPU6050_RANGE_2_G:
      Serial.println("+-2G");
      break;
    case MPU6050_RANGE_4_G:
      Serial.println("+-4G");
      break;
    case MPU6050_RANGE_8_G:
      Serial.println("+-8G");
      break;
    case MPU6050_RANGE_16_G:
      Serial.println("+-16G");
      break;
  }
  mpu.setGyroRange(MPU6050_RANGE_500_DEG);
  Serial.print("Gyro range set to: ");
  switch (mpu.getGyroRange()) {
    case MPU6050_RANGE_250_DEG:
      Serial.println("+- 250 deg/s");
      break;
    case MPU6050_RANGE_500_DEG:
      Serial.println("+- 500 deg/s");
      break;
    case MPU6050_RANGE_1000_DEG:
      Serial.println("+- 1000 deg/s");
      break;
    case MPU6050_RANGE_2000_DEG:
      Serial.println("+- 2000 deg/s");
      break;
  }

  mpu.setFilterBandwidth(MPU6050_BAND_21_HZ);
  Serial.print("Filter bandwidth set to: ");
  switch (mpu.getFilterBandwidth()) {
    case MPU6050_BAND_260_HZ:
      Serial.println("260 Hz");
      break;
    case MPU6050_BAND_184_HZ:
      Serial.println("184 Hz");
      break;
    case MPU6050_BAND_94_HZ:
      Serial.println("94 Hz");
      break;
    case MPU6050_BAND_44_HZ:
      Serial.println("44 Hz");
      break;
    case MPU6050_BAND_21_HZ:
      Serial.println("21 Hz");
      break;
    case MPU6050_BAND_10_HZ:
      Serial.println("10 Hz");
      break;
    case MPU6050_BAND_5_HZ:
      Serial.println("5 Hz");
      break;
  }

  Serial.println("");
  delay(100);
}

void loop() {

  /* Get new sensor events with the readings */
  sensors_event_t a, g, temp;
  mpu.getEvent(&a, &g, &temp);

  /* Print out the values */
  Serial.print("Acceleration X: ");
  Serial.print(a.acceleration.x);
  Serial.print(", Y: ");
  Serial.print(a.acceleration.y);
  Serial.print(", Z: ");
  Serial.print(a.acceleration.z);
  Serial.println(" m/s^2");

  Serial.print("Rotation X: ");
  Serial.print(g.gyro.x);
  Serial.print(", Y: ");
  Serial.print(g.gyro.y);
  Serial.print(", Z: ");
  Serial.print(g.gyro.z);
  Serial.println(" rad/s");

  Serial.print("Temperature: ");
  Serial.print(temp.temperature);
  Serial.println(" degC");

  Serial.println("");
  delay(500);
}
