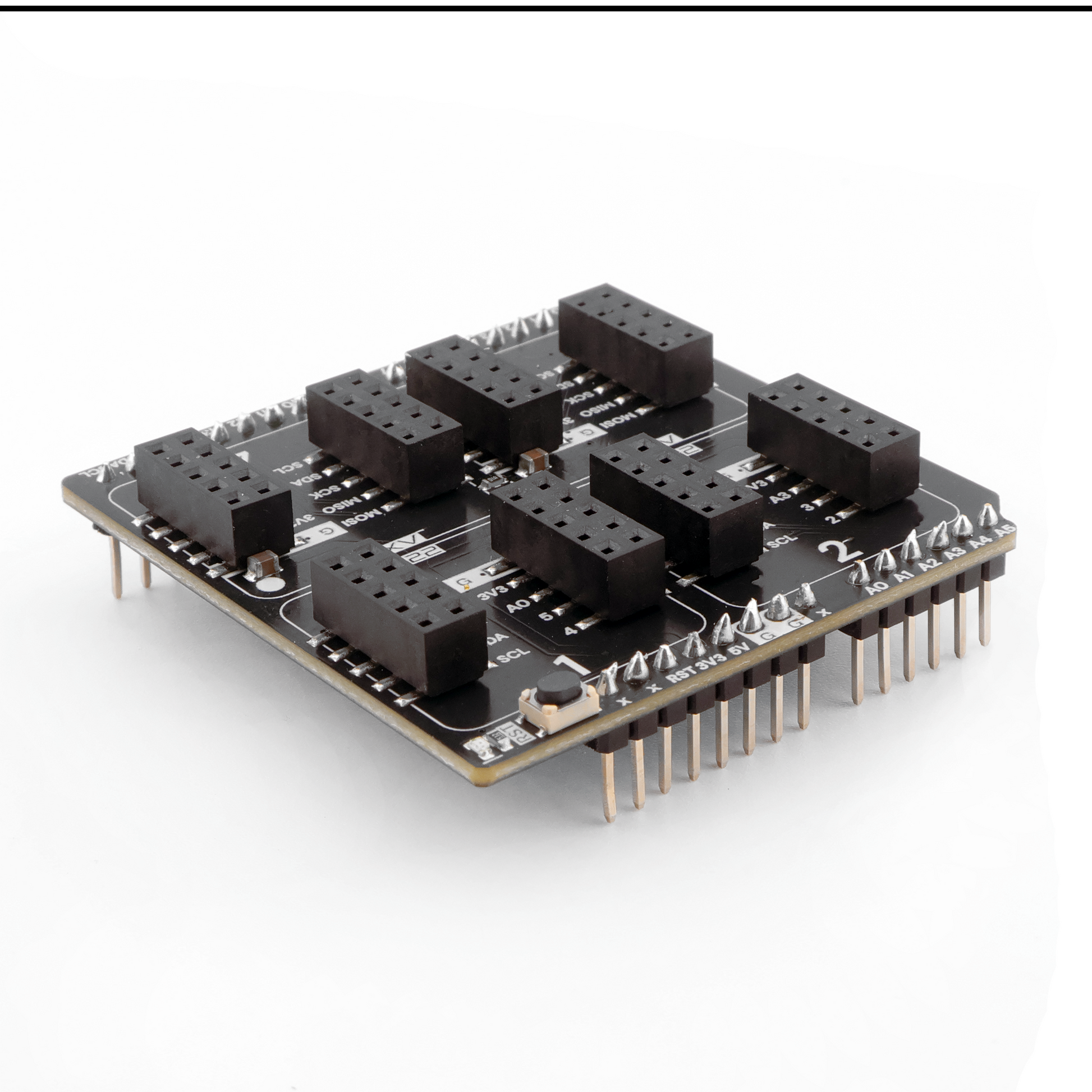

Arduino UNO AX22 Shield

Arduino UNO AX22 Shield

AXMT-SHE0001

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

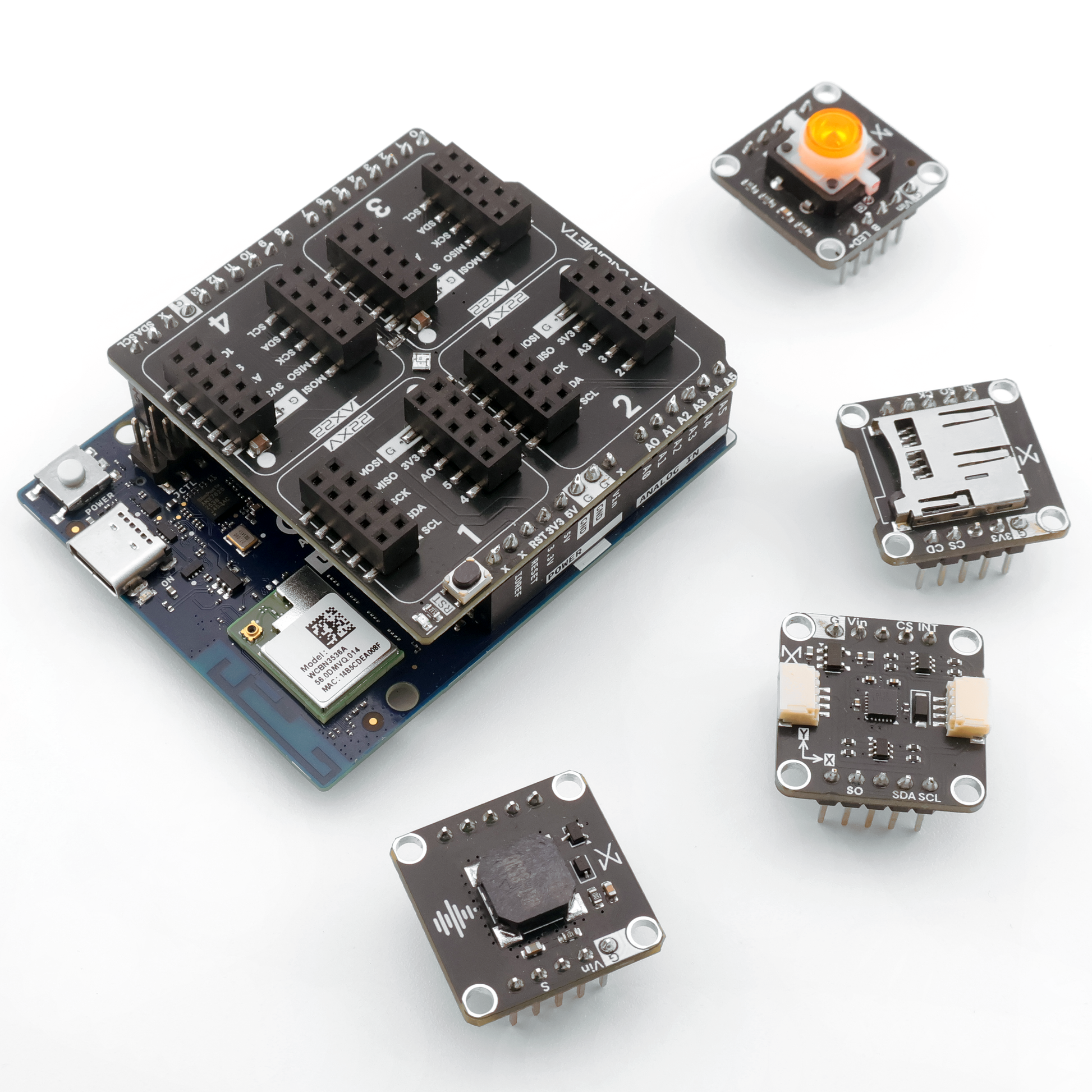

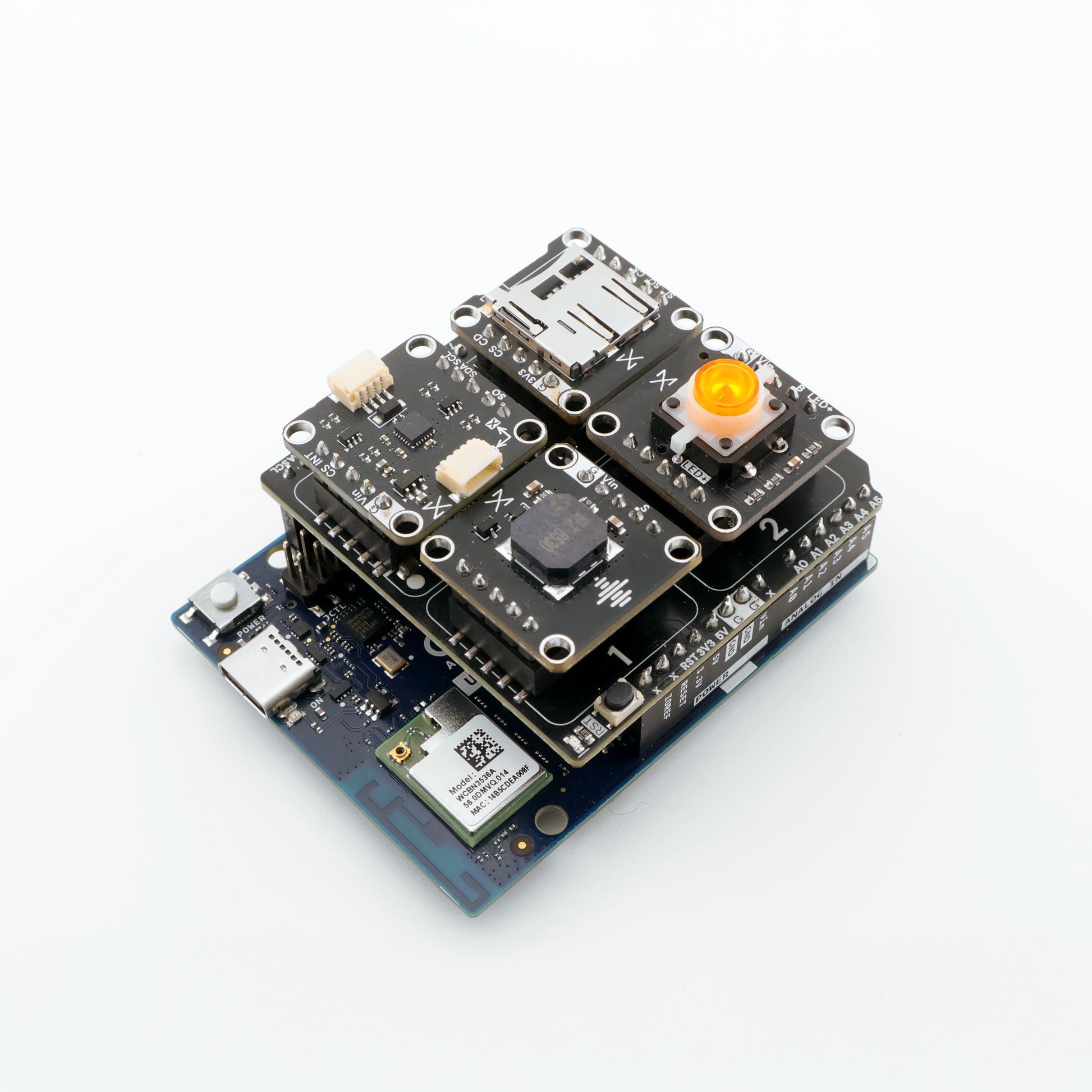

Plug AX22 modules straight into an Arduino UNO. Four AX22 ports break out SPI, I2C, ADC, and GPIO from the UNO's headers into the standardized 22×22mm connector format. Drop in a sensor, display, or driver module and start coding. A reset button and onboard WS2812B NeoPixel round it out for quick prototyping and status indication.

This item does not include the Arduino Uno, only the shield.

$9.49
$9.49
Sale Sold out
View full details

Technical Details

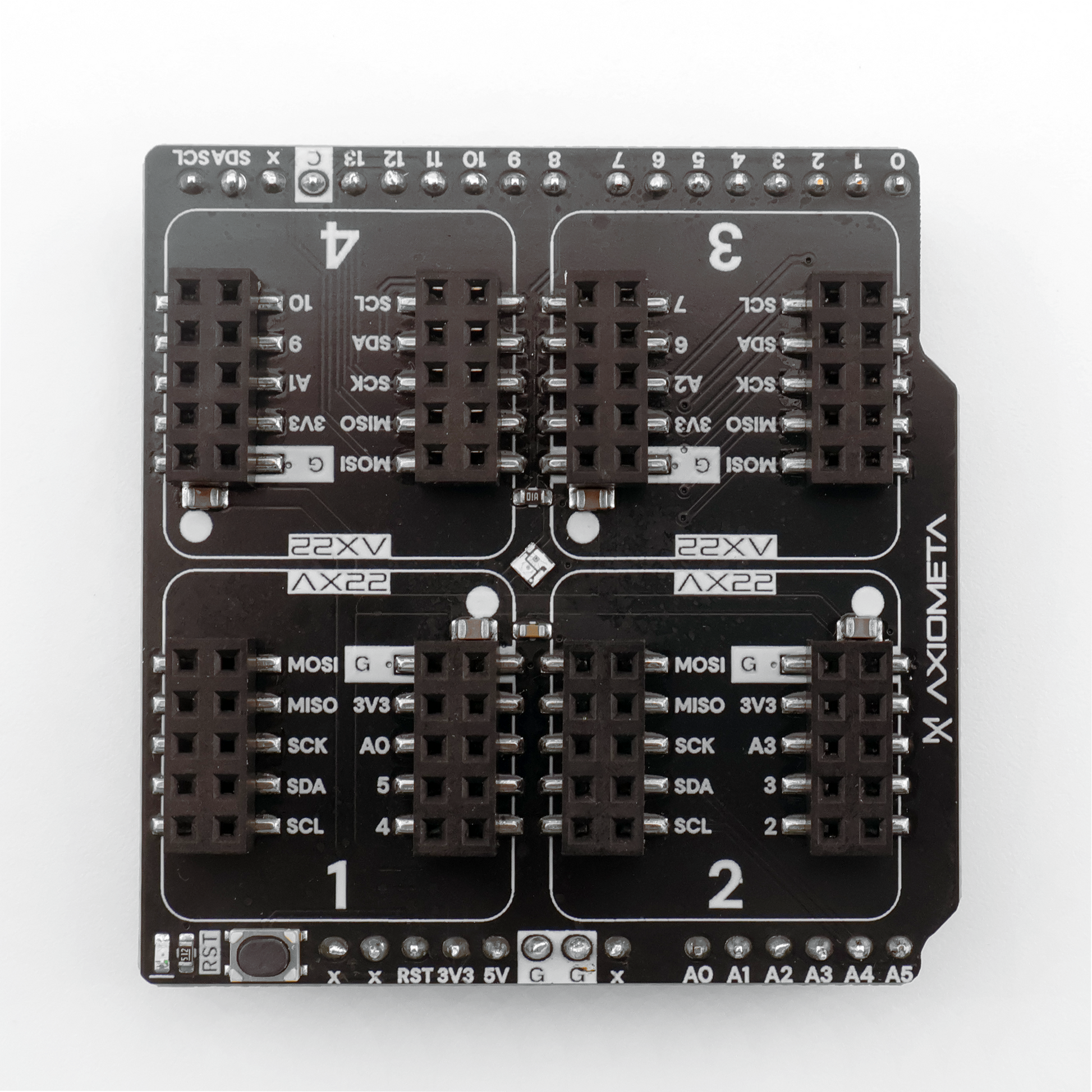

- 4x AX22 Ports (SPI, I2C, ADC, GPIO)
- Arduino UNO R3 Shield Form Factor
- Reset Button
- WS2812B NeoPixel (addressable RGB)
- 3.3V & 5V Rail Access

Technical Resources

Arduino UNO AX22 Shield - (AXMT-SHE0001)
Circuit Schematic 3D Model

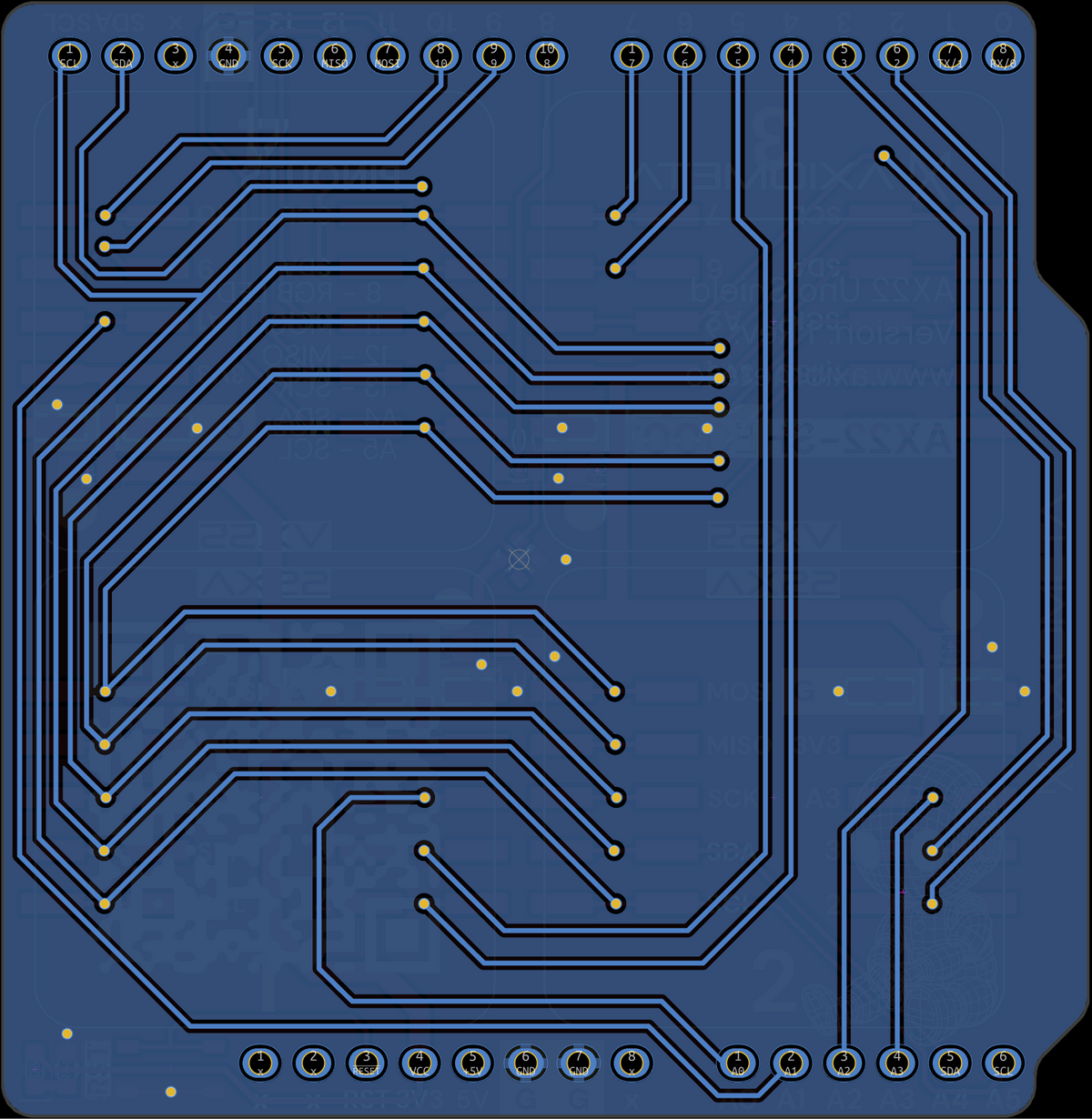

PCB

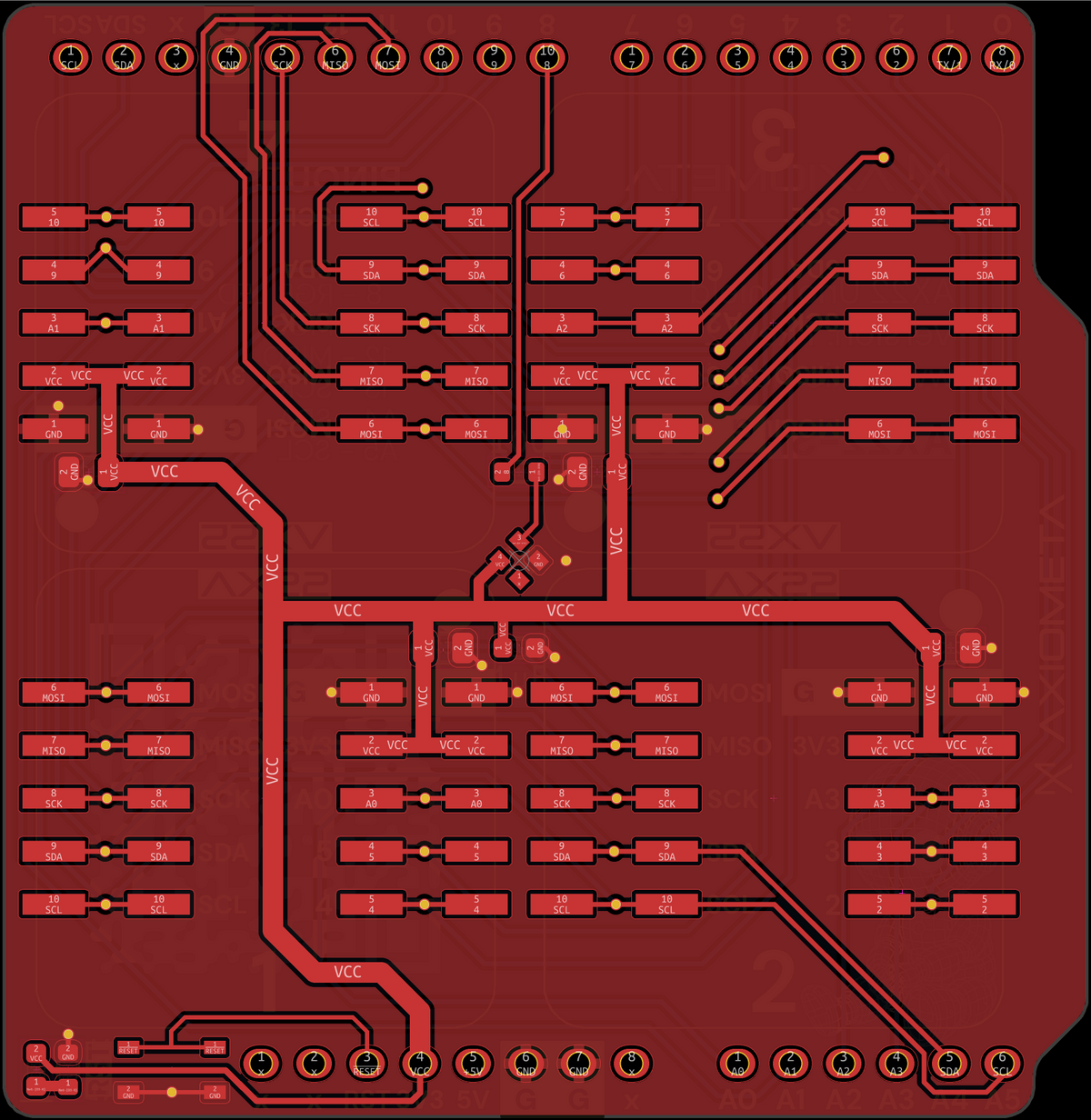

PCB

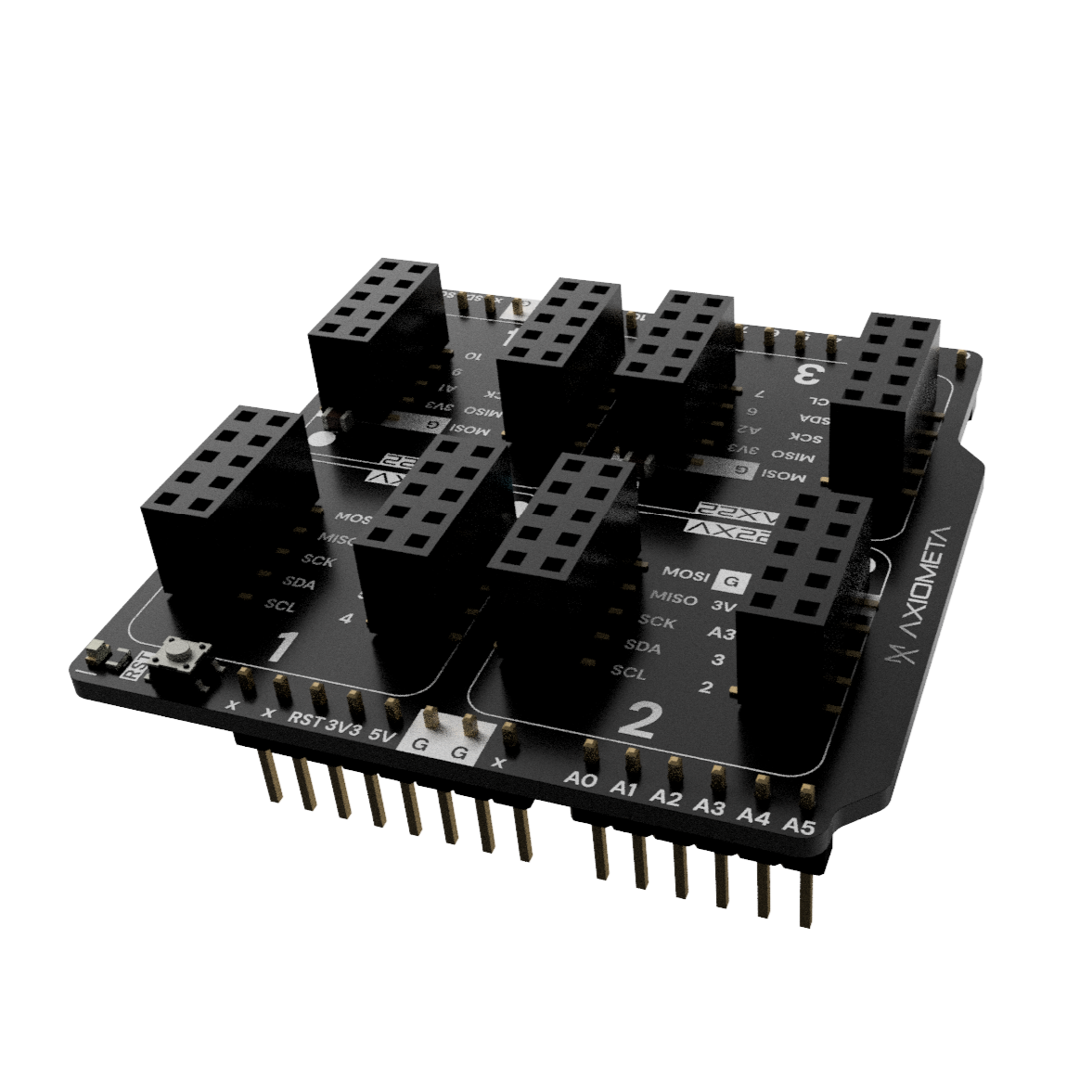

🟢 Live 3D Model

🖱️ Click & drag to rotate
