Axiometa Addressable LED Driver - Soldering Kit

Axiometa Addressable LED Driver - Soldering Kit

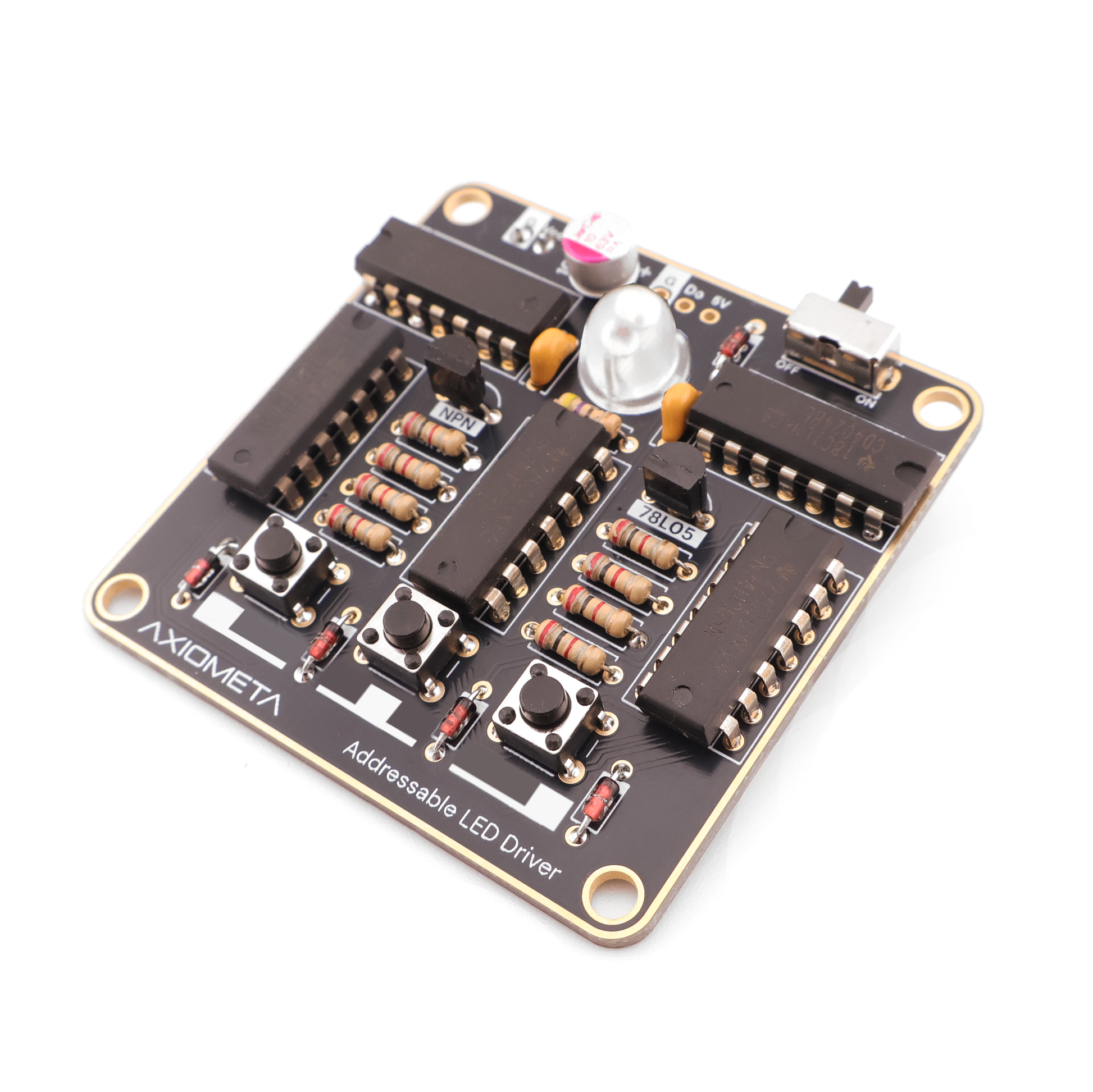

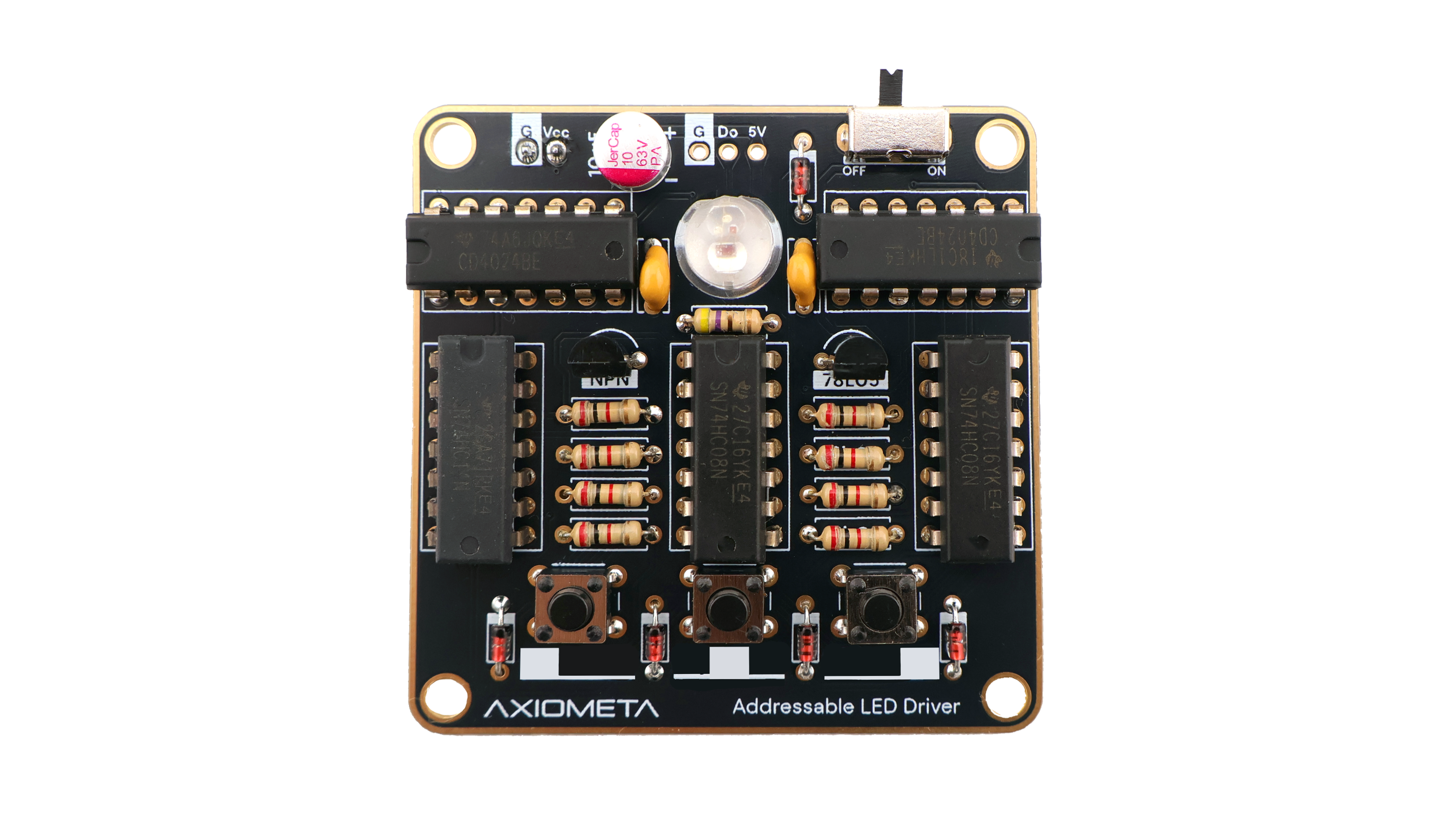

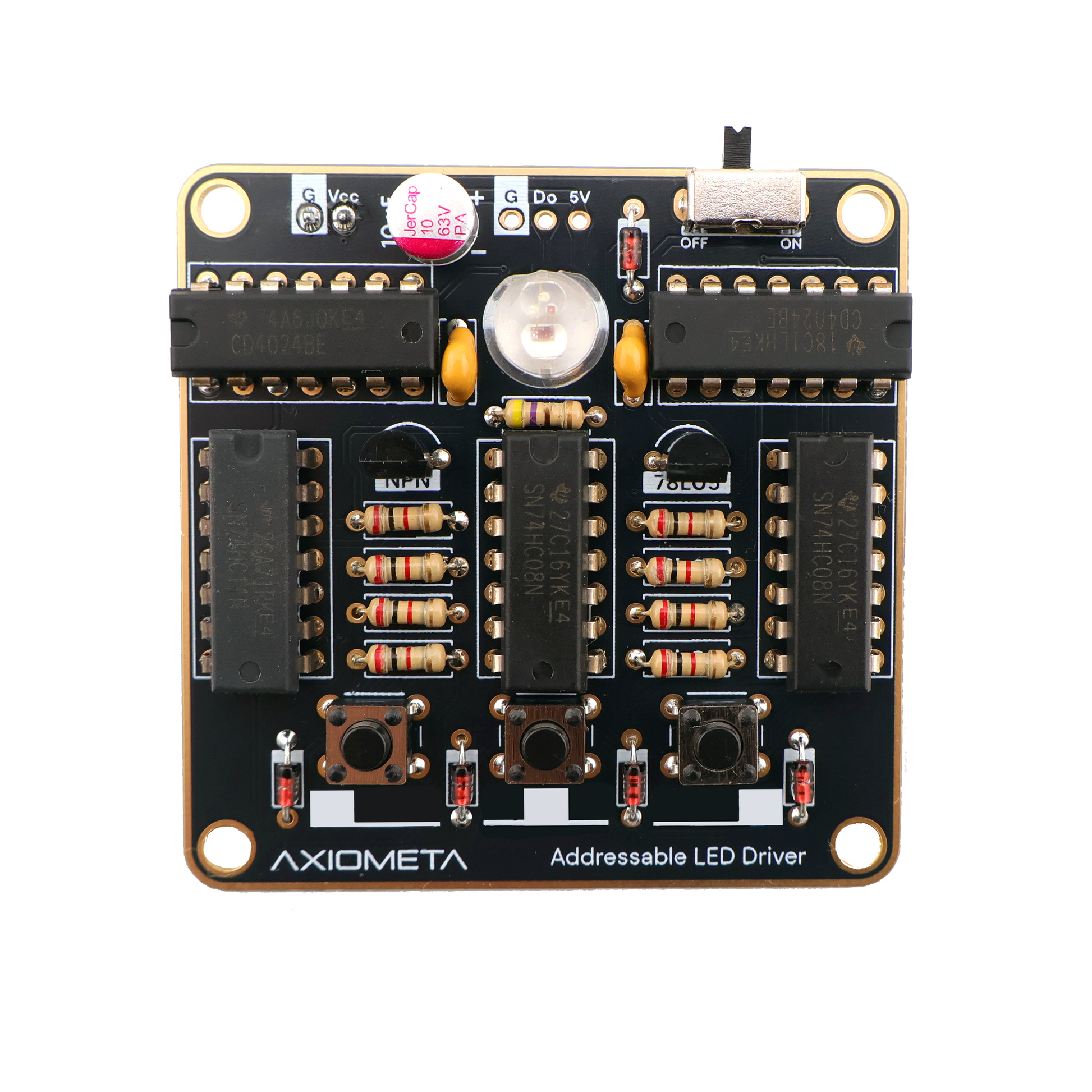

The Addressable LED Driver is a hands-on soldering project designed to demonstrate how WS2812 protocol works using discrete logic. Three buttons control individual color channels while an oscillator generates precise timing pulses that a counter sequences into 24-bit data frames. As logic gates shape and combine these signals, LEDs display mixed colors without any microcontroller, visualizing how digital circuits can replicate software functions through hardware alone.

$17.99
$17.99
Sale Sold out
View full details

Make it yourself.

How it works ?

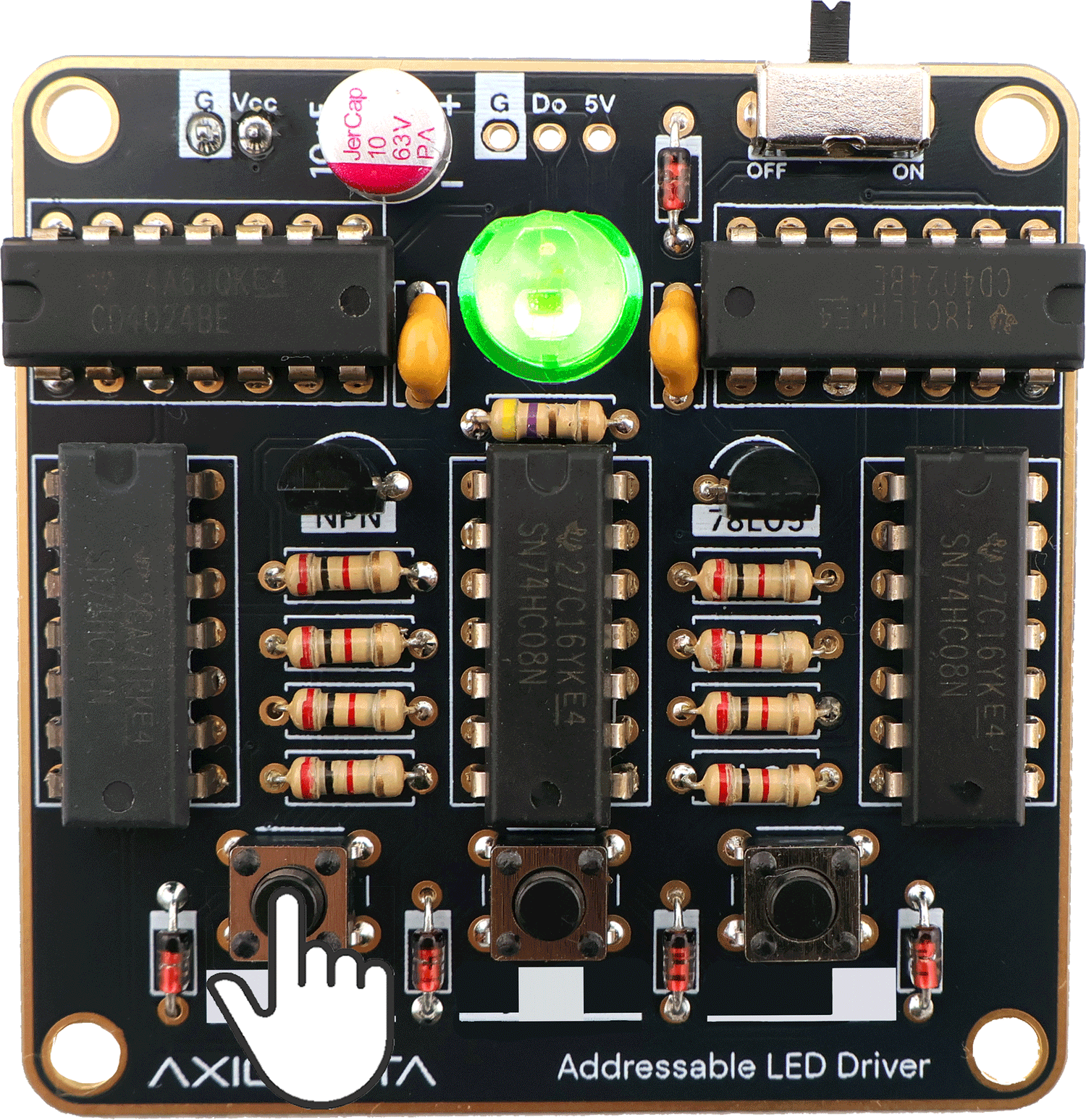

This project is a fun, proof of concept of how to control addressable LEDs without a microcontroller. Each button can trigger a single colors, you can mix colors, and address up to 64 LEDs.

Perfect for learning soldering

Learn proper soldering on a PCB designed for it: ENIG surface finish, well-spaced through-hole pads, and clear component designators help you understand the relationship between board layout and assembly quality.

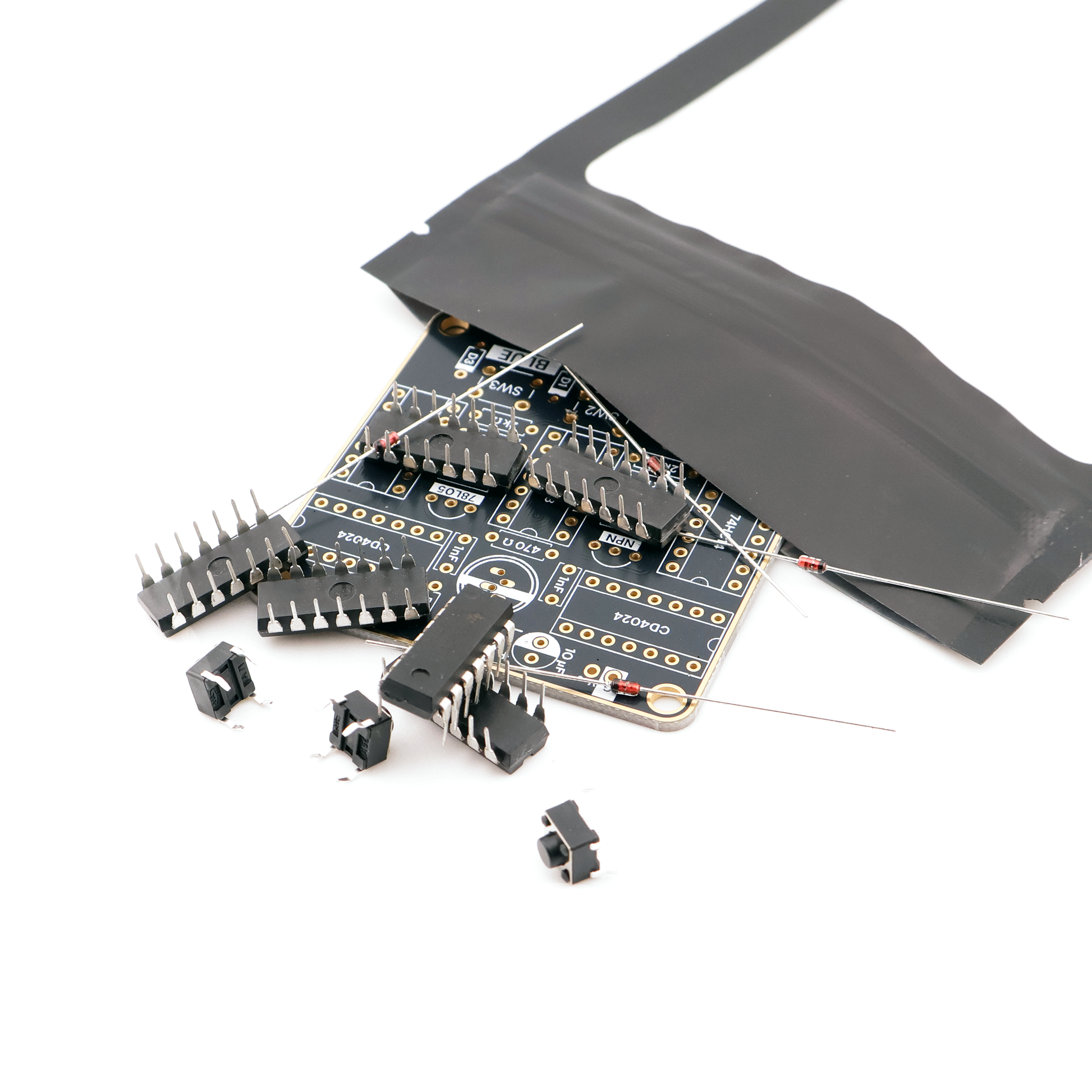

What's inside the kit ?

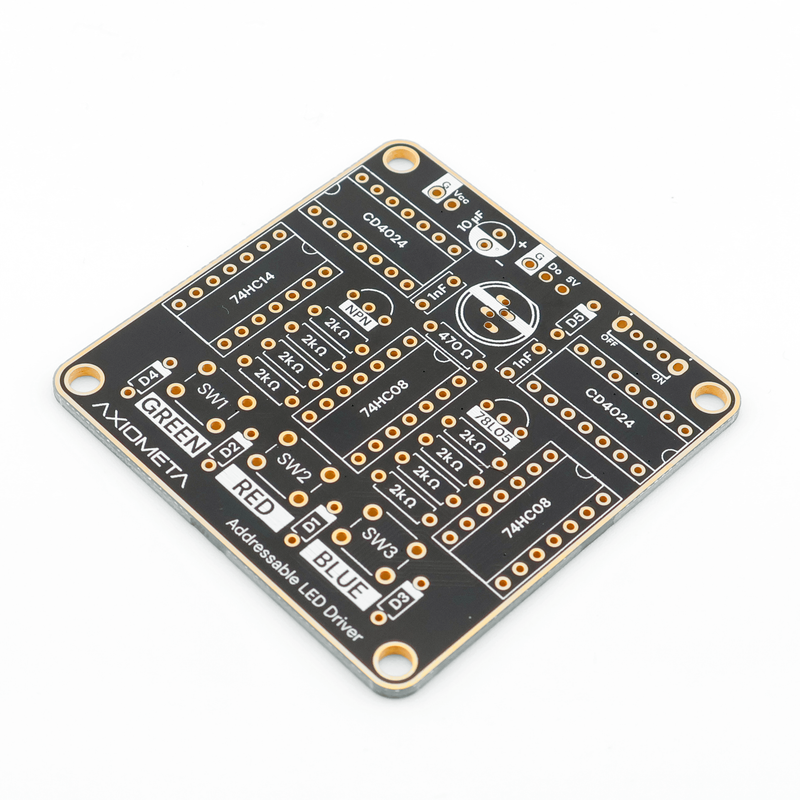

PCB - 1X
Battery Connector -1X
Battery Plug - 1X
Power Switch - 1X
2kΩ Resistors - 8X
470 Ω Resistor - 1X

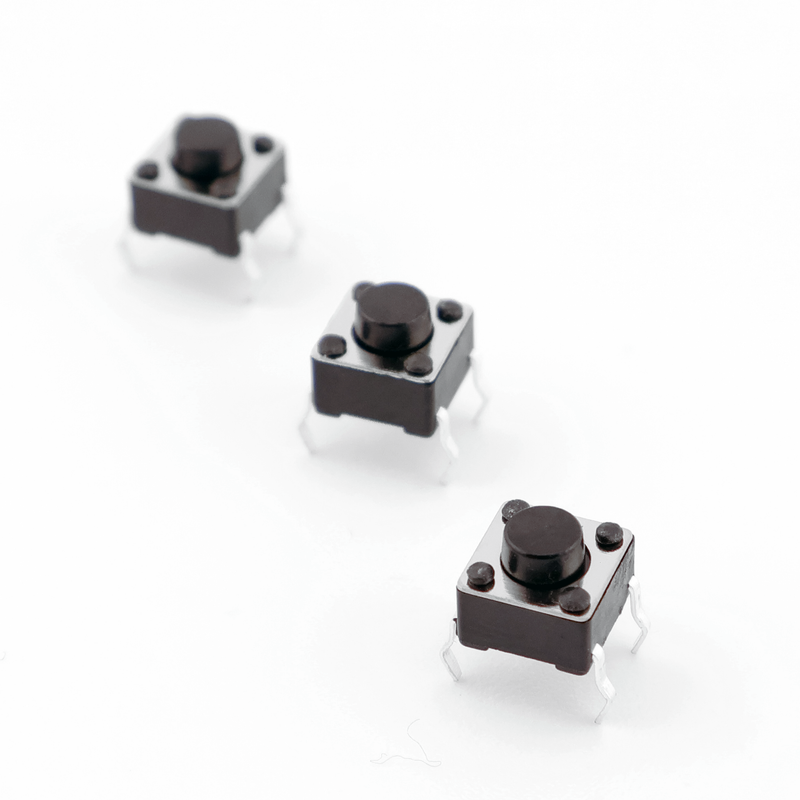

Tactile Switches - 3X
Addressable LED - 1X

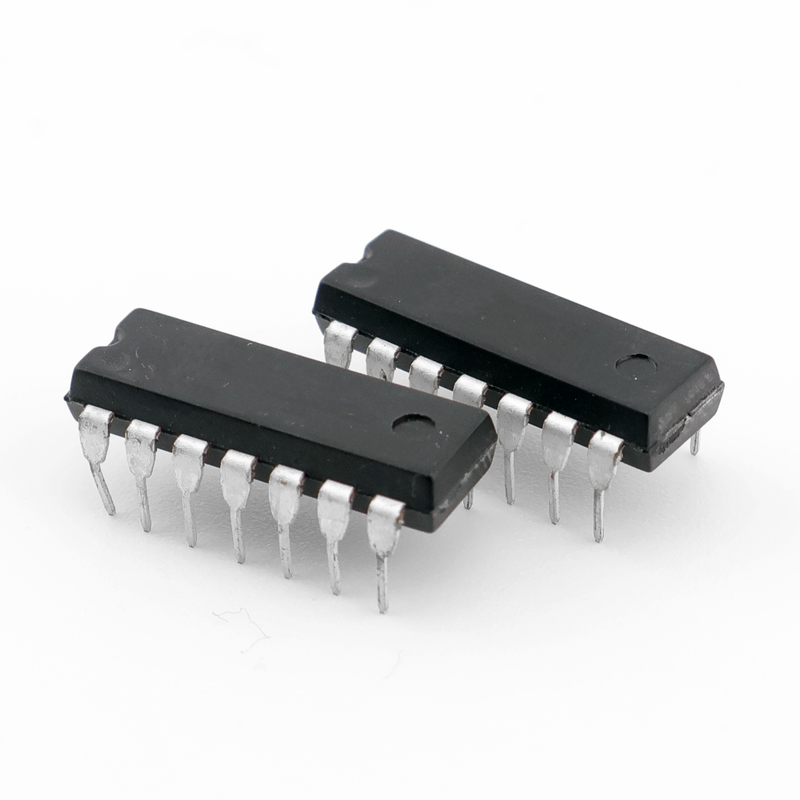

CD4024 - 2X
74HC08- 2X

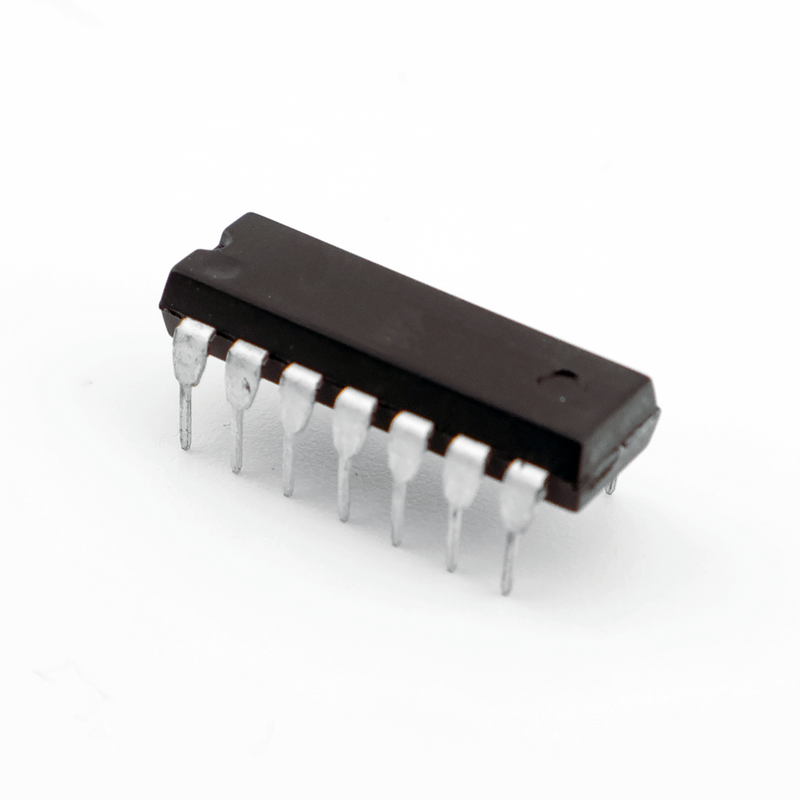

74HC14- 1X

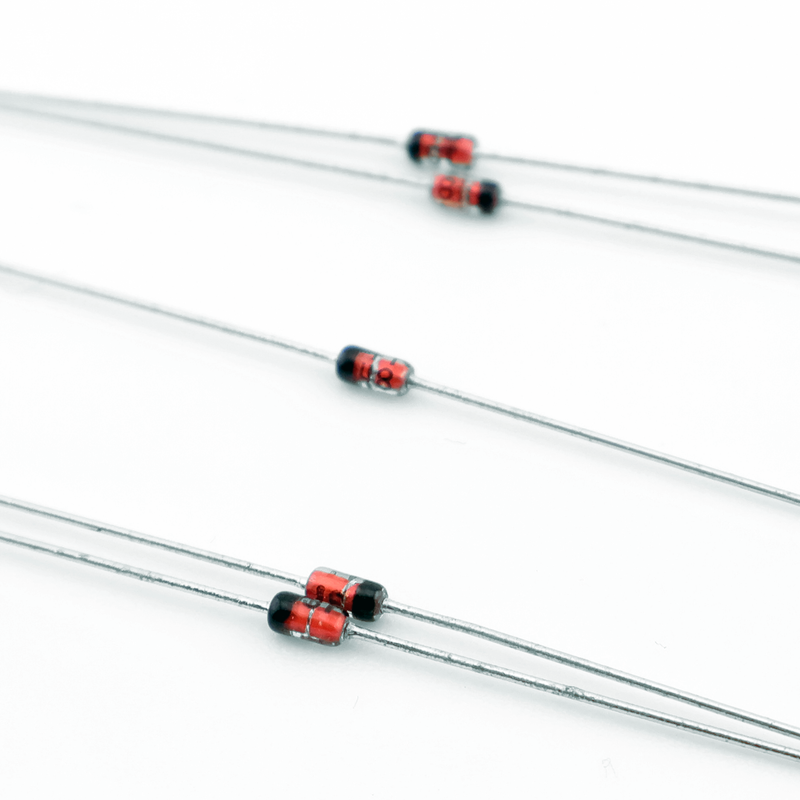

1N4818- 5X

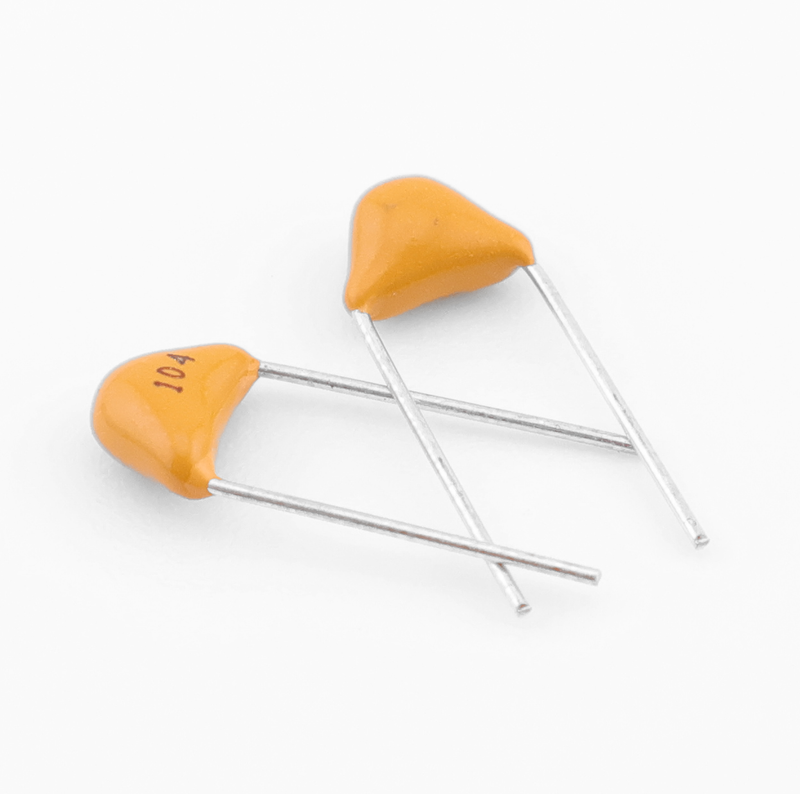

100 nF Capacitors - 2X
10 uF Capacitor - 1X
NPN Transistor - 1X
78L05 - 1X
PCB - 1X Battery Connector -1X Battery Plug - 1X Power Switch - 1X 2kΩ Resistors - 8X 470 Ω Resistor - 1X Tactile Switches - 3X
CD4024 - 2X 74HC08- 2X 74HC14- 1X 1N4818- 5X 100 nF Capacitors - 2X 10 uF Capacitor - 1X NPN Transistor - 1X 78L05 - 1X

Technical Resources

Axiometa Addressable LED Driver - Soldering Kit- (AXMT-SLD0004)
3D Printable Stand Circuit Schematic 3D Models

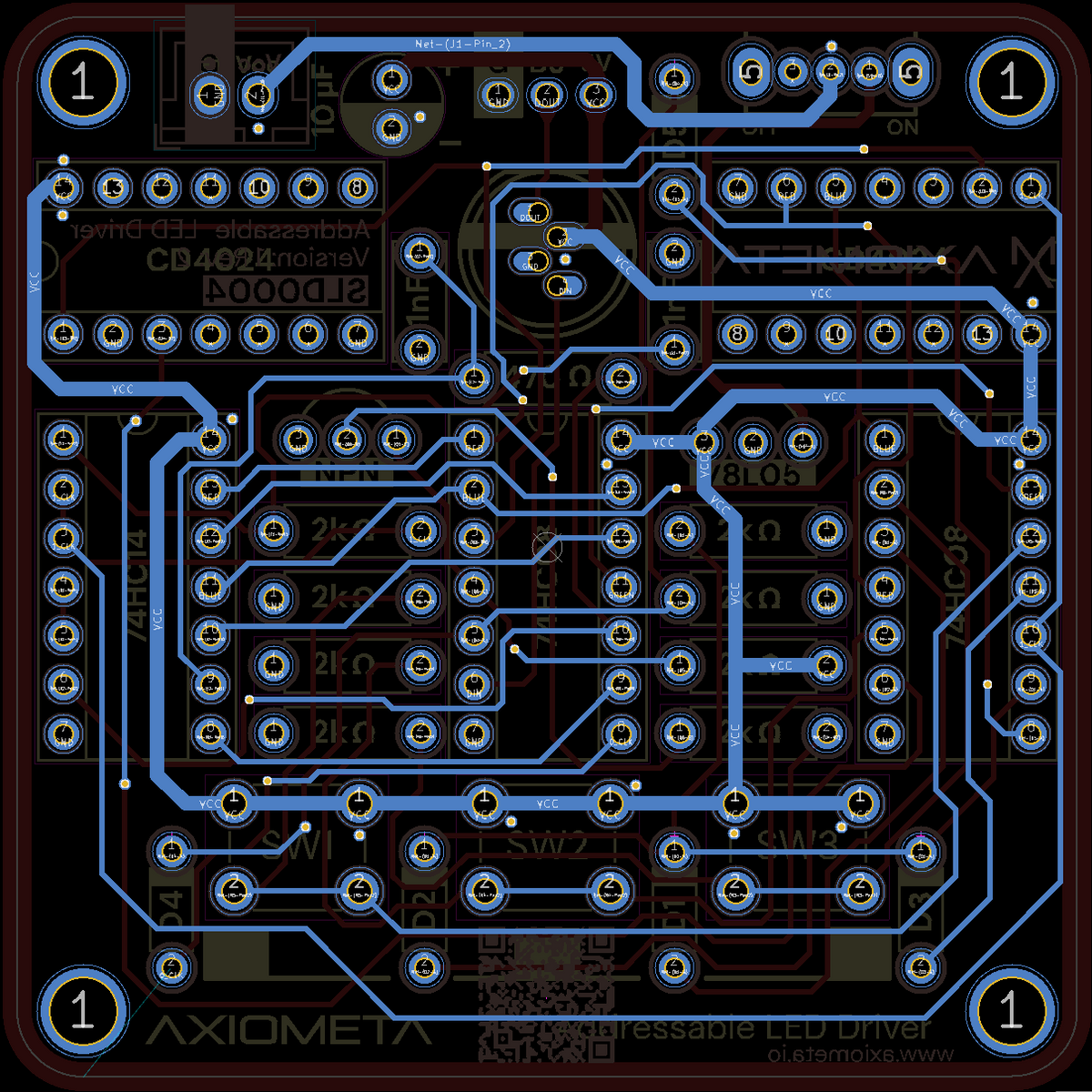

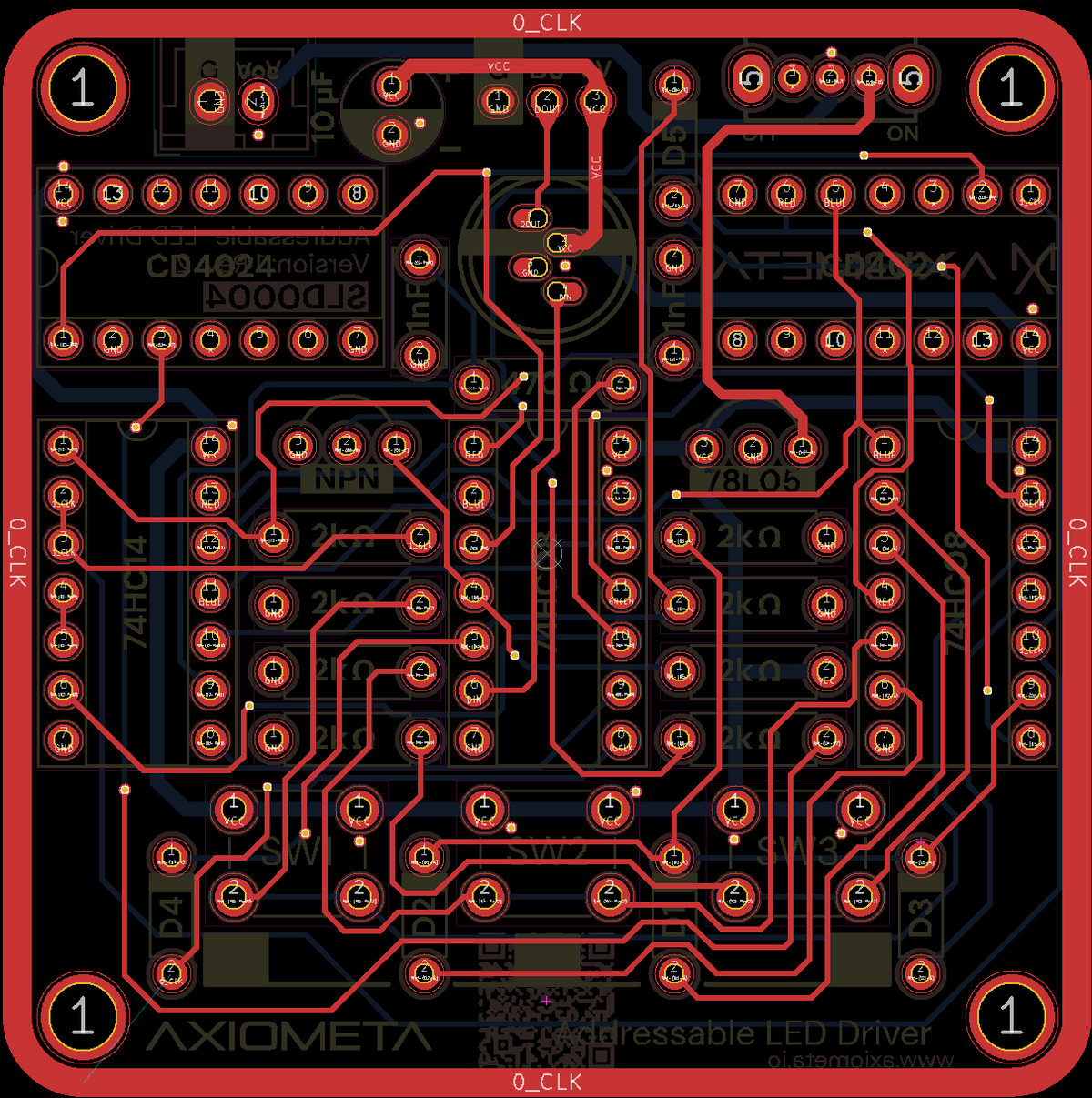

PCB FRONT
