Axiometa Audio LED Flasher - Soldering Kit

Axiometa Audio LED Flasher - Soldering Kit

The Sound Reactive LED is a hands-on soldering project that turns sound into light using just four transistors. An electret microphone picks up audio and is converted it into a signal strong enough to drive an LED. The result is a circuit that visibly reacts to claps, music, and speech a simple introduction to how analog signals become digital switching with only a handful of components.

$8.99
$8.99
Sale Sold out
View full details

Make it yourself.

How it works ?

An electret microphone picks up audio and passes it through a 100nF coupling capacitor into the first transistor's base. A 1M resistor sets the sensitivity of this stage. When sound hits, the first transistor switches and its collector drive the second transistor, which fires the LED. The result is a clean on-off flash that follows the rhythm of whatever sound is in the room.

Perfect for learning soldering

Learn proper soldering on a PCB designed for it: ENIG surface finish, well-spaced through-hole pads, and clear component designators help you understand the relationship between board layout and assembly quality.

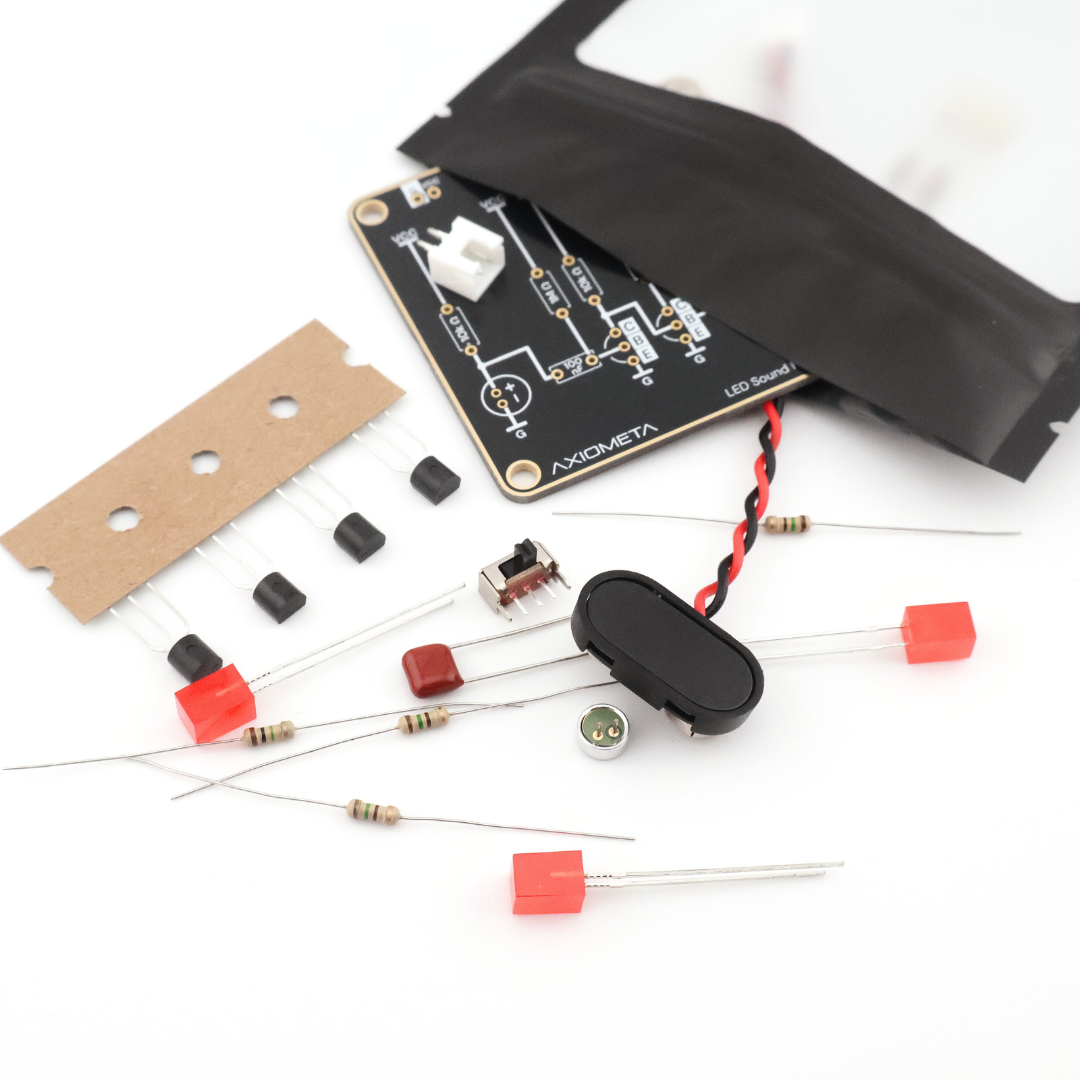

What's inside the kit ?

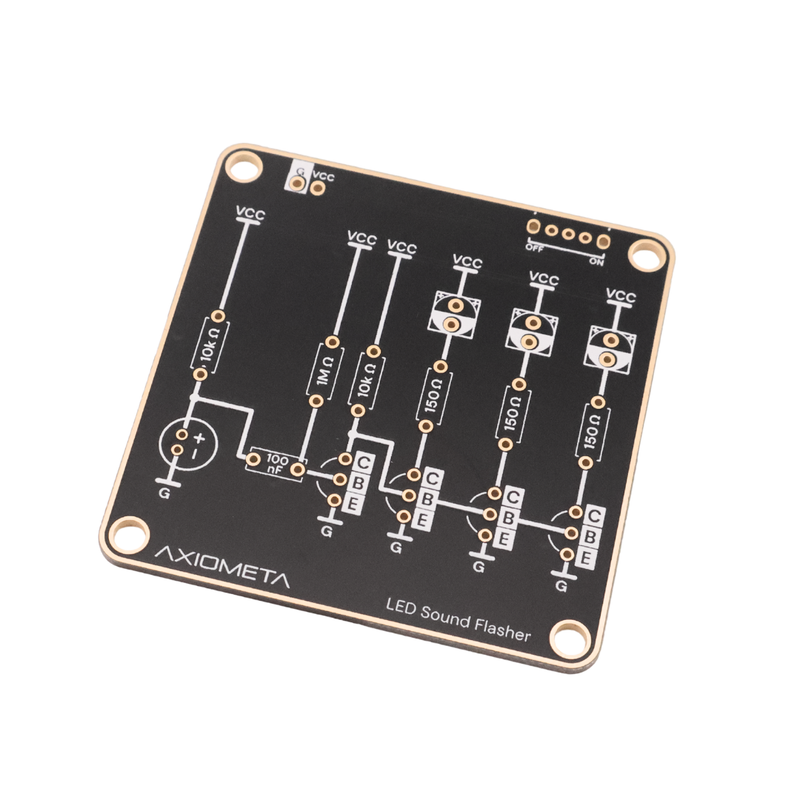

PCB - 1X
Battery Connector -1X
Battery Plug - 1X
Power Switch - 1X
1M Ω Resistor - 1X
LED - 4X
150 Ω Resistors - 3X
10 kΩ Resistors - 2X
100 nF Capacitors - 1X
NPN Transistor - 4X
PCB - 1X Battery Connector -1X Battery Plug - 1X Power Switch - 1X 1M Ω Resistor - 1X LED - 4X 150 Ω Resistors - 3X 10 kΩ Resistors - 2X 100 nF Capacitors - 1X NPN Transistor - 4X

Technical Resources

Axiometa Audio LED Flasher - Soldering Kit- (AXMT-SLD0016)
3D Printable Stand Assembly Instructions Circuit Schematic 3D Models

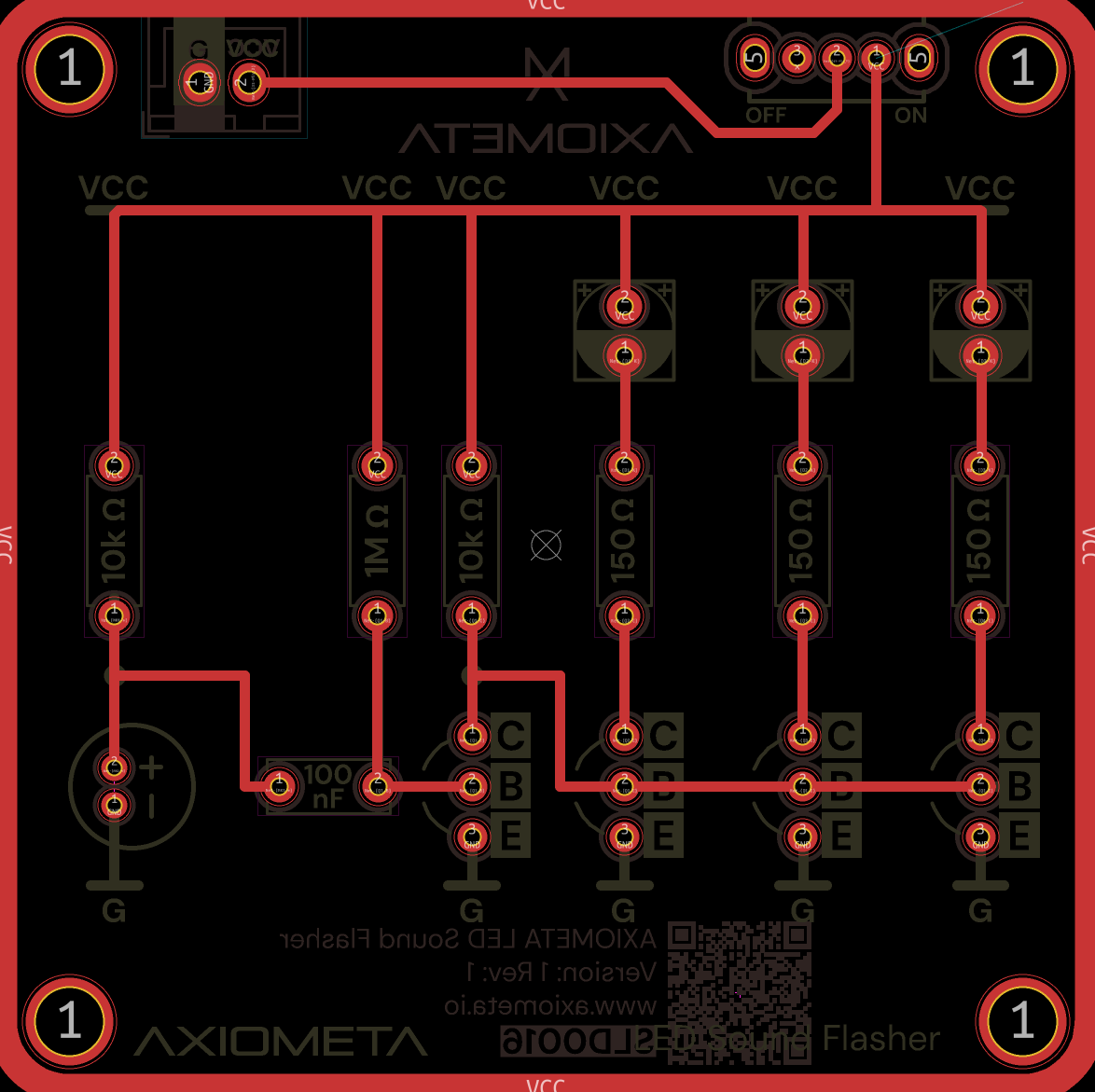

PCB FRONT

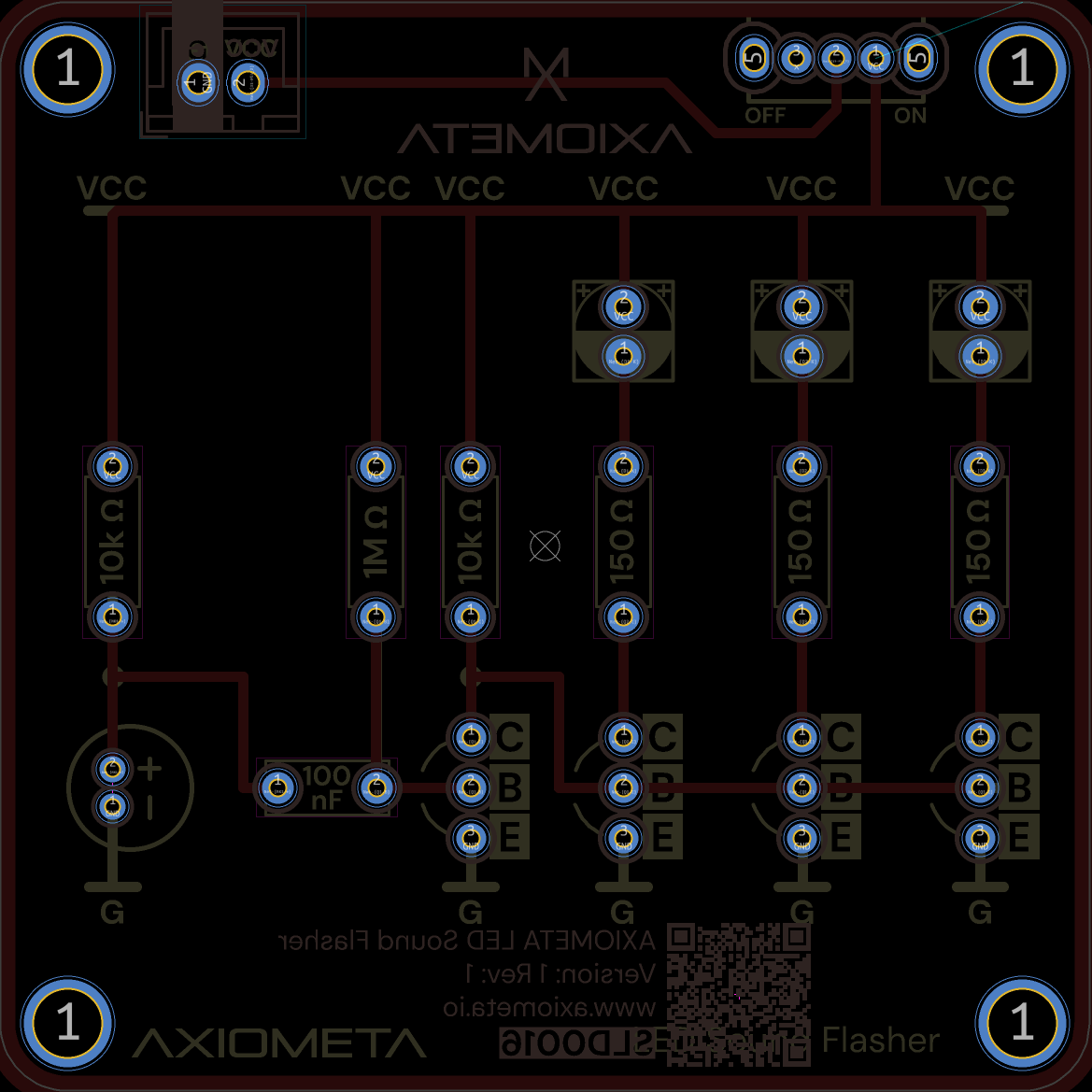

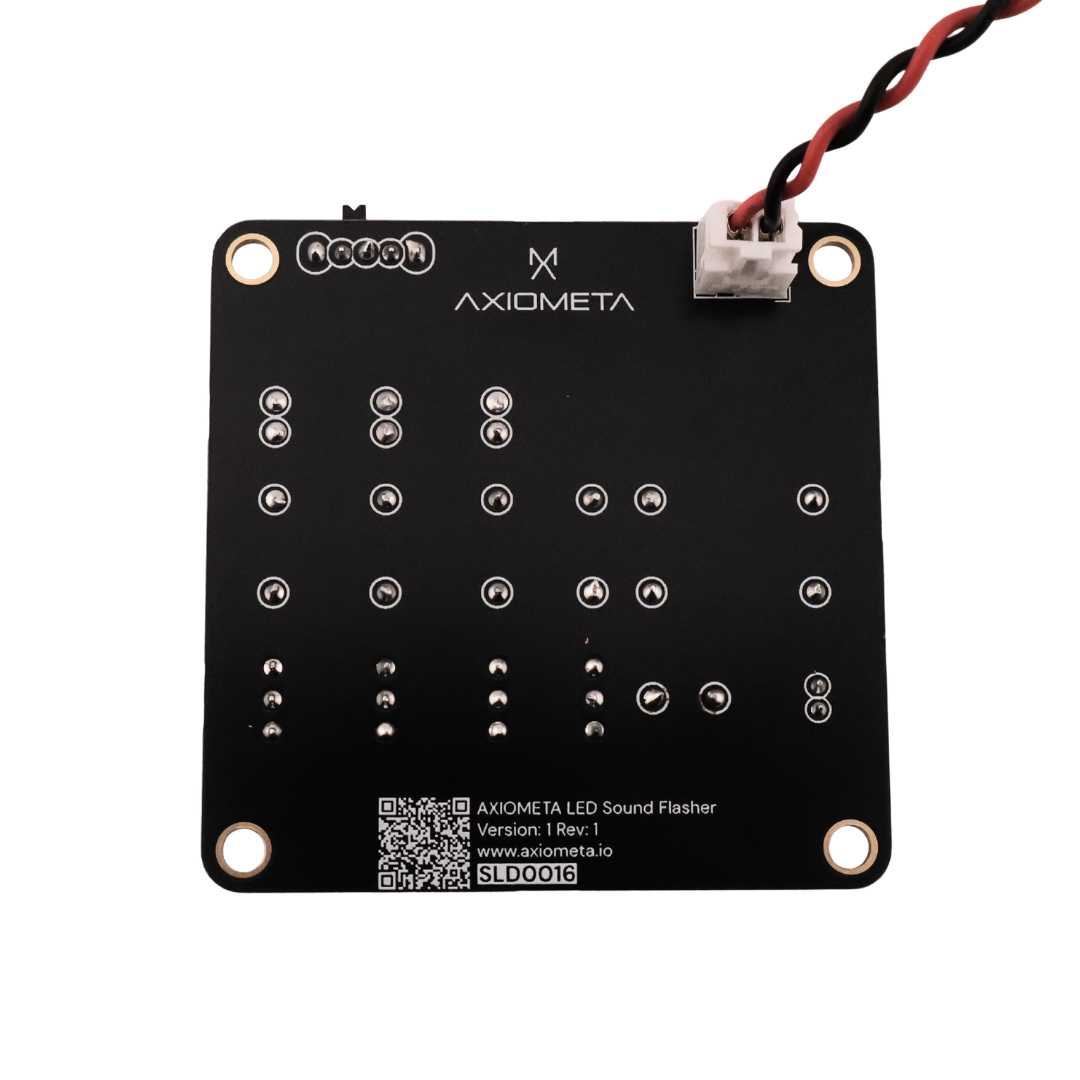

PCB BACK
