NAND Gate (CMOS) - Soldering Kit

NAND Gate (CMOS) - Soldering Kit

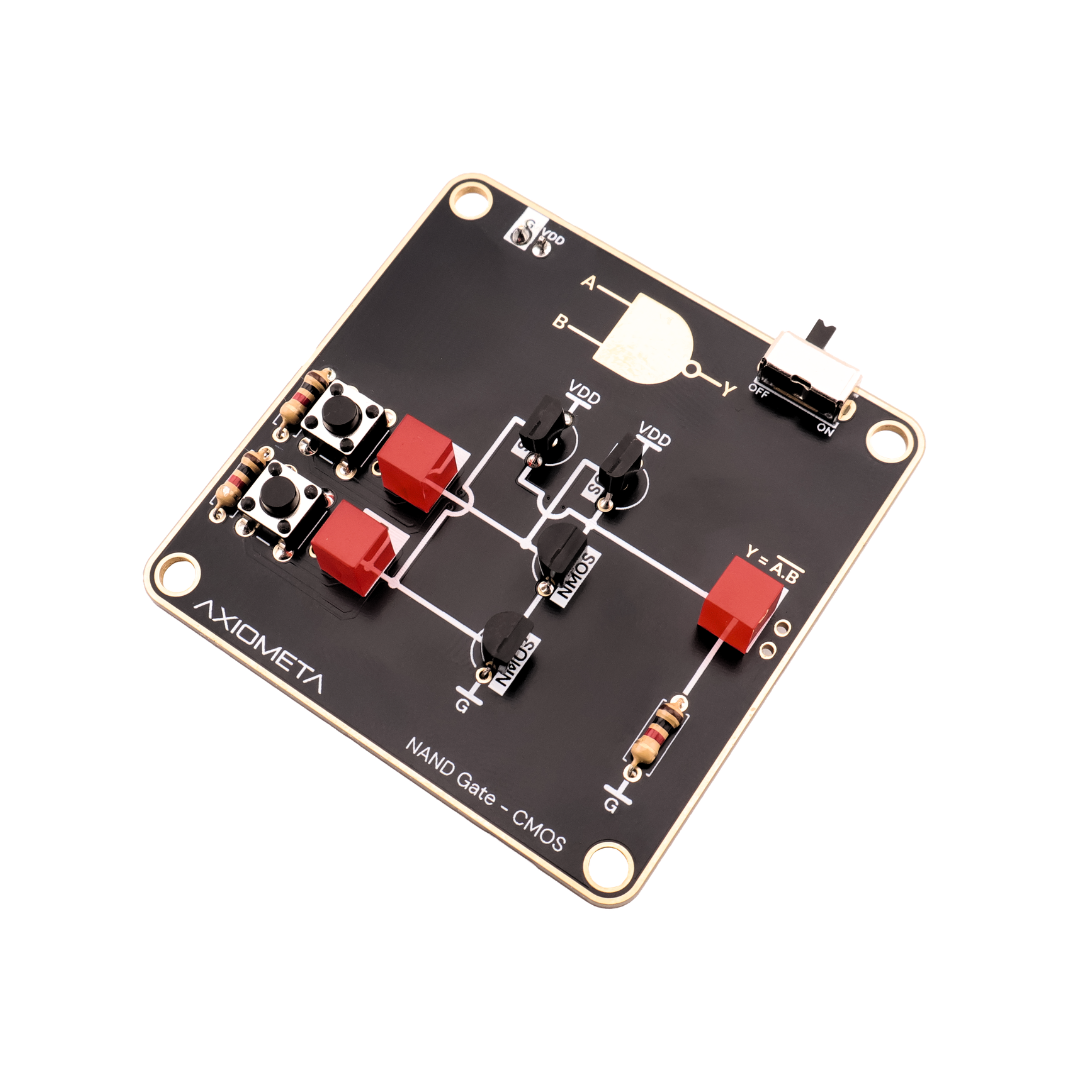

Build a CMOS NAND gate from discrete transistors and see digital logic operate at its most fundamental level.

This soldering kit demonstrates how two PMOS transistors form a pull-up network and two NMOS transistors form a pull-down network, working together to implement a NAND gate the most universal logic function in digital electronics.

$8.49
$8.49
Sale Sold out
View full details

Make it yourself.

How it works ?

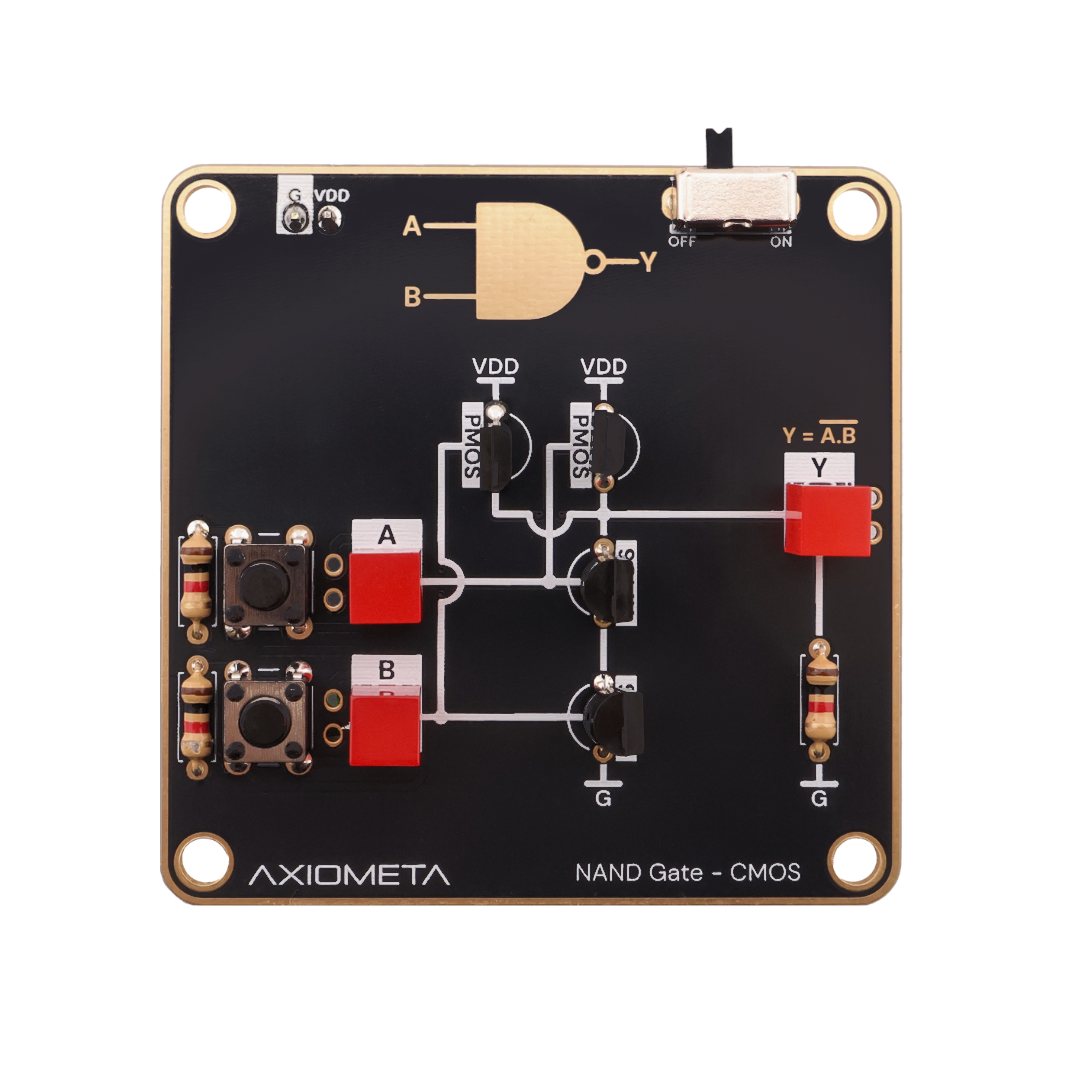

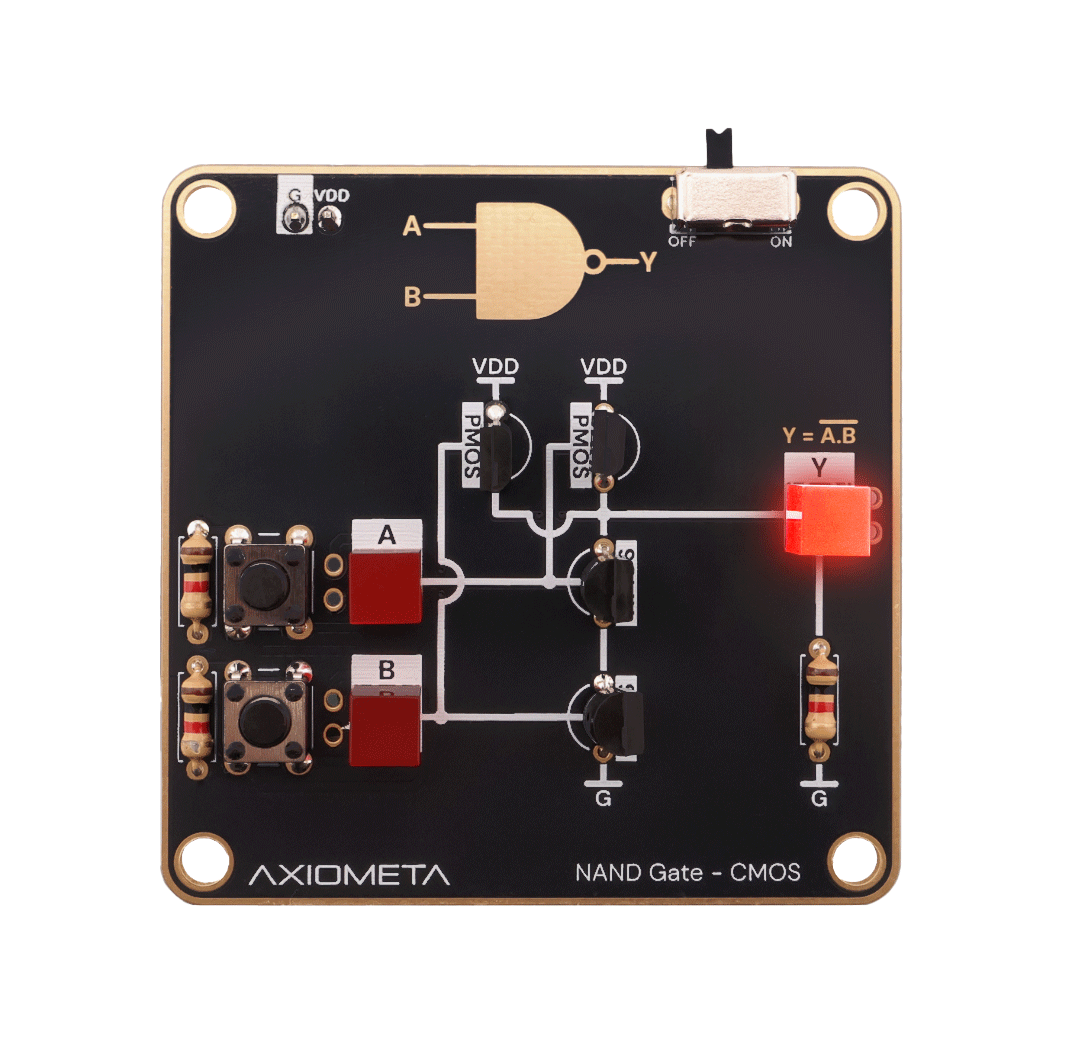

Two push buttons serve as inputs A and B, allowing each logic state to be manually selected. As the buttons are pressed, the transistor network reconfigures in real time, driving the output HIGH or LOW according to the NAND truth table.

Perfect for learning soldering

Learn proper soldering on a PCB designed for it: ENIG surface finish, well-spaced through-hole pads, and clear component designators help you understand the relationship between board layout and assembly quality.

What's inside the kit ?

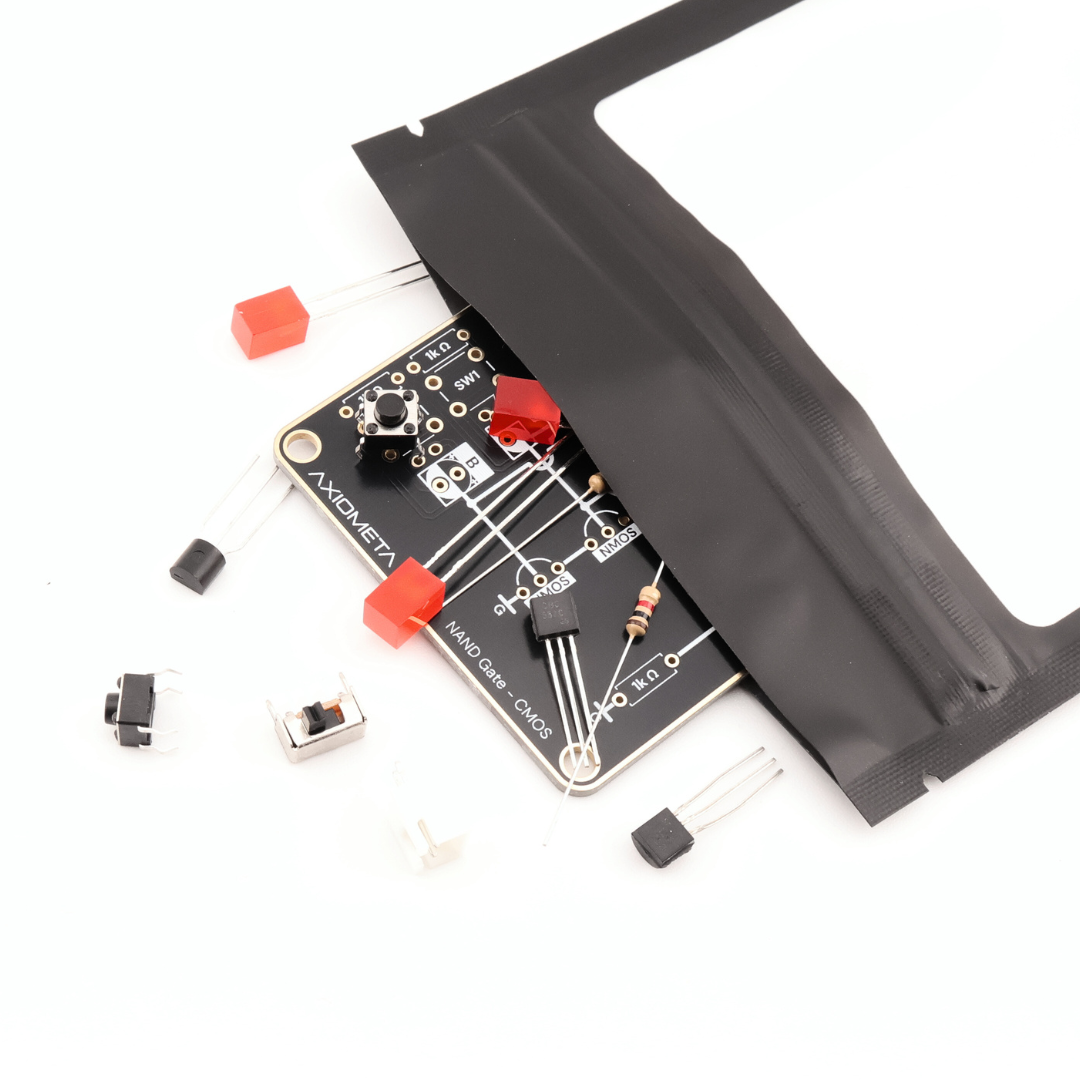

PCB - 1X

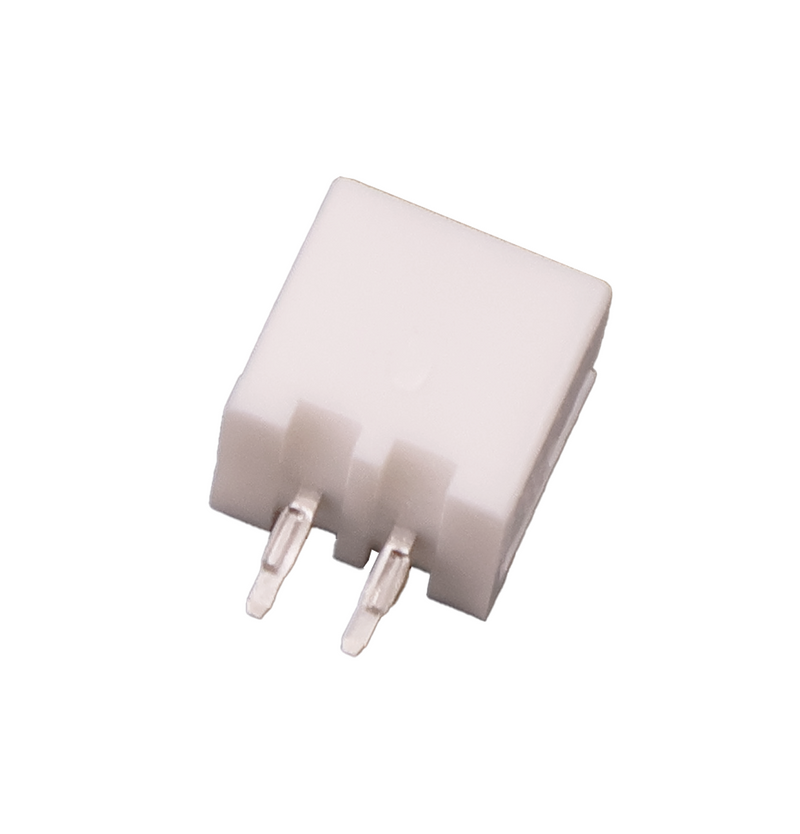

Battery Connector -1X
1kΩ Resistors - 3X
Red Cube LEDs - 3X
PMOS Transistors - 2X
NMOS Transistors - 2X
Battery Plug - 1X
Power Switch - 1X
Tactile Switches - 2X
PCB - 1X Battery Connector -1X 1kΩ Resistors - 3X Red Cube LEDs - 3X PMOS Transistors - 2X NMOS Transistors - 2X Battery Plug - 1X Power Switch - 1X Tactile Switches - 2X

Technical Resources

NAND Gate (CMOS) - Soldering Kit- (AXMT-SLD0006)
3D Printable Stand Assembly Instructions Circuit Schematic 3D Models

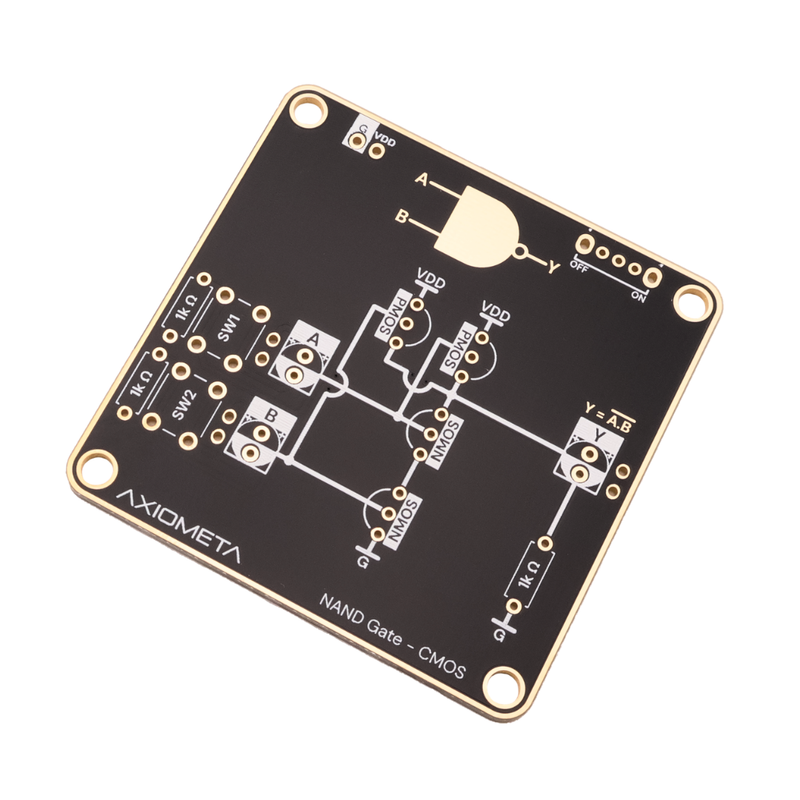

PCB FRONT

PCB BACK

🟢 Live 3D Model

🖱️ Click & drag to rotate
