Axiometa BrødBoost-C: Breadboard Power Supply

Axiometa BrødBoost-C: Breadboard Power Supply

AXMT-BBS0001

BrødBoost-C breadboard power supply can deliver voltages of 5V and/or 3.3V directly to your breadboard setup. Whether you’re building simple sensor projects or complex embedded systems, BrødBoost-C ensures that your project receives clean, selectable, and reliable power every time.



Exclusive on MOUSER

$12.99
$12.99
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

  • Technical Details

    - 5.0 V selected by USB CC Pins (5.1 k resistors)
    - 3.3 V step-down regulation via TPS63001
    - Maximum current: 1 A
    - Short circuit protection: Yes
    - Ferrite bead for noise suppression and decoupling capacitors
    - Power status LED: Red
    - Power switch ON/OFF

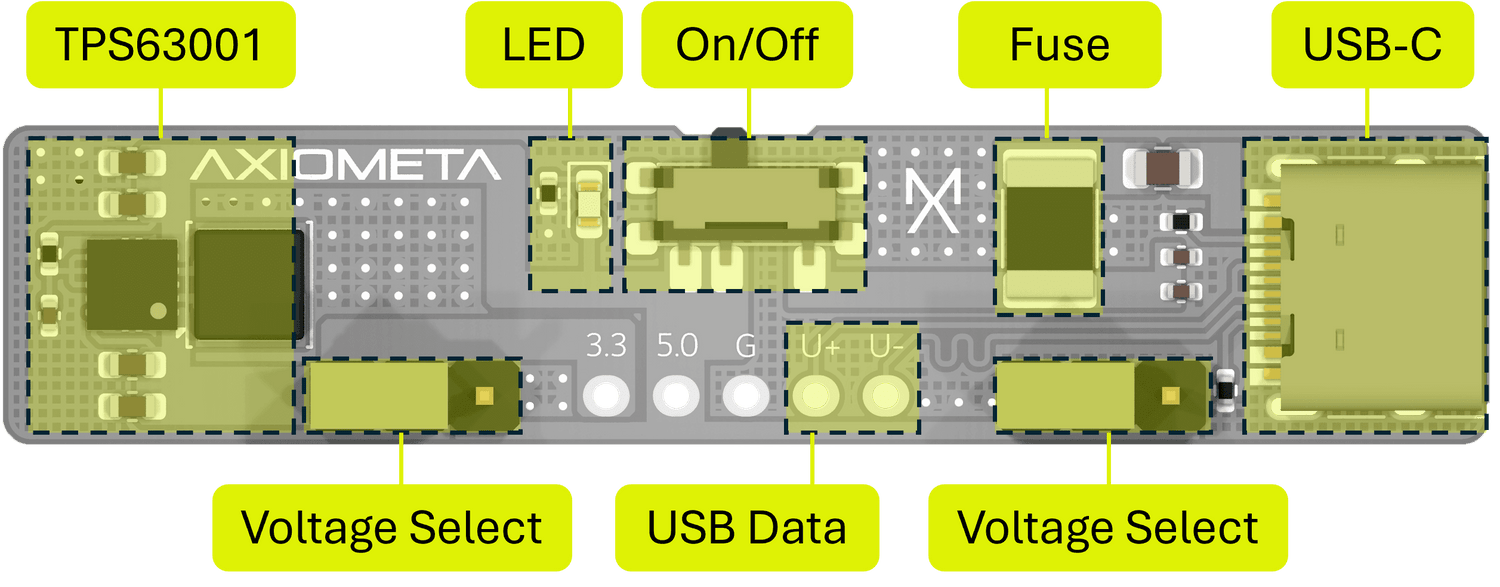

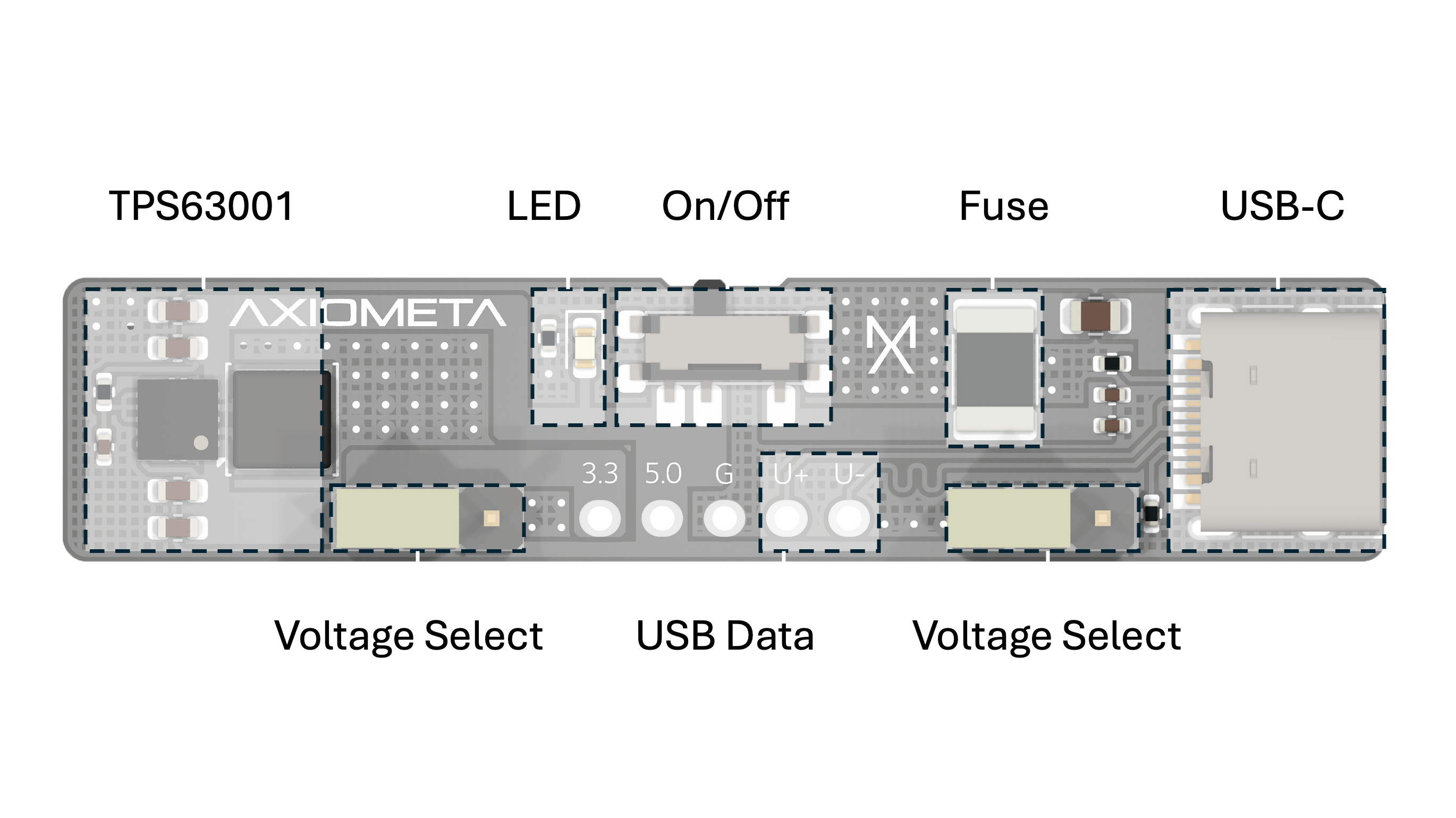

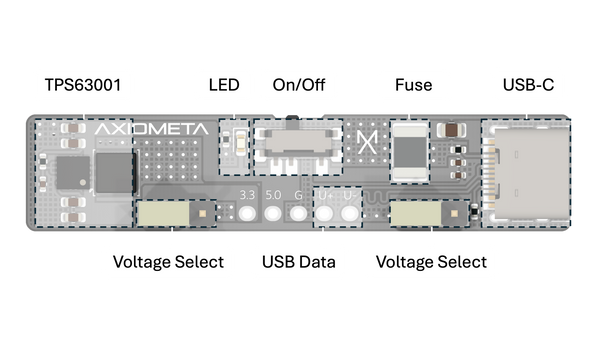

  • BrødBoost-C features

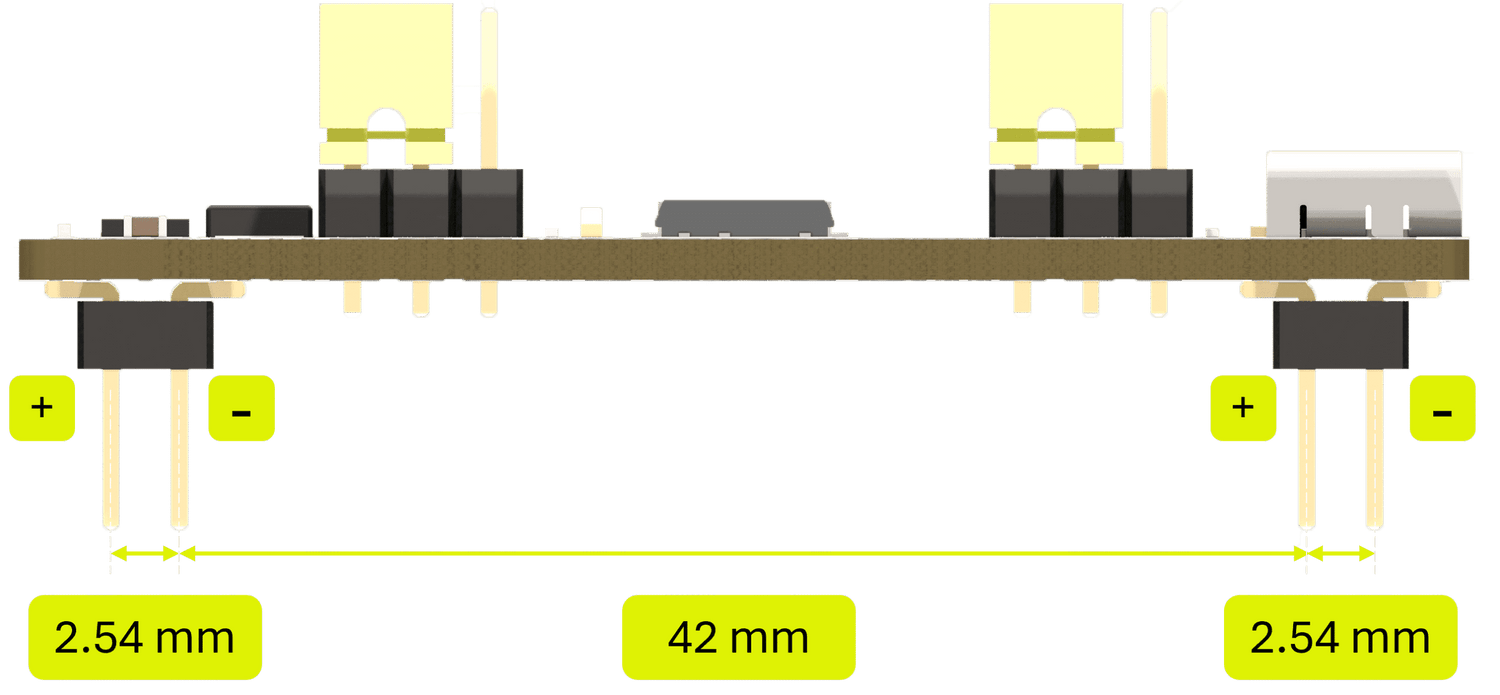

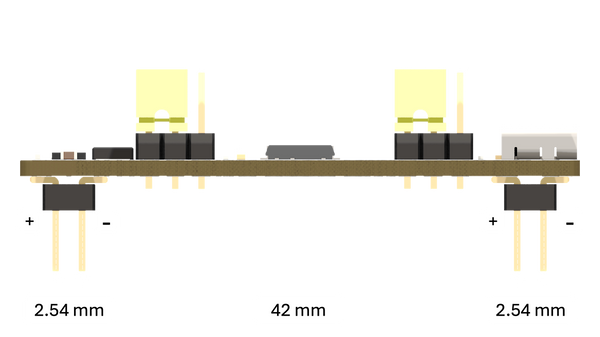

  • BrødBoost-C dimensions

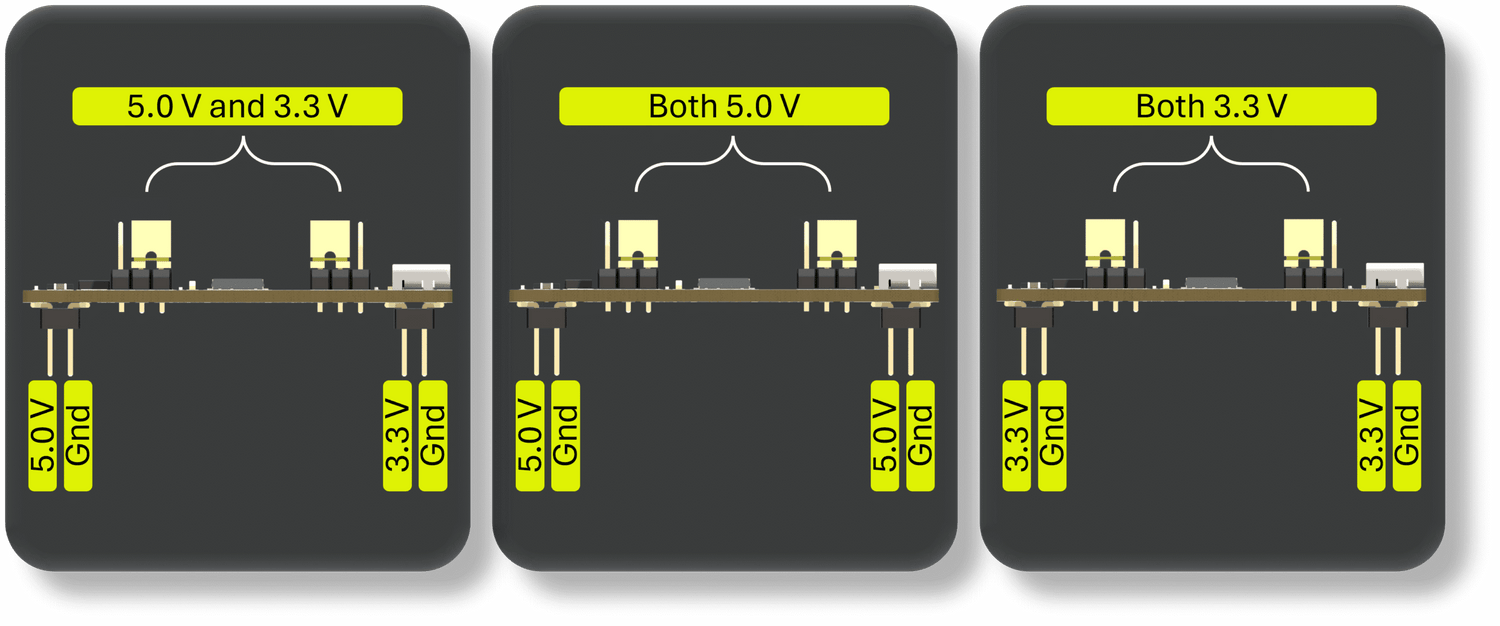

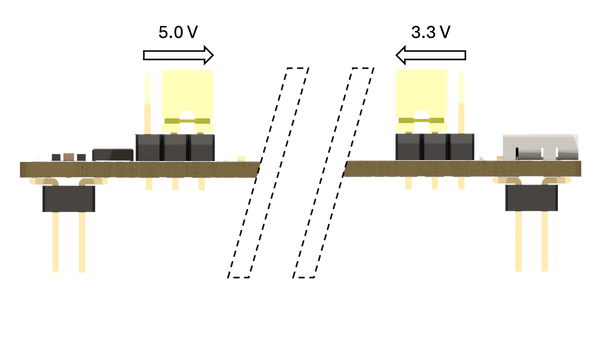

  • BrødBoost-C interface

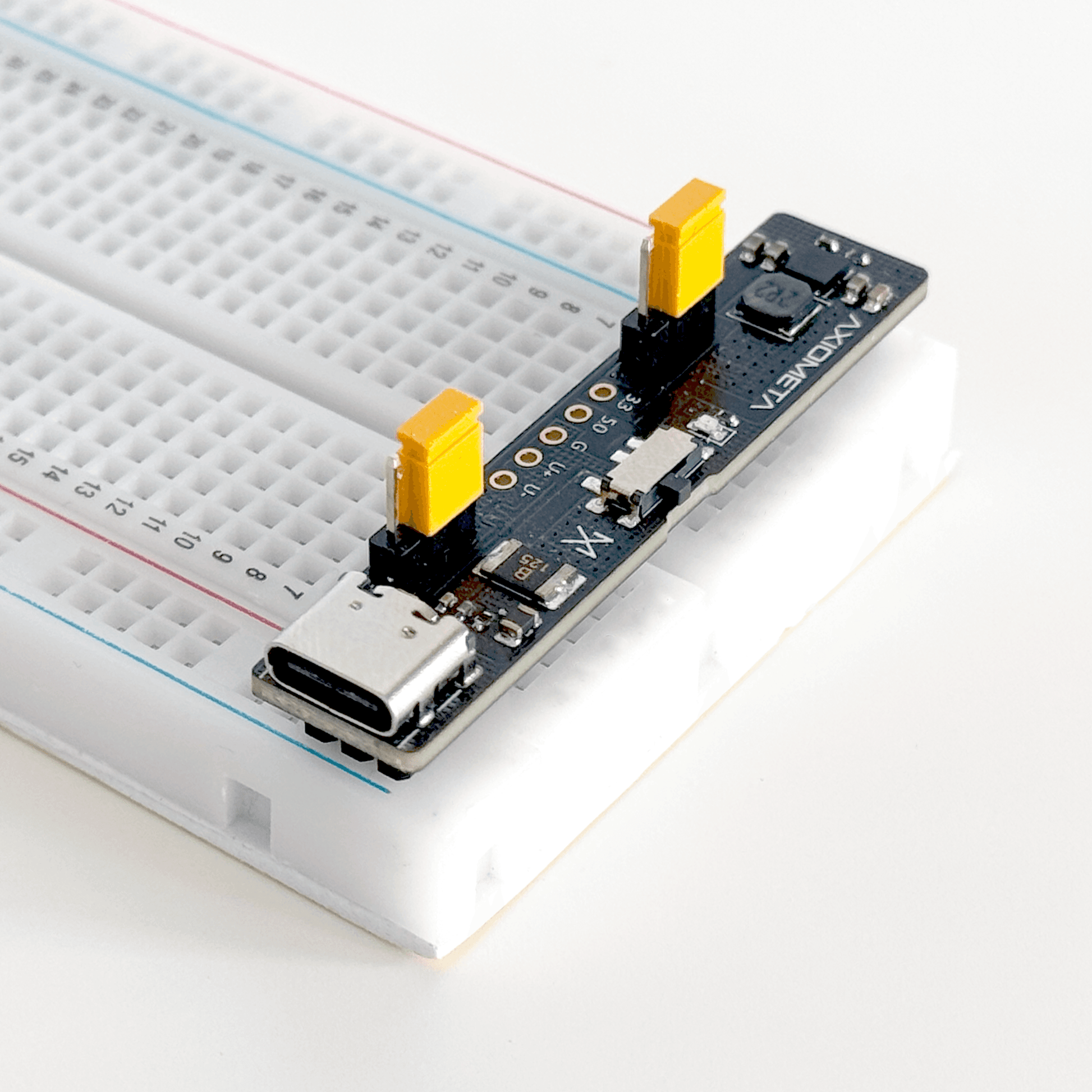

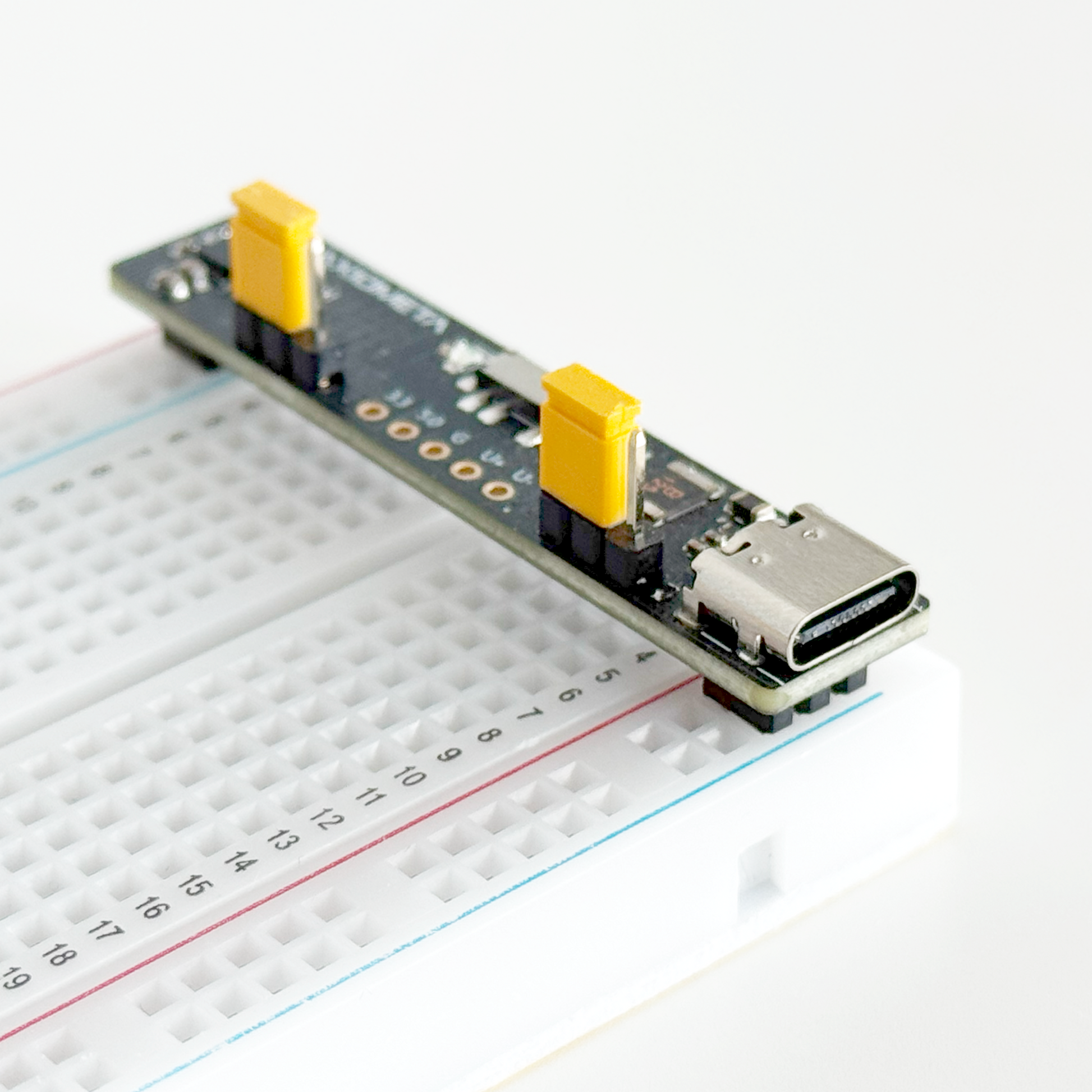

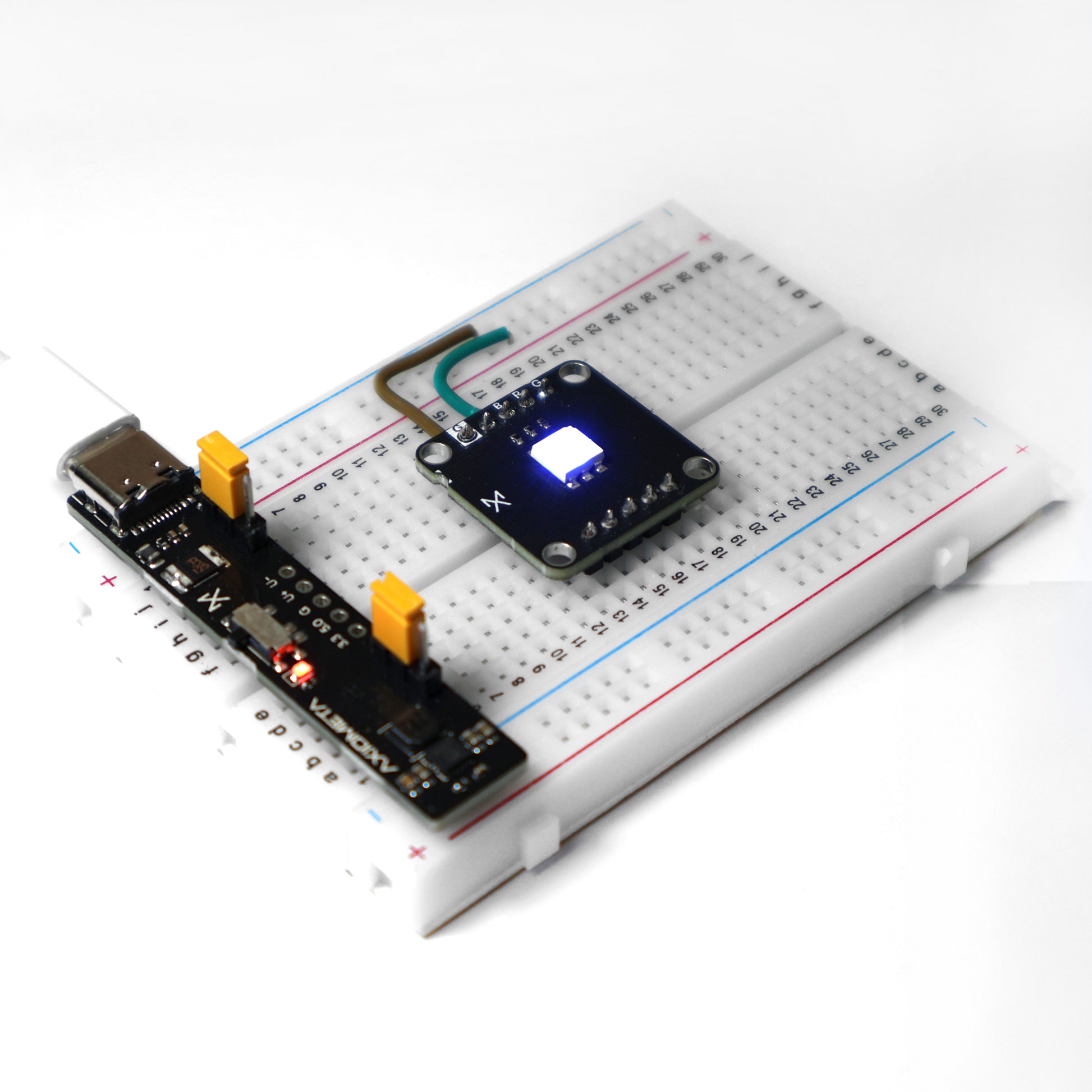

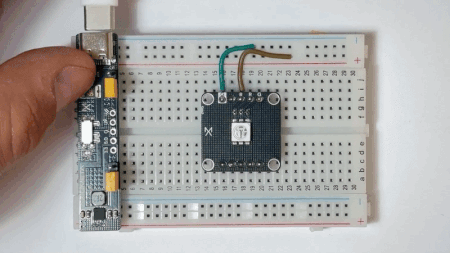

  • BrødBoost-C In Action

Technical Resources

BrødBoost-C (AXMT-BBS0001)
Circuit Schematic 3D Models

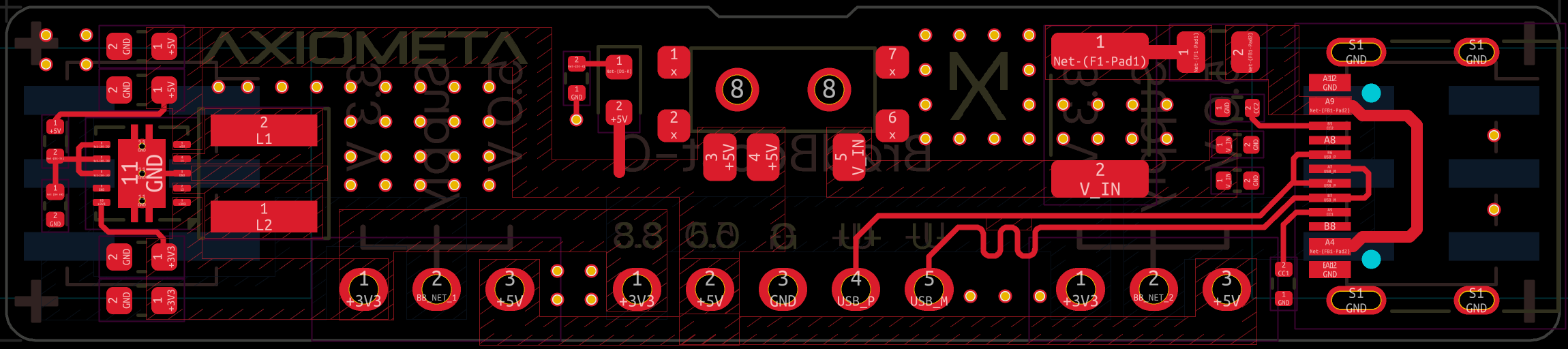

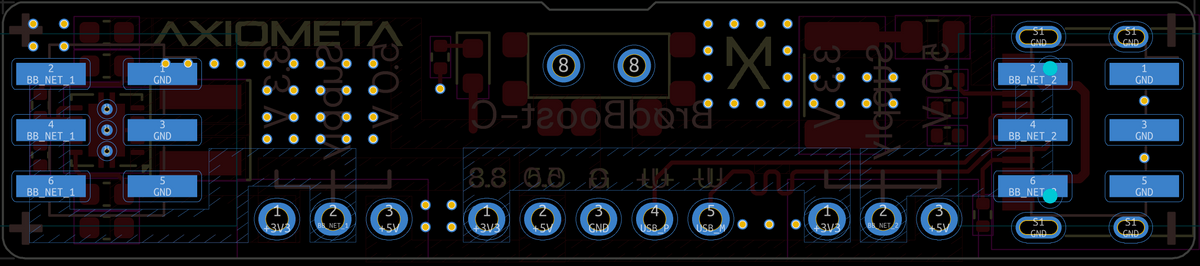

PCB FRONT

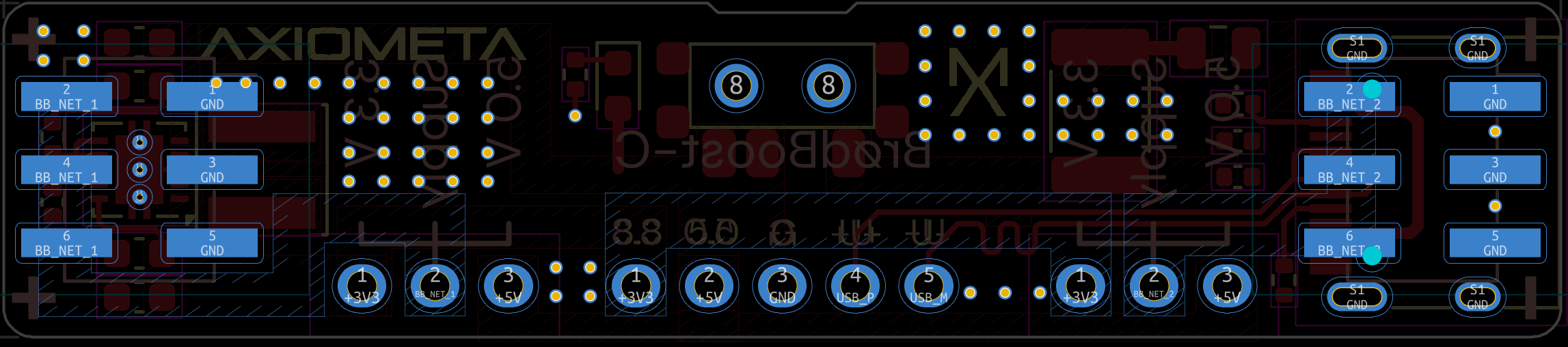

PCB BACK

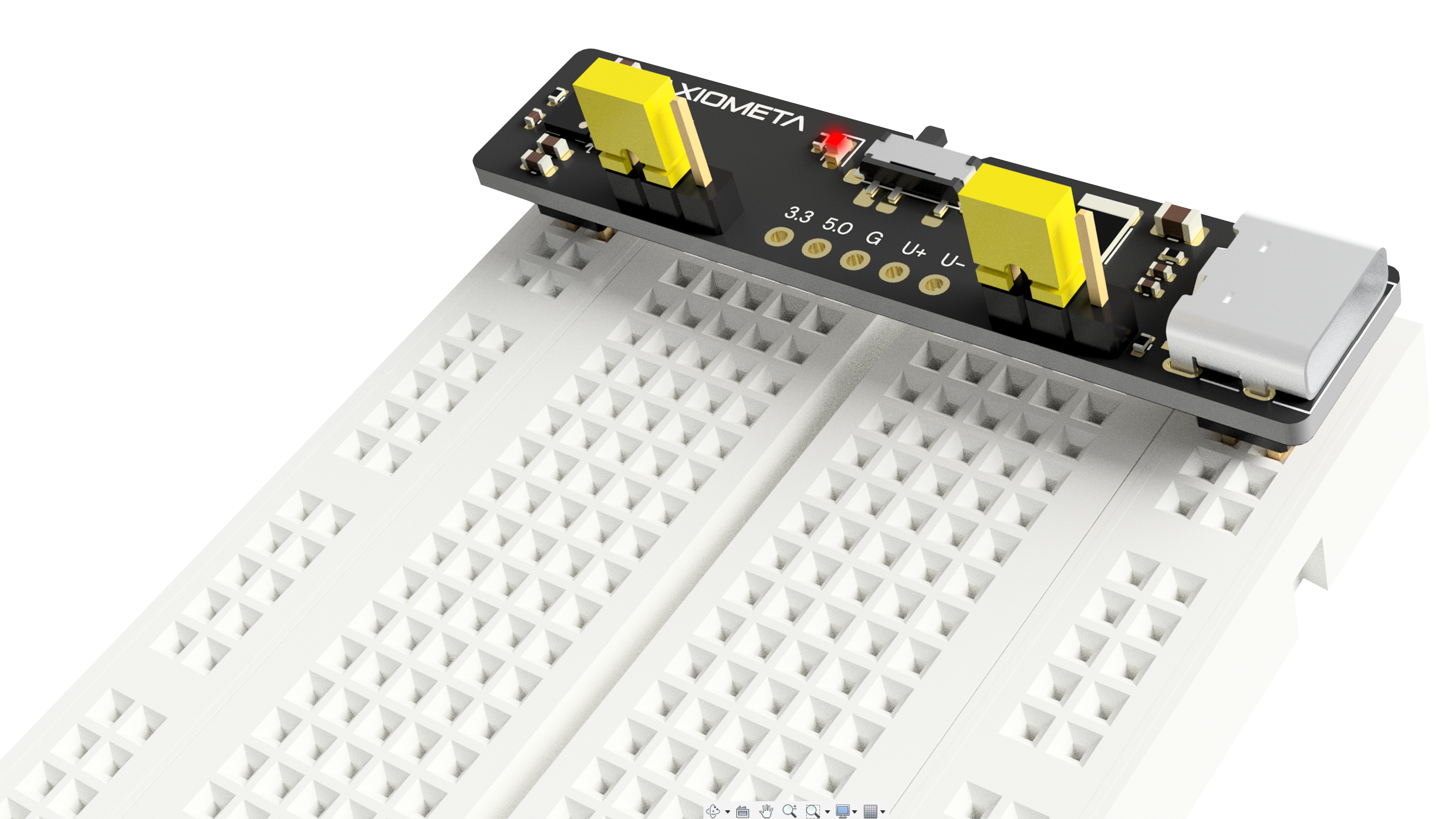

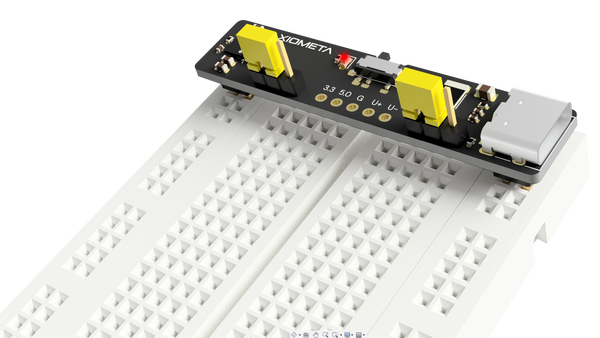

🟢 Live 3D Model

🖱️ Click & drag to rotate
