Distance Sensor (ToF-VL53L0CX)

Distance Sensor (ToF-VL53L0CX)

AX22-0015

$10.49
$10.49
Sale Sold out
Taxes included. Shipping calculated at checkout.

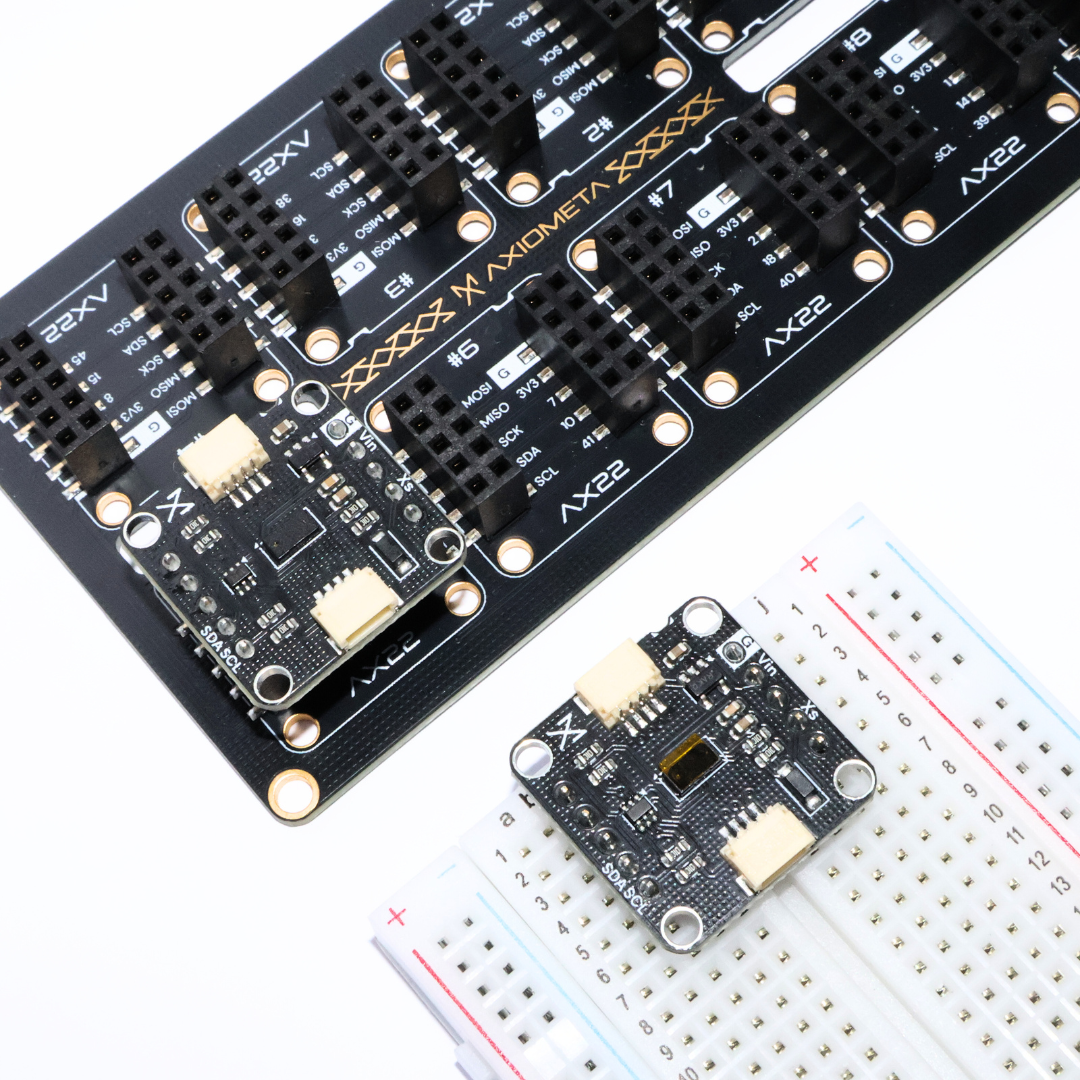

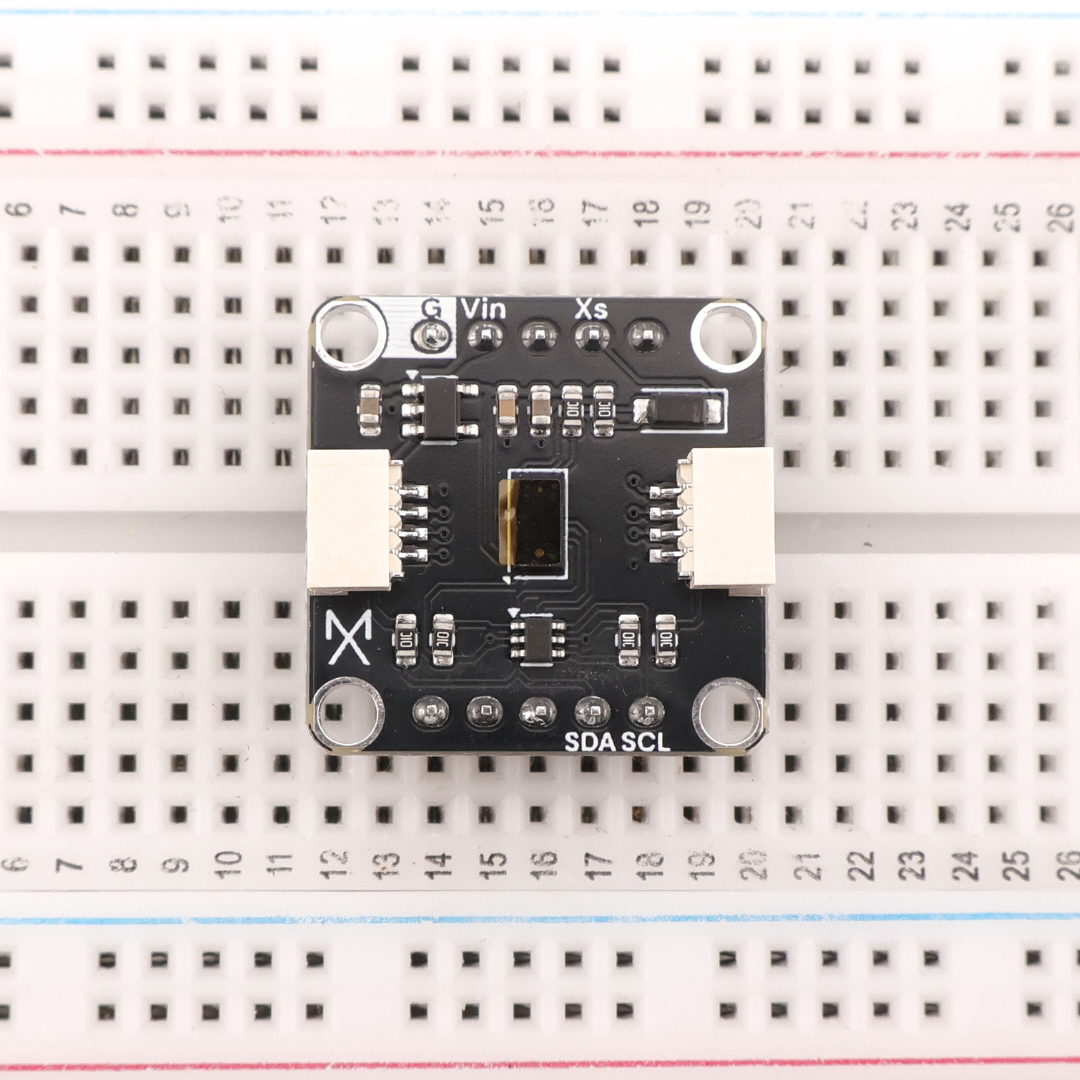

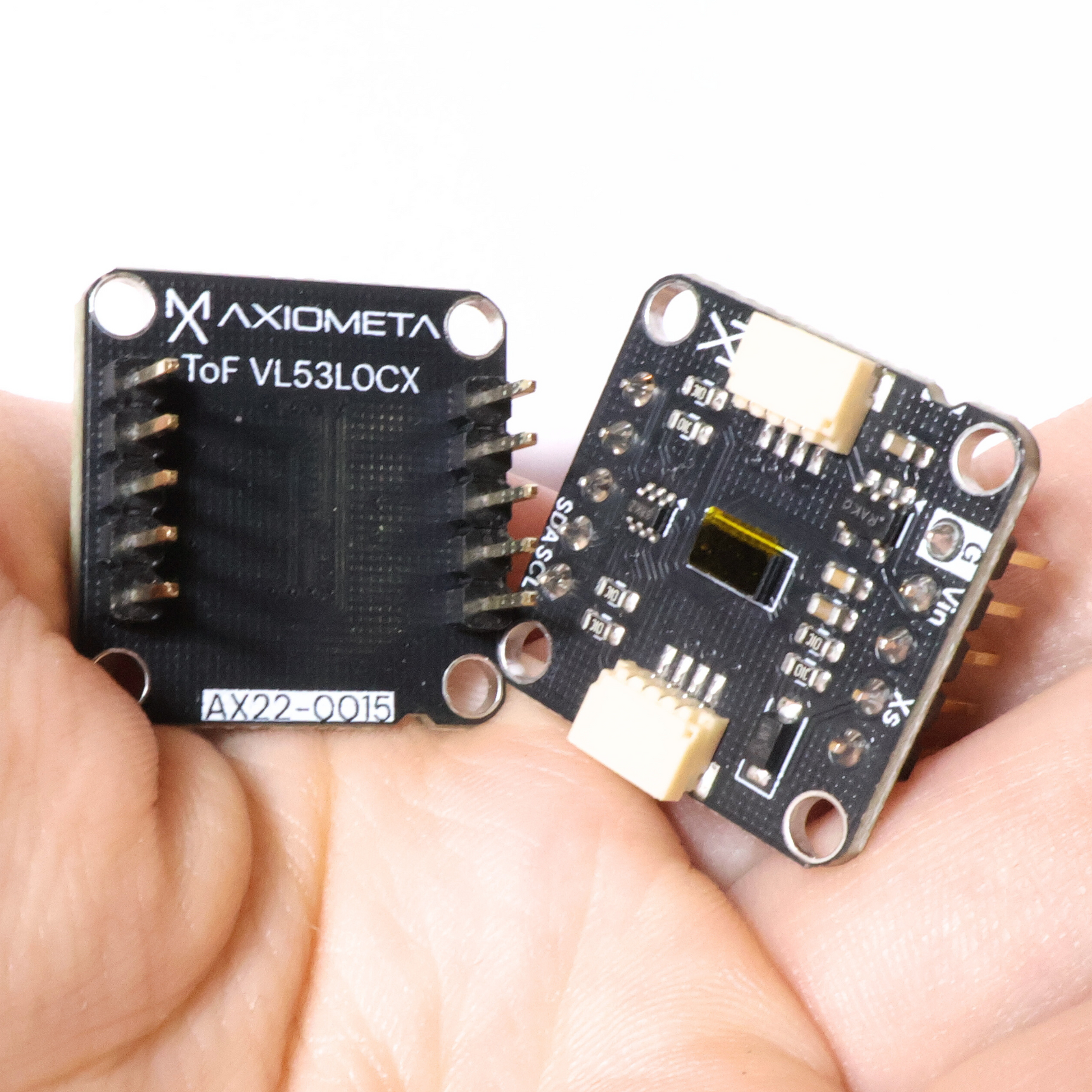

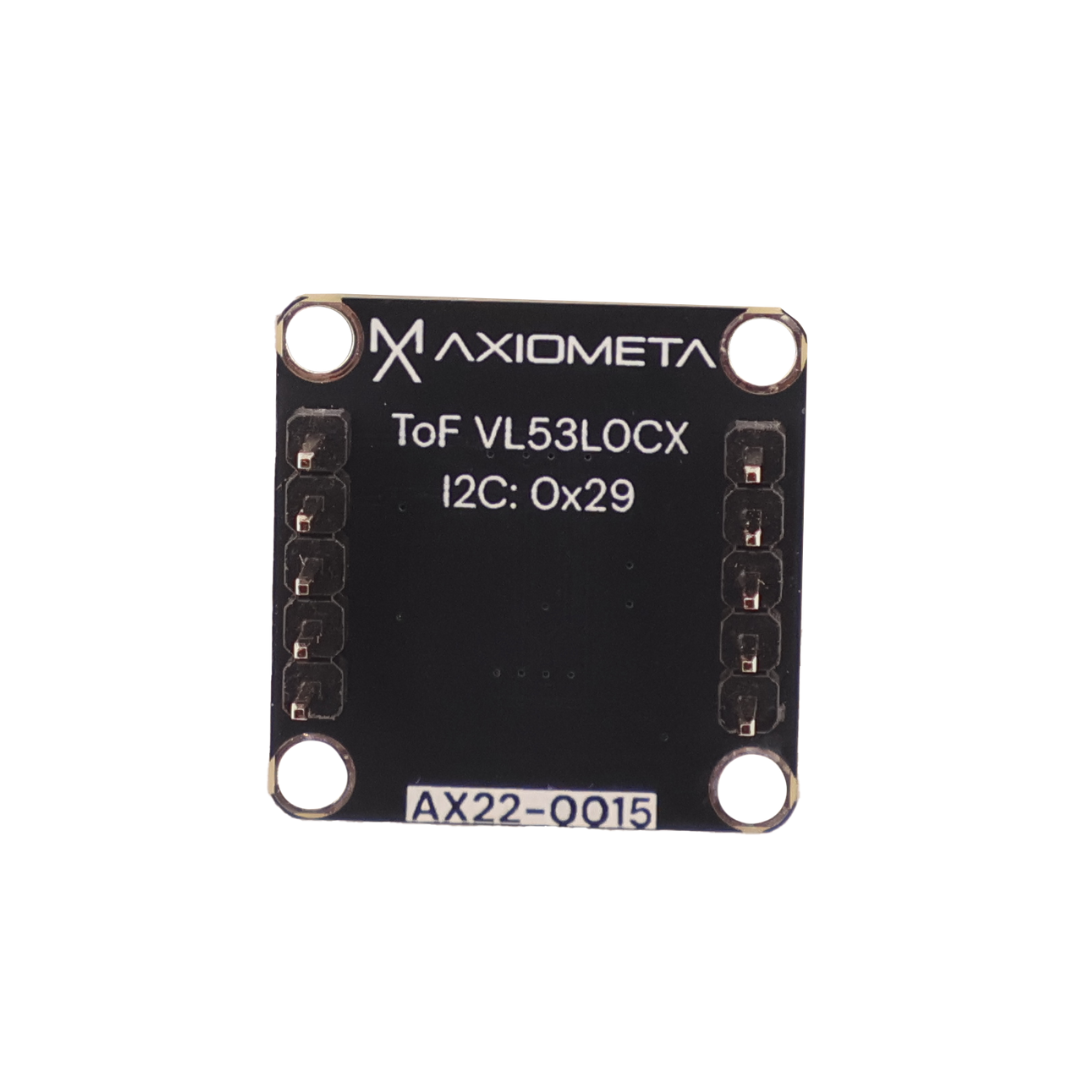

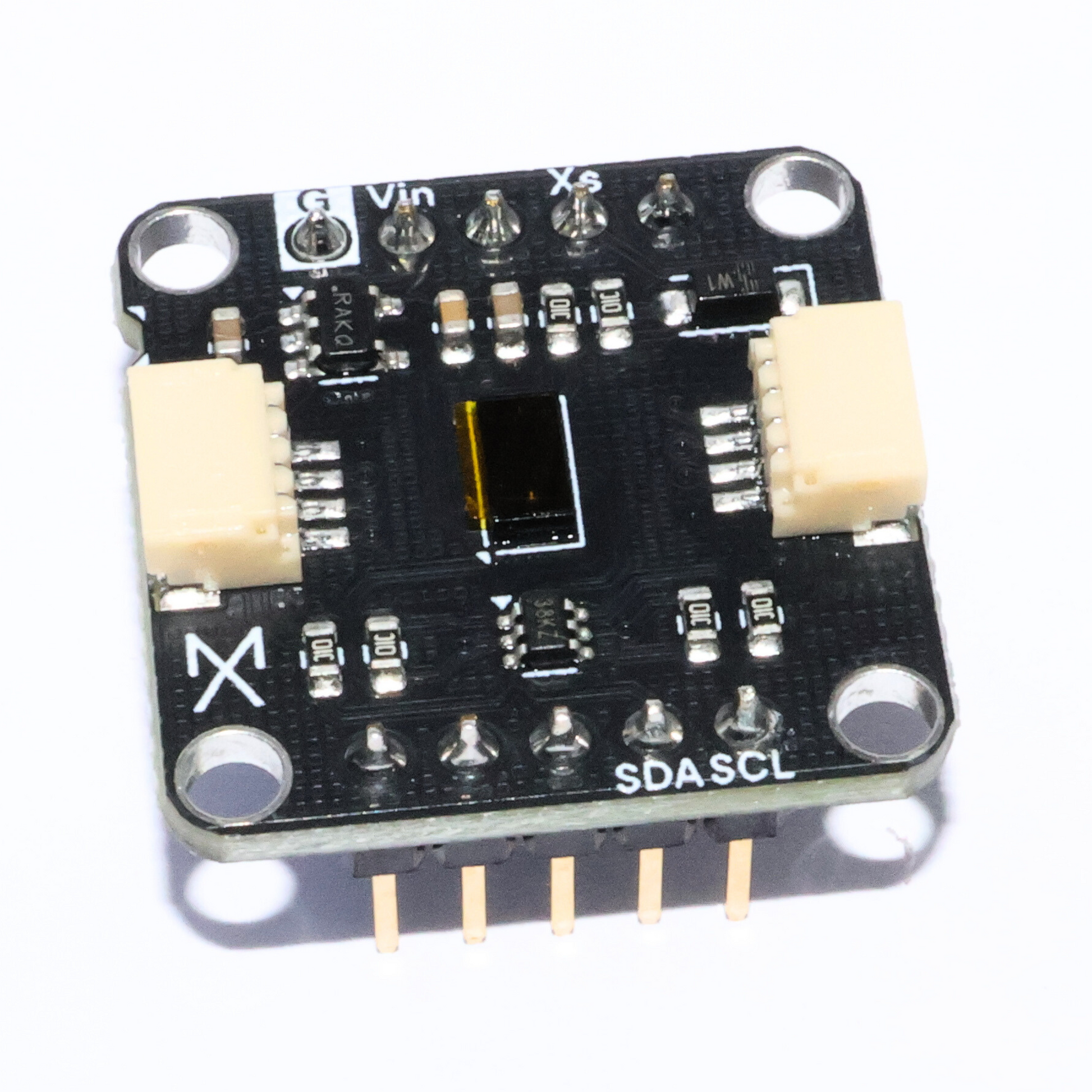

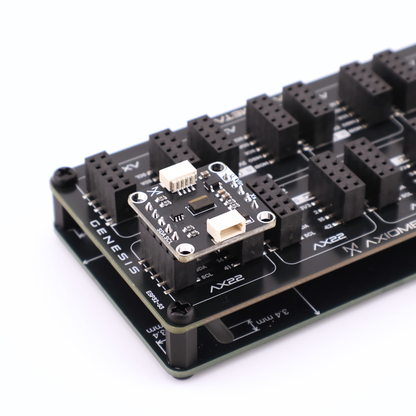

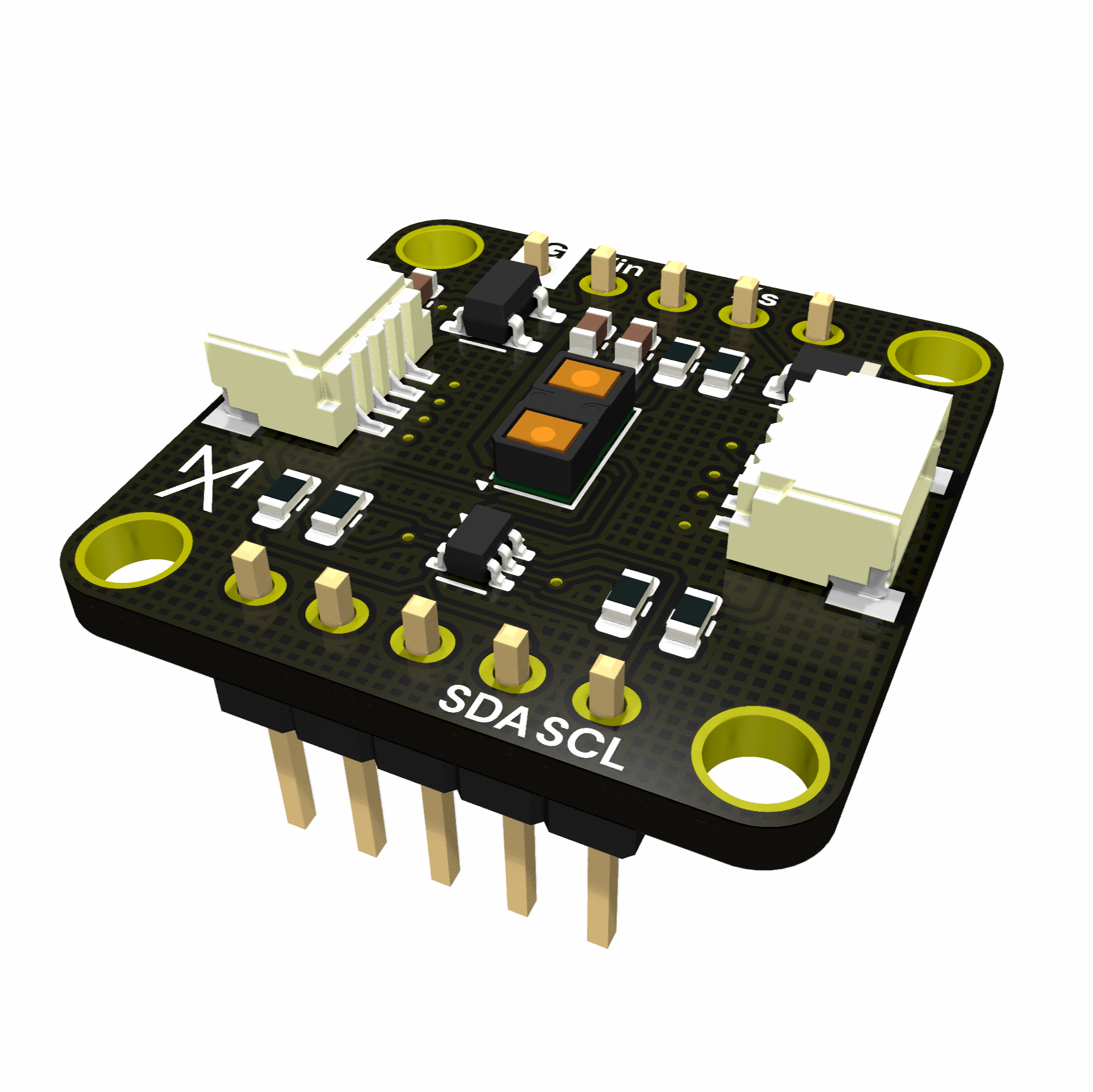

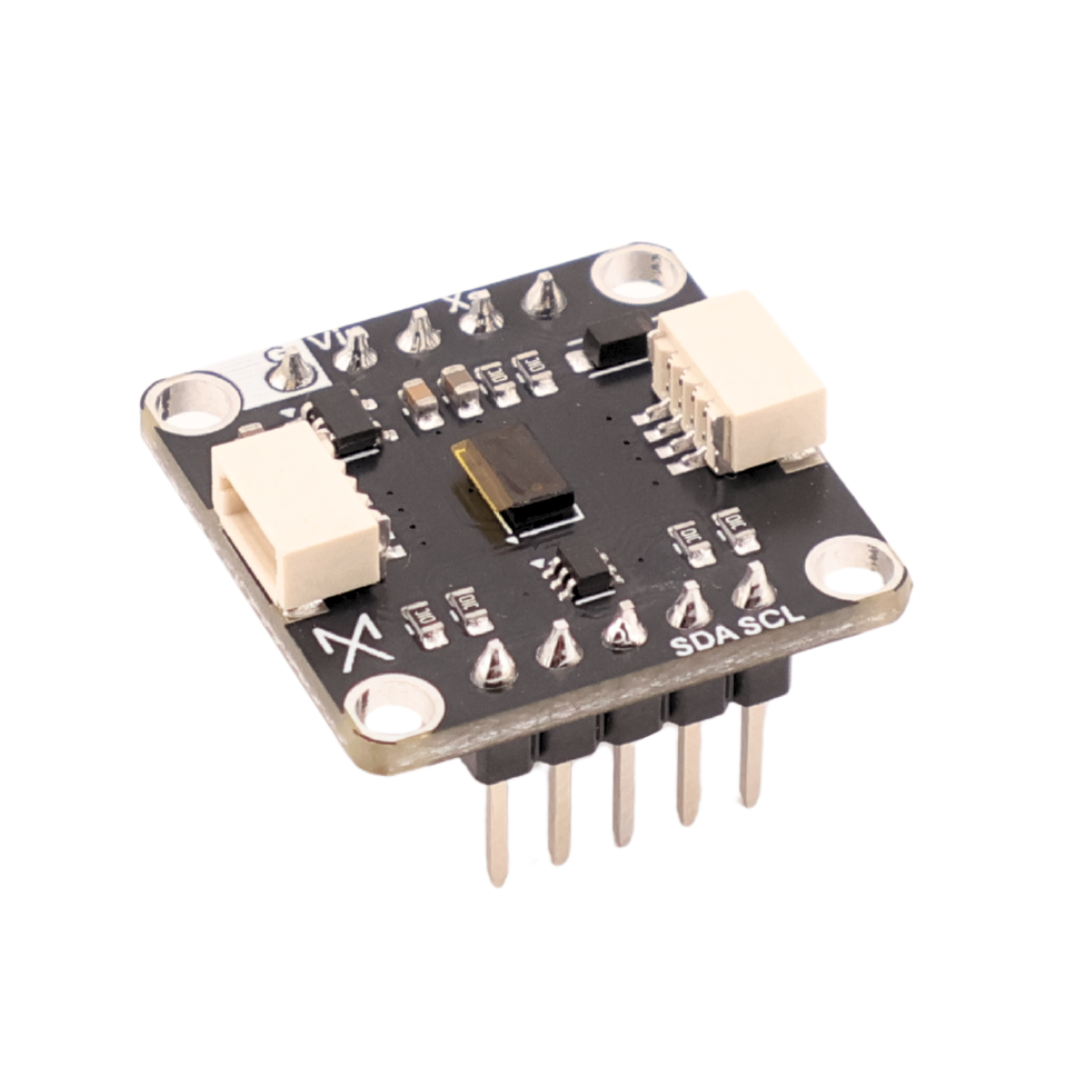

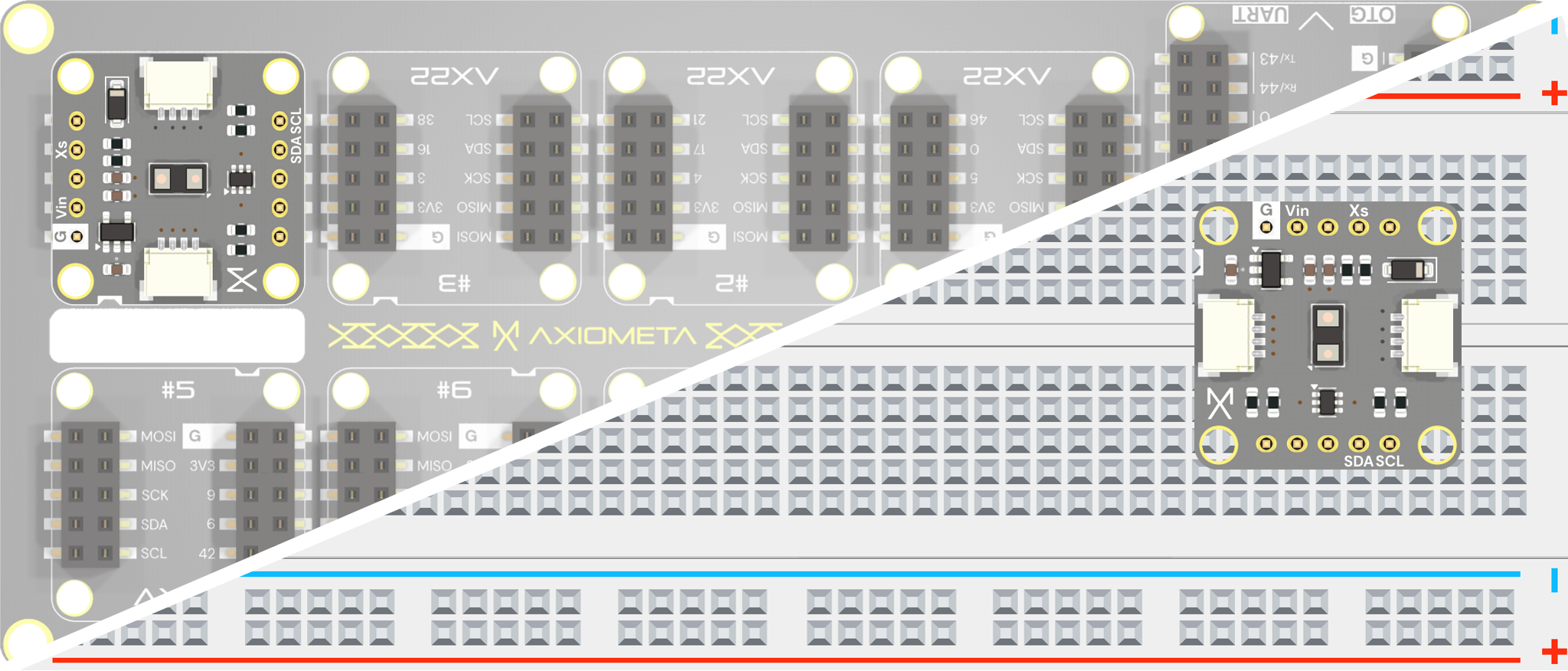

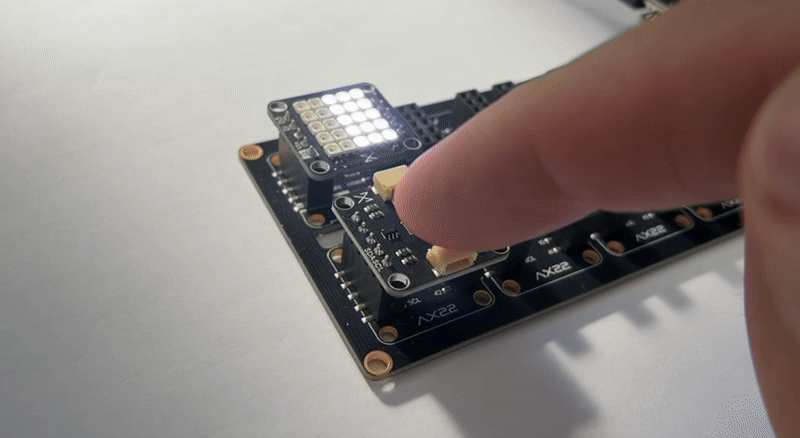

This AX22-sized board places ST’s VL53L0CX laser Time-of-Flight sensor on a compact 22 × 22 mm PCB, giving your project millimetre-accurate, eye-safe distance readings over I²C. An onboard 3 V regulator and bidirectional level shifters let any 1.8 V, 3.3 V, or 5 V microcontroller talk to the sensor hassle-free, while the factory-calibrated SPAD array measures absolute ranges out to 4 m in under 30 ms. Drop it into any AX22 backplane to add precise proximity sensing, gesture recognition, or collision avoidance to robots, smart interfaces, or interactive art—with just a few library calls in Arduino, MicroPython, or MicroBlocks.
View full details

  • Technical Details

    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 1 mm – 4000 mm measurable range
    - < ±10 mm error up to 2 m, < ±3% beyond
    - < 30 ms single-shot, 50 Hz continuous mode
    - I²C, default address 0x52
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

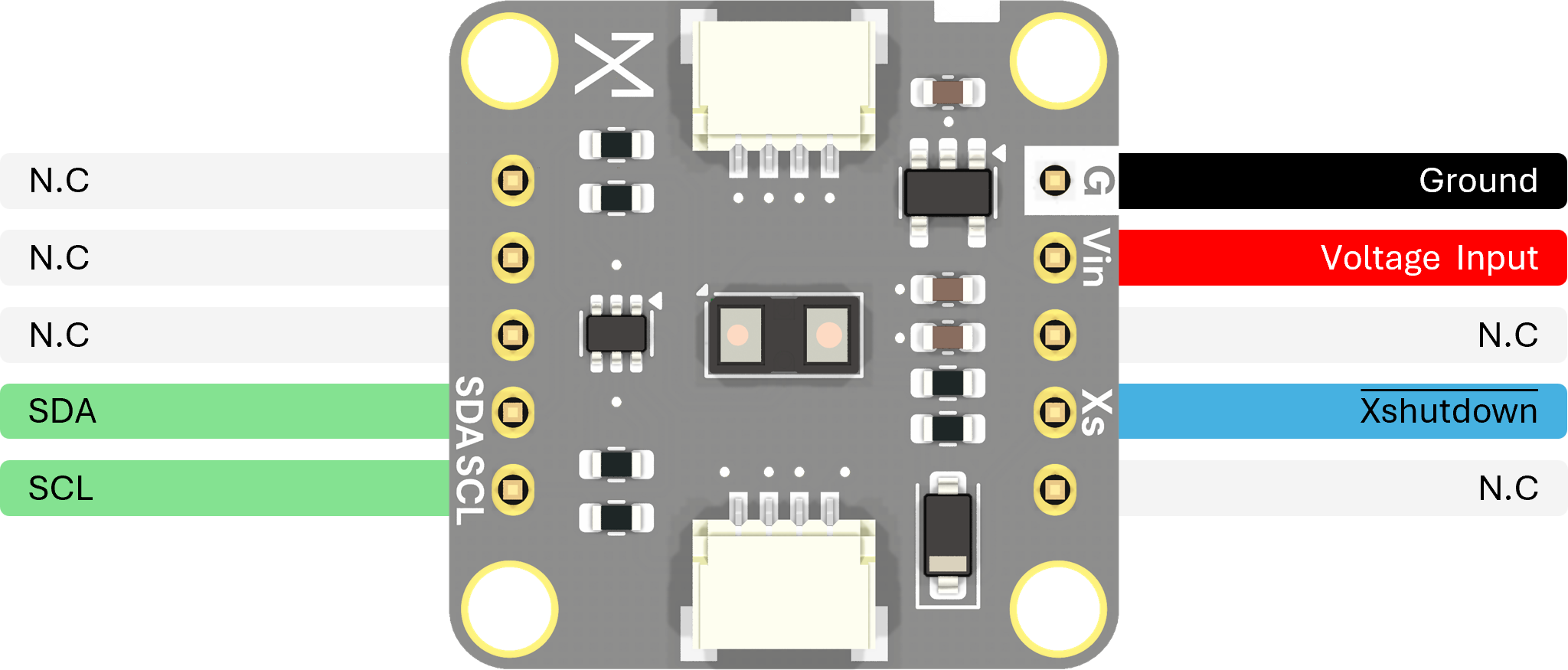

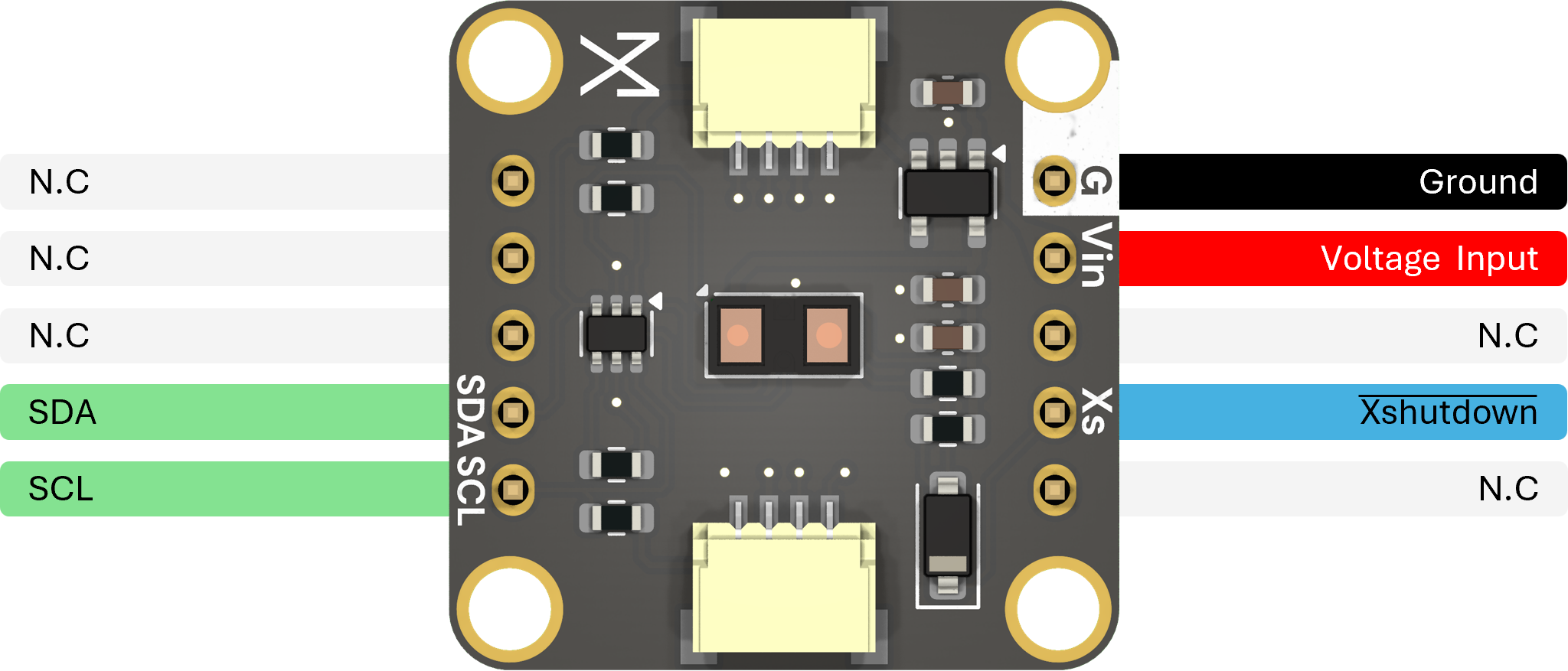

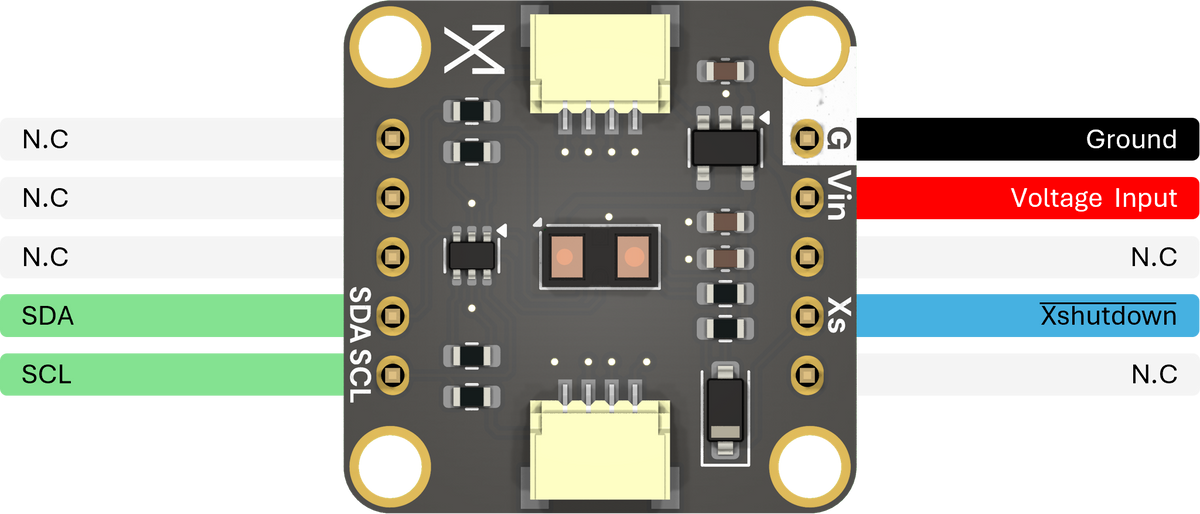

  • Pinout

  • Interface

PCB Design

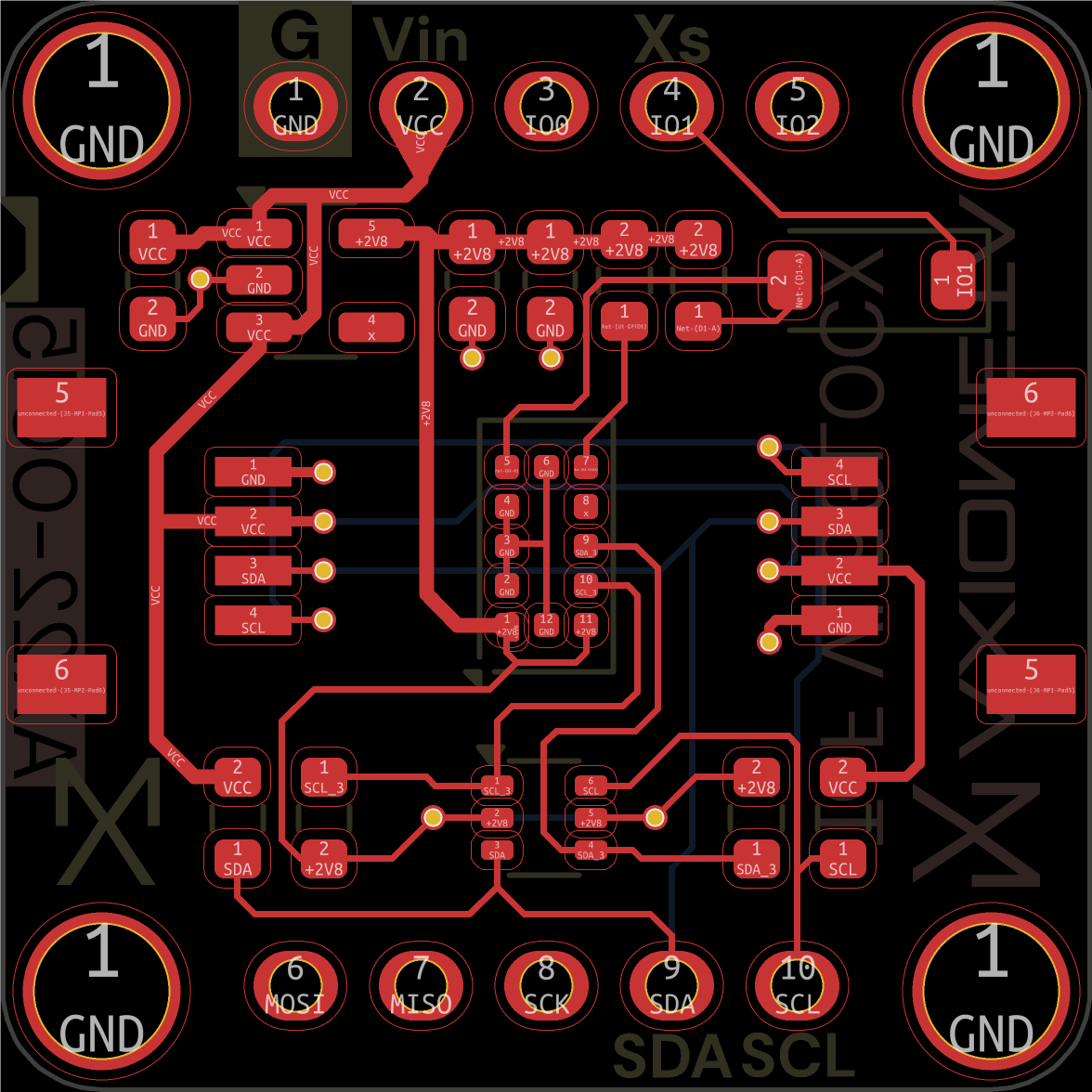

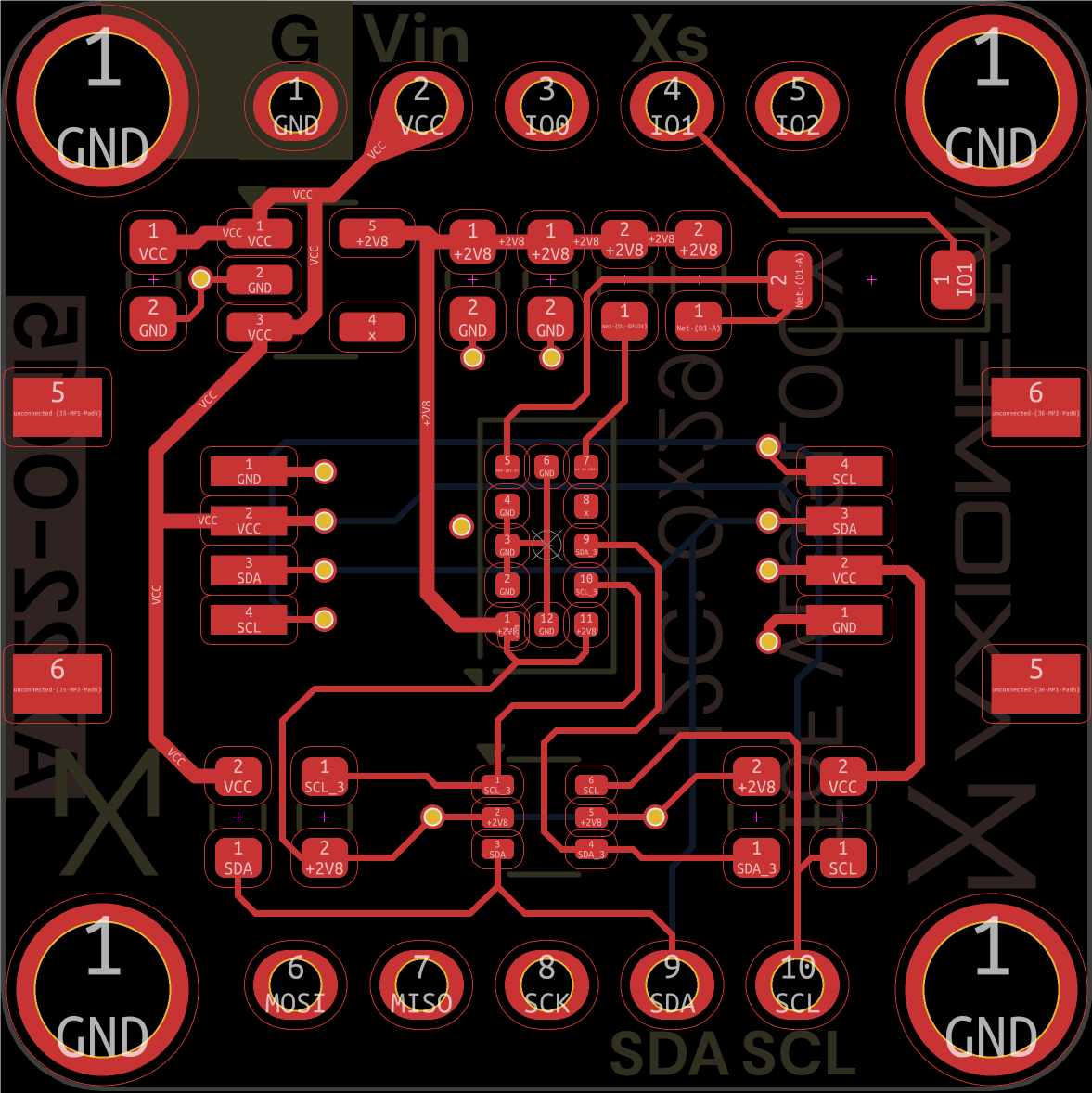

  • Top

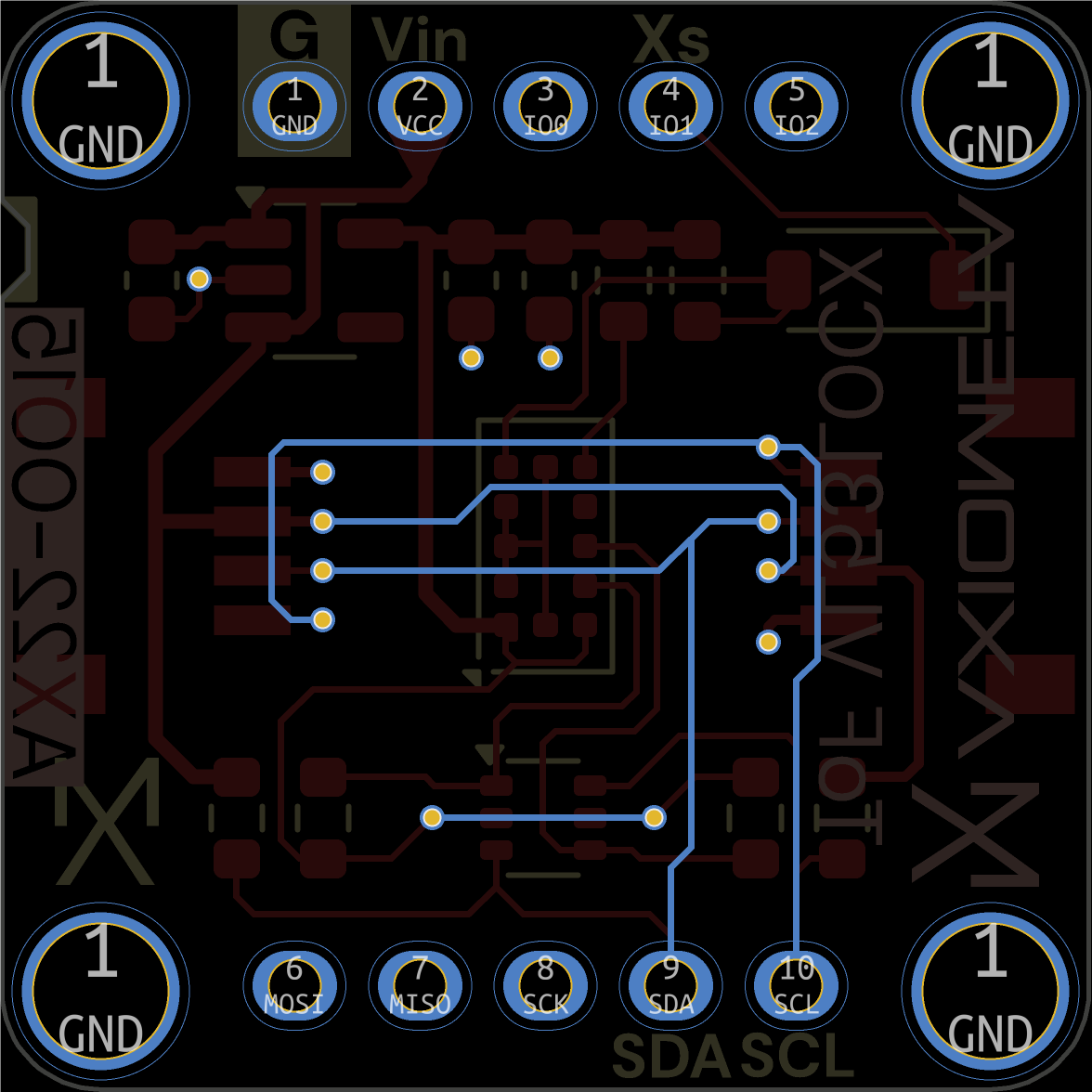

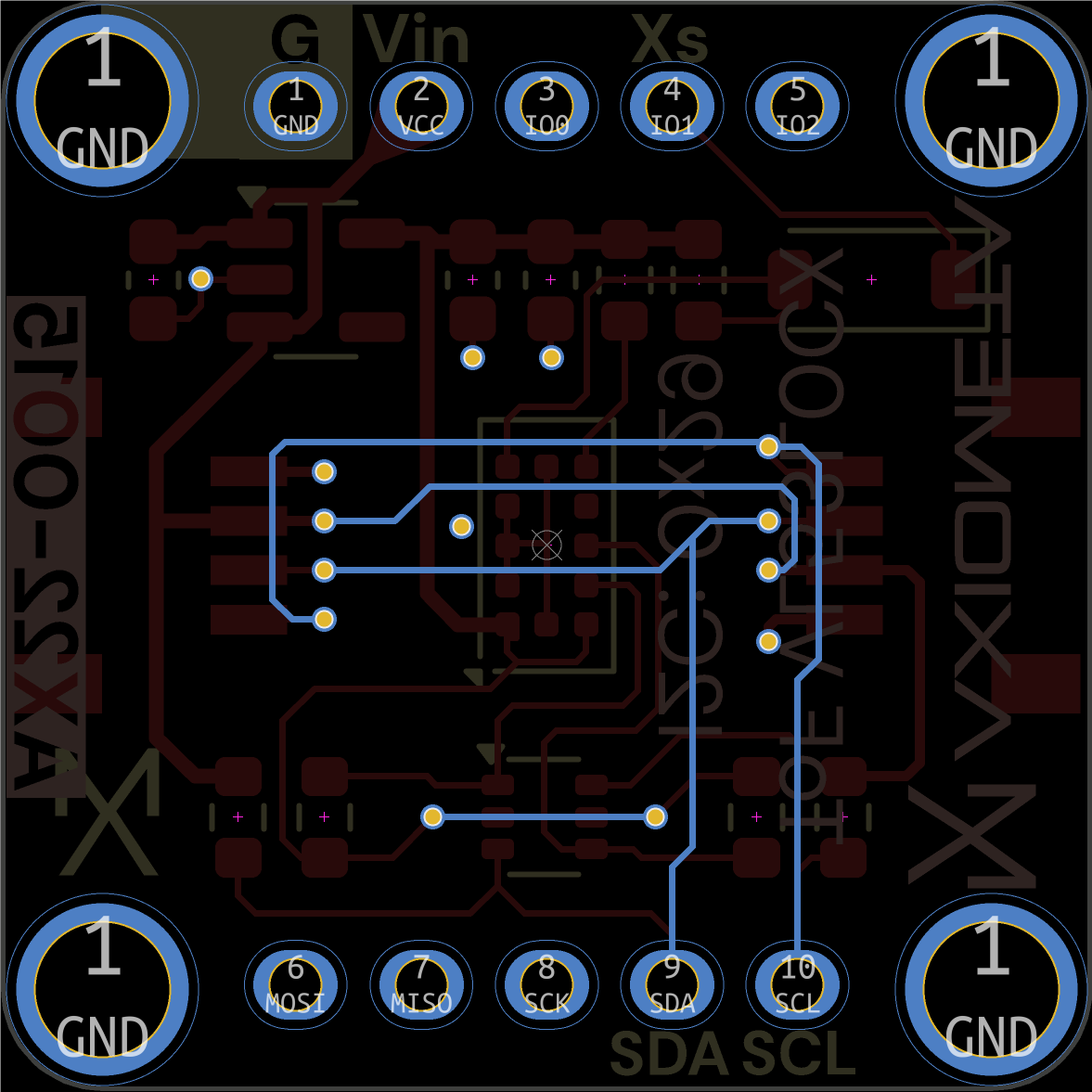

  • Bottom

Arduino Example Code

example.ino
#include "Adafruit_VL53L0X.h"

Adafruit_VL53L0X lox = Adafruit_VL53L0X();

void setup() {
  Serial.begin(115200);

  // wait until serial port opens for native USB devices
  while (! Serial) {
    delay(1);
  }

  Serial.println("Adafruit VL53L0X test.");
  if (!lox.begin()) {
    Serial.println(F("Failed to boot VL53L0X"));
    while(1);
  }
  // power
  Serial.println(F("VL53L0X API Continuous Ranging example\n\n"));

  // start continuous ranging
  lox.startRangeContinuous();
}

void loop() {
  if (lox.isRangeComplete()) {
    Serial.print("Distance in mm: ");
    Serial.println(lox.readRange());
  }
}
