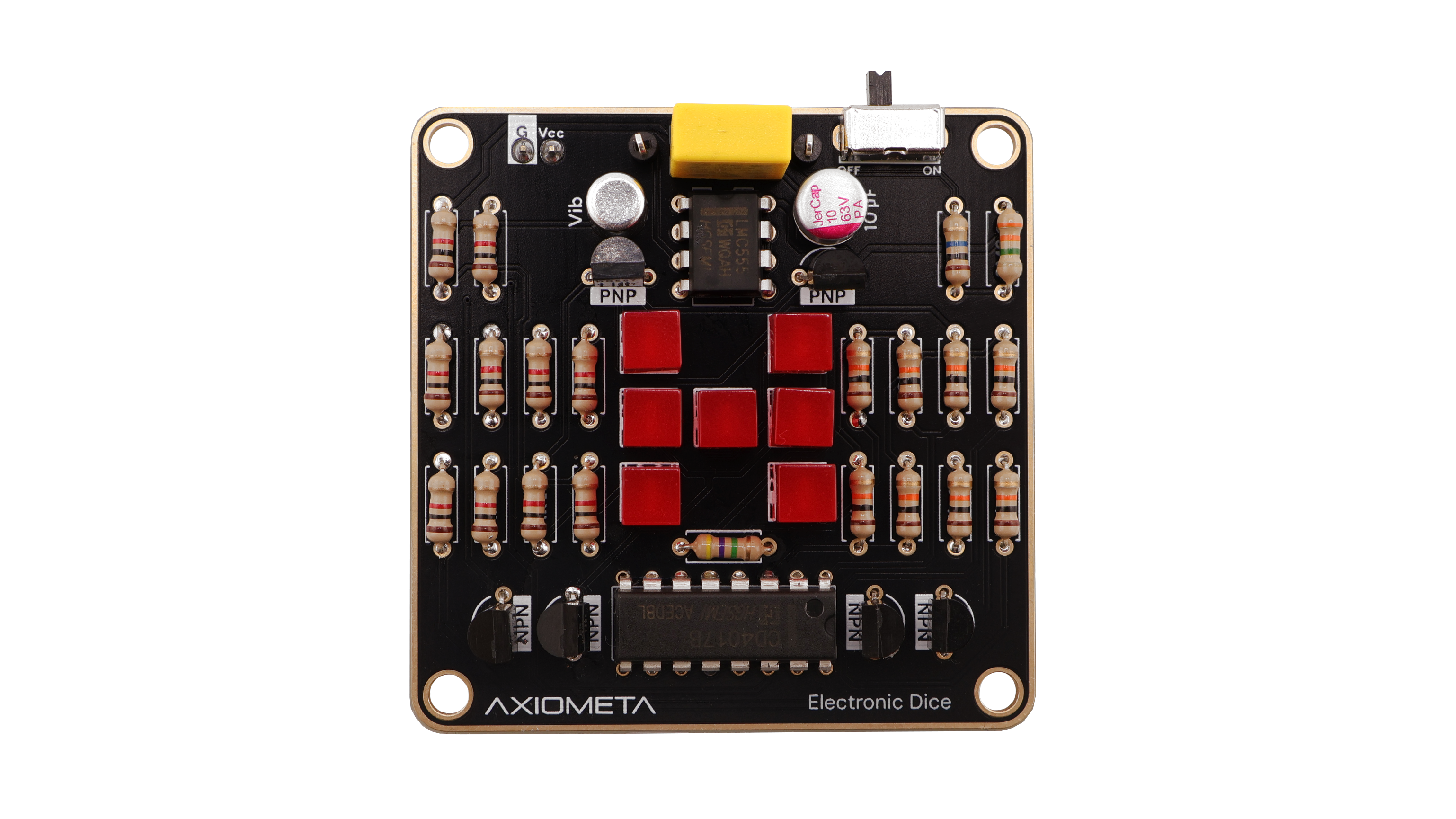

Axiometa Electronic Dice - Soldering Kit
Axiometa Electronic Dice - Soldering Kit
LOW STOCK
The Electronic Dice is a hands-on soldering project designed to demonstrate how random number generation works using digital logic. When shaken, a tilt switch activates a 555 timer that rapidly cycles through a CD4017 decade counter. As the oscillation slows, LEDs illuminate in sequence before landing on a final dice face, visualizing how timing circuits create unpredictable outcomes from deterministic components.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Make it yourself
How it works ?
The circuit generates random dice rolls using a 555 timer and CD4017 decade counter. When shaken, a tilt switch triggers the 555 oscillator, which rapidly cycles through the decade counter's outputs. As the oscillation slows down, the counter skims through each number before finally landing on one of six faces, lighting the corresponding LED pattern to display the roll.
Perfect for learning soldering
ENIG surface finish, well-spaced through-hole pads, and clear component designators.
What's inside the kit ?

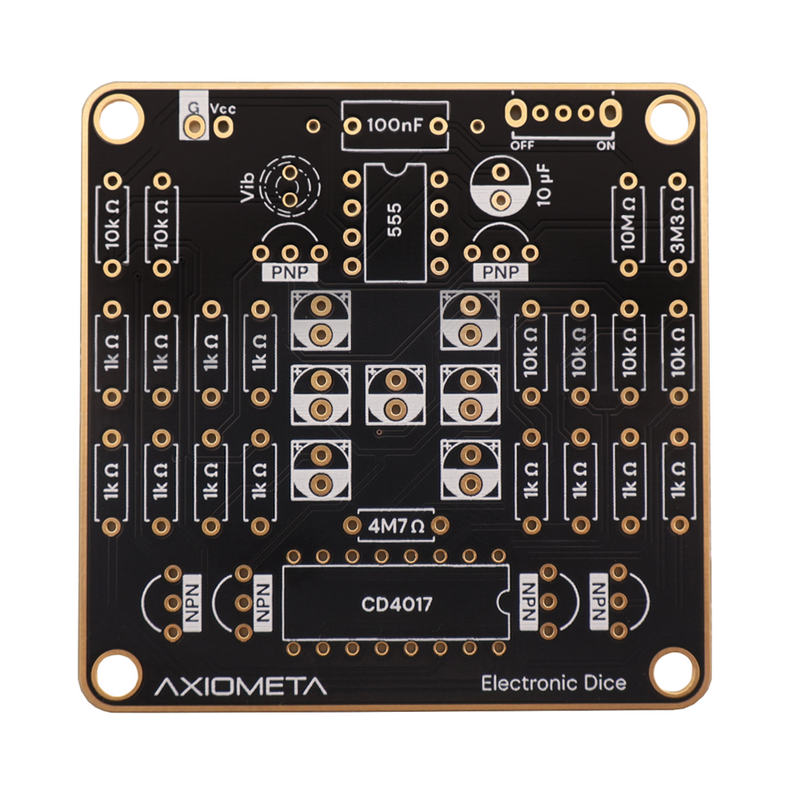

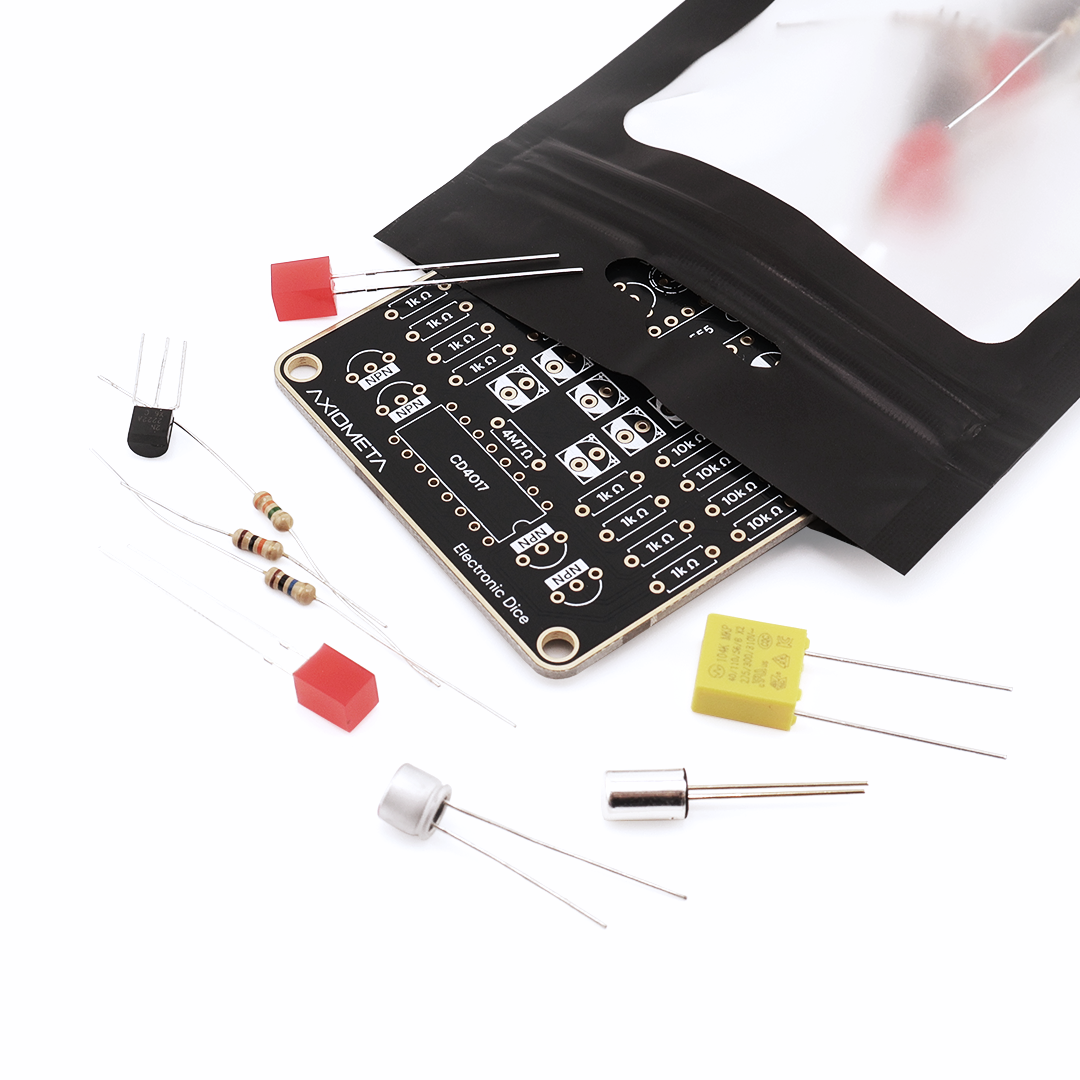

Electronic Dice PCB - 1X

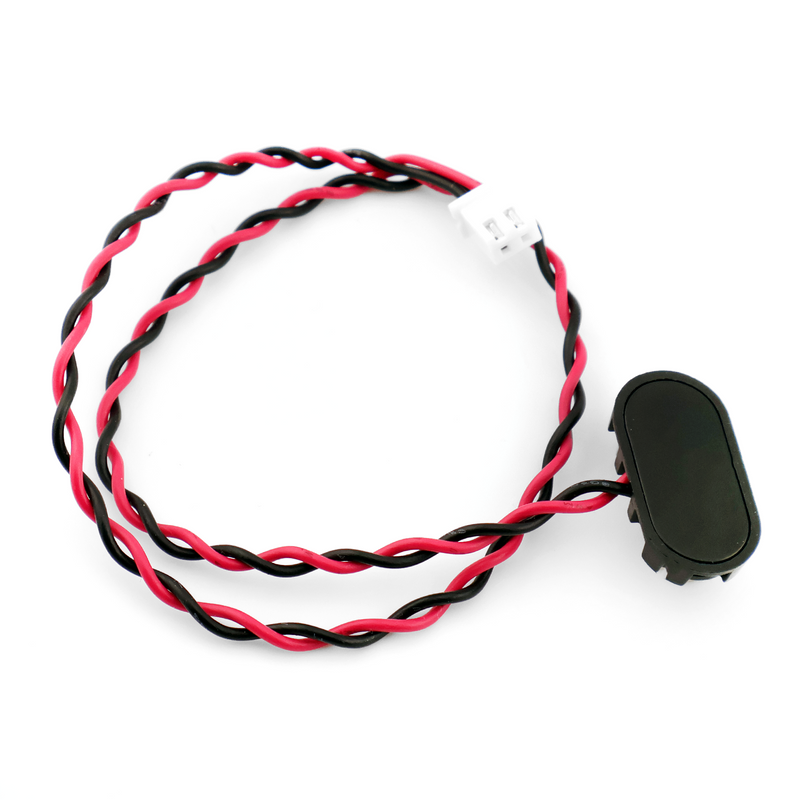

Battery Plug - 1X

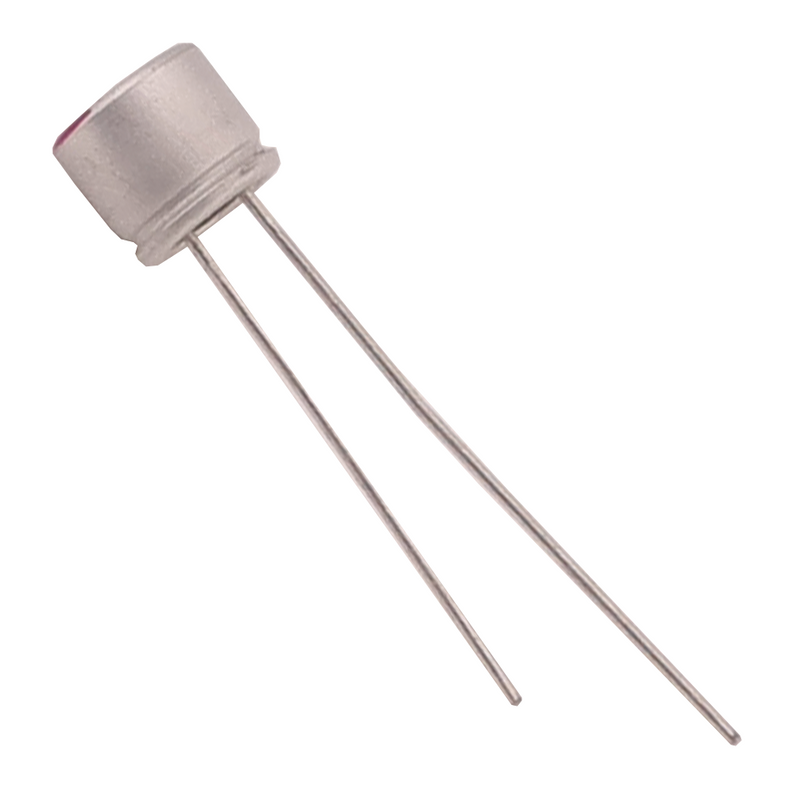

10 uF Capacitor - 1X

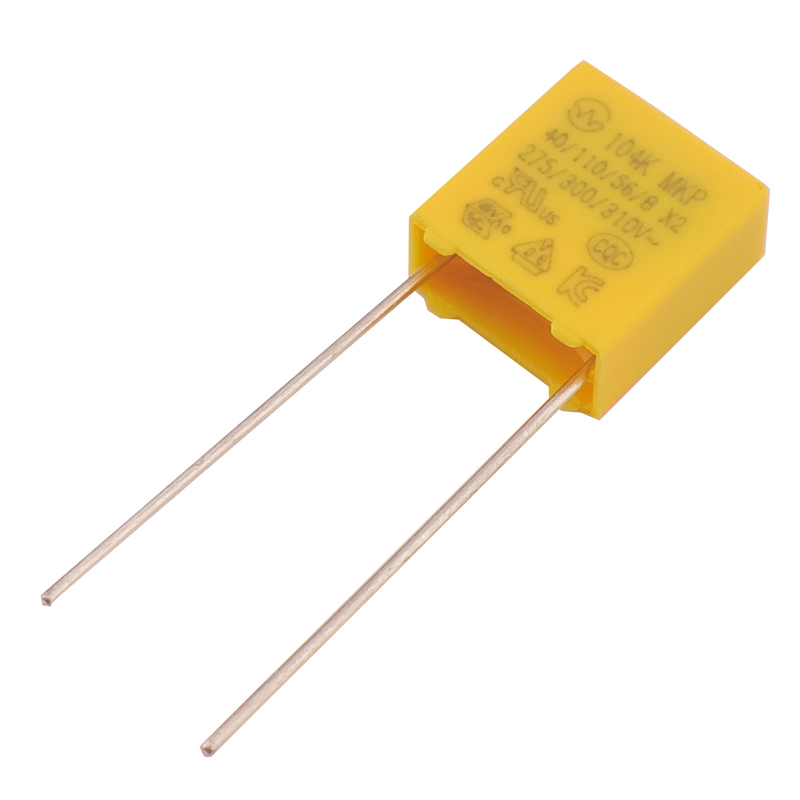

100 nF Capacitor - 1X

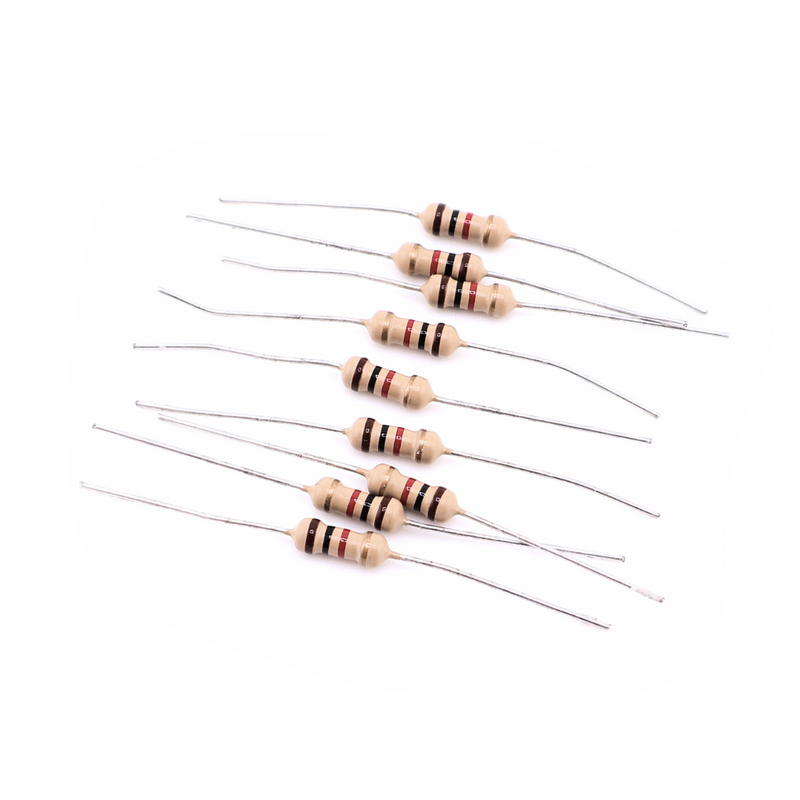

1 kΩ Resistors -n X

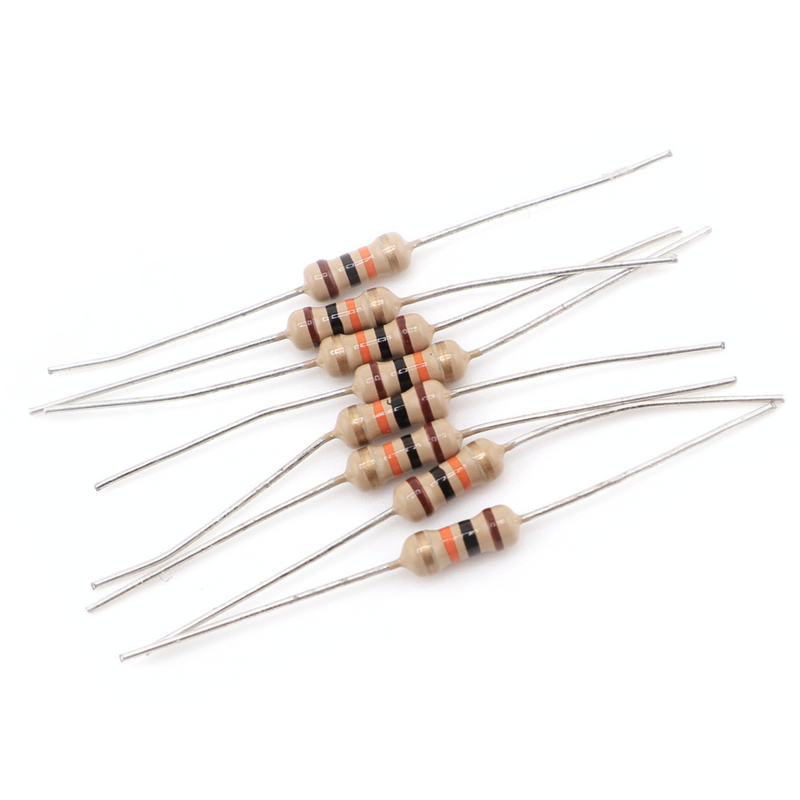

10 kΩ Resistors -n X

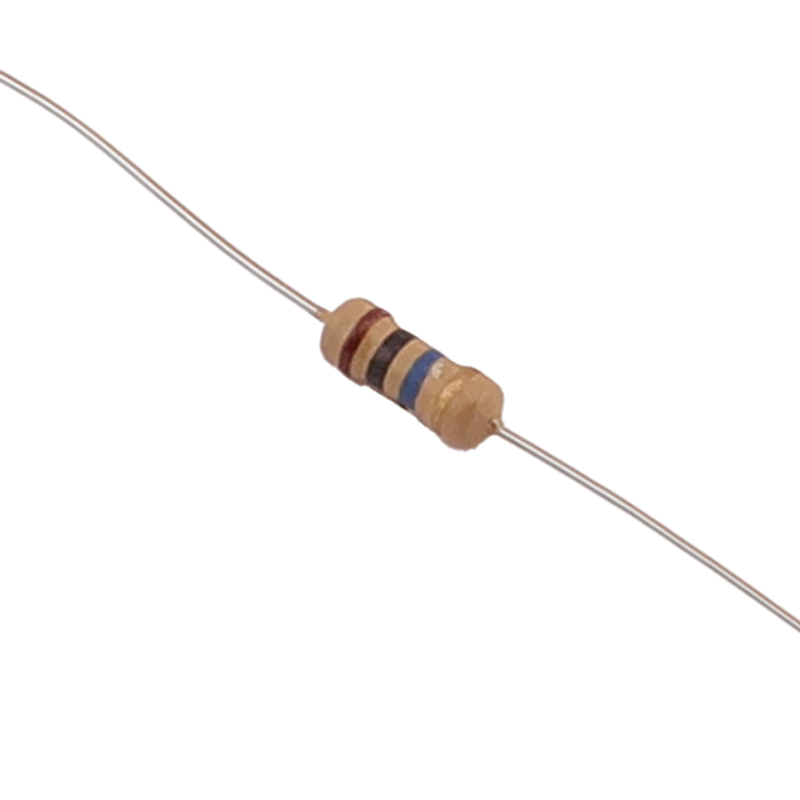

10 MΩ Resistor -1 X

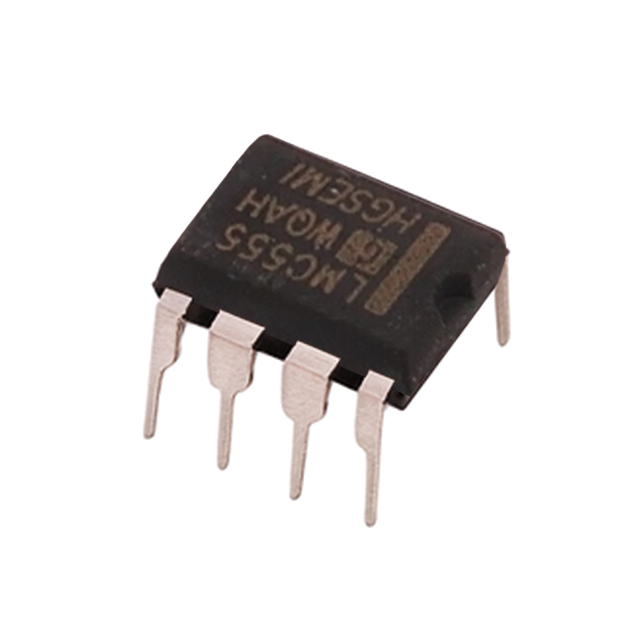

555 Timer -1X

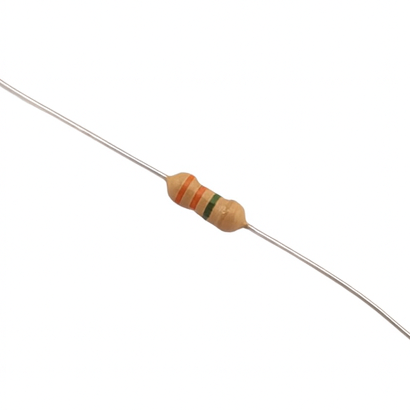

3.3 MΩ Resistor -1 X

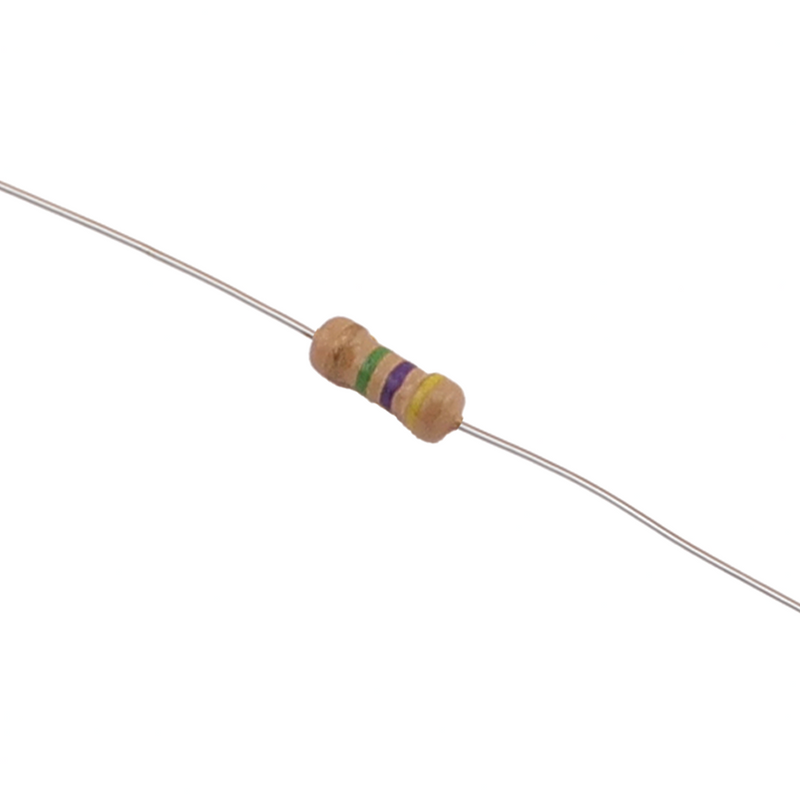

4.7 MΩ Resistor -1 X

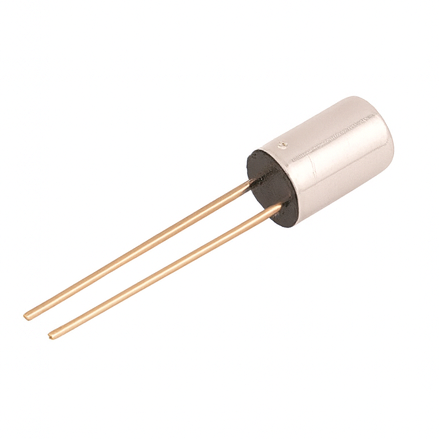

Vibration Switch - 1X

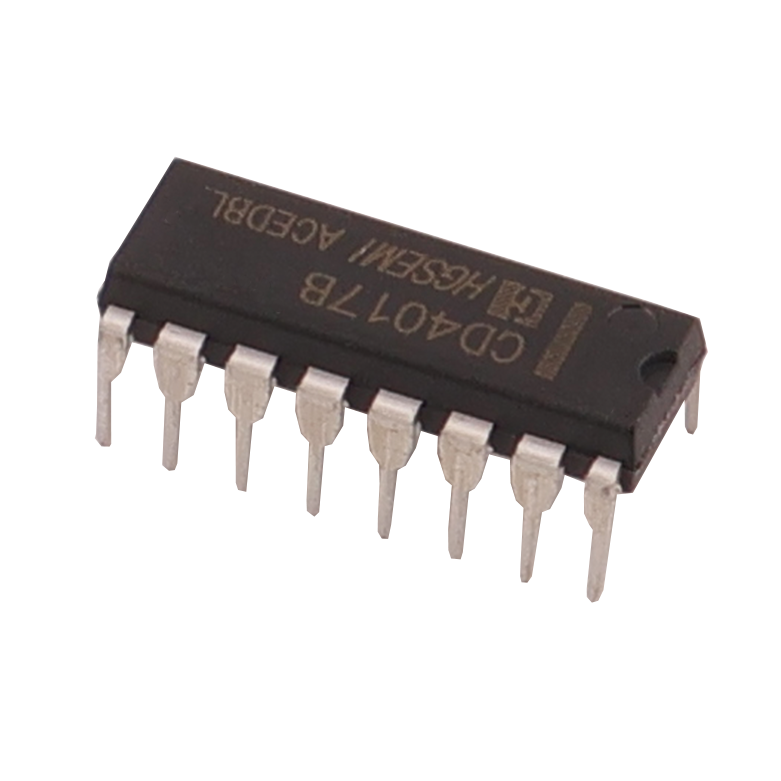

CD4017 - 1X

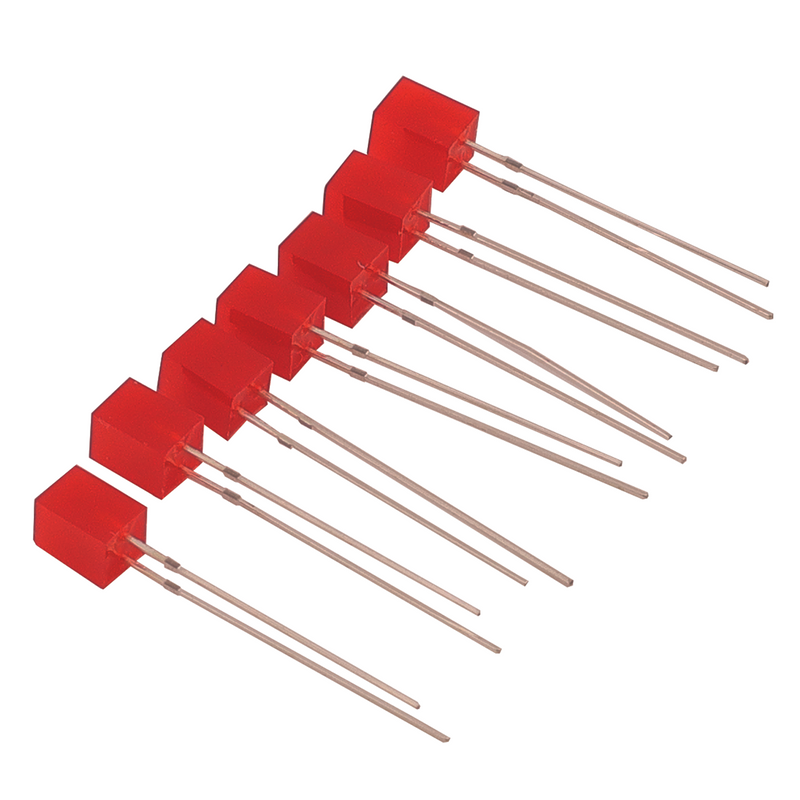

LEDs - 8X

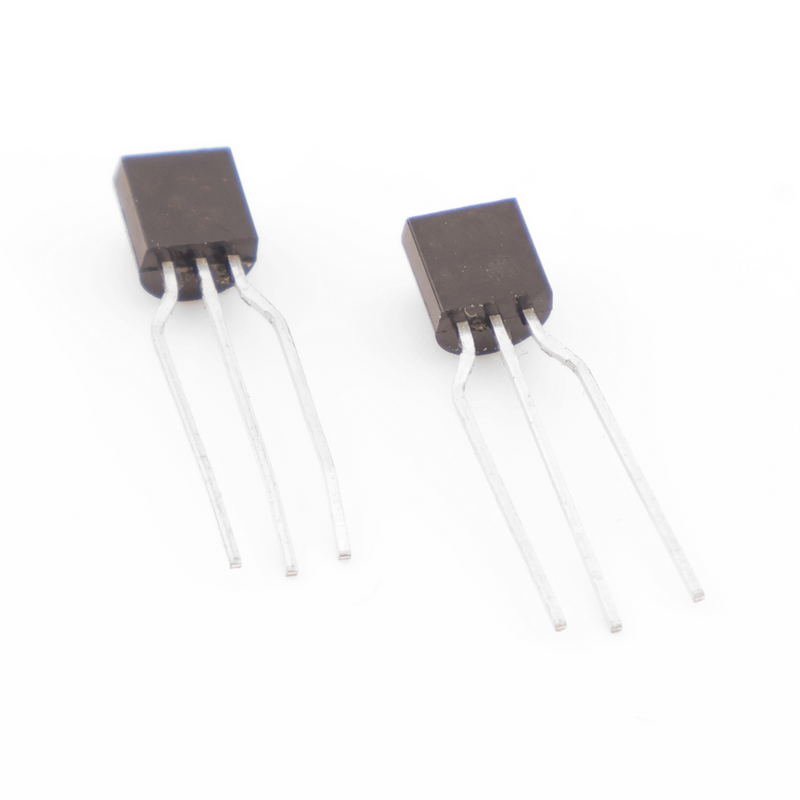

PNP Transistors - 2X

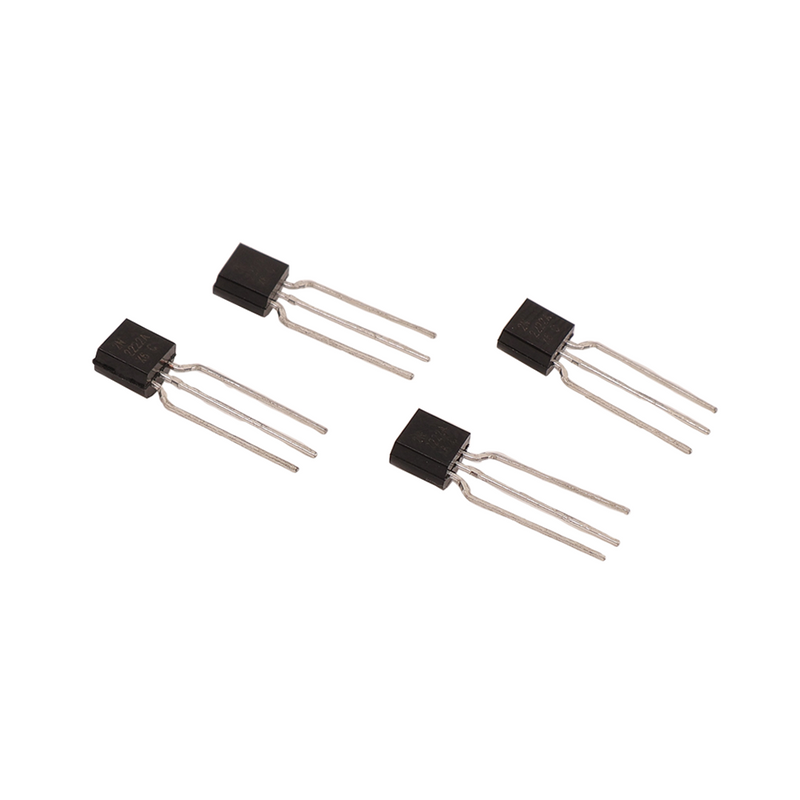

NPN Transistors - 4X
Battery Plug - 1X

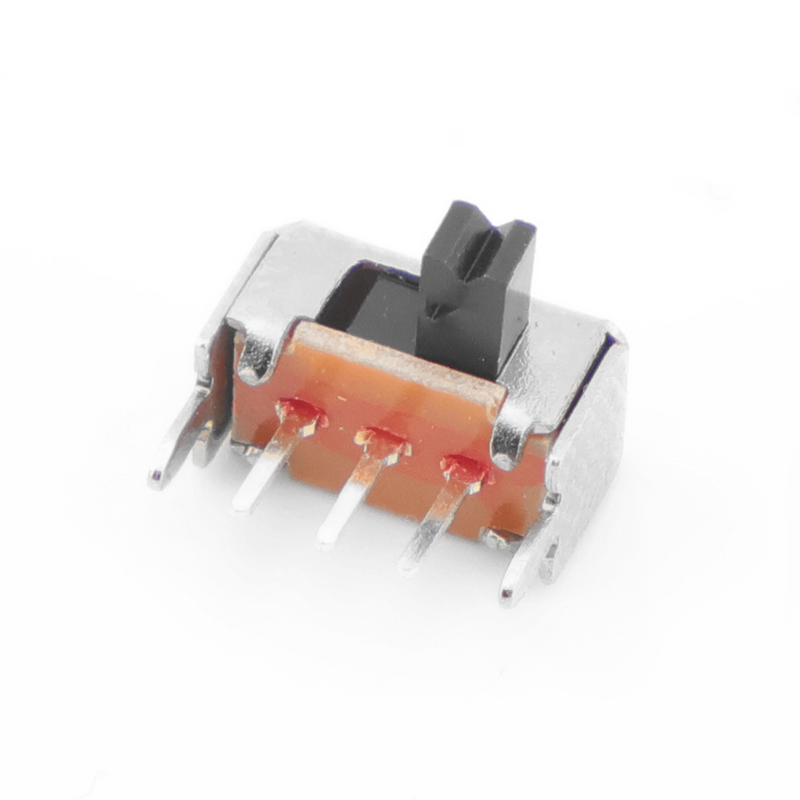

Power Switch - 1X
Technical Resources
Electronic Dice- (AXMT-SLD0002)

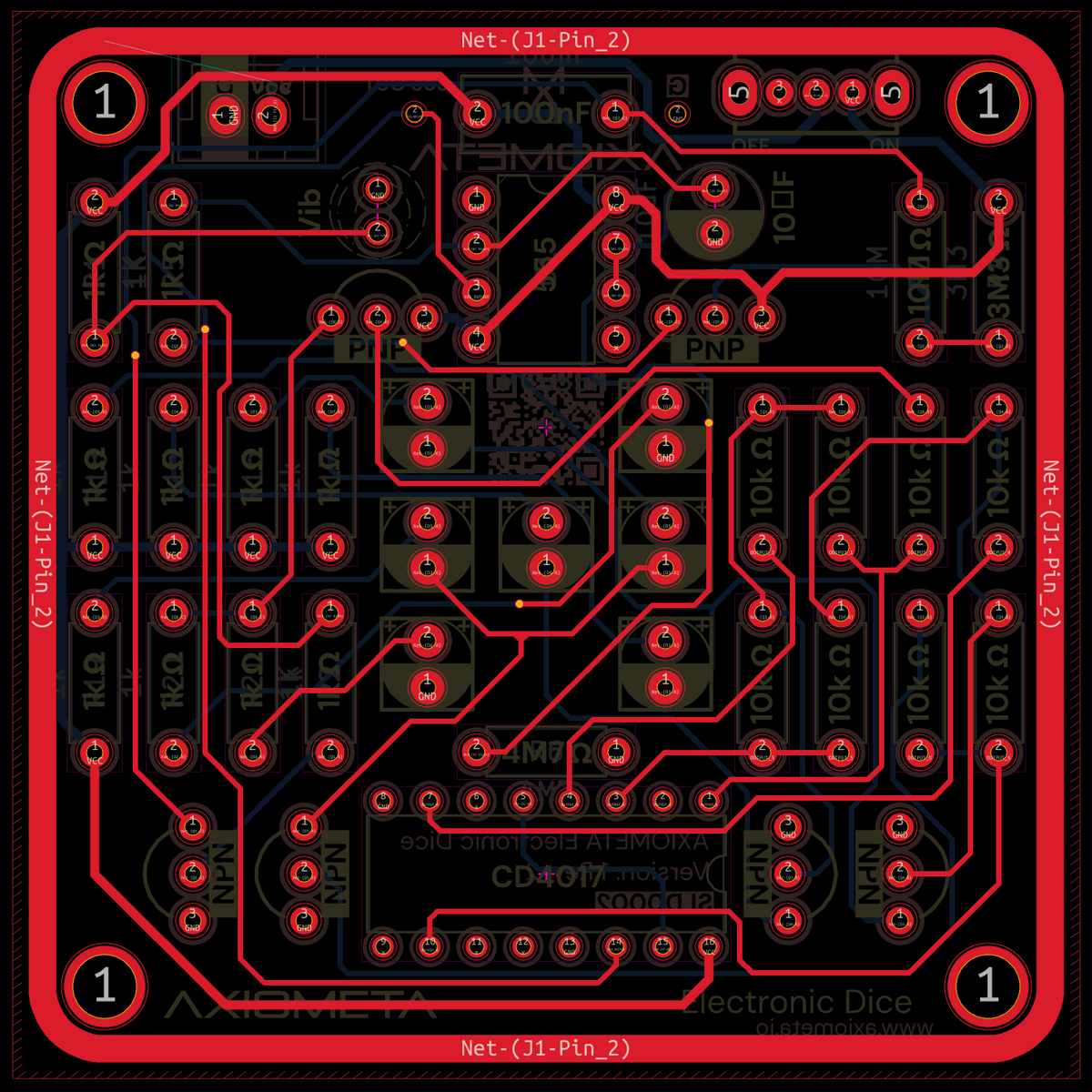

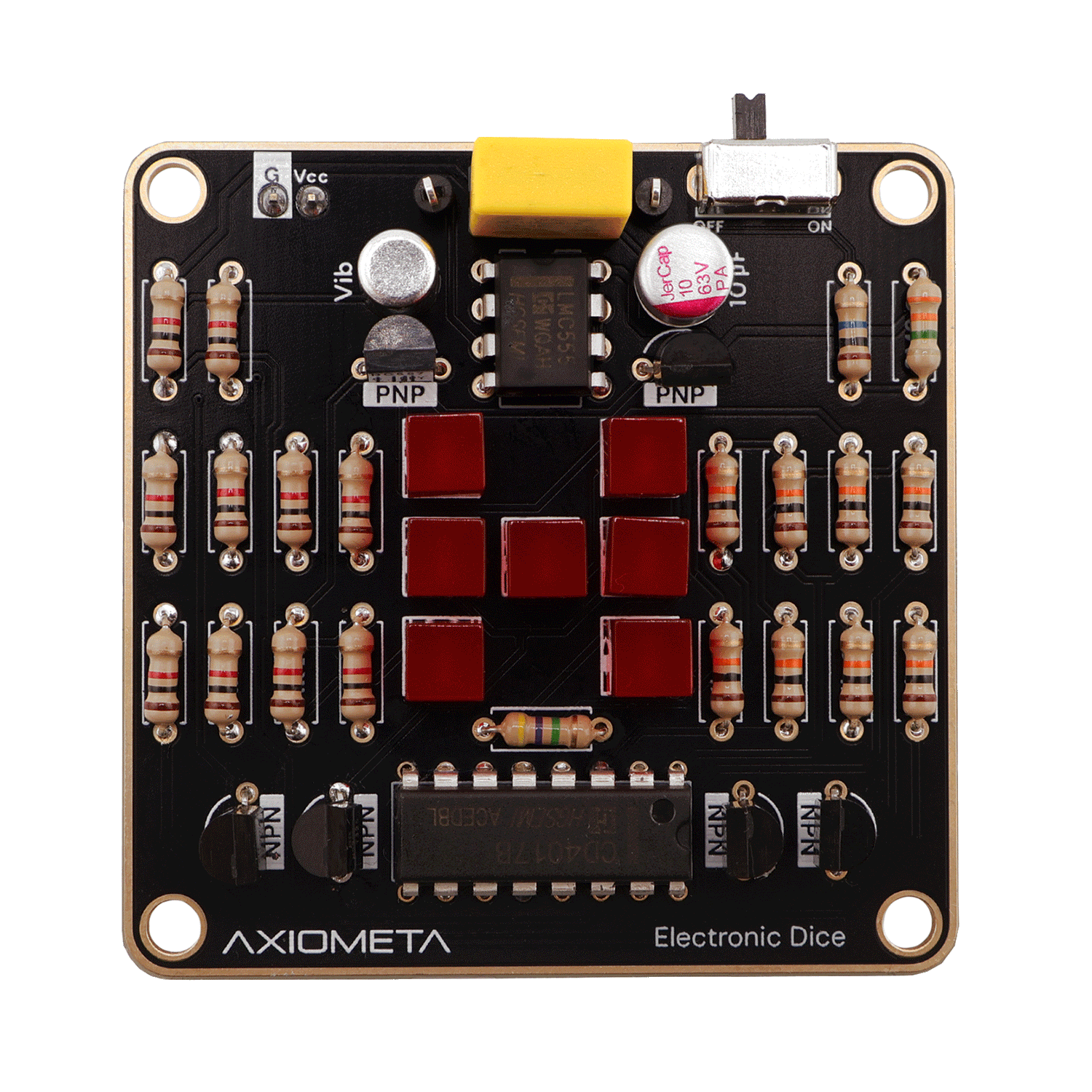

PCB FRONT

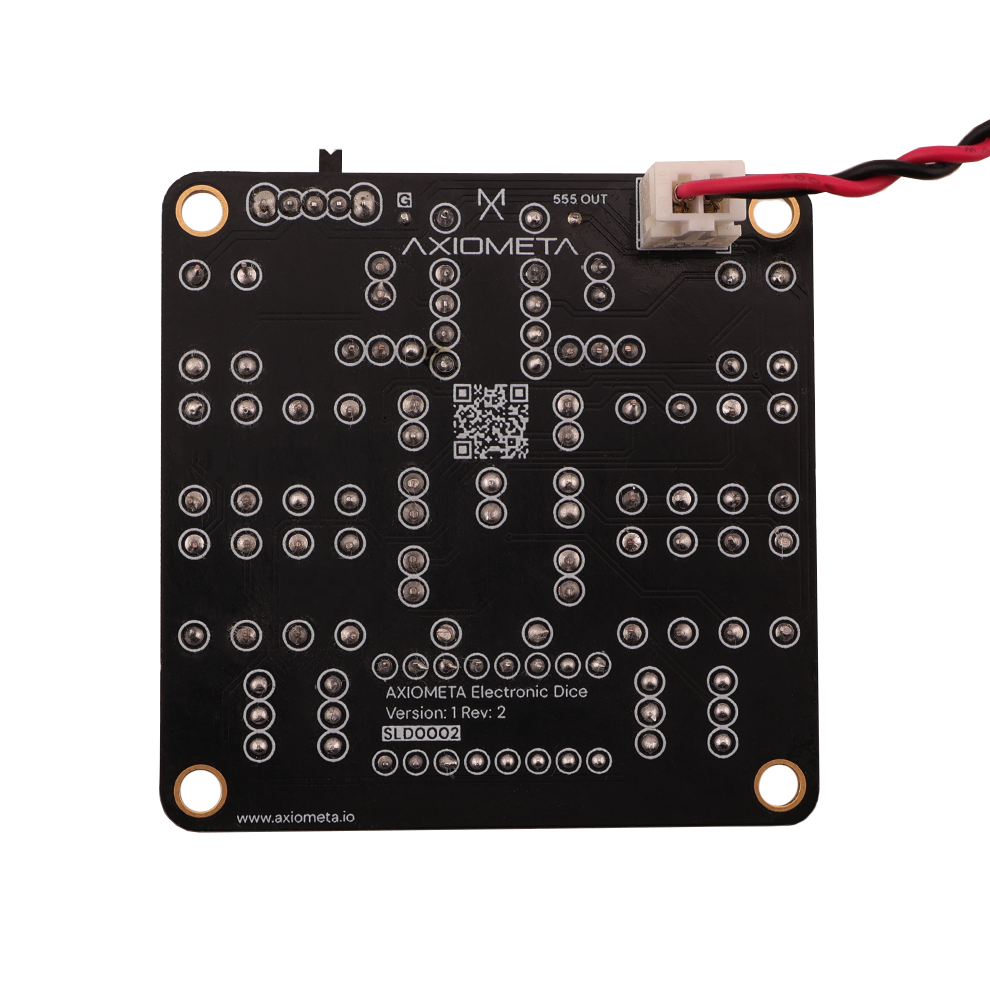

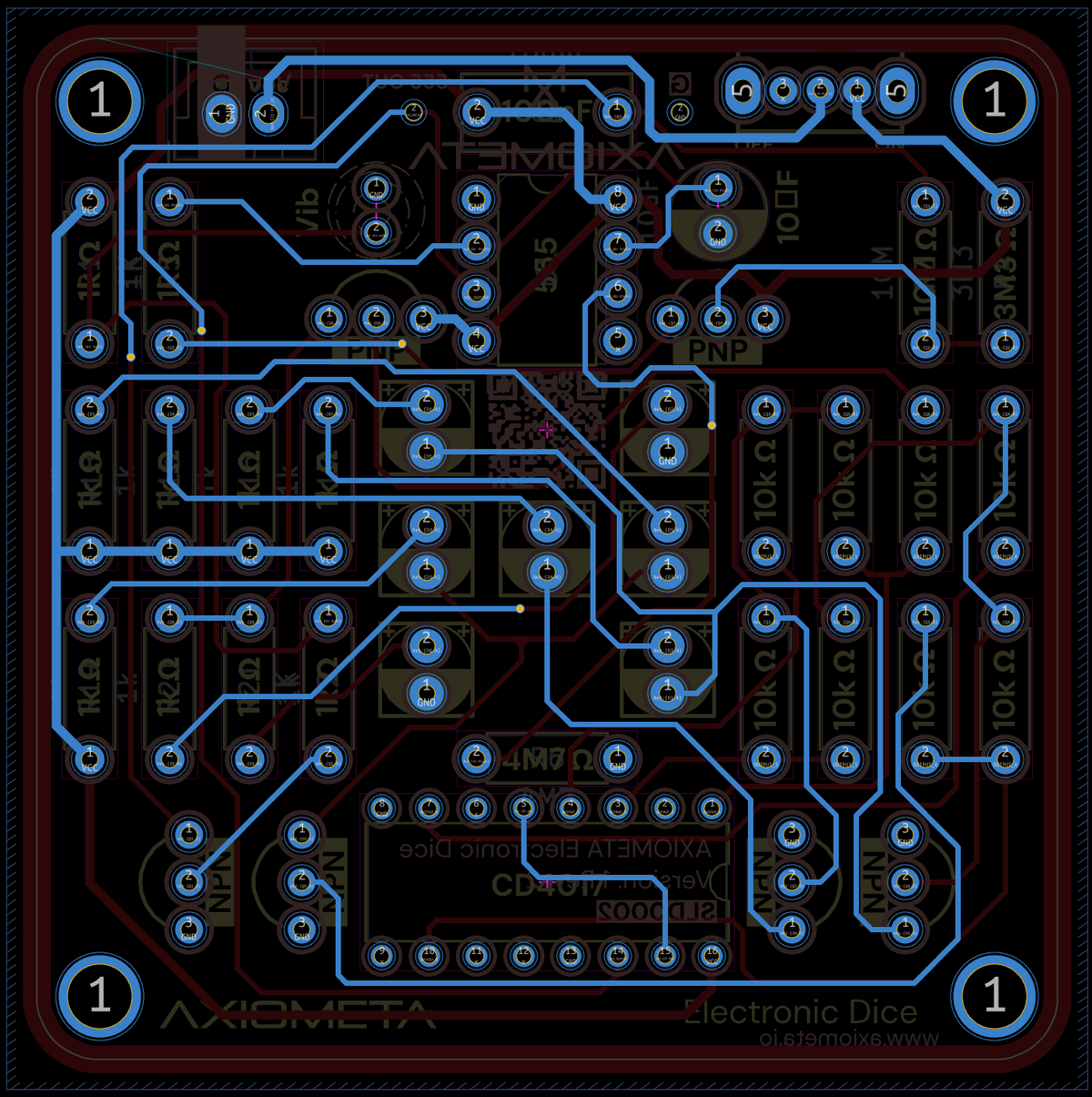

PCB BACK
