IPS LCD (0.96)

IPS LCD (0.96)

AX22-0034

58 in stock

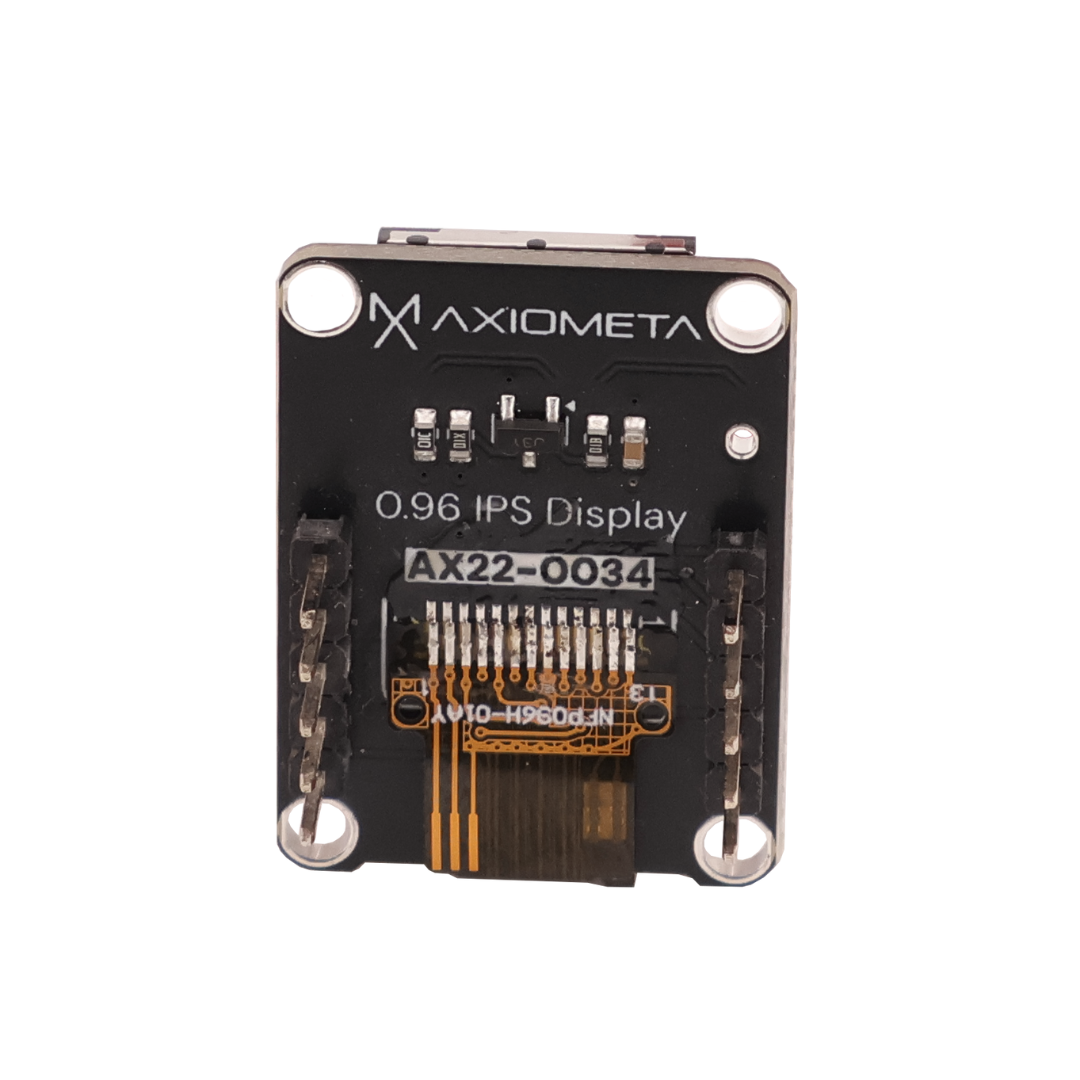

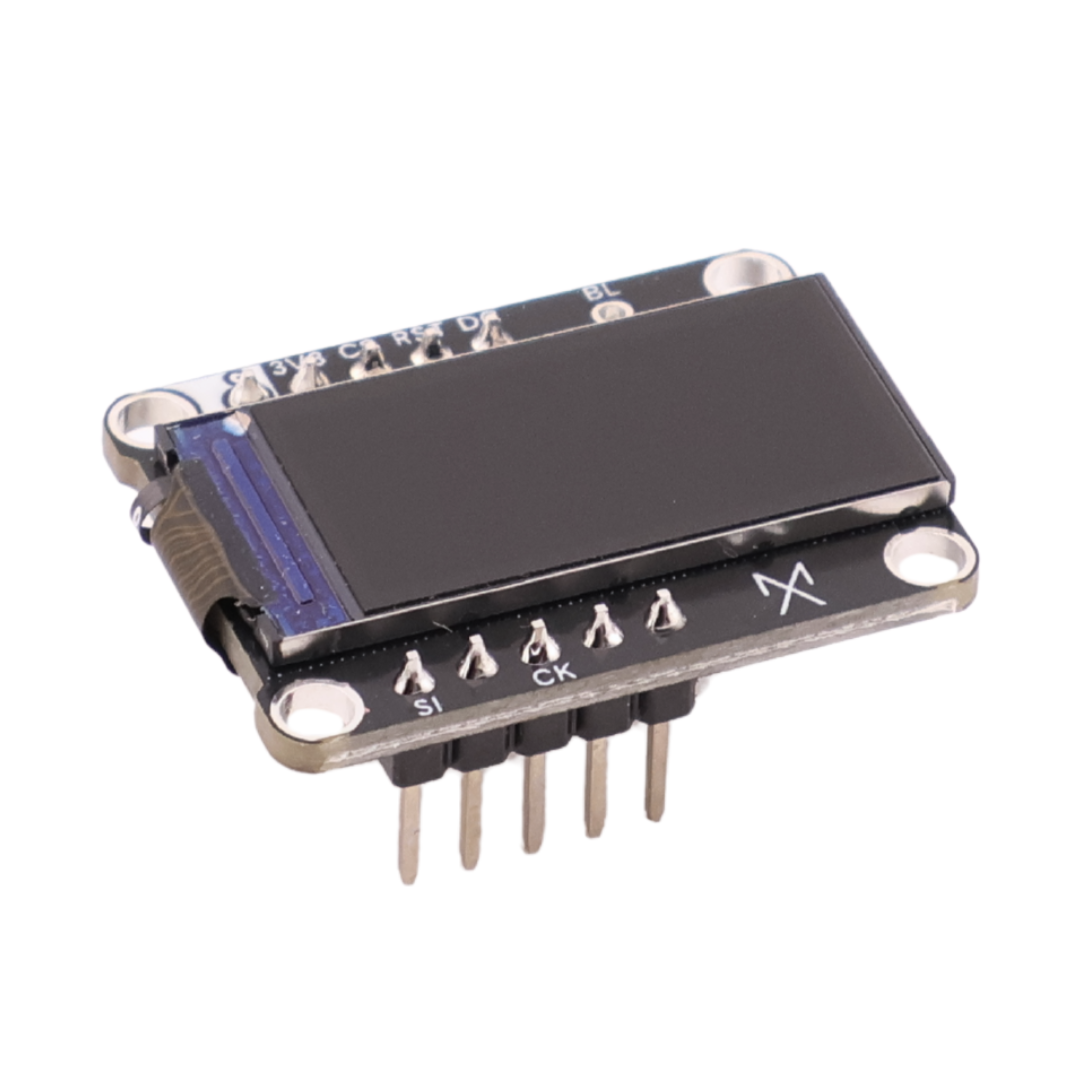

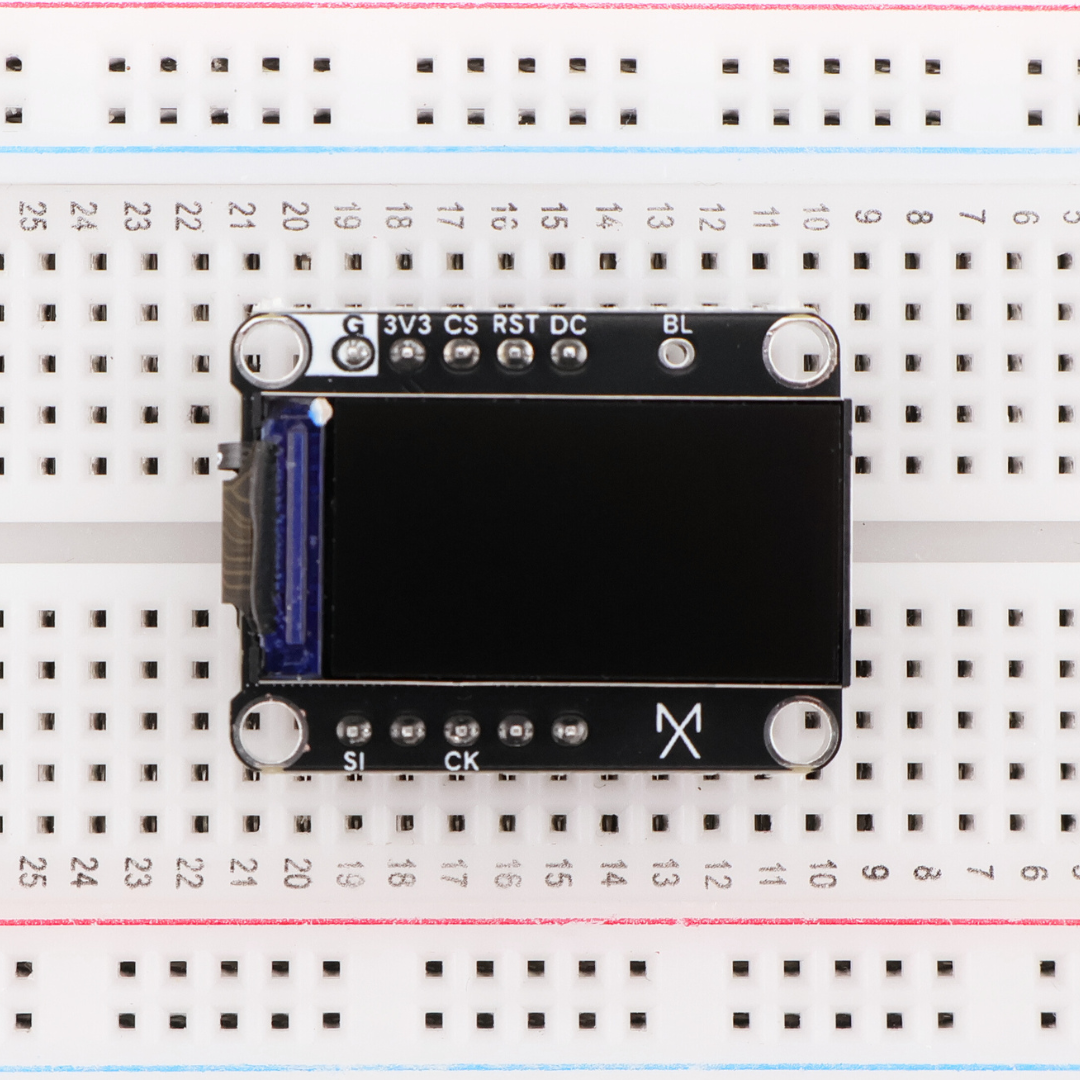

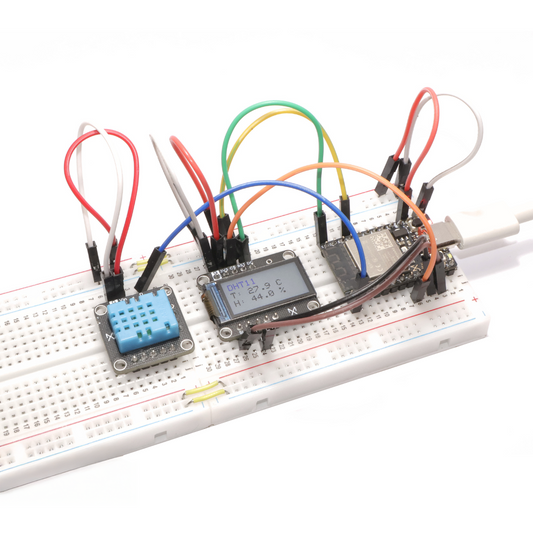

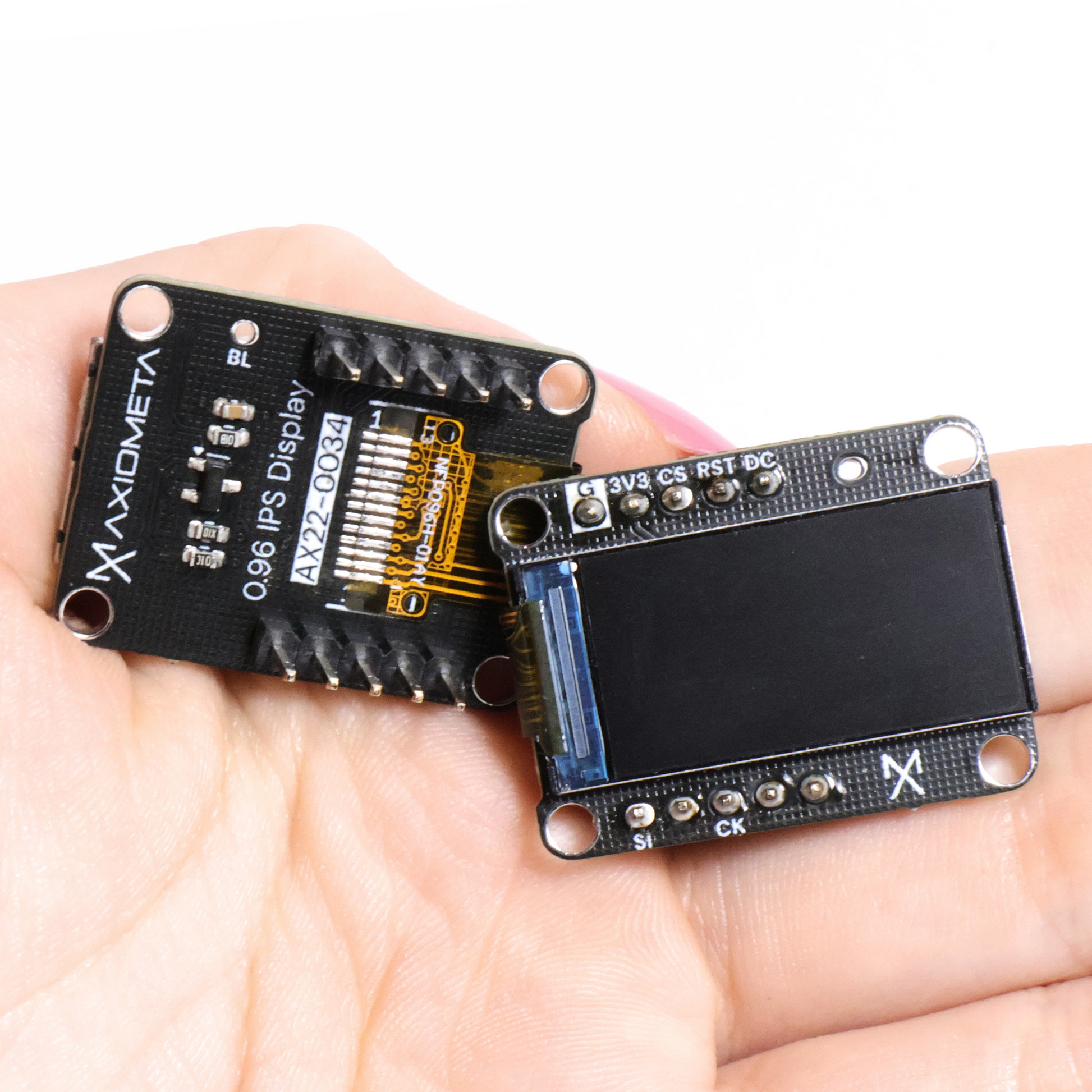

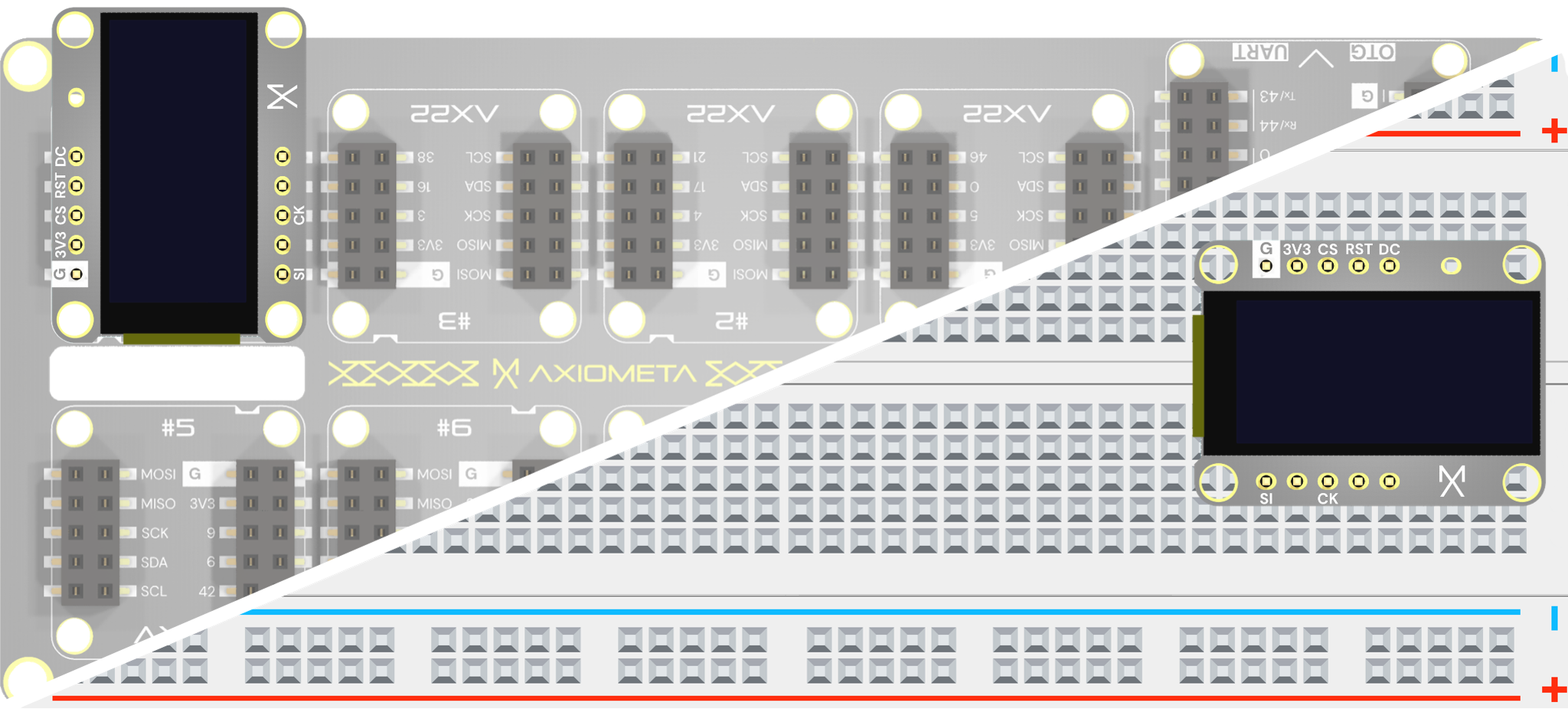

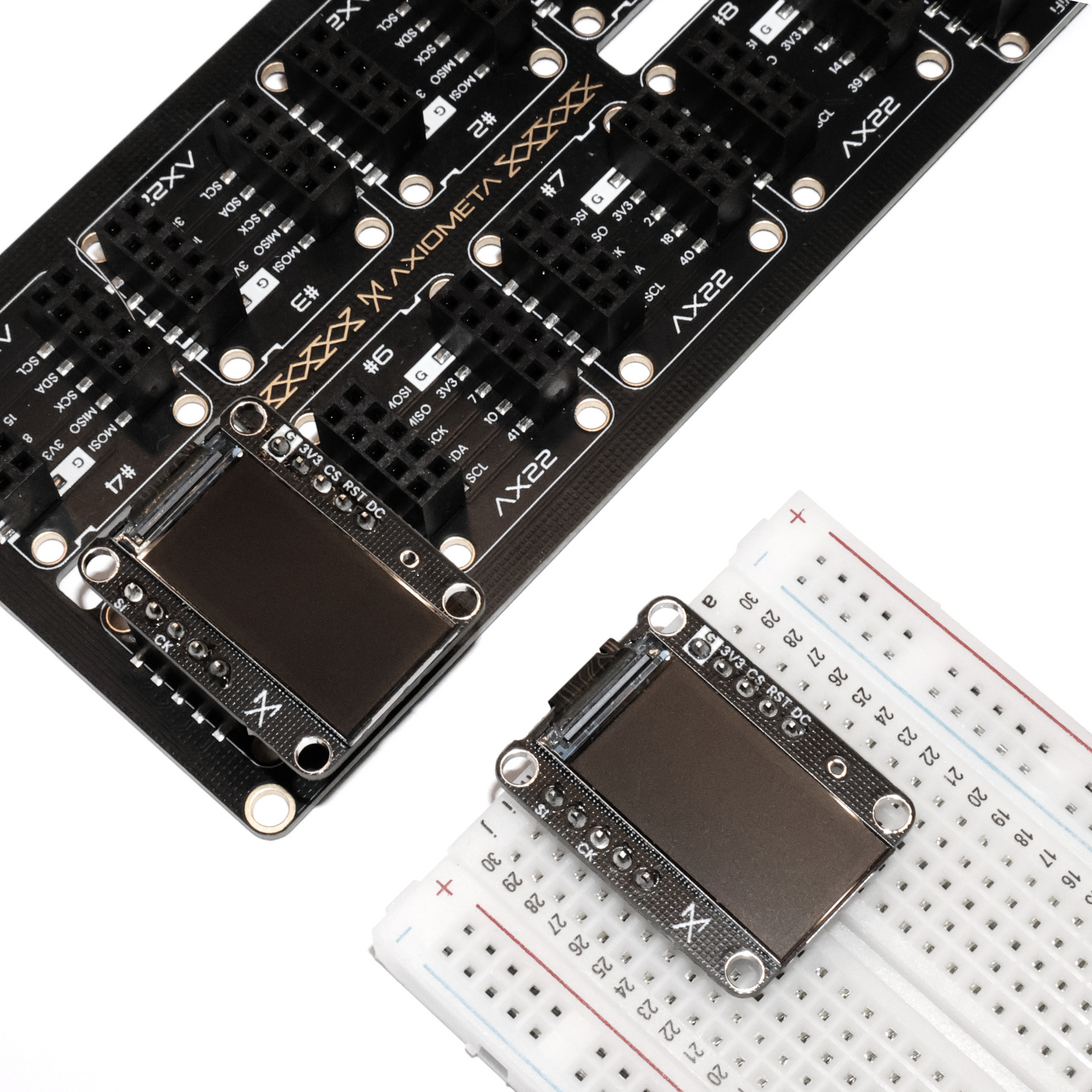

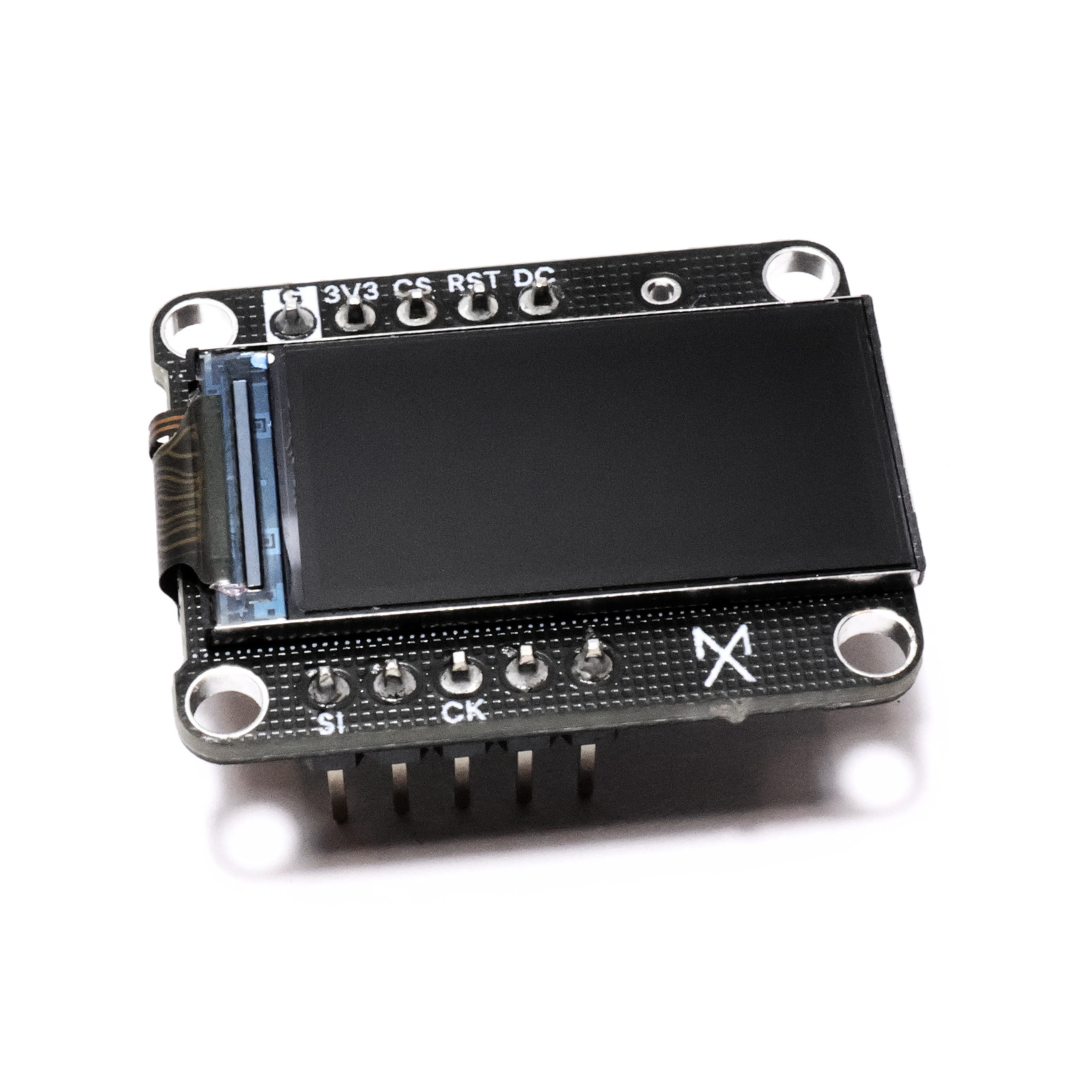

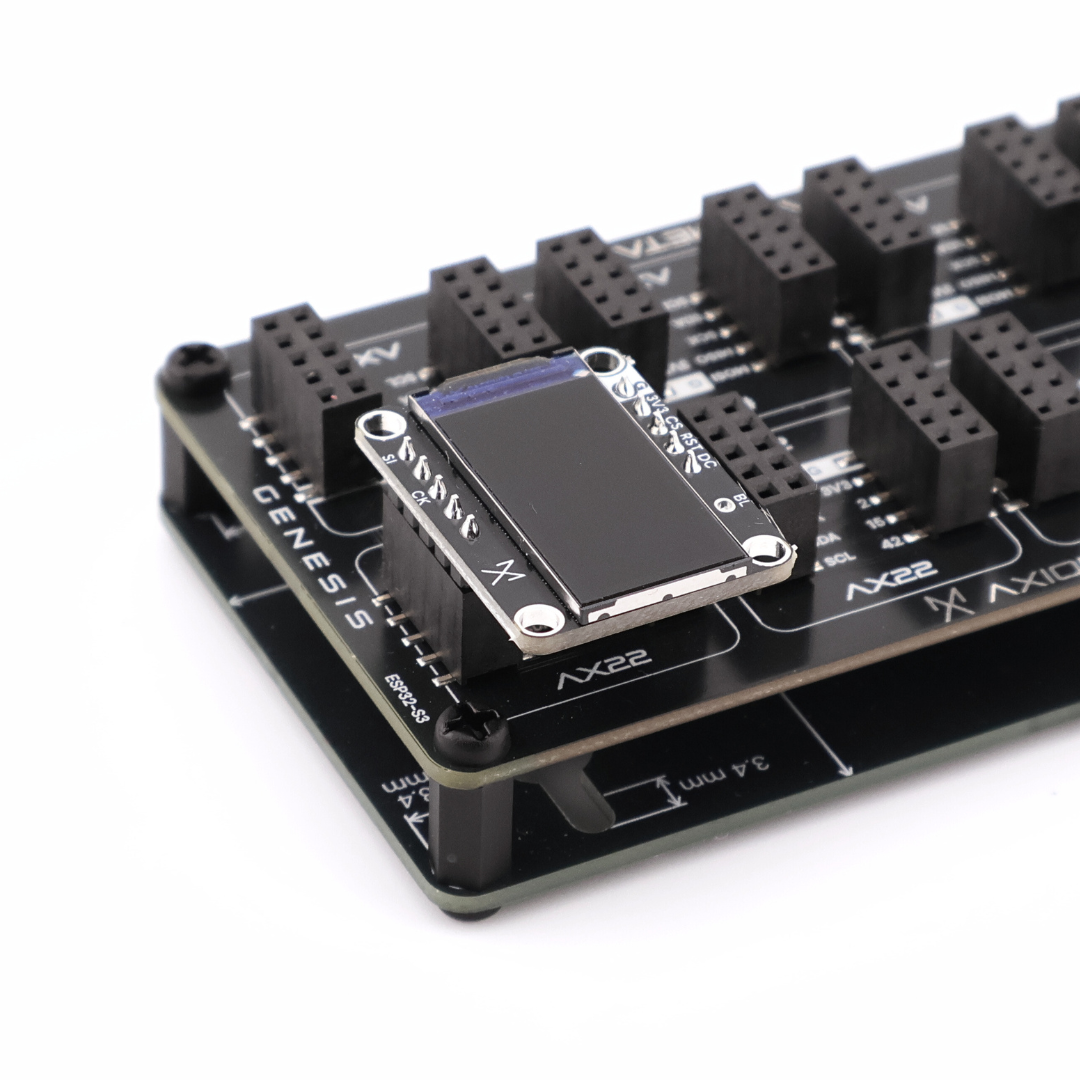

This board mounts a Newvisio N096-1608TBBIG11-H13 IPS panel on a 22 × 29 mm PCB, delivering a sharp 160 × 80-pixel canvas driven by the ST7735S controller over 4-wire SPI. Snap it into any AX22 backplane and you’re drawing text, bitmaps, or real-time graphs in a handful of library calls Arduino IDE, MicroPython, or MicroBlocks.
$7.99
$7.99
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Technical Details

  • - 22 mm × 29 mm PCB
    - 4× ⌀2.7 mm Mounting Holes
    - 160 × 80 RGB pixels, normally-black IPS wide view
    - 3.3 V
    - Active area: 10.8 × 21.7 mm; glass size 13.5 × 27.9 mm
    - Back-light: single white LED, ~20 mA @ 3 V
    - Typical luminance ≈ 400 cd/m²
    - ST7735S driver, 4-wire SPI up to ≈ 10 MHz
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

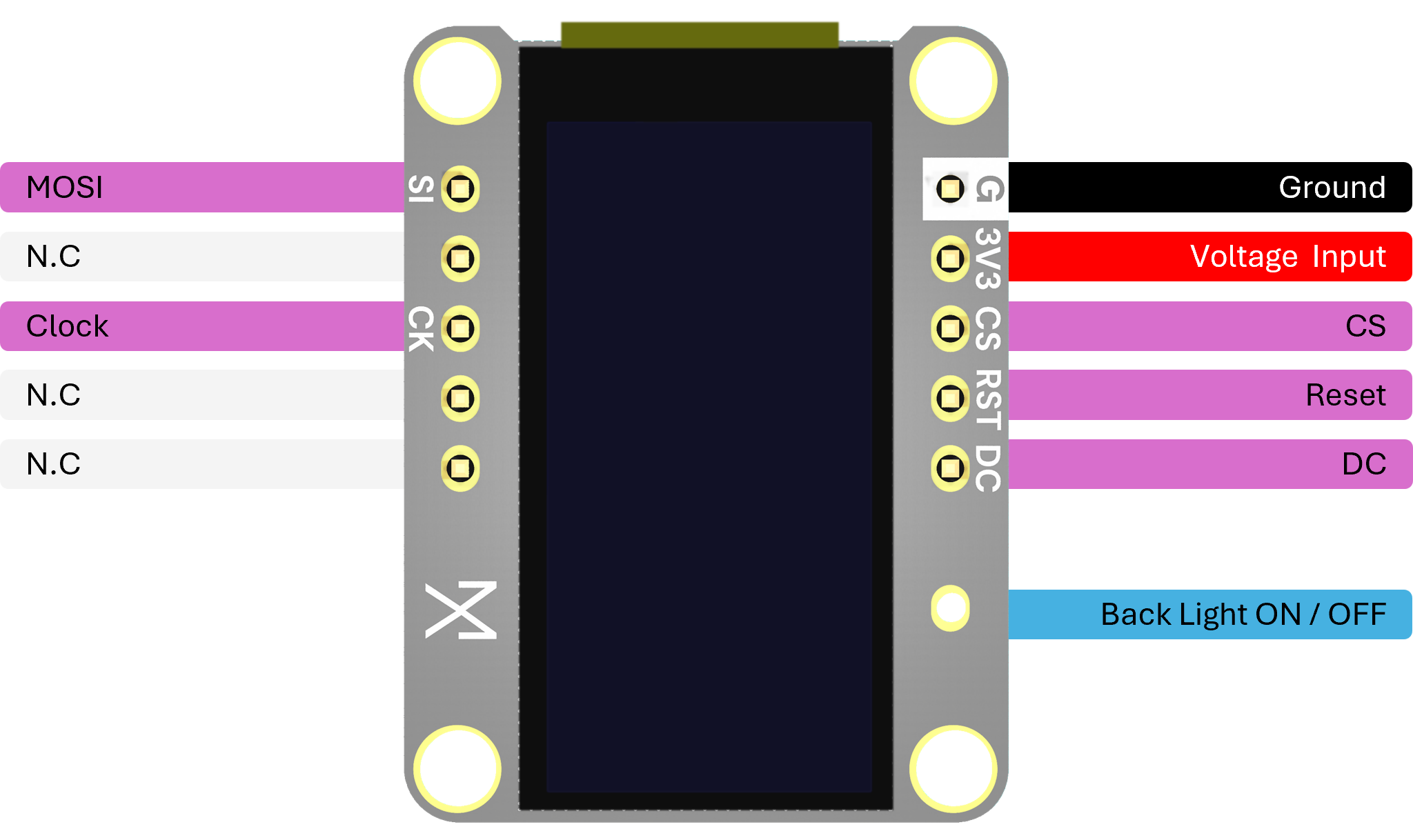

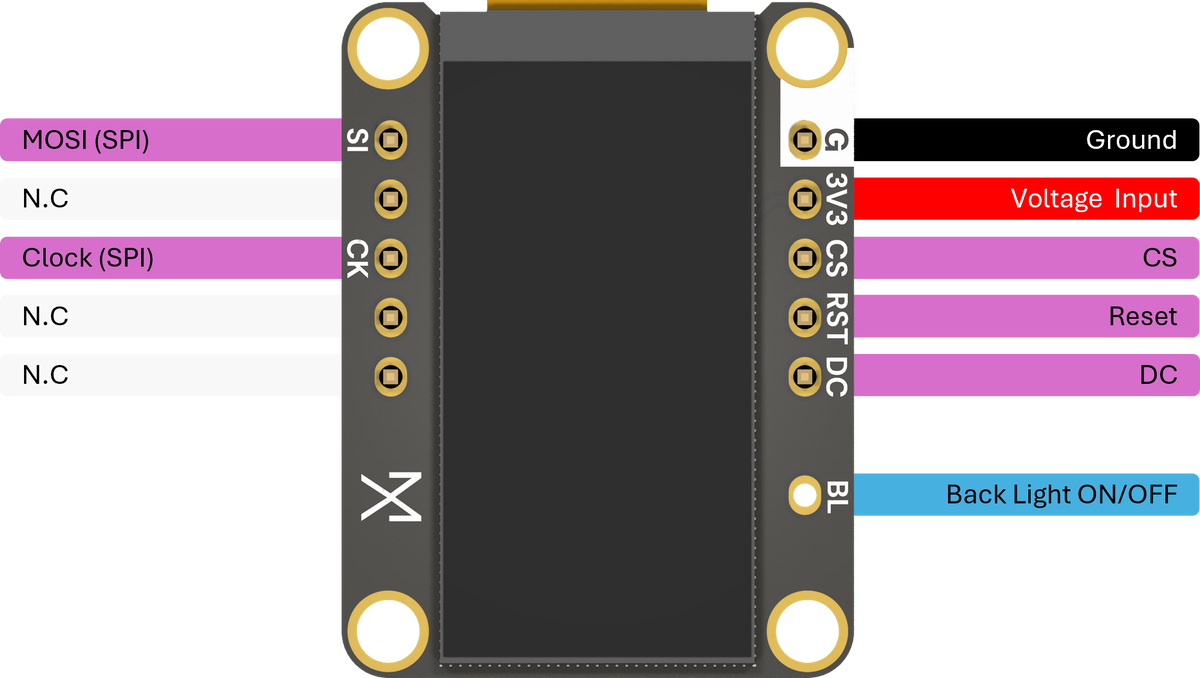

Pinout

Technical Resources

IPS LCD (0.96) - (AX22-0034)
Circuit Schematic 3D Model

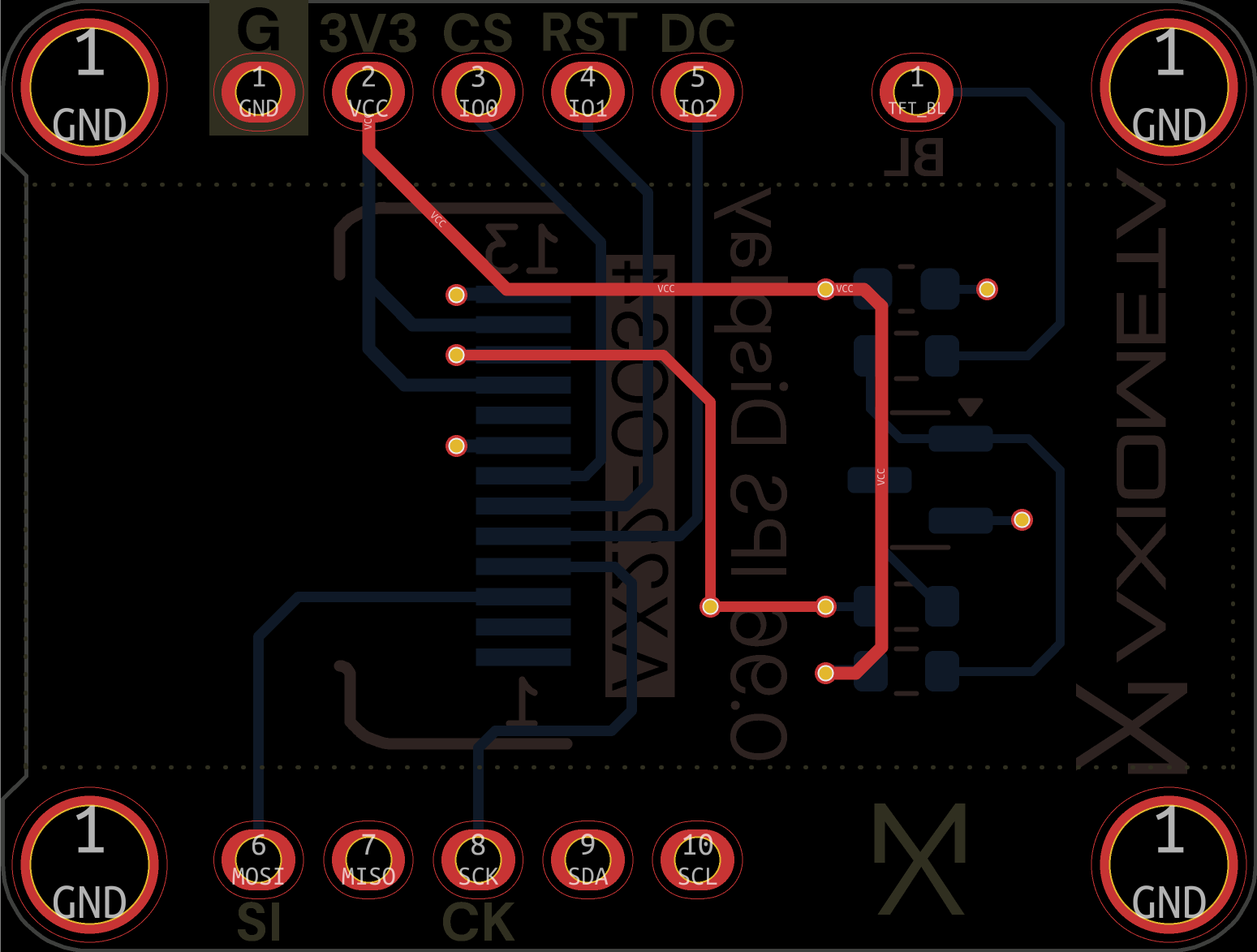

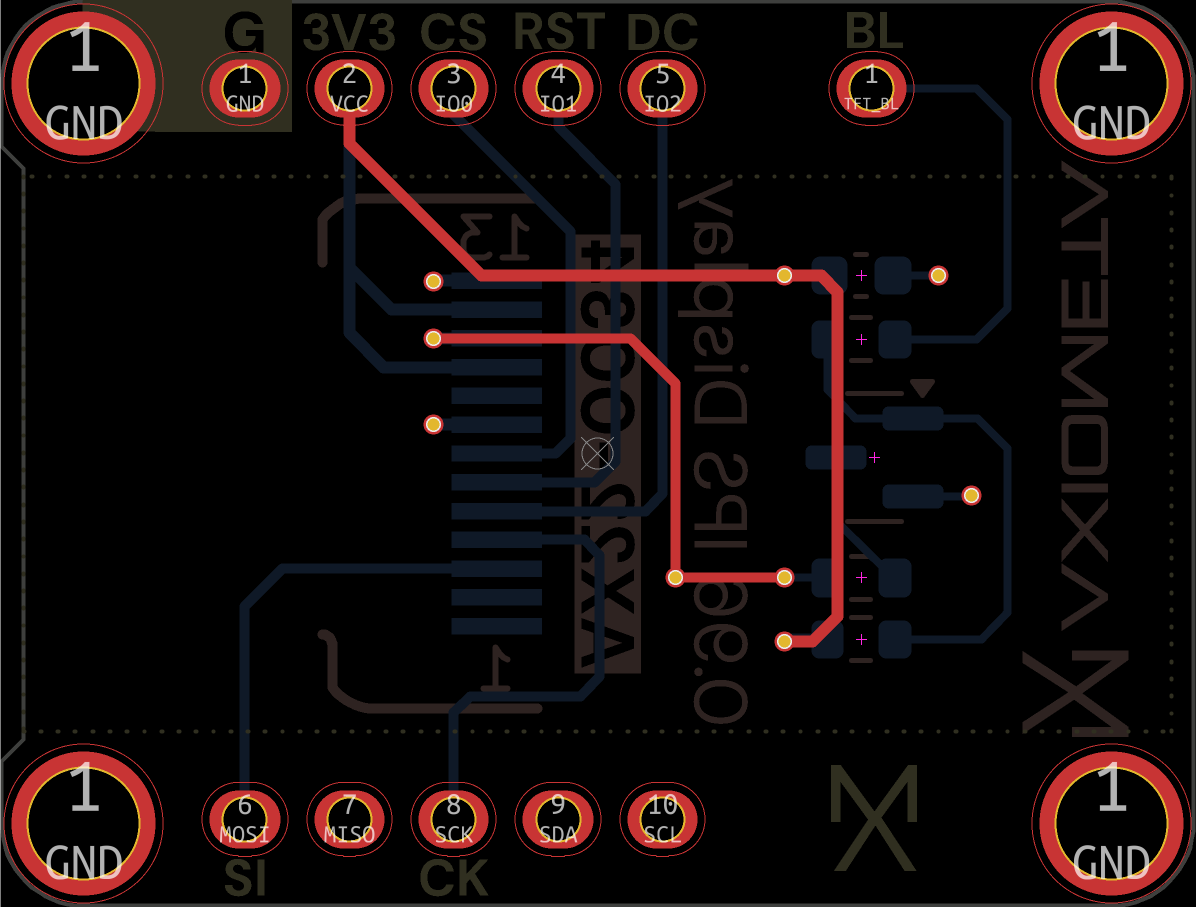

PCB FRONT

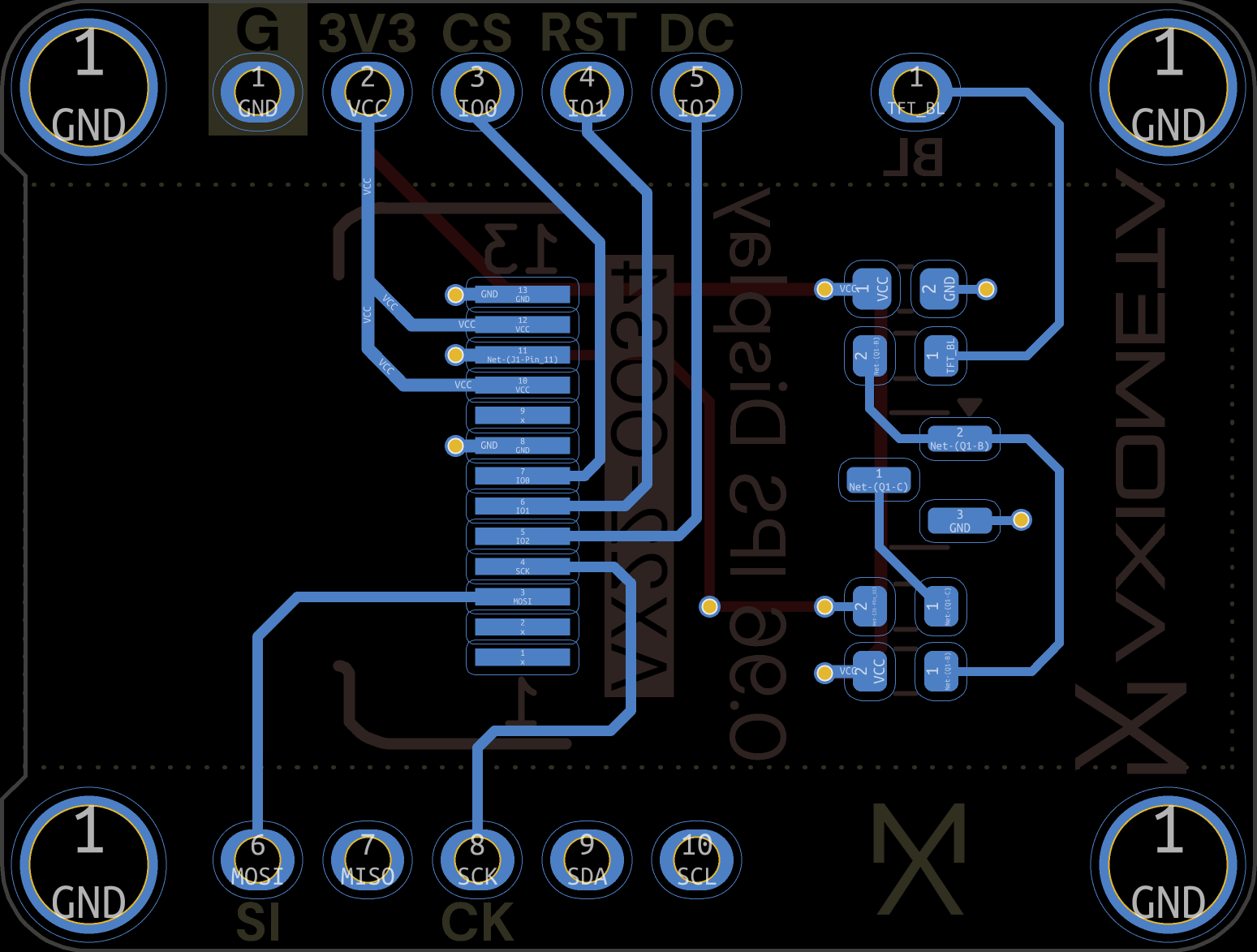

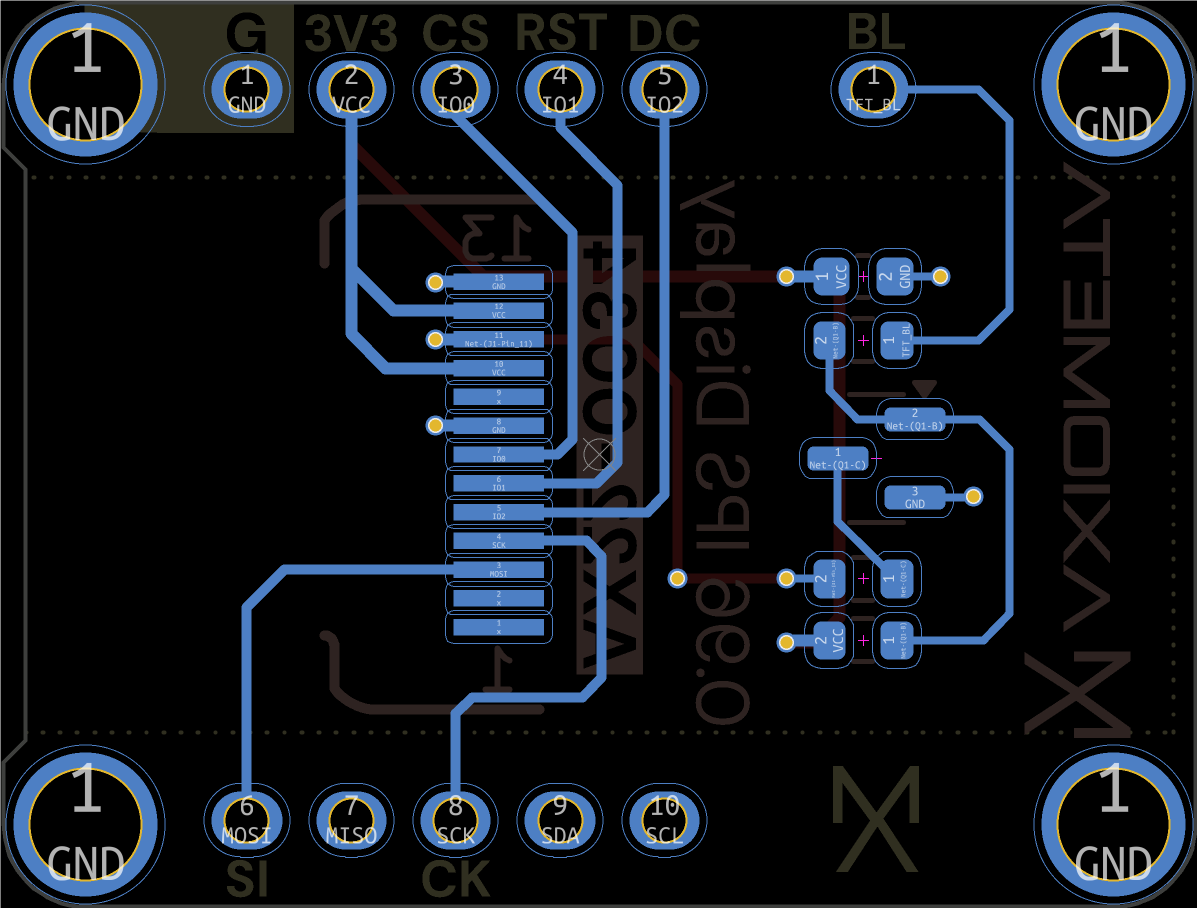

PCB BACK

🟢 Live 3D Model

🖱️ Click & drag to rotate

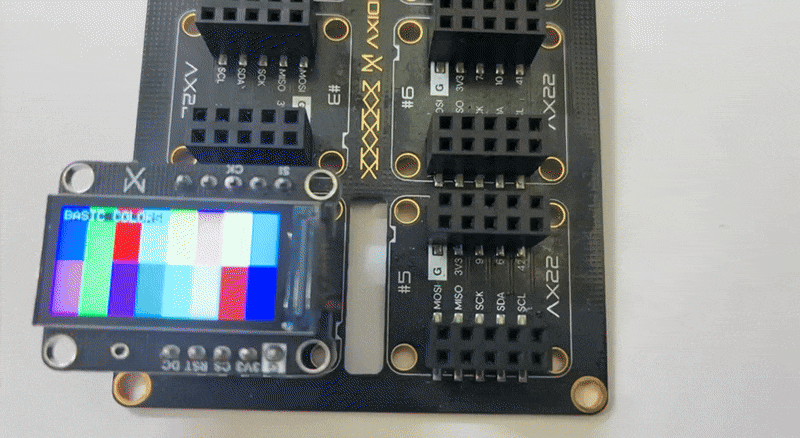

Arduino Example Snippet

#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h>
#include <SPI.h>

#define TFT_CS    1
#define TFT_RST   14
#define TFT_DC    41
#define TFT_MOSI  11
#define TFT_SCLK  13

SPIClass mySPI(FSPI);
Adafruit_ST7735 tft = Adafruit_ST7735(&mySPI, TFT_CS, TFT_DC, TFT_RST);

// Rainbow colors
const uint16_t colors[] = {
  ST77XX_RED, ST77XX_ORANGE, ST77XX_YELLOW,
  ST77XX_GREEN, ST77XX_CYAN, ST77XX_BLUE, ST77XX_MAGENTA
};

int colorIndex = 0;
int starCount = 20;
int starX[20], starY[20], starSpeed[20];

void setup() {
  mySPI.begin(TFT_SCLK, -1, TFT_MOSI);
  tft.initR(INITR_MINI160x80);
  tft.setRotation(3);

  // Initialize stars
  for(int i = 0; i < starCount; i++) {
    starX[i] = random(160);
    starY[i] = random(80);
    starSpeed[i] = random(1, 4);
  }
}

void loop() {
  // Animated starfield background
  tft.fillScreen(ST77XX_BLACK);

  for(int i = 0; i < starCount; i++) {
    tft.drawPixel(starX[i], starY[i], ST77XX_WHITE);
    starX[i] += starSpeed[i];
    if(starX[i] > 160) {
      starX[i] = 0;
      starY[i] = random(80);
    }
  }

  // Pulsing text effect
  int pulse = (millis() / 100) % 20;
  int textSize = 2 + (pulse > 10 ? 20 - pulse : pulse) / 10;

  // Rainbow cycling text
  tft.setTextColor(colors[colorIndex]);
  tft.setTextSize(textSize);
  tft.setCursor(30, 25);
  tft.print("Hello!");

  tft.setTextColor(colors[(colorIndex + 3) % 7]);
  tft.setTextSize(2);
  tft.setCursor(30, 50);
  tft.print("Axiometa");

  // Cycle through rainbow
  if(millis() % 500 < 50) {
    colorIndex = (colorIndex + 1) % 7;
  }

  delay(50);
}
