Axiometa

Port to Wire

Port to Wire

AX22-0035

$1.99
$1.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

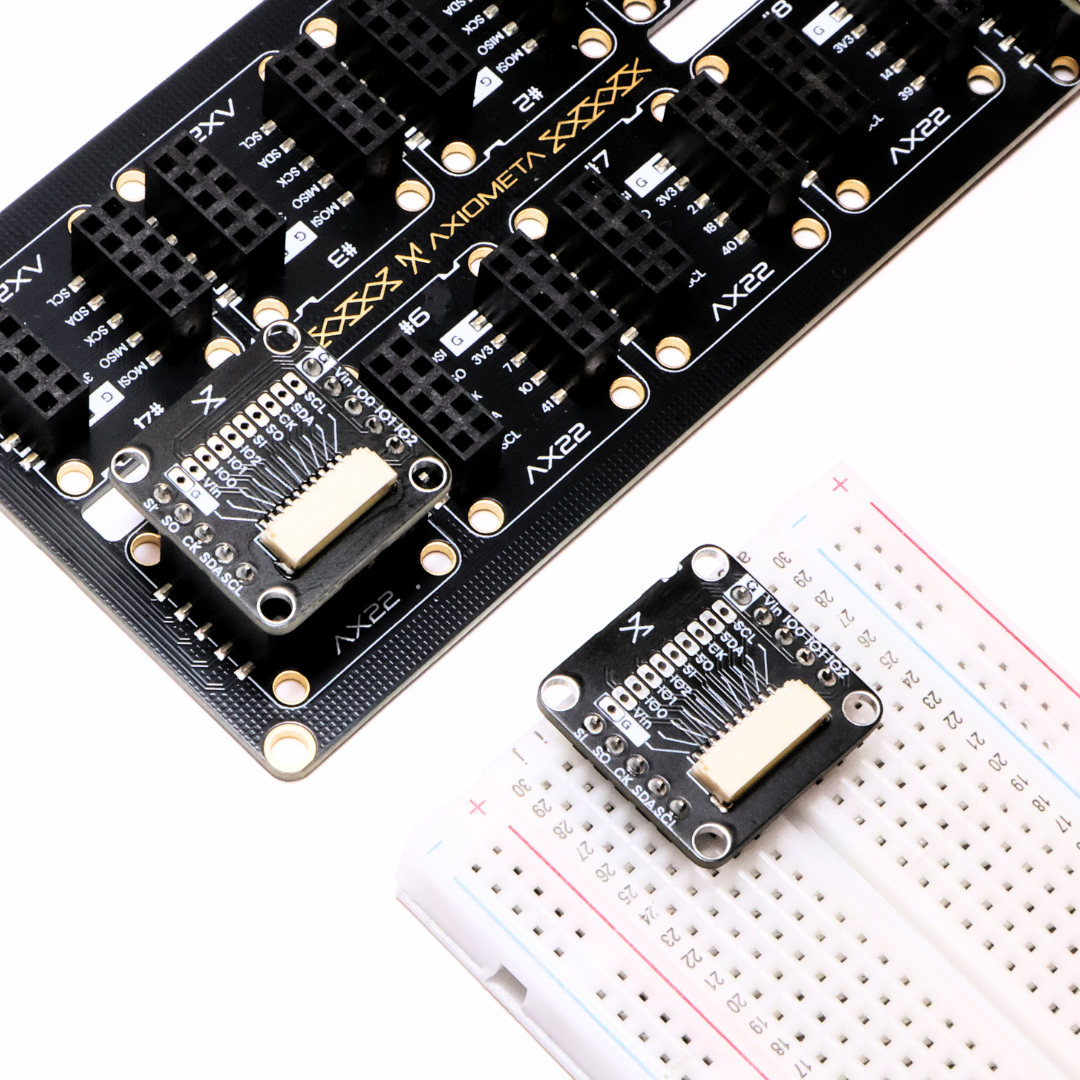

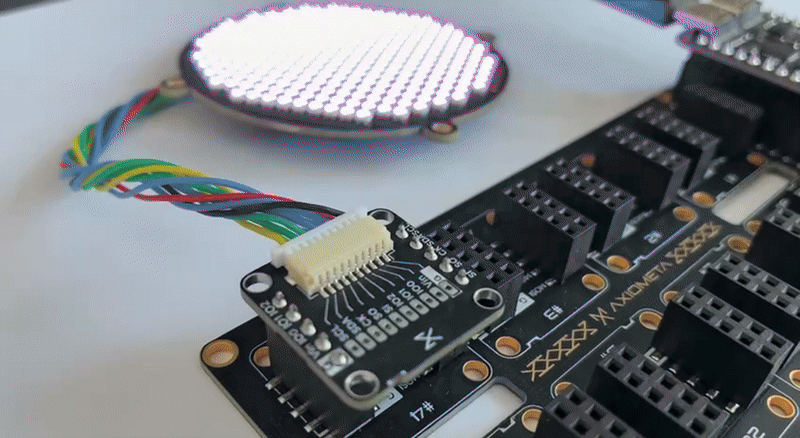

Need to hop off the backplane and cable an external board? This adapter snaps into any AX22 slot and fans the standard AX22 bus out to a rugged 10-pin JST-GH female (a.k.a. “eAX22” port). Just plug in a pre-crimped lead and drive remote sensors, displays, or actuators exactly as if they were another on-board module—no hand-soldered headers, no pin-order surprises.

View full details

  • Technical Details

    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes

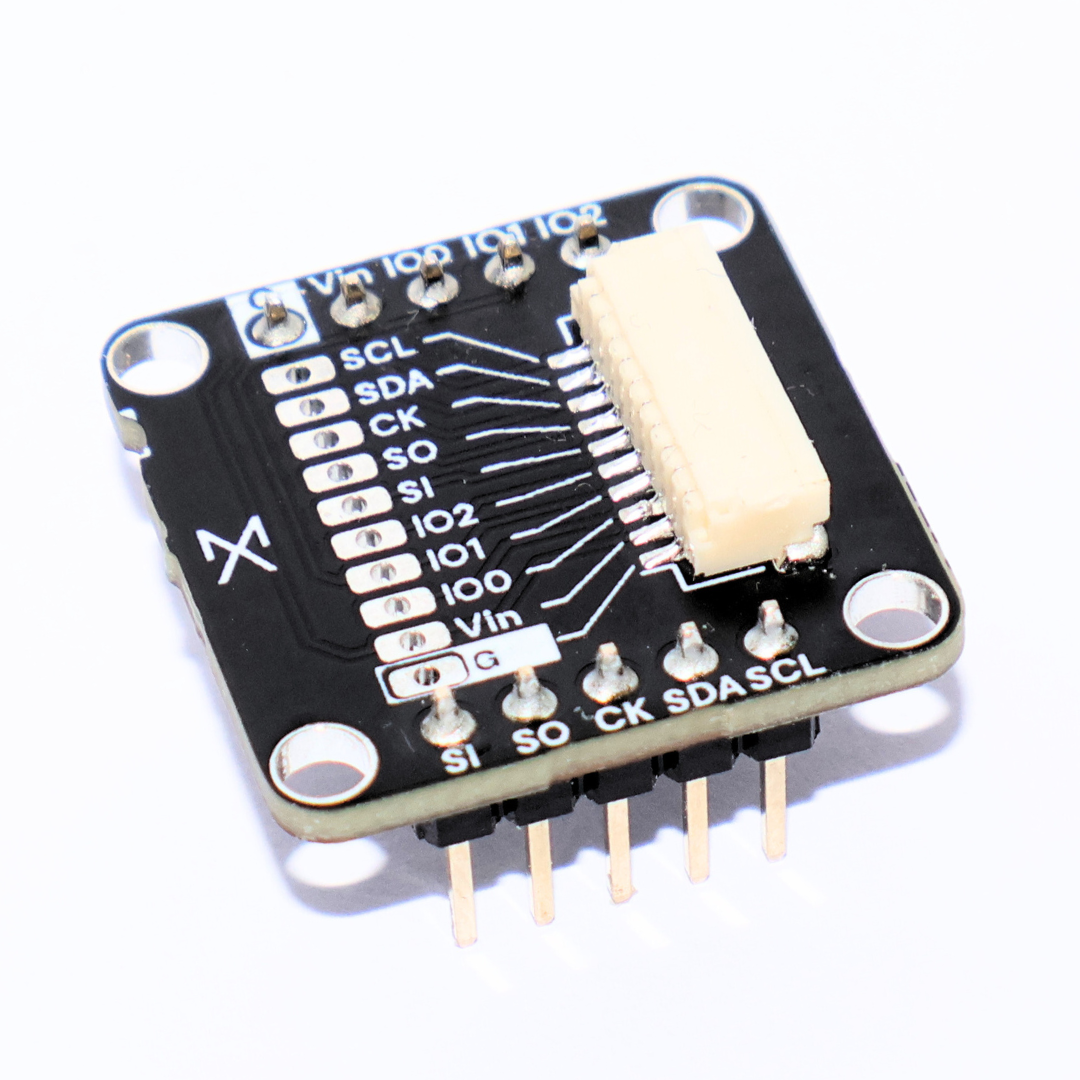

    - Pin-out matches AX22 bus

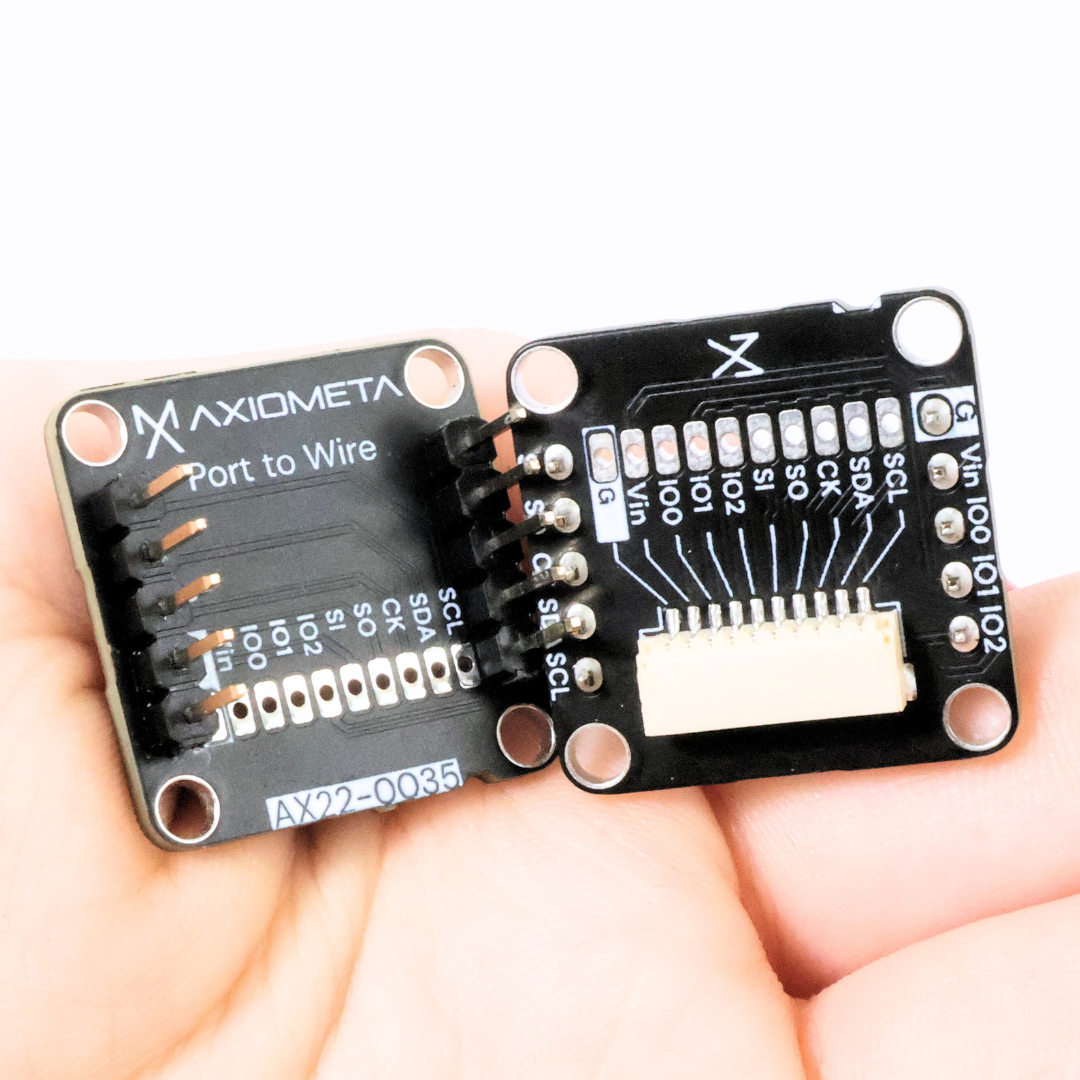

    - One 10-pin Female JST (1.0 mm pitch)
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

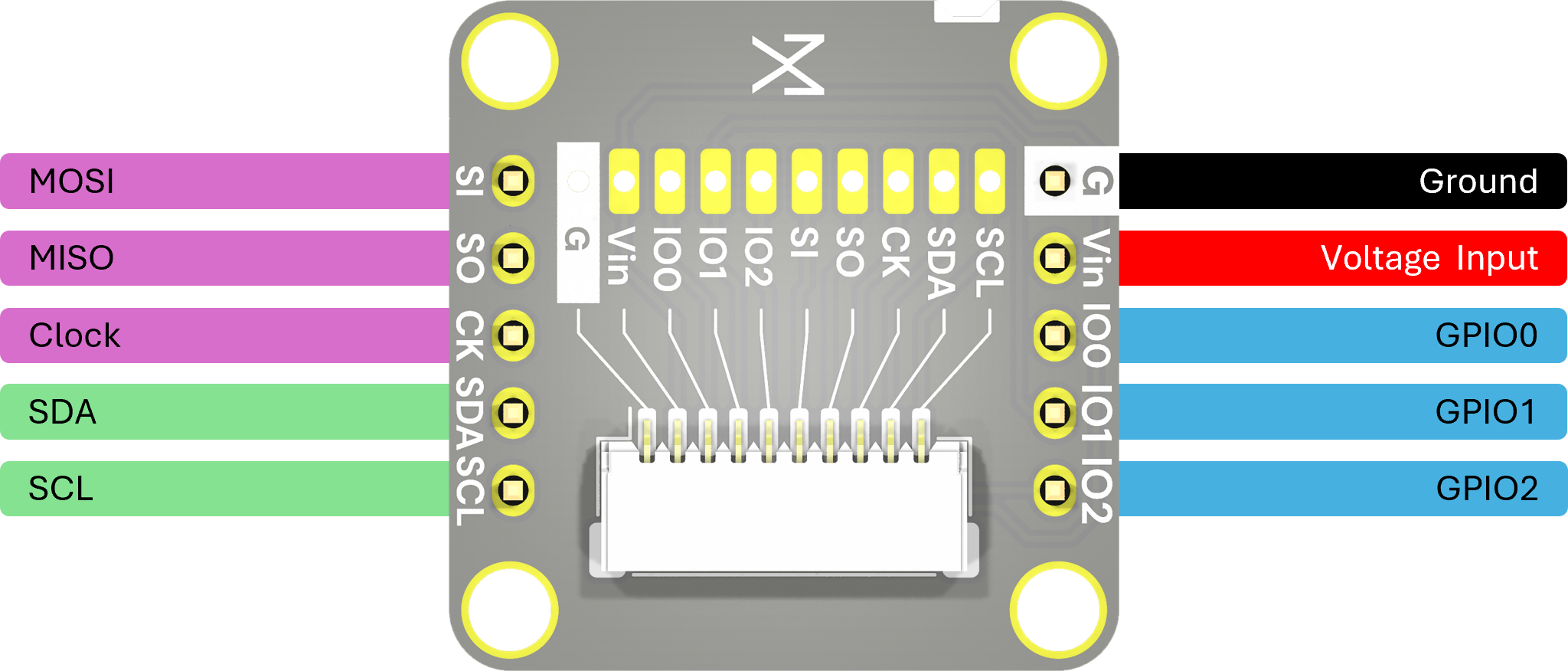

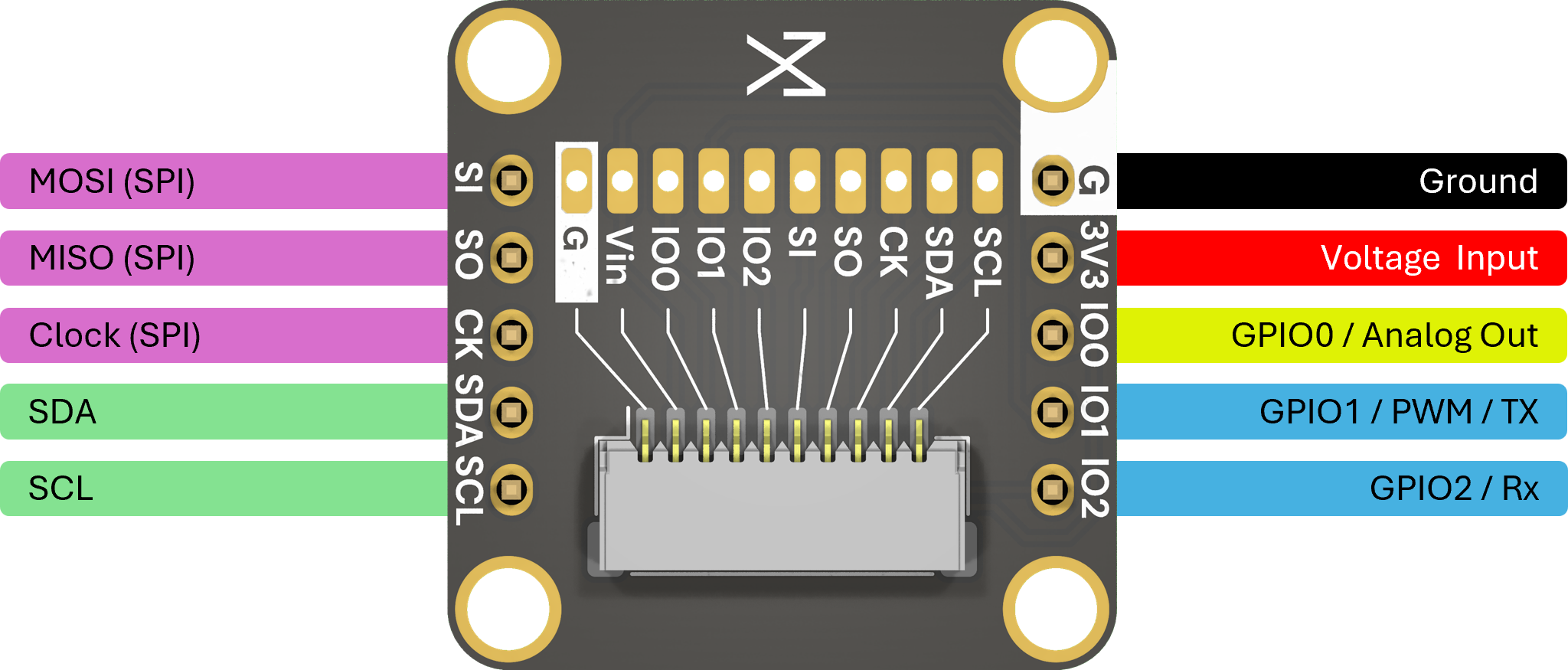

  • Pinout

  • Interface

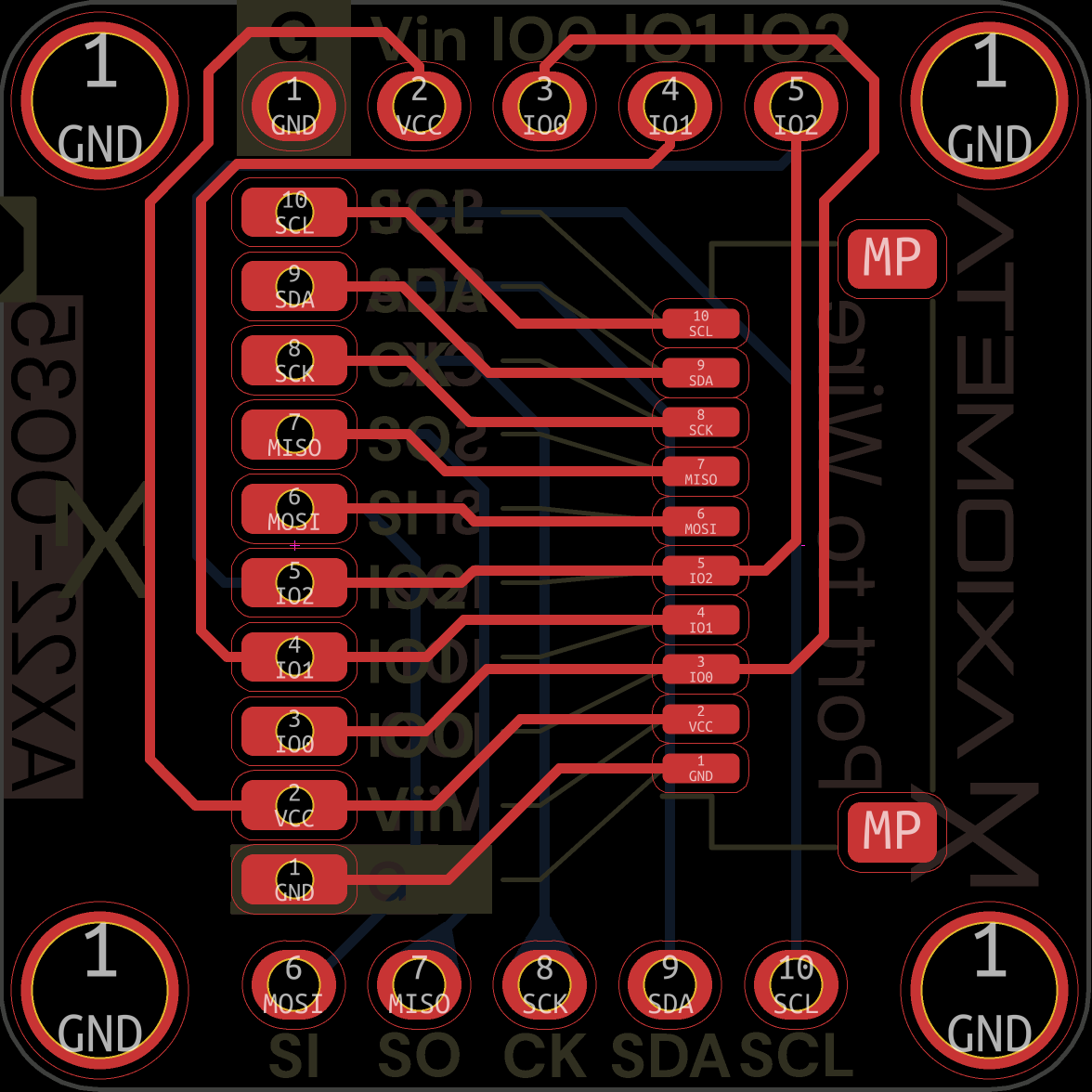

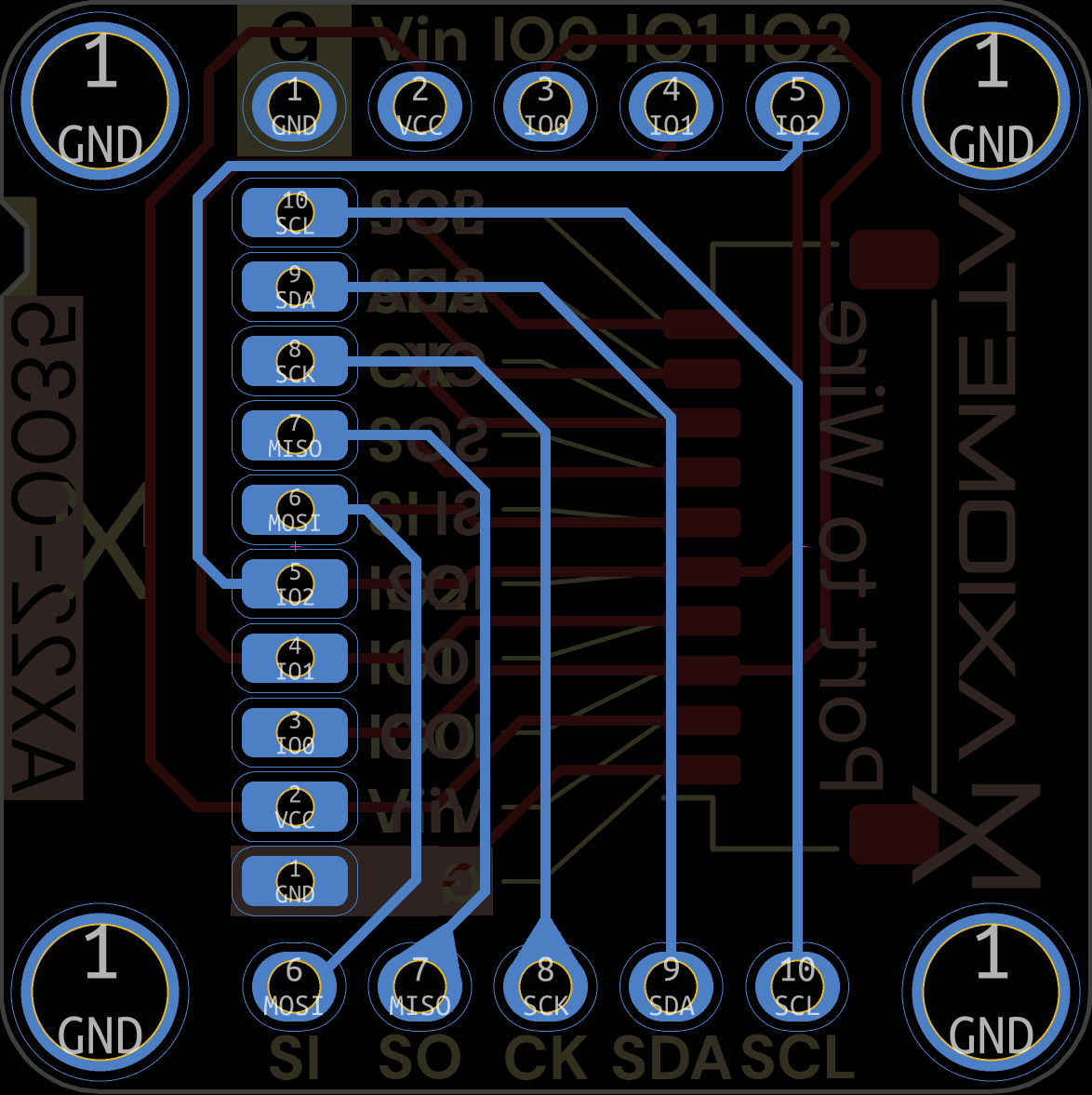

PCB Design

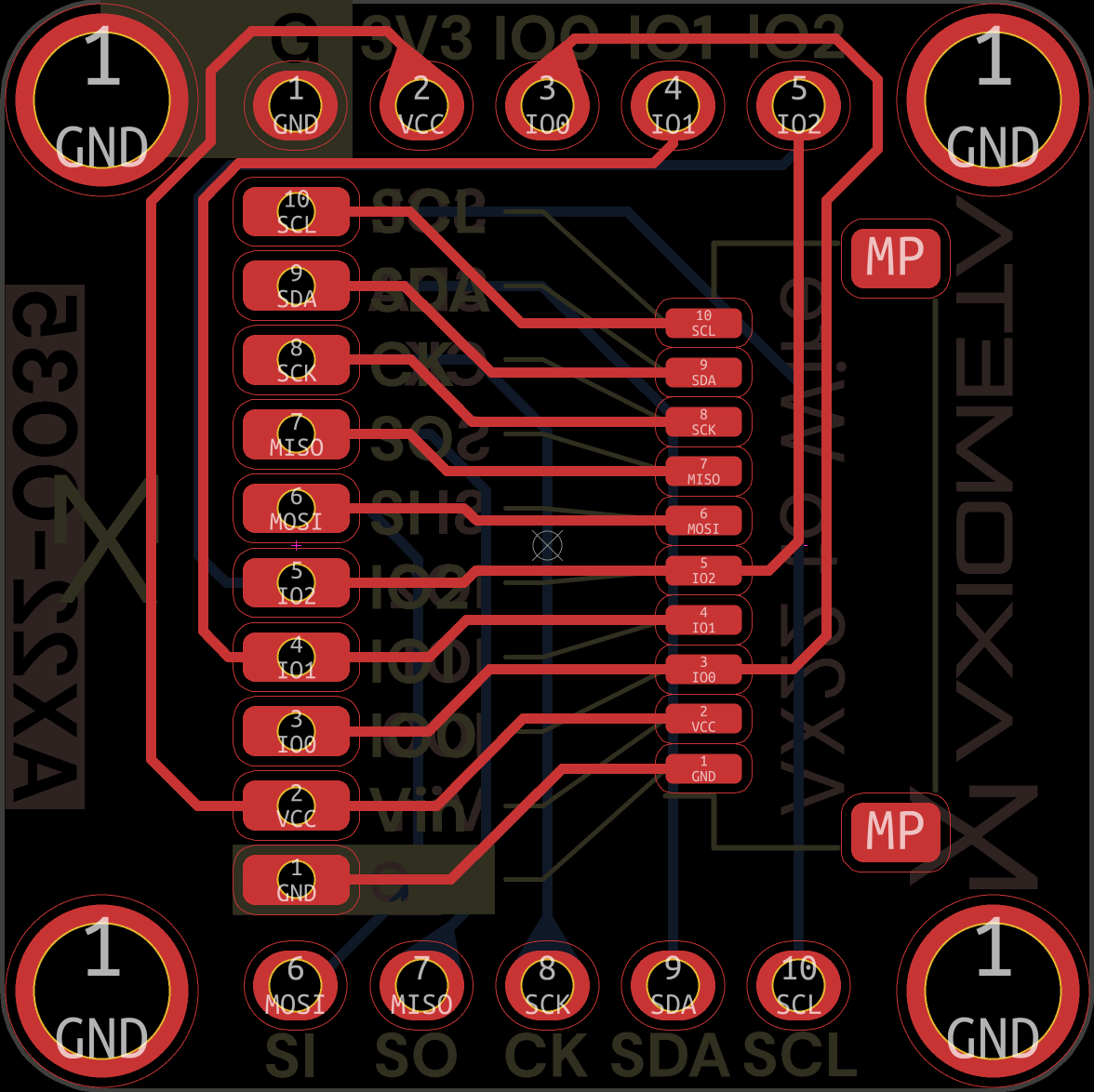

  • Top

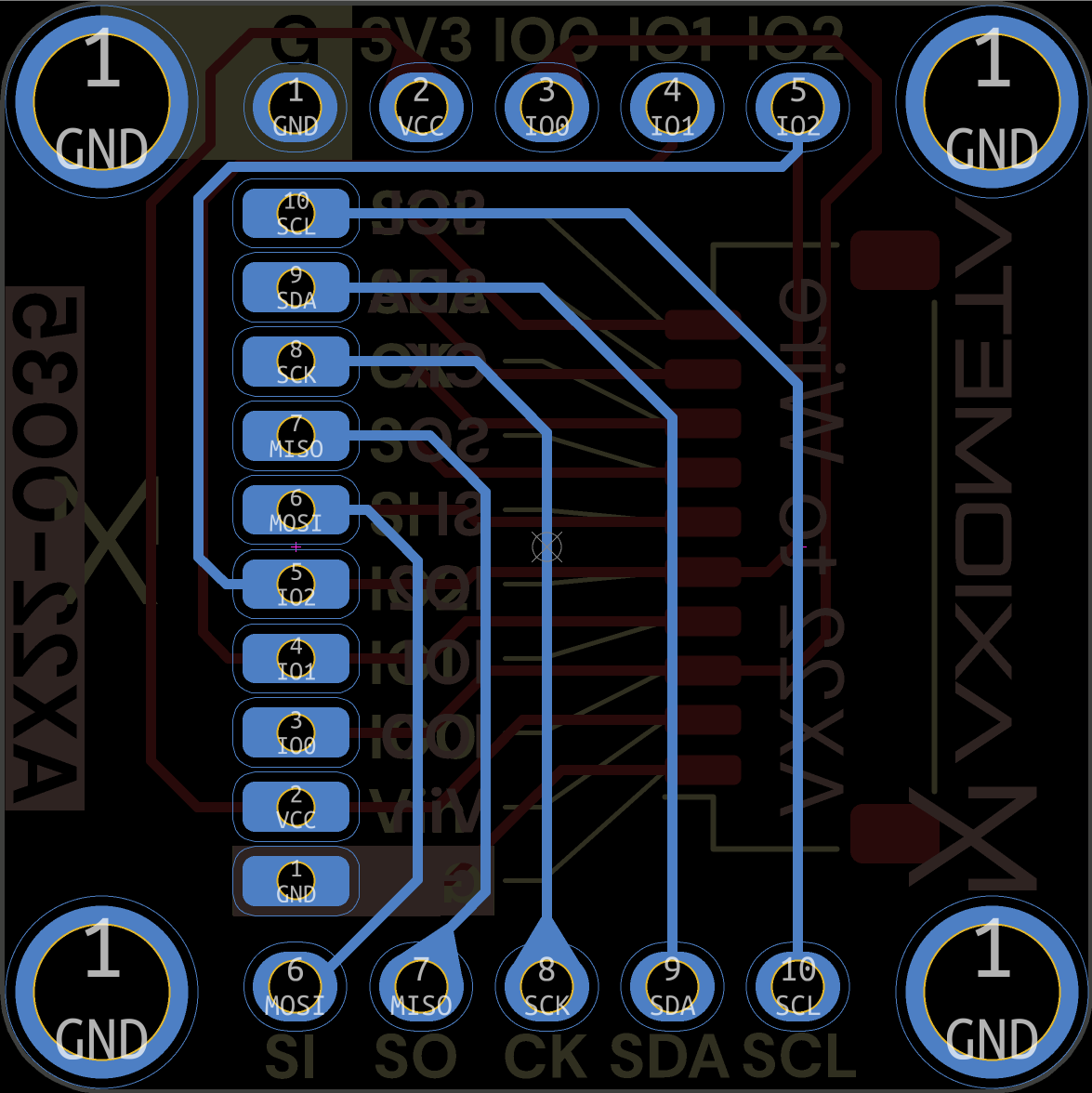

  • Bottom

Arduino Example Code

example.ino
// No Code Here
