Potentiometer

Potentiometer

SKU:AX22-0004

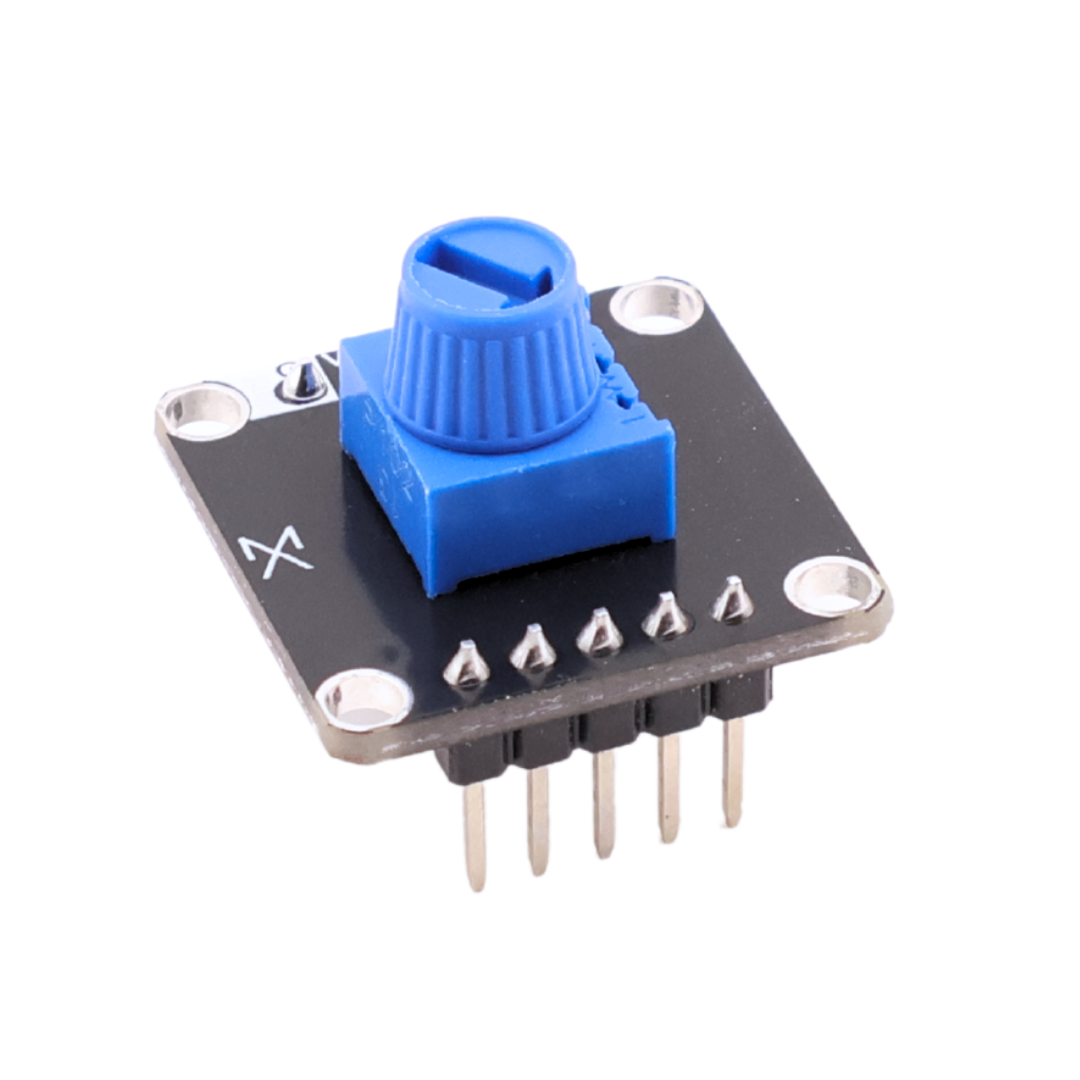

This AX22-sized module features a 1kΩ linear potentiometer mounted on a 22×22mm board, delivering a variable analog voltage that’s easy to read with any microcontroller. It’s useful for adjusting parameters like brightness, volume, or motor speed, and fits seamlessly into AX22 systems without extra wiring. Ideal for projects such as custom control panels, sensor calibration tools, or interactive gadgets where precise manual input is needed.
$5.49
$5.49
Sale Sold out
View full details

Technical details

  • 22 mm × 22 mm square
  • 4× ⌀2.7 mm Mounting Holes
  • 1 kΩ ±10%
  • 1.8 V, 3.3 V, 5.0 V
  • Arduino IDE Compatible
  • MicroPython Compatible
  • MicroBlocks Compatible
Component datasheet

Drag to rotate

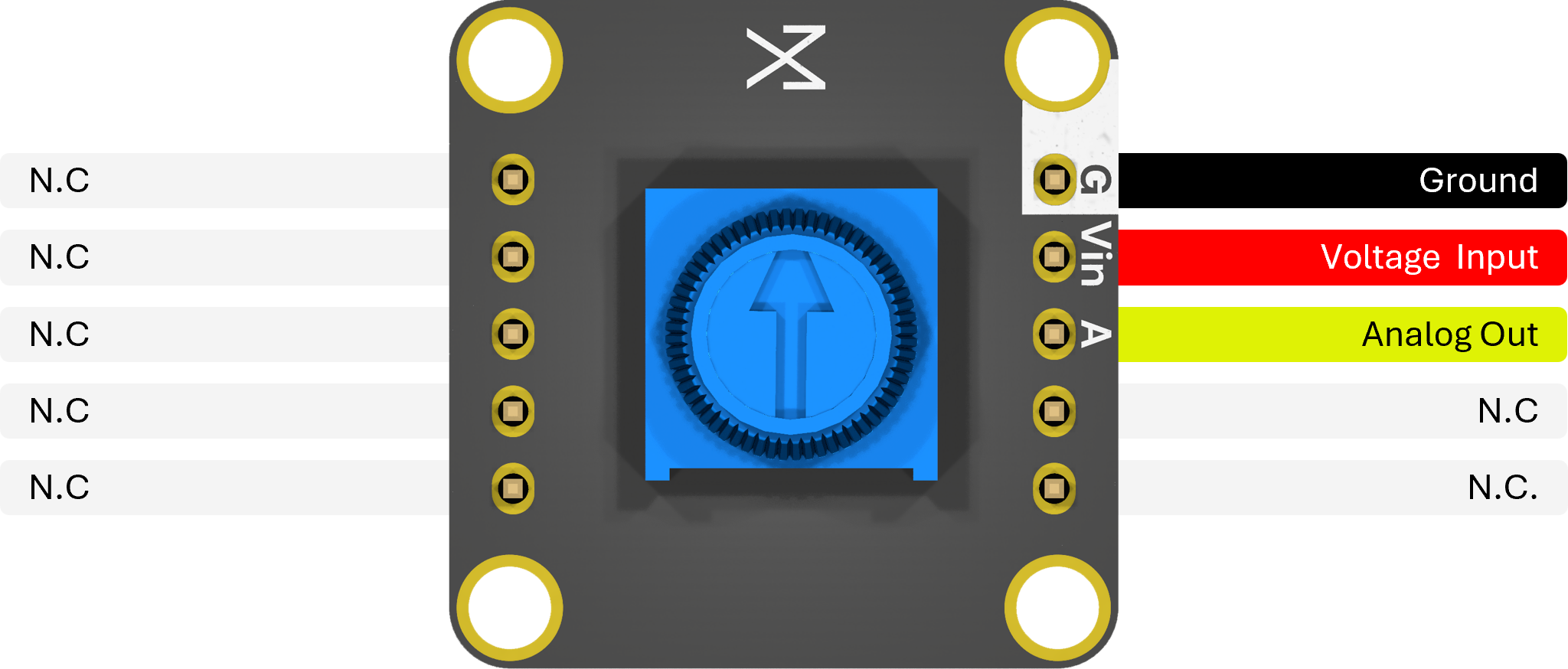

Pinout & connections

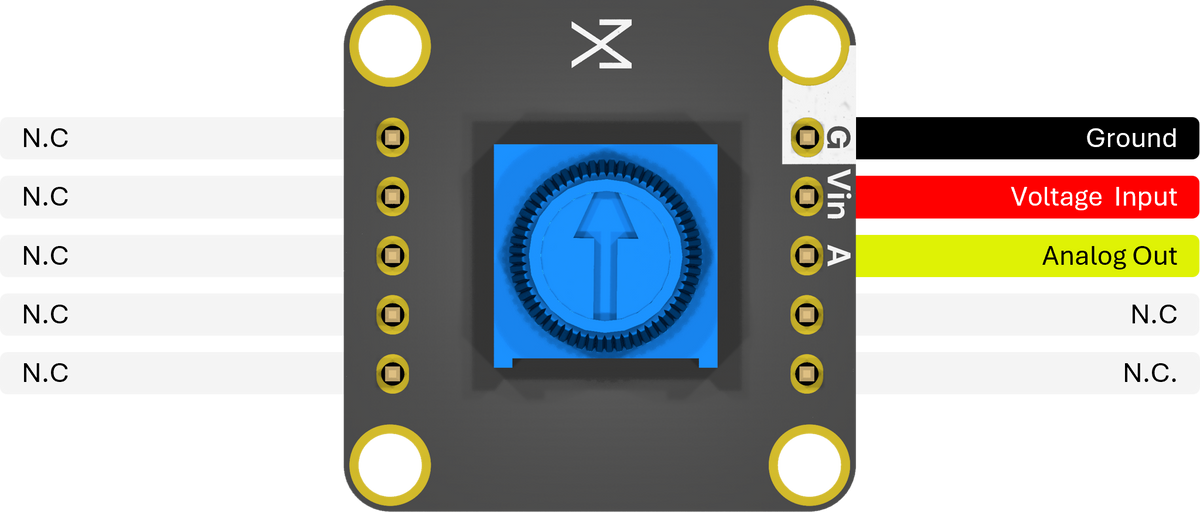

Pinout & connections

Technical Resources

Potentiometer - (AX22-0004)
Circuit Schematic 3D Model

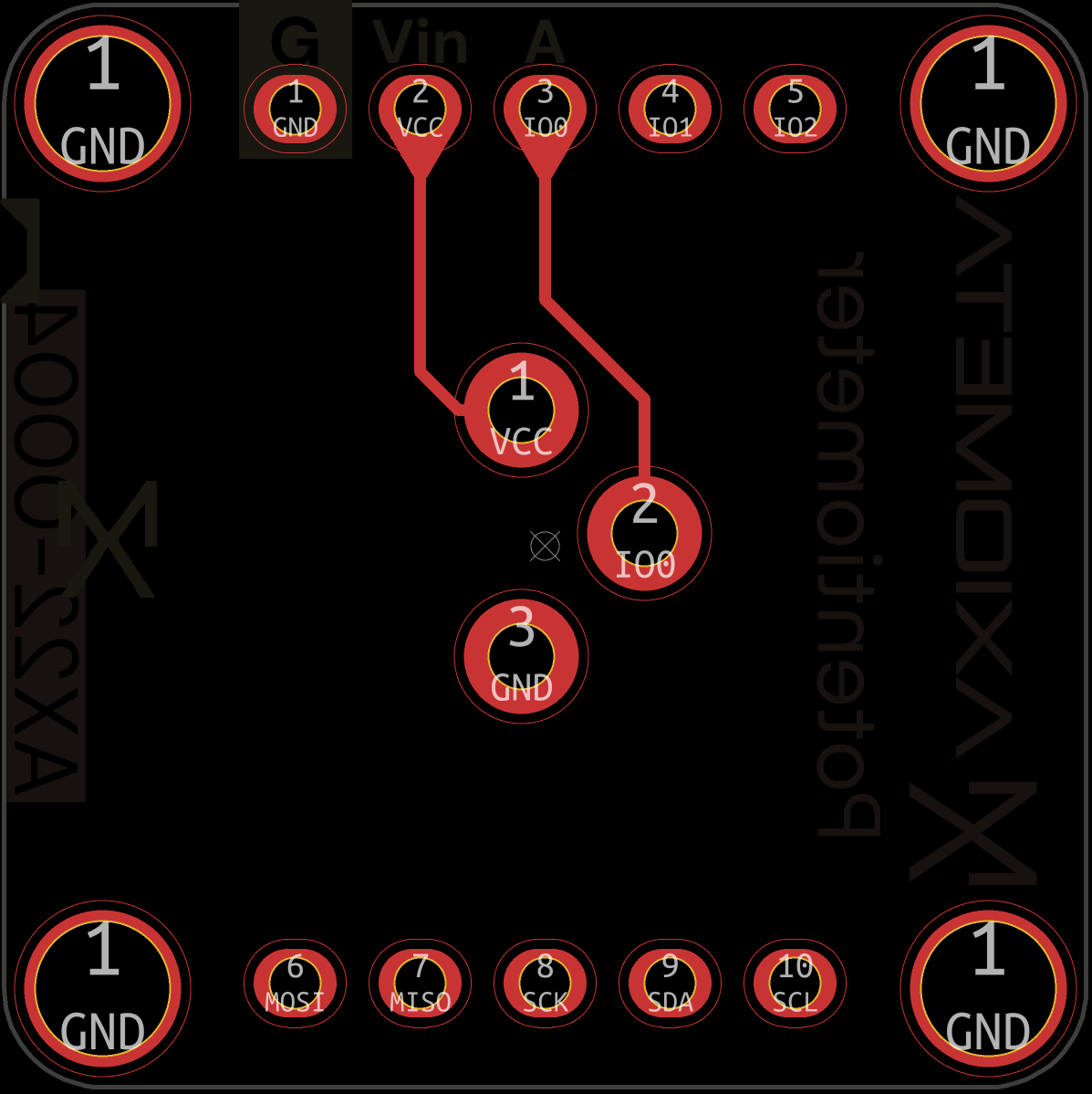

PCB FRONT
Potentiometer — PCB FRONT

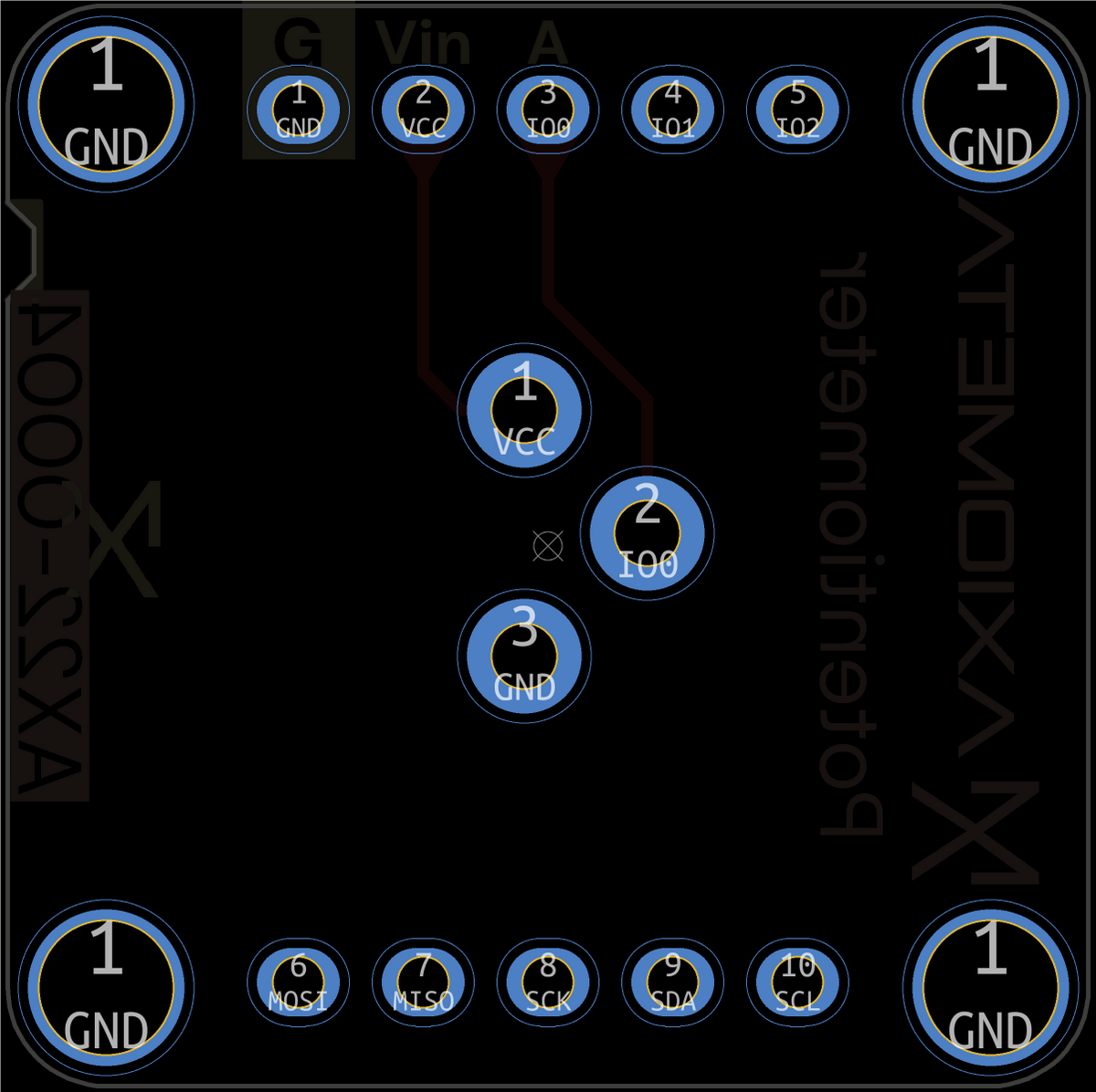

PCB BACK

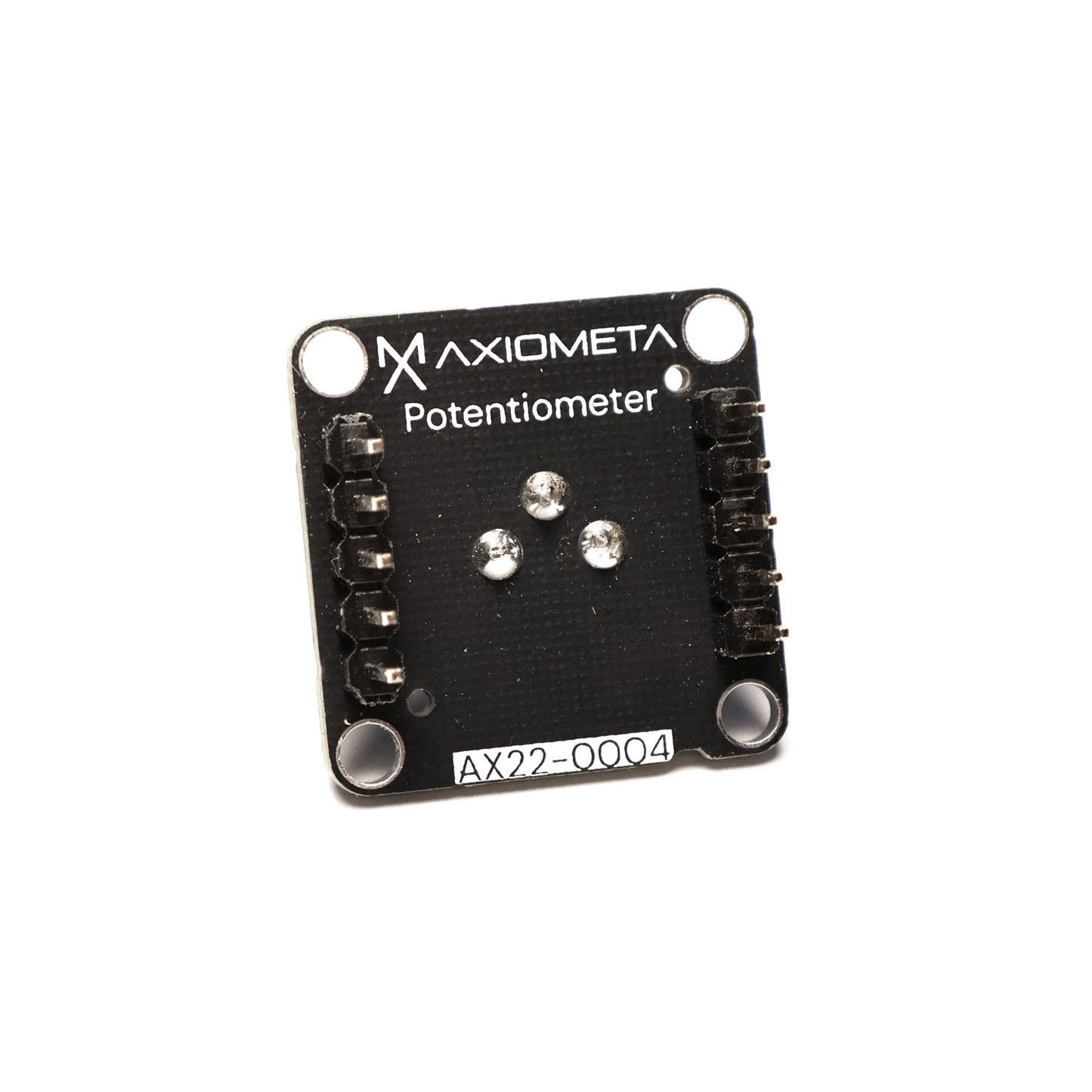

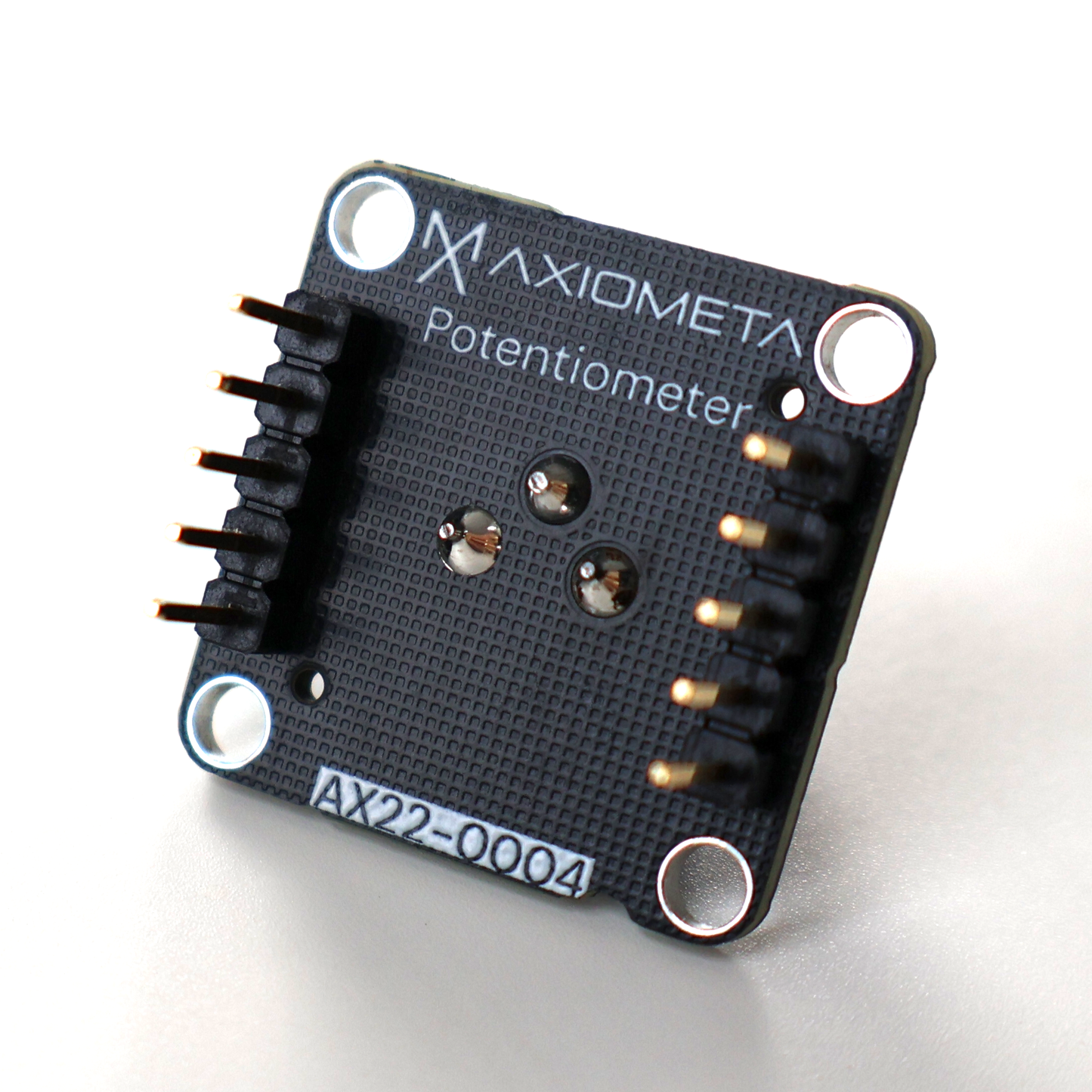

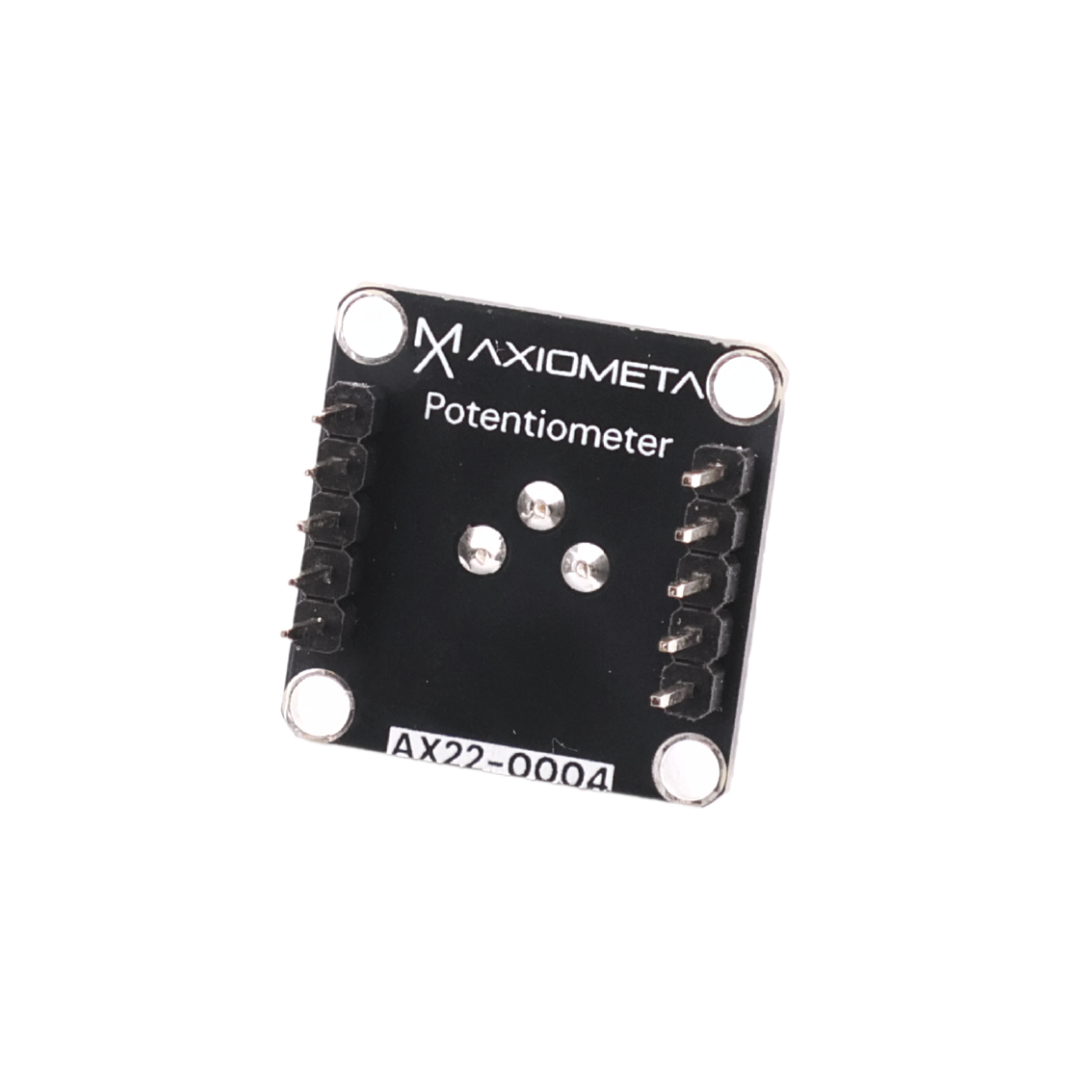

Potentiometer — PCB BACK

Drag to rotate

Arduino example

ax22-0004.ino
#define POT_PIN 1

void setup() {
  Serial.begin(9600);
}

void loop() {
  int potValue = analogRead(POT_PIN);

  Serial.print("Potentiometer Value: ");
  Serial.println(potValue);

  delay(10);
}
