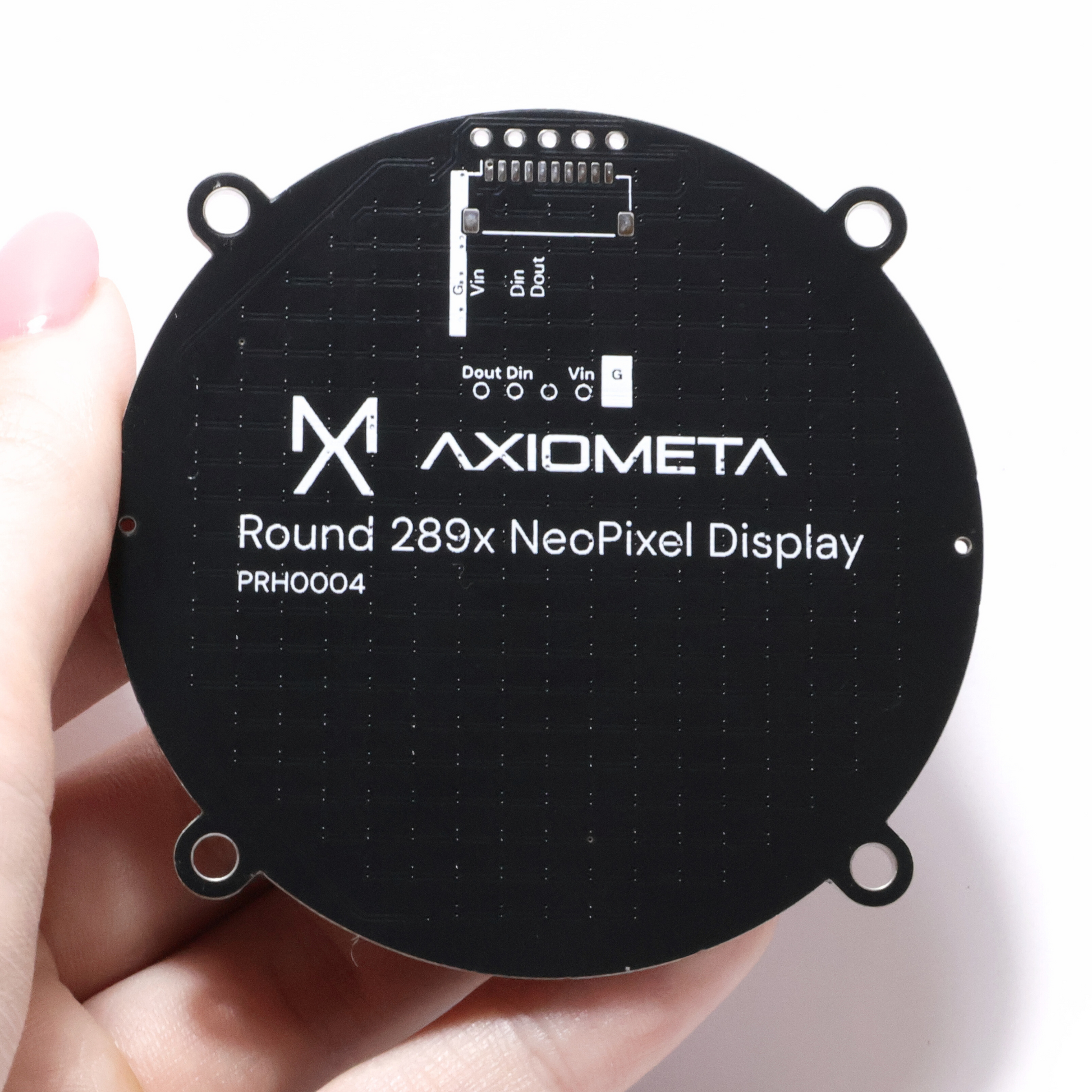

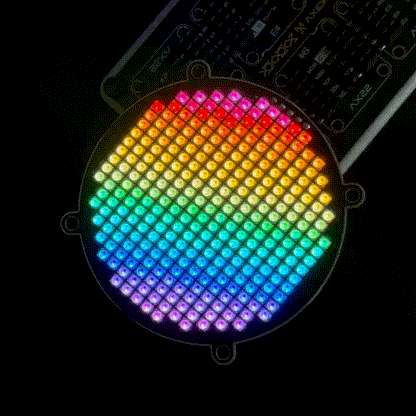

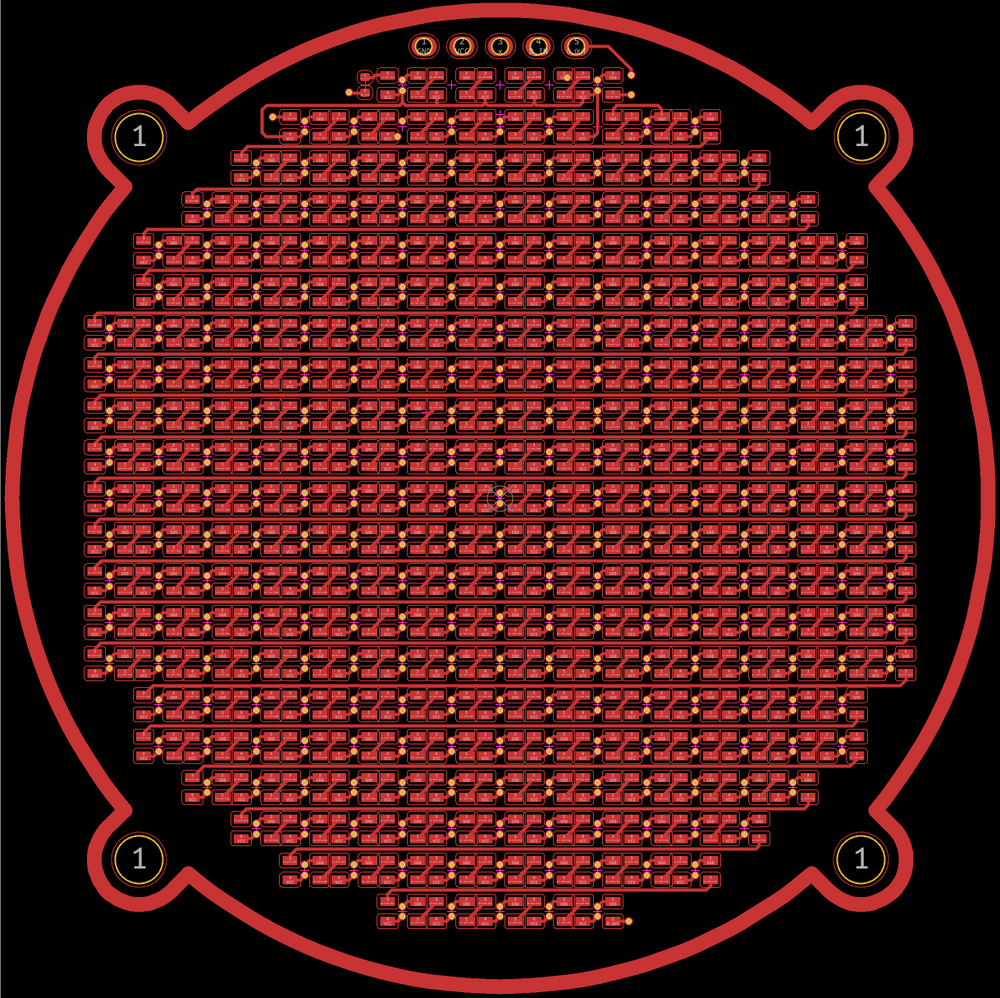

Round 289x NeoPixel Display

/*
 *  Circular 289-pixel matrix demo – v2
 *  — brightness capped & multi-animation playlist —

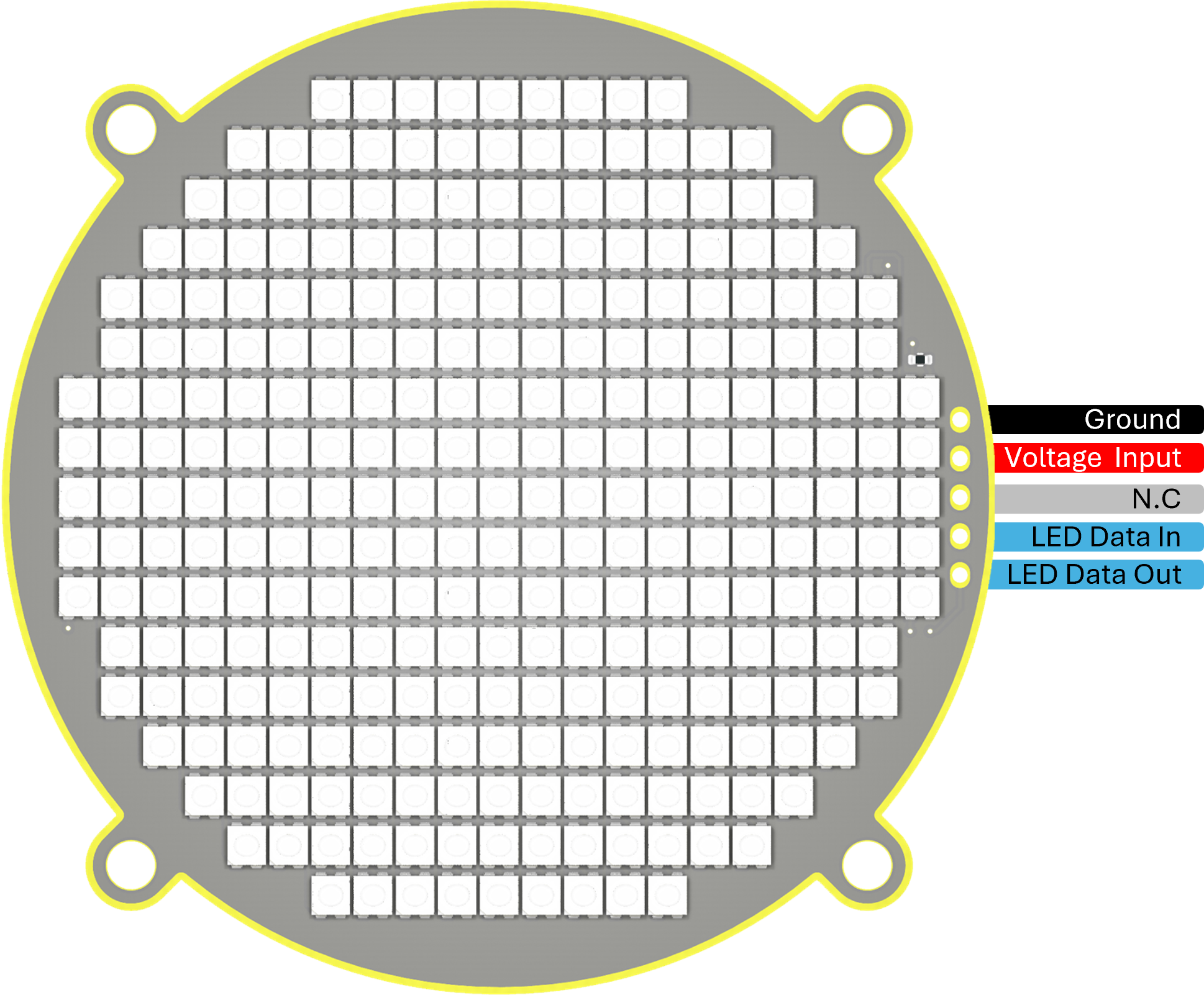

 *  Hardware: WS2812 / SK6812 on pin 6
 */

#include <FastLED.h>

// ---------- layout tables ----------
#define NUM_ROWS 21
const uint8_t rowCount[NUM_ROWS] = { 5, 9, 11, 13, 15, 15, 17, 17, 17, 17, 17, 17, 17, 17, 17, 15, 15, 13, 11, 9, 5 };
const uint8_t rowOffset[NUM_ROWS] = { 6, 4, 3, 2, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 2, 3, 4, 6 };
const uint16_t prefix[NUM_ROWS] PROGMEM = {
  0, 5, 14, 25, 38, 53, 68, 85, 102, 119, 136,
  153, 170, 187, 204, 221, 236, 251, 264, 275, 284
};
#define INVALID 0xFFFF
uint16_t XY(uint8_t x, uint8_t y) {
  if (y >= NUM_ROWS || x < rowOffset[y] || x >= rowOffset[y] + rowCount[y]) return INVALID;
  return pgm_read_word_near(prefix + y) + (x - rowOffset[y]);
}

// ---------- FastLED setup ----------
#define DATA_PIN 6
#define NUM_LEDS 289
#define BRIGHTNESS 20  // *your* requested cap
CRGB leds[NUM_LEDS];

void setup() {
  FastLED.addLeds<WS2812B, DATA_PIN, GRB>(leds, NUM_LEDS).setCorrection(TypicalLEDStrip);
  FastLED.setBrightness(BRIGHTNESS);
  FastLED.clear();
  FastLED.show();
}

// ---------- tiny drawing helpers ----------
inline void setPixel(int x, int y, const CRGB& c) {
  uint16_t i = XY(x, y);
  if (i != INVALID) leds[i] = c;
}

void drawFilledCircle(int cx, int cy, int r, const CRGB& c) {
  for (int y = -r; y <= r; y++)
    for (int x = -r; x <= r; x++)
      if (x * x + y * y <= r * r) setPixel(cx + x, cy + y, c);
}

void drawLine(int x0, int y0, int x1, int y1, const CRGB& c) {
  int dx = abs(x1 - x0), sx = x0 < x1 ? 1 : -1;
  int dy = -abs(y1 - y0), sy = y0 < y1 ? 1 : -1, err = dx + dy, e2;
  while (true) {
    setPixel(x0, y0, c);
    if (x0 == x1 && y0 == y1) break;
    e2 = 2 * err;
    if (e2 >= dy) {
      err += dy;
      x0 += sx;
    }
    if (e2 <= dx) {
      err += dx;
      y0 += sy;
    }
  }
}

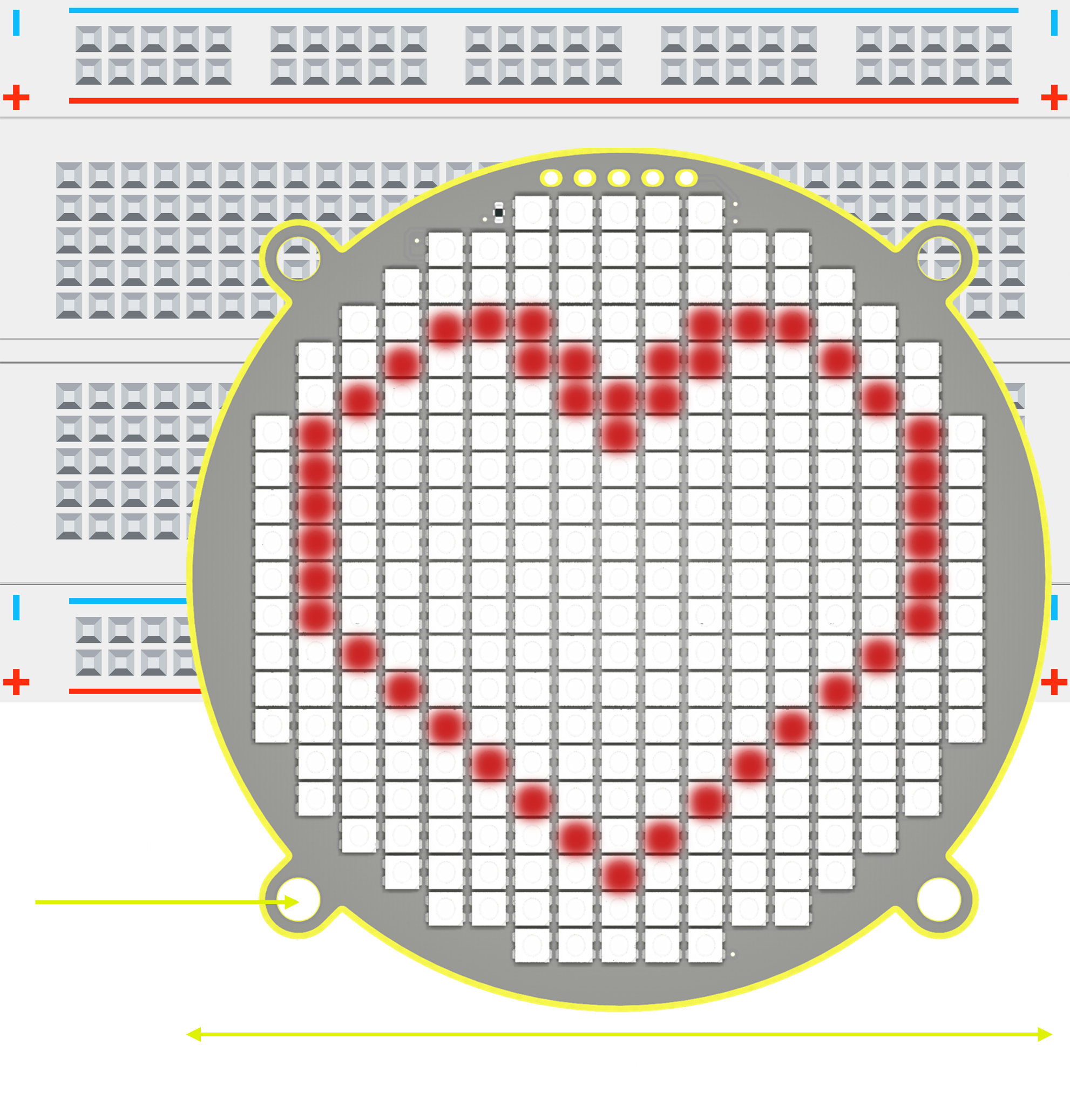

// ----- BIGGER, smoother heart outline -----
void drawHeart(int cx, int cy, float scale, const CRGB& c) {
  const float K = 0.50f * scale;            // 0.50 maps 32-unit maths → 16 px LEDs
  for (float t = 0; t < TWO_PI; t += 0.02)  // finer step = smoother curve
  {
    float x = 16 * pow(sin(t), 3);
    float y = 13 * cos(t) - 5 * cos(2 * t)
              - 2 * cos(3 * t) - cos(4 * t);
    setPixel(cx + int(x * K + 0.5f),
             cy - int(y * K + 0.5f), c);
  }
}

// ------------- individual animations --------------
void drawSad() {
  drawFilledCircle(8, 10, 8, CRGB::Yellow);
  // eyes
  drawFilledCircle(6, 7, 1, CRGB::Black);
  drawFilledCircle(10, 7, 1, CRGB::Black);
  // upside-down mouth
  for (int x = -5; x <= 5; x++) {
    int y = int(sqrt(25 - x * x));
    setPixel(8 + x, 12 + y / 2, CRGB::Black);
  }
}

void drawHappy(uint32_t now) {
  static bool blink = false;  // blink state toggles each second
  static uint32_t last = 0;
  if (now - last > 1000) {
    blink = !blink;
    last = now;
  }

  drawFilledCircle(8, 10, 8, CRGB::Yellow);
  if (blink) {
    // closed eyelids
    drawLine(5, 7, 7, 7, CRGB::Black);
    drawLine(9, 7, 11, 7, CRGB::Black);
  } else {
    drawFilledCircle(6, 7, 1, CRGB::White);
    drawFilledCircle(10, 7, 1, CRGB::White);
    setPixel(6, 7, CRGB::Black);
    setPixel(10, 7, CRGB::Black);
  }
  // smile
  for (int x = -5; x <= 5; x++) {
    int y = int(sqrt(25 - x * x));
    setPixel(8 + x, 14 - y / 2, CRGB::Black);
  }
}

void drawHeartPulse(uint32_t now) {
  uint8_t bri = beatsin8(30, 40, 255, 0, now >> 2);  // gentle breathing
  CRGB col = CRGB(bri, 0, 0);
  drawHeart(8, 10, 1.0, col);
}

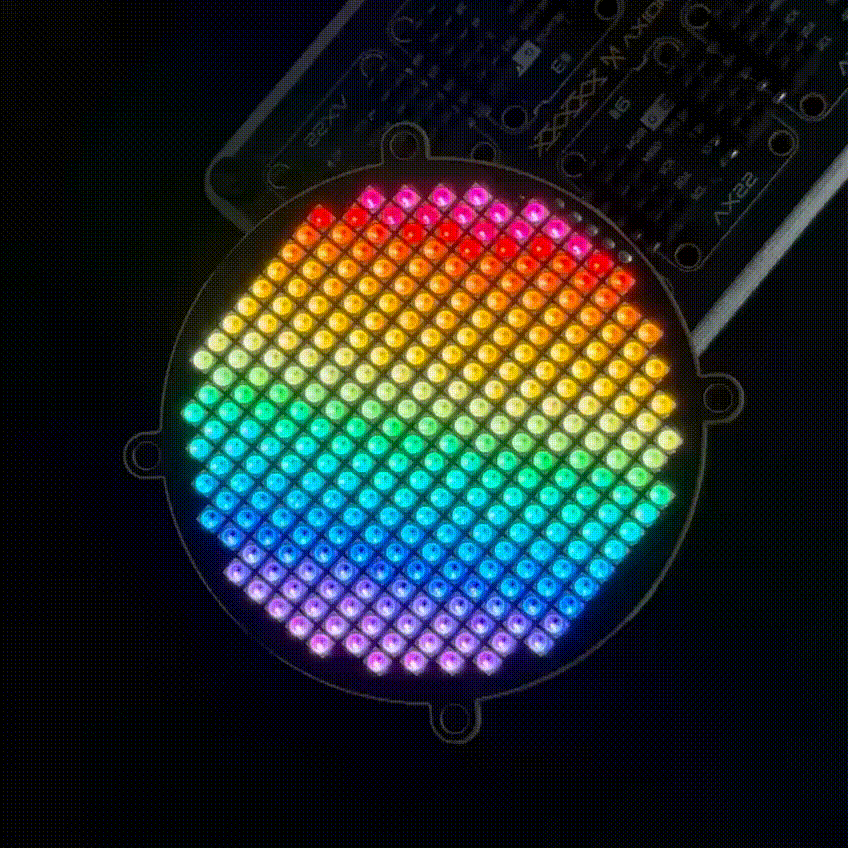

void drawSwirl(uint32_t now) {
  static uint8_t base = 0;
  base += 1;  // hue shift
  for (uint8_t y = 0; y < NUM_ROWS; y++) {
    for (uint8_t x = rowOffset[y]; x < rowOffset[y] + rowCount[y]; x++) {
      uint16_t idx = XY(x, y);
      if (idx == INVALID) continue;
      uint8_t hue = (base + (x * 6) + (y * 10)) & 0xFF;
      leds[idx] = CHSV(hue, 255, 255);
    }
  }
}

// ------------- playlist machinery ----------------
typedef void (*AnimFunc)(uint32_t);
const AnimFunc animations[] = {
  [](uint32_t) {
    drawSad();
  },
  drawHappy,
  drawHeartPulse,
  drawSwirl
};
const uint8_t NUM_ANIMS = sizeof(animations) / sizeof(animations[0]);
constexpr uint32_t ANIM_DURATION_MS = 5000;

uint8_t currentAnim = 0;
uint32_t animStart = 0;

void loop() {
  uint32_t now = millis();

  // time to switch animation?
  if (now - animStart > ANIM_DURATION_MS) {
    animStart = now;
    currentAnim = (currentAnim + 1) % NUM_ANIMS;
    FastLED.clear();
  }

  // draw the current frame
  animations[currentAnim](now);

  FastLED.show();
  FastLED.clear();  // clear for next frame
}
