Toggle Switch

Toggle Switch

AX22-0022

$3.49
$3.49
Sale Sold out
Taxes included. Shipping calculated at checkout.

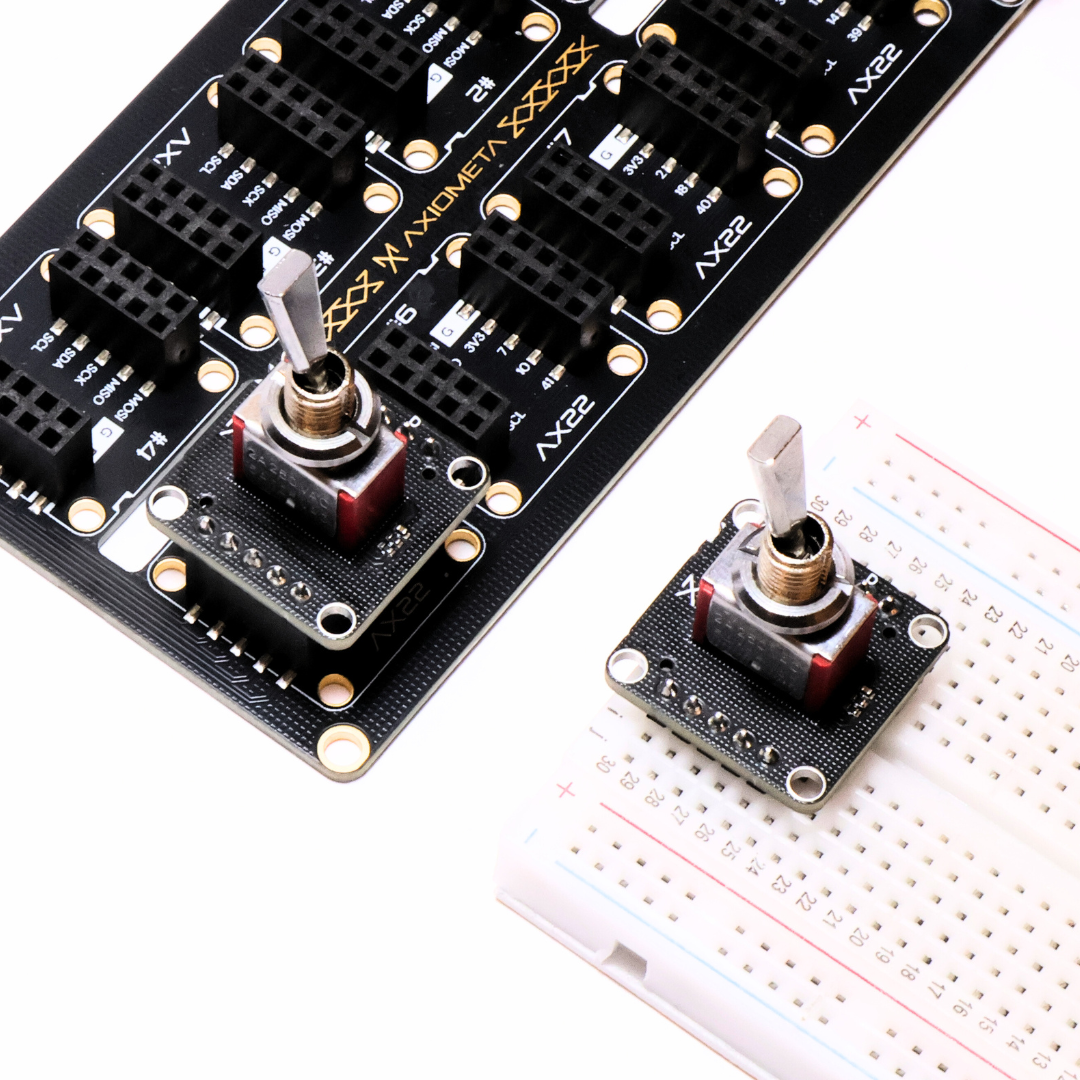

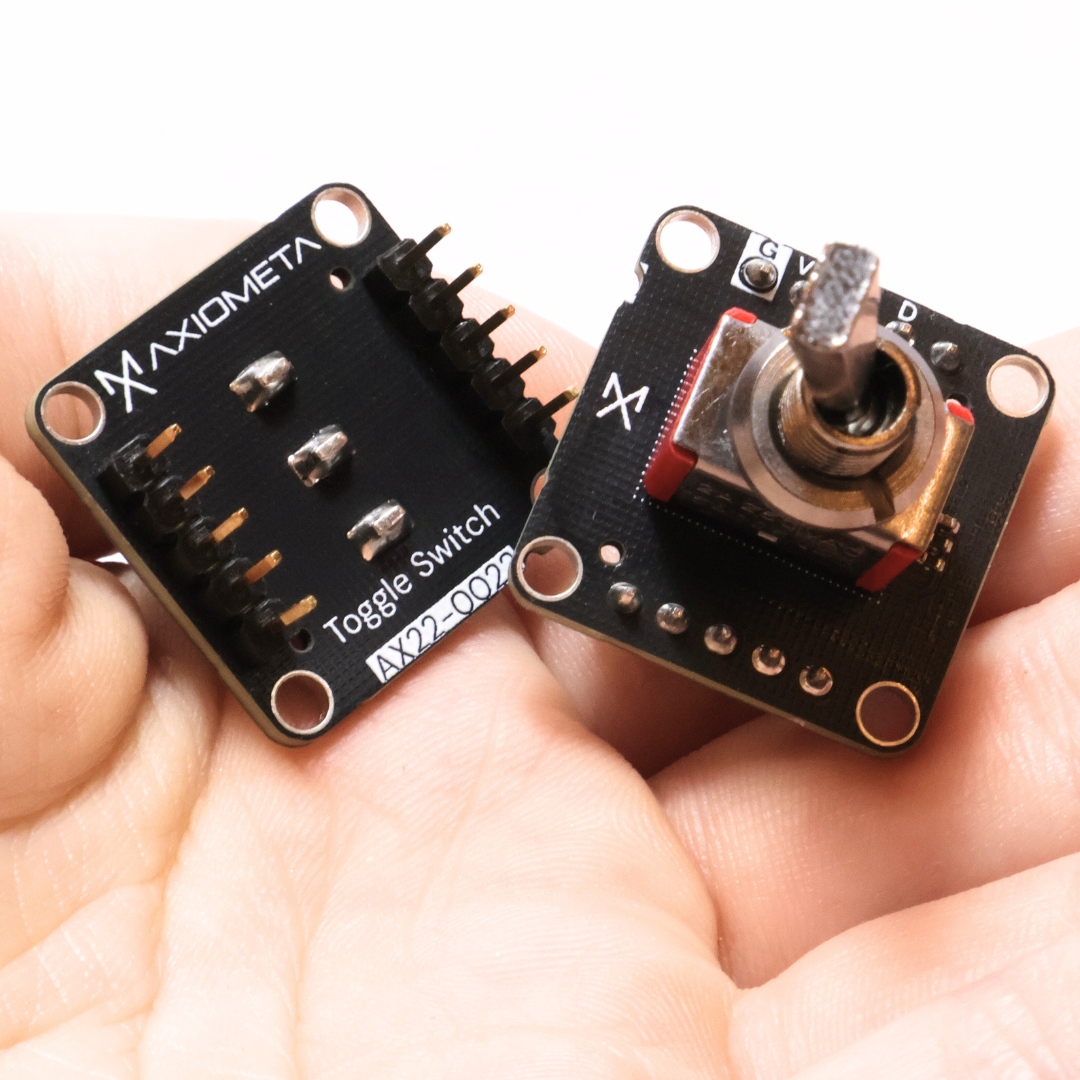

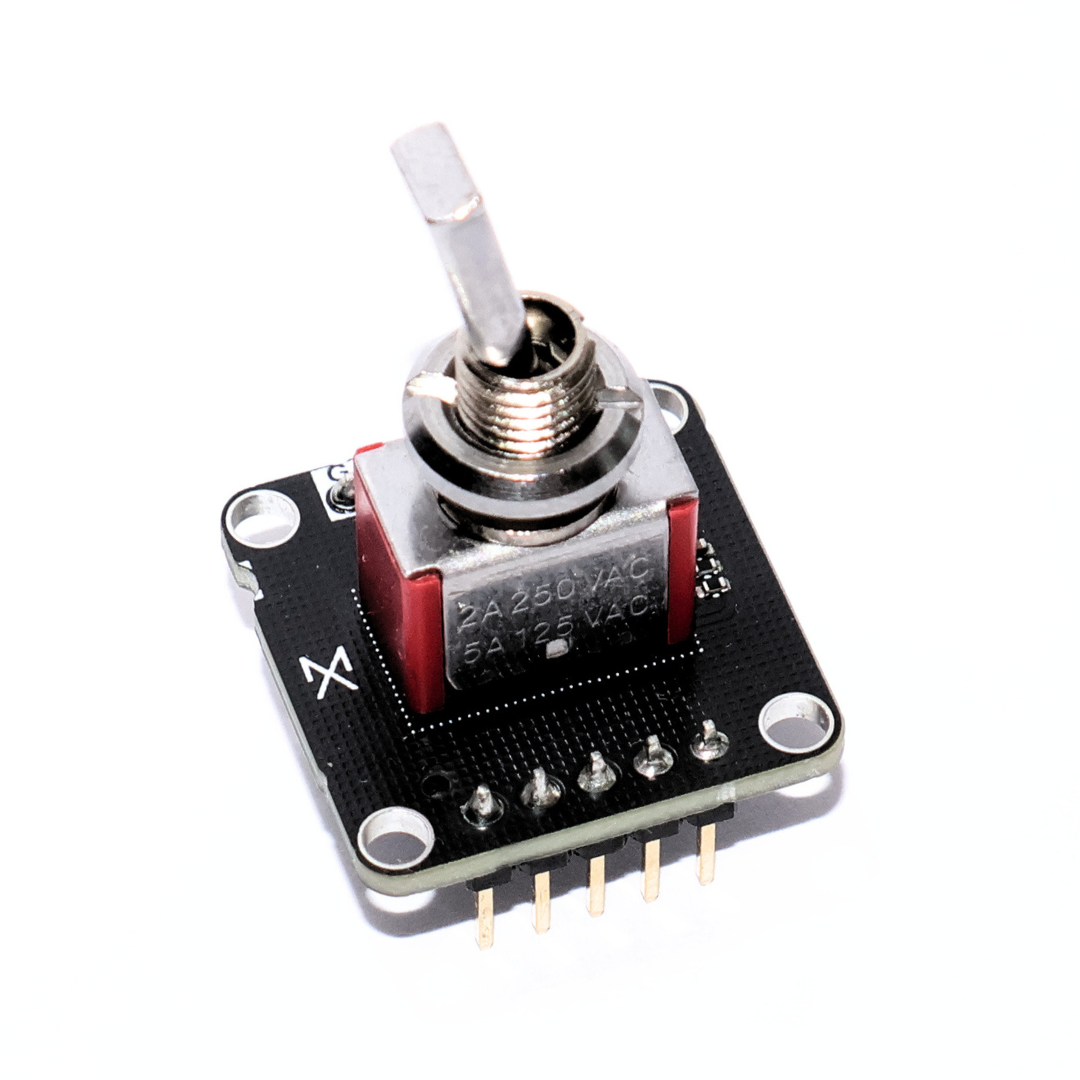

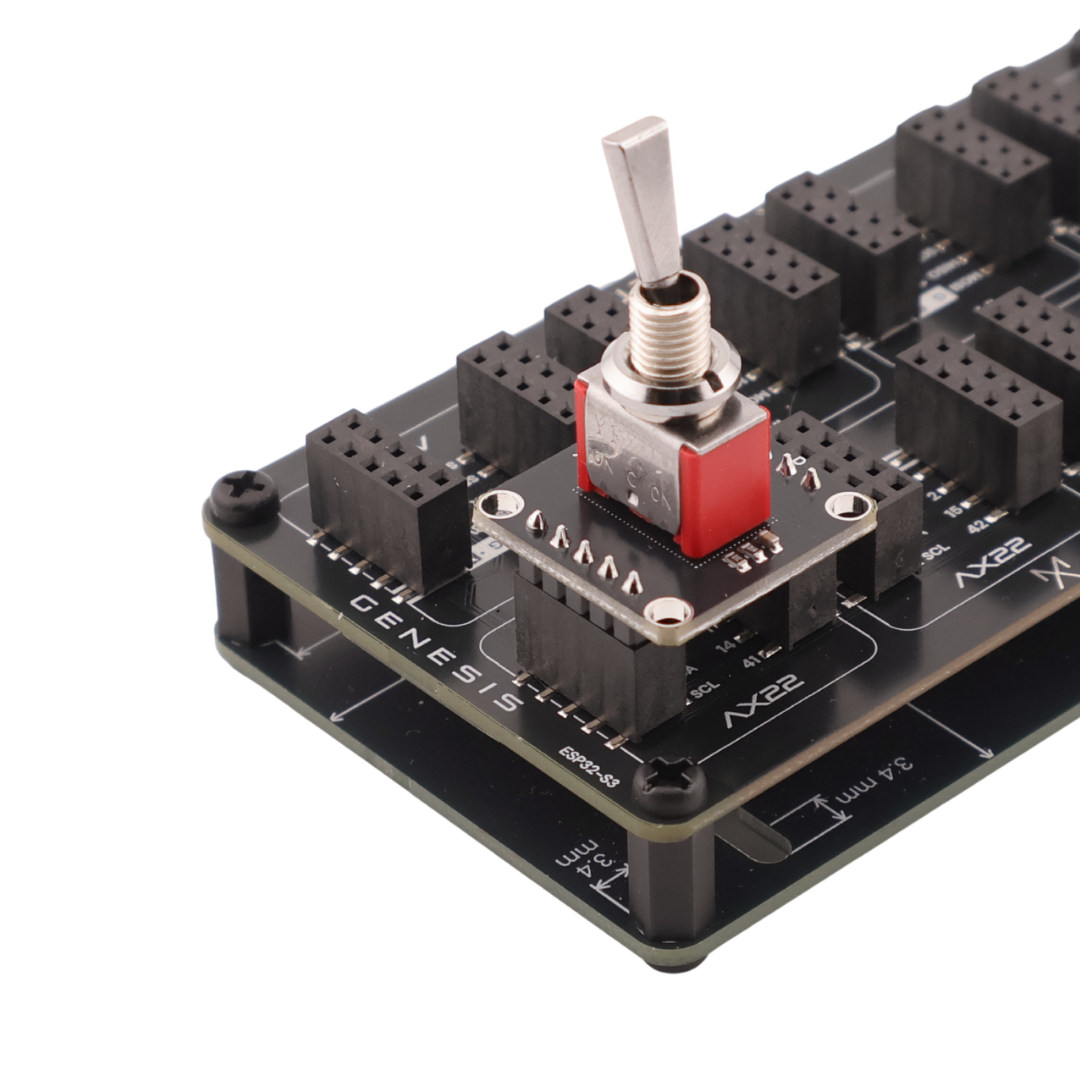

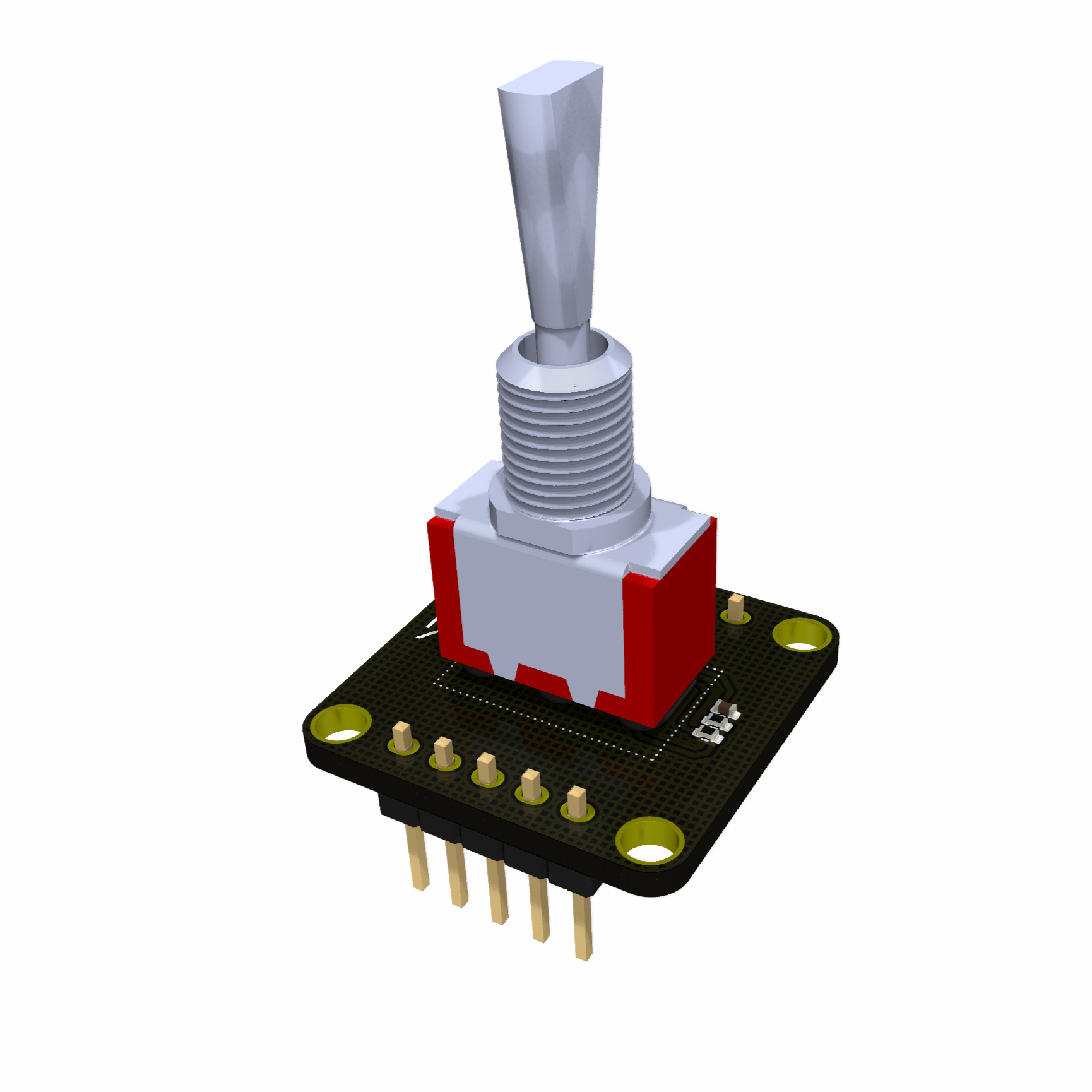

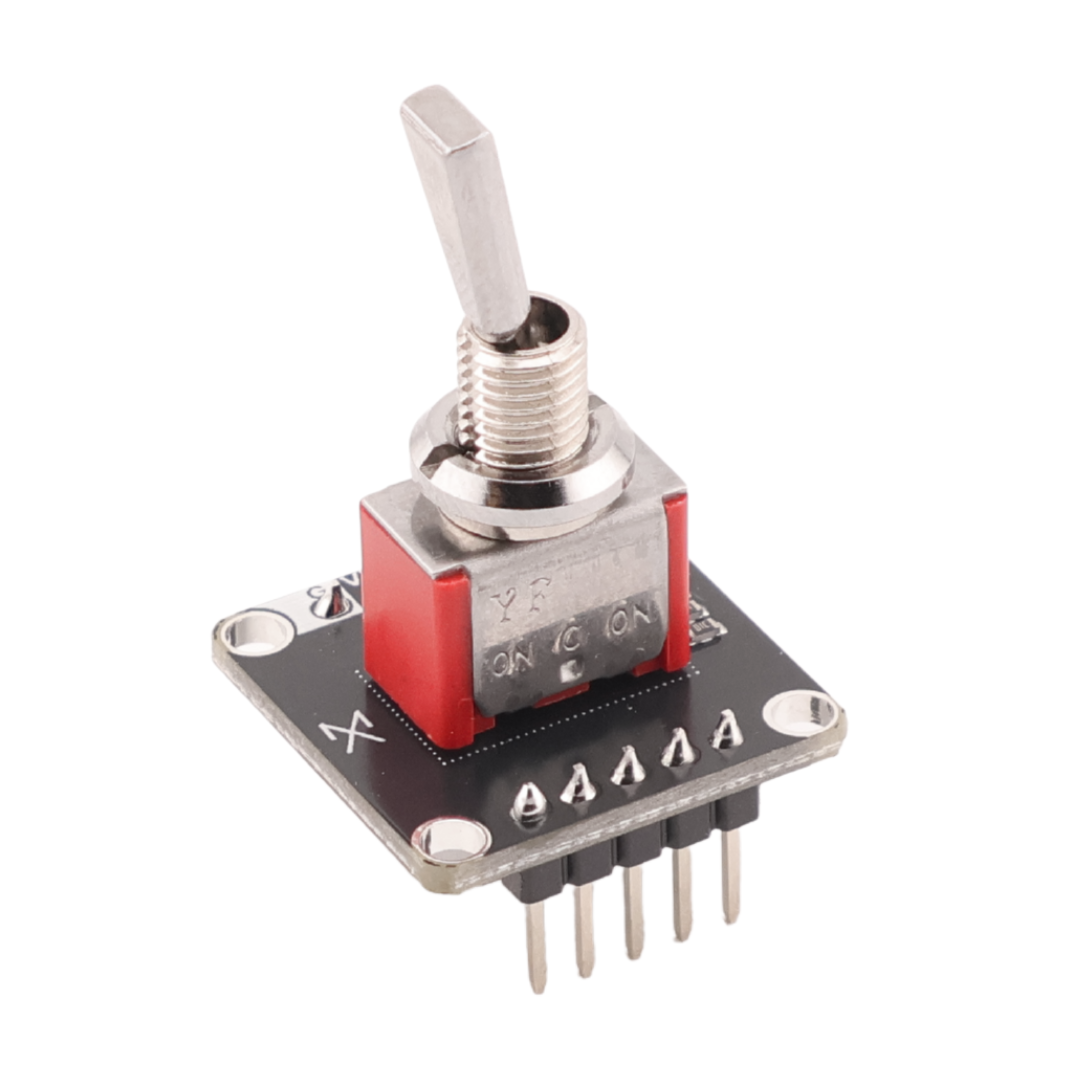

This AX22-sized board mounts a rugged, aircraft-like SPDT toggle (the kind you see on avionics panels, complete with metal lever and positive detents) onto a tidy 22 × 22 mm PCB, with integrated debounce and pull-ups. Rated for tens of thousands of cycles, just drop it into any AX22 backplane and flip the switch—your code sees a rock-solid HIGH or LOW whether you’re in Arduino, MicroPython, or MicroBlocks.
View full details

  • Technical Details

    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 5 A @ 28 V DC / 2 A @ 250 V AC rating
    - On Board Debounce
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

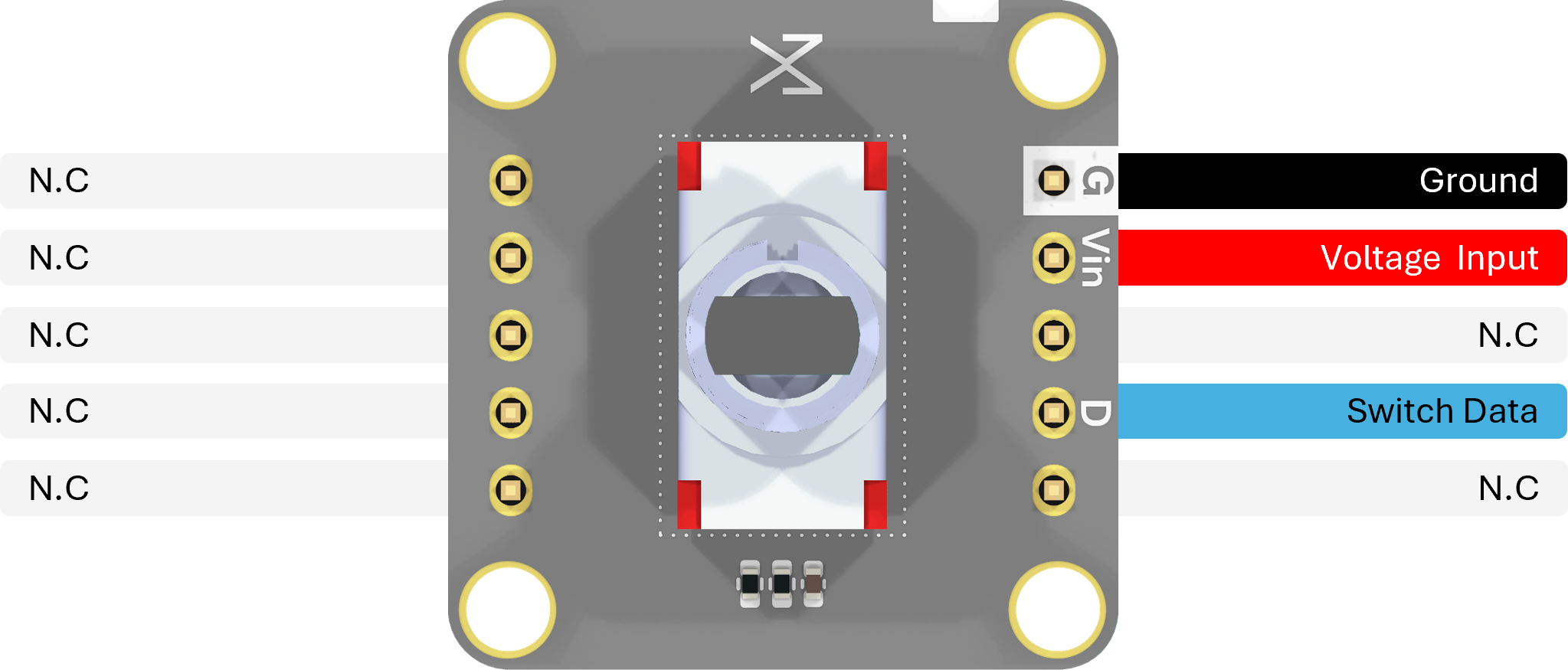

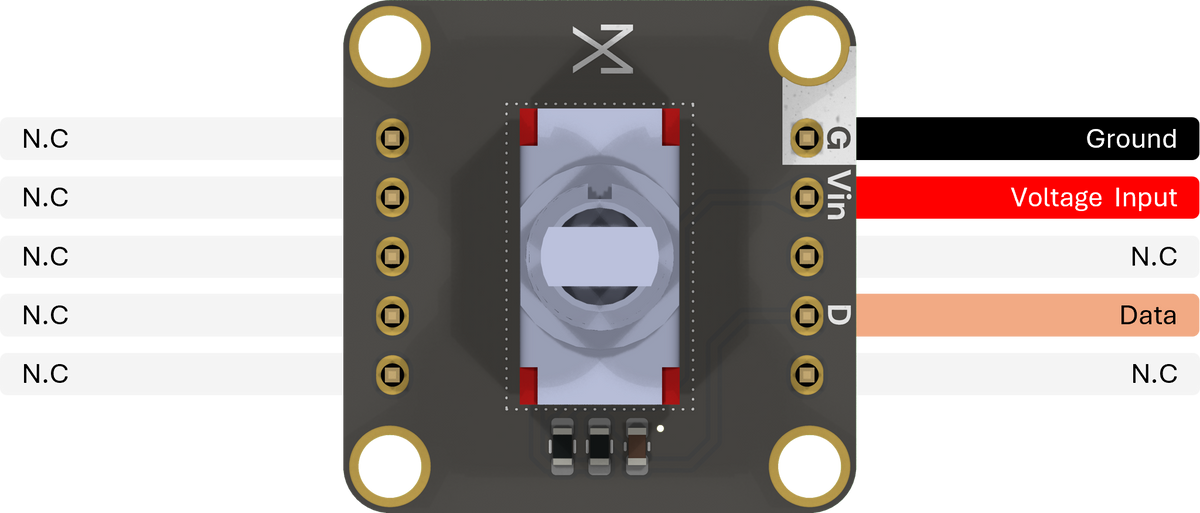

  • Pinout

  • Interface

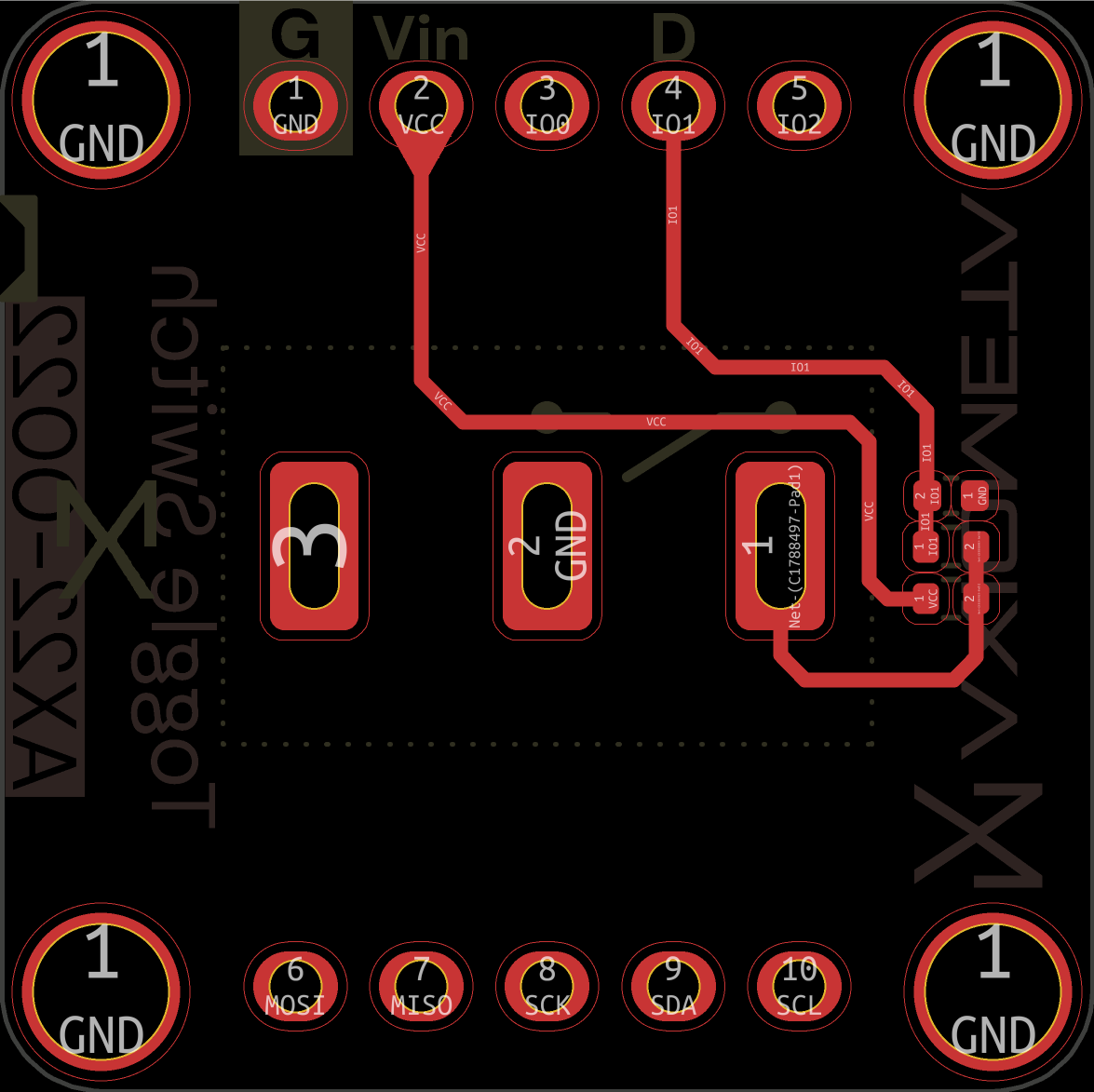

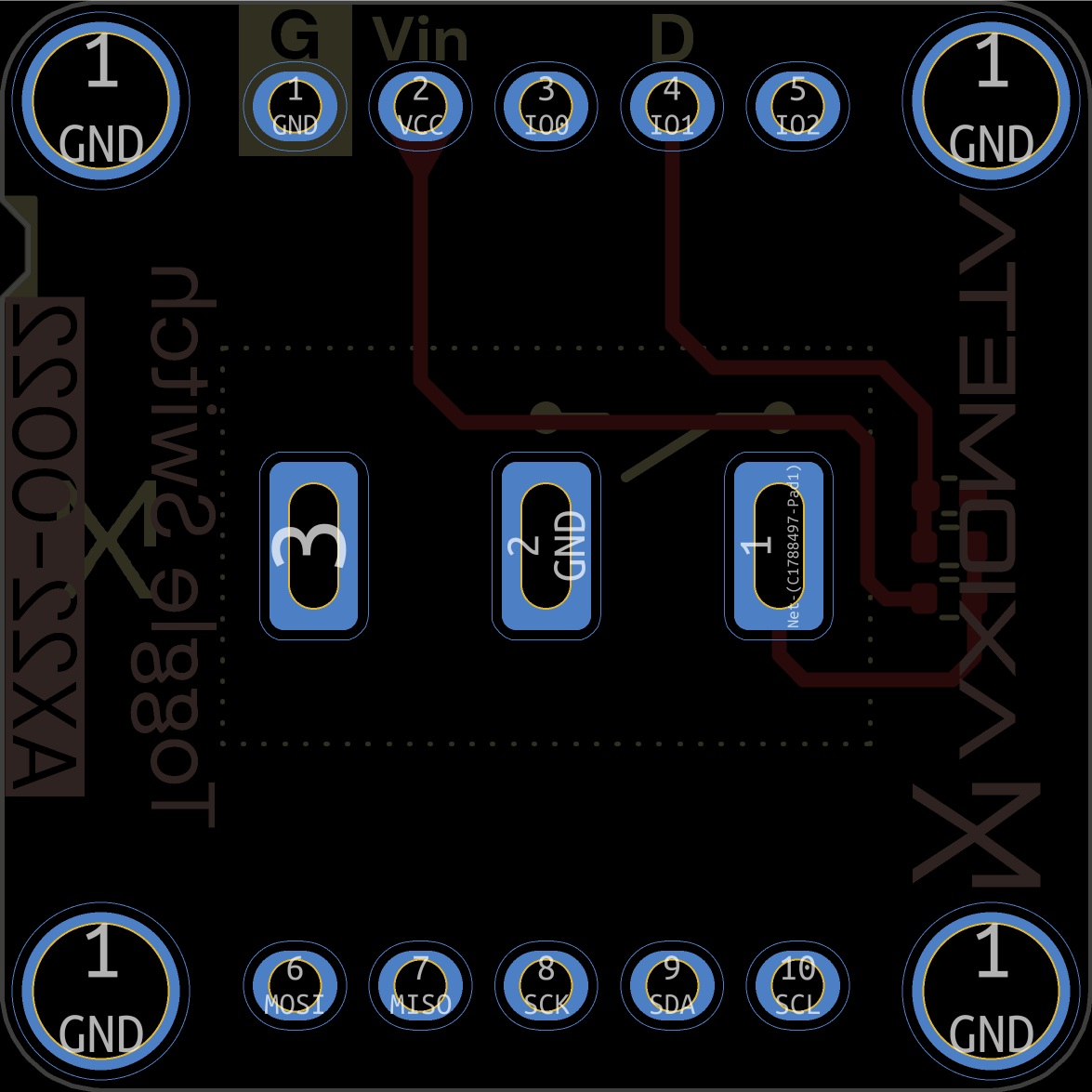

PCB Design

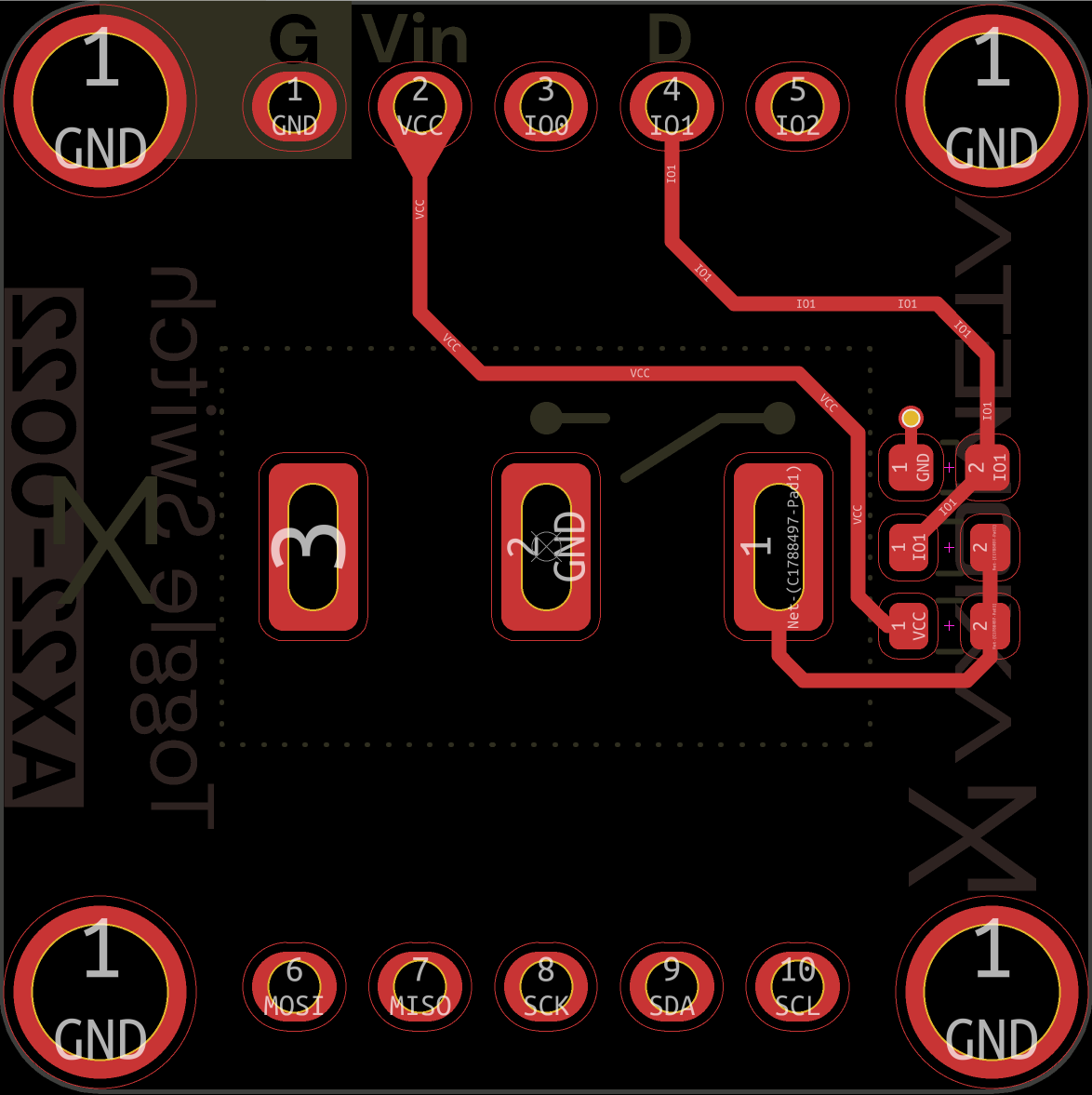

  • Top

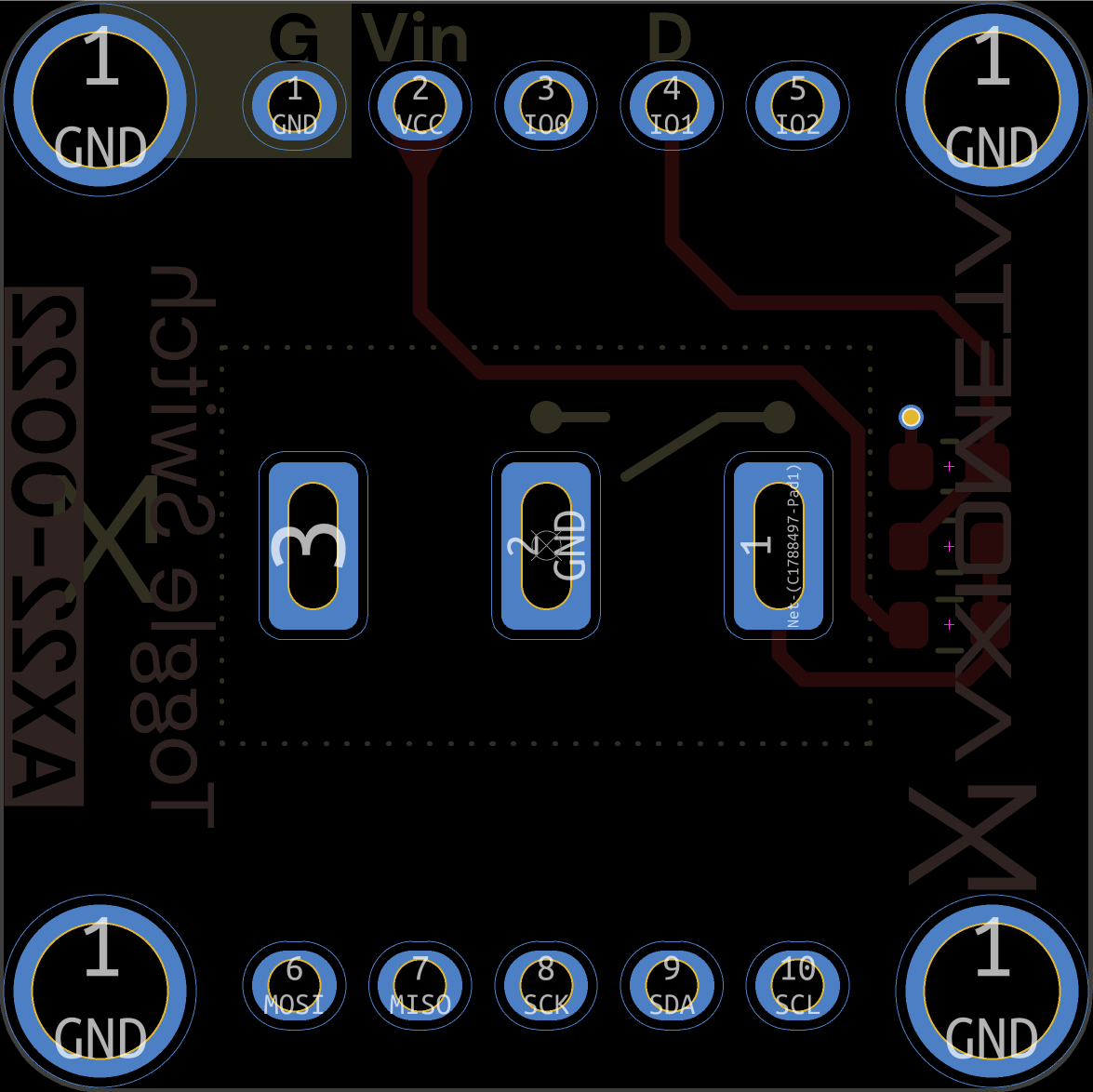

  • Bottom

Arduino Example Code

example.ino
const int togglePin = 15;

void setup() {
  Serial.begin(9600);
  pinMode(togglePin, OUTPUT);
}

void loop() {

  Serial.println(digitalRead(togglePin));

  delay(100);  // wait for a second
}
