Vibration Motor (ERM)

Vibration Motor (ERM)

AX22-0013

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

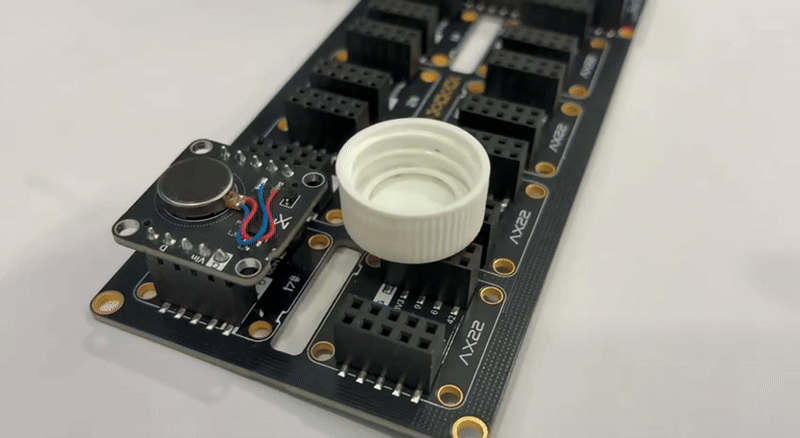

This AX22-sized board seats a 12000rpm flat eccentric-rotating-mass (ERM) motor on a 22 × 22 mm PCB and adds a low-R MOSFET driver, so you can trigger crisp haptic feedback with a single active-high GPIO pin. A fly-back diode and bulk capacitor tame startup surges, while the driver lets even 1.8 V logic pull the 90 mA load safely. Snap it into any AX22 backplane to give wearables, control panels, or notification gadgets a silent buzz or rhythmic pulse in just a few lines of code Arduino, MicroPython, or MicroBlocks.
$3.99
$3.99
Sale Sold out
View full details

Technical Details

  • - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 3 V nominal, 90 mA, ≈ 12000 rpm
    - −20 °C … +60 °C operating range
    - On-board N-channel MOSFET driver & fly-back diode
    - 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

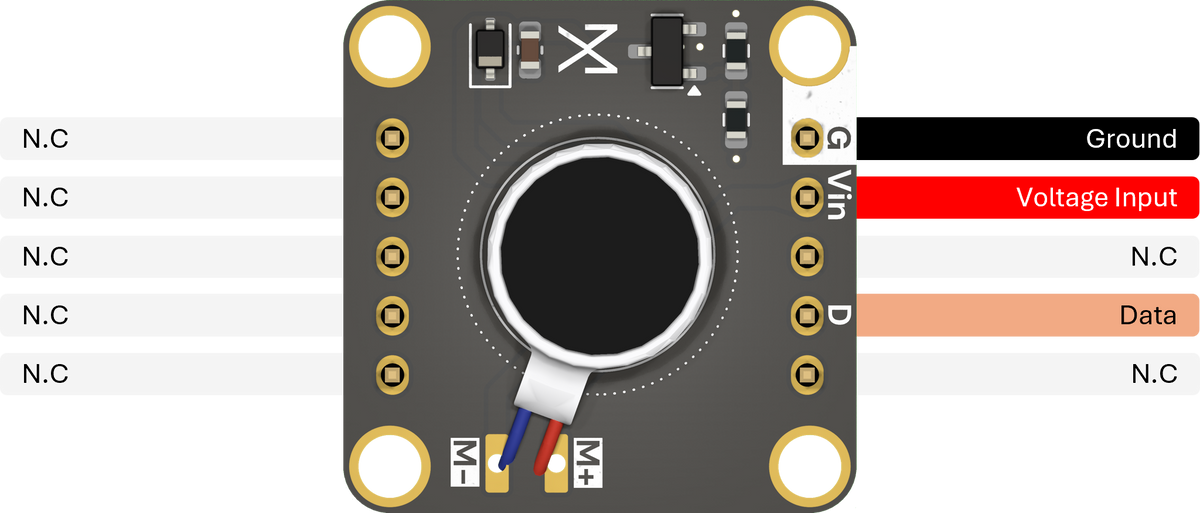

Pinout

Technical Resources

Vibration Motor (ERM) - (AX22-0013)
Circuit Schematic 3D Model

PCB FRONT

PCB BACK

🟢 Live 3D Model

🖱️ Click & drag to rotate

Arduino Example Snippet

#define MOTOR_PIN 14

void setup() {
  pinMode(MOTOR_PIN, OUTPUT);
}

void loop() {

  // Set the motor pin to the new state
  digitalWrite(MOTOR_PIN, HIGH);
  delay(100);
  digitalWrite(MOTOR_PIN, LOW);
  delay(1000);
}
