SKU:AXMT-MTX0010

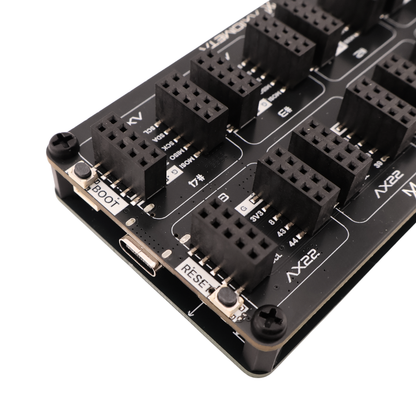

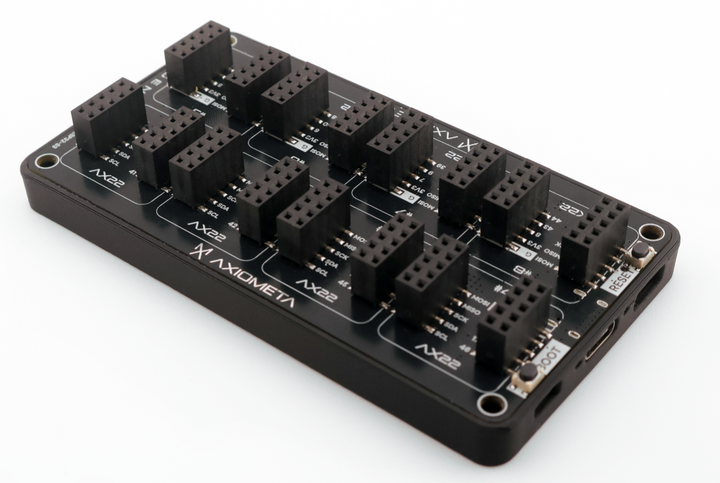

Genesis One is a modular, Wi-Fi-enabled prototyping system built around a standardized AX22 connector. The ESP32-S3 powered board provides eight AX22 ports that modules plug into directly. The connection standard can be implemented on other microcontroller platforms, making modules compatible across different boards. This platform eliminates breadboard wiring for common tasks like sensor reading, display control, and motor driving. Modules lock securely in place and provide reliable electrical connections. This reduces setup time and prevents connection failure during development and testing.

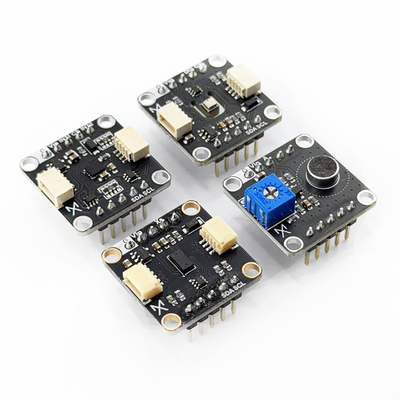

This module bundles focuses, on sensing the main enviromental things around you.
Couldn't load pickup availability

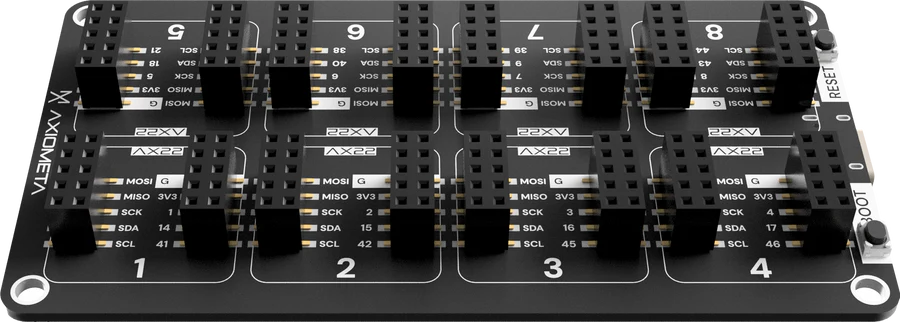

Eight ports. Room to build.
Bring more parts of your project onto one board. Genesis One connects up to eight AX22 modules directly, with an ESP32-S3 at the center.
WiFi & Bluetooth
LiPo/Ion battery support
- AX22 ports
- 8
- Processor
- ESP32-S3
- Flash · 2 MB PSRAM
- 8 MB
- Board footprint
- 55 × 103 mm

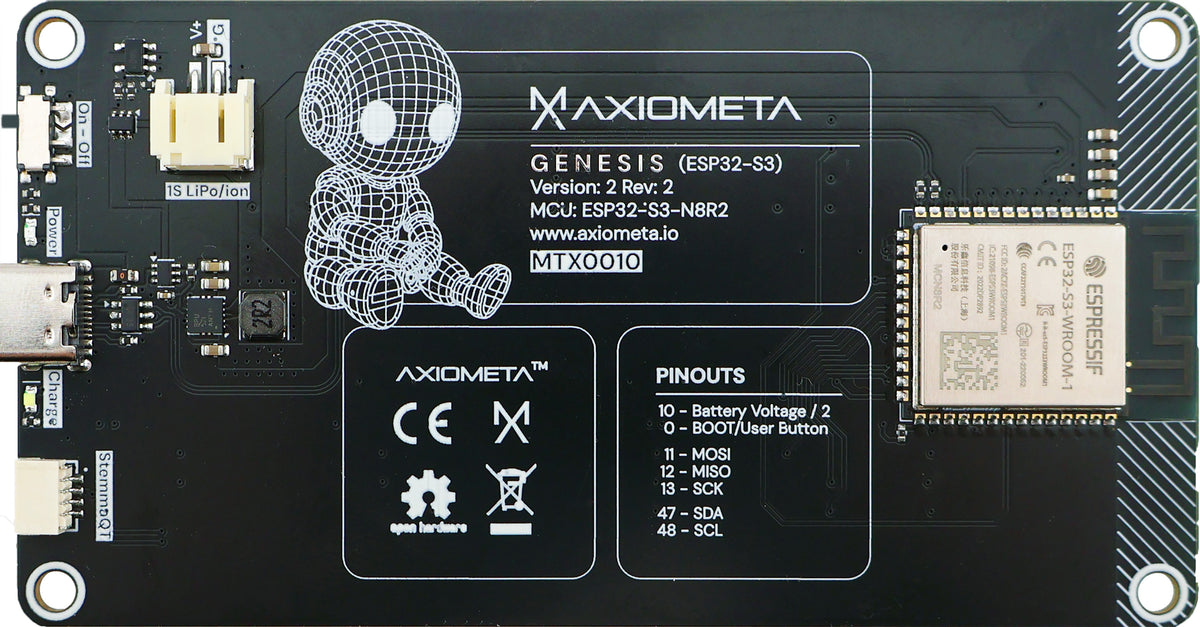

Overview
Select a number to see its details.

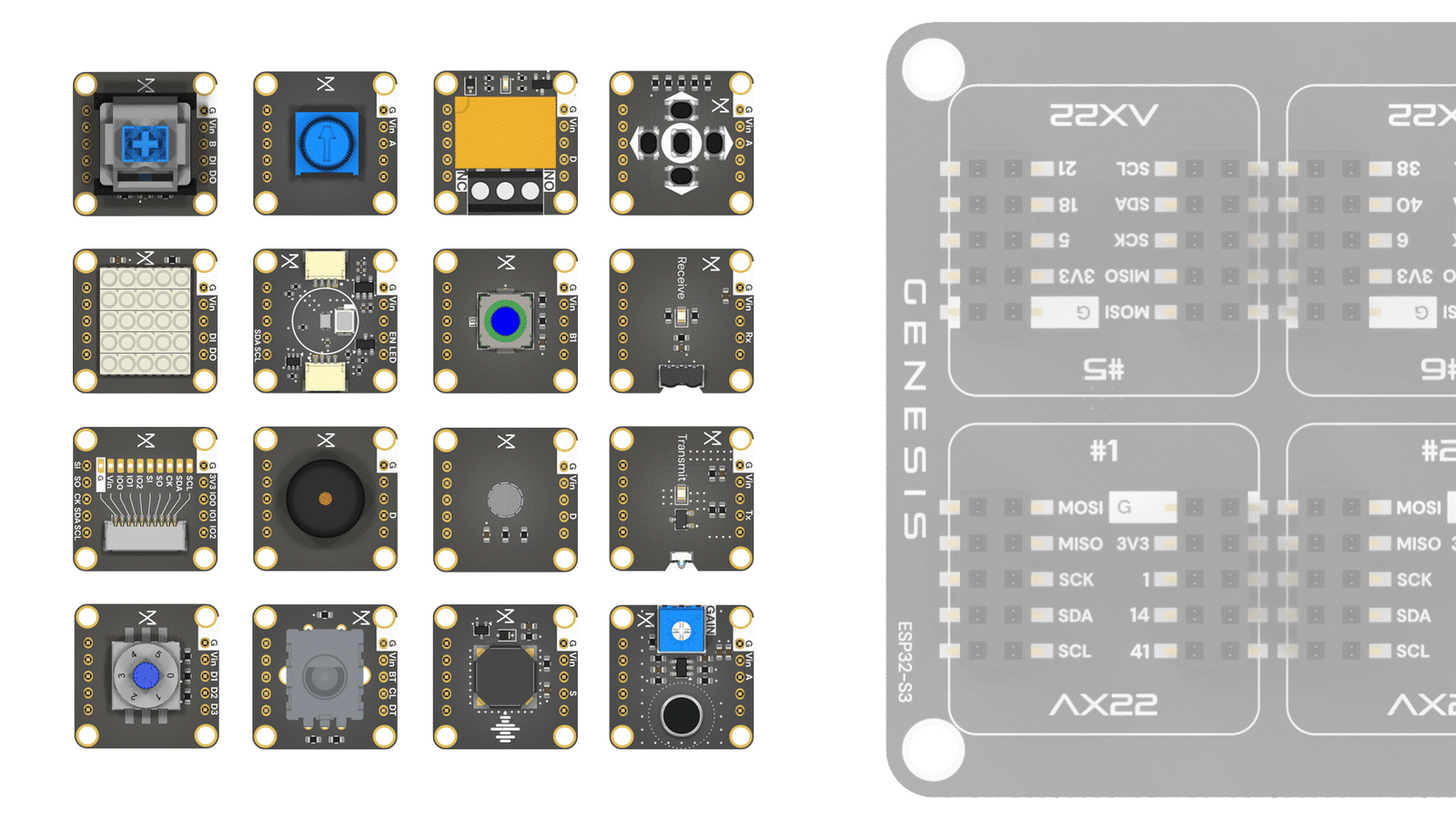

Add the modules your project needs.
From reading sensors to controlling a display or motor, AX22 modules plug straight into Genesis One. Choose the parts you need and keep the same board as your project changes.
Technical details
- MCU: ESP32-S3-N8R2
- Flash: 8MB
- PSRAM: 2MB

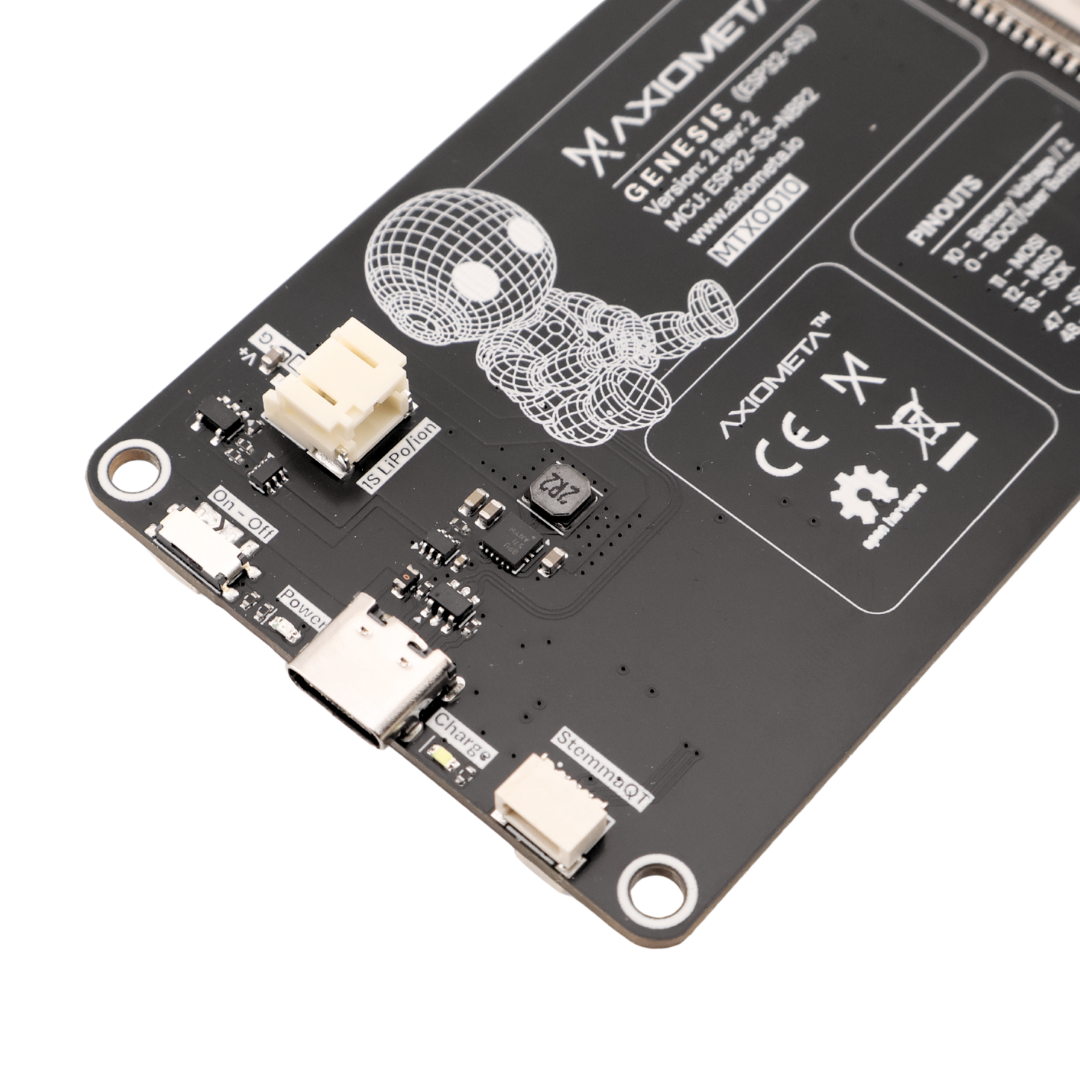

- LiPo/Li-Ion Battery Support

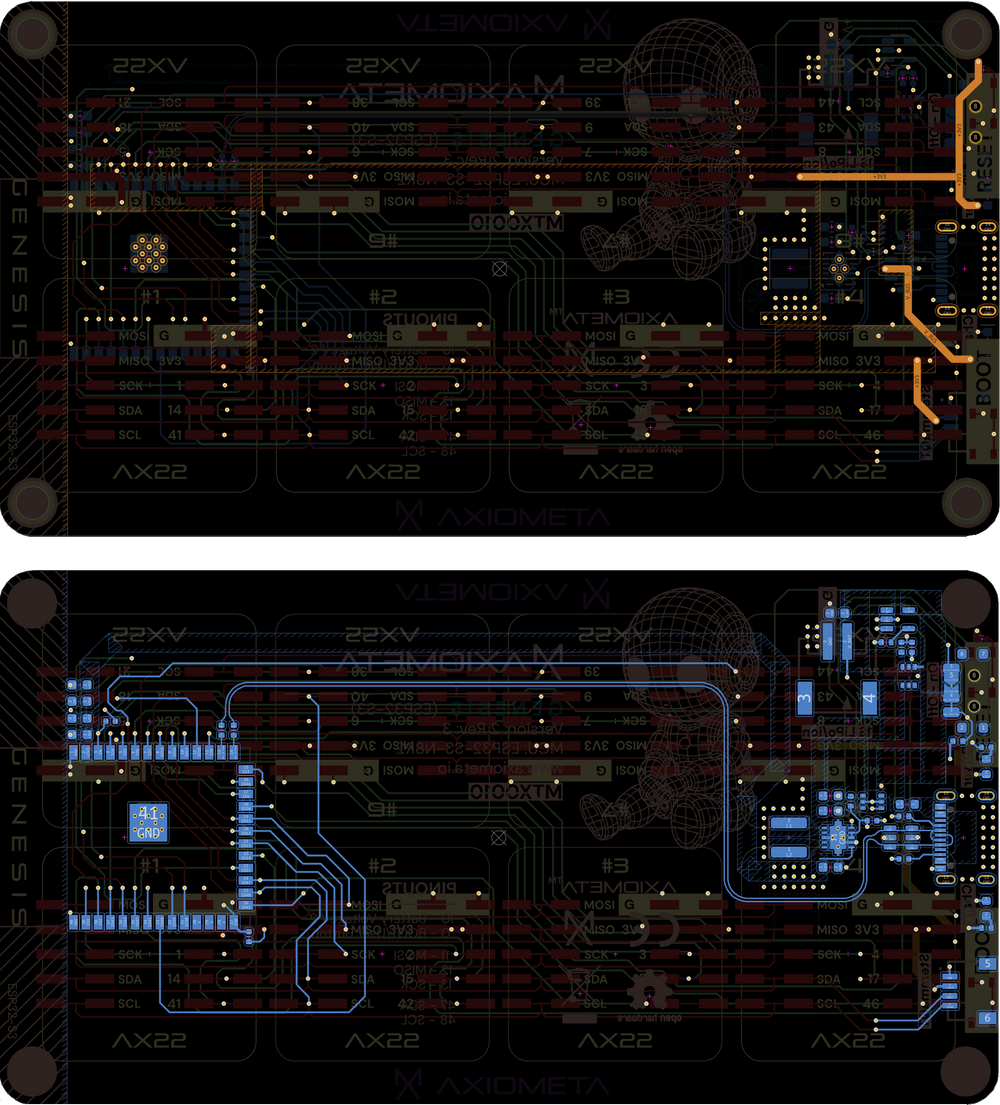

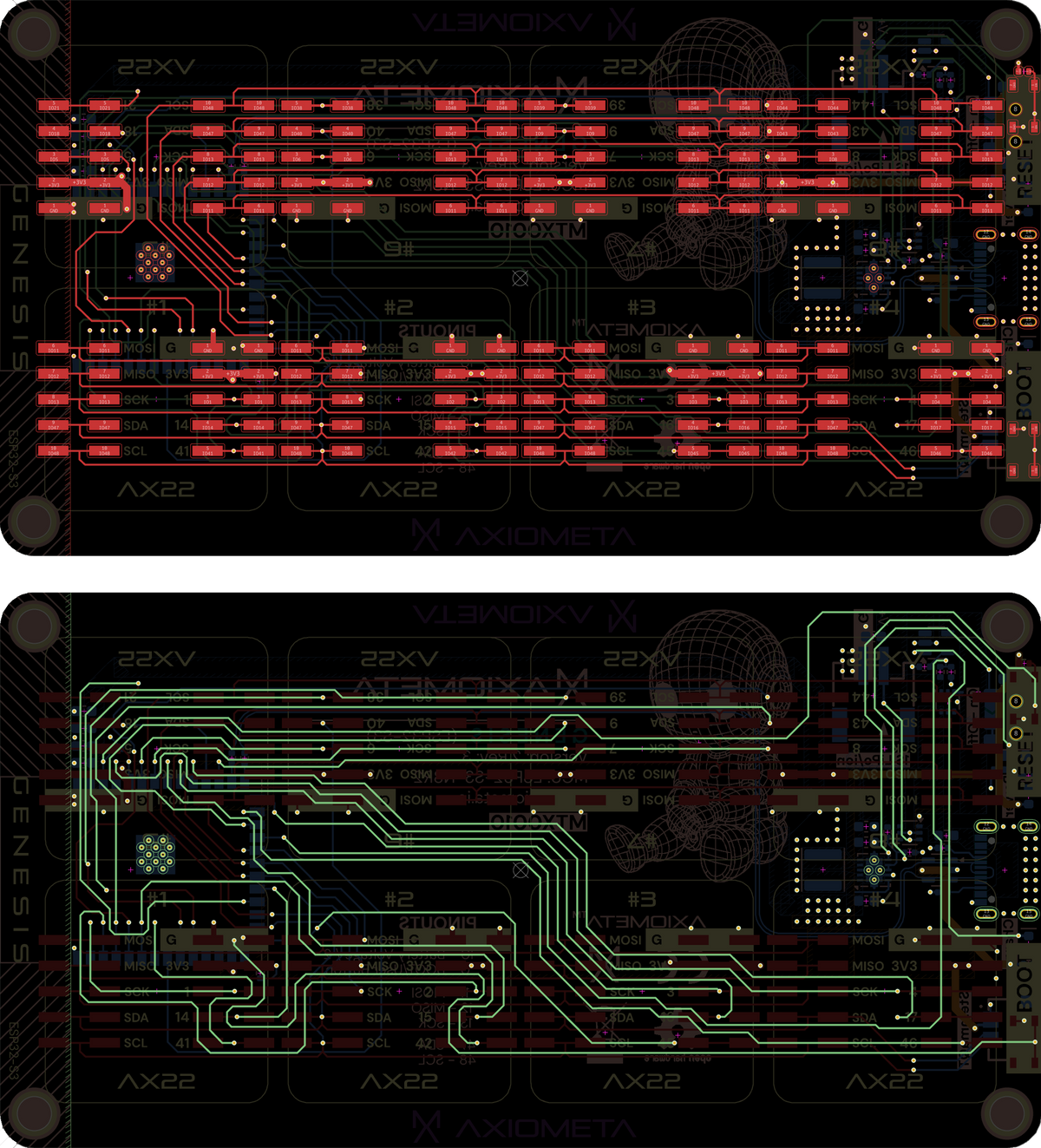

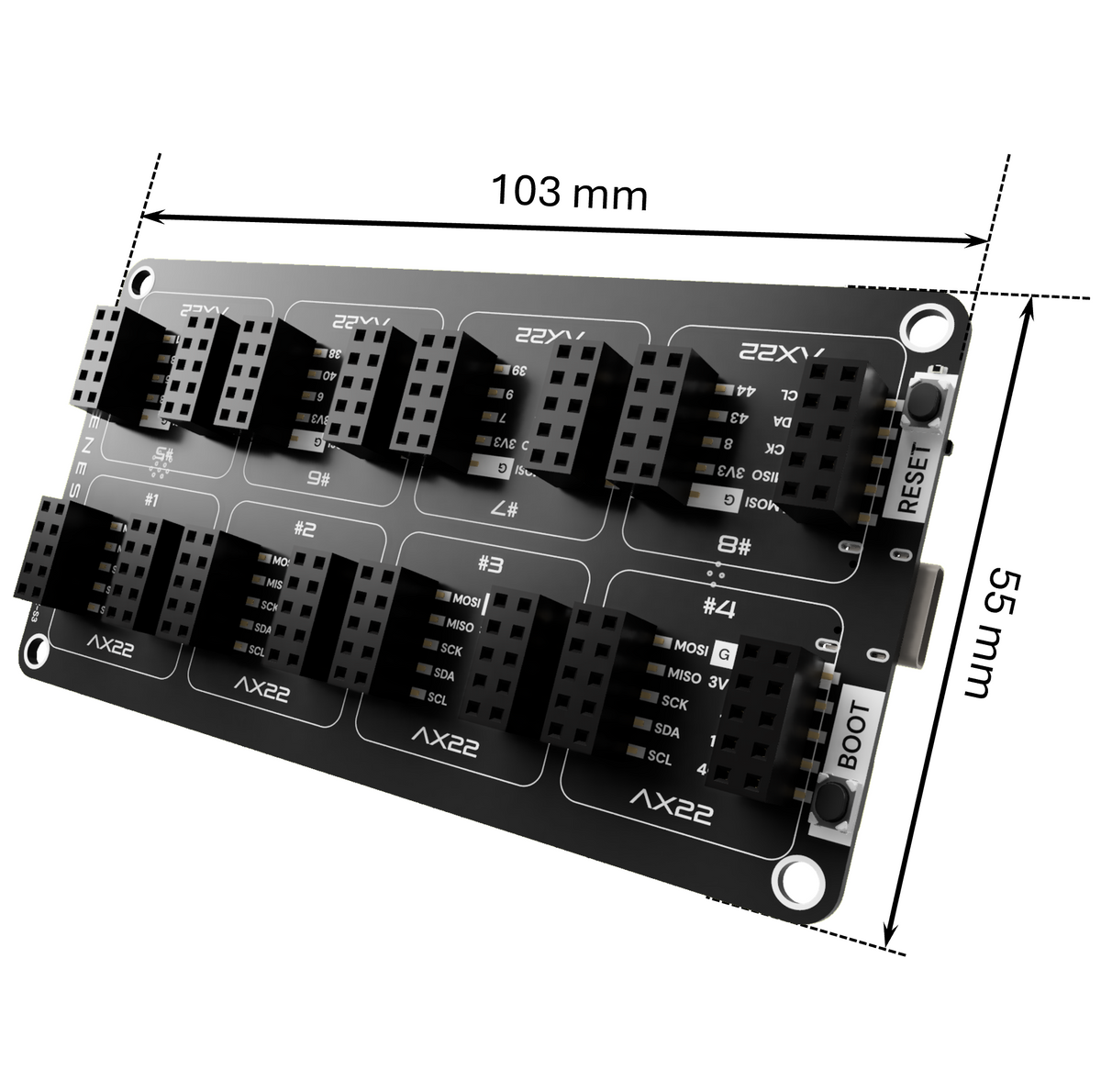

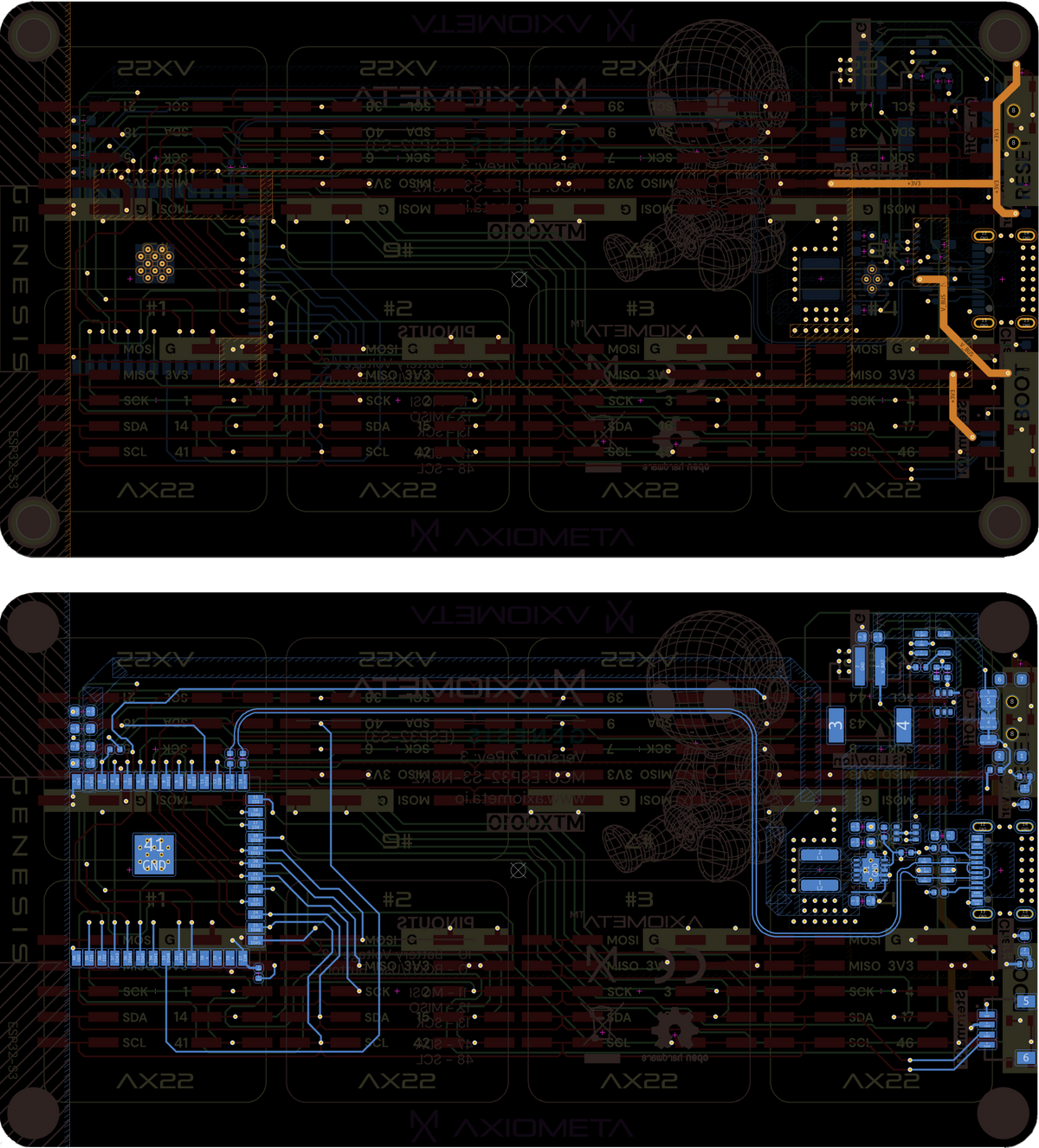

- 55 mm × 103 mm 4-layer PCB
- 4× ⌀2.7 mm Mounting Holes
- 1× STEMMA QT connectors
- On/Off Switch
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible
