Axiometa Genesis XIAO Shield
Axiometa Genesis XIAO Shield
SKU:AXMT-SHE0002

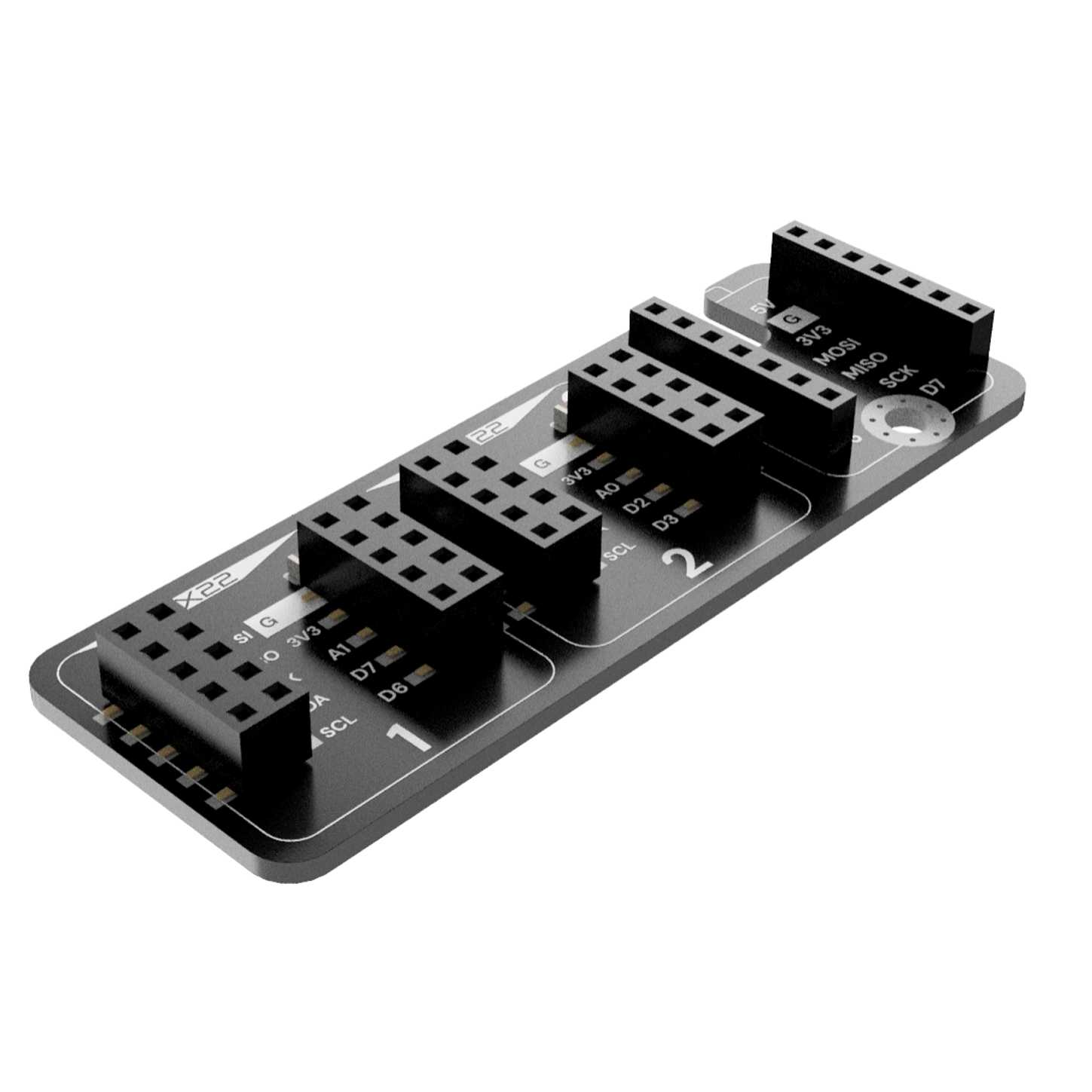

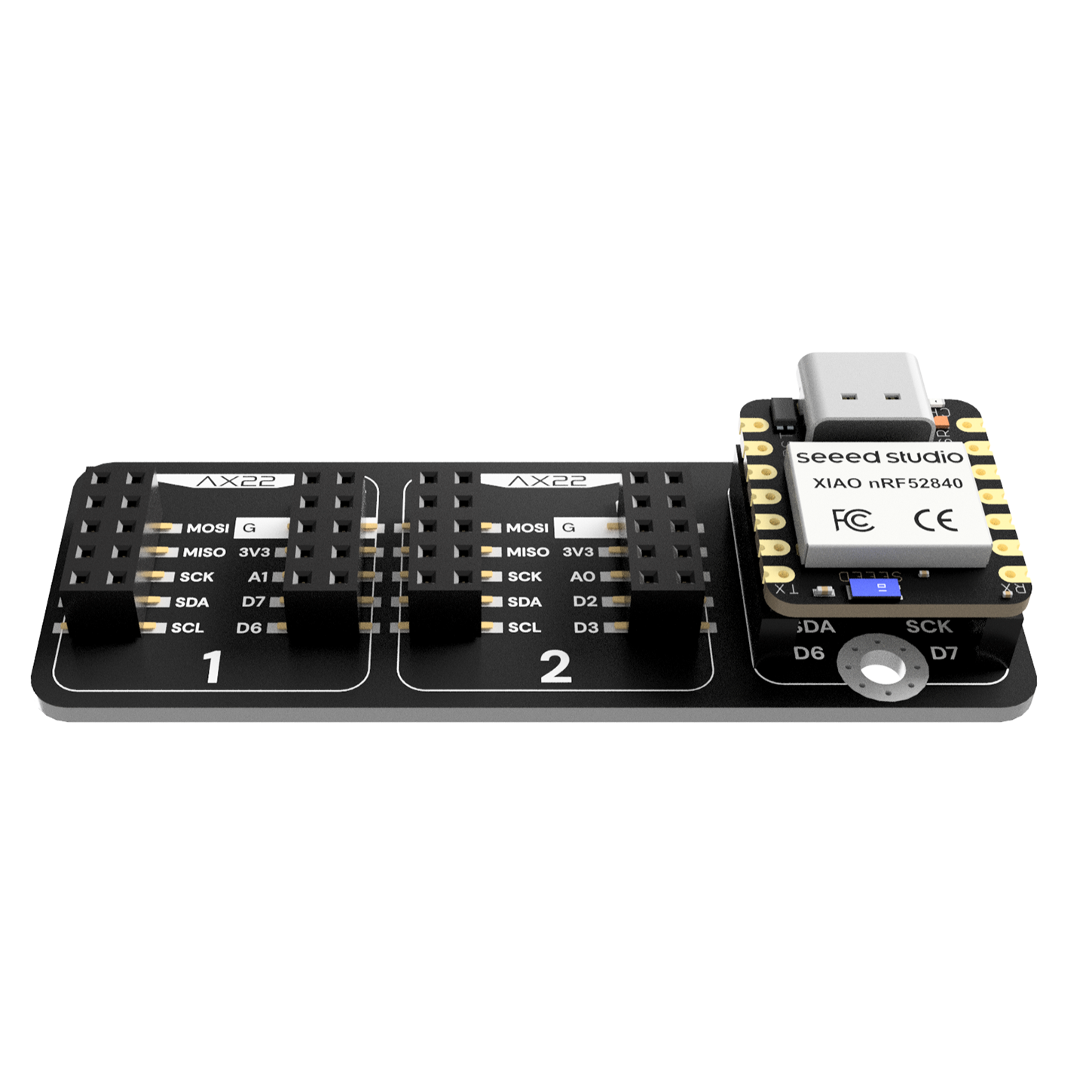

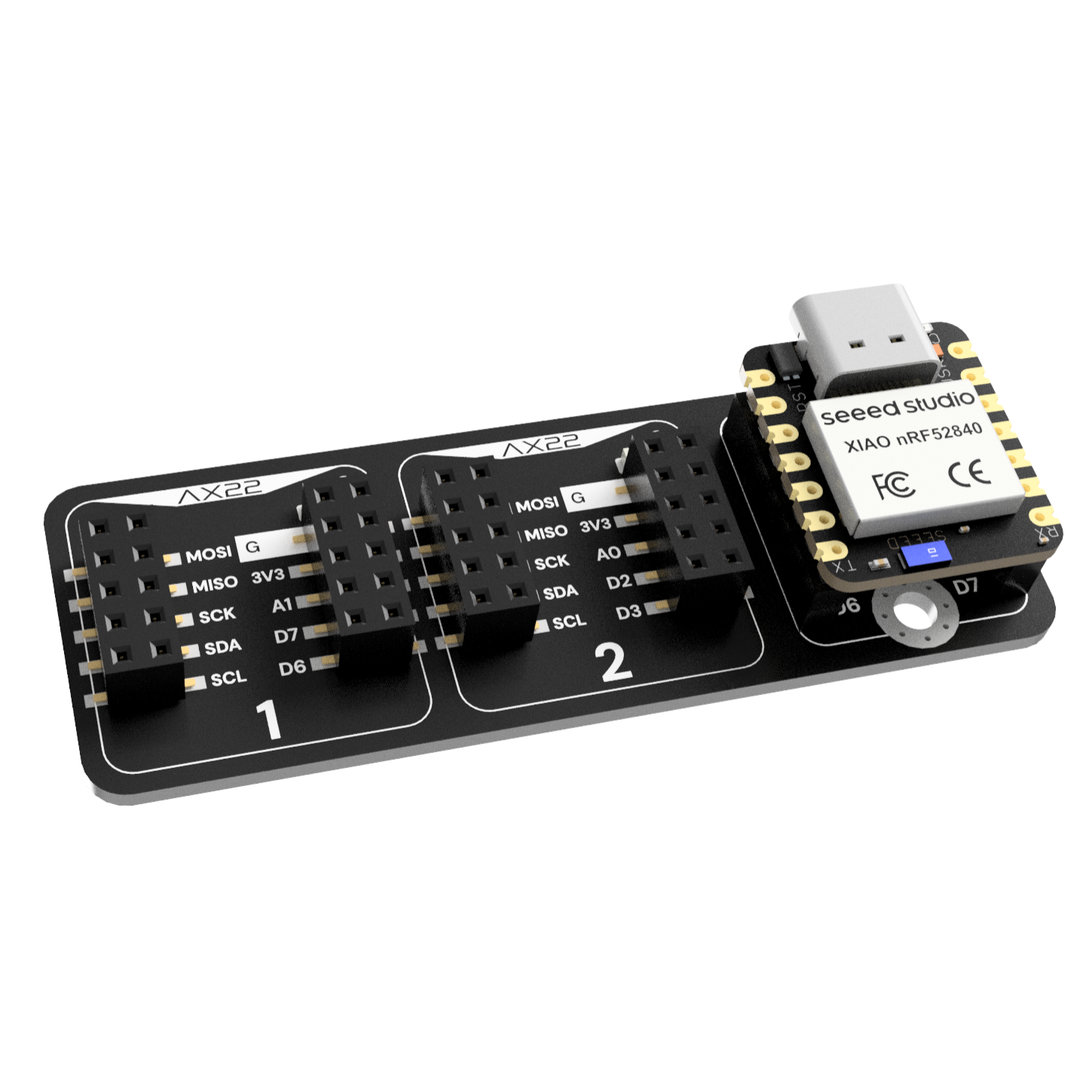

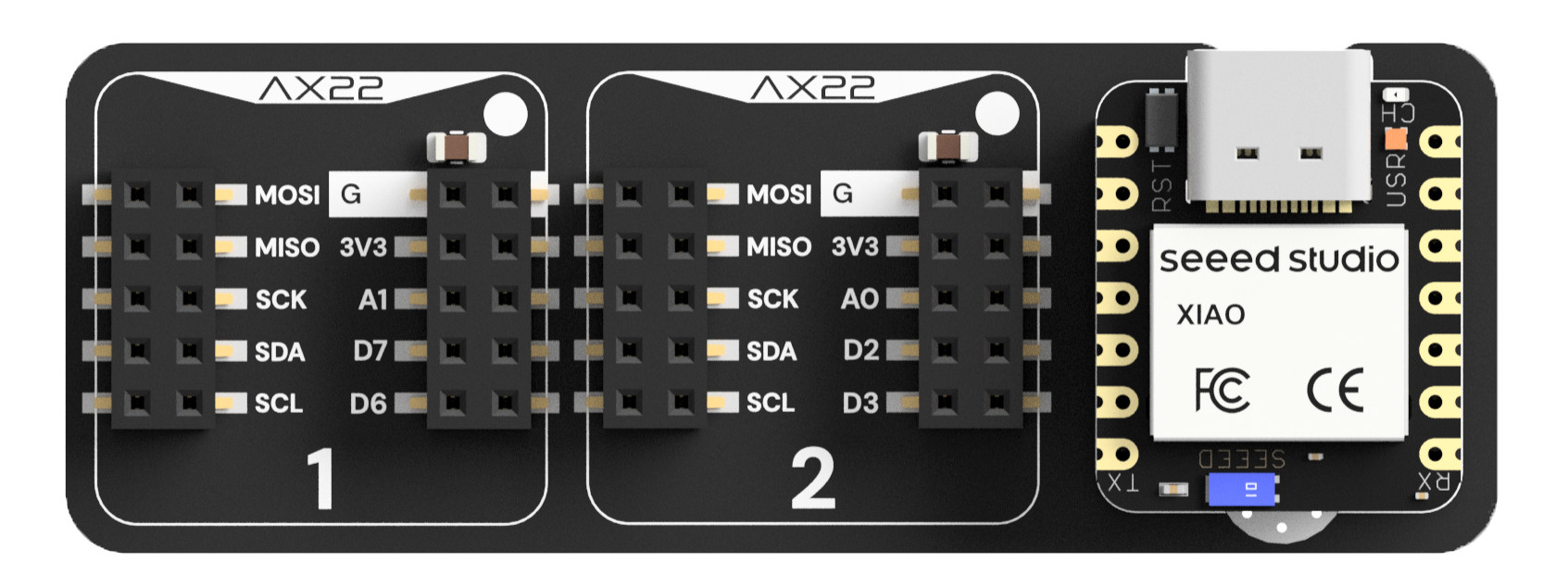

The Axiometa Genesis XIAO "Shield" turns compatible Seeed Studio XIAO boards into a modular AX22 development platform. The XIAO plugs directly into the shield and provides the processing, connectivity, and onboard features, while two universal AX22 ports allow modules to connect without breadboard wiring, jumper wires, or manual pin mapping. The shield features a mounting hole and a cutout for routing a LiPo battery cable underneath the board.
This Shield does not include a XIAO board.
This module bundles focuses, on sensing the main enviromental things around you.
Couldn't load pickup availability
Your XIAO. Two AX22 ports.
Turn a compatible Seeed Studio XIAO into an AX22 development platform. Your XIAO supplies the processing and connectivity; the shield gives your modules a direct connection.
Plug in the XIAO you need
Choose a compatible XIAO for your project and plug it into the shield’s socket. The XIAO board is sold separately.
A cleaner physical setup

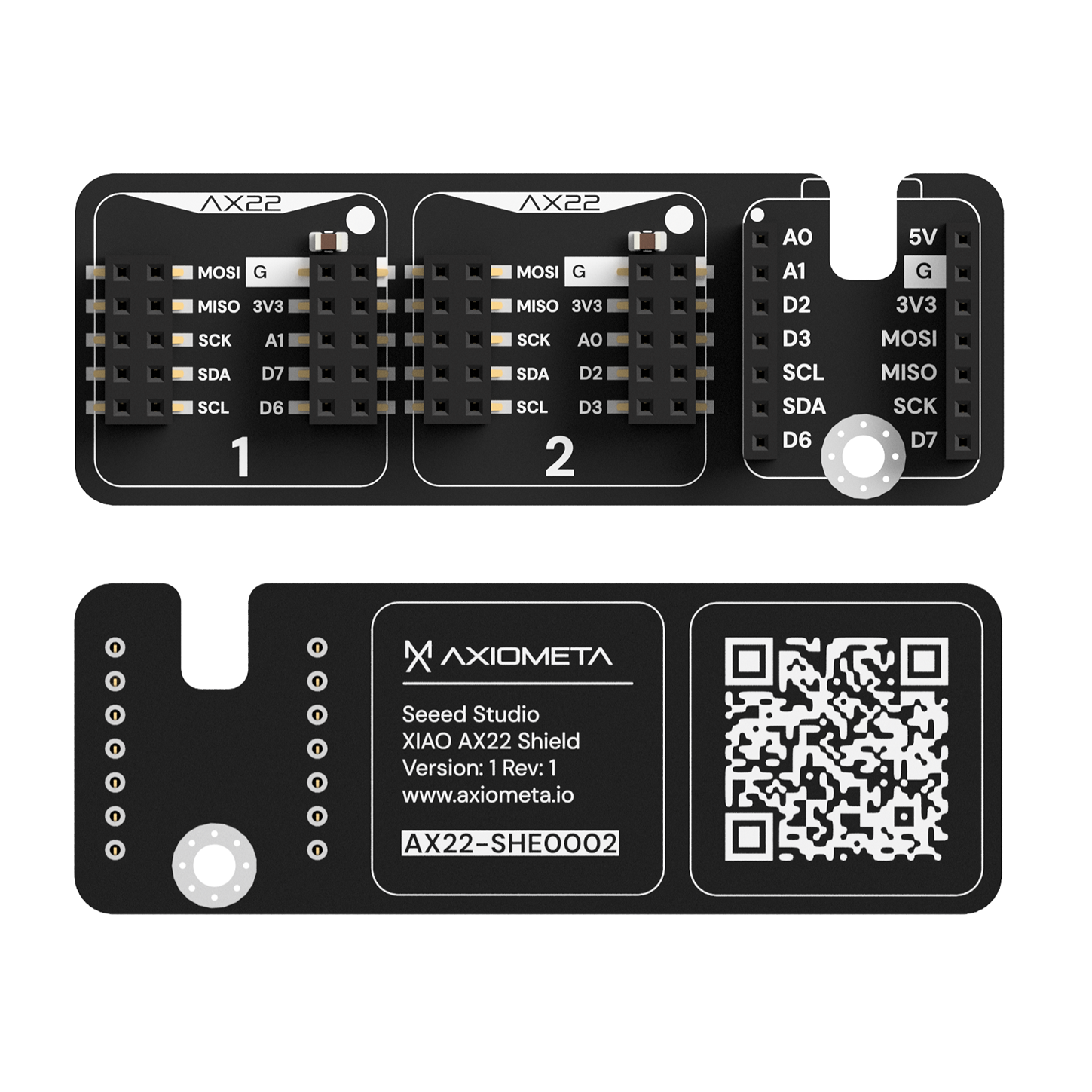

Two universal AX22 ports replace jumper wiring. A mounting hole secures the shield, with a cutout for routing a LiPo battery cable underneath.
- Universal AX22 ports
- 2
- Plug-in controller
- XIAO
- Mounting hole
- 1
- Cable-routing cutout
- LiPo
Overview
Select a number to see its details.
Add the modules your project needs.
From reading sensors to controlling a display or motor, AX22 modules plug straight into XIAO Shield. Choose the parts you need and keep the same shield as your project changes.
Build with XIAO Shield
Axiometa Studio is our browser-based coding workspace. Open an example project for this board, explore the code, and use AI to make it your own.
