I've used rotary encoders for years and never actually watched what happens inside one. So, this week I made three things with it.
Inside there are two contacts, A and B. When you turn the knob they pulse, and they're slightly out of phase: one always fires a little before the other. Turn the other way and the order flips. That's the whole trick. The board counts the pulses for position and looks at the order for direction

View Product Page

Visualiser

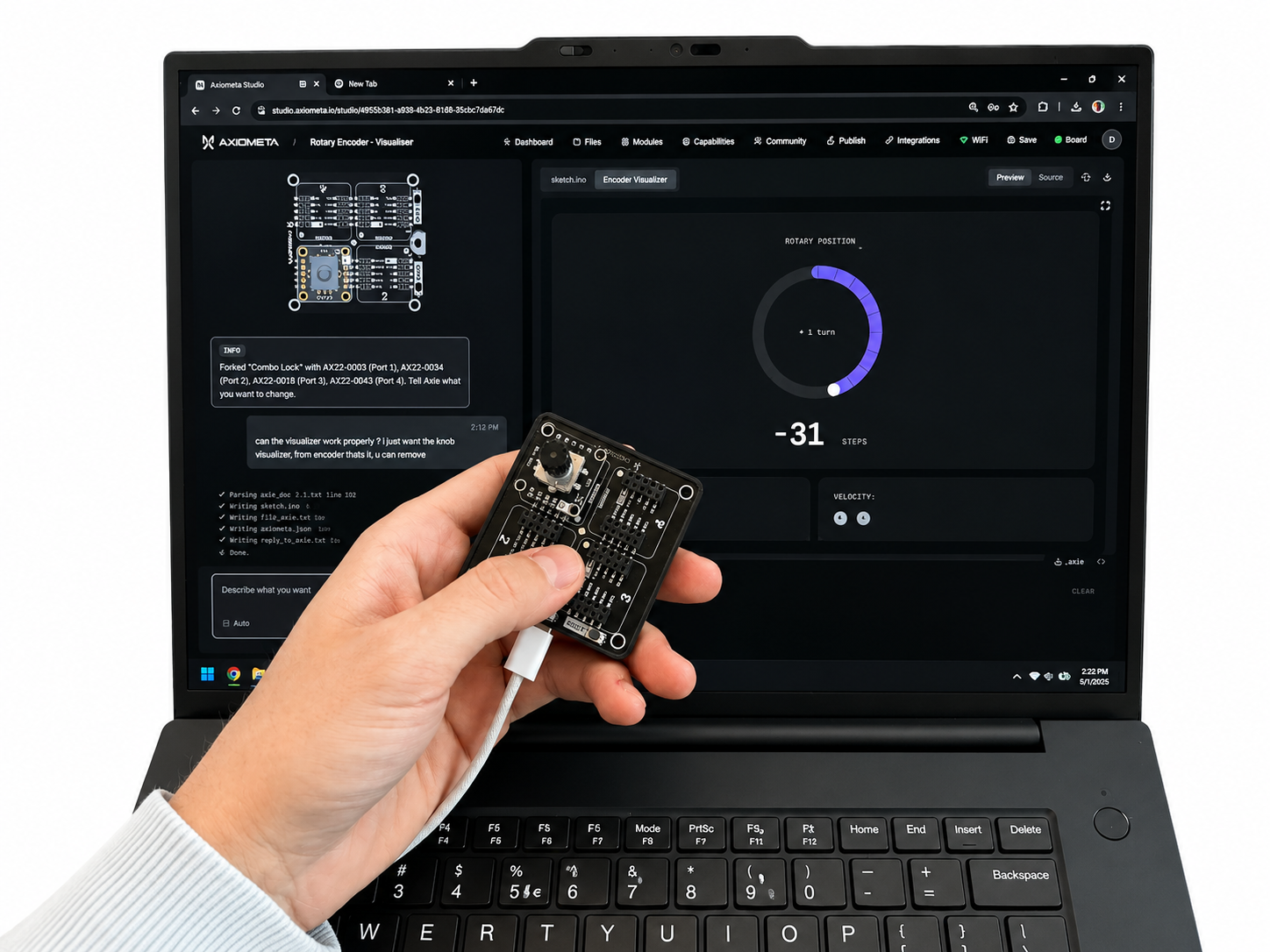

The AX22-0003 is a rotary encoder with a push button in the shaft. It plugs into any Genesis port. Unlike a potentiometer, it has no start and no end. It turns forever, and every detent you feel is one step.

Open the project in Studio


Bubble Popper

Bubble popper. Turn the knob to move the cursor along the bottom of the display, press to fire. Bubbles drift down. Miss five and it's over.

Open the project in Studio


Menu System

Rotary encoders are great for navigating menus on the screen.

Open the project in Studio


Combination Lock System

Enter the correct password to move the servo

Open the project in Studio


Fork it

All three are in Studio. Open them, change the bubbles to something else, add a page to the menu, plot something else on the dashboard. If you build something, send me a photo. I show builds every week.

Parts: Genesis Mini, rotary encoder (AX22-0003), IPS display, Servo module, Passive buzzer
