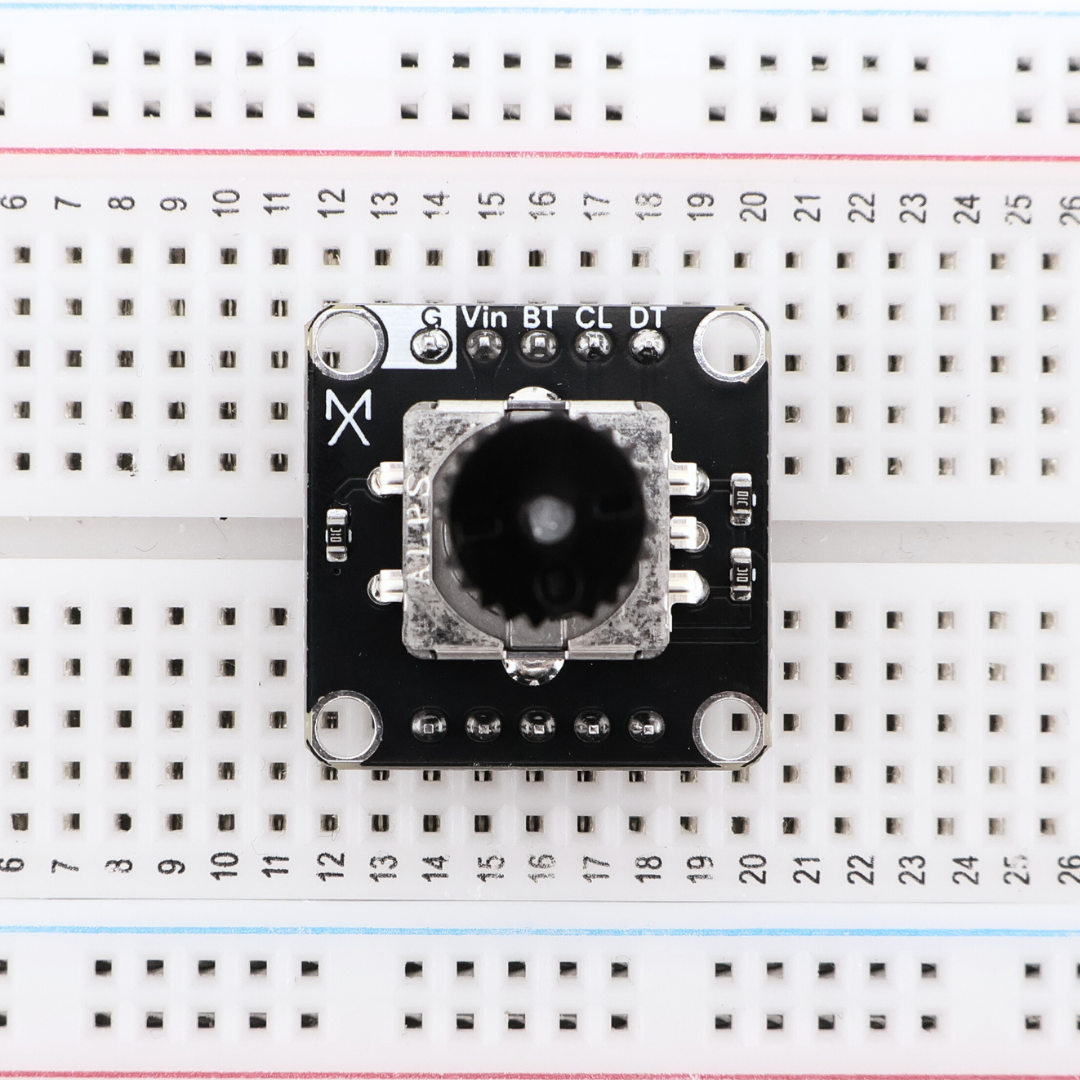

Rotary Encoder

Rotary Encoder

AX22-0003

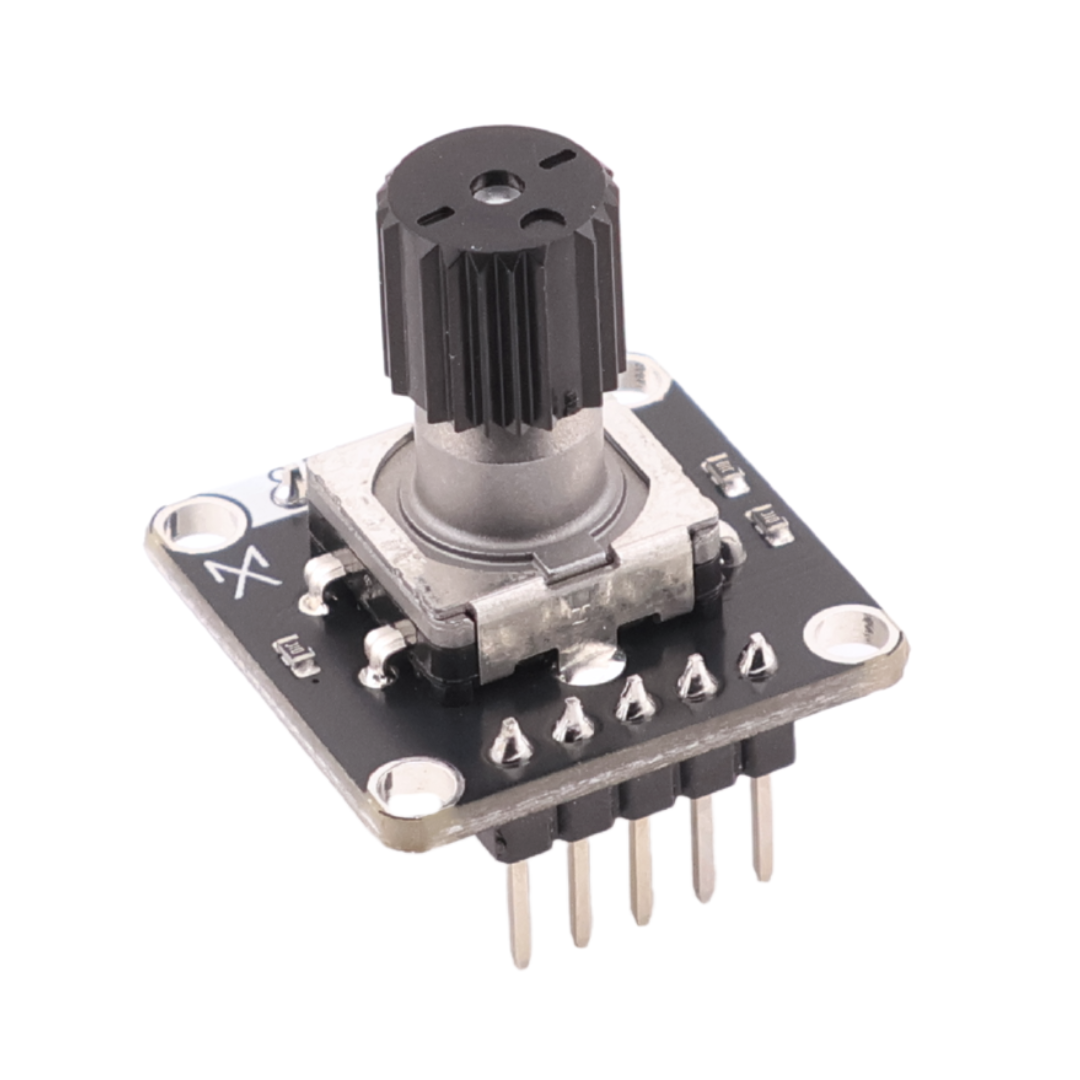

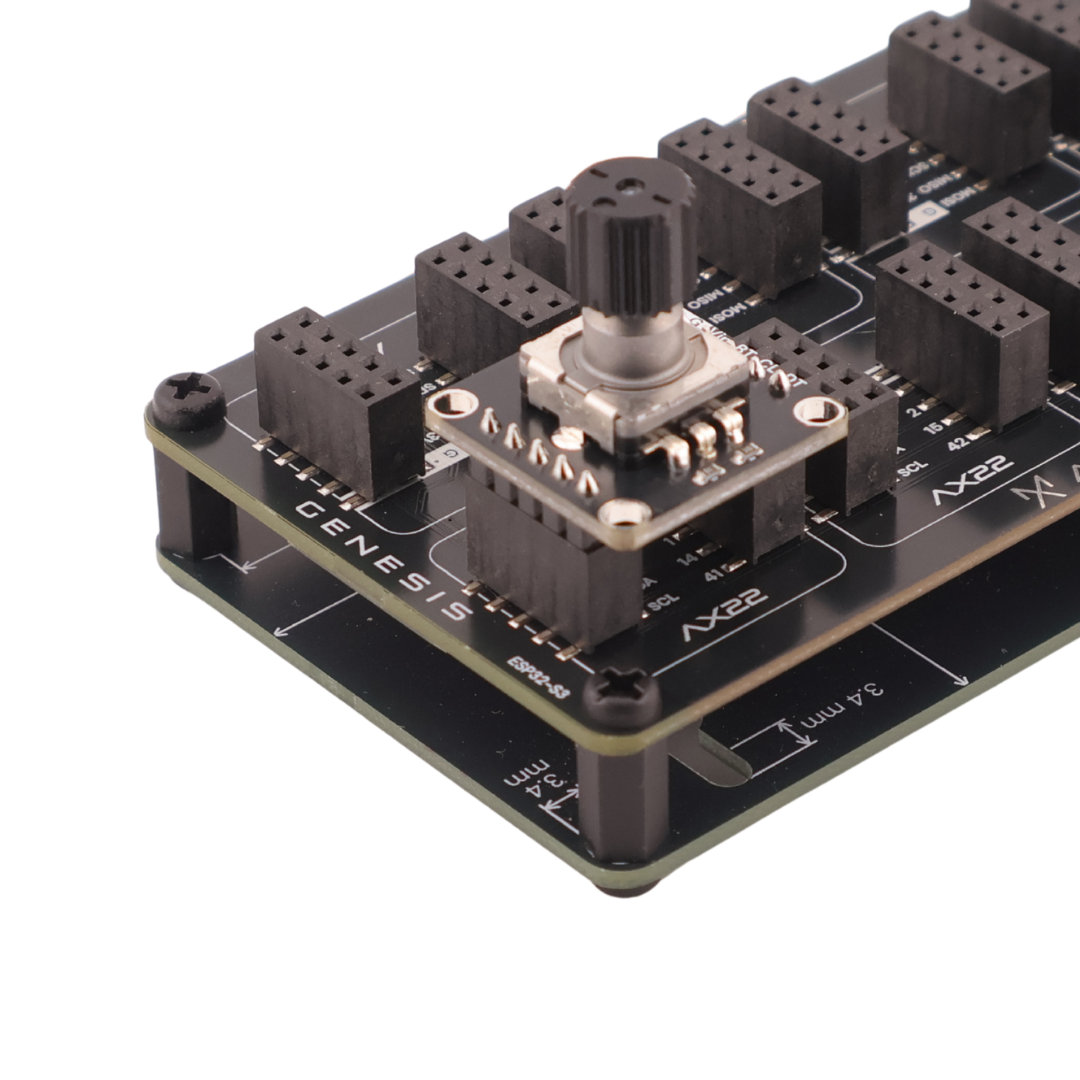

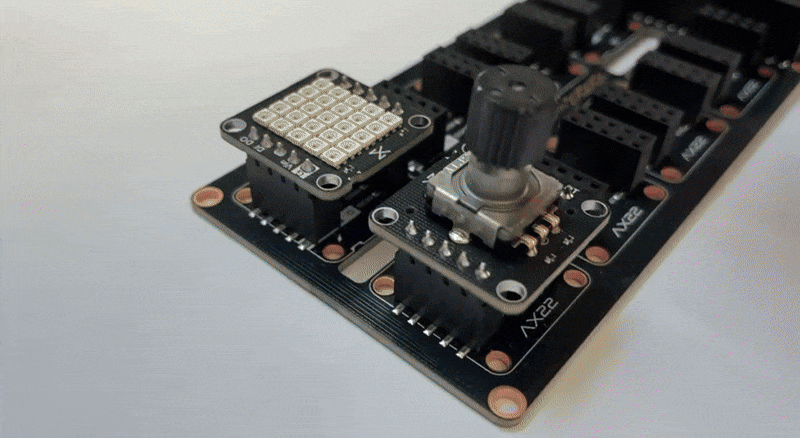

This AX22-sized module integrates an ALPS Alpine incremental rotary encoder on a compact 22 × 22 mm PCB. The encoder outputs clean two-channel quadrature signals plus an optional push-switch, making it straightforward for any microcontroller to read direction, step count, and clicks without extra debouncing circuitry. It’s perfect for tweaking parameters like brightness, volume, or menu selections and slips seamlessly into AX22 systems with no special wiring. Use it in custom control panels, user-input dials, or interactive gadgets where precise, tactile rotary input is essential.
$4.32
$4.32
Sale Sold out
View full details

Technical Details

  • - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - Integrated Push Button
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

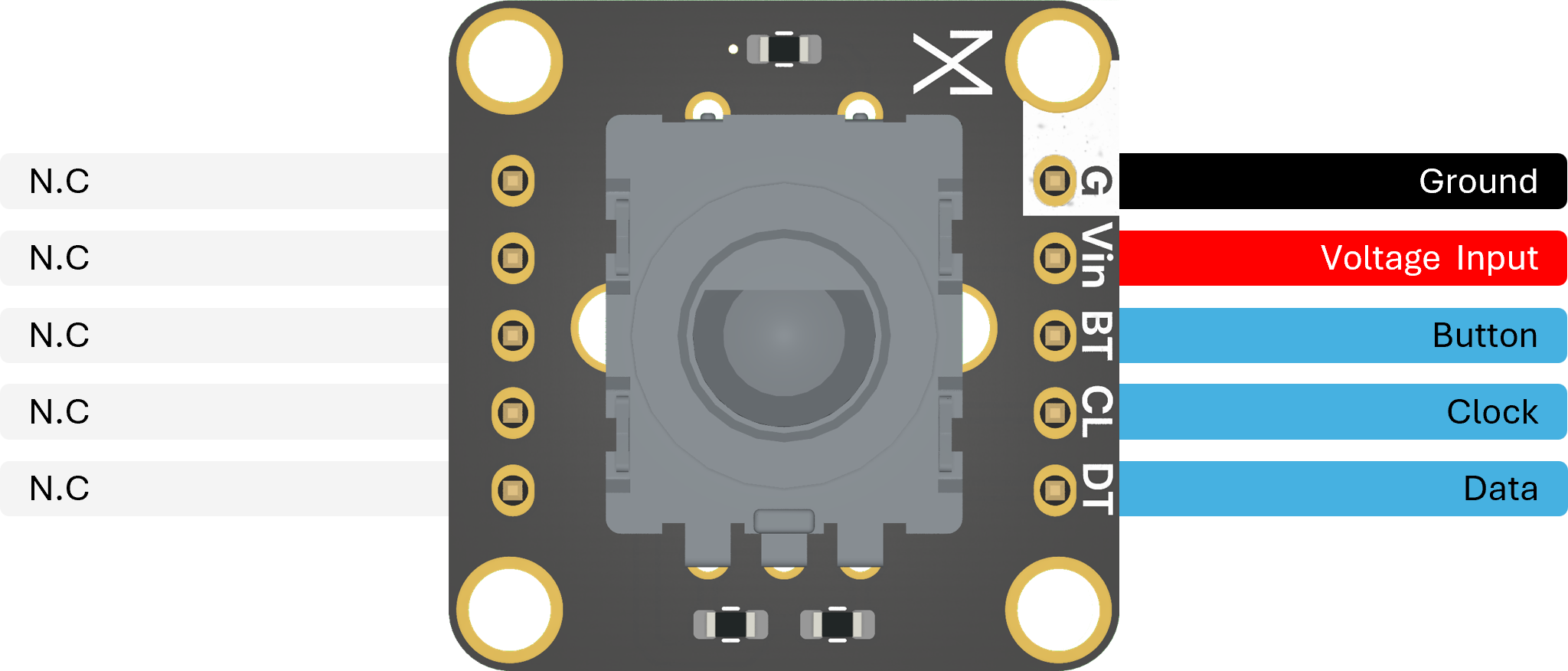

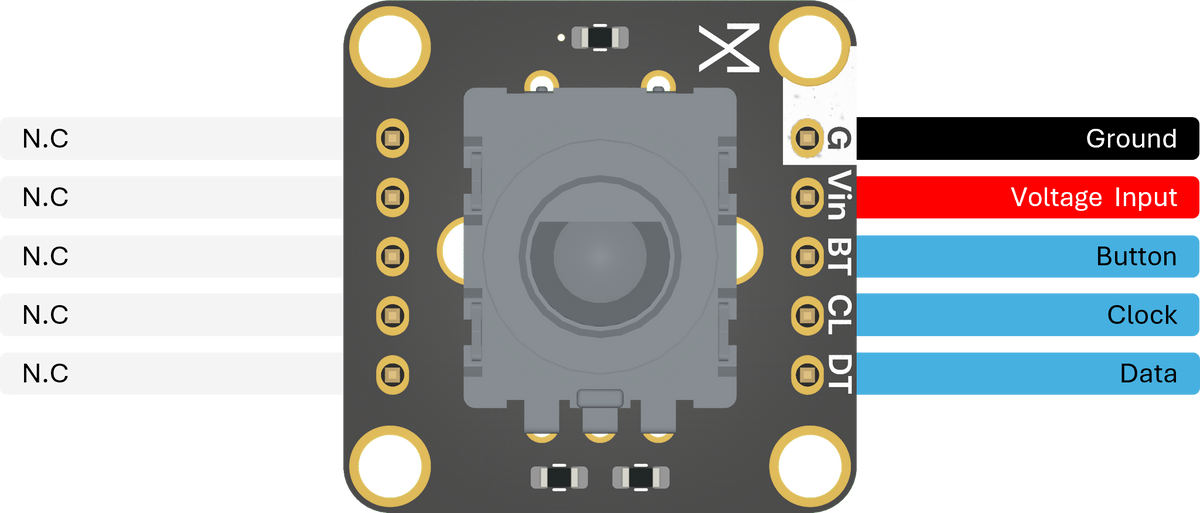

Pinout

Technical Resources

Rotary Encoder - (AX22-0003)
Circuit Schematic 3D Model

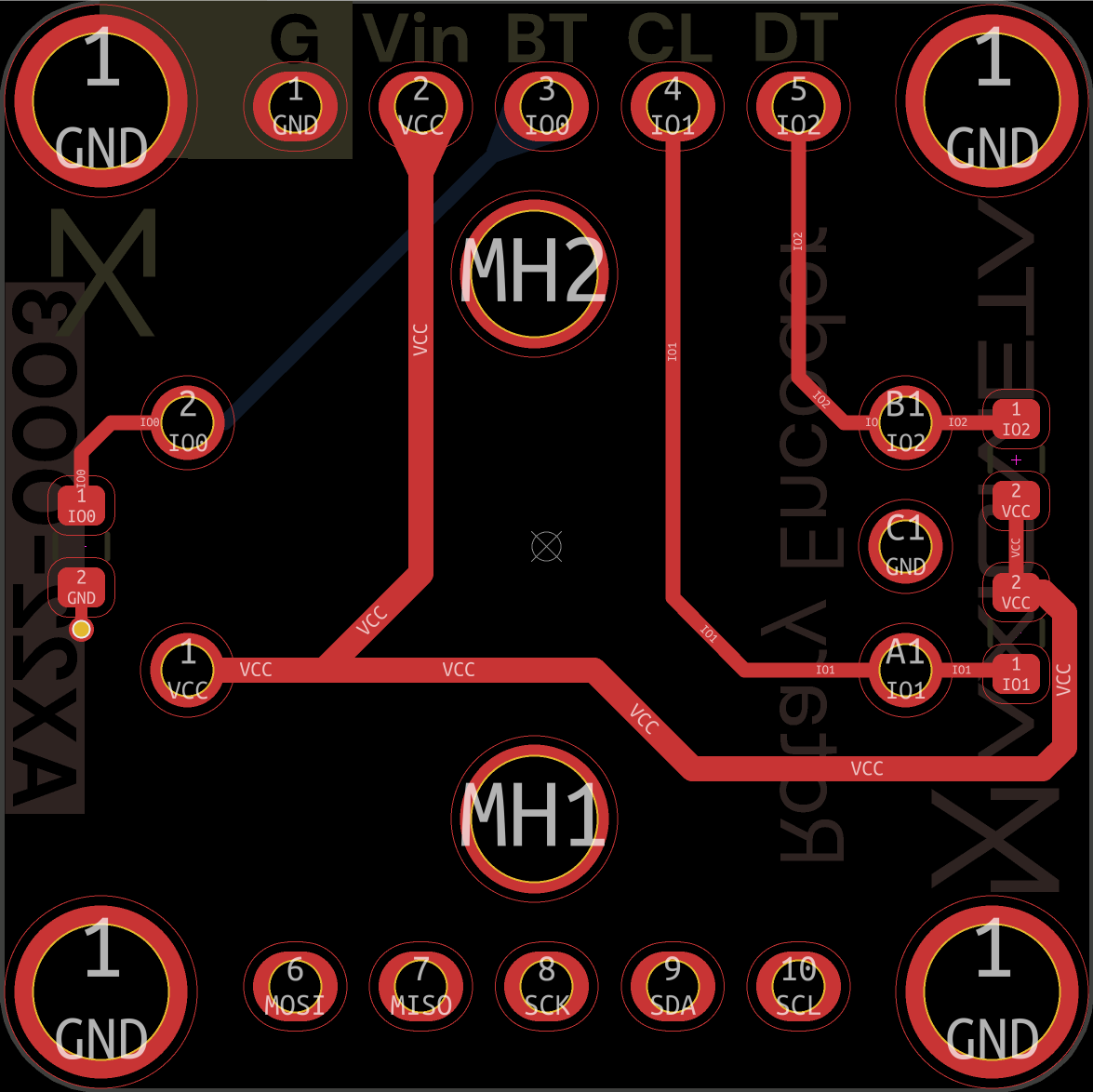

PCB FRONT

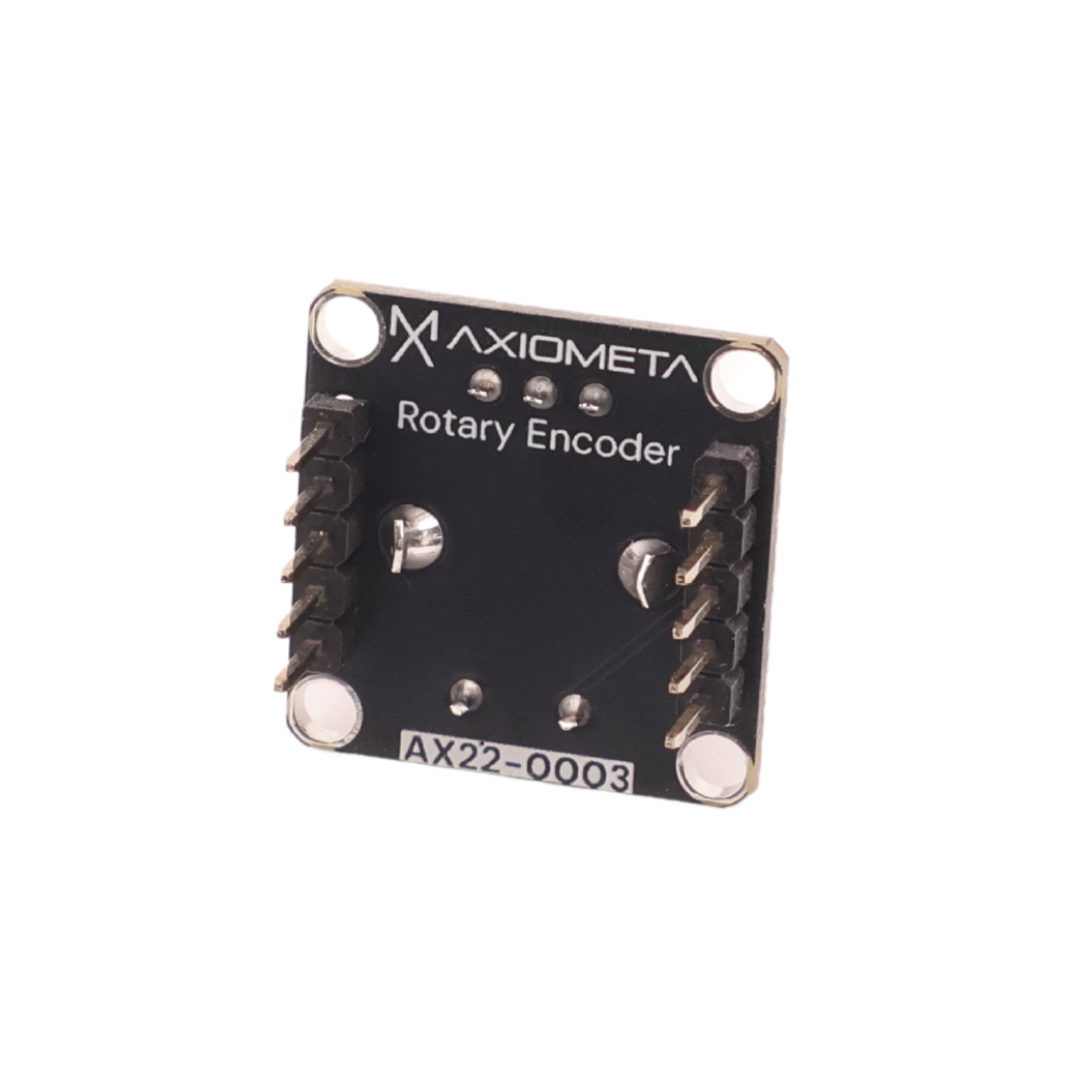

PCB BACK

🟢 Live 3D Model

🖱️ Click & drag to rotate

Arduino Example Snippet

#include <RotaryEncoder.h>

#define PIN_BT 1
#define PIN_CL 14
#define PIN_DT 41

RotaryEncoder encoder(PIN_CL, PIN_DT, RotaryEncoder::LatchMode::TWO03);

void setup() {
  Serial.begin(9600);
  pinMode(PIN_BT, INPUT);
}

void loop() {
  static int pos = 0;
  encoder.tick();

  if (digitalRead(PIN_BT) == HIGH) {
    Serial.println("Button Press");
    delay(100);
  }

  int newPos = encoder.getPosition();
  if (pos != newPos) {
    Serial.print("pos:");
    Serial.print(newPos);
    Serial.print(" dir:");
    Serial.println((int)(encoder.getDirection()));
    pos = newPos;
  }
}
