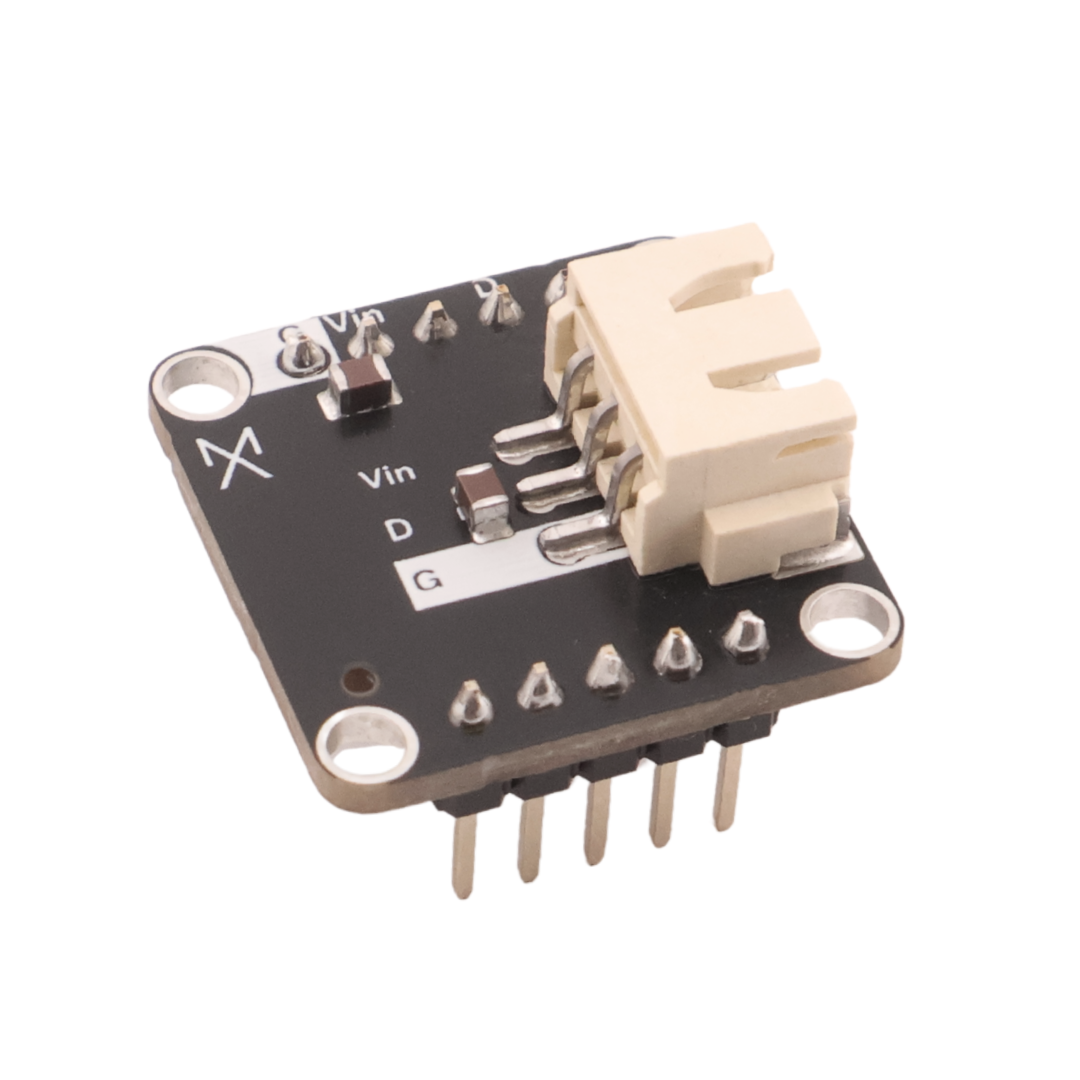

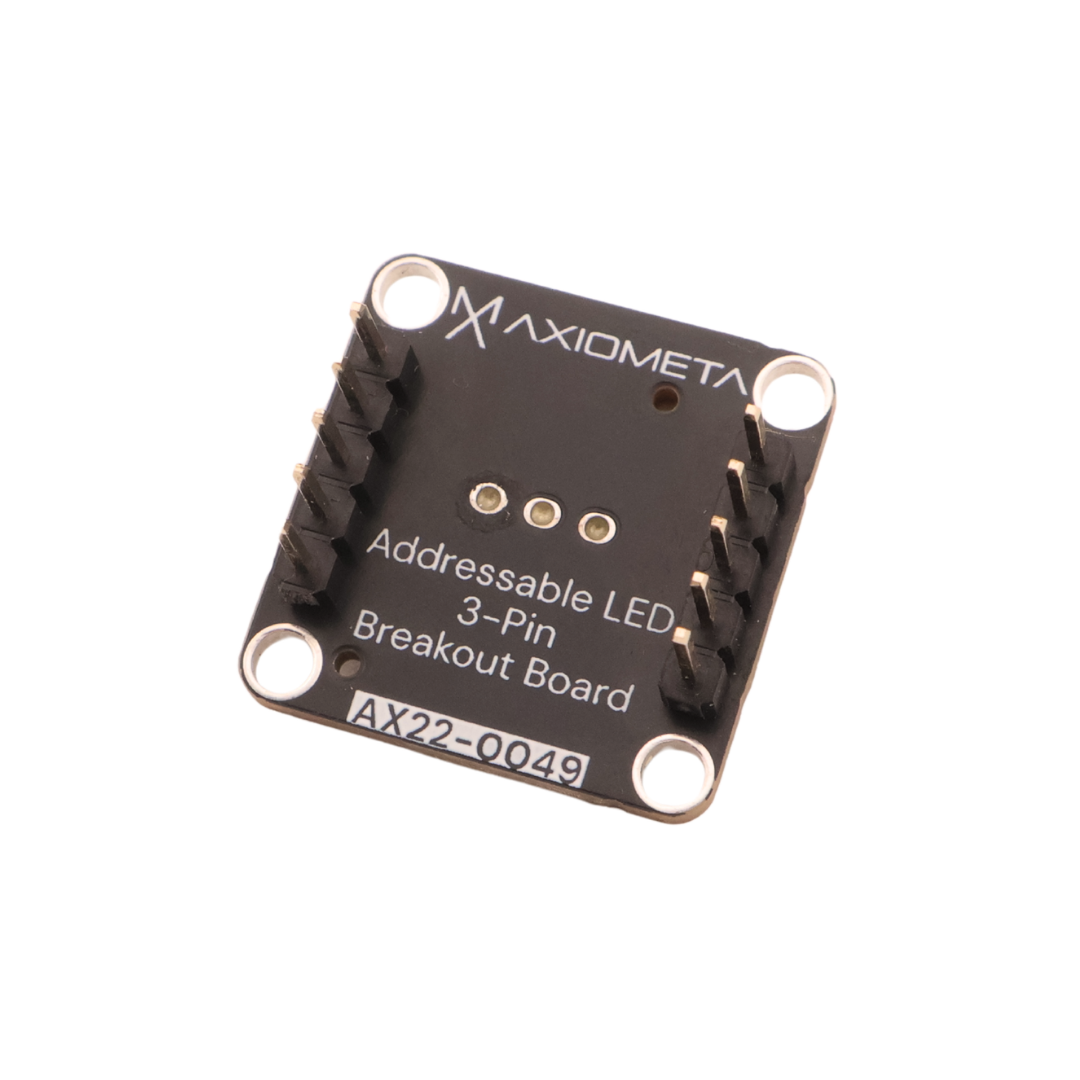

Addressable LED Adapter (3-Pin) Kit

Addressable LED Adapter (3-Pin) Kit

SKU:AX22-0049

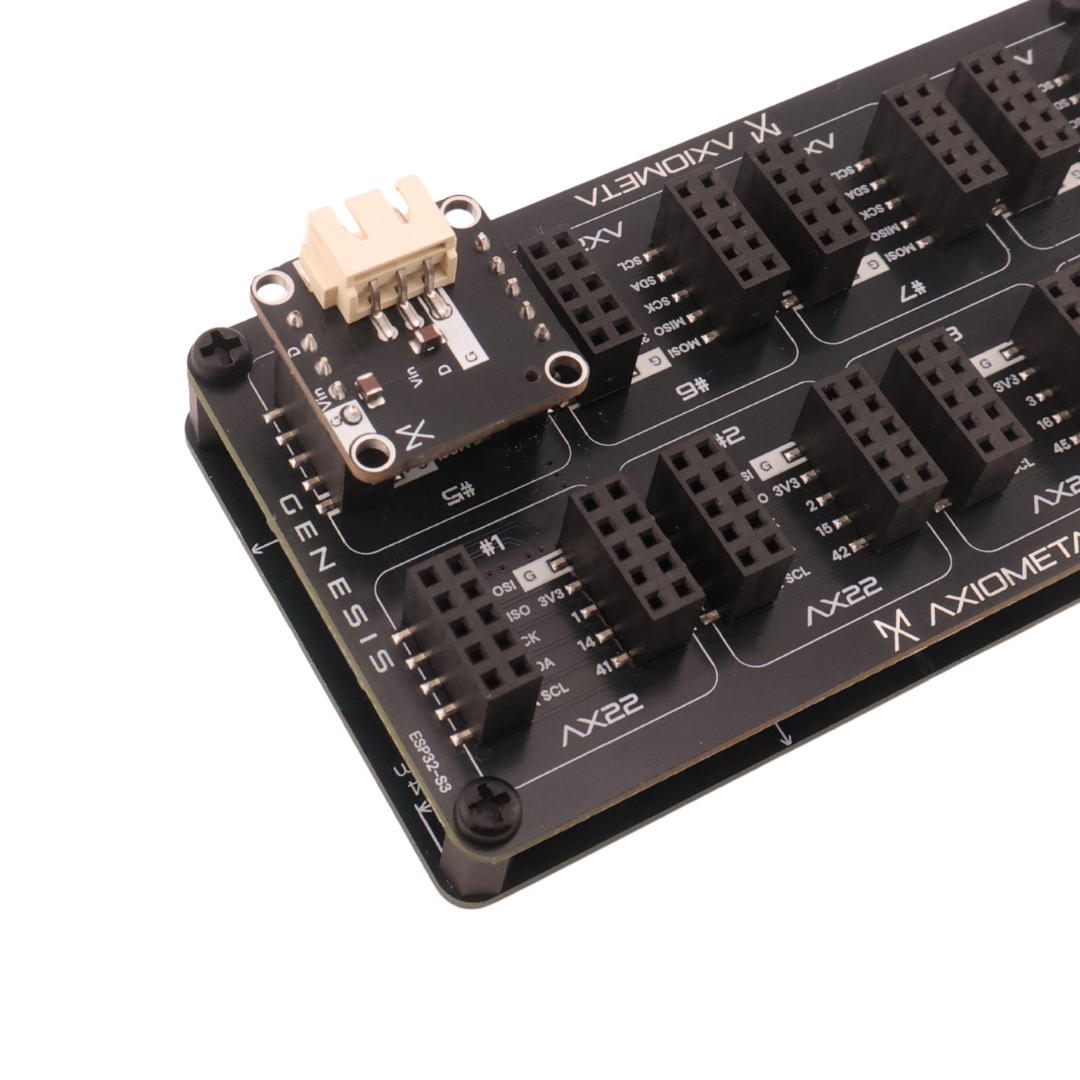

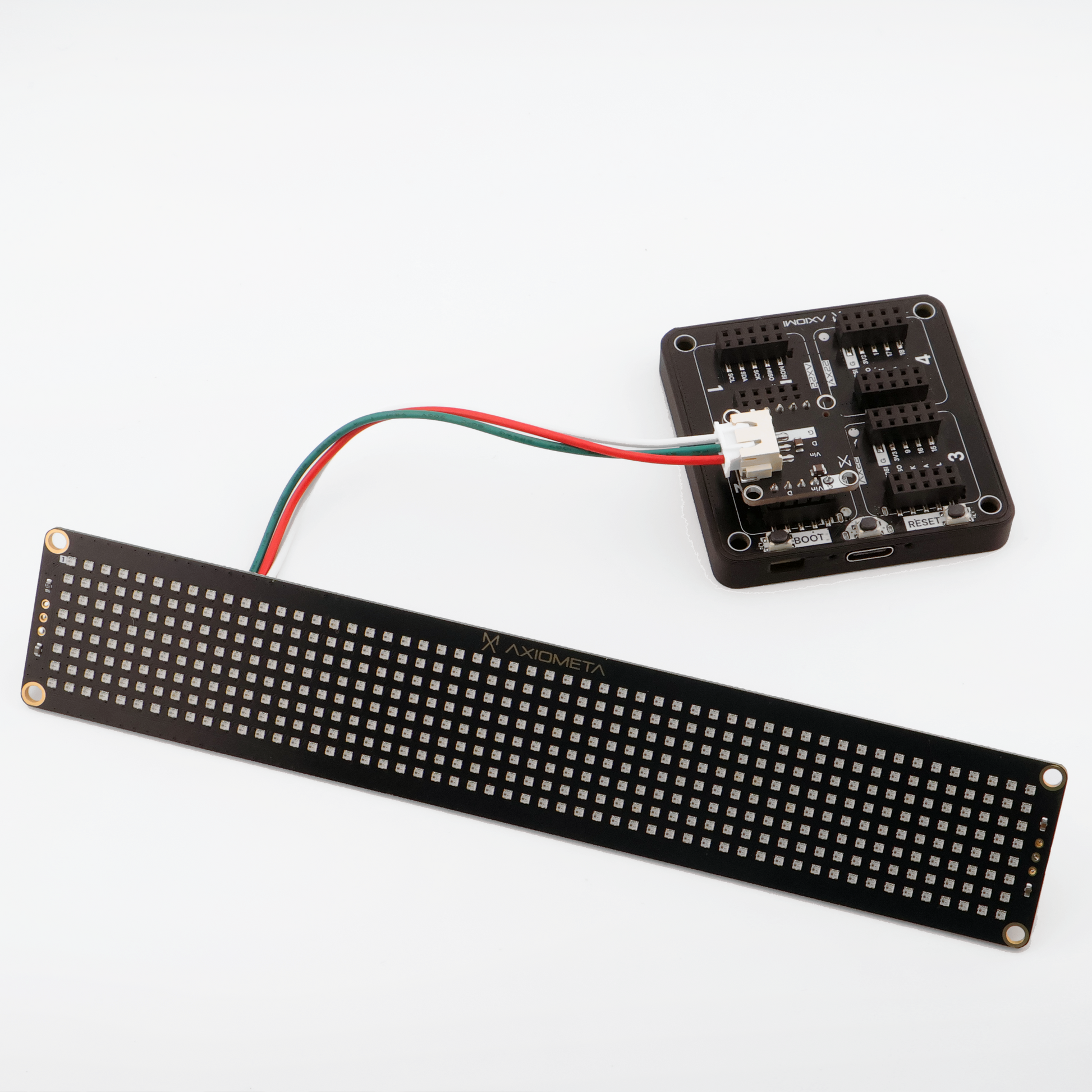

A simple bridge between AX22 and Axiometa LED display panels. Plug it into any AX22 port, connect your LED display via the onboard 3-pin connector, and you're driving pixels. Passes power and data through, no extra wiring, no level shifting needed. One adapter per display chain. Works with Arduino IDE, MicroPython, or MicroBlocks.

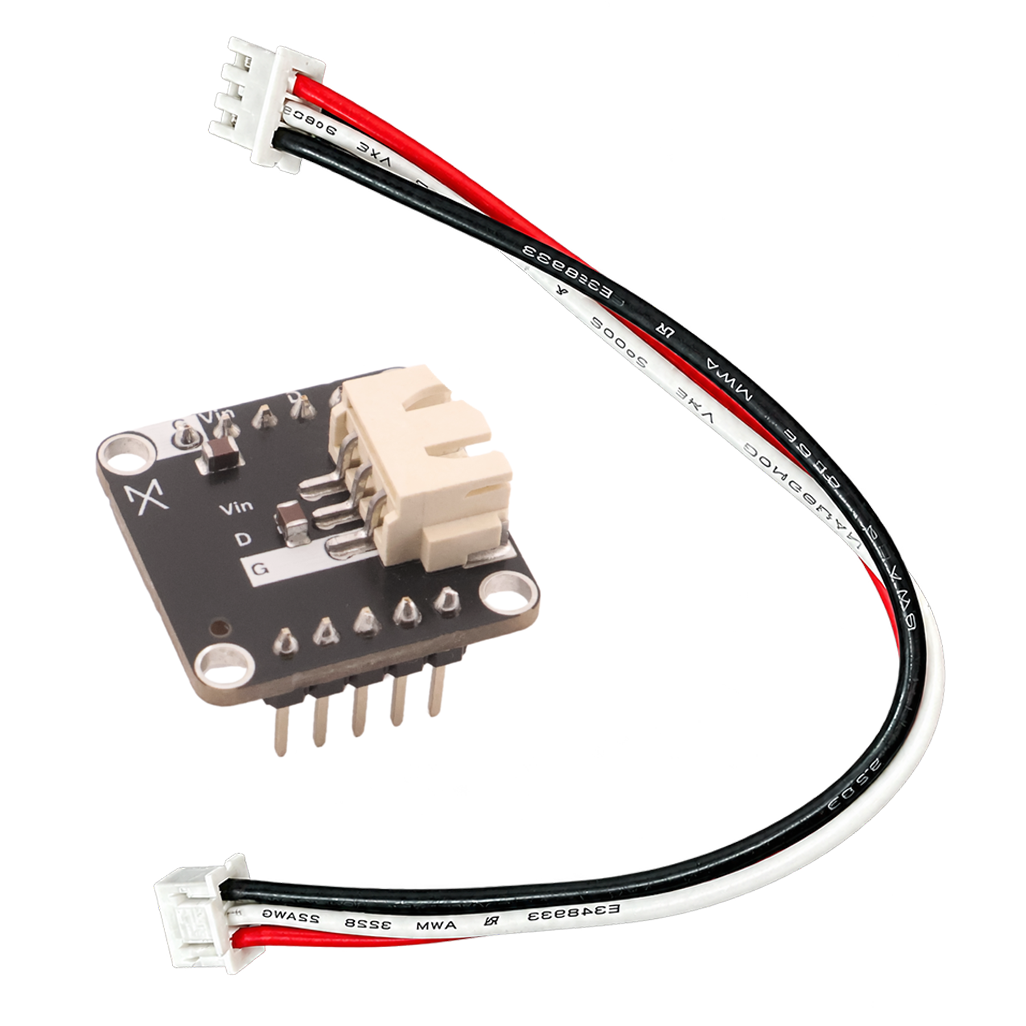

The kit comes with a single 3-pin cable that is compatible with all DISPLAYS
$6.49
$6.49
Sale Sold out
View full details

Technical details

  • 22 mm × 22 mm square
  • 4× ⌀2.7 mm Mounting Holes
  • 3-Pin Display Connector
  • Compatible with Axiometa LED Display Panels
  • 3.3 V, 5.0 V IO
  • Arduino IDE Compatible
  • MicroPython Compatible
  • MicroBlocks Compatible
Component datasheet

Drag to rotate

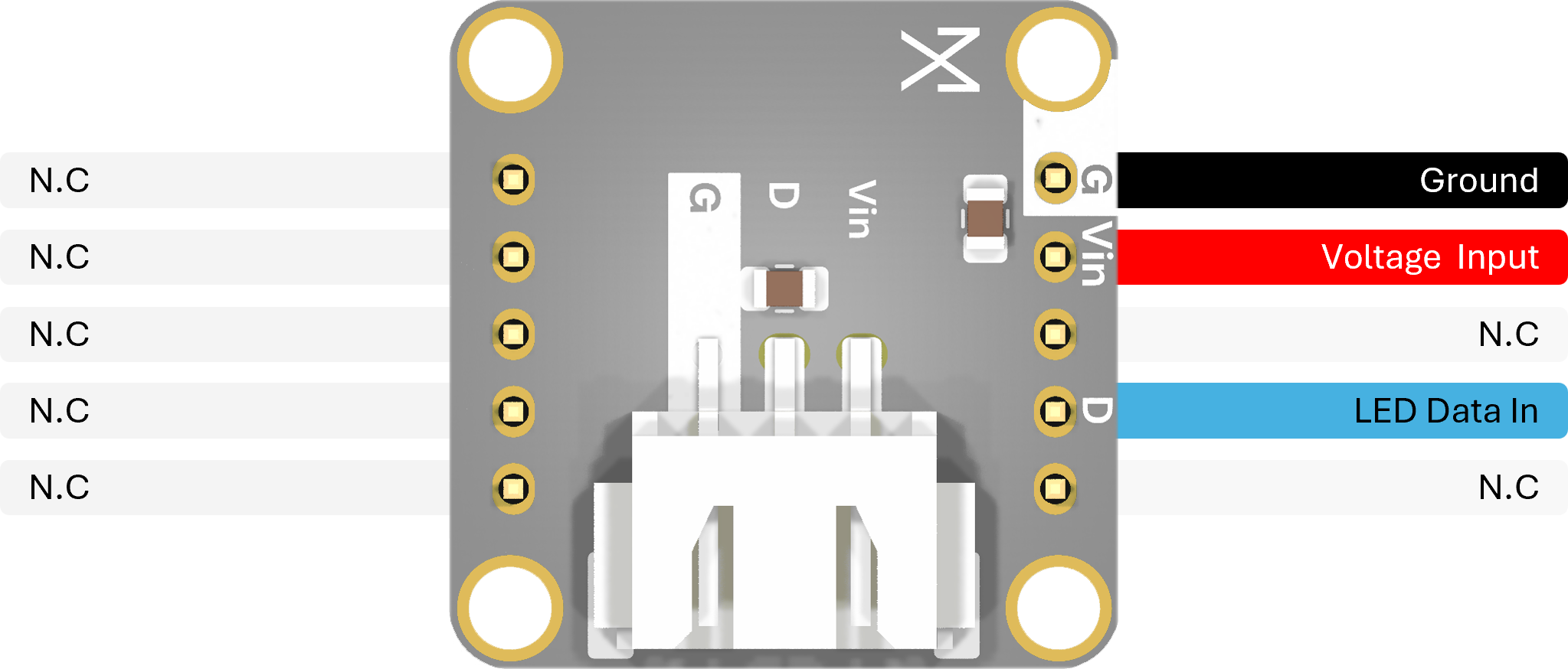

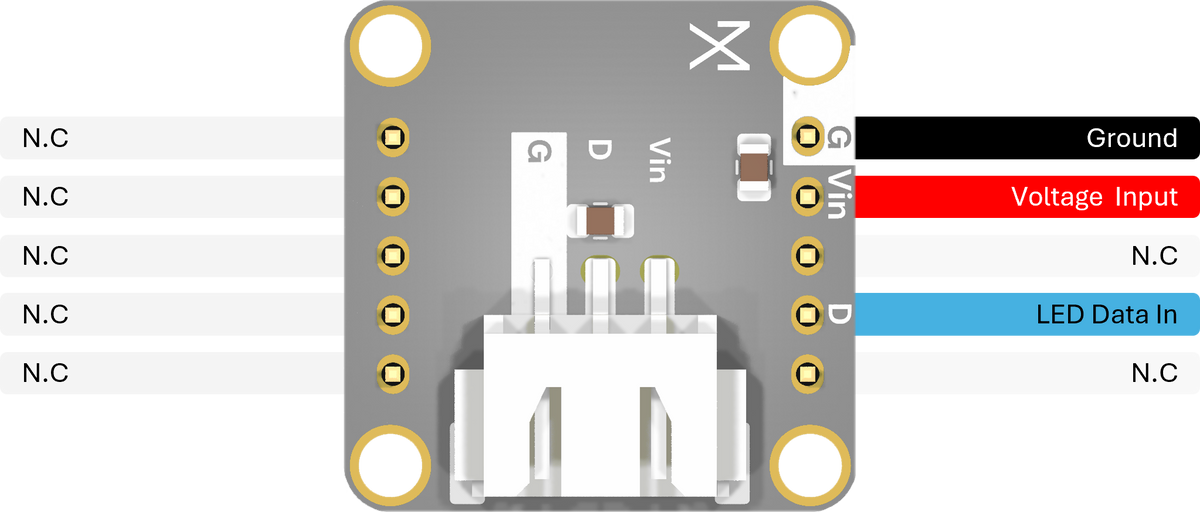

Pinout & connections

Pinout & connections

Technical Resources

Addressable LED Adapter (3-Pin) Kit - (AX22-0049)
Circuit Schematic 3D Model

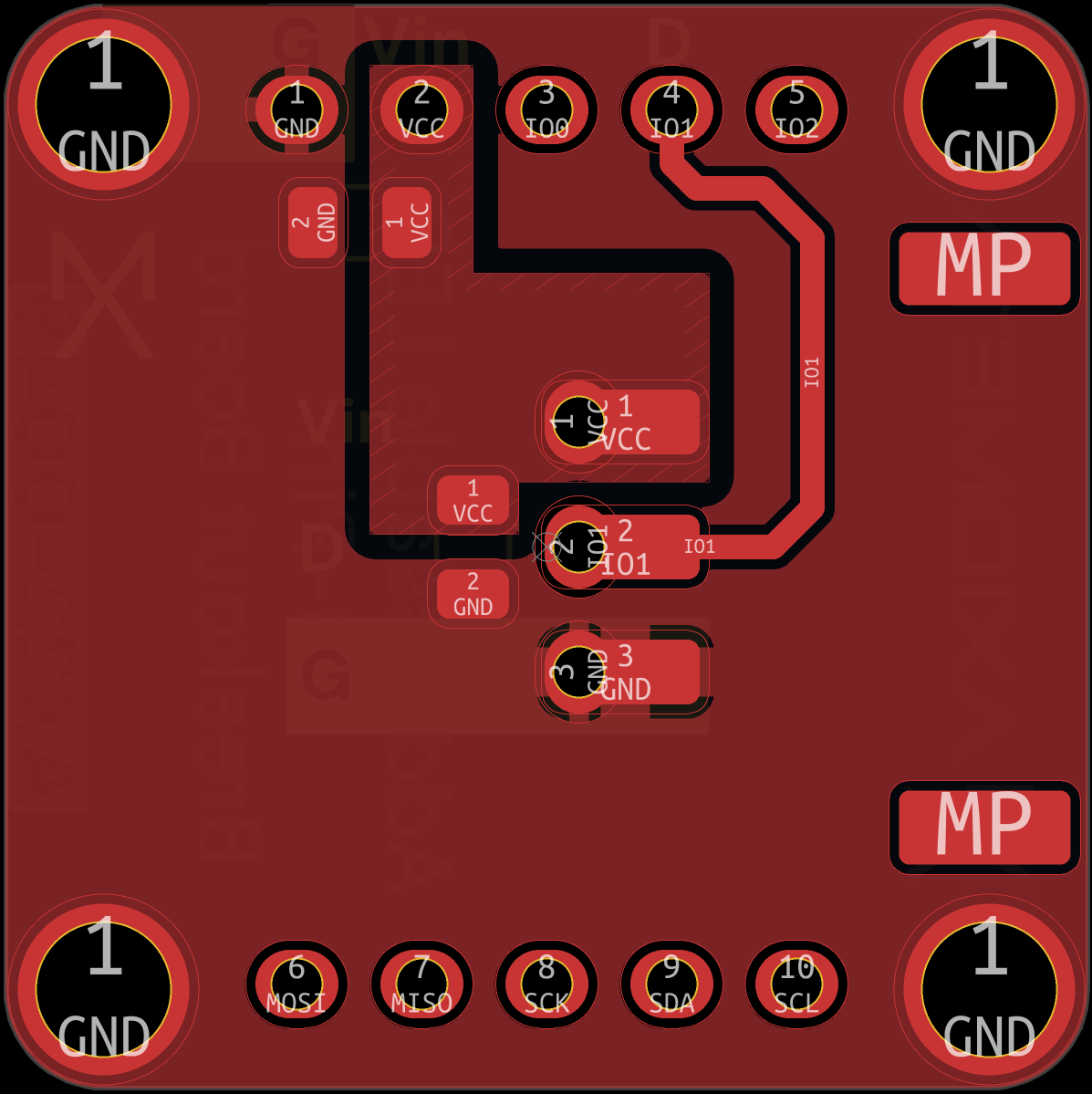

PCB FRONT
Addressable LED Adapter (3-Pin) Kit — PCB FRONT

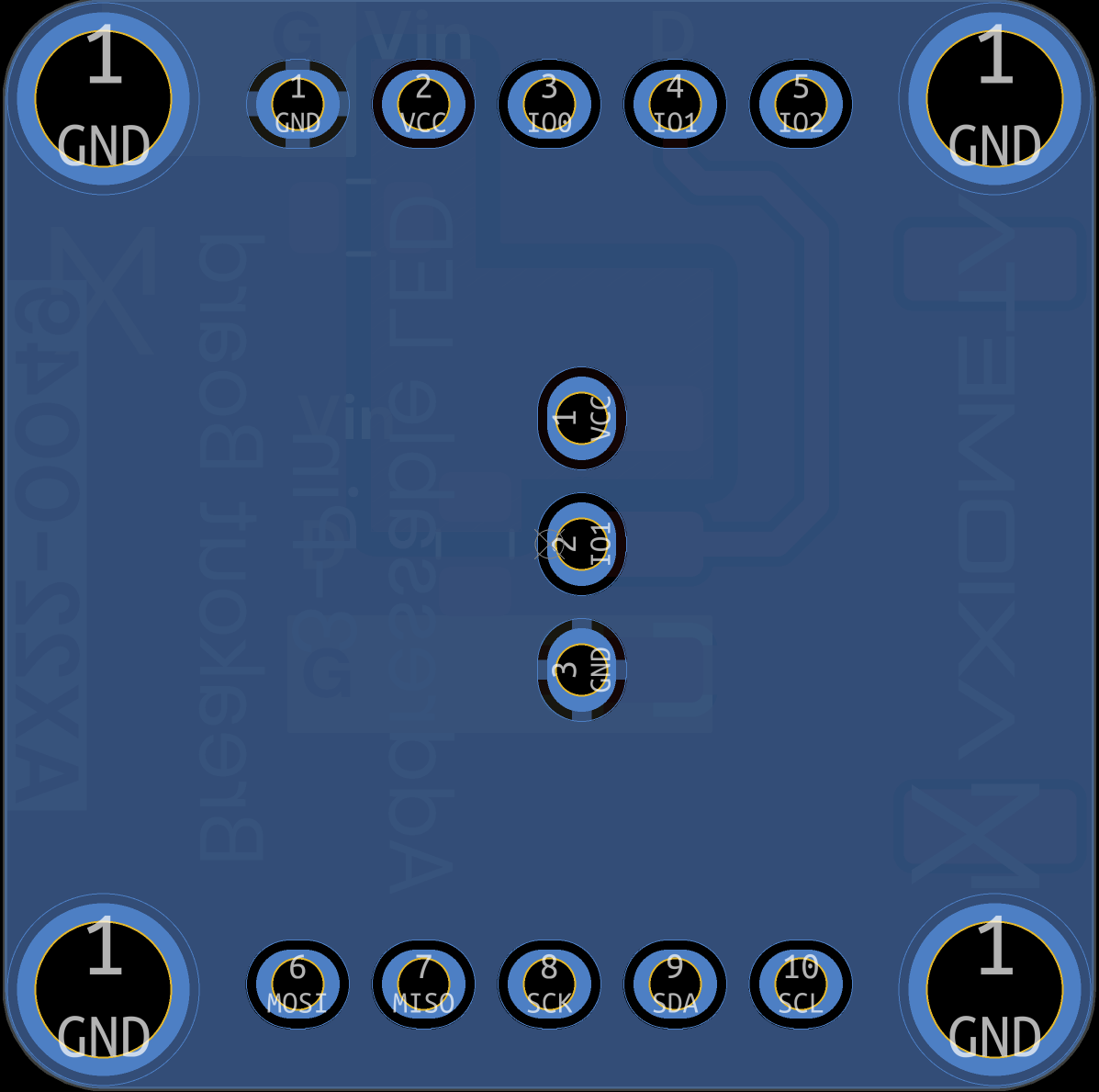

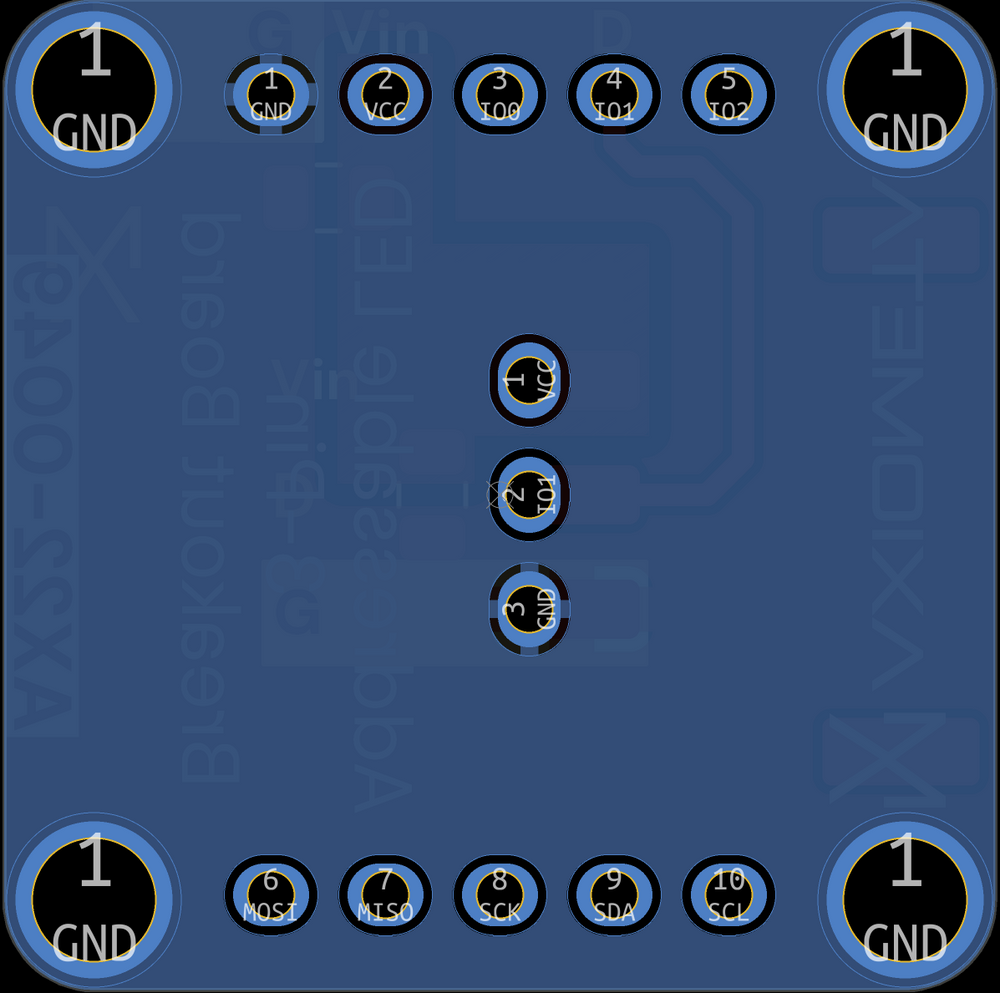

PCB BACK
Addressable LED Adapter (3-Pin) Kit — PCB BACK

Drag to rotate

Arduino example

ax22-0049.ino
No code for this adapter, check out our compatible displays
