AX22 Port Extension Kit

AX22 Port Extension Kit

AXMT-eAX22

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

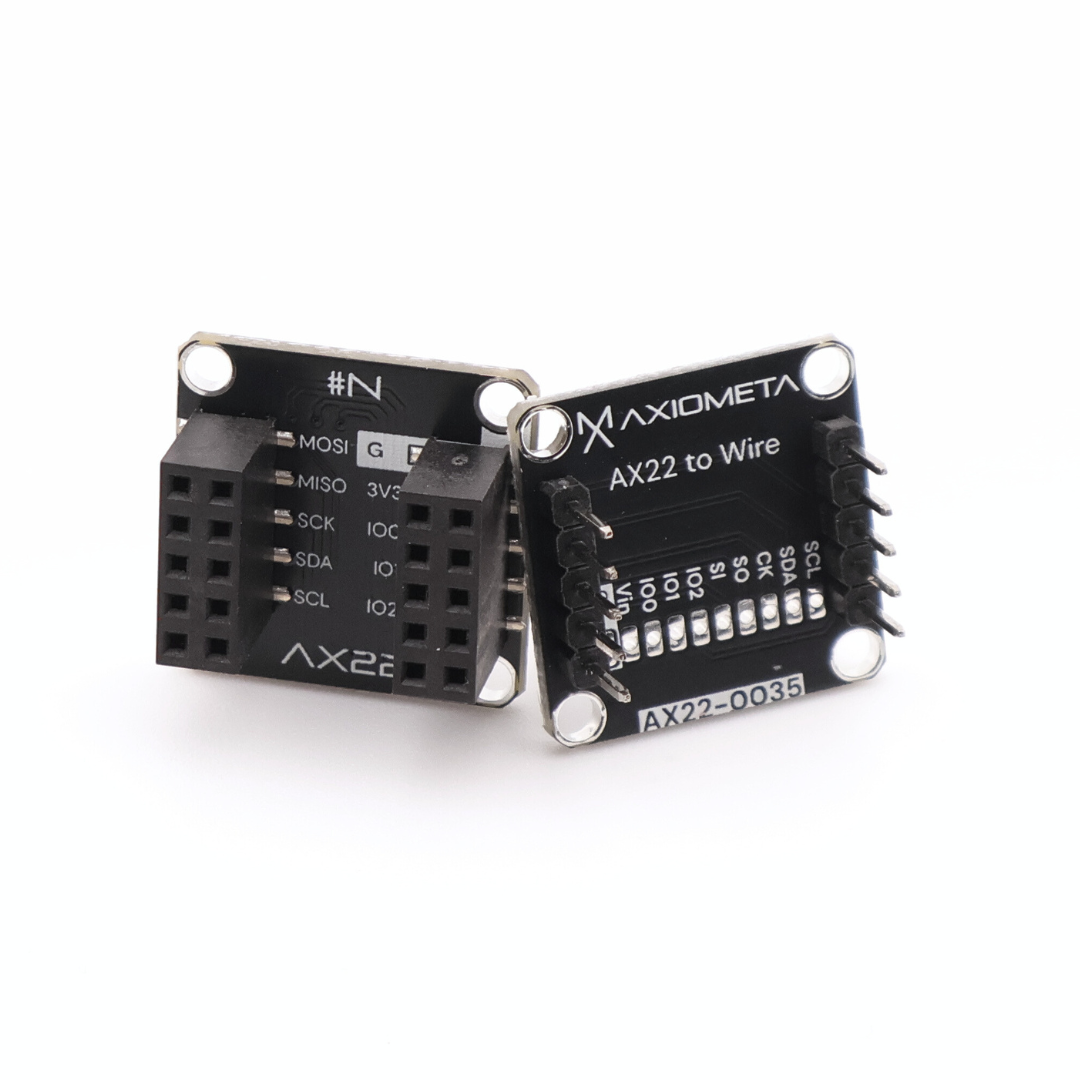

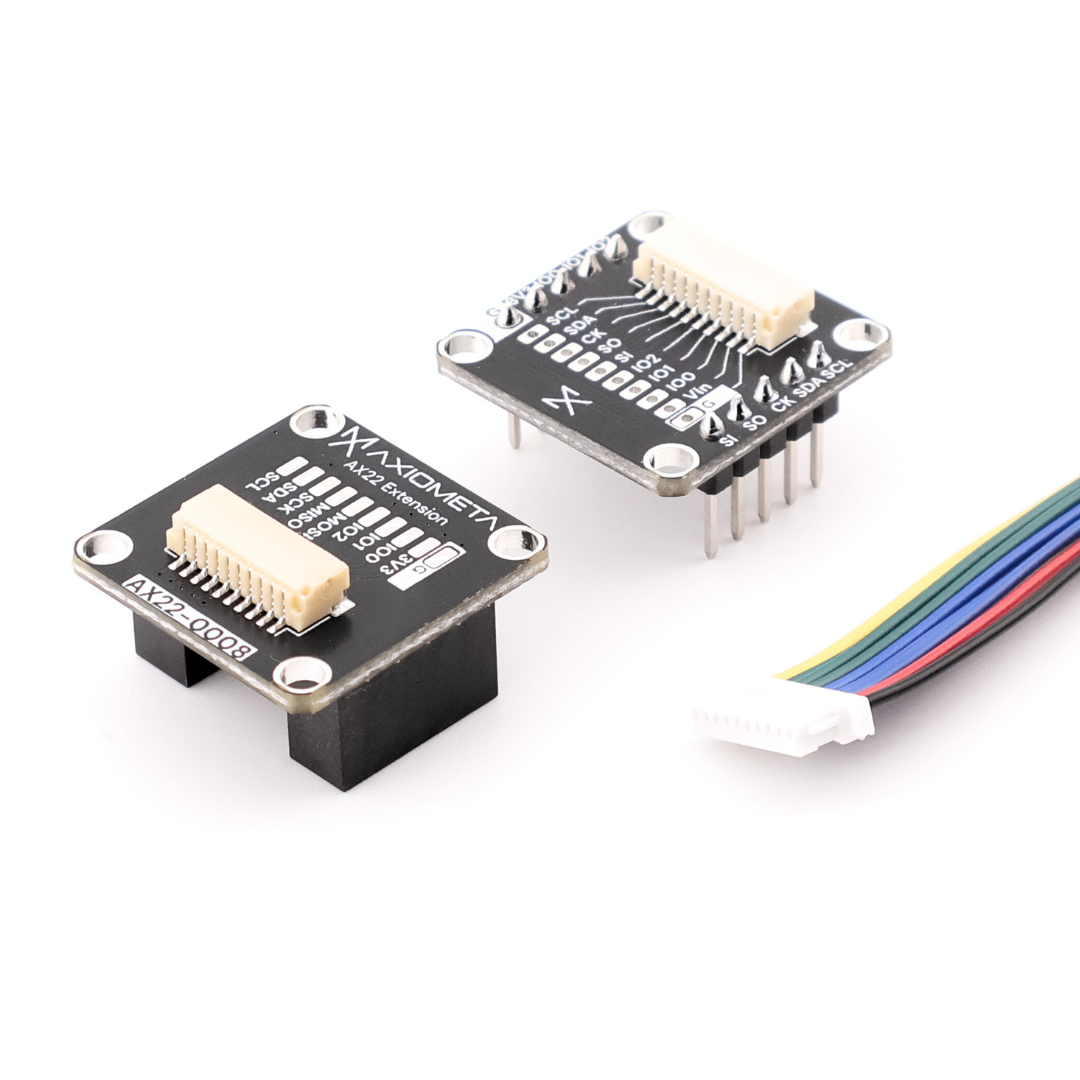

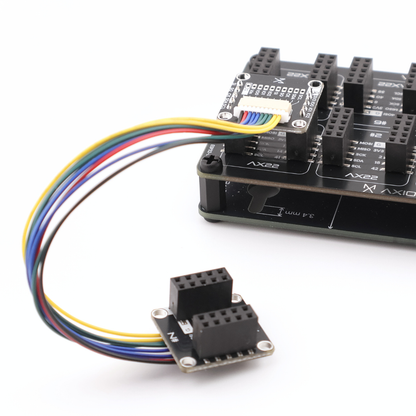

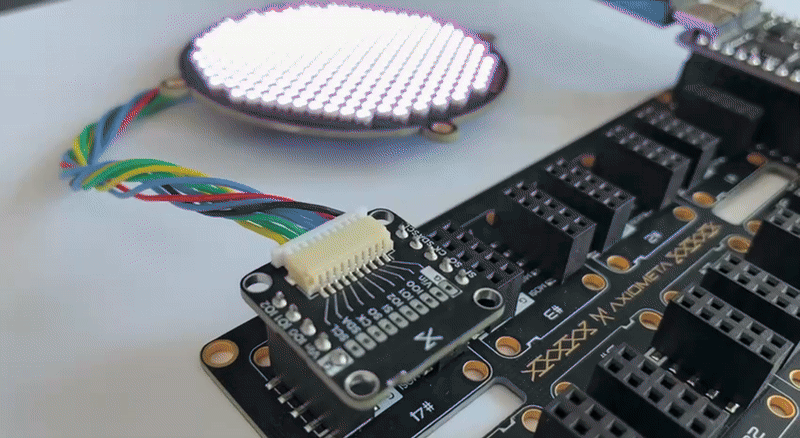

This kit lets you mount any AX22 module away from the GENESIS. One adapter plugs into your AX22 slot other accepts the module, then both connect via JST-SH 10-pin cable. Your module runs exactly as it would on-board same signals, same pinout. Useful when you need to get a sensor away from the main board, reach into a tight enclosure, or just add some flexibility to your layout. This bundle includes:

  • Port to wire AX22 Module - AX22-0035
  • Wire to Port AX22 Module - AX22-0008
  • 10-pin JST Cable
$9.99
$9.99
Sale Sold out
View full details

Technical Details

- 22 mm × 22 mm squares
- 4× ⌀2.7 mm Mounting Holes
- Pin-out matches AX22 bus
- Cable Connector 10-pin JST (1.0 mm pitch)
- Arduino IDE Compatible
- MicroPython Compatible
- MicroBlocks Compatible

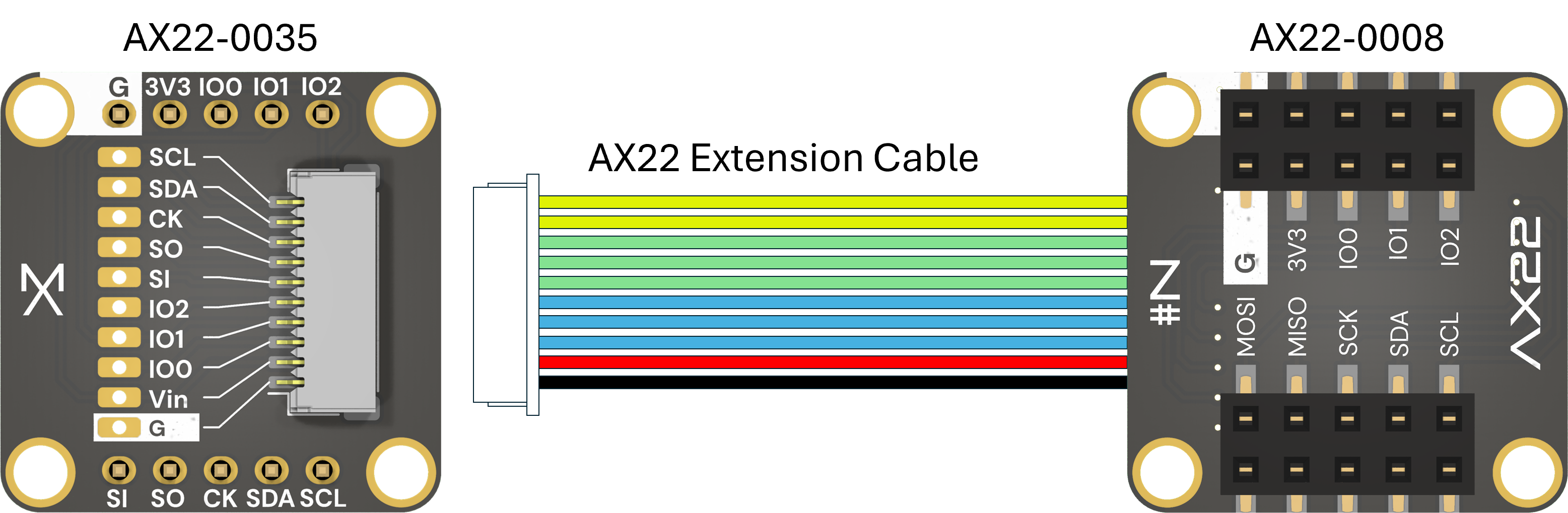

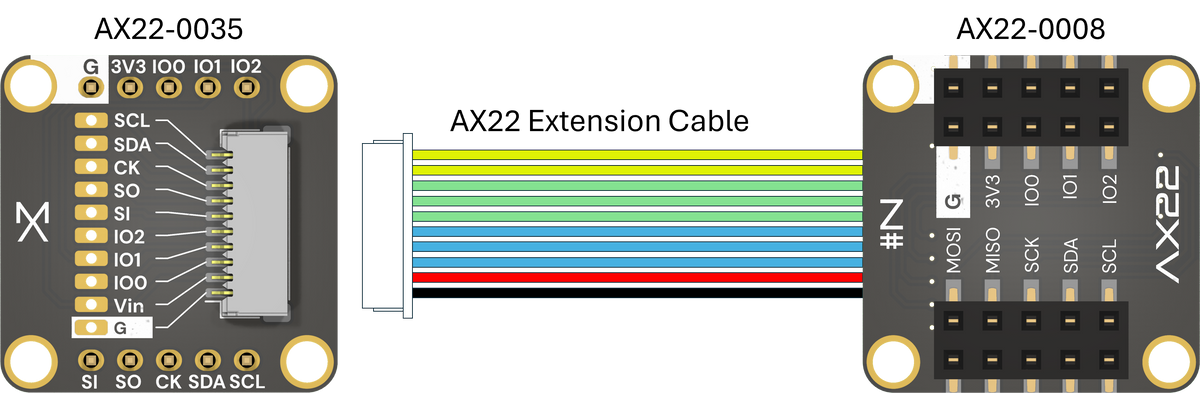

Pinout

Technical Resources

AX22 Port Extension Kit - (AXMT-eAX22)
Circuit Schematic 3D Model

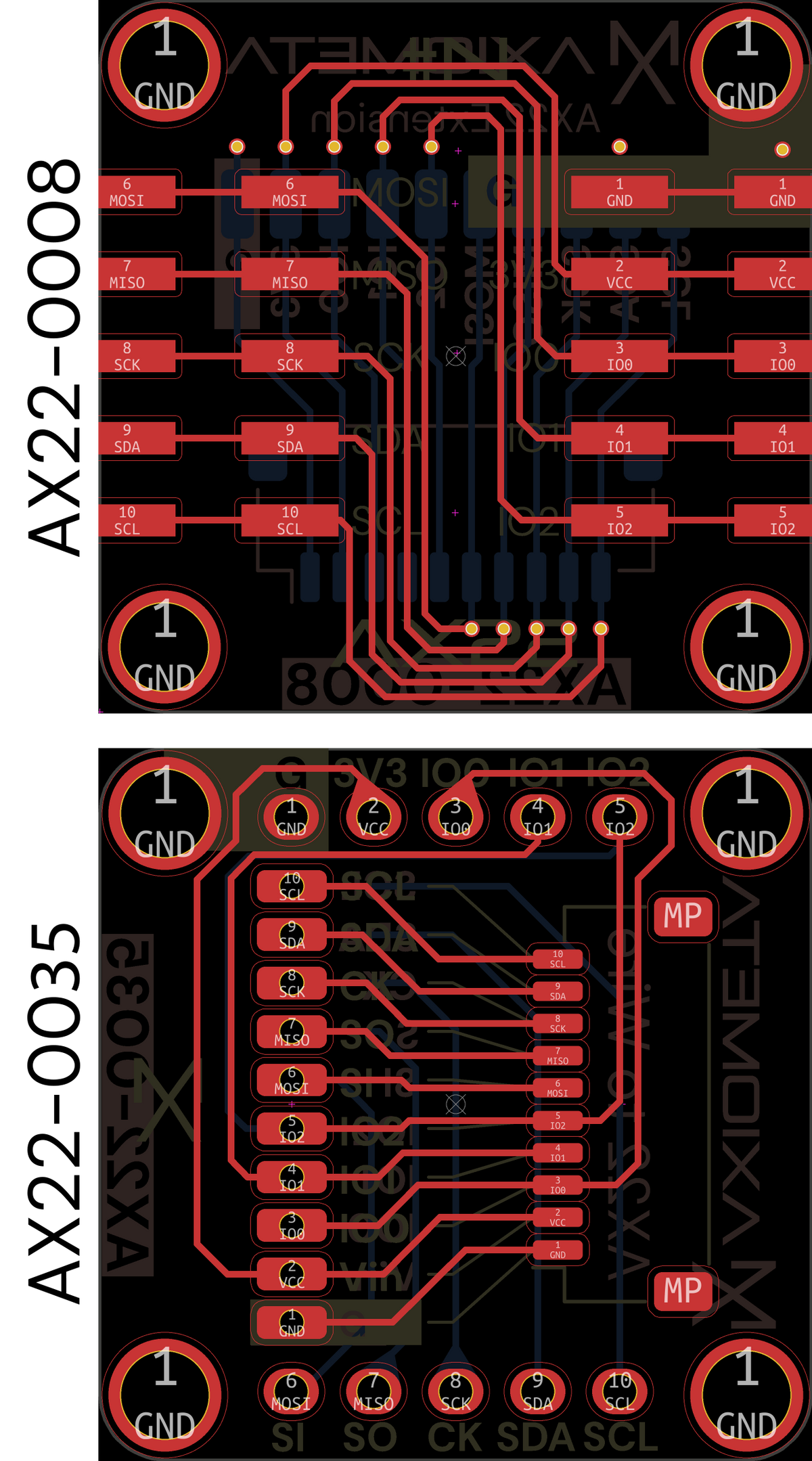

PCB FRONT

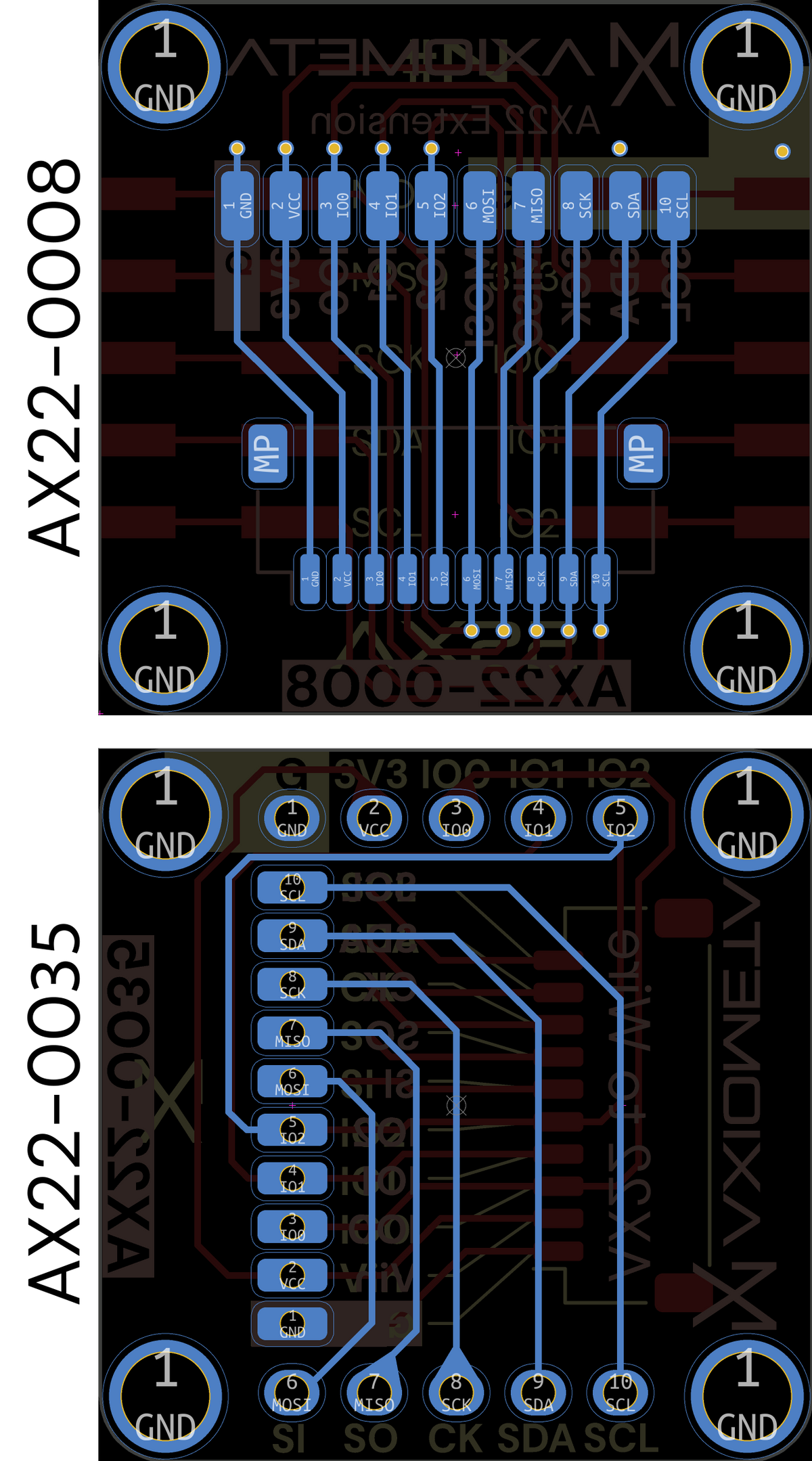

PCB BACK

🖱️ Click & drag to rotate

Arduino Example Snippet

// No Code Here
