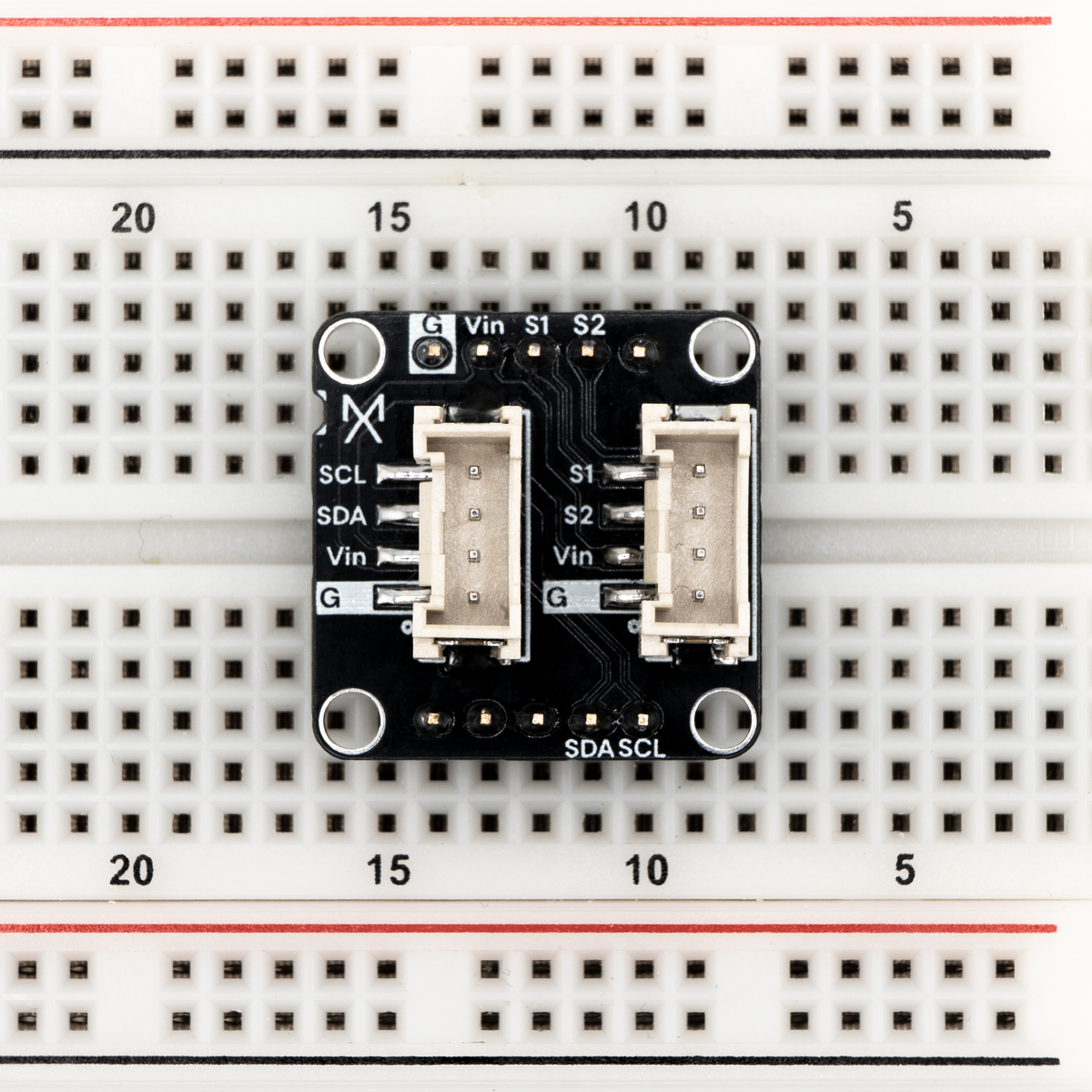

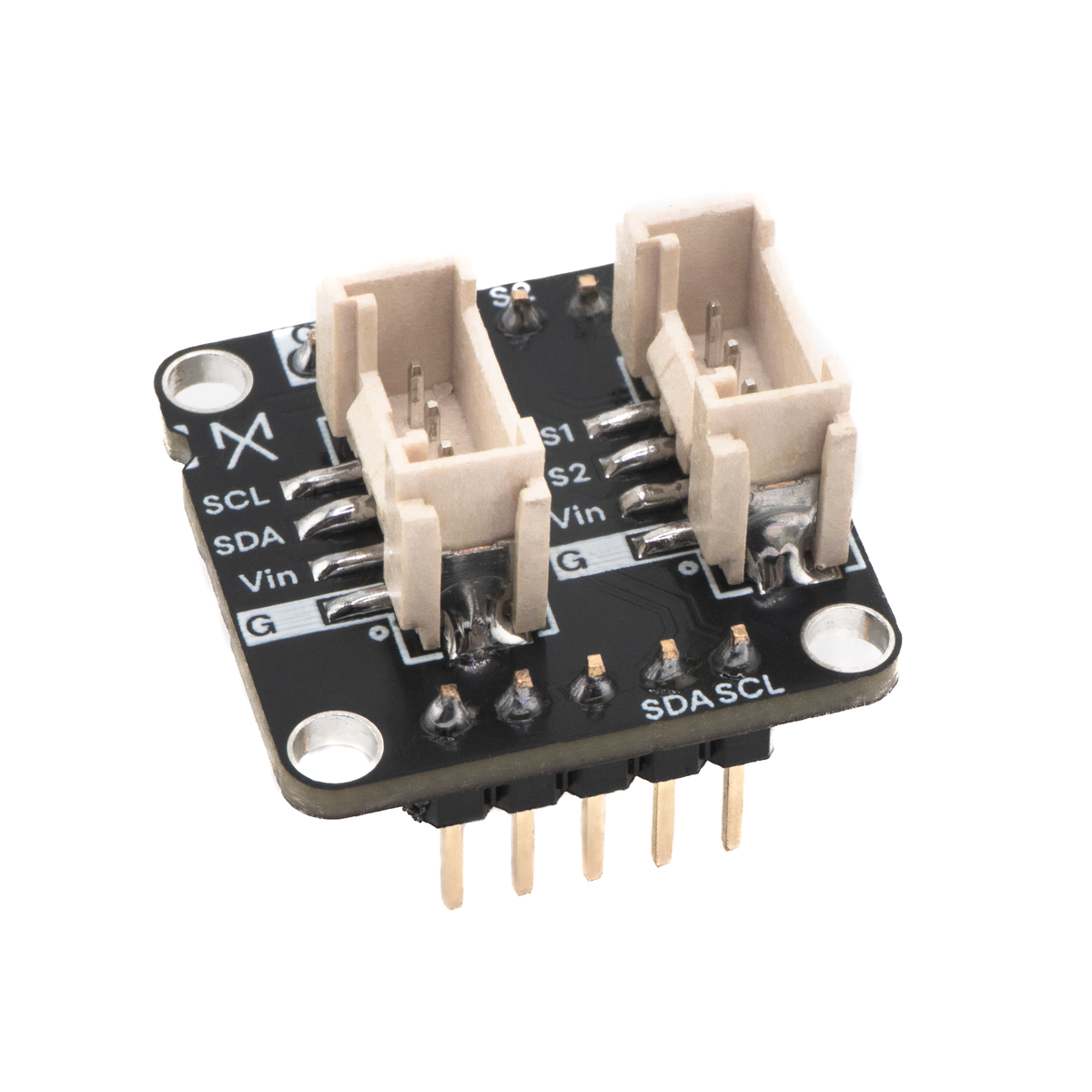

AX22 To Grove Adapter

AX22 To Grove Adapter

SKU:AX22-0046

⏳ This item is currently sold out — a new batch is on its way and will be available soon!

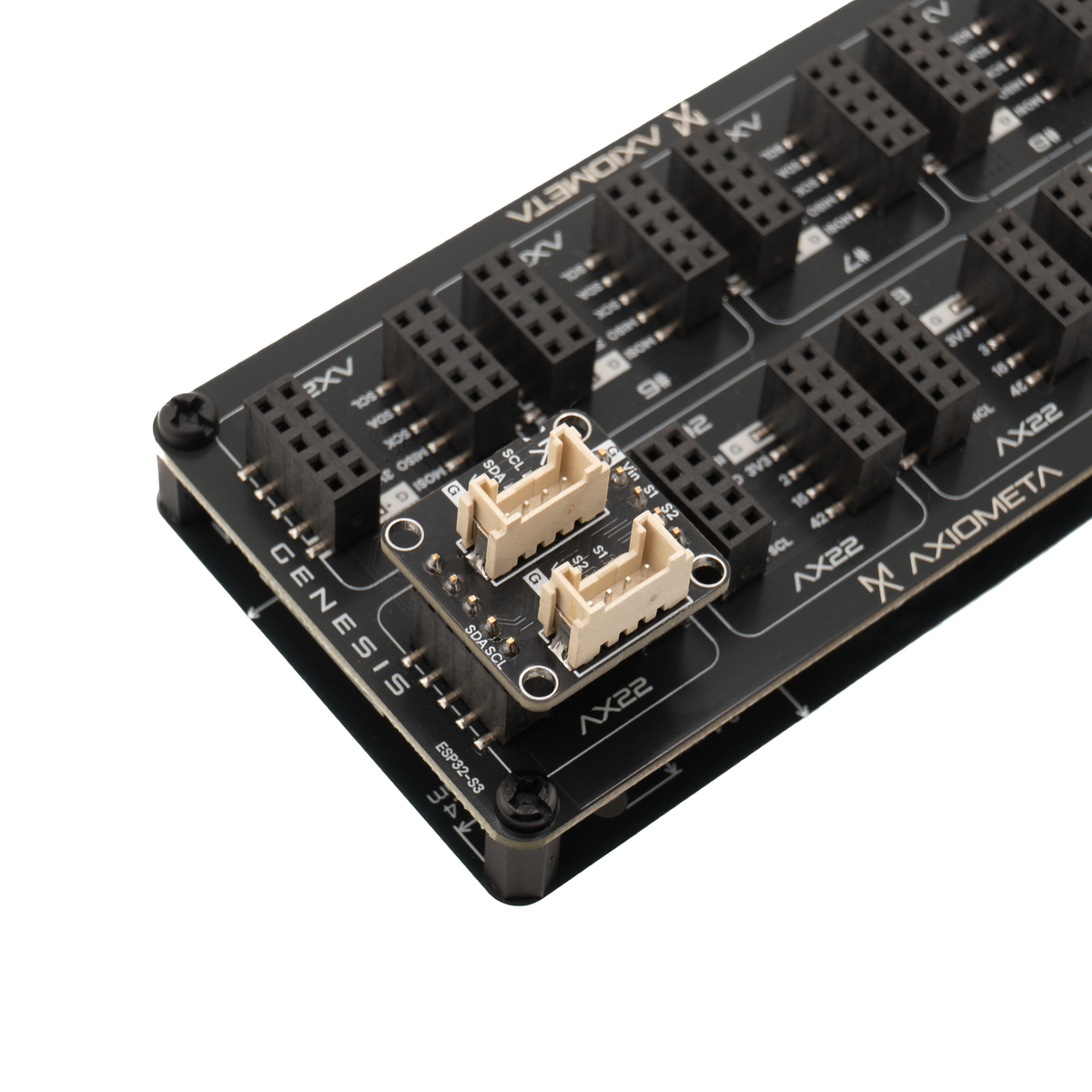

Two Grove connectors on a single AX22 footprint one I2C, one general-purpose IO/ADC/UART. Plug in any Grove-compatible sensor, display, or actuator without soldering or breadboarding. Snap it into any AX22 backplane and tap into the entire Seeed Studio Grove ecosystem.
$6.49
$6.49
Sale Sold out
View full details

Technical details

  • 22 mm × 22 mm square
  • 4× ⌀2.7 mm Mounting Holes
  • 2× Grove Connectors (1× I2C, 1× IO/ADC)
  • 3.3 V logic levels
  • Arduino IDE Compatible
  • MicroPython Compatible
  • MicroBlocks Compatible
Component datasheet

Drag to rotate

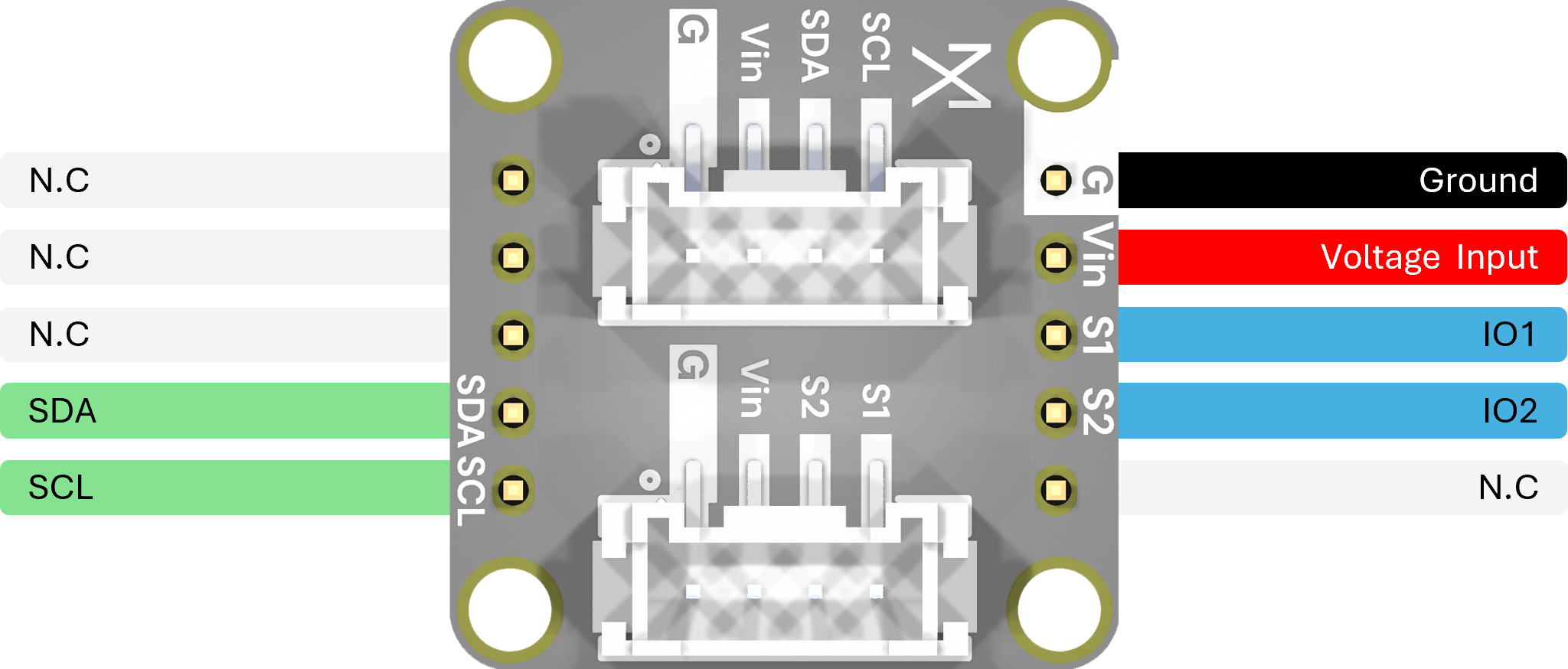

Pinout & connections

Pinout & connections

Technical Resources

AX22 To Grove Adapter - (AX22-0046)
Circuit Schematic 3D Model

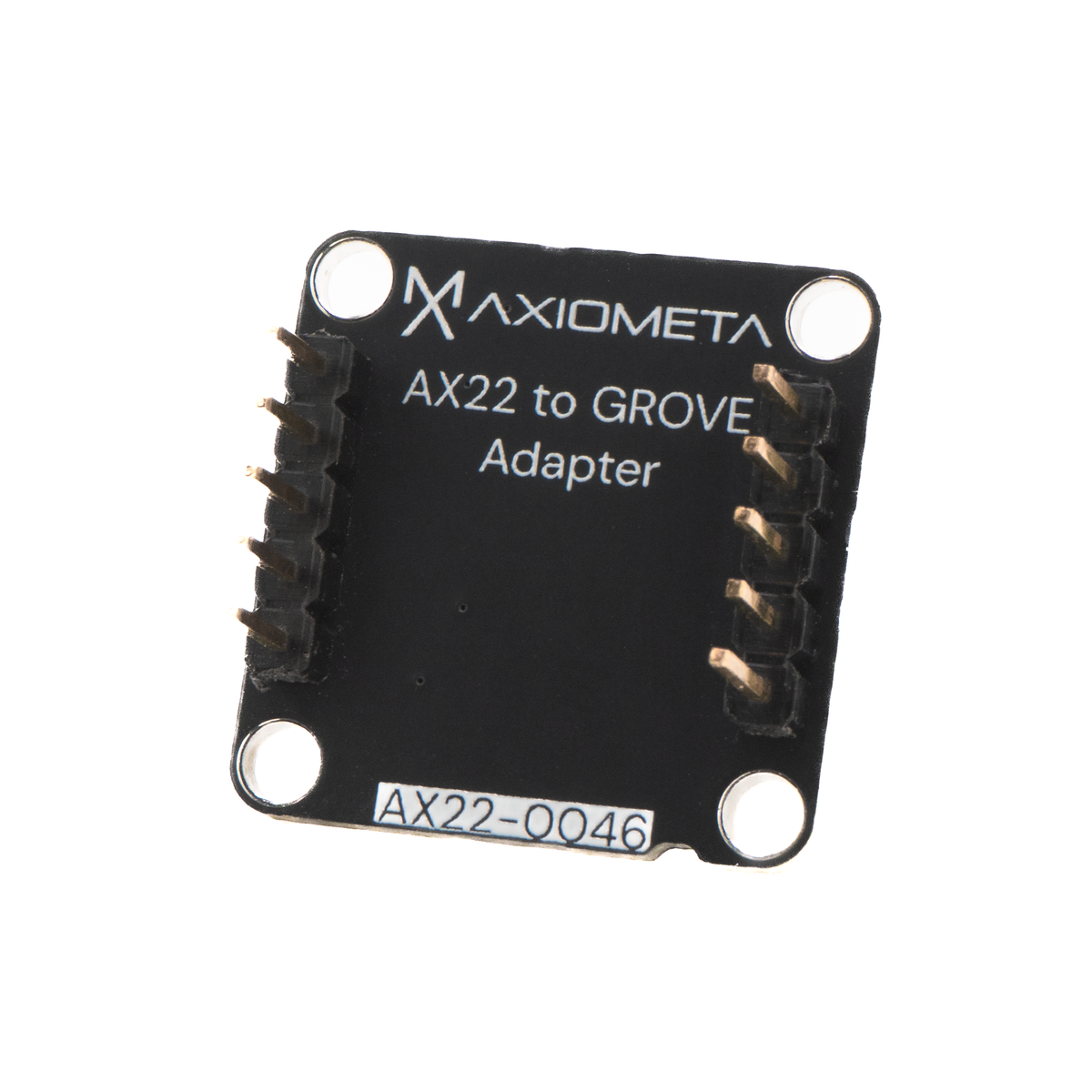

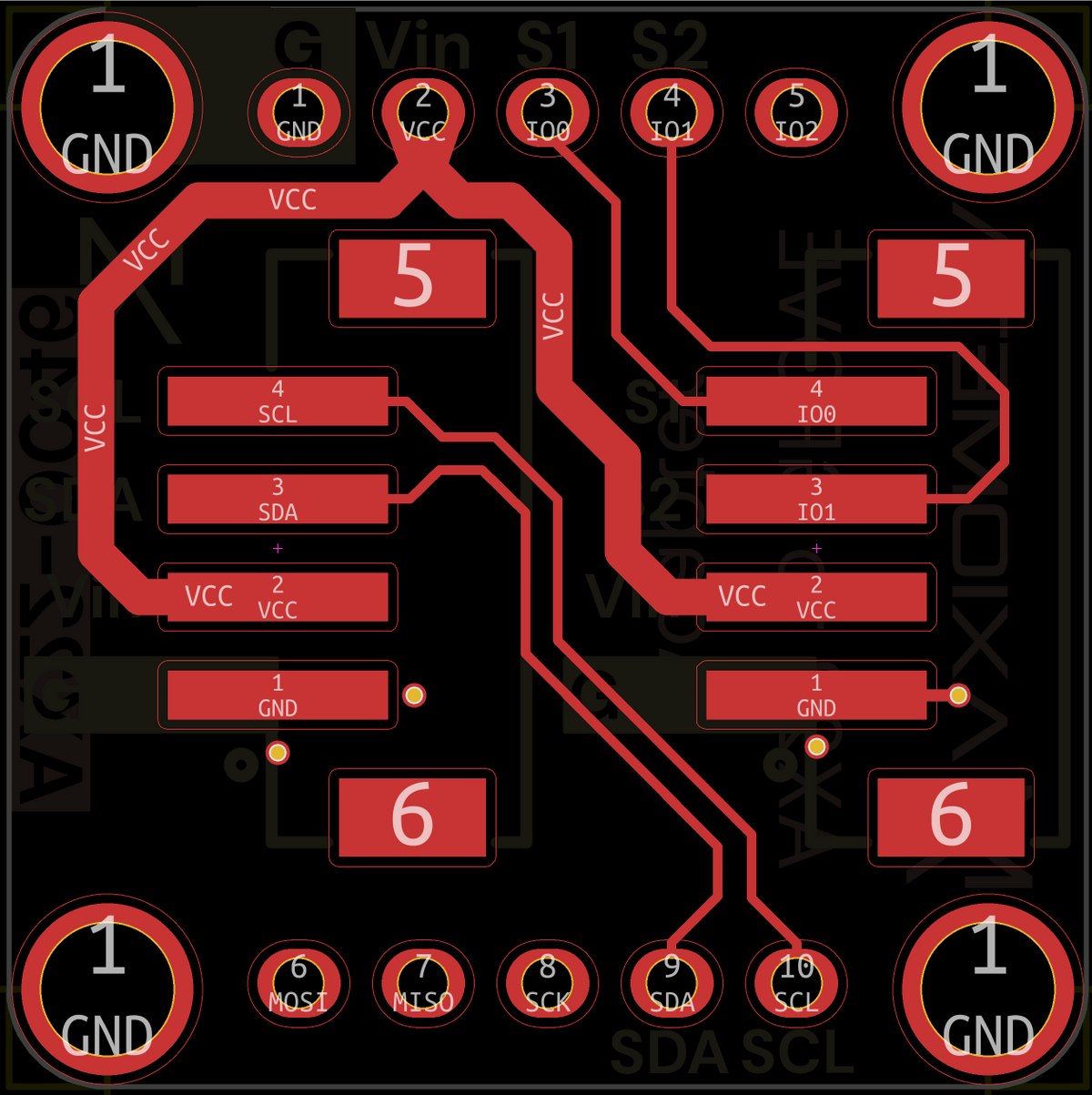

PCB FRONT
AX22 To Grove Adapter — PCB FRONT

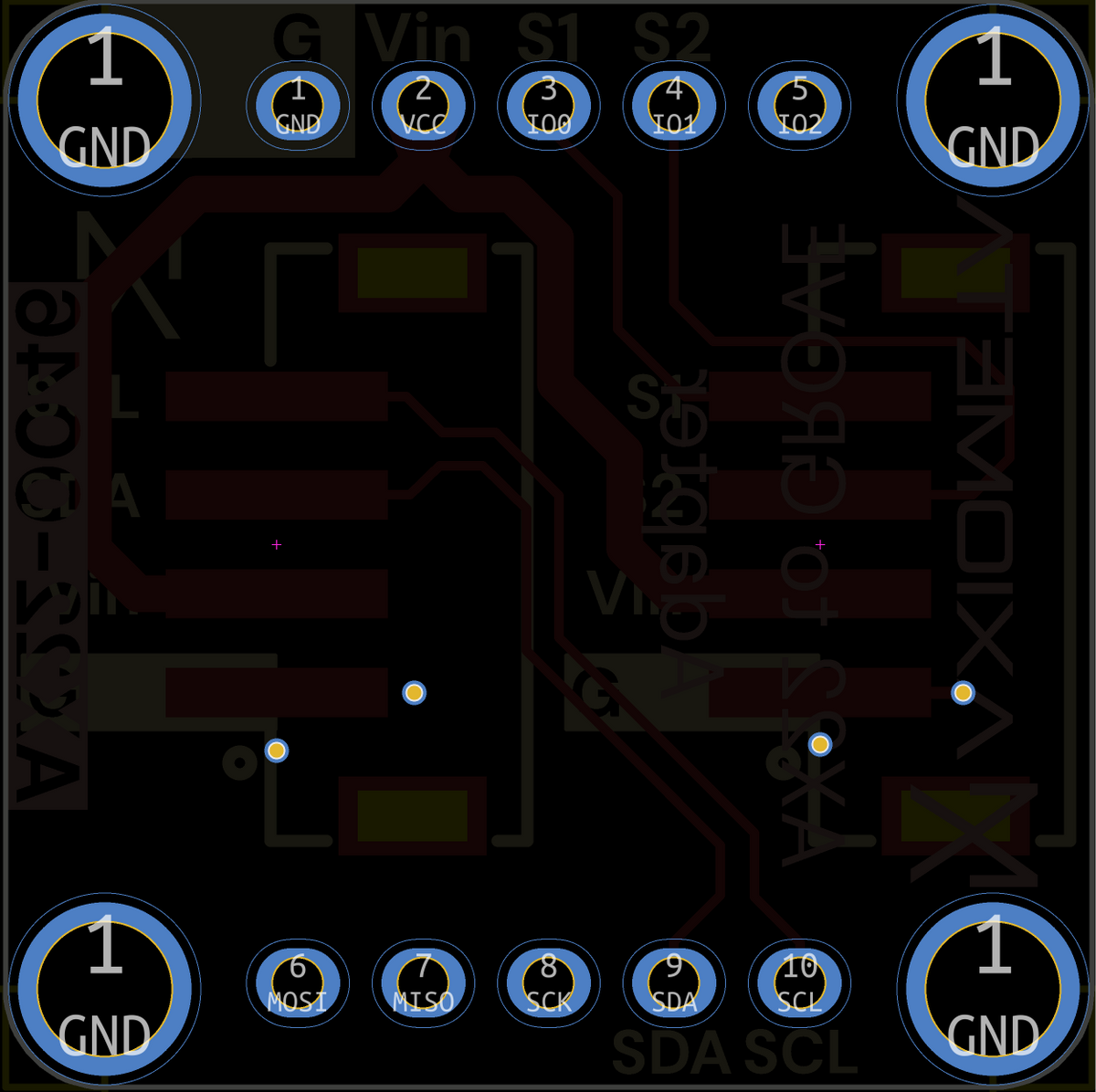

PCB BACK
AX22 To Grove Adapter — PCB BACK

Drag to rotate

Arduino example

ax22-0046.ino
//No code is needed for this adapter
