Empty Module (Perf Board)

Empty Module (Perf Board)

SKU:AX22-0002

Regular price $1.99
Regular price Sale price $1.99
Sale Sold out
Taxes included. Shipping calculated at checkout.

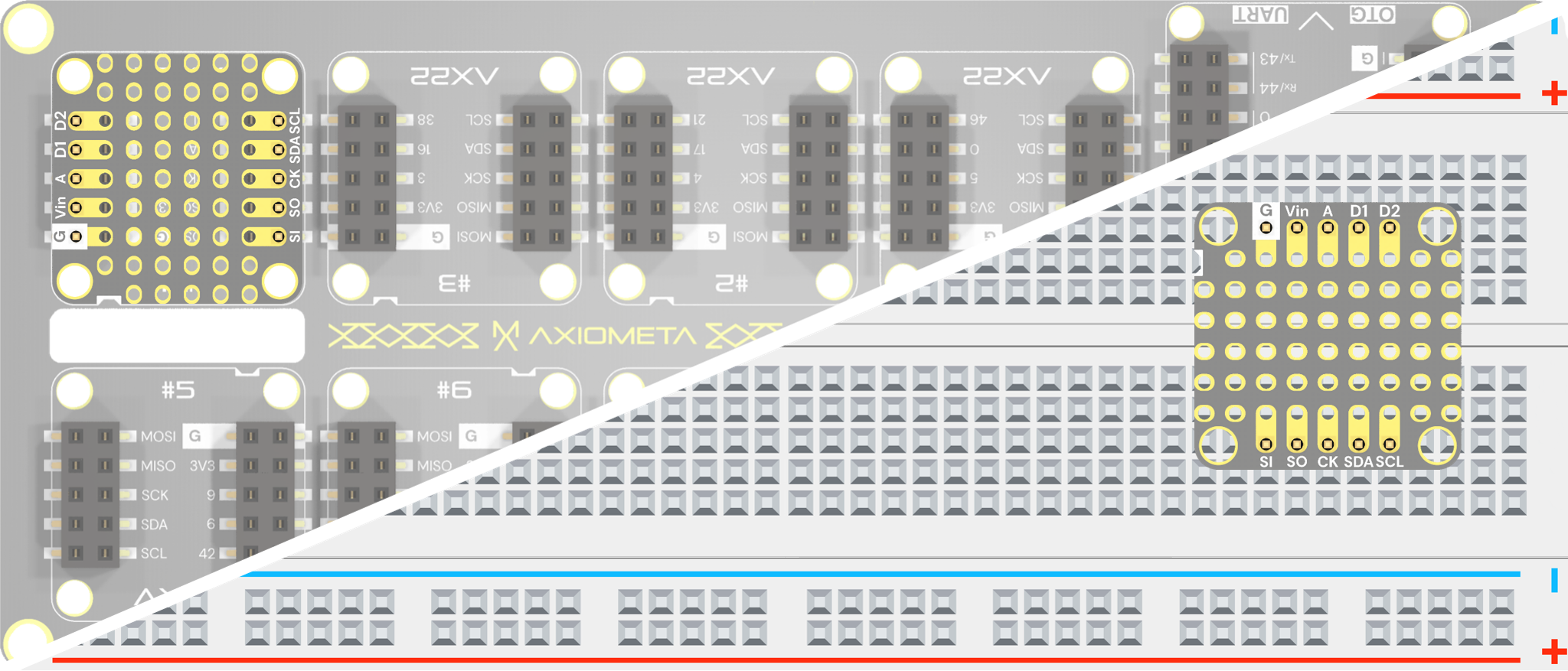

This AX22-sized blank perf-board module gives you a pristine 22 × 22 mm canvas for one-off circuits and quick prototypes. The through-hole grid is pre-tinned and matches the pin pitch of standard headers, sensors, and discrete components, so you can drop in resistors, LEDs, whatever your project needs. It clicks straight into any AX22 carrier or backplane, letting you add custom logic, filters, level shifters, or quirky art circuits right alongside off-the-shelf AX22 boards. Perfect for rapid experiments, last-minute fixes, or bespoke features when no ready-made module quite fits the bill.
View full details
  • Technical Details

    This is an empty perf board with matching pinout of an AX22 Port
    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 1.8 V, 3.3 V, 5.0 V
    - AX22 Port Compatible
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

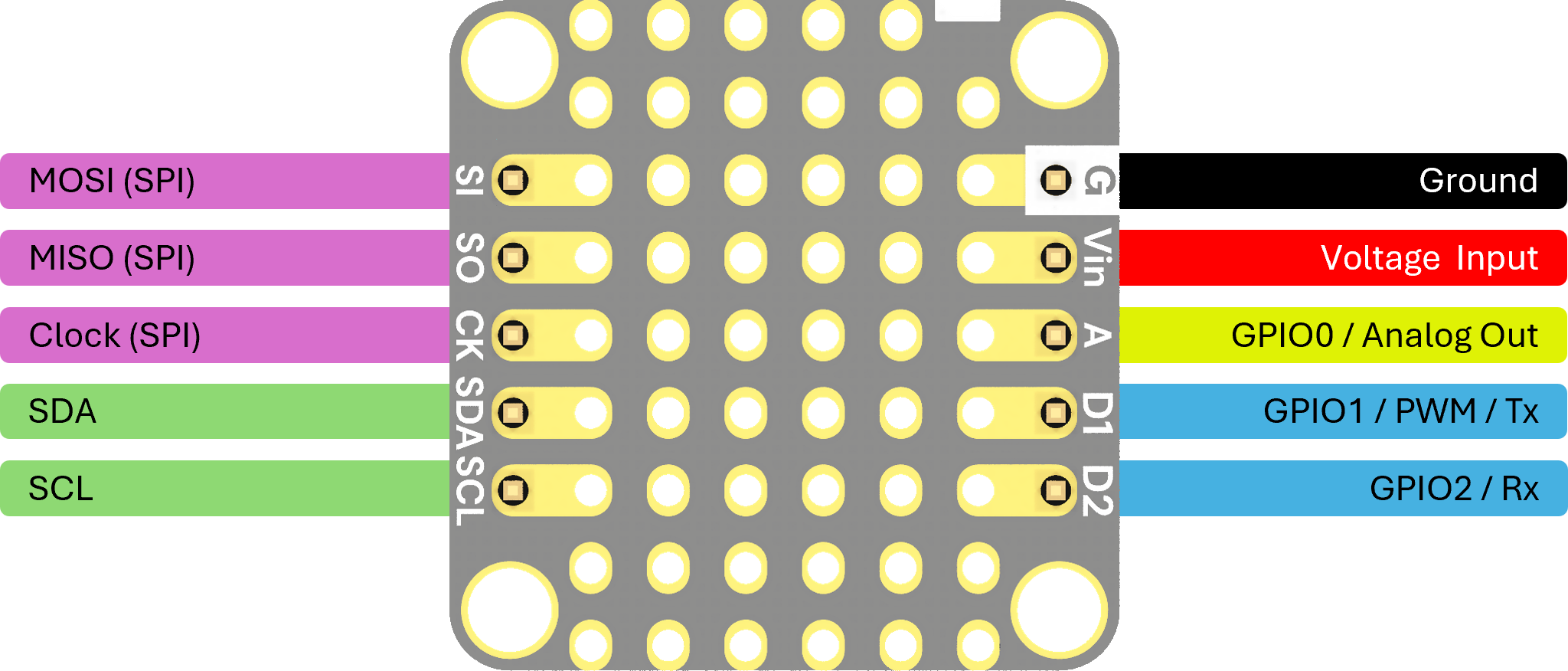

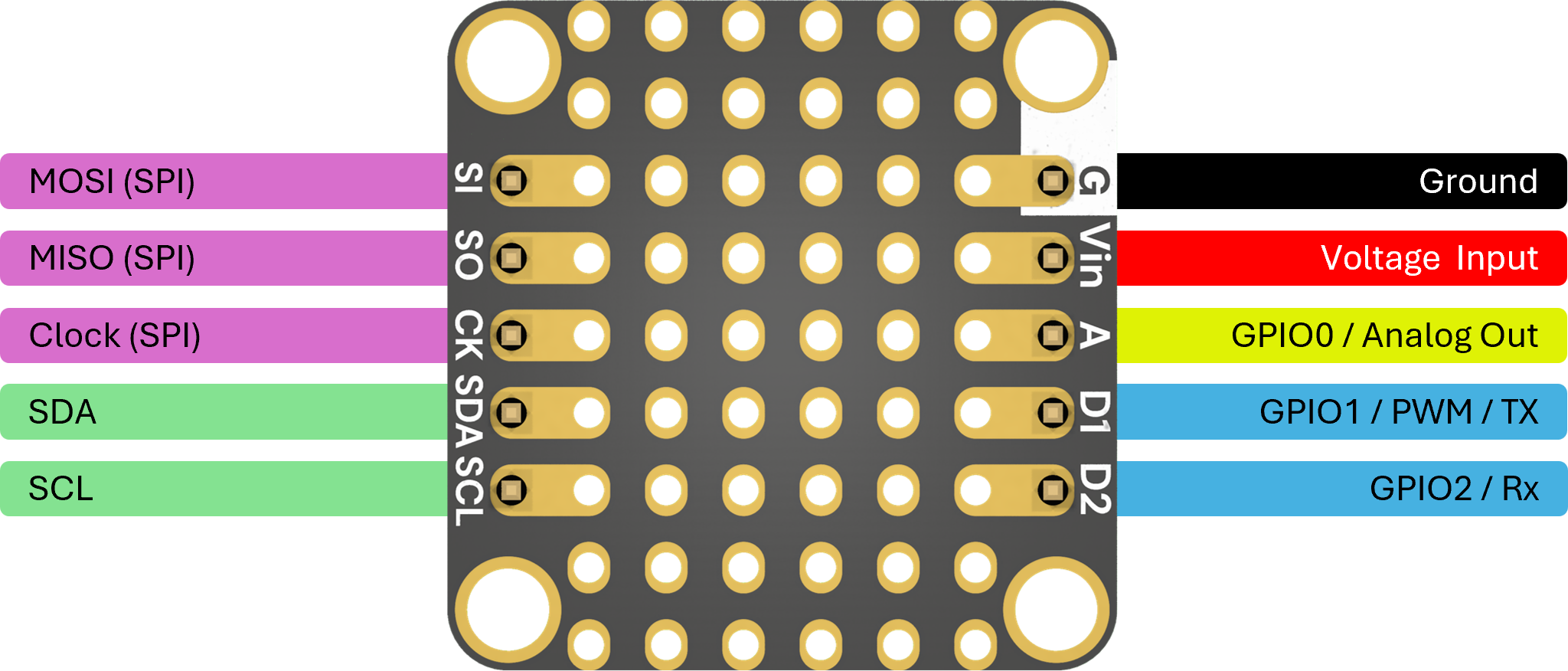

  • Pinout

  • Interface

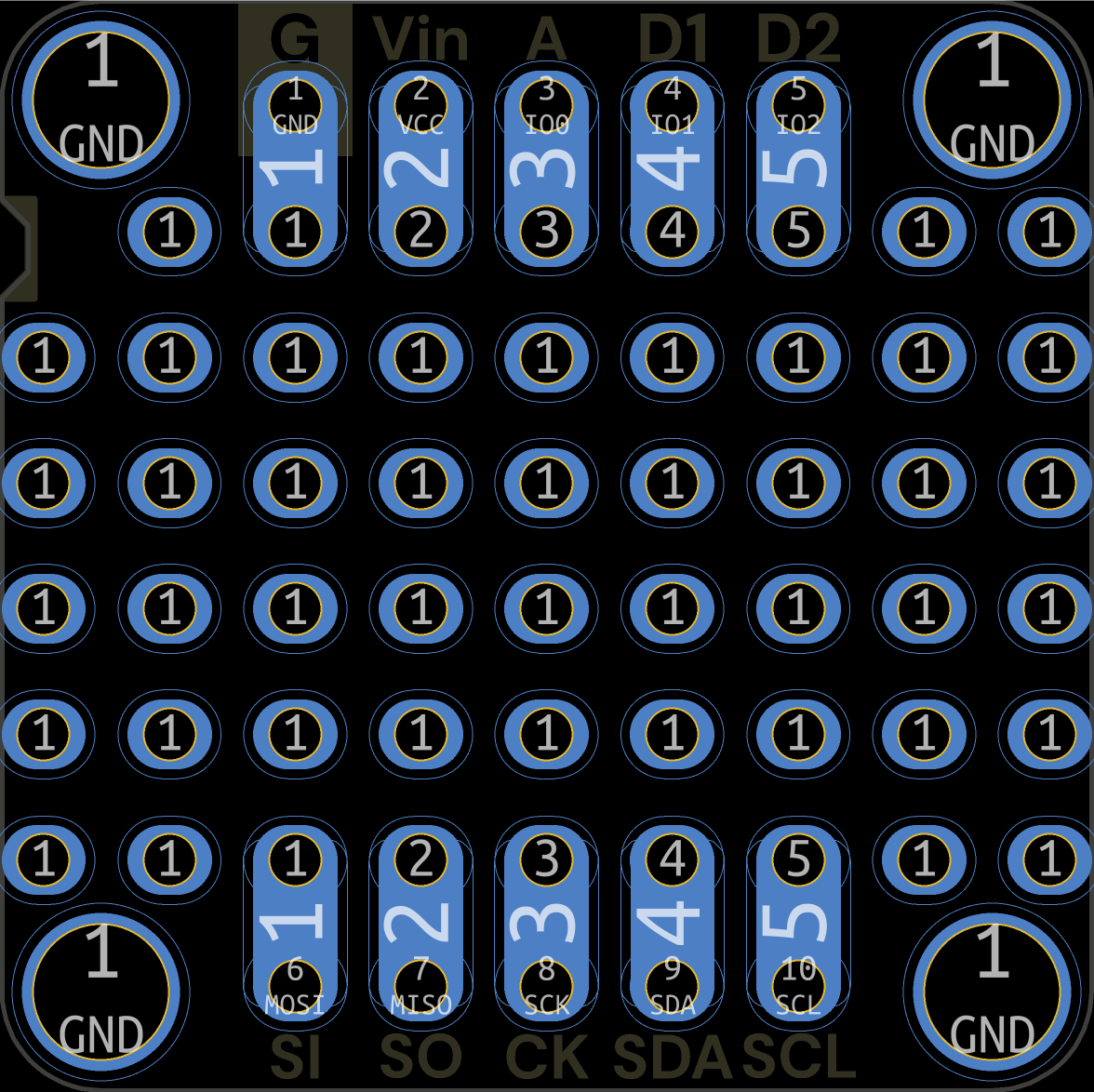

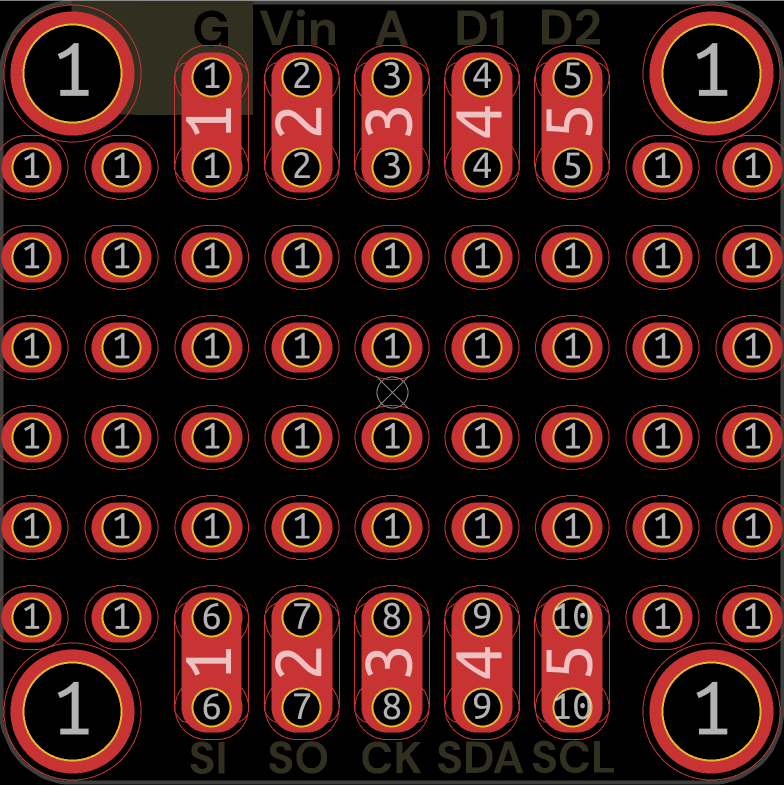

  • Top

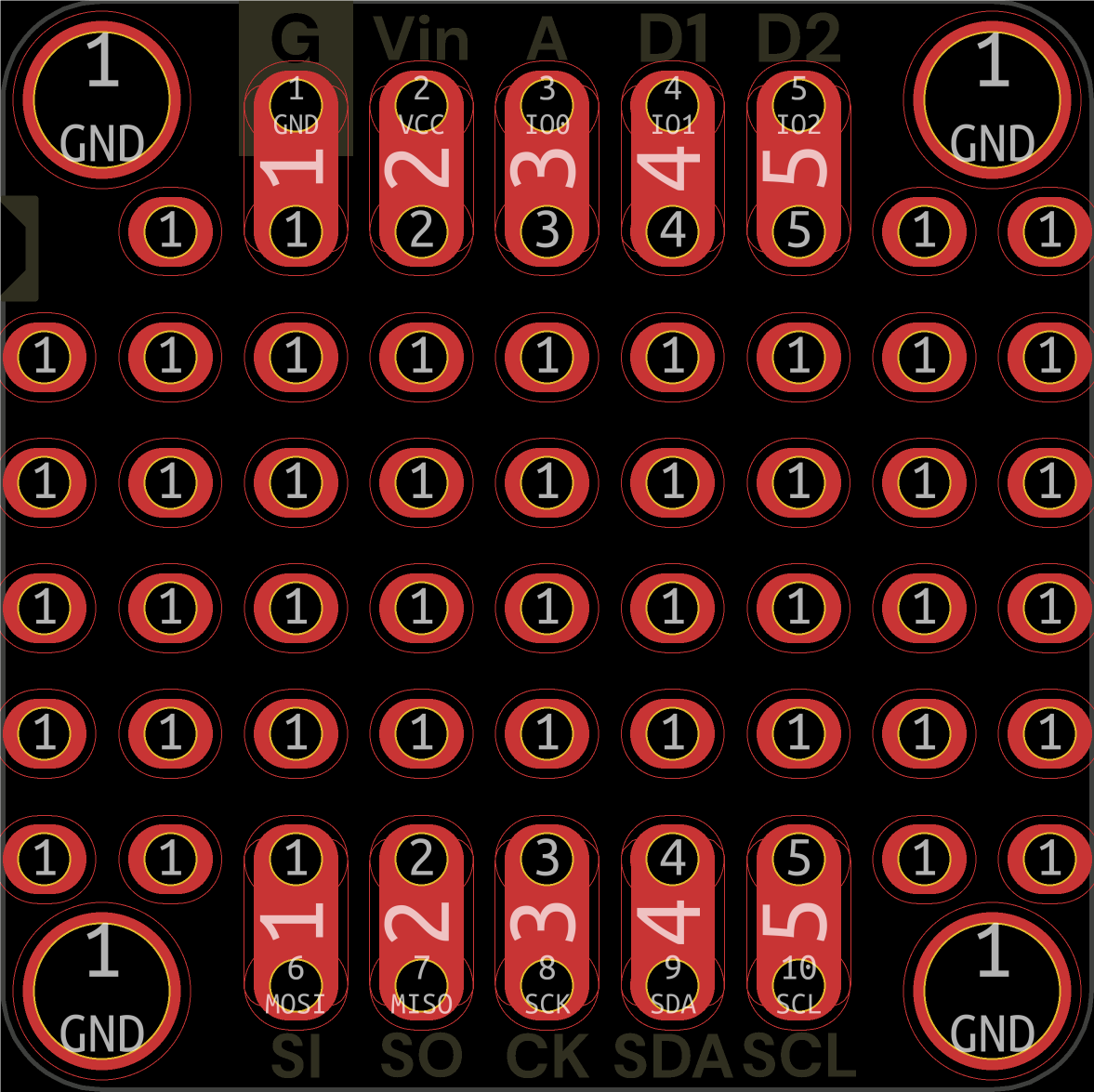

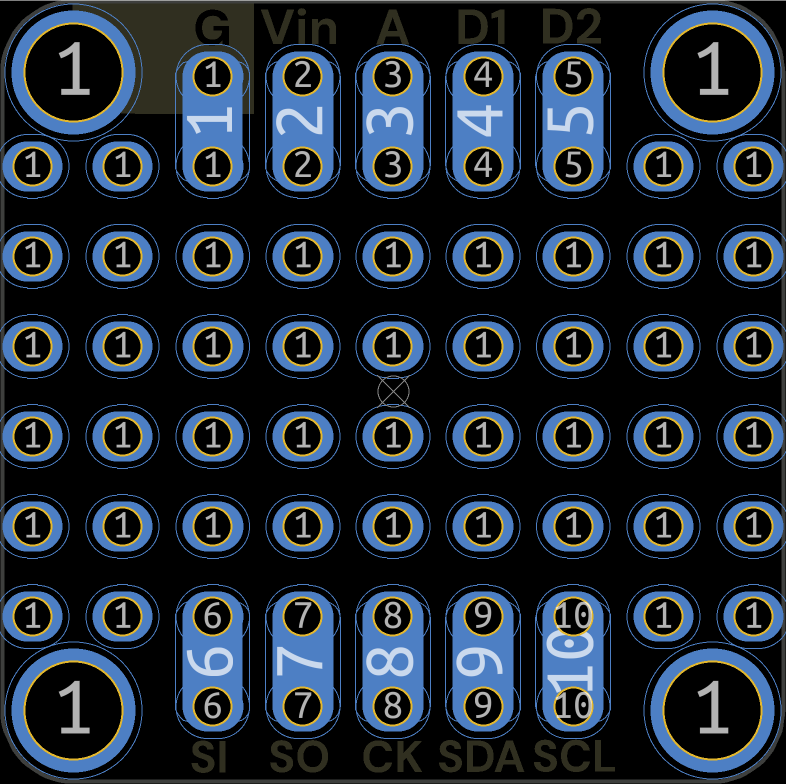

  • Bottom

Arduino Example Code

No code example available.
