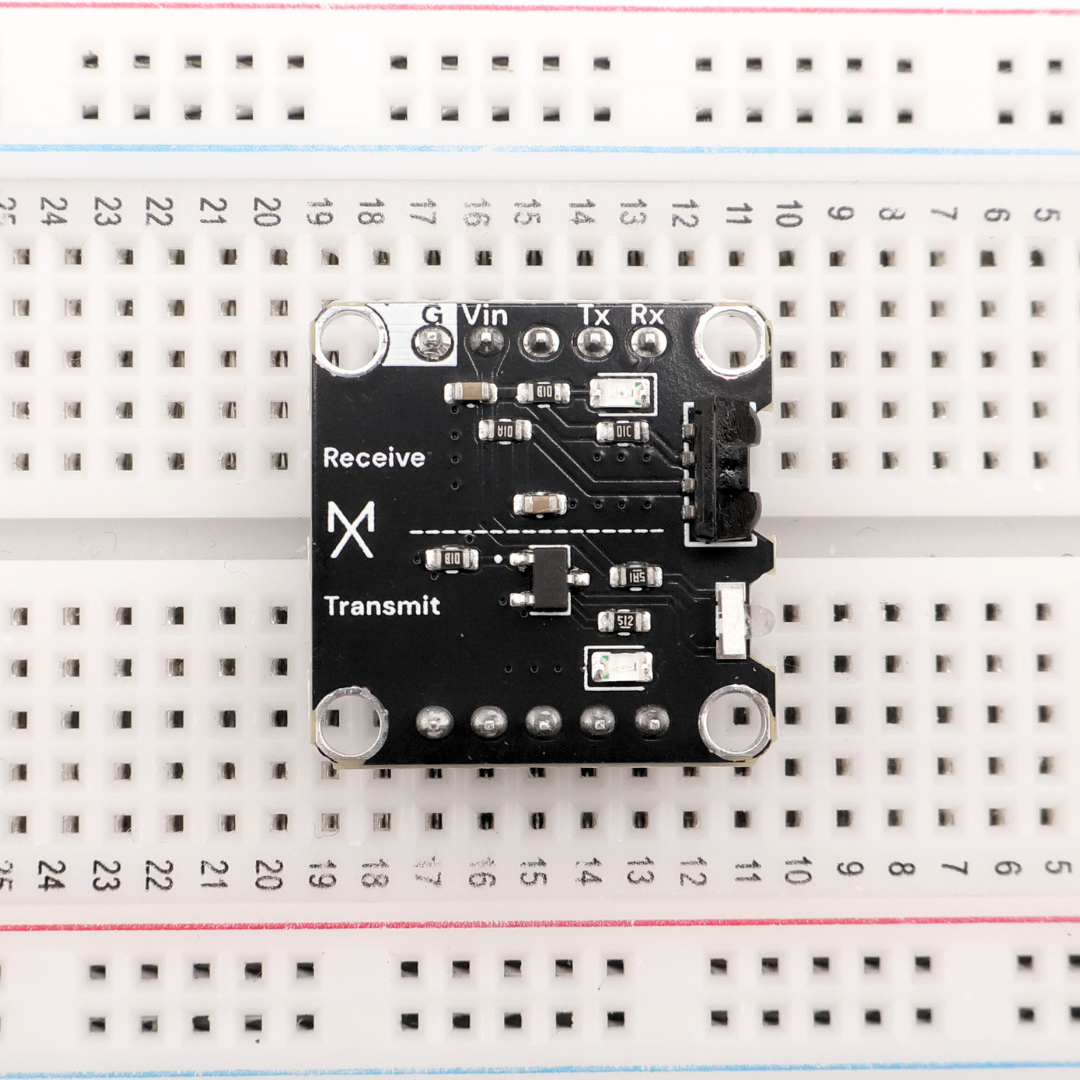

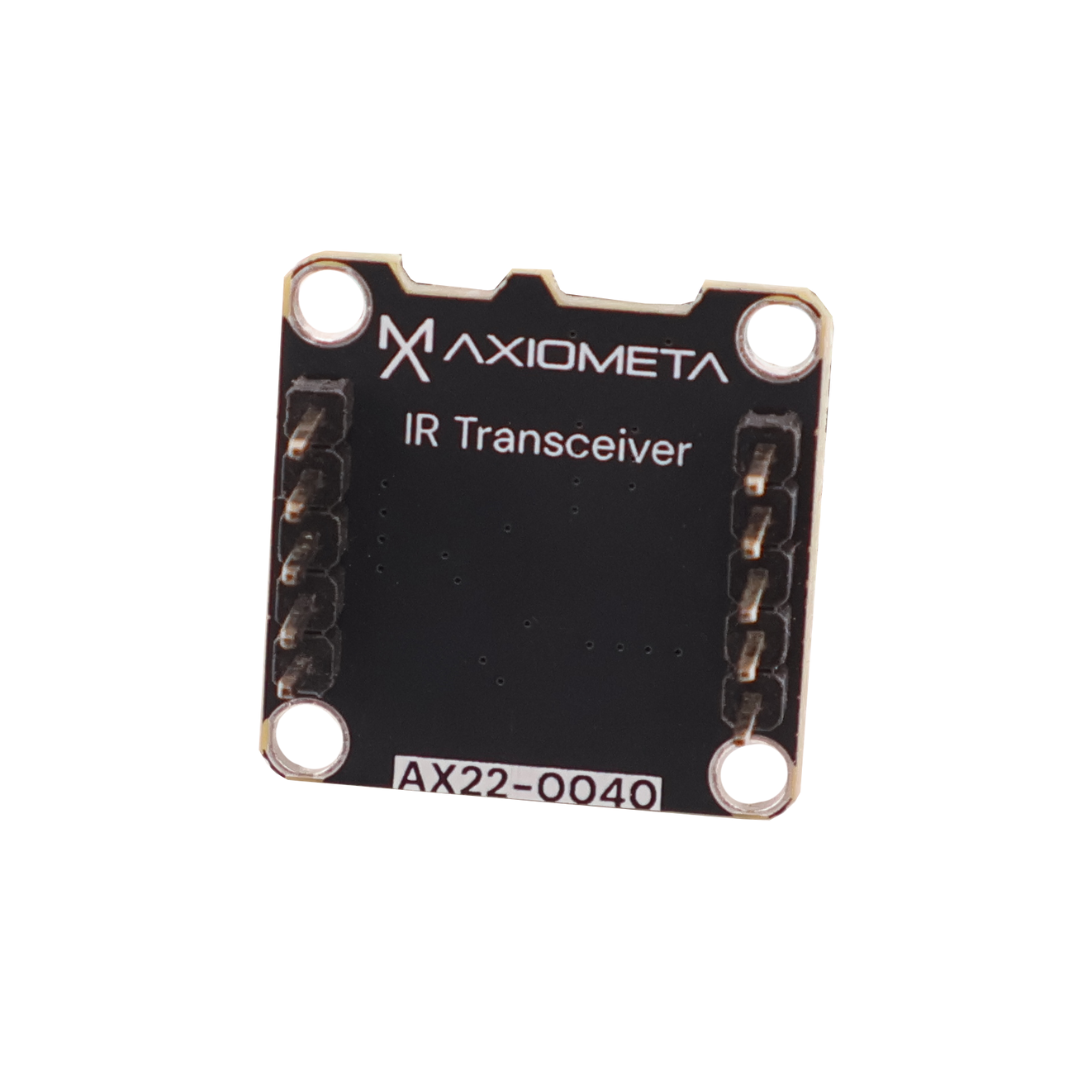

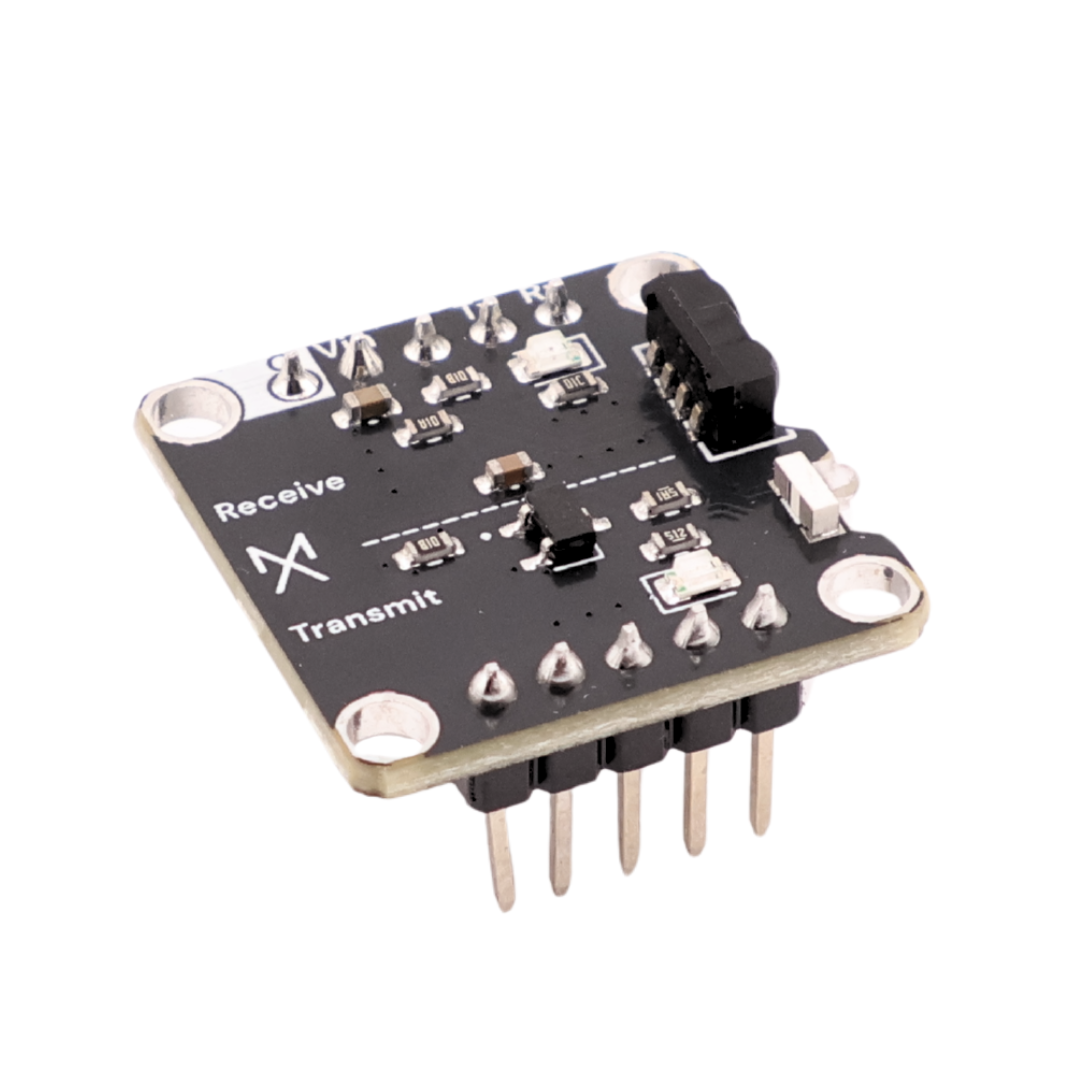

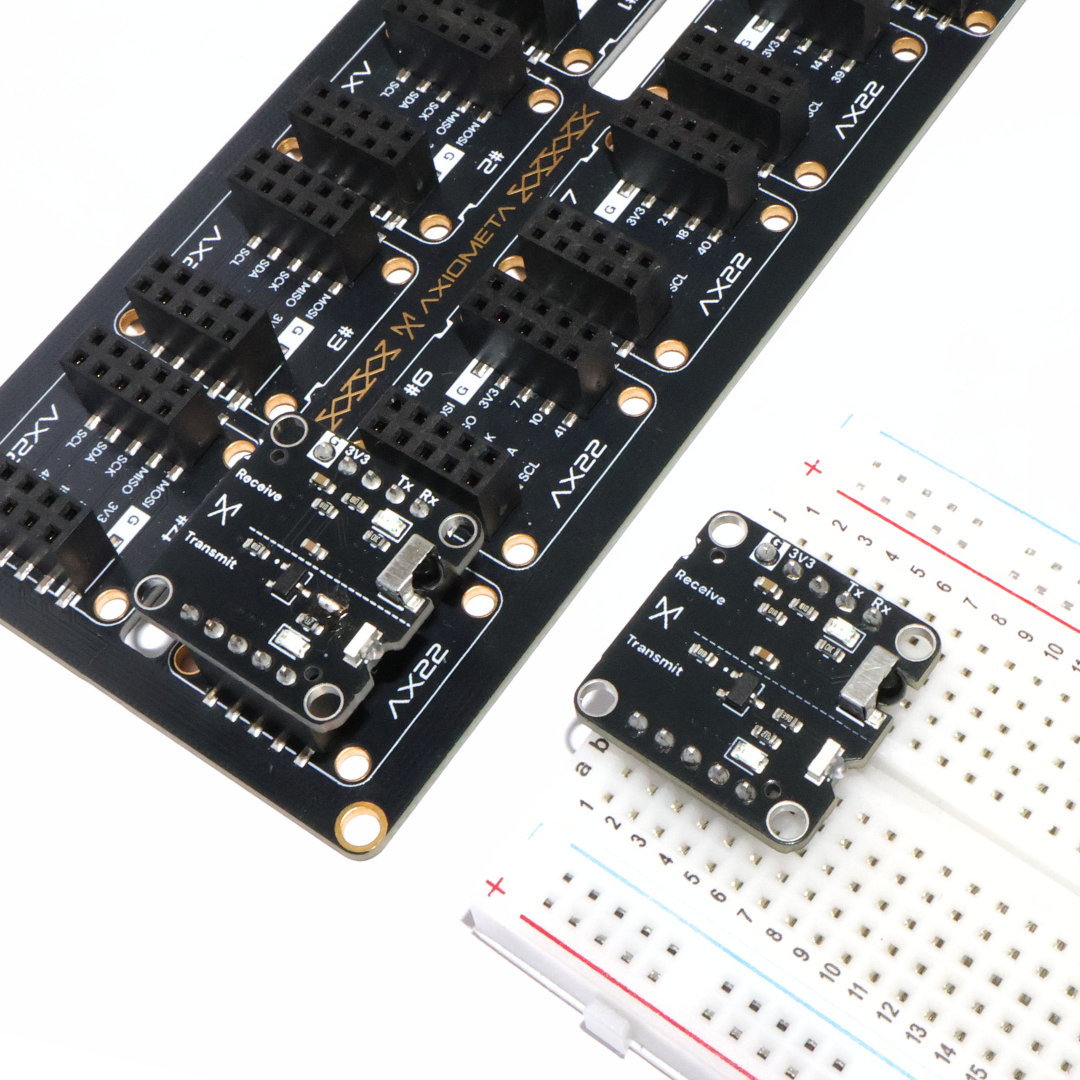

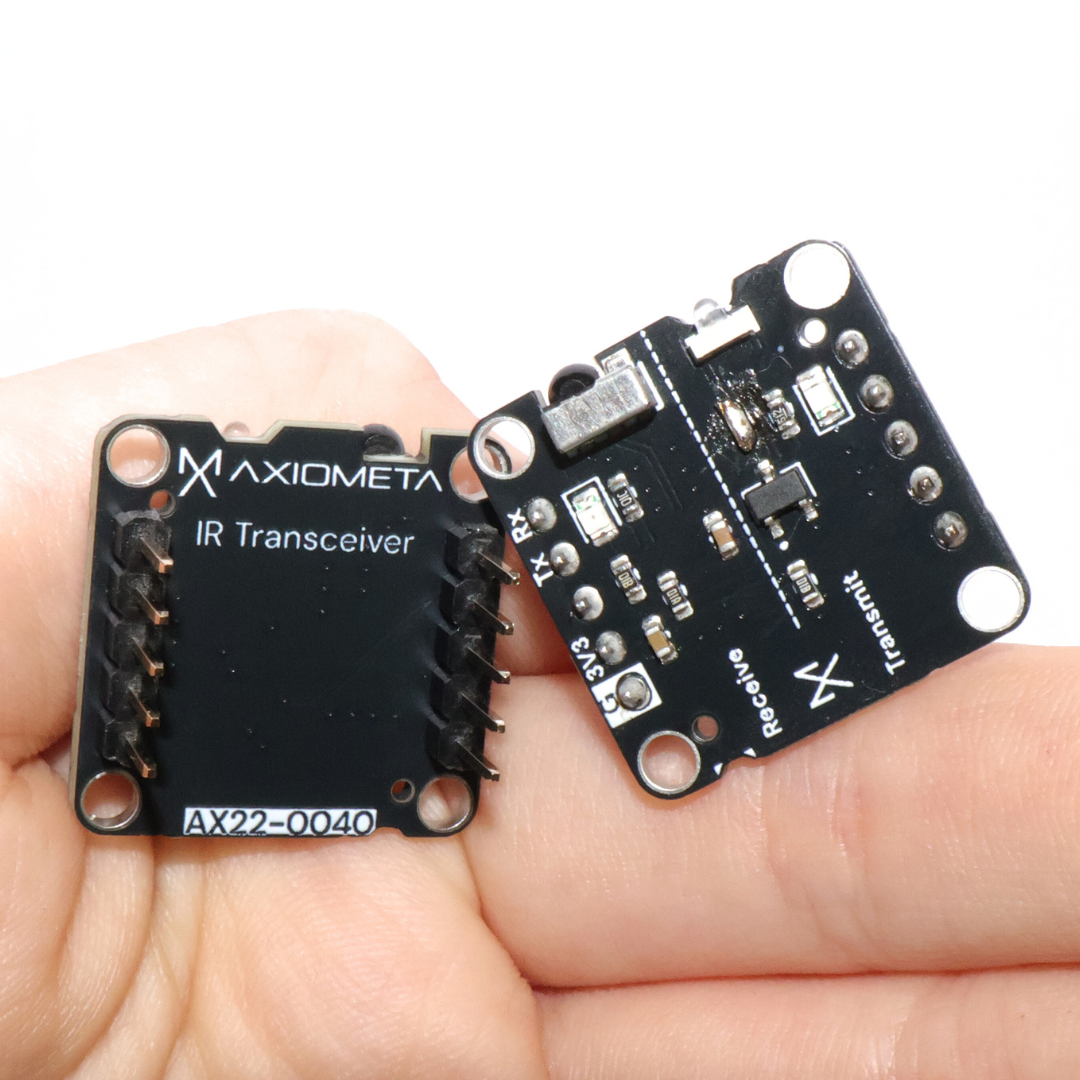

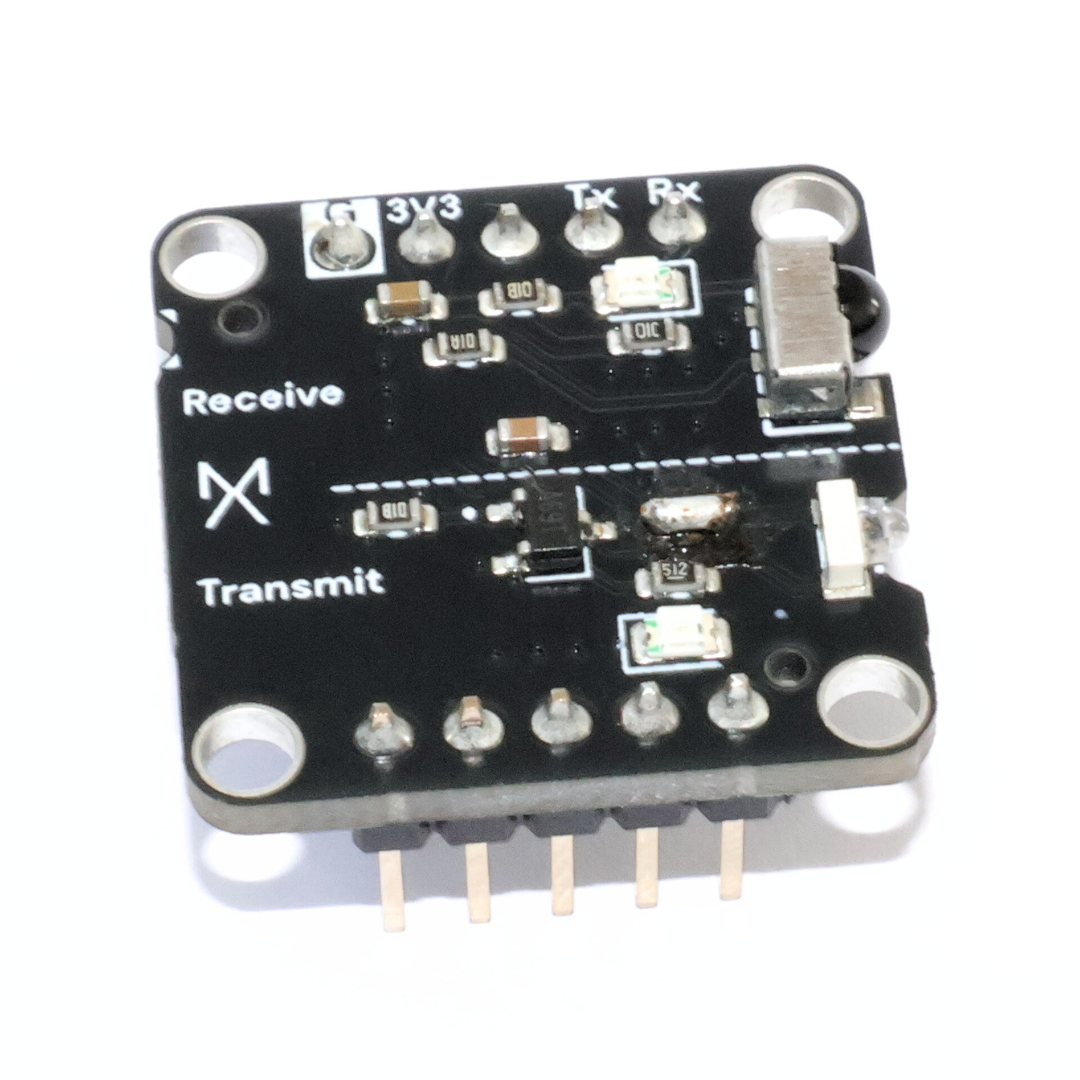

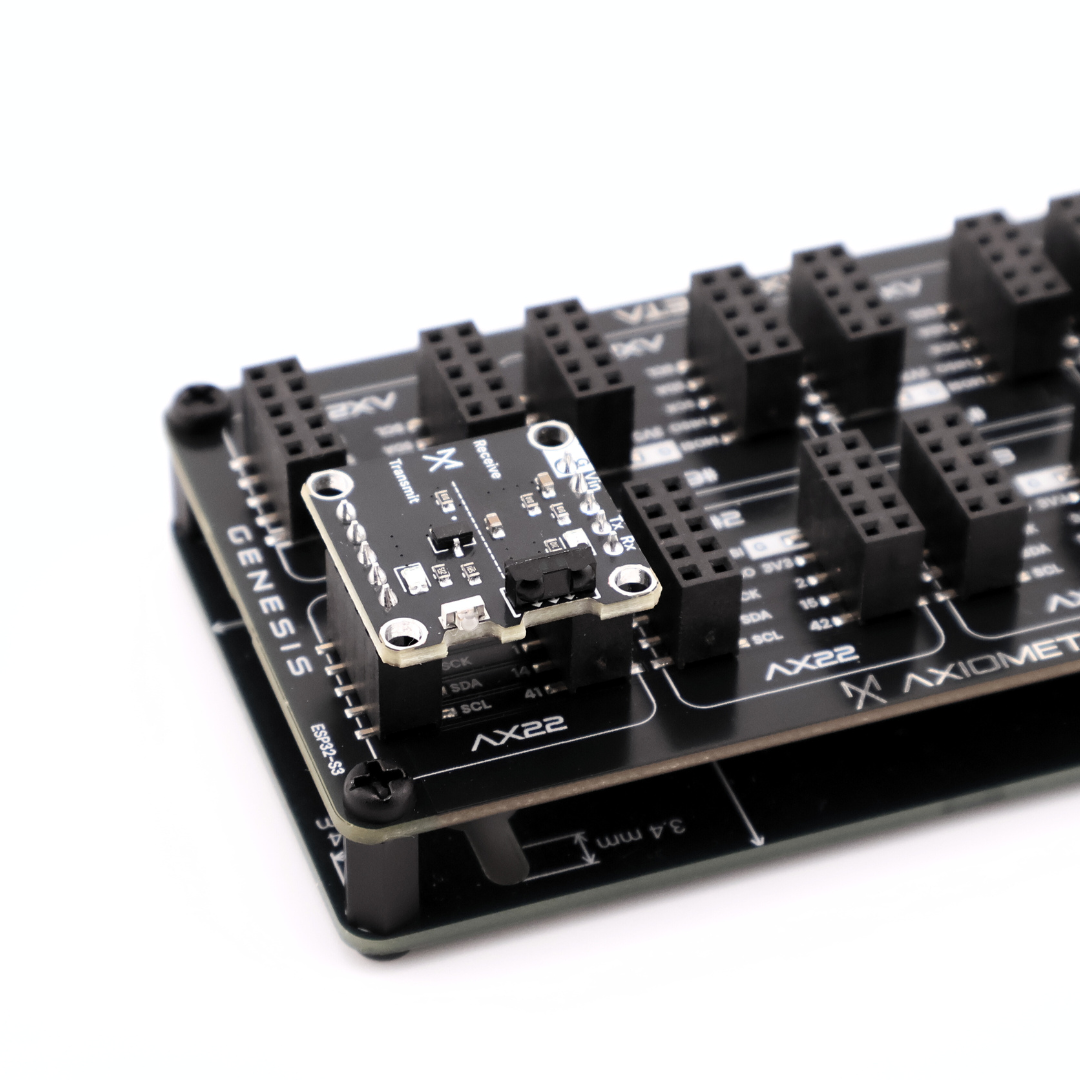

IR Transceiver
IR Transceiver
SKU:AX22-0040
59 in stock
This AX22 module combines both IR transmission and reception on a single compact 22 × 22 mm board, enabling full two-way infrared communication. It features the IR26-61C/L302/TR8 SMD infrared LED for reliable 940 nm signal transmission and the IRM-V538M3/TR1 38 kHz IR receiver for clean, demodulated signal input resistant to ambient light and interference. Two onboard status LEDs, one for TX and one for RX, provide immediate visual feedback. Ideal for remote control learning, IR device emulation, wireless communication between boards, or gesture-based control. Compatible with Arduino IRremote, MicroPython pulse handling, or MicroBlocks IR blocks with no additional components required.
Regular price
$2.99
Regular price
Sale price
$2.99
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

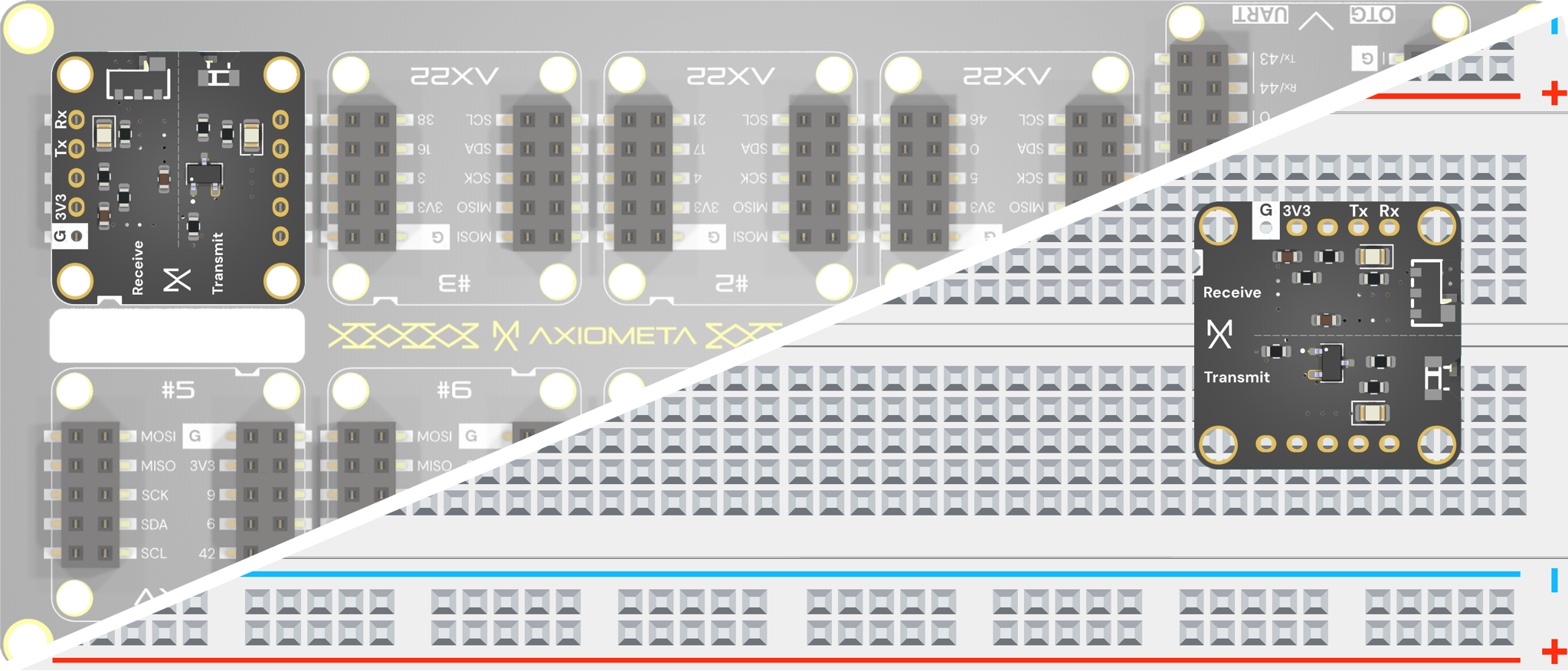

Technical Details

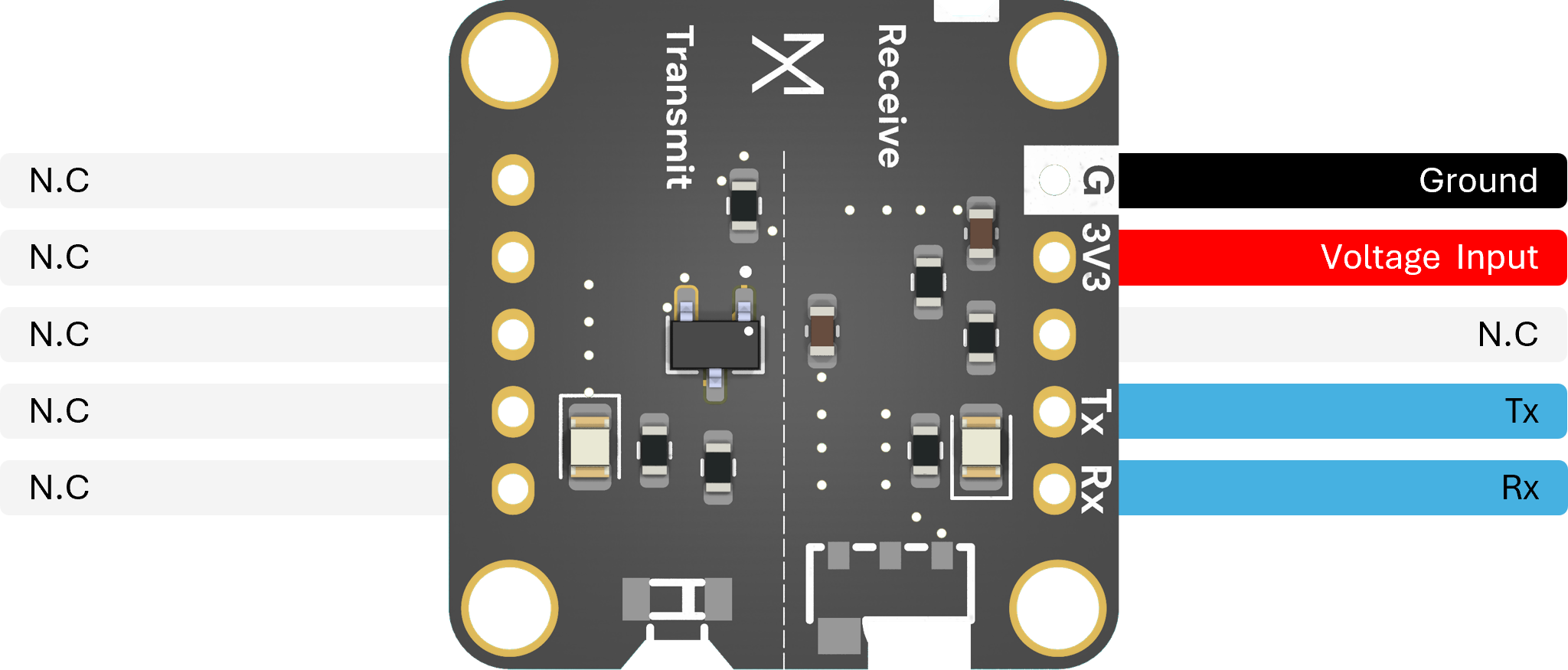

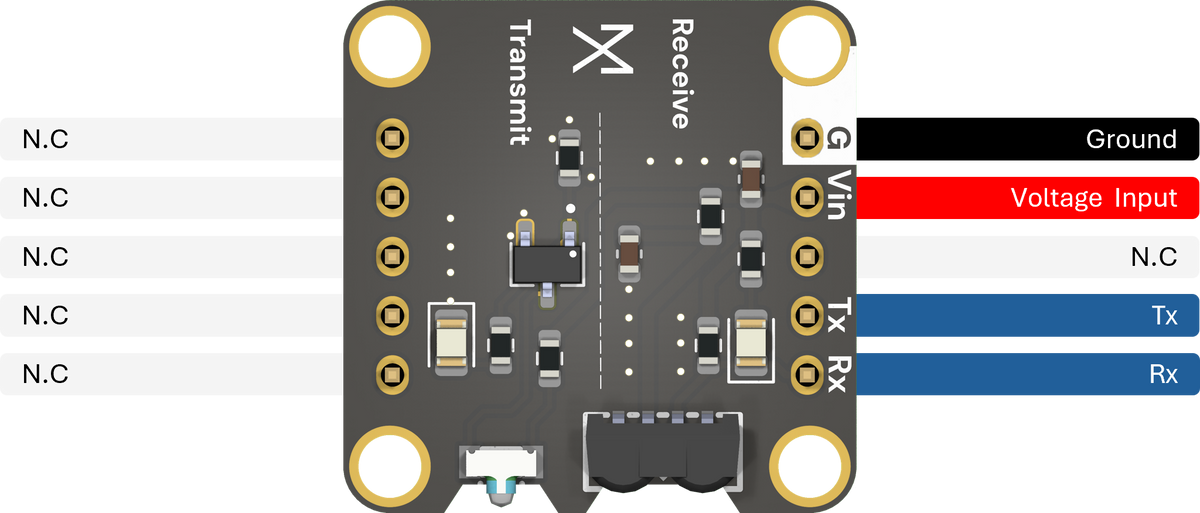

Pinout
Technical Resources
IR Transceiver - (AX22-0040)

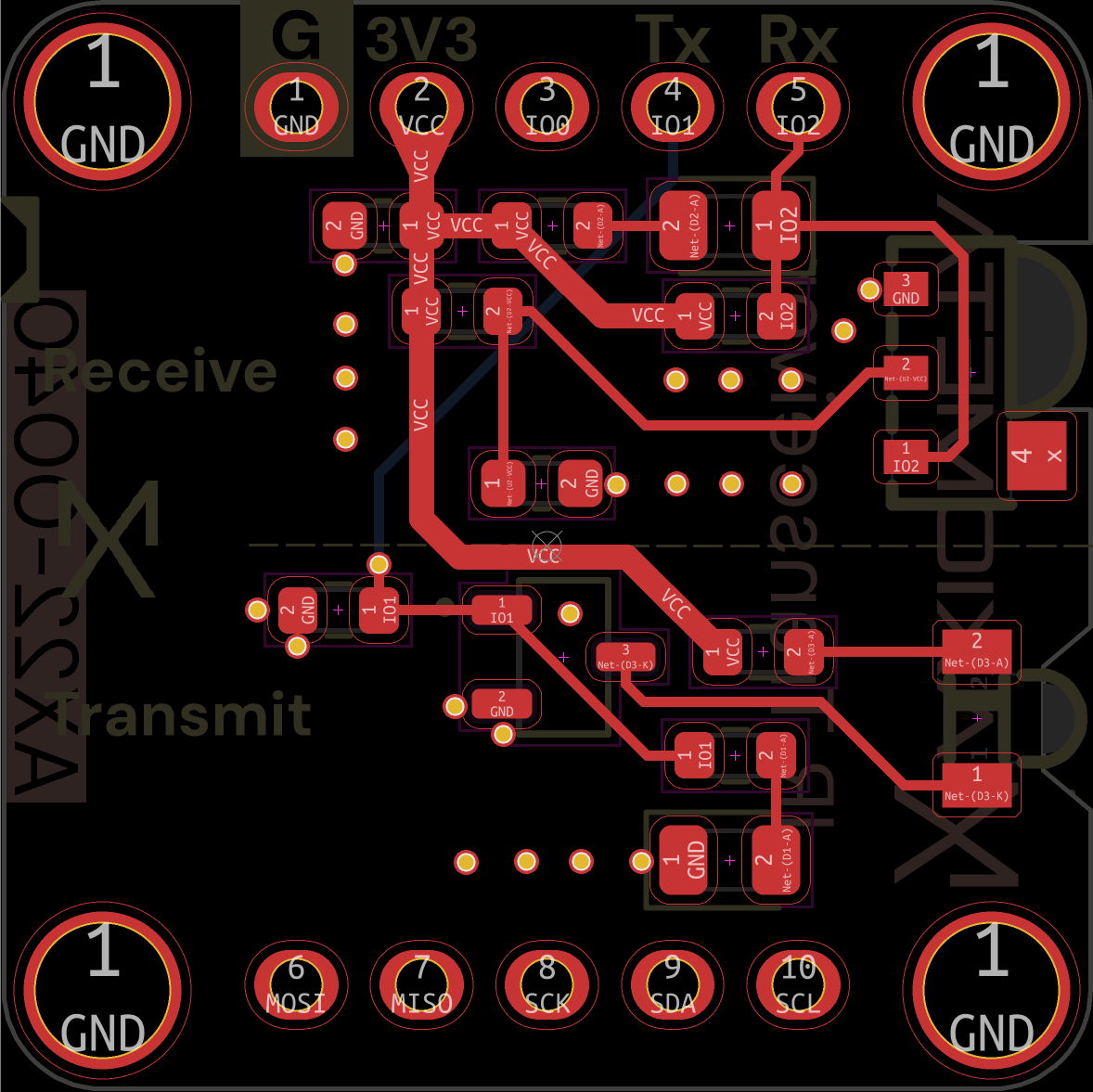

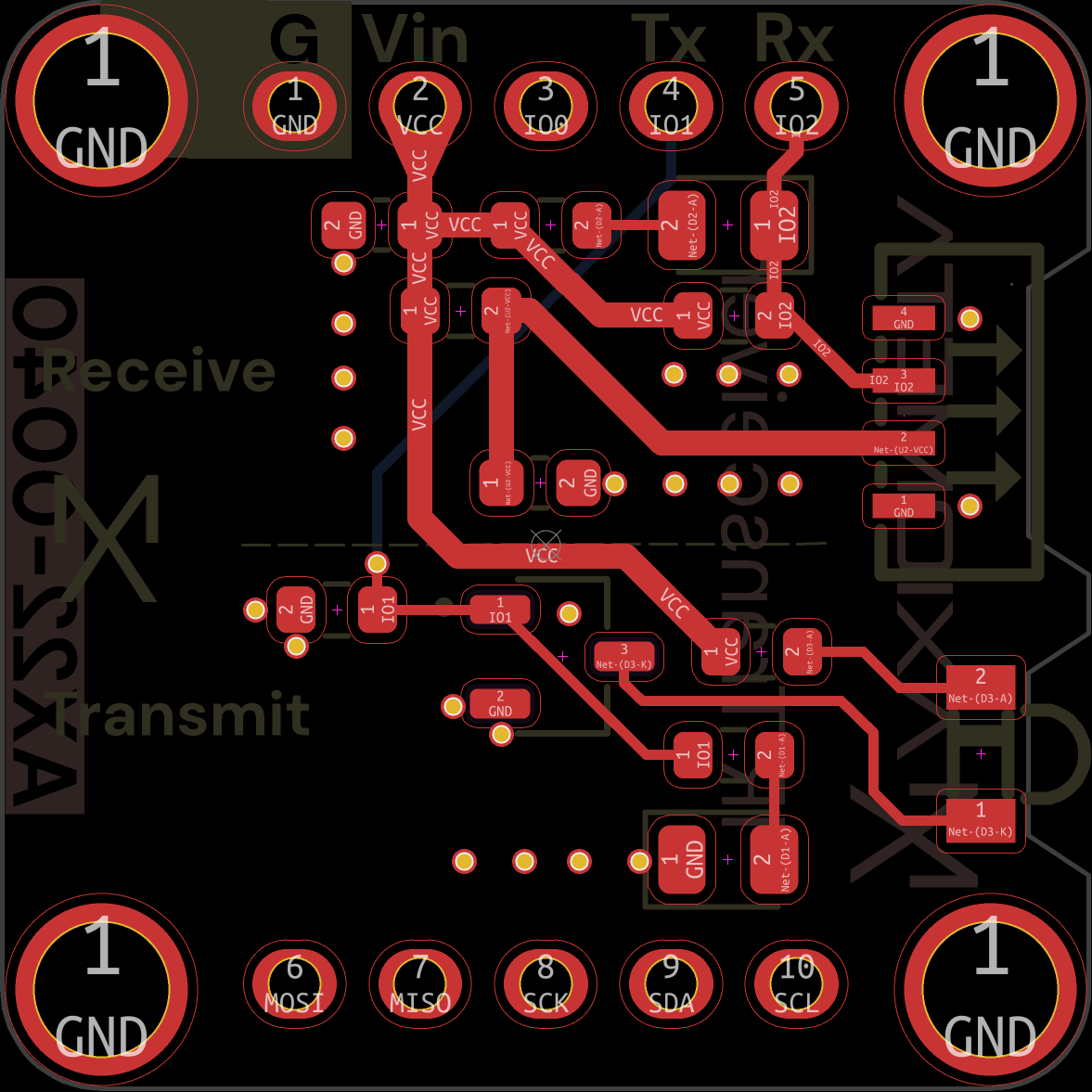

PCB FRONT

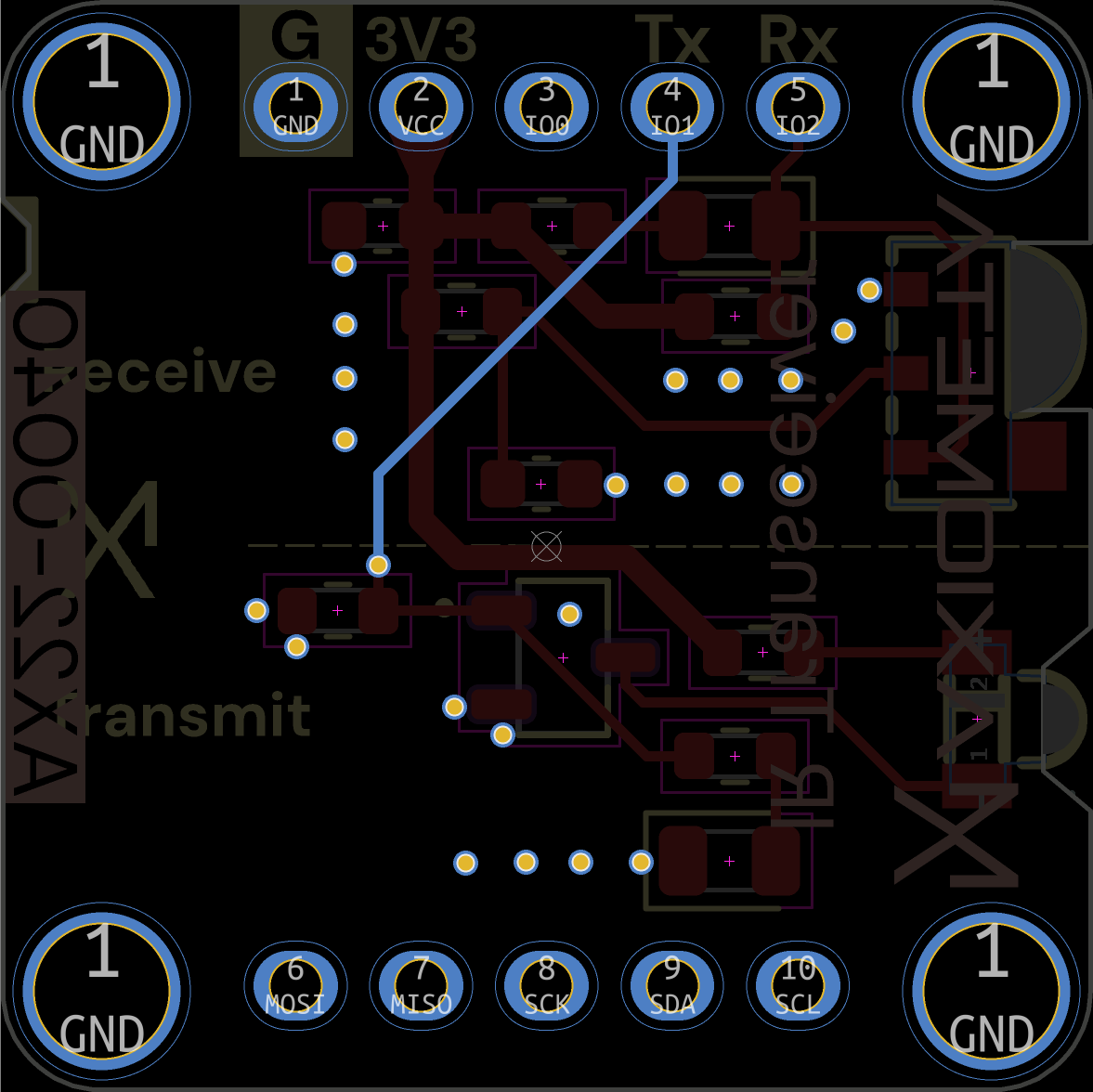

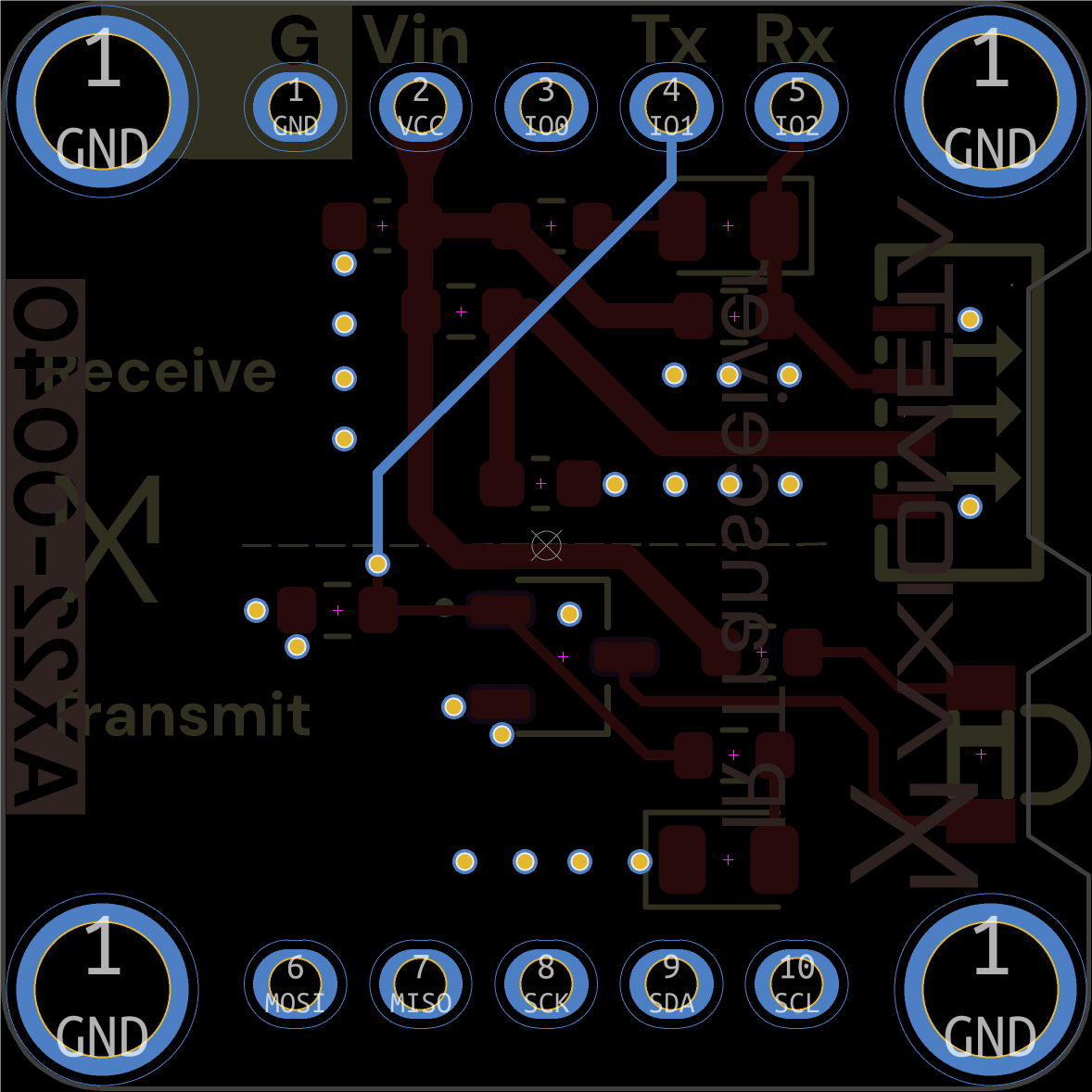

PCB BACK
🟢 Live 3D Model
🖱️ Click & drag to rotate
Arduino Example Snippet
#include "esp32-rmt-ir.h" //by junkfix
#define RX_PIN 41 // IR receiver pin
#define TX_PIN 14 // IR transmitter pin
#define IR_BRAND NEC // Options: NEC, SONY, SAMSUNG, RC5, RC6, etc.
#define IR_CODE 0xC1AAFC03 // Your hex code
#define IR_BITS 32 // Number of bits
#define SEND_INTERVAL 1000 // Milliseconds between sends
void irReceived(irproto brand, uint32_t code, size_t len, rmt_symbol_word_t *item) {
if (code) {
Serial.printf("IR %s, code: %#x, bits: %d\n", proto[brand].name, code, len);
}
if (true) { // debug
Serial.printf("Rx%d: ", len);
for (uint8_t i = 0; i < len; i++) {
int d0 = item[i].duration0;
if (!item[i].level0) { d0 *= -1; }
int d1 = item[i].duration1;
if (!item[i].level1) { d1 *= -1; }
Serial.printf("%d,%d ", d0, d1);
}
Serial.println();
}
}
void setup() {
Serial.begin(115200);
irRxPin = RX_PIN;
irTxPin = TX_PIN;
xTaskCreatePinnedToCore(recvIR, "recvIR", 4096, NULL, 10, NULL, 1);
Serial.printf("\nSending %s code: %#x every %d ms\n",
proto[IR_BRAND].name, IR_CODE, SEND_INTERVAL);
}
void loop() {
sendIR(IR_BRAND, IR_CODE, IR_BITS, 1, 1);
delay(SEND_INTERVAL);
}
