Rotary Switch (6-POS)

Rotary Switch (6-POS)

AX22-0041

$2.49
$2.49
Sale Sold out
Taxes included. Shipping calculated at checkout.

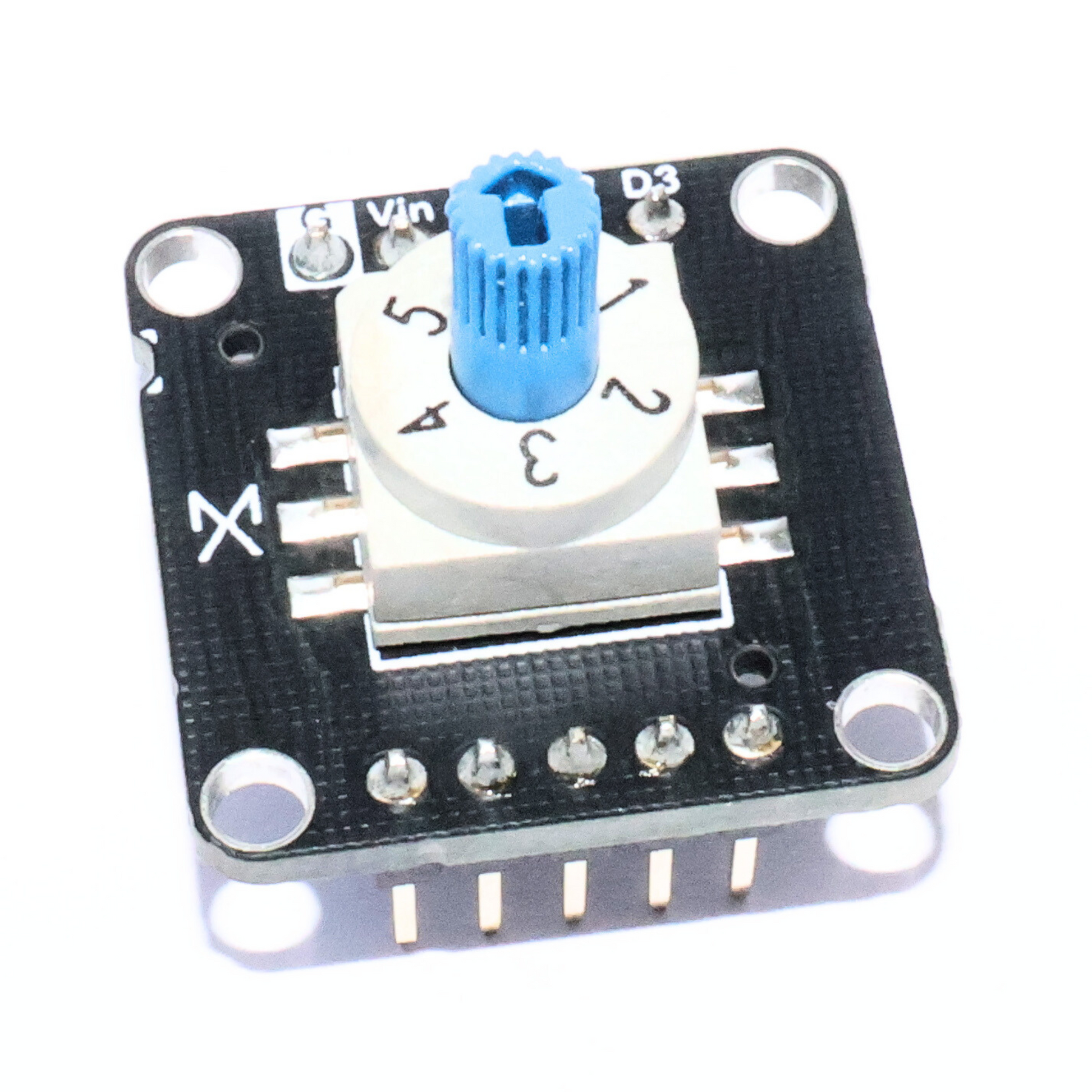

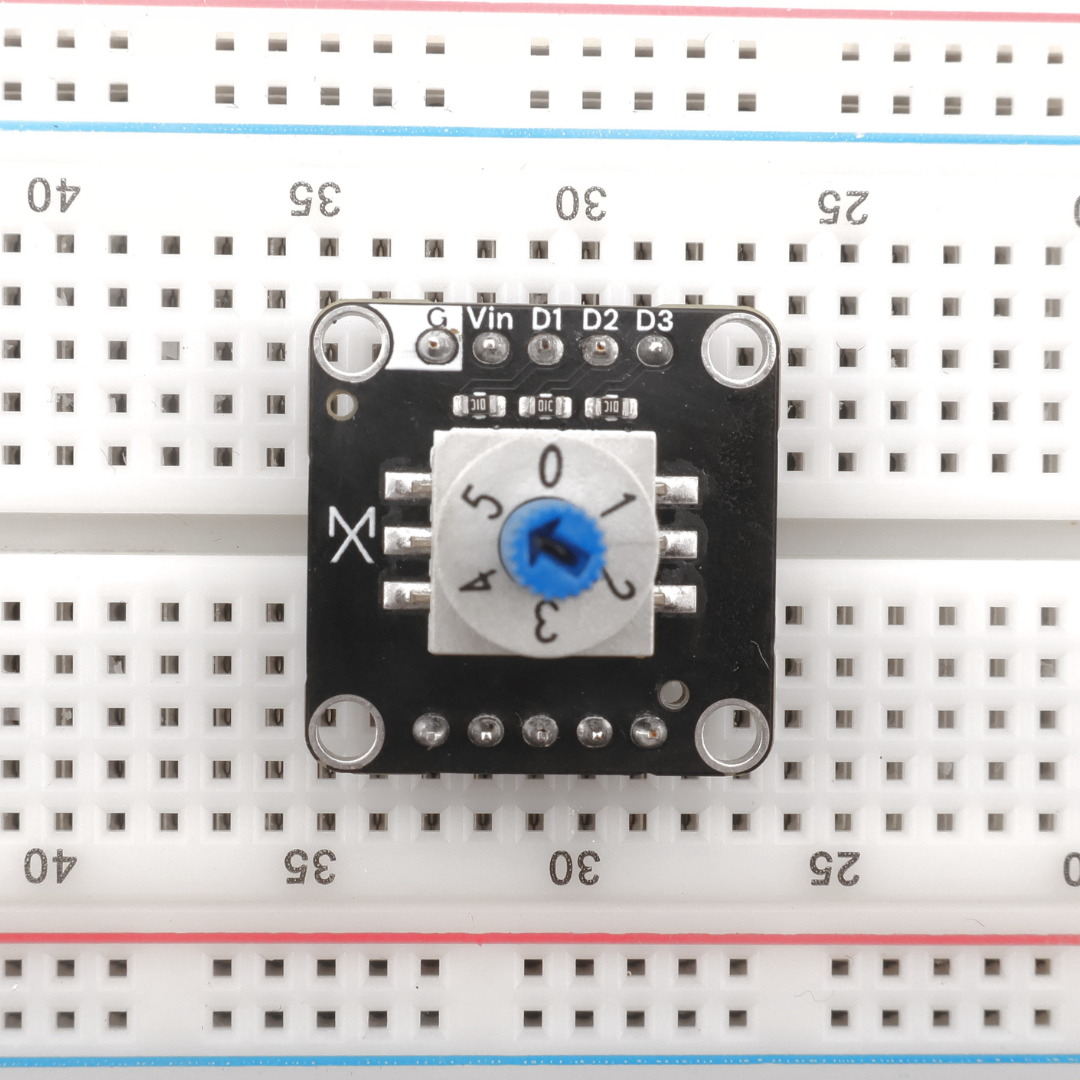

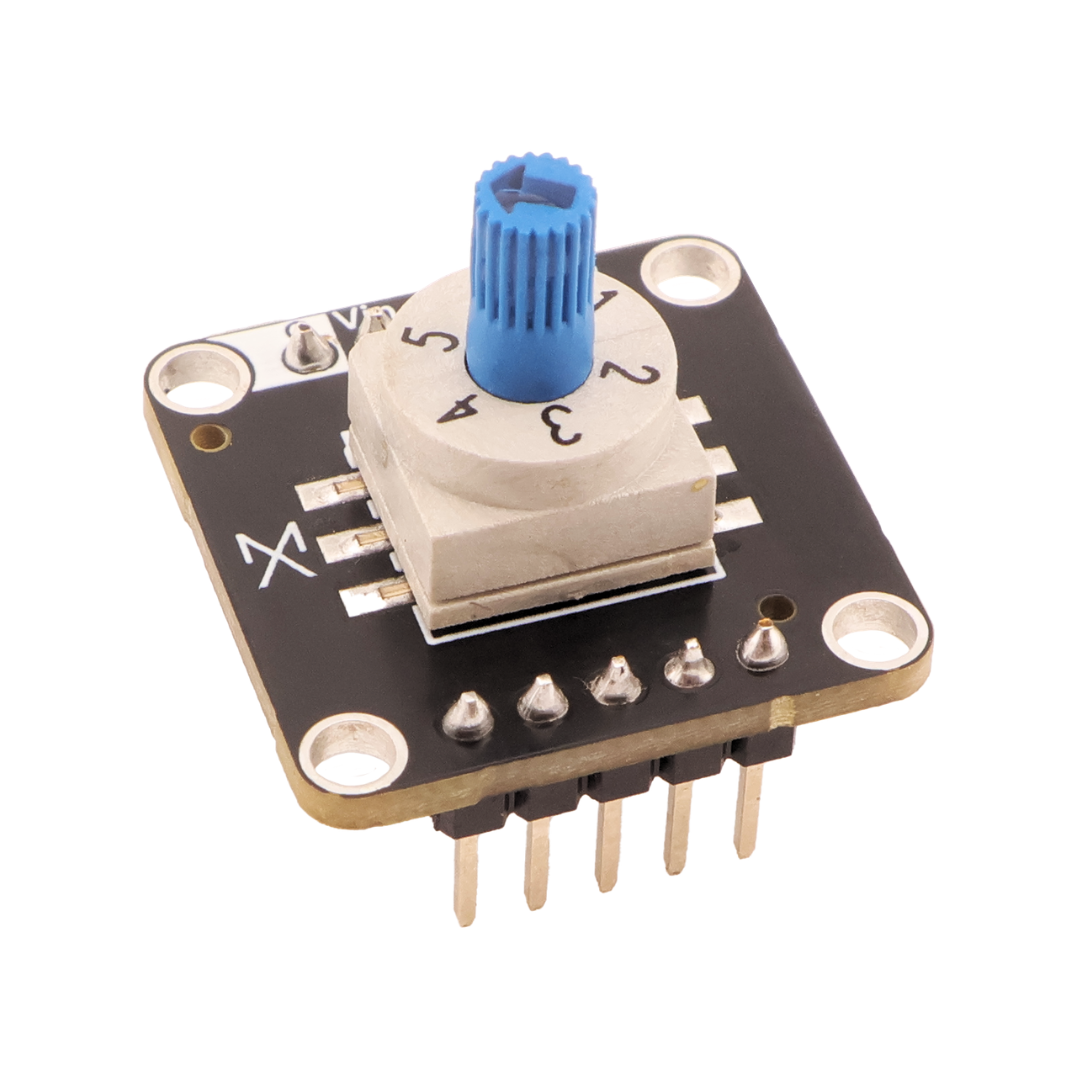

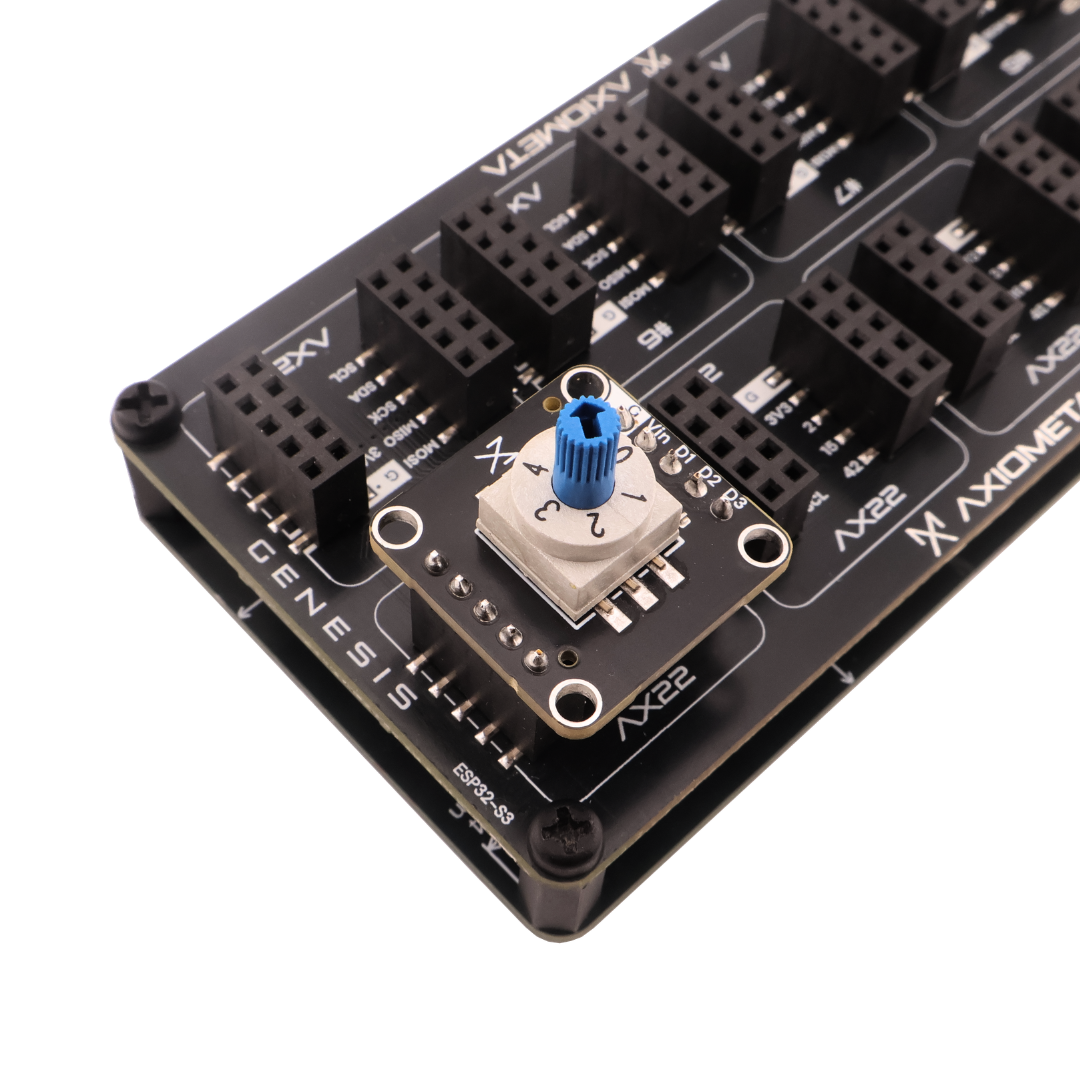

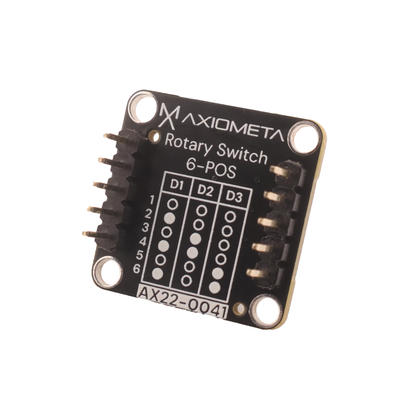

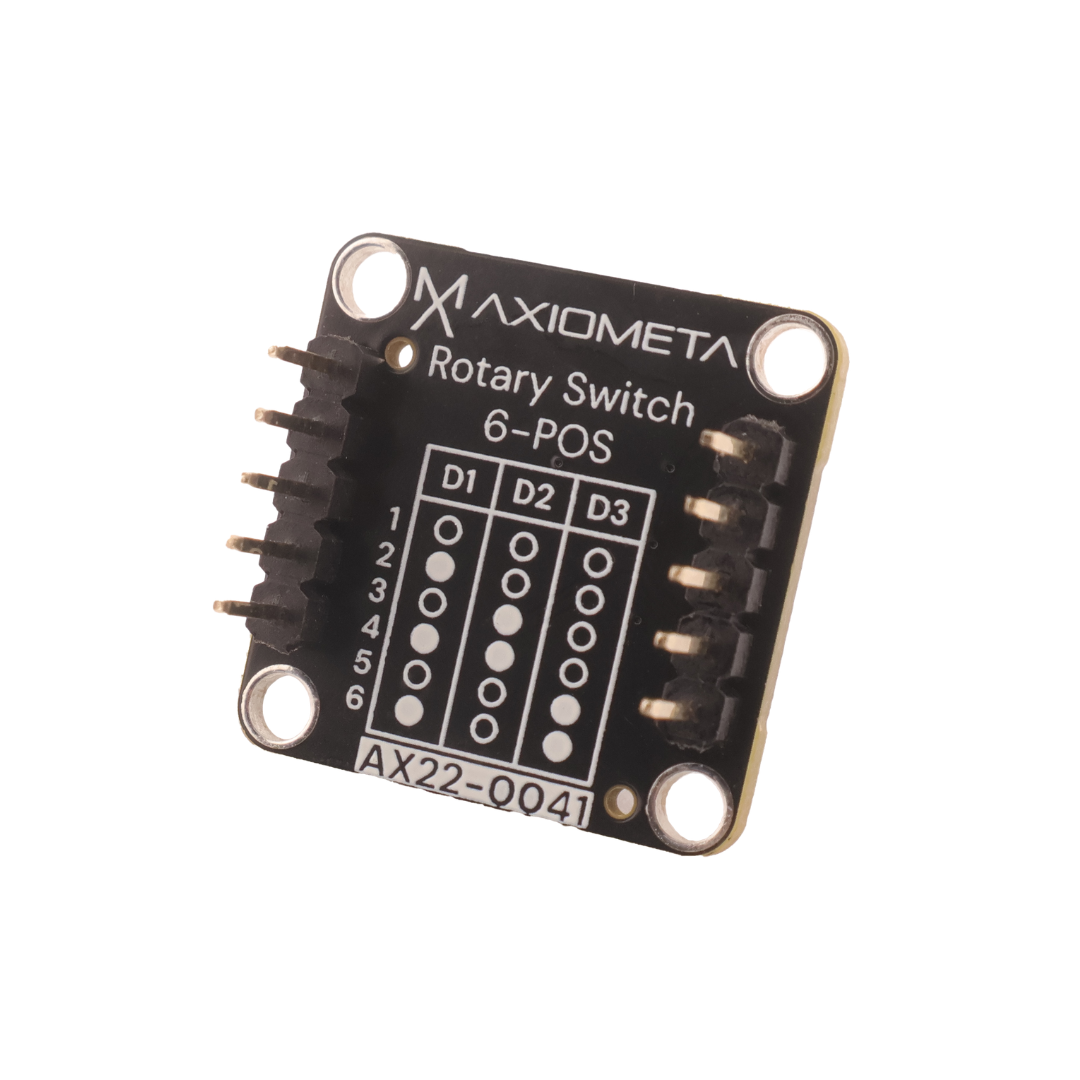

This AX22-sized module features a 6-position mechanical rotary switch on a compact 22 × 22 mm PCB. Each detent corresponds to a fixed, discrete setting, outputting a unique binary code across three digital. With its direct GPIO interface, it is ideal for selecting modes, presets, or user-defined states in embedded systems. Tactile feel and noise, this switch integrates cleanly into AX22-based projects like menu selectors, hardware profiles, or multi-function toggles
View full details

  • Technical Details

    - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 6 Positions
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

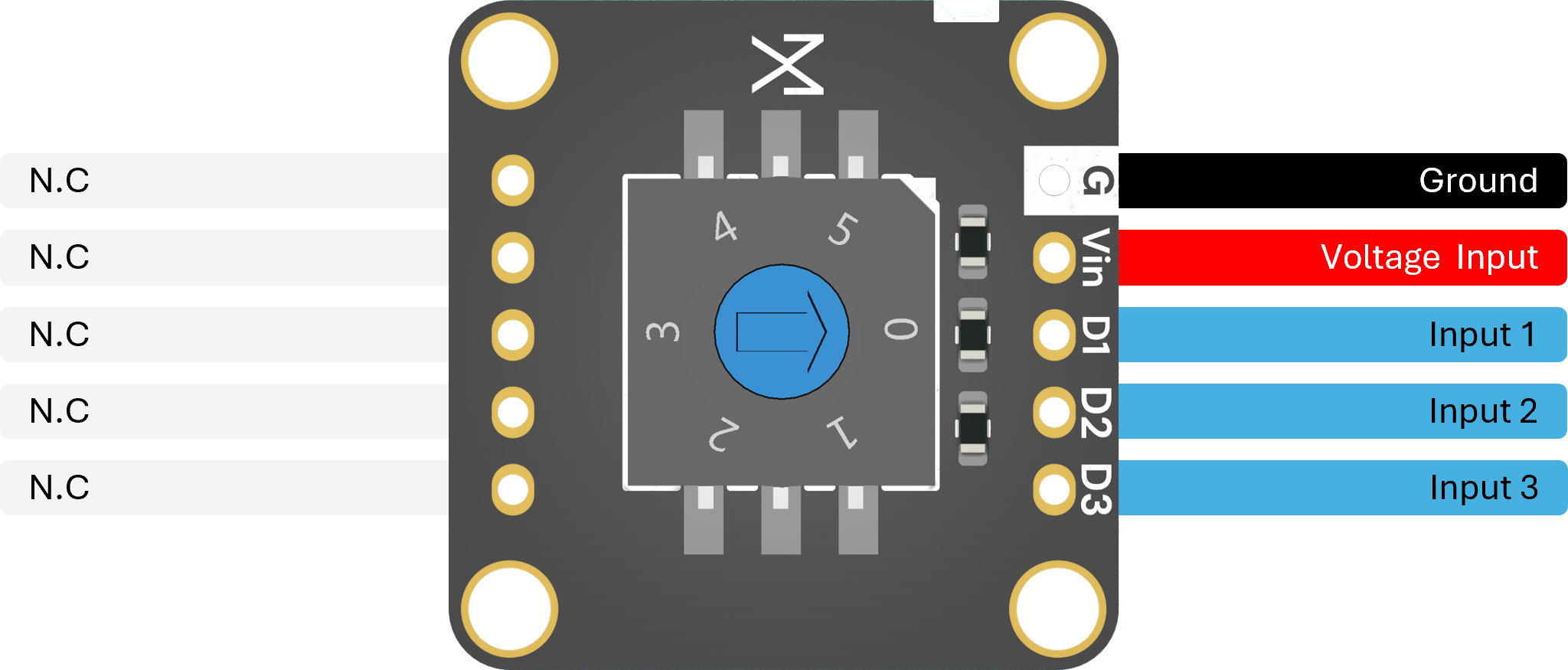

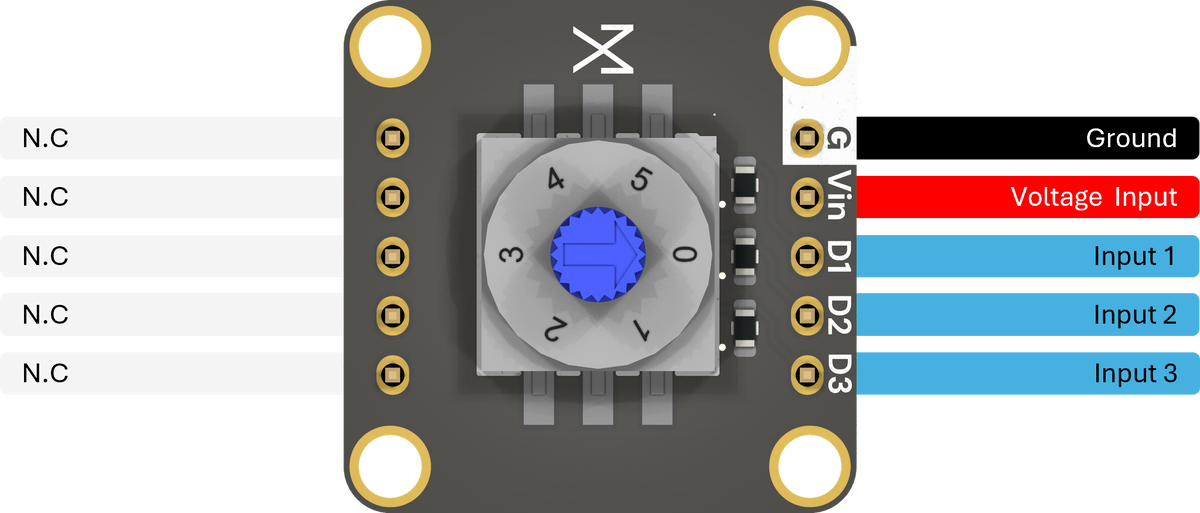

  • Pinout

  • Interface

PCB Design

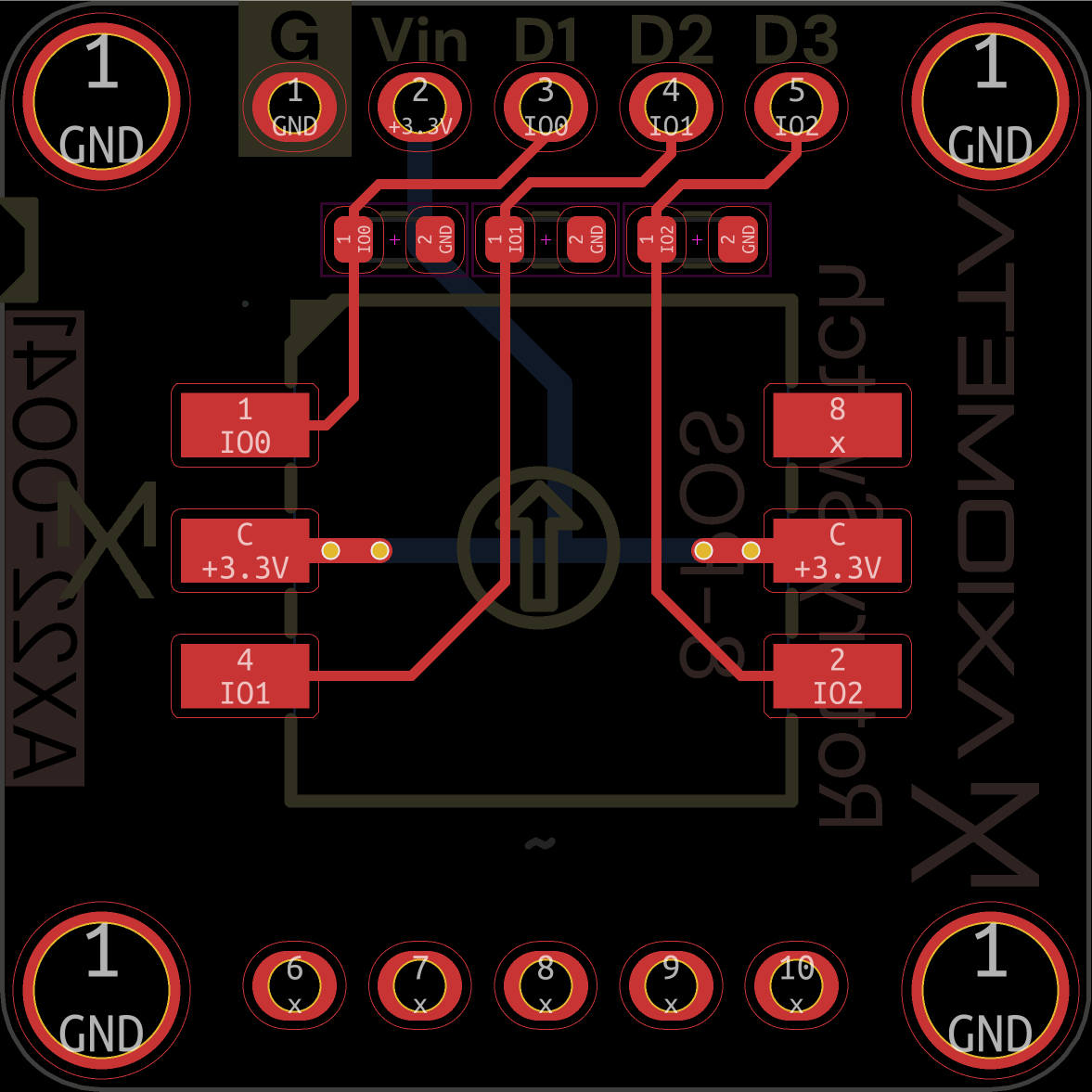

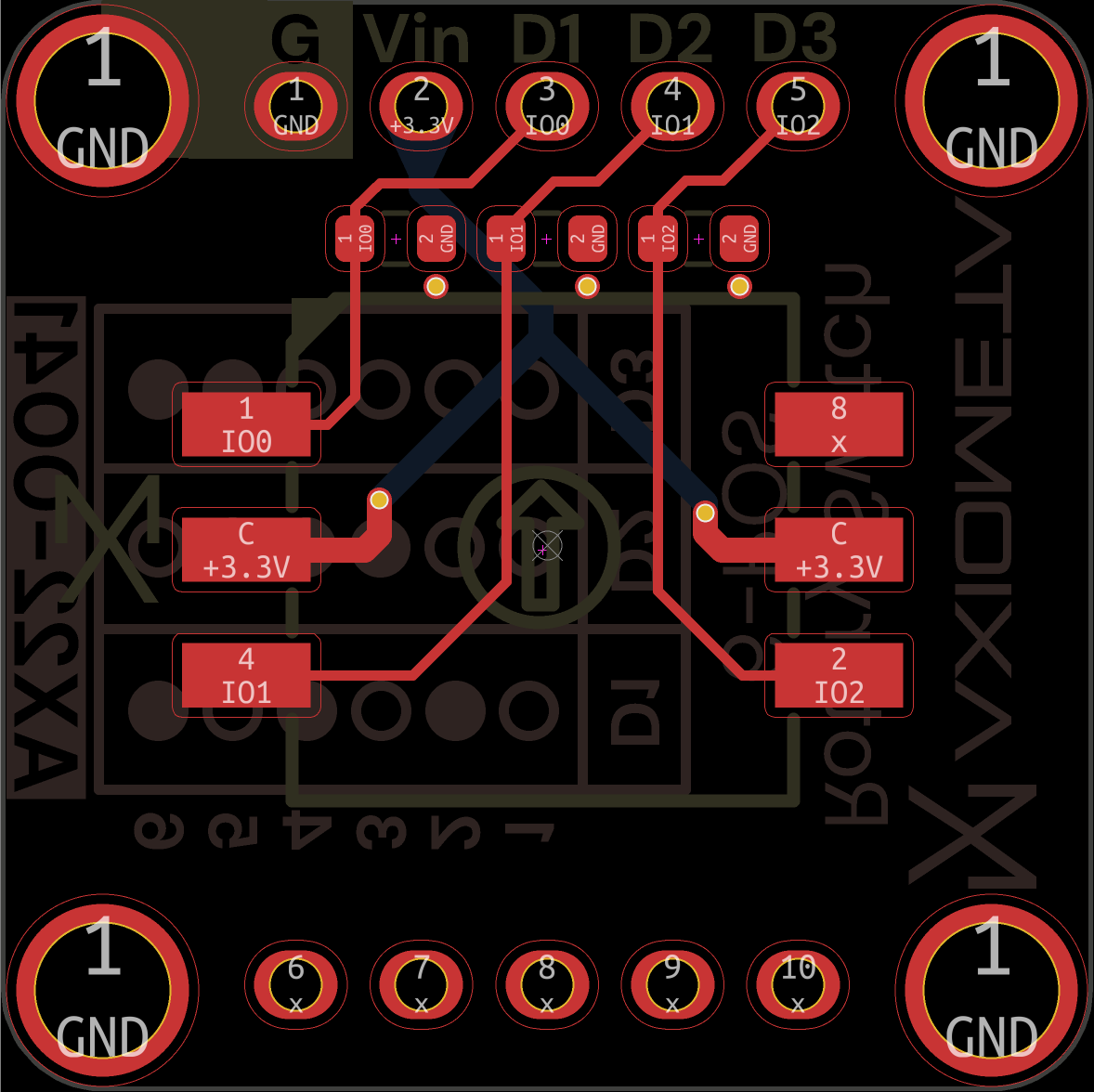

  • Top

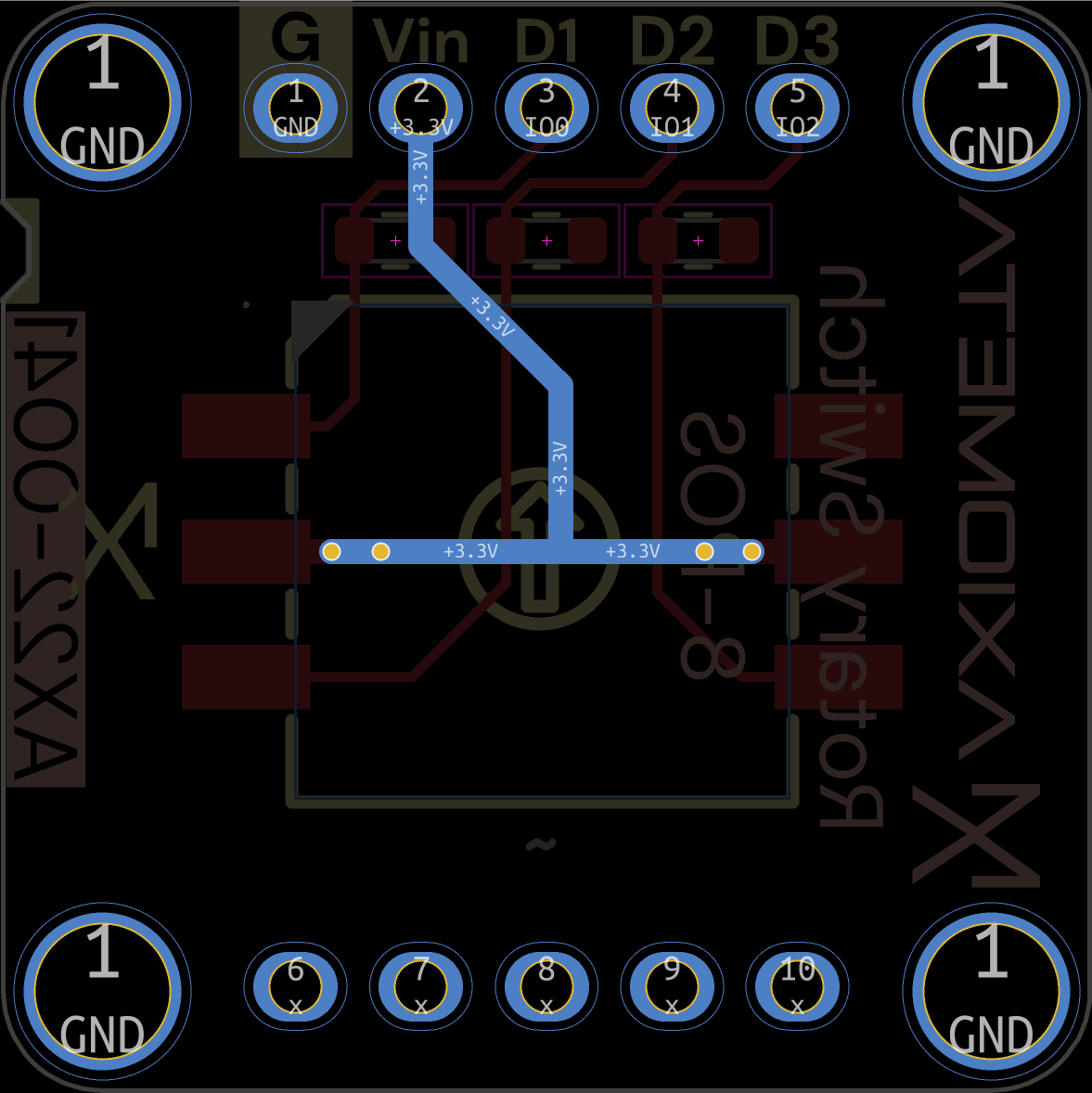

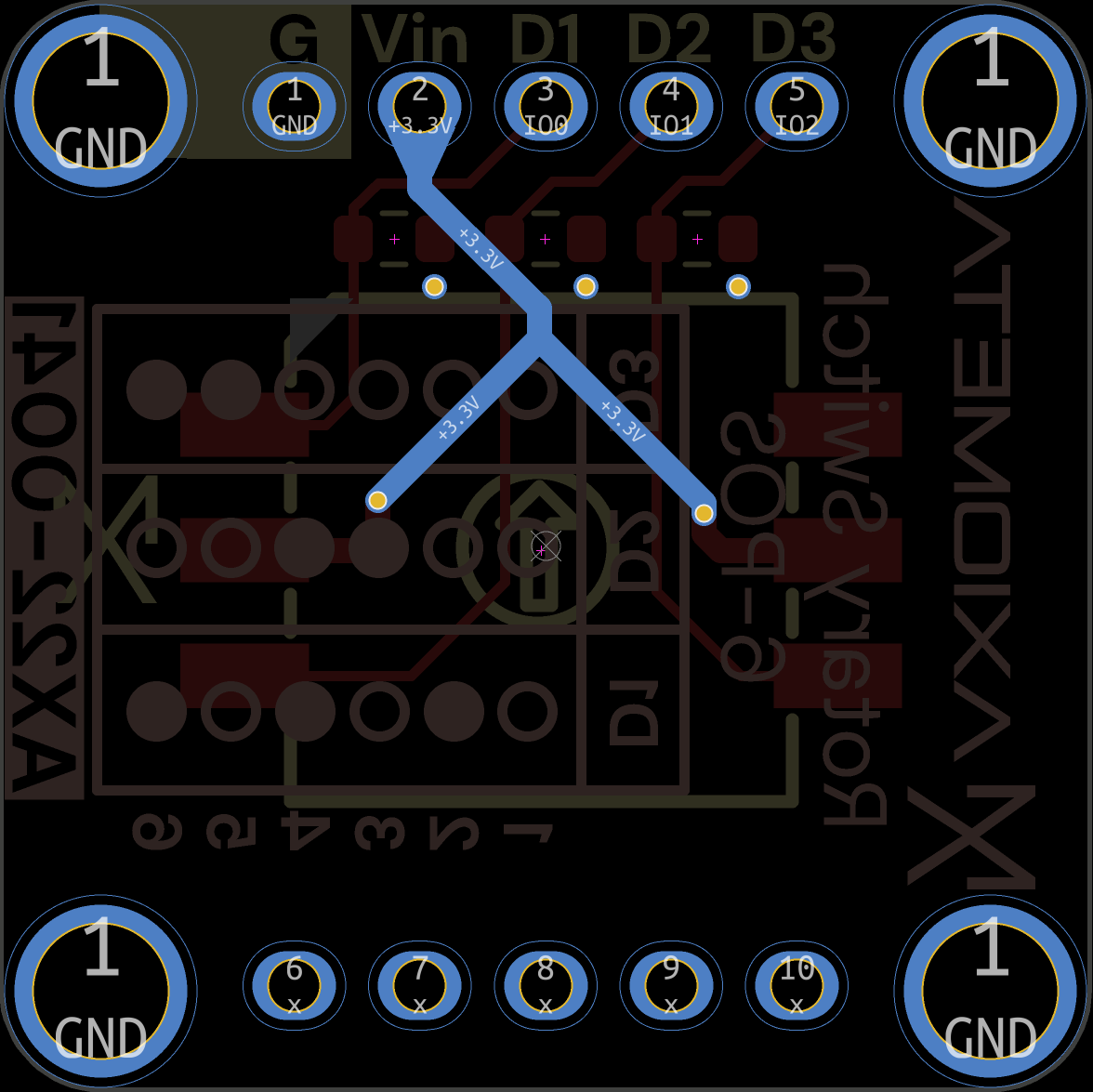

  • Bottom

Arduino Example Code

No code example available.
