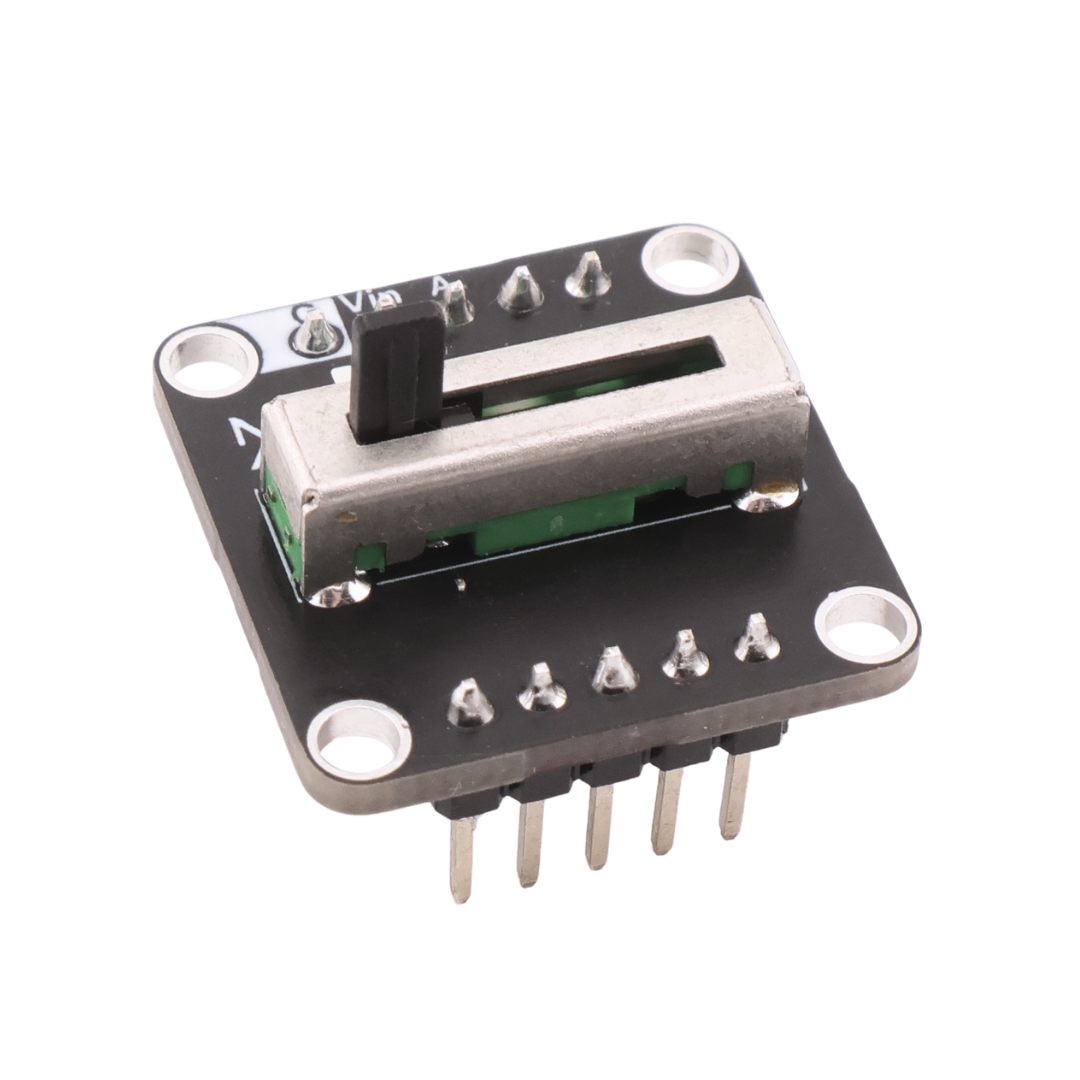

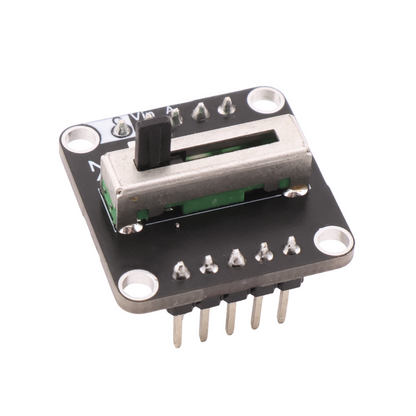

Sliding Potentiometer

Sliding Potentiometer

SKU:AX22-0020

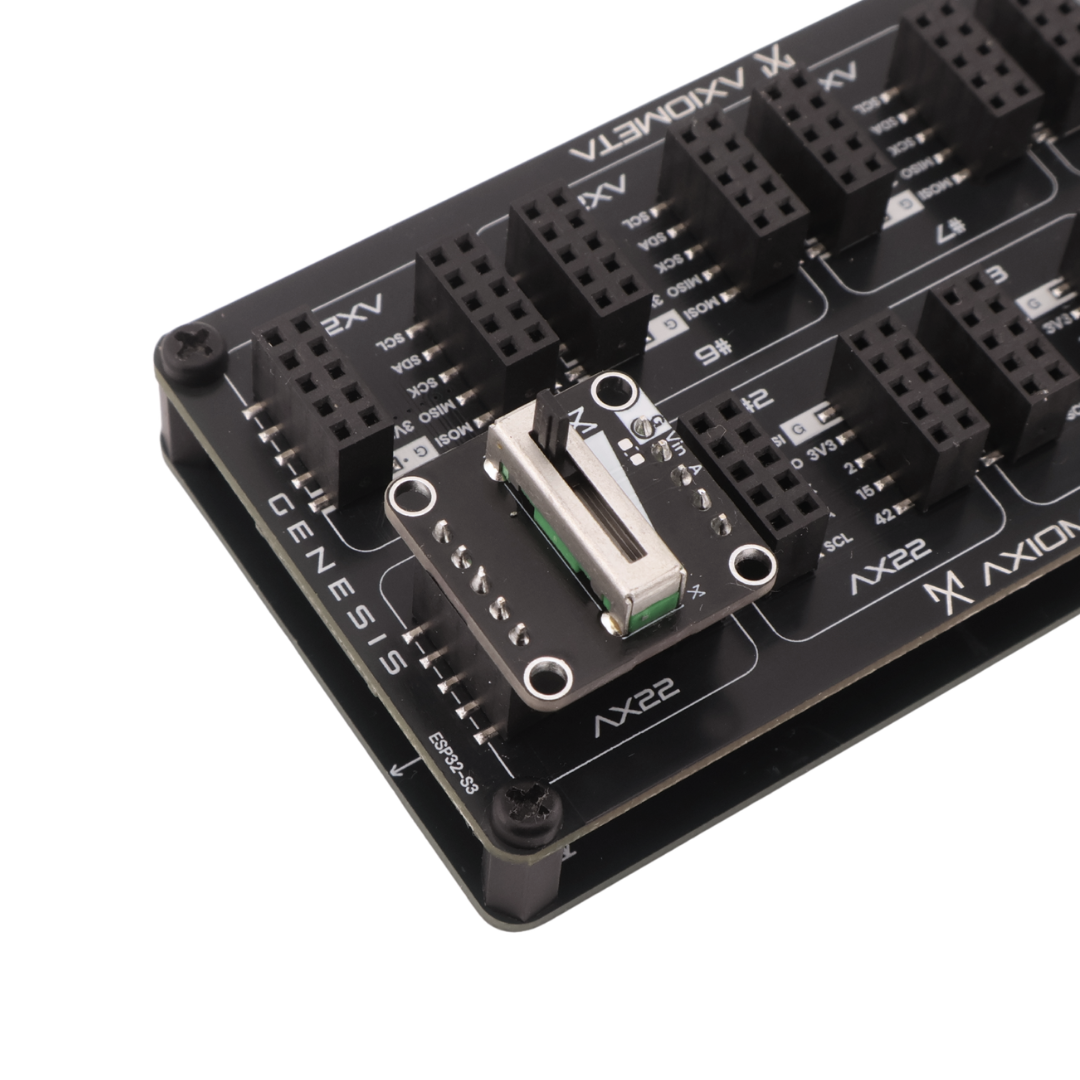

This AX22-sized module features a 1kΩ sliding potentiometer mounted on a 22×22mm board, delivering a variable analog voltage that’s easy to read with any microcontroller. It’s useful for adjusting parameters like brightness, volume, or motor speed, and fits seamlessly into AX22 systems without extra wiring. Ideal for projects such as custom control panels, sensor calibration tools, or interactive gadgets where precise manual input is needed.
$5.49
$5.49
Sale Sold out
View full details

Technical details

  • 22 mm × 22 mm square
  • 4× ⌀2.7 mm Mounting Holes
  • 1 kΩ ±10%
  • 1.8 V, 3.3 V, 5.0 V
  • Arduino IDE Compatible
  • MicroPython Compatible
  • MicroBlocks Compatible

Drag to rotate

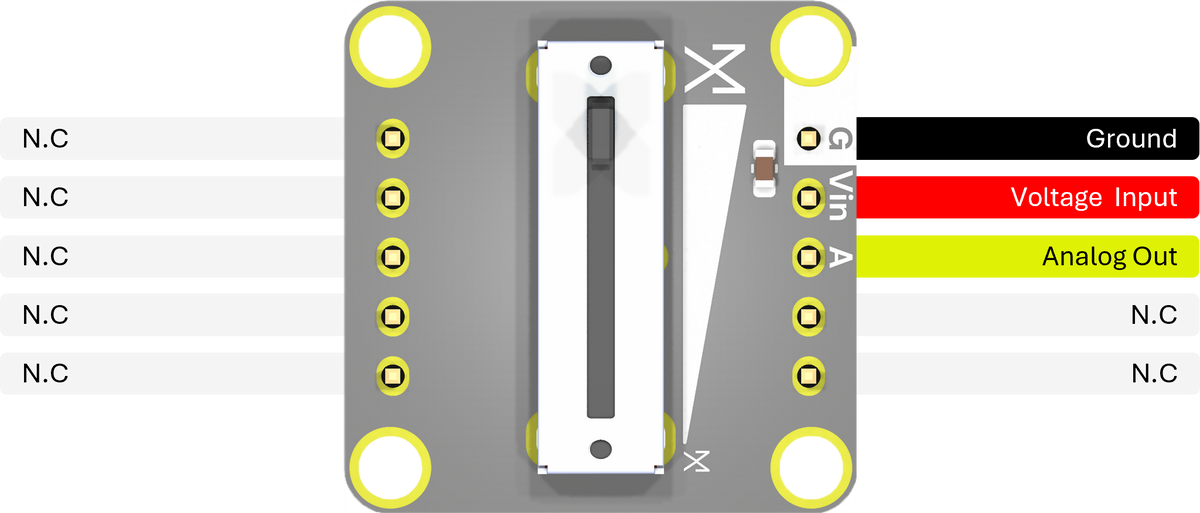

Pinout & connections

Pinout & connections

Technical Resources

Sliding Potentiometer - (AX22-0020)
Circuit Schematic 3D Model

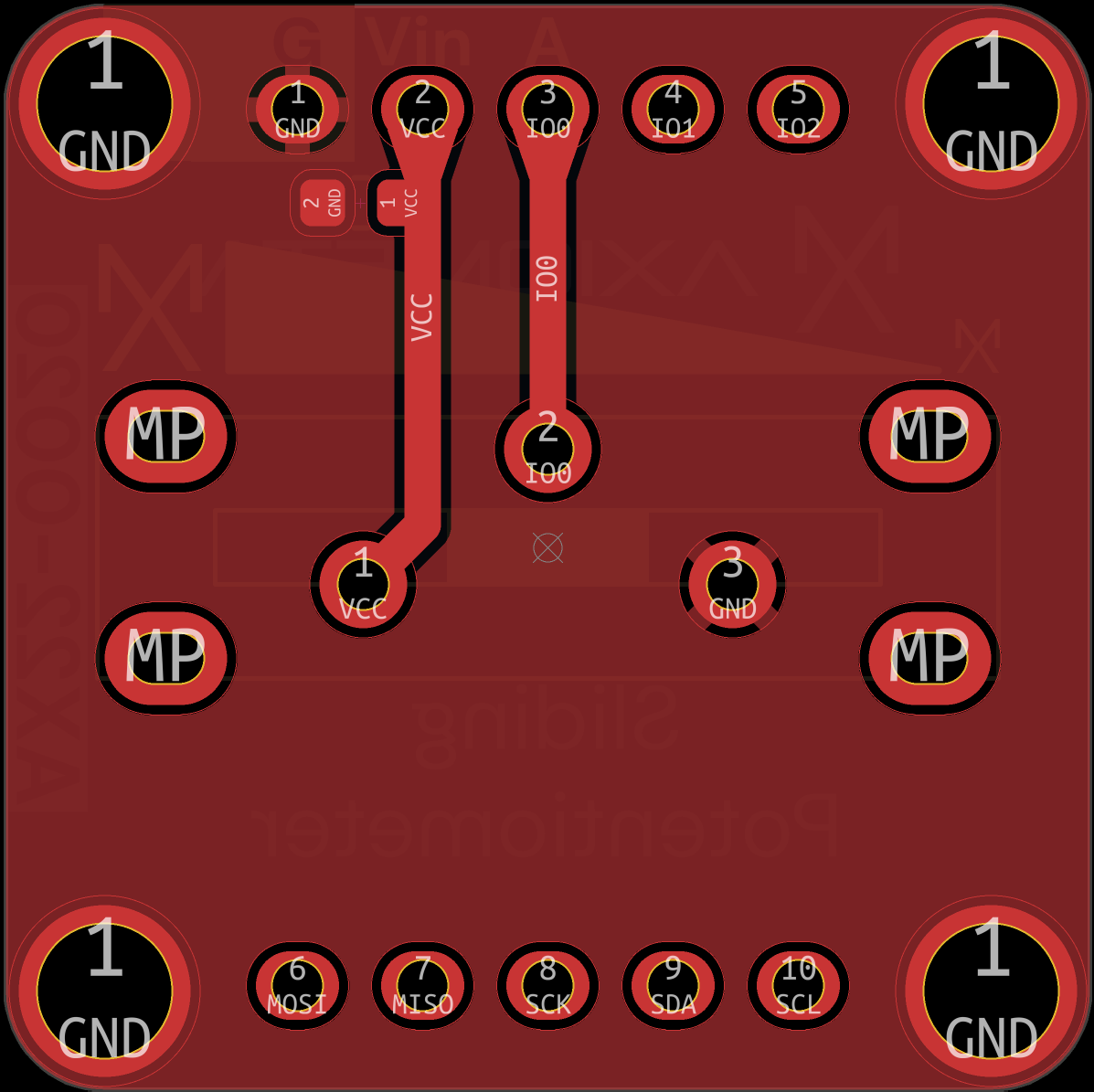

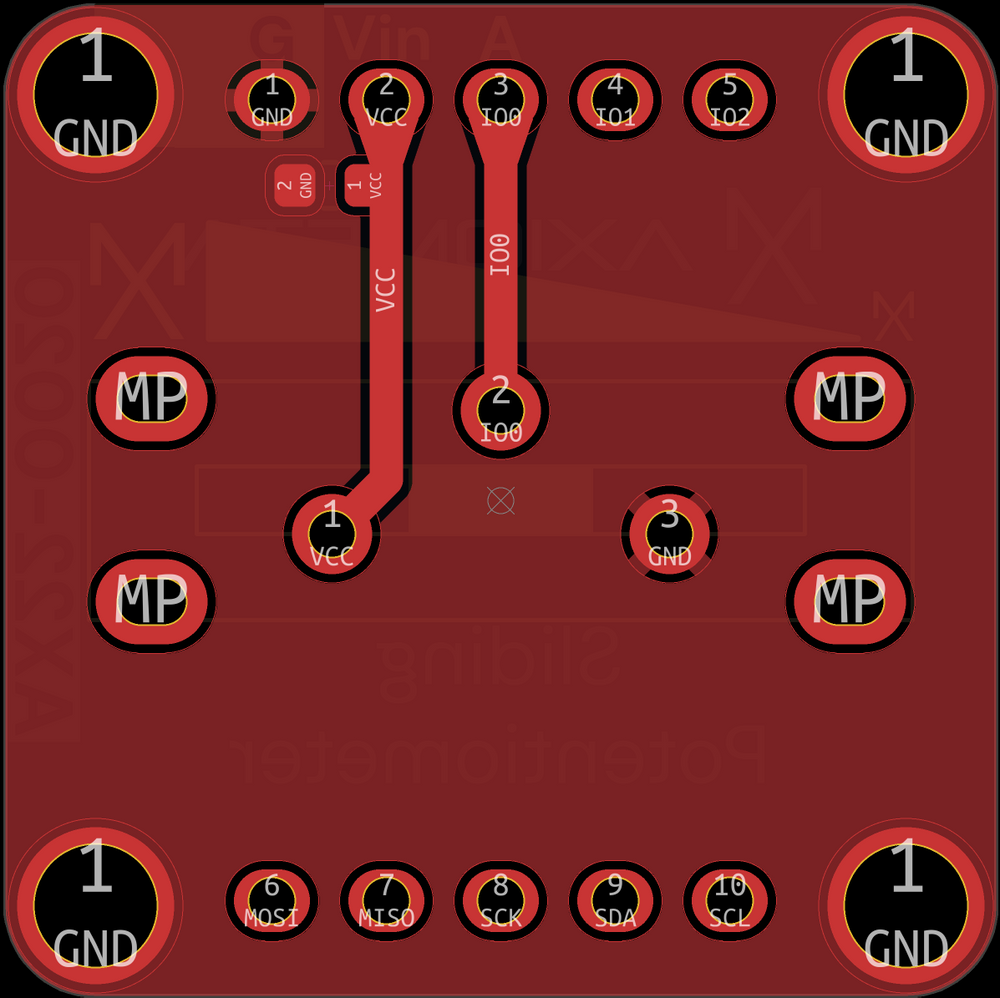

PCB FRONT
Sliding Potentiometer — PCB FRONT

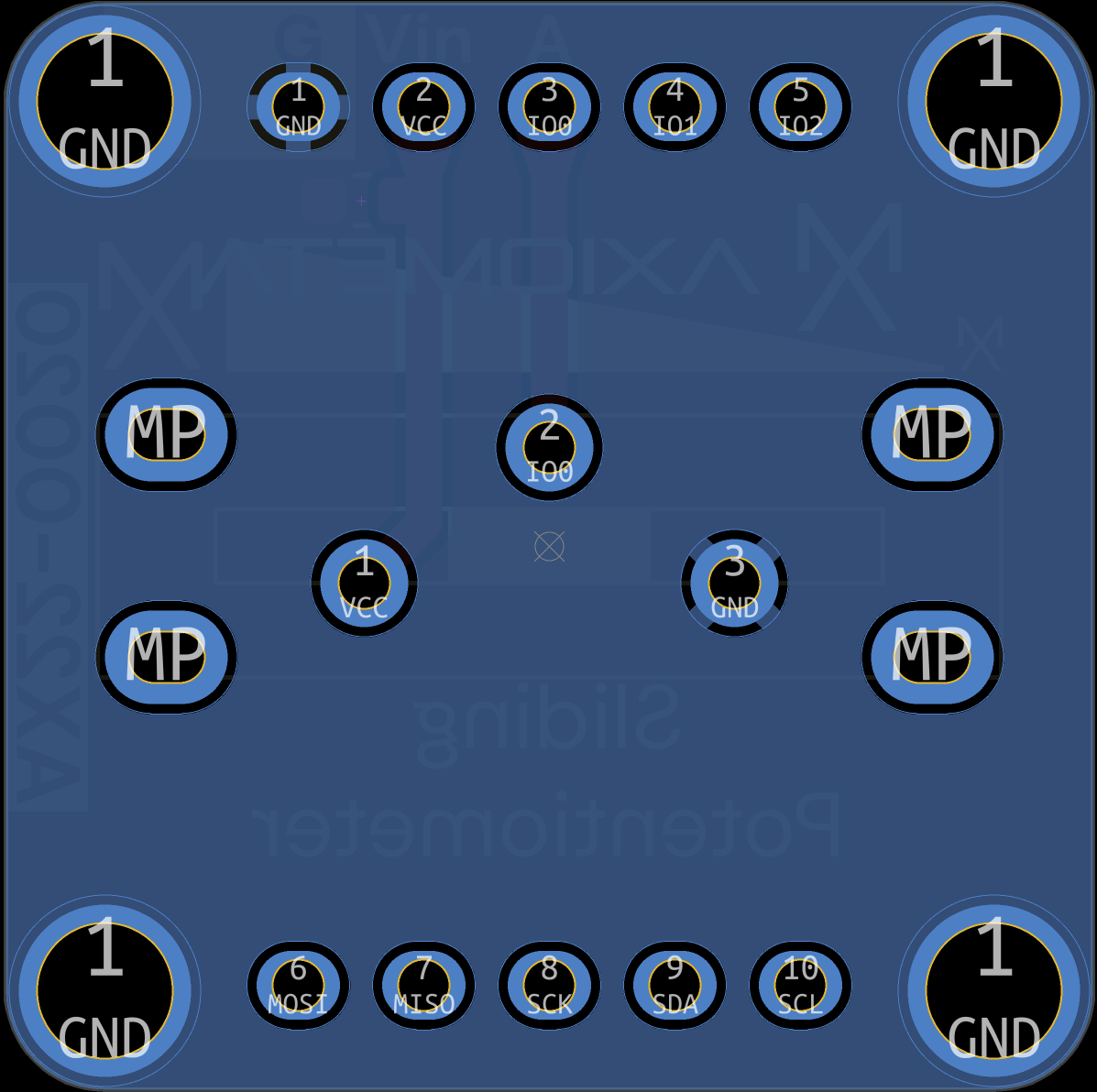

PCB BACK
Sliding Potentiometer — PCB BACK

Drag to rotate

Arduino example

ax22-0020.ino
#define POT_PIN 1

void setup() {
  Serial.begin(9600);
}

void loop() {
  int potValue = analogRead(POT_PIN);

  Serial.print("Potentiometer Value: ");
  Serial.println(potValue);

  delay(10);
}
