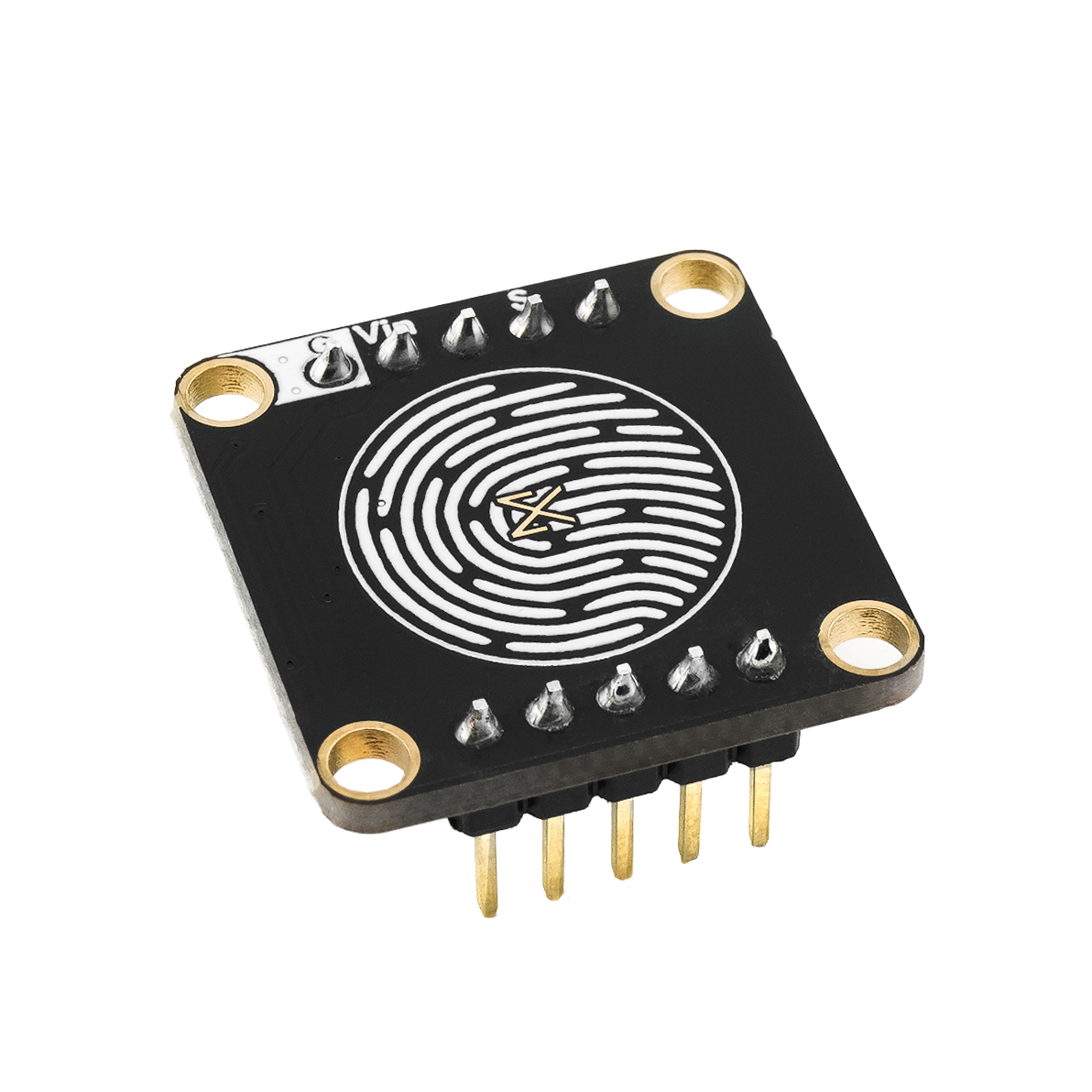

Touchpad (TTP223)

Touchpad (TTP223)

AX22-0056

Detect touch instantly with this TTP223 capacitive touchpad module, a simple for mechanical buttons. The TTP223 senses a finger through the pad (even behind thin plastic or acrylic) and outputs a clean digital signal, making it perfect for touch buttons, control panels, and interactive projects. No complex calibration or signal processing required the onboard controller handles sensitivity and debounce automatically. With low power consumption and fast response, it’s ideal for battery-powered designs and always-on interfaces. Just connect power and a GPIO pin, mount it in your enclosure, and add a sleek, modern touch interface to your Arduino, MicroPython, or MicroBlocks project.

$4.99
$4.99
Sale Sold out
View full details

Technical Details

  • - 22 mm × 22 mm square
    - 4× ⌀2.7 mm mounting holes
    - 3.3 V, 5.0 V
    - Capacitive touch sensing (TTP223)
    - Digital touch output (momentary or toggle)
    - Direct or latched output modes
    - Touch through non-conductive materials
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

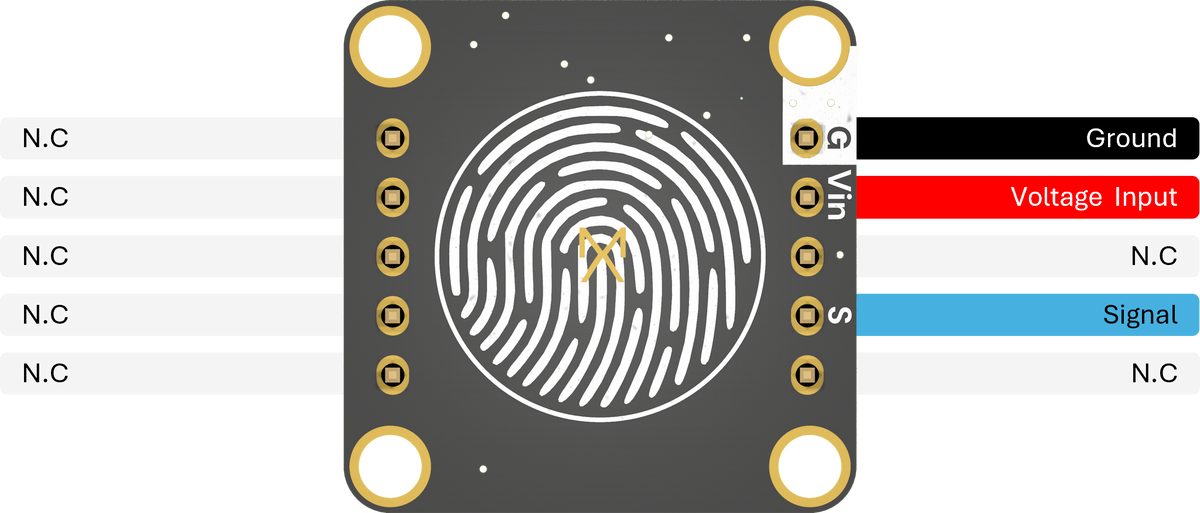

Pinout

Technical Resources

Touchpad (TTP223) - (AX22-0056)
Circuit Schematic 3D Model

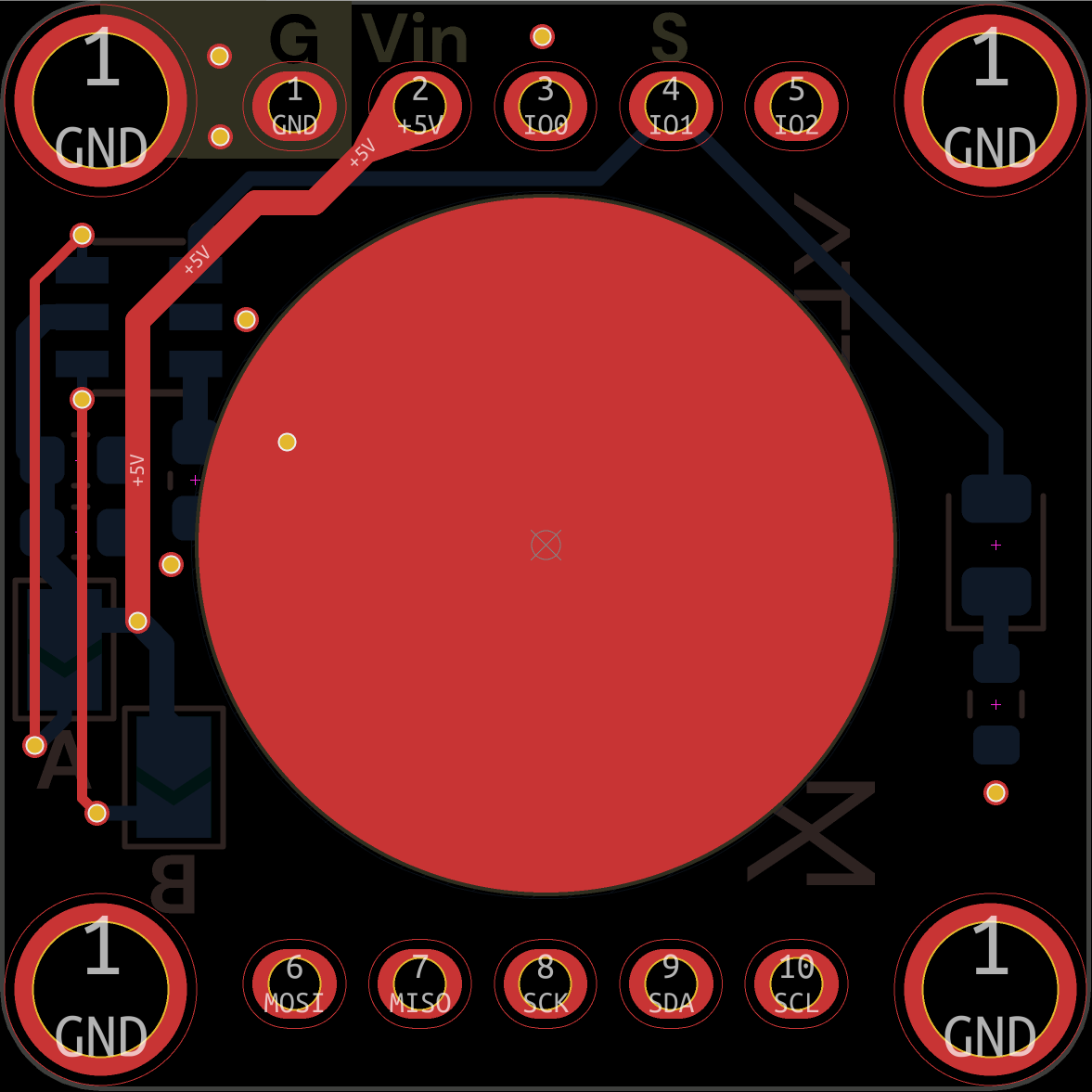

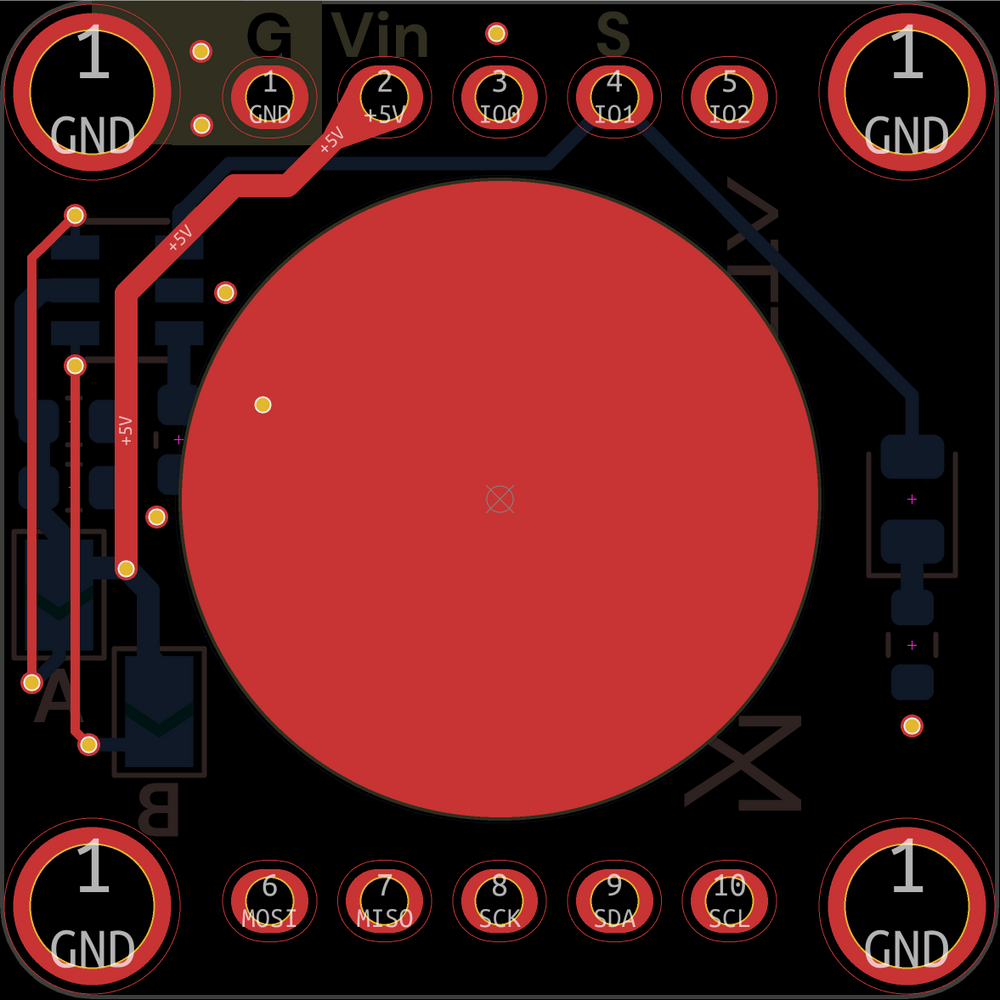

PCB FRONT

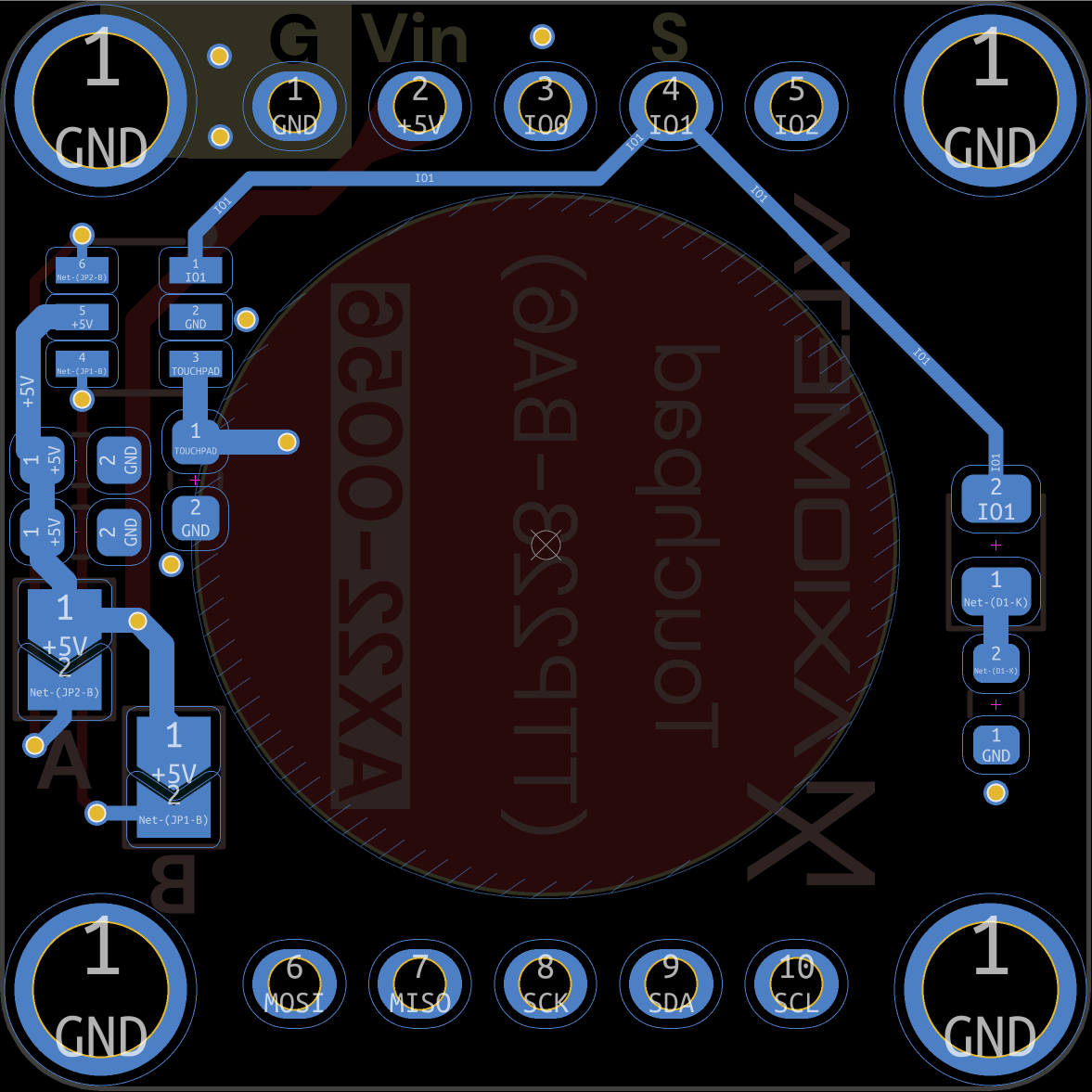

PCB BACK

🟢 Live 3D Model

🖱️ Click & drag to rotate

Arduino Example Snippet

No code example available.
