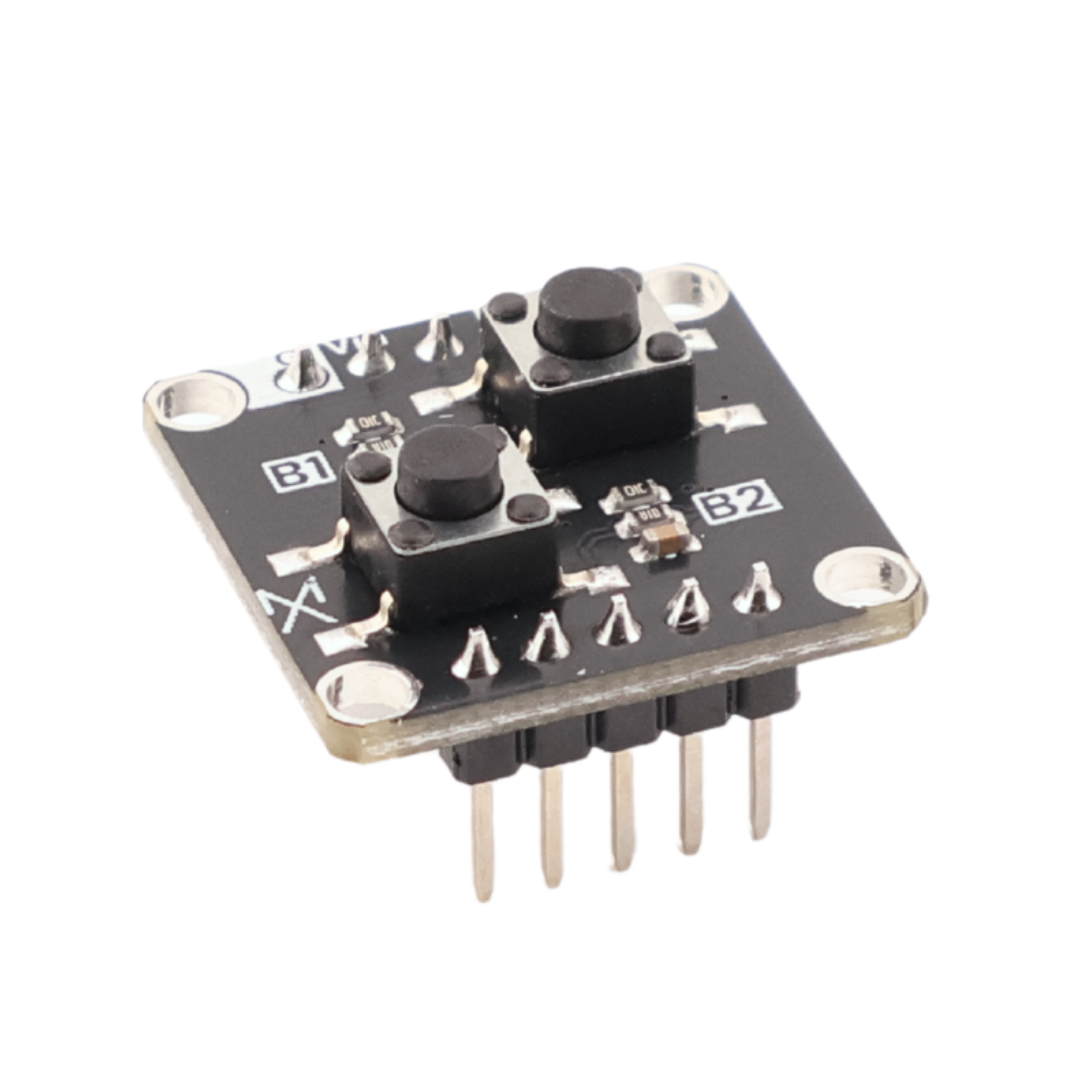

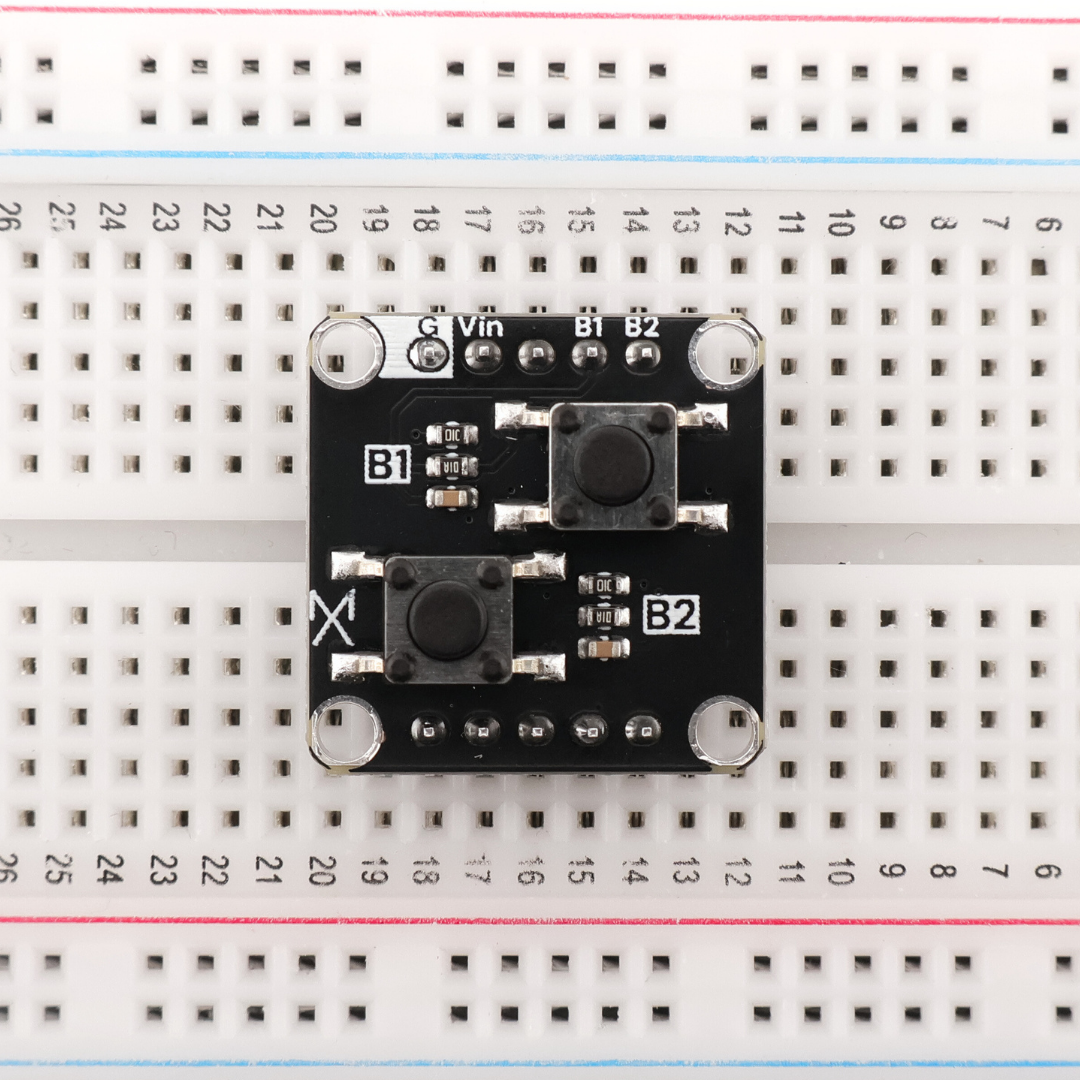

Two Pad

Two Pad

AX22-0017

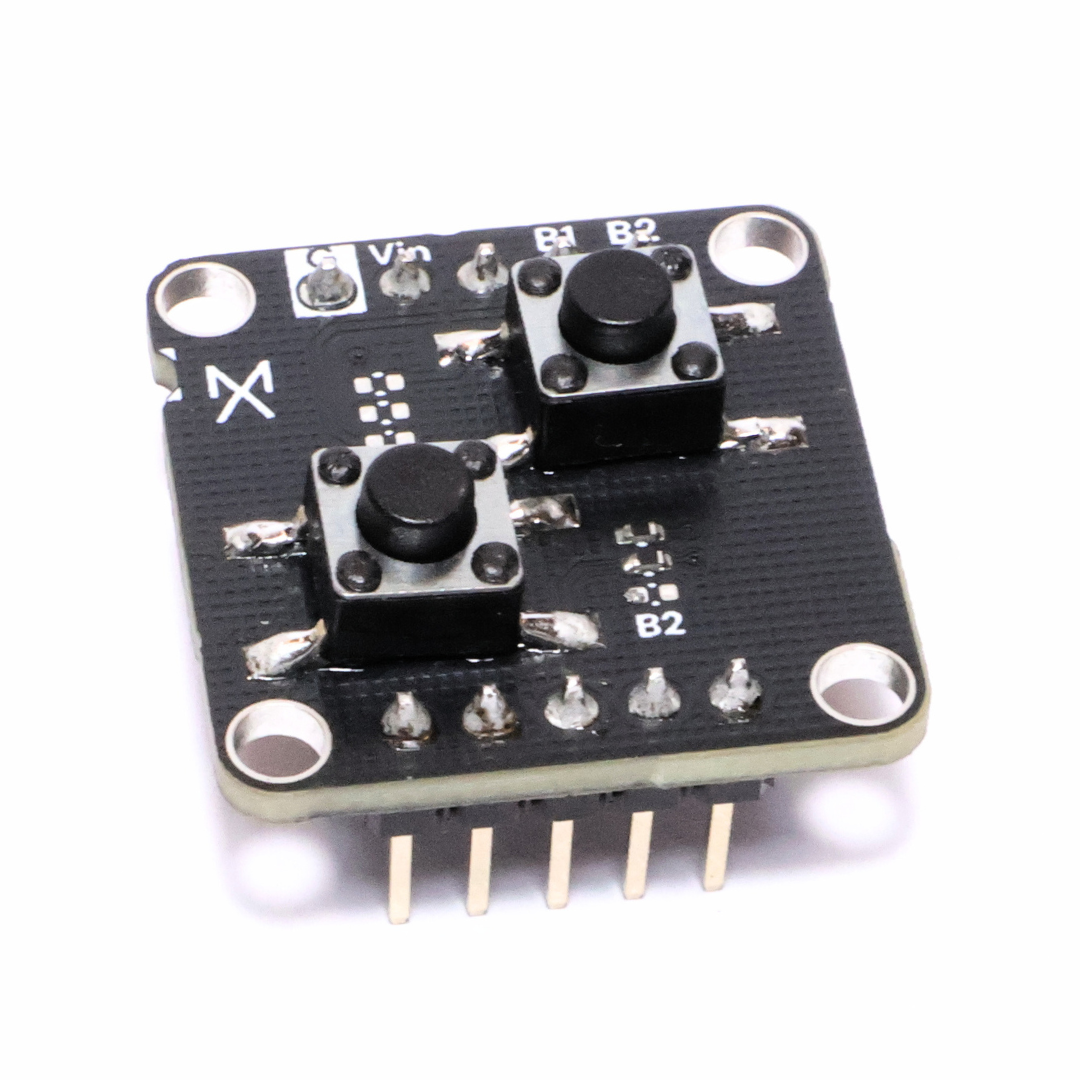

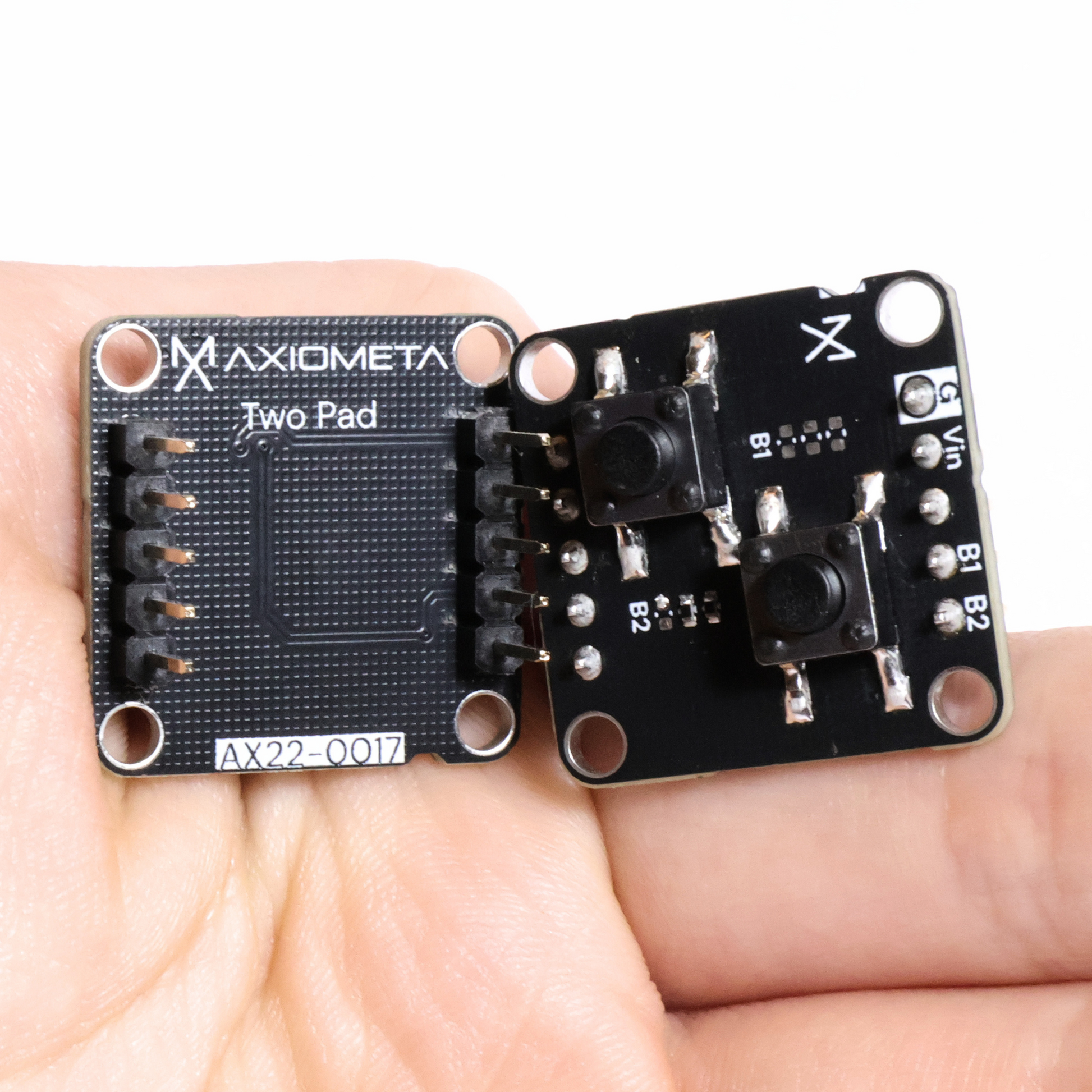

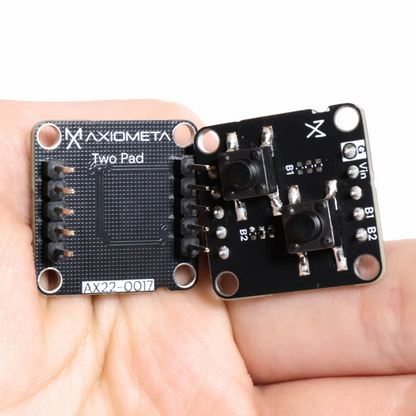

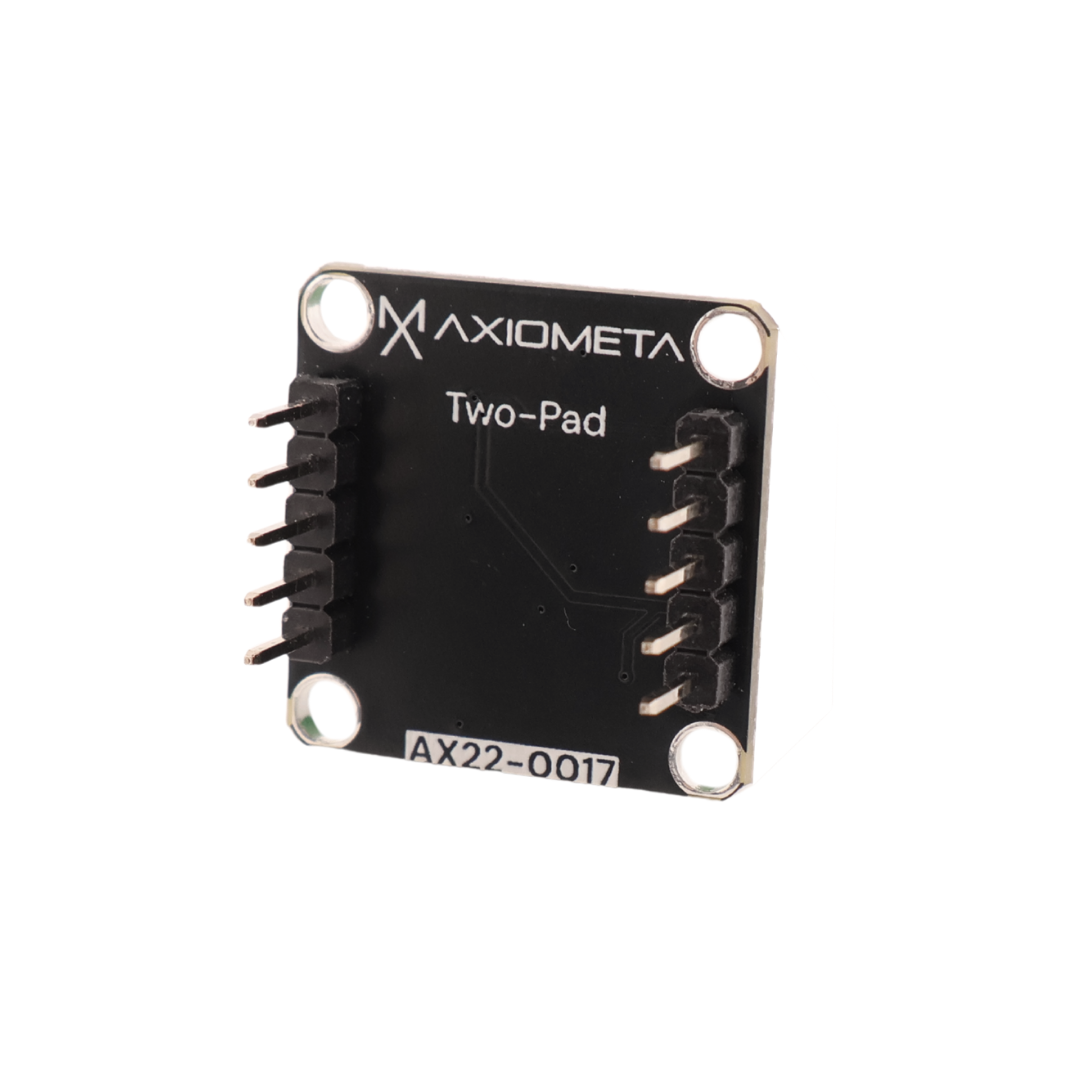

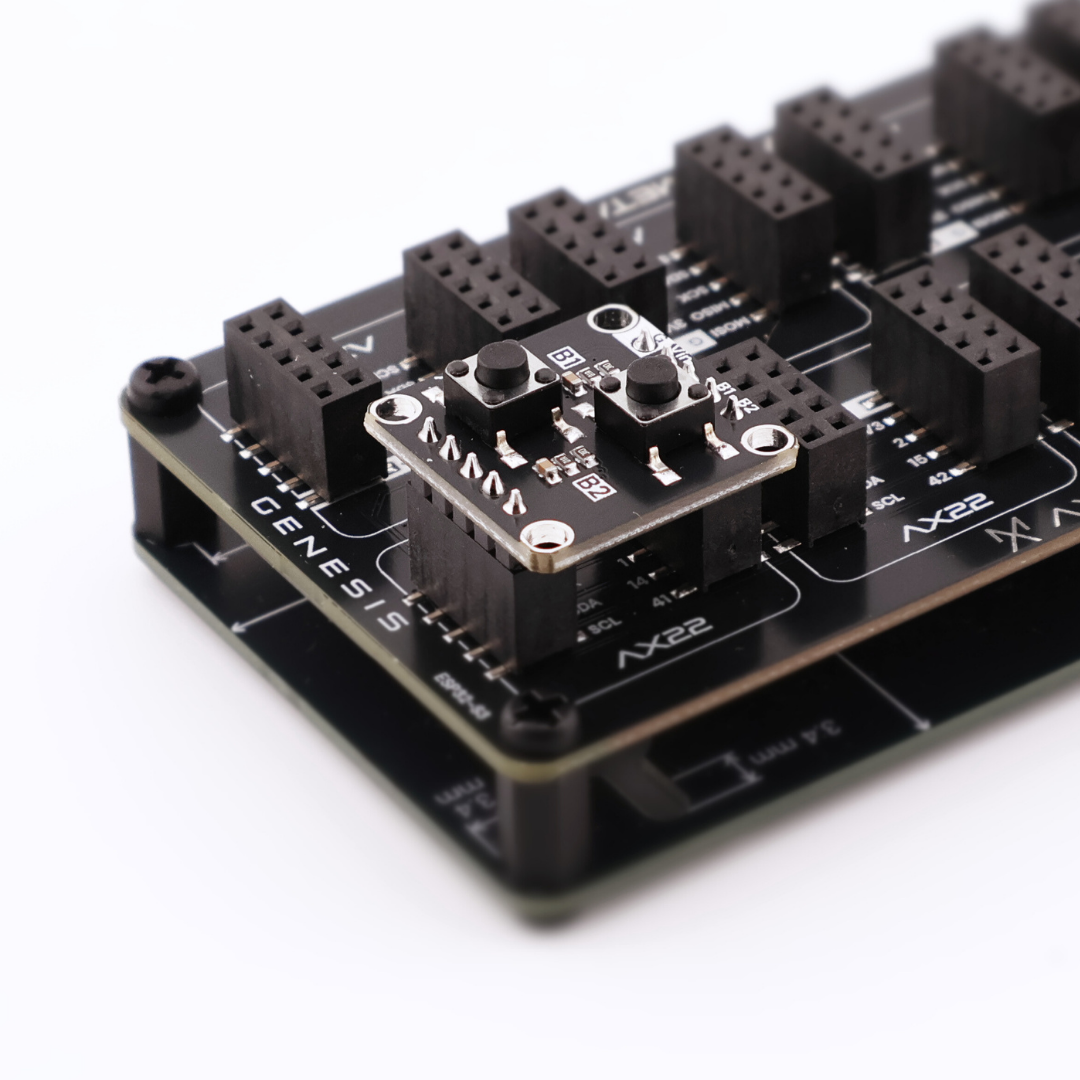

This AX22-sized board mounts two tactile push buttons on a compact 22 × 22 mm PCB in a 45 ° diagonal layout just like the classic “A/B” arrangement on vintage handheld gamepads. Each switch is pre-wired with its own 10 kΩ pull-up resistor and debounce. Drop it into any AX22 backplane to add game-style input, dual-function menu selects, or start/stop control in seconds, whether you’re coding in the Arduino IDE, MicroPython, or MicroBlocks.
$2.49
$2.49
Sale Sold out
View full details

Technical Details

  • - 22 mm × 22 mm square
    - 4× ⌀2.7 mm Mounting Holes
    - 2x Seperate Digital Outputs
    - 1.8 V, 3.3 V, 5.0 V
    - Arduino IDE Compatible
    - MicroPython Compatible
    - MicroBlocks Compatible

    Material Datasheet

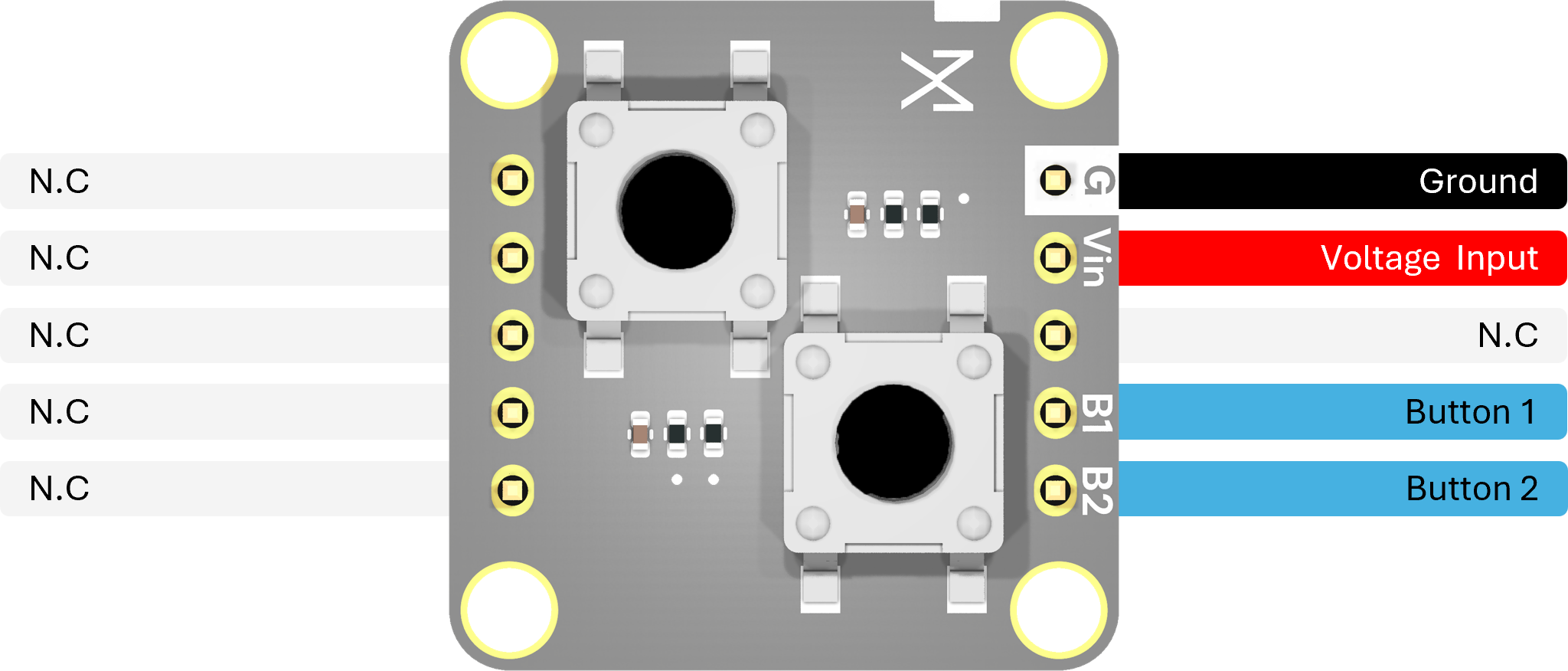

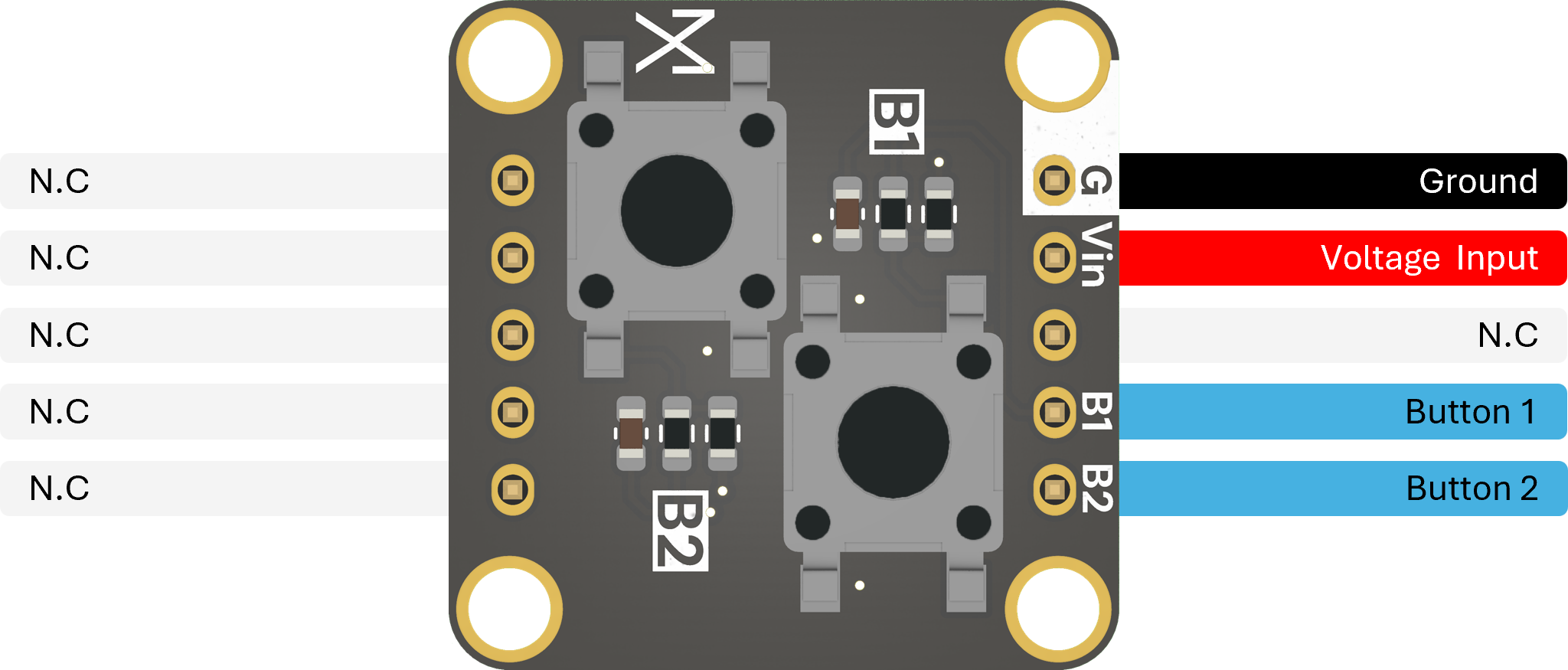

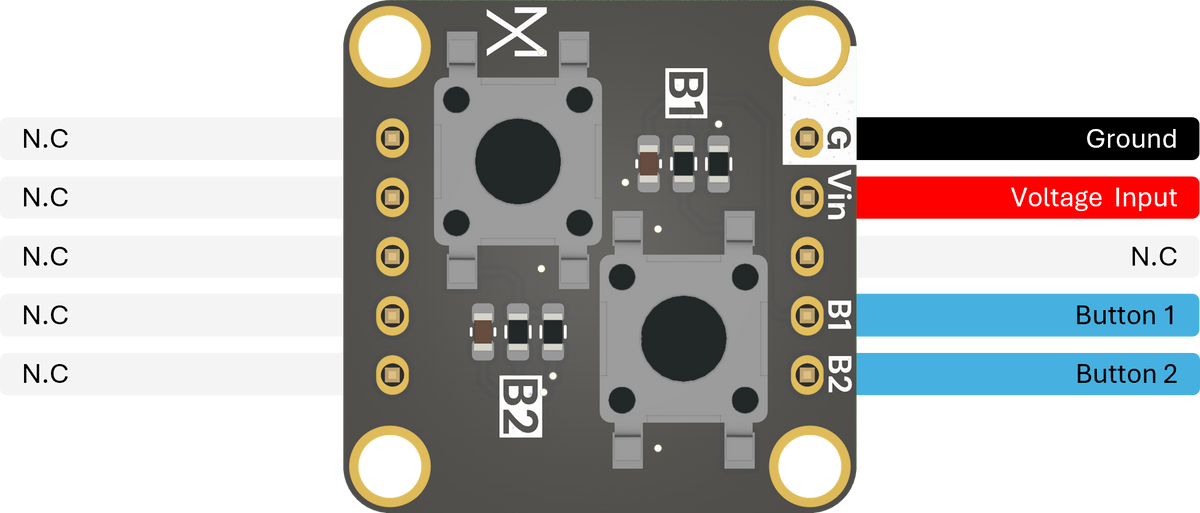

Pinout

Technical Resources

Two Pad - (AX22-0017)
Circuit Schematic 3D Model

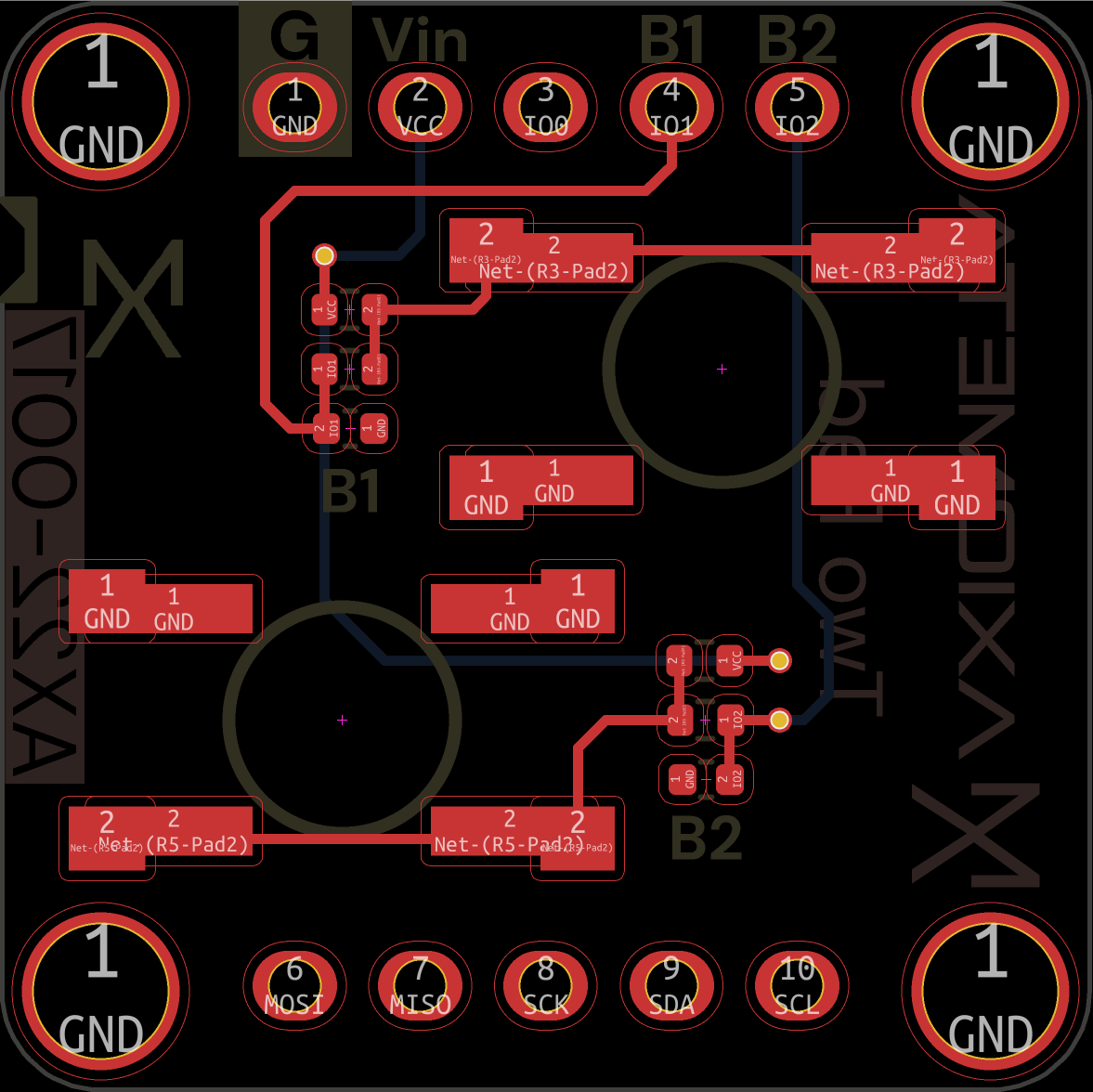

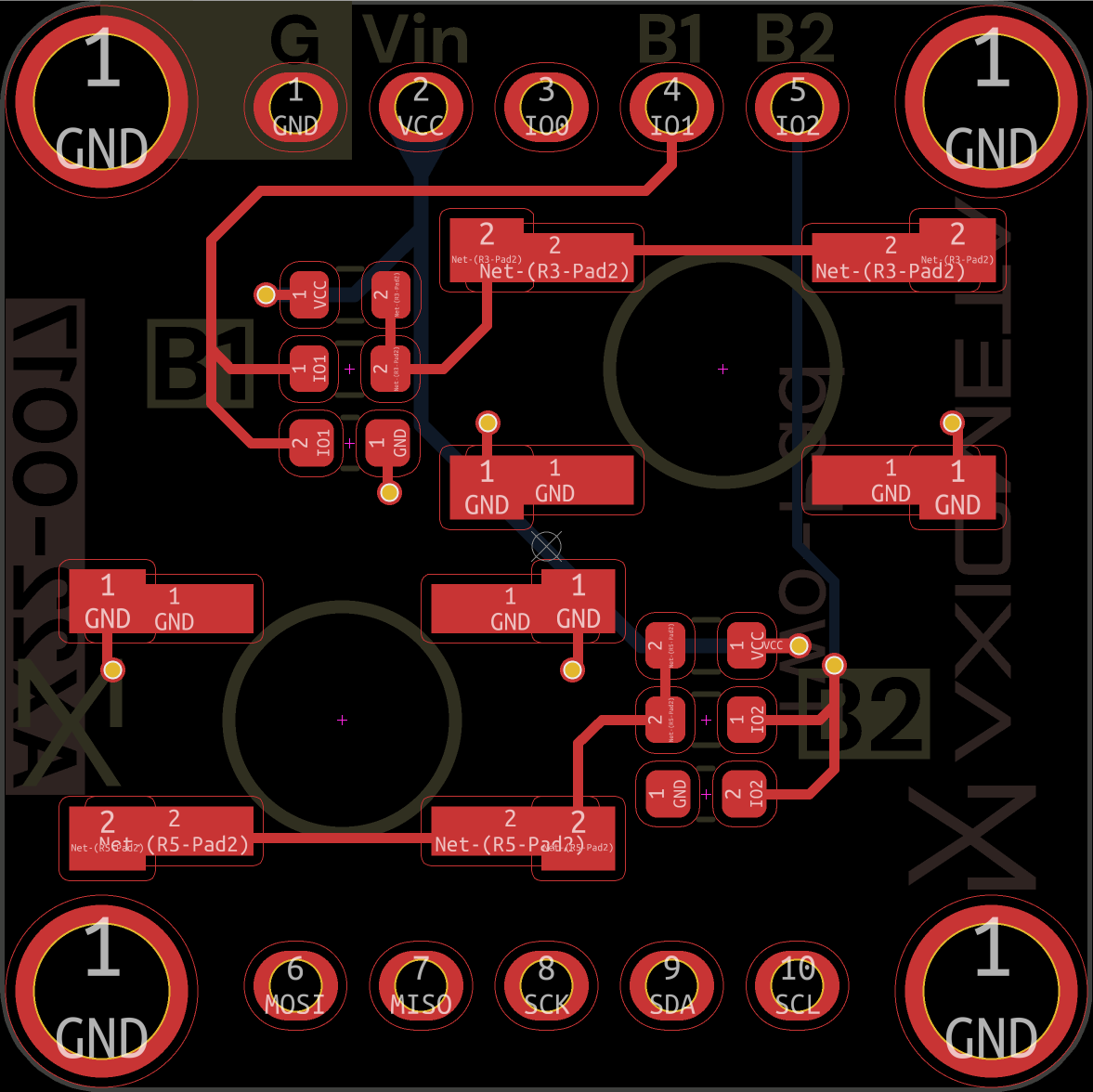

PCB FRONT

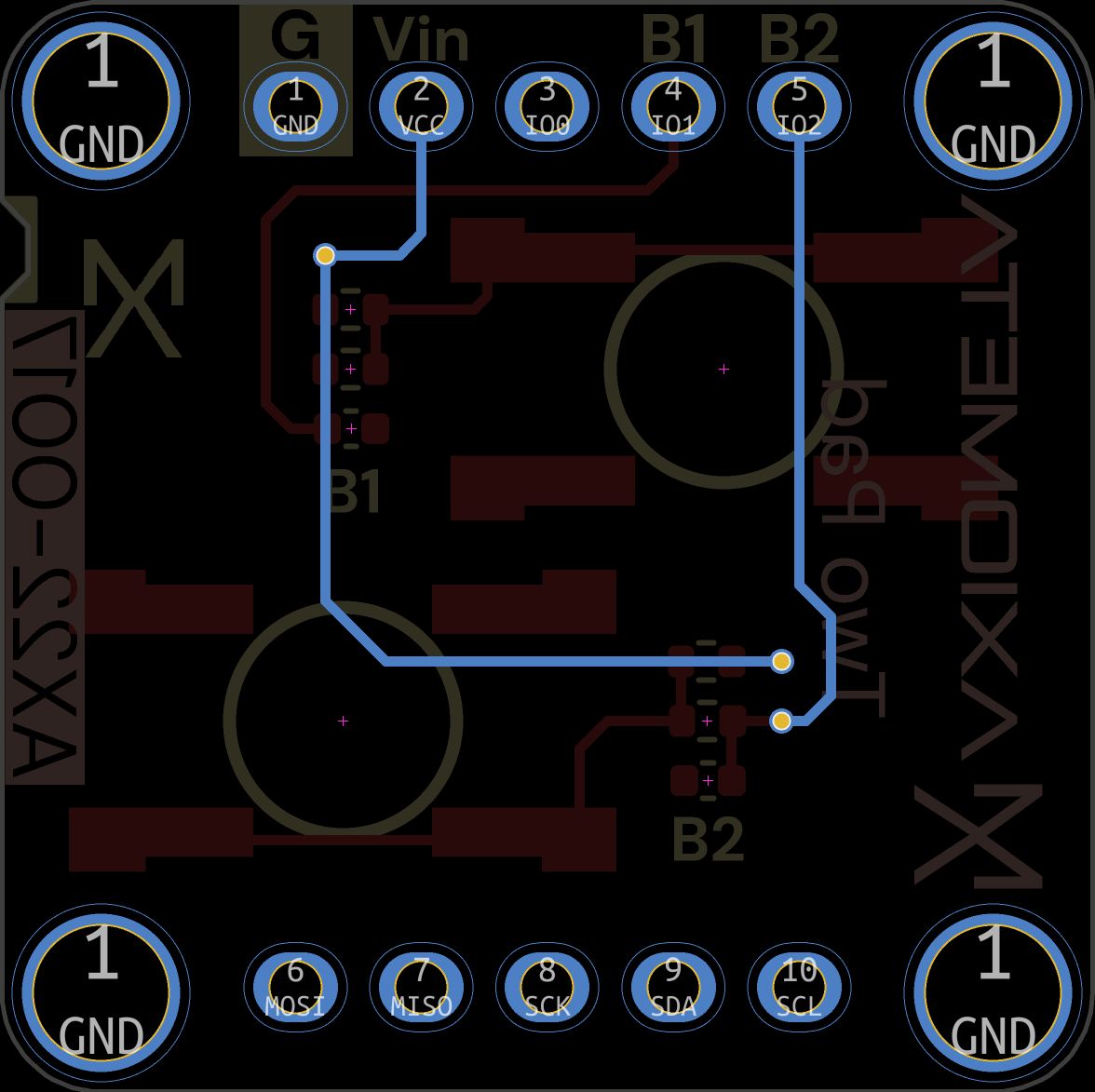

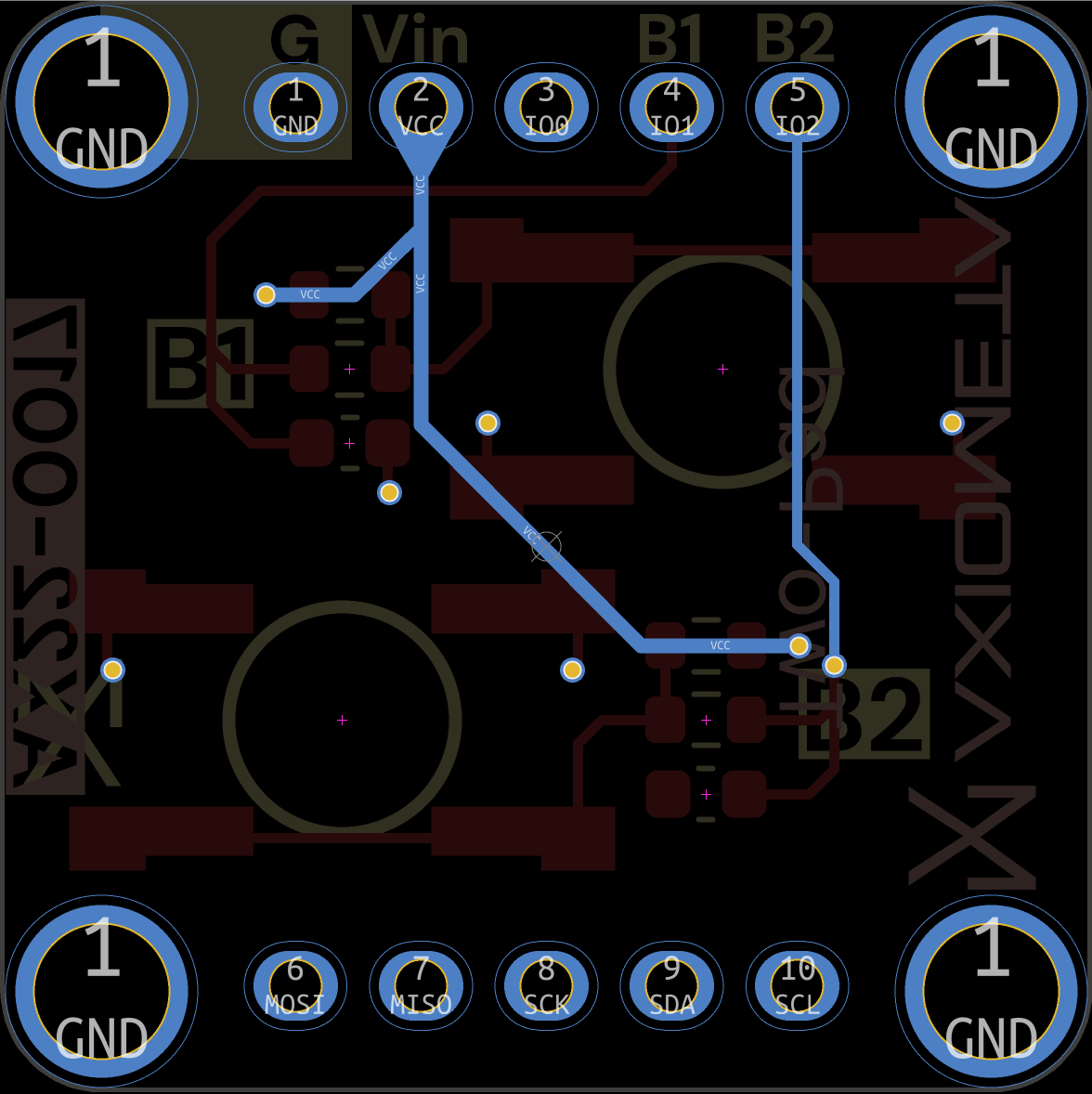

PCB BACK

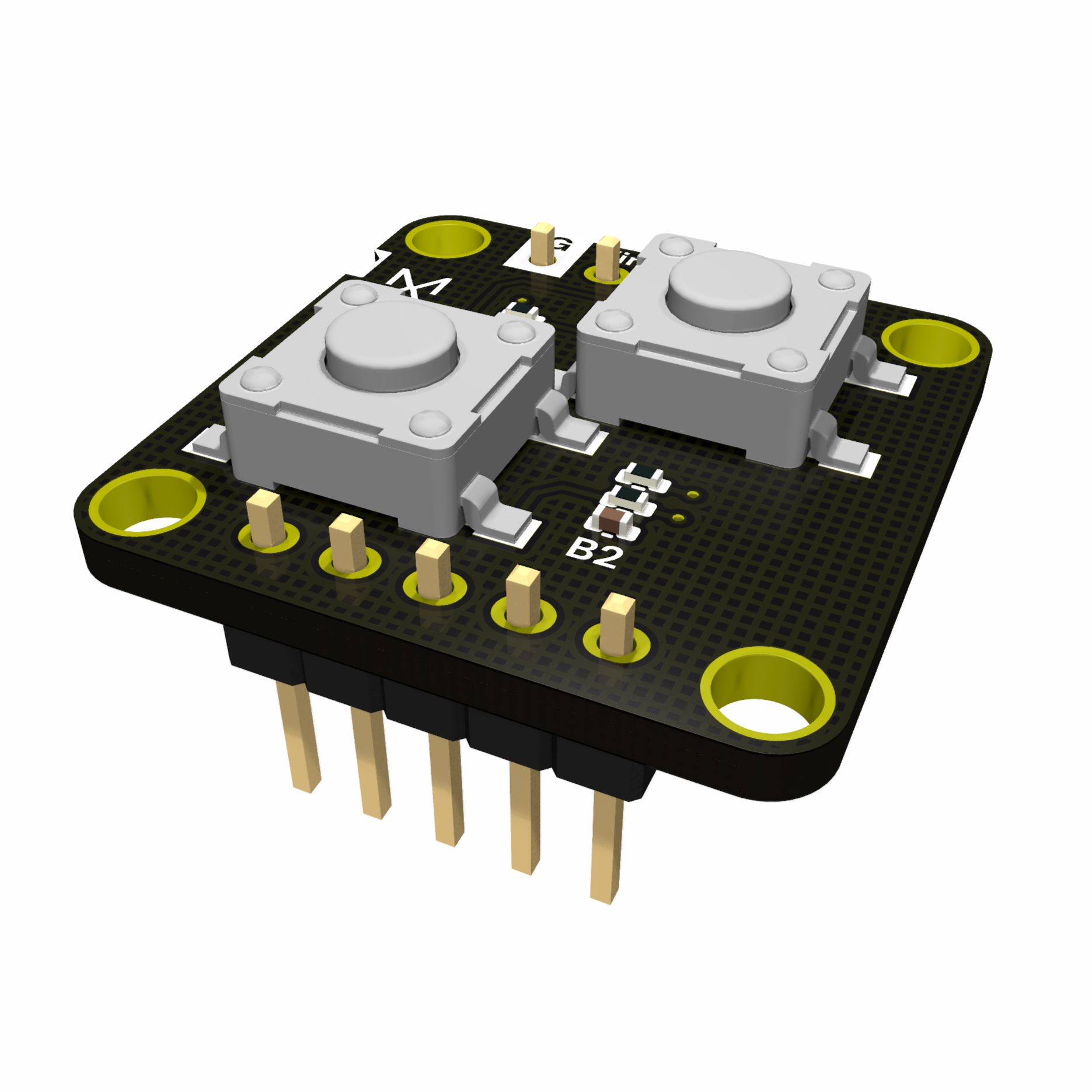

🟢 Live 3D Model

🖱️ Click & drag to rotate

Arduino Example Snippet

#define PIN_BTN1 14  // IO1
#define PIN_BTN2 41  // IO2

void setup() {
  pinMode(PIN_BTN1, INPUT_PULLUP);
  pinMode(PIN_BTN2, INPUT_PULLUP);
  Serial.begin(9600);
}

void loop() {
  if (!digitalRead(PIN_BTN1)) {
    Serial.println("Button 1 Pressed");
  }

  if (!digitalRead(PIN_BTN2)) {
    Serial.println("Button 2 Pressed");
  }
}
